S400SX4 S475 T6 Twin Scroll Turbo + T6 Universal Turbo Heat Shield Combo | 550-1050HP

Turbo Fitment:

for DDC-MTU Truck with Series 60 Engine 2000-2008
for Navistar Truck with Series 60 Engine 2000-2008
for Int Harvester Truck with Series 60 Engine 2000-2008
for 4.0L-6.0L Car engine

Heat Shield Fit: Universal for All T6 Exhaust Housing Turbos

Condition: 100% Brand New (Turbo + Heat Shield)

Replacement Part Numbers:

171702, 171703, 171691, 171701, 23518588,

23518567, 23518597, 23523197, 2585838C91,

S400SX4, S475, S400, T6

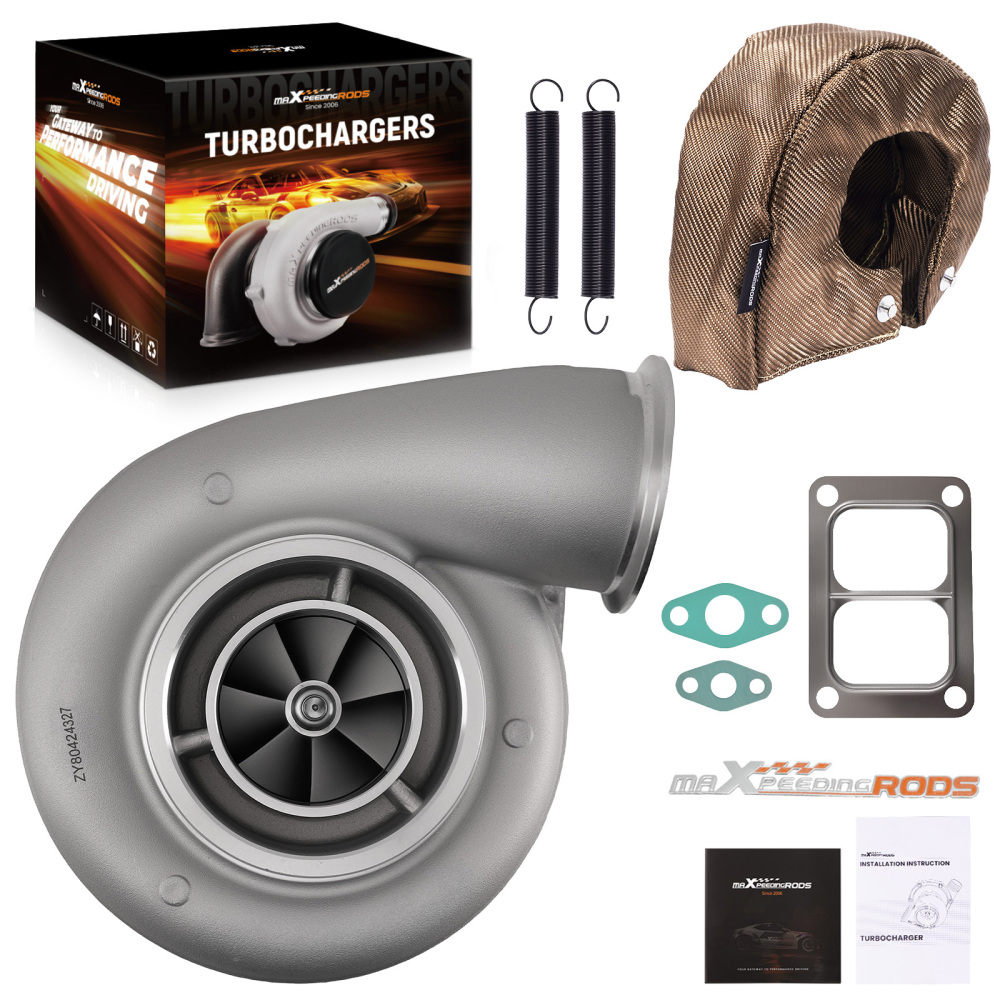

Package Includes:

• 1x Turbocharger
• 1x Turbo Heat Shield
• (Exactly as Shown in Product Images)

Turbocharger Specifications

Turbine:

• Turbine A/R: 1.32
• Turbine Inducer: 95.7mm
• Turbine Exducer: 88.1mm
• Turbine Trim: 84.7
• Turbine Wheel: 10 Blades
• Turbine Exhaust Inlet: Twin Scroll T6 Flange
• Turbine Exhaust Outlet: 5″ Compatible for Marmon S400
• Wastegate: W/O Wastegate

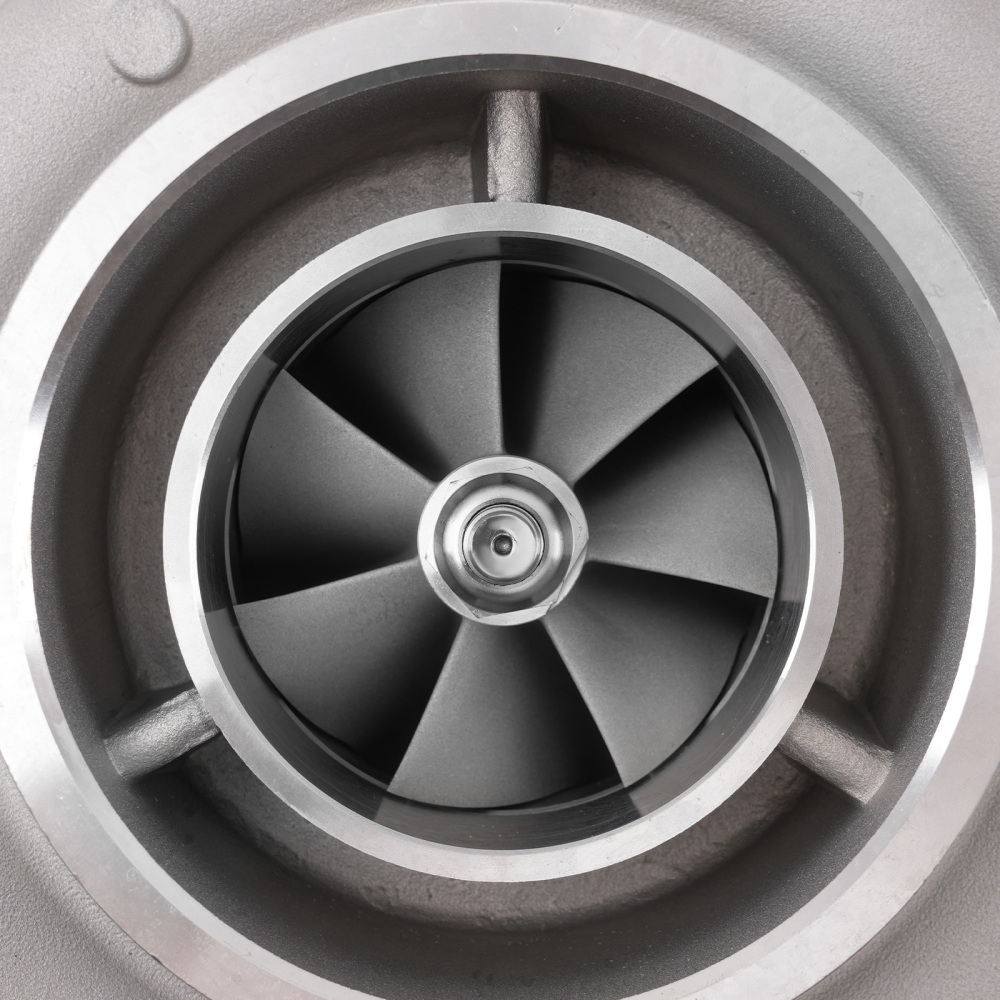

Compressor:

• Compressor Inducer: 74.5mm
• Compressor Exducer: 107mm
• Compressor Trim: 48.5
• Compressor Wheel: 7+7 Blades
• Compressor Air Inlet: 5.00" ported anti-surge
• Compressor Air Outlet: 4.21" charge pipe outlet

Oil & Cooling:

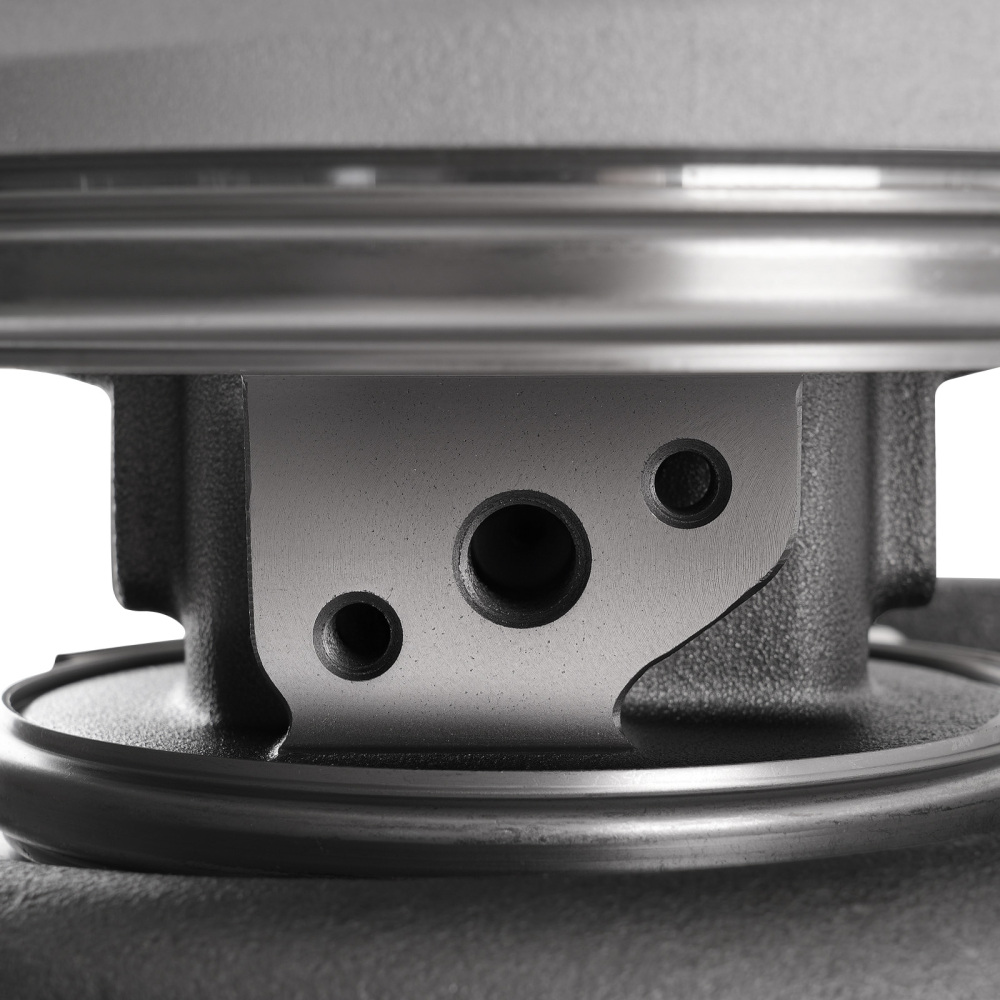

• Oil Inlet: 1/4"-19 & M8H
• Oil Outlet: 2M81
• Cooling Type: Oil Cooling
• Bearing Type: Journal Bearing
• Thrust Bearing: 270 degree
•
• Turbo Model: S400S062
• Engine Code: Series 60
• Turbo Type: Twin Scroll
• Horsepower: 550-1050 HP
• Package Size: 38x35x35 cm
• Package Weight: 23000g

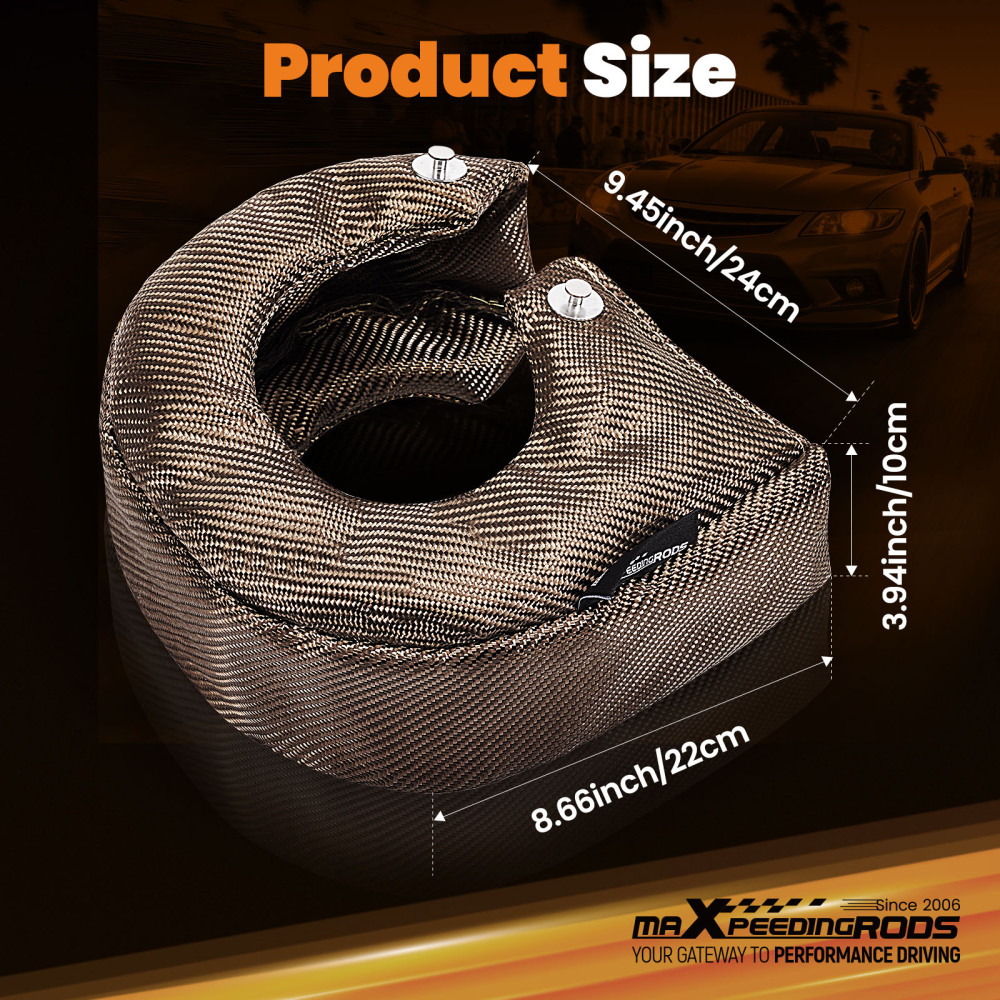

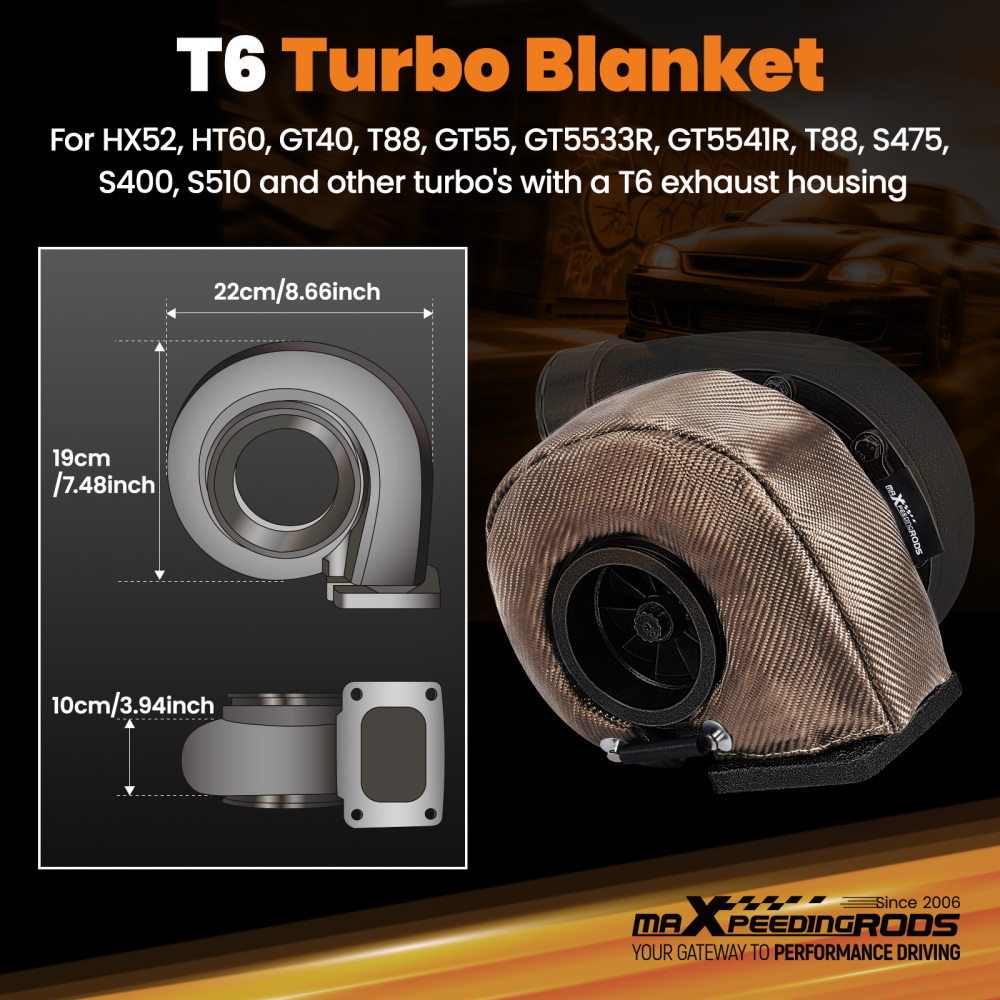

T6 Universal Turbo Heat Shield Specifications

• Fit: Universal for T6 Exhaust Housing Turbos (HX52/HT60/GT40/T88/GT55/GT5533R/GT5541R/S475/S400/S510 & More)
• Material: Basalt Fiber/Titanium Fiber
• Heat Resistance: Up to 800°C
• Condition: 100% Brand New

Turbocharger Material & Features

Material:

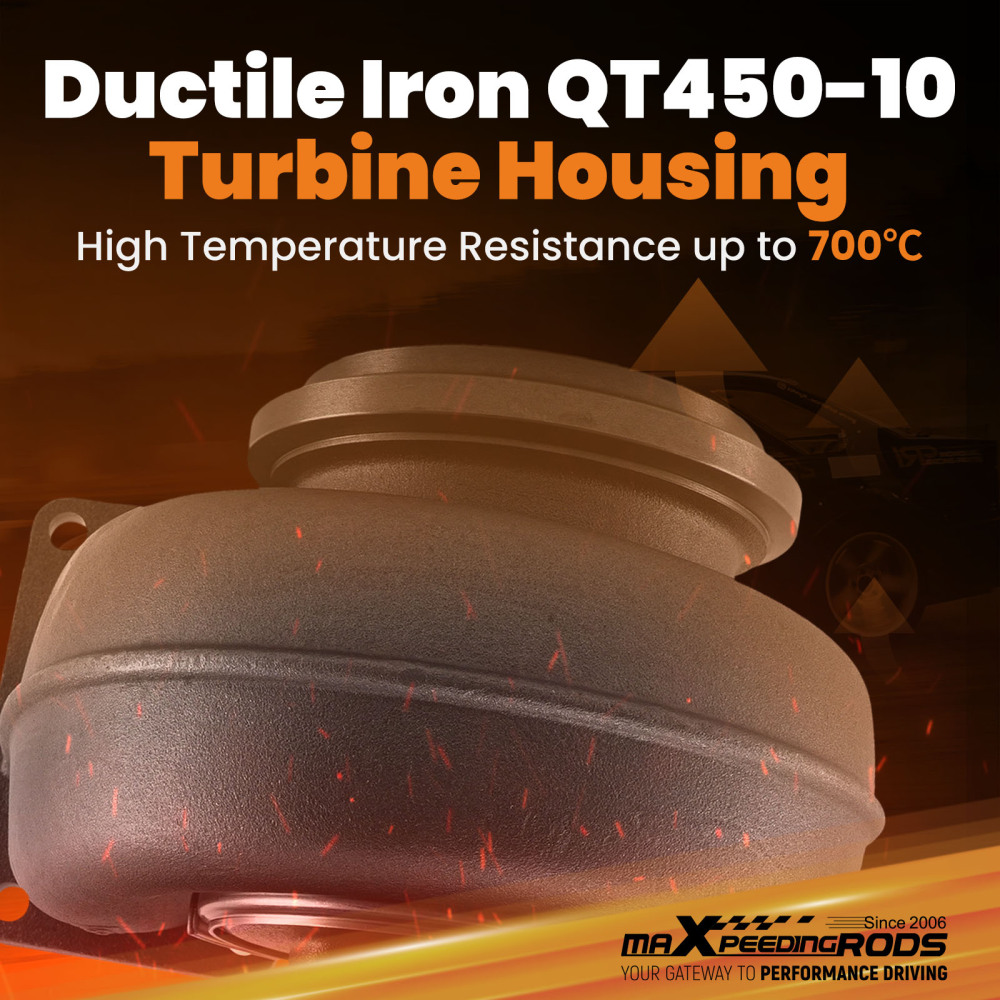

1. Turbine Housing: Ductile Iron QT450-10 – Heat Resistant Up to 700℃

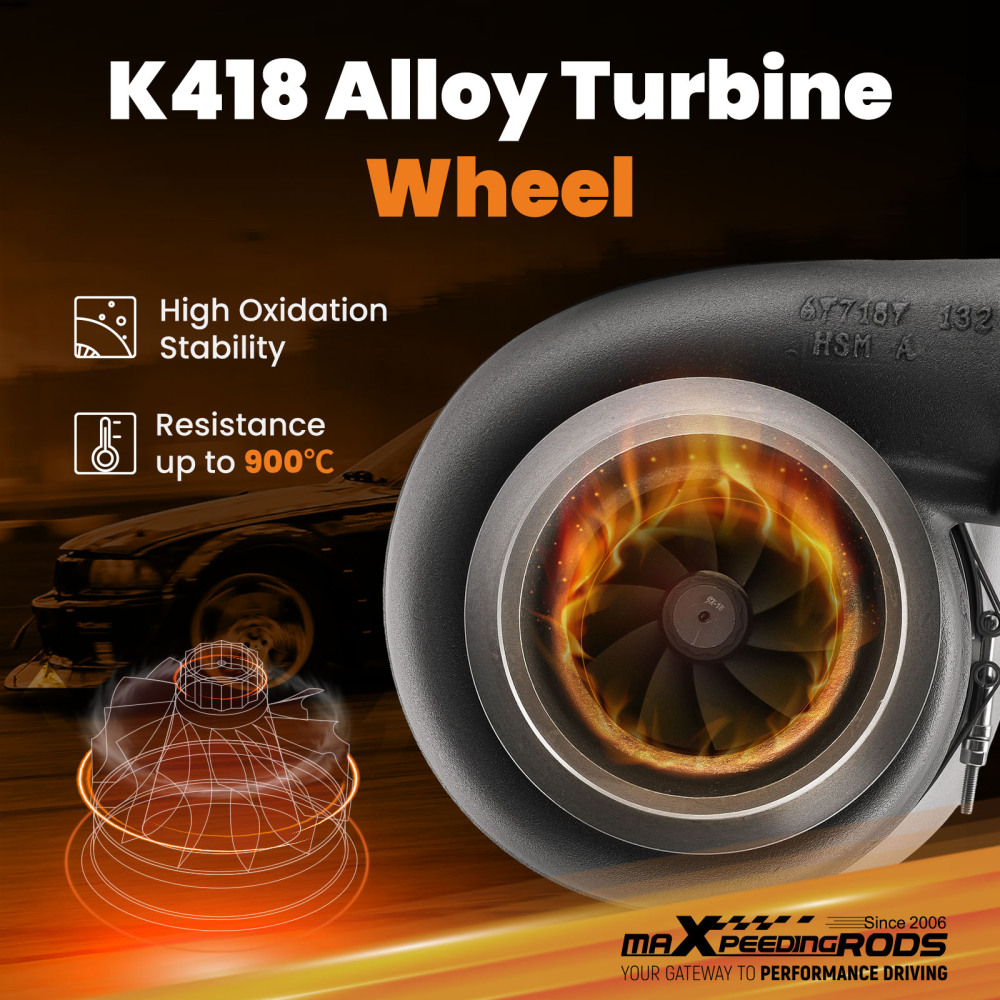

2. Steel Turbine Wheel: K418 Alloy – High Oxidation Stability & Resistance Up to 900℃

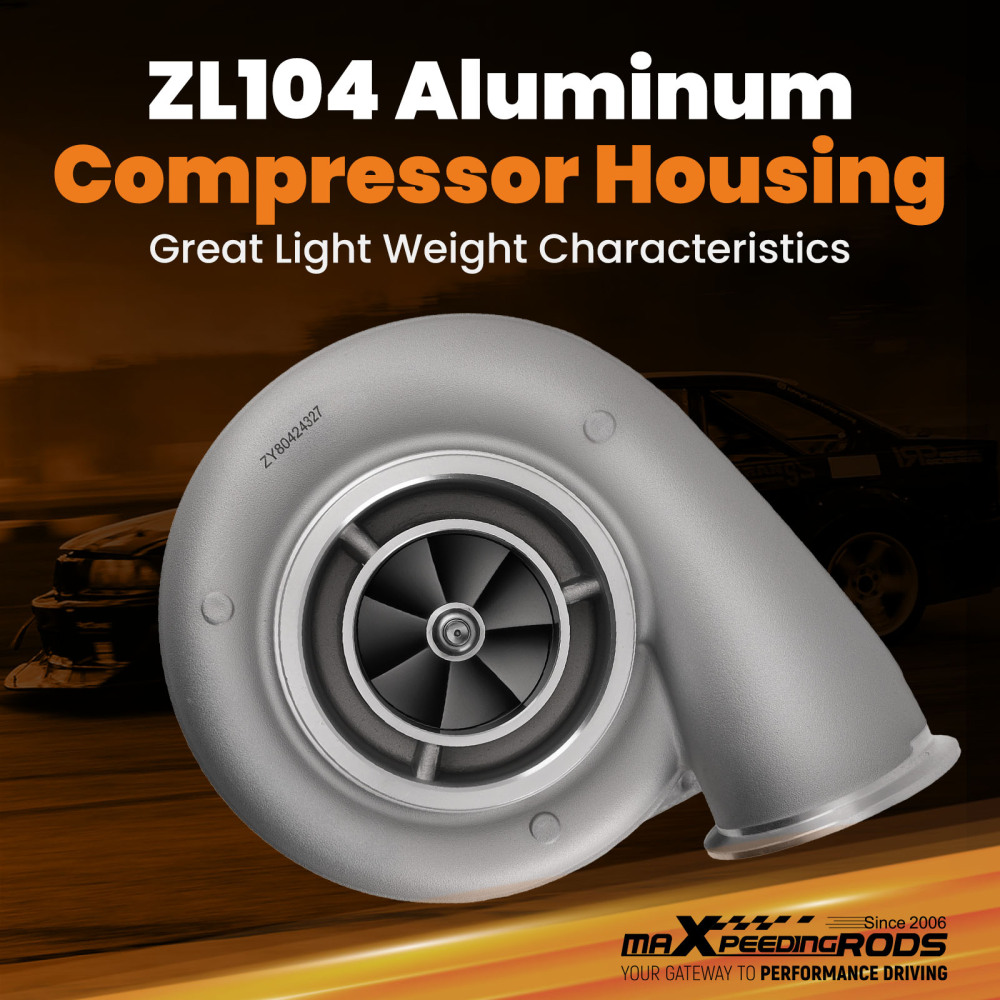

3. Compressor Housing: ZL104 Aluminum – Lightweight Design

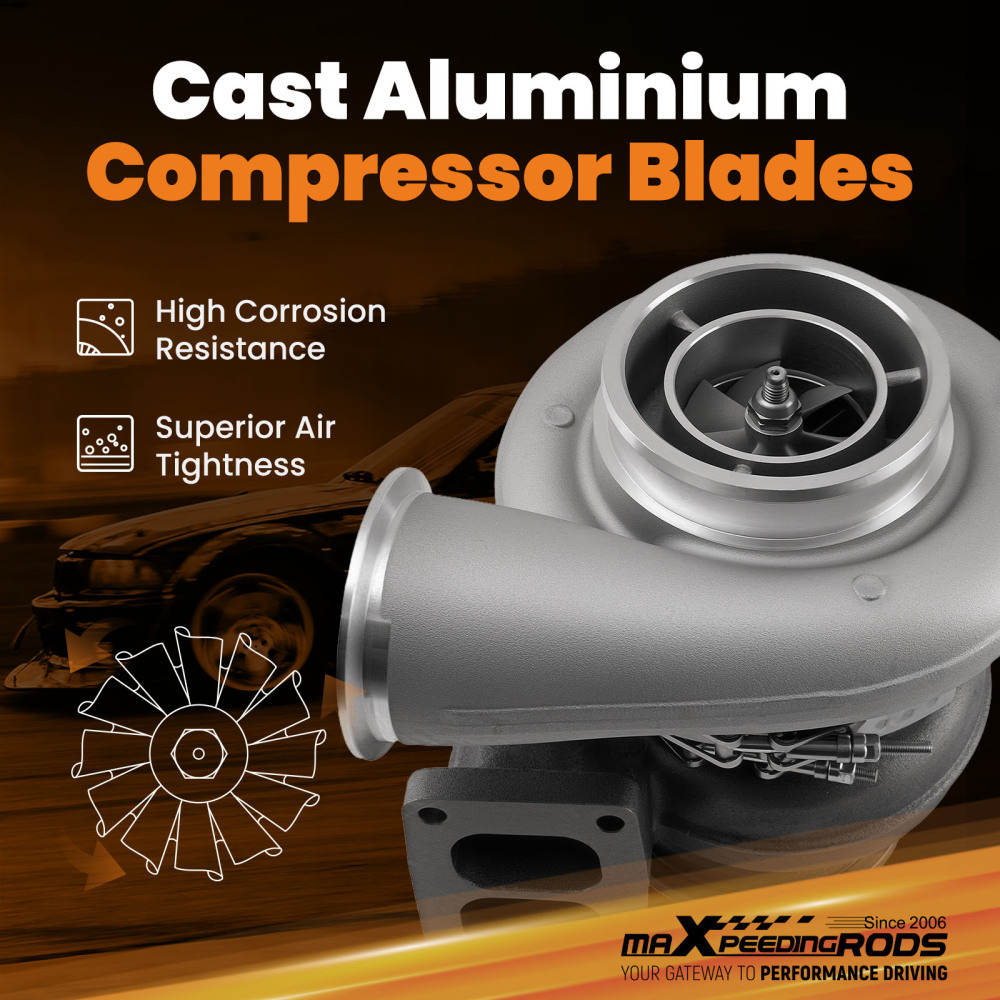

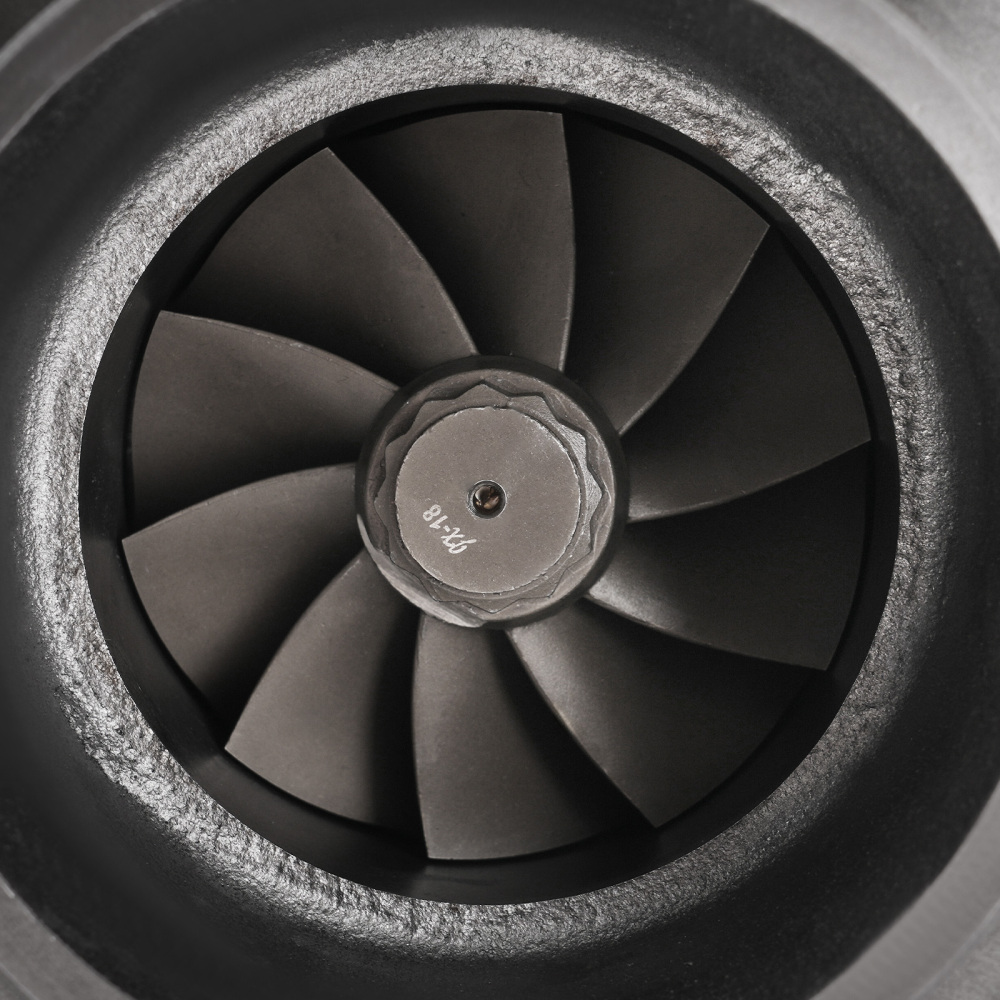

4. Compressor Wheel/Blades: Cast Aluminium Blades – Superior Air Tightness & Corrosion Resistance

Key Features:

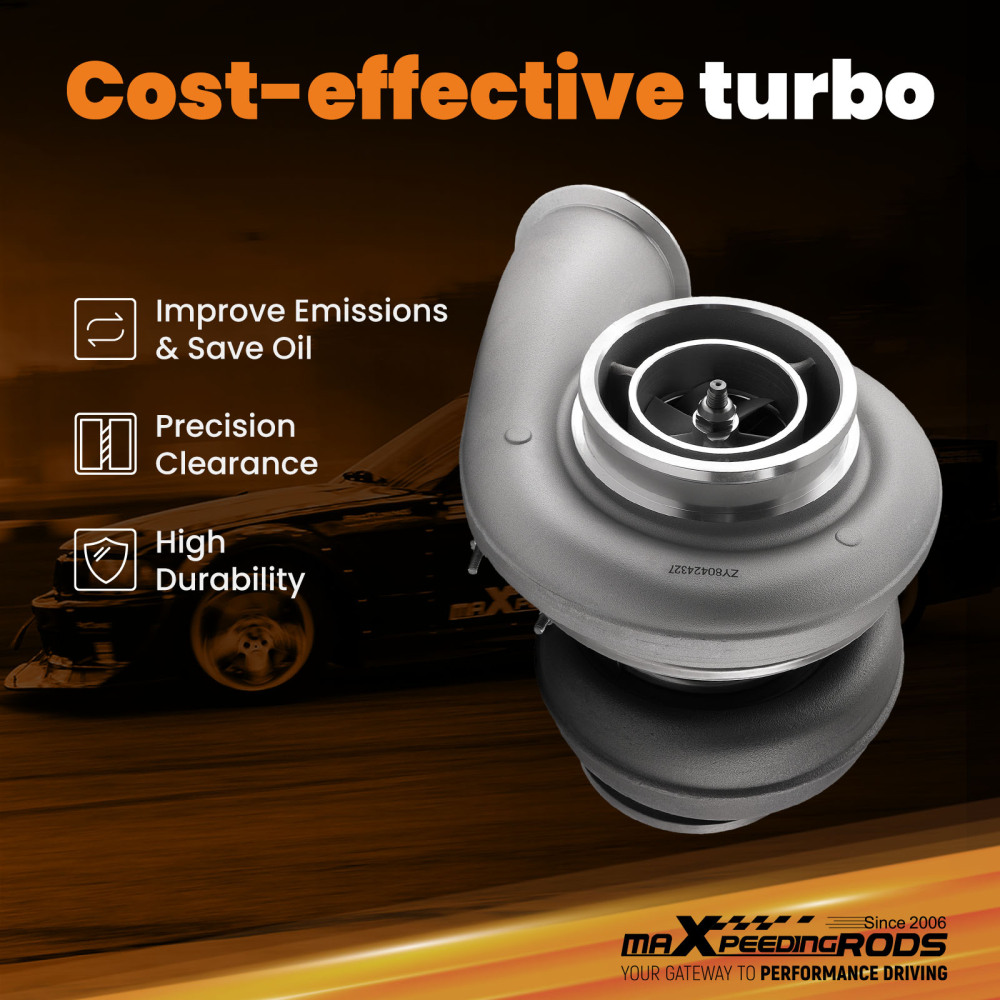

1. Cost-Effective Power Boost – Increases Engine Power by 20-40%
2. Factory-Built Durability – High-Speed Oil Seal Ring & Precision Clearance

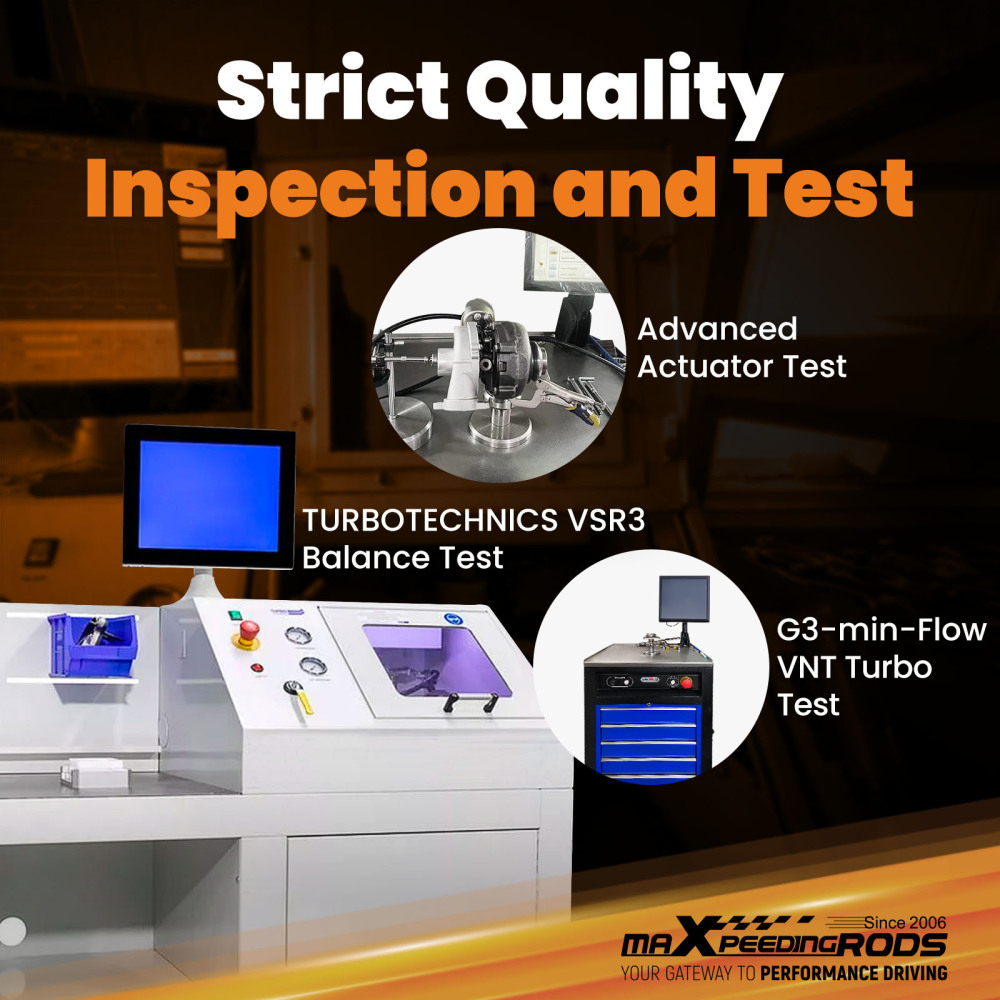

3. Rigorous Factory Testing – 100% Balancing Test by TURBOTECHNICS VSR3; G3-min-Flow VNT Turbo Testing; Advanced Actuator Tester/Programmer
4. Heavy-Duty Construction – Built for Long-Lasting Strength & Performance for US Heavy-Duty Trucks & Performance Cars

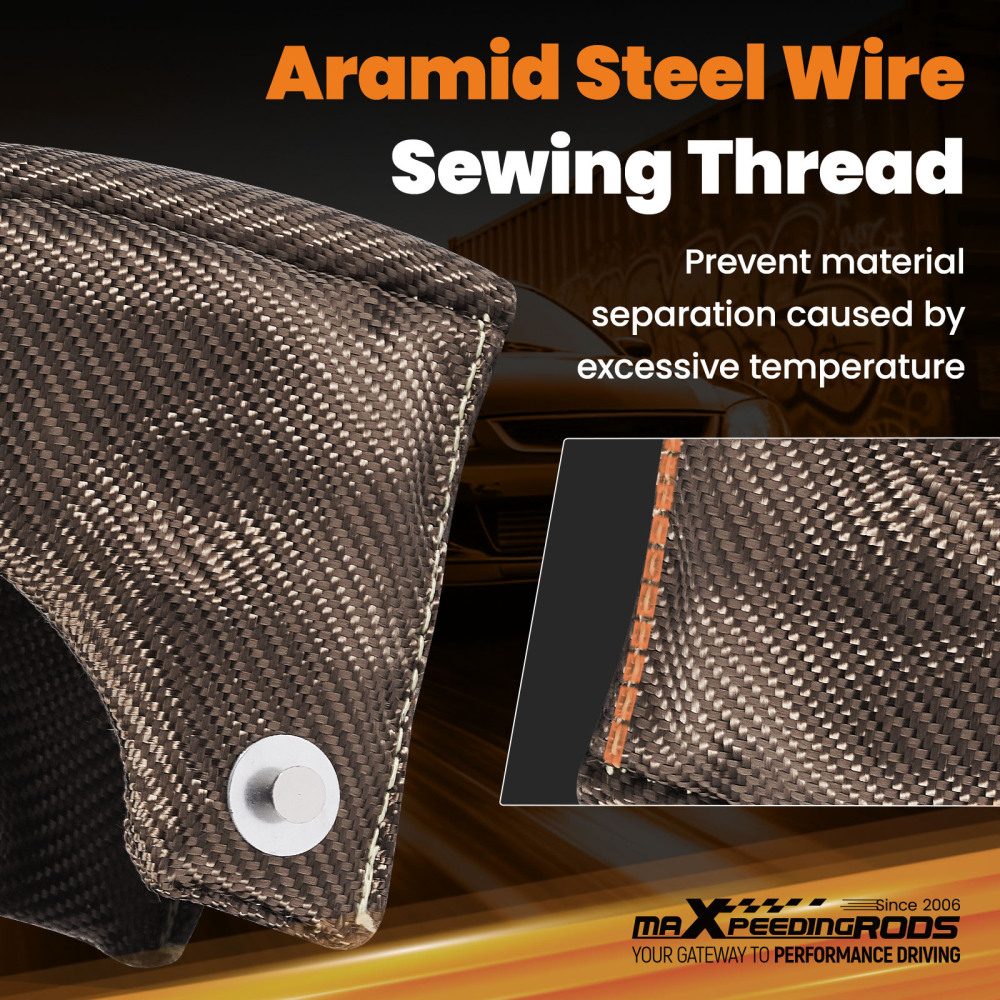

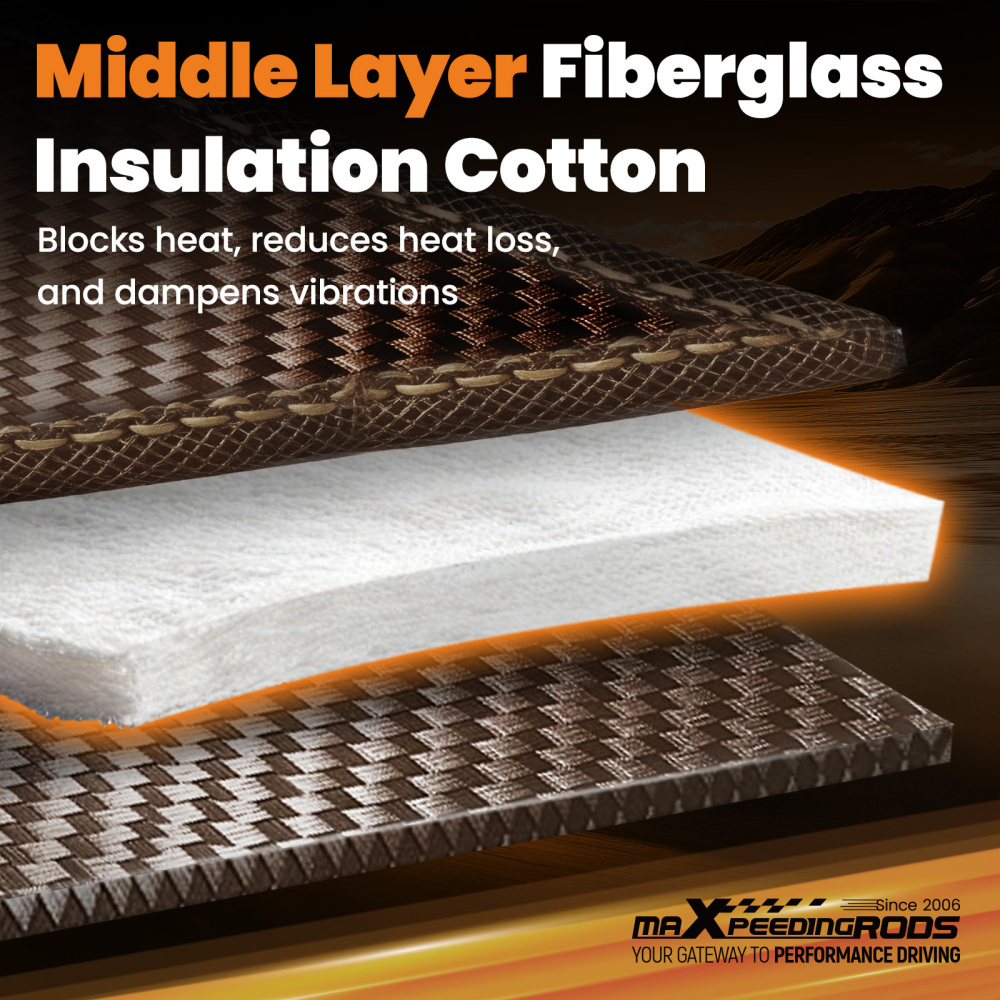

T6 Universal Turbo Heat Shield Material & Features

Material:

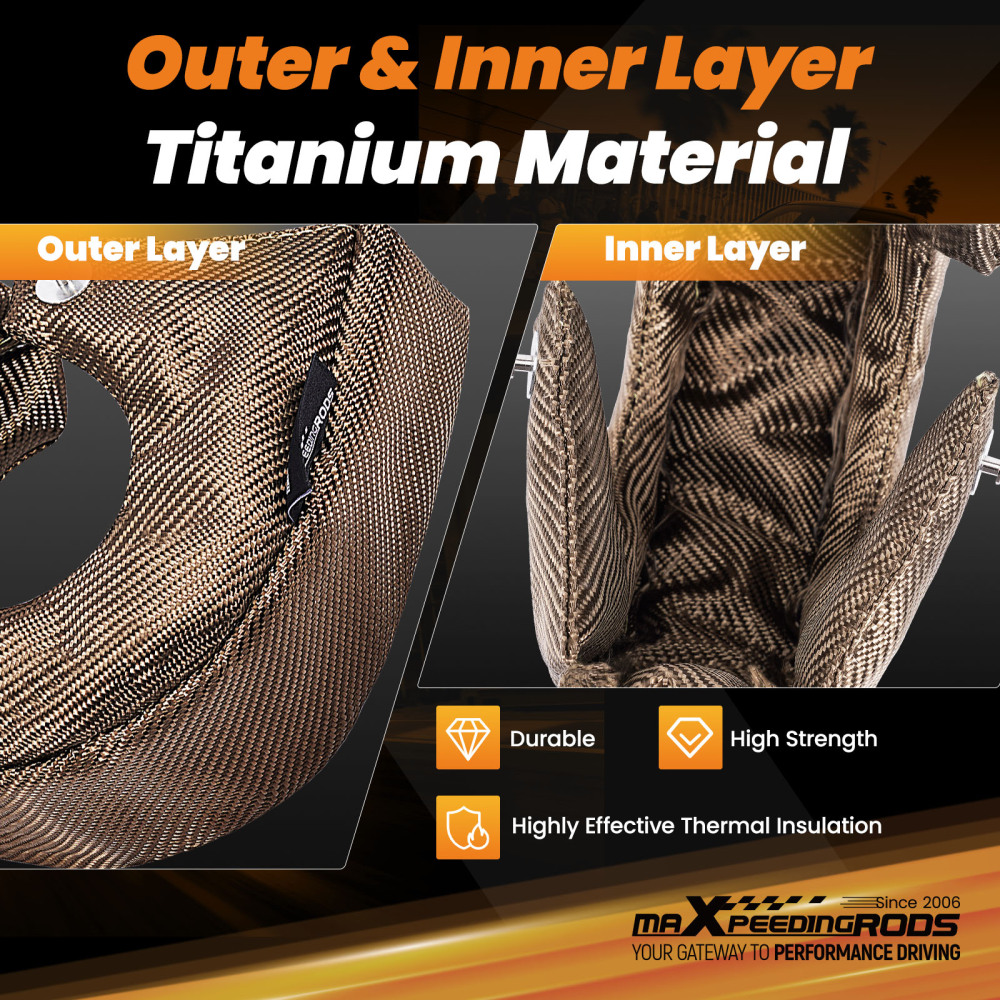

• High-Grade Basalt Fiber/Titanium Fiber – Extreme Heat Resistance & Durability

Key Features:

1. Ultimate Heat Protection – Shields Critical Engine Components from Turbo Heat; Reduces Underhood Temperatures
2. Performance Enhancement – Increases Turbo Spool Time for Faster Power Delivery

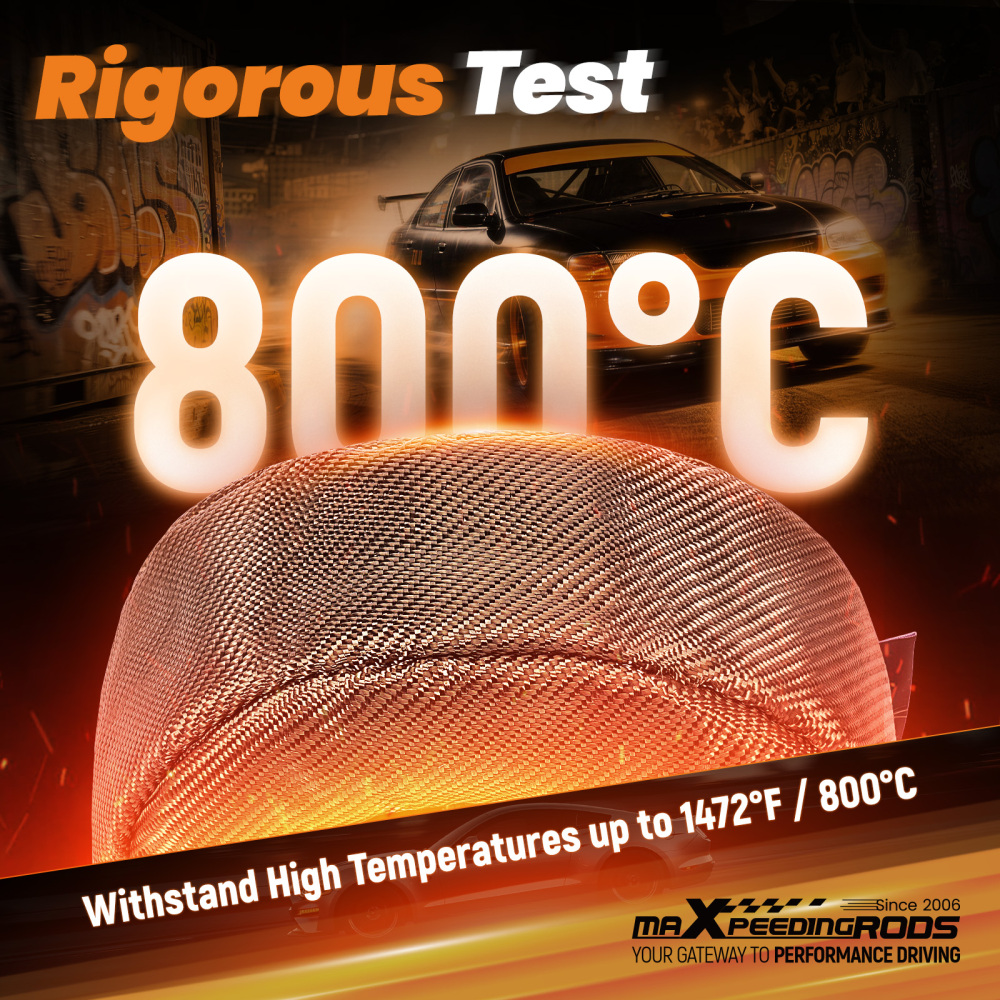

3. Extreme Heat Tolerance – Withstands Temperatures Up to 800°C
4. Universal T6 Fit – Direct Fit for Any T6 Exhaust Housing Turbo; No Custom Fabrication Needed
5. Safety Design – Non-Flammable (Avoid Exposure to Flammable Fluids)

Important Installation Notes

Turbocharger Installation:

1. Replace/repair/reconnect air cleaner element per manufacturer's manual to prevent compressor wheel damage.
2. Ensure the oil drain line is mounted lower than the turbocharger for proper oil flow.
3. Fully seal exhaust outlets with welding to eliminate leaks and maintain performance.
4. Professional installation is highly recommended – this is a universal turbo, and minor modification may be required for your specific vehicle.
5. Verify all specifications and vehicle compatibility before purchase – this turbo is not vehicle-specific.
6. Prior to installation, identify and fix the root cause of any previous turbo failure (e.g., insufficient oil supply, intake foreign bodies, faulty crankcase ventilation).

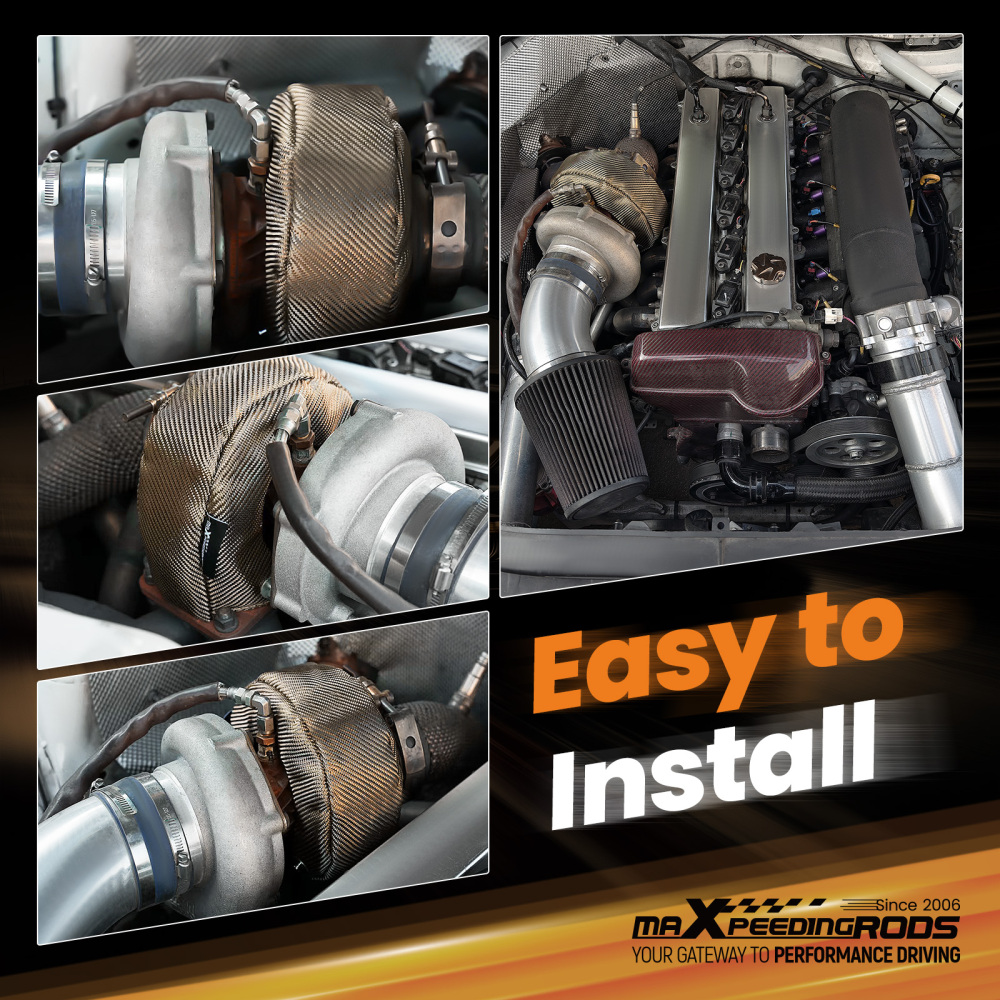

Heat Shield Installation:

1. Universal fit for all T6 exhaust housing turbos – direct application for all T6 turbo setups.
2. This product is non-flammable but may ignite if exposed to flammable fluids; keep all fluids away from the shield.
3. Inspect all oil supply lines and fluid fittings for proper function, tight seals, and zero leaks before and after installation.
