Turbocharger Compressor 400HP Vband compatible for NIssan TD42+Titanium Fiber Turbo Blanket

Universal T3 T04E V-band Turbocharger .63 A/R W/ Wastegate & Turbo Heat Shield

Application:


Perfect for all 4 or 6 CYL, 1.5L-2.5L Engines

*Note:
1. Please confirm that there is enough space in your car to install this turbo before purchasing.
2. Lack of oil will cause the turbocharger shaft play and damage, please adjust the oil pressure and ensure that the turbocharger is fully lubricated.
3. Make sure actuator pressure lowering than 25psi, Oil pressure lowering than 2 bar.

Product Specific:

Turbo

Exhaust Inlet (Turbo Manifold) Flange: T3 4 bolt Flange Patterns
Exhaust Outlet  Flange: V-Band Flange (ID/OD: 2.5"/3.1")

Turbine Side:
Turbine Trim: 74.2
Turbine A/R: 0.63
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust outlet : 79mm
Turbine exhaust inlet: 44.7mm (length) / 85.8mm (width)
Compressor Side:
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Compressor outlet:78 mm
Compressor inlet:51.5 mm

Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
Bearing: Journal Bearing
Cooling Type: Oil Cooled
Wastegate: w/ Wastegate
Thrust Bearings: 270 Degrees
Hosepower: Up to 420 HP
Turbo Type: Individual
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above
Package Size: 30x 28x 24 cm
Package Weight: 9180g

Turbo Heat Shield

Material: Basalt fiber/Titanium Fiber

Condition: 100% Brand New

Accessories: You will get what you can see in the pictures exactly

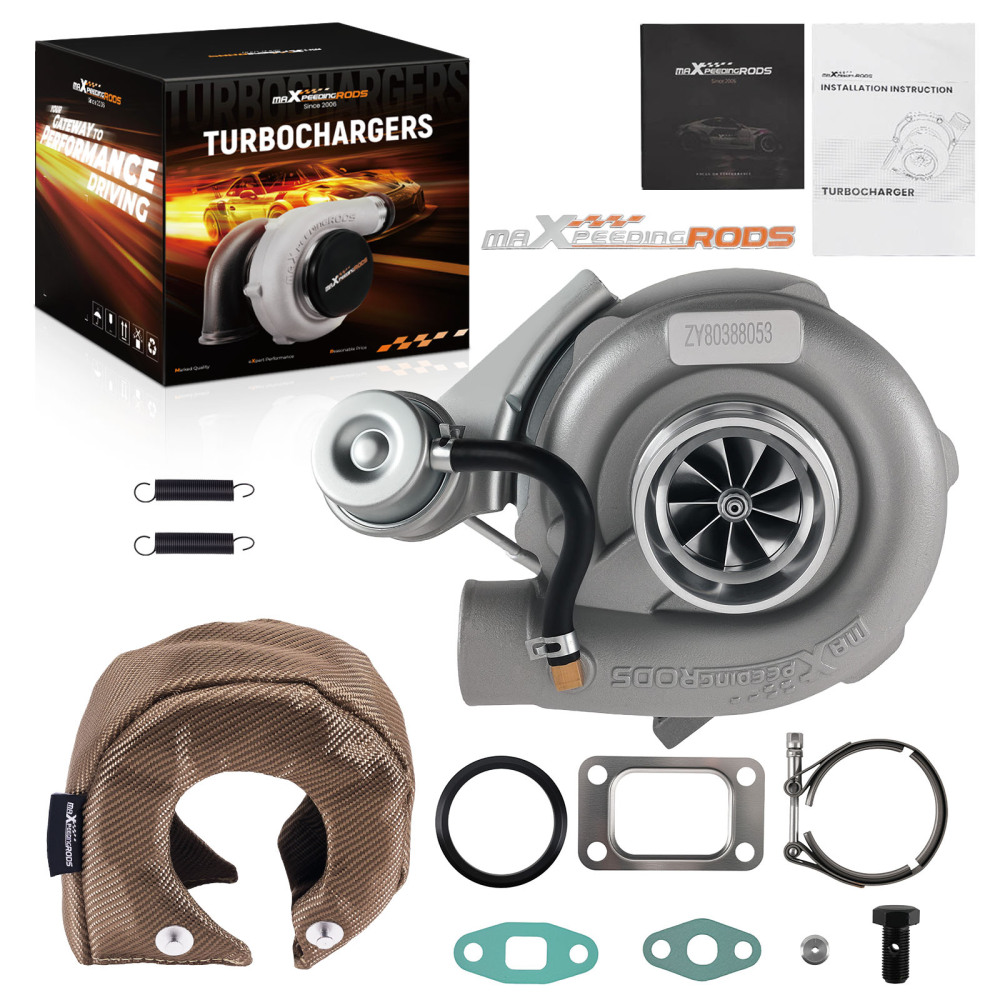

Package included:

1x Turbocharger
1x Turbo Heat Shield
1x Flange gasket
1x V-Band flange Adapter Ring & Clamp
2x Oil port gaskets
1x Bolt
1x Manual
1x Brochure
1x Sticker

Features:

Turbo

*Product Material

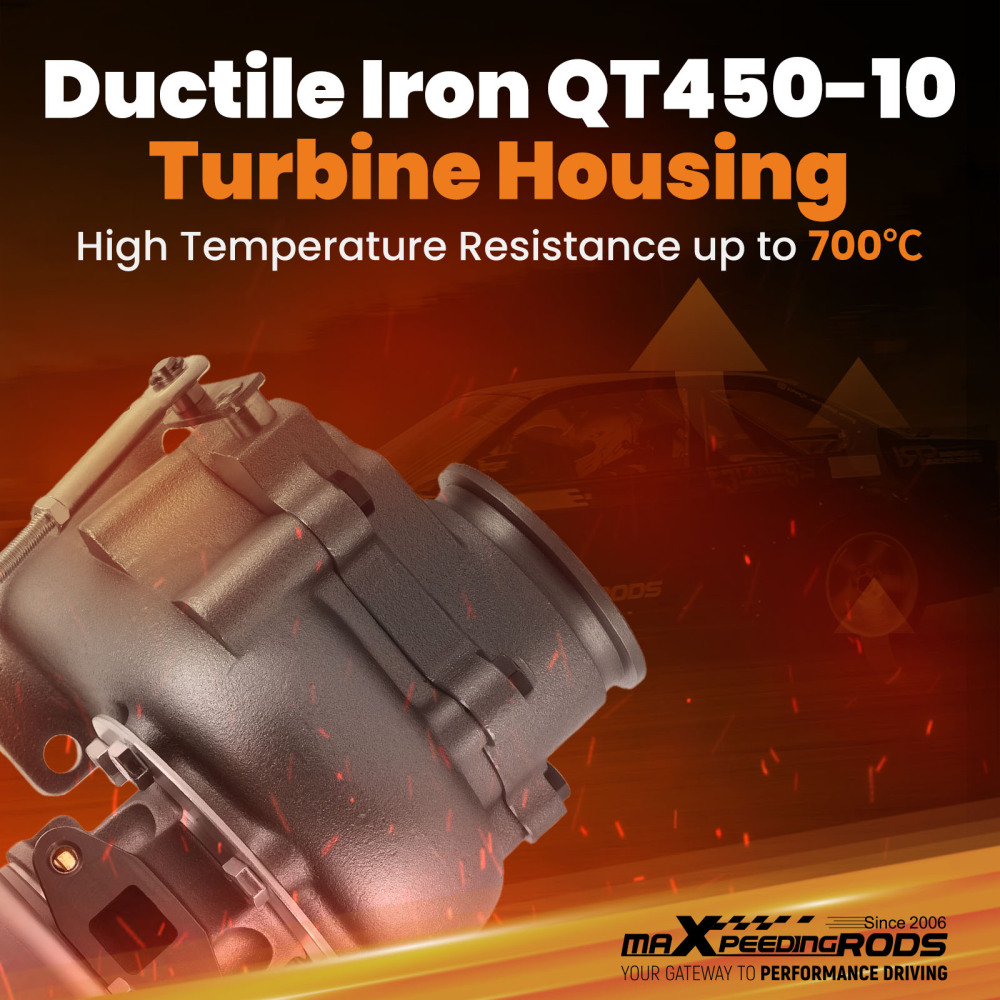

1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃

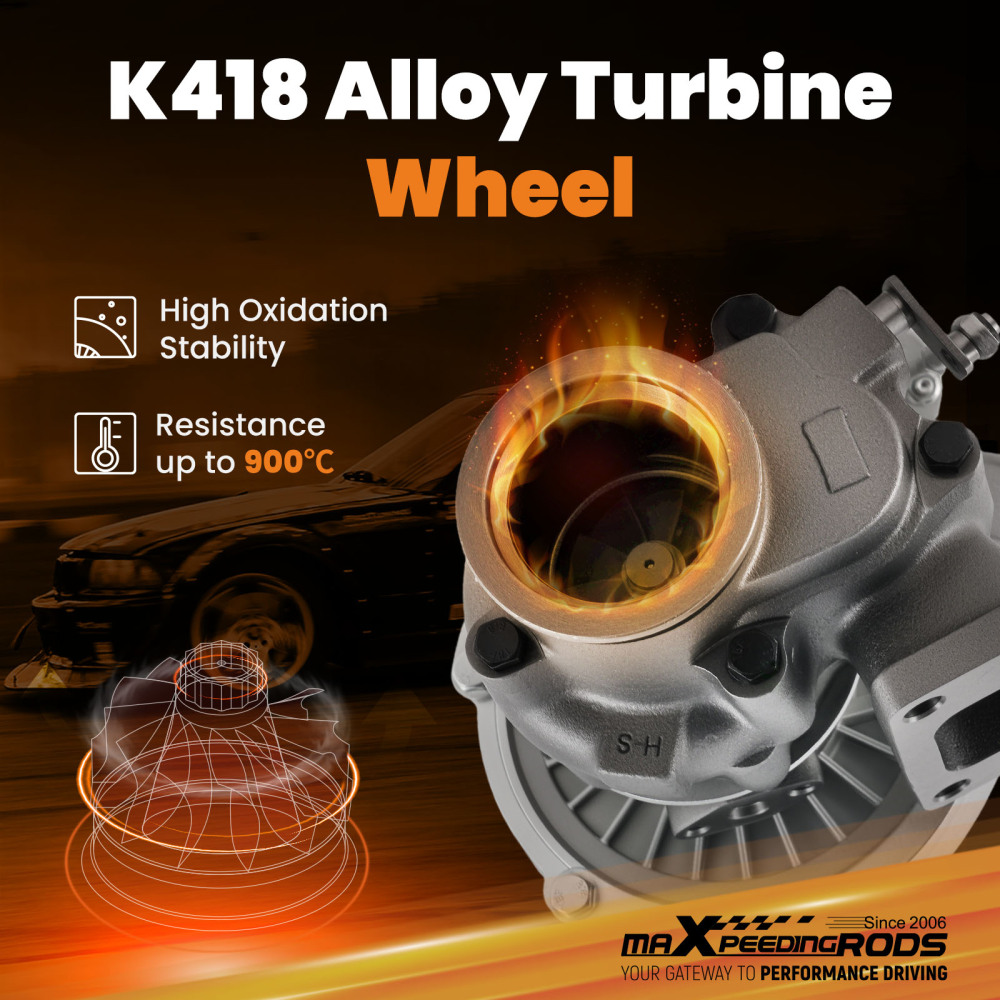

2. Steel turbine wheel：K418 alloy -  high  oxidation stability and resistance  up  to 900℃

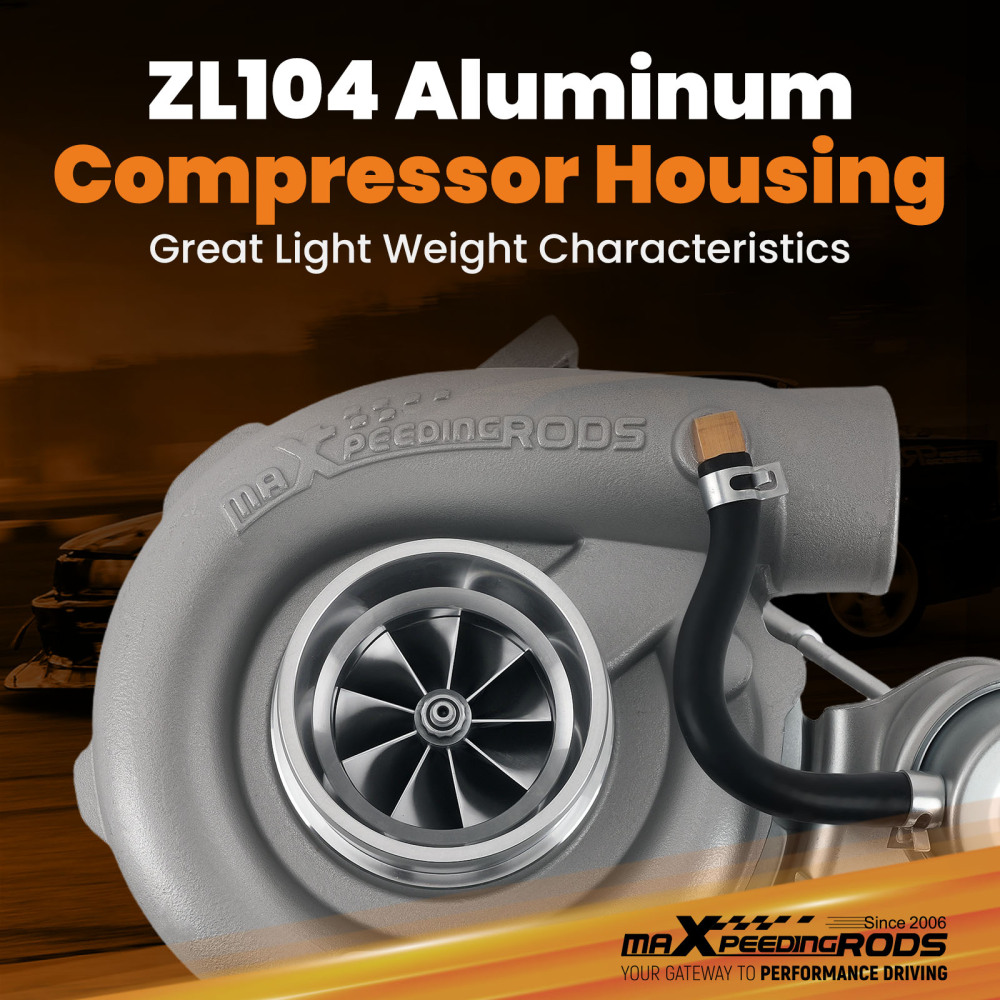

3. Compressor housing: ZL104 aluminum with lightweight

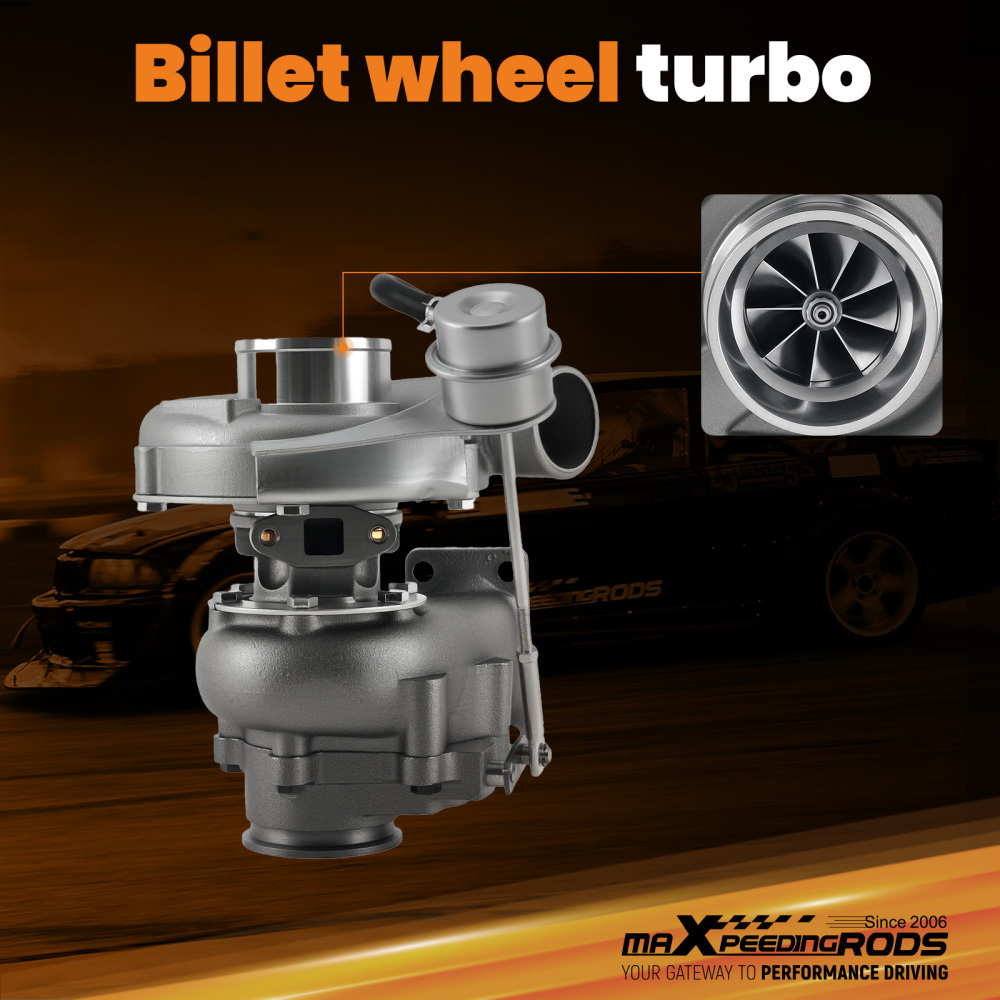

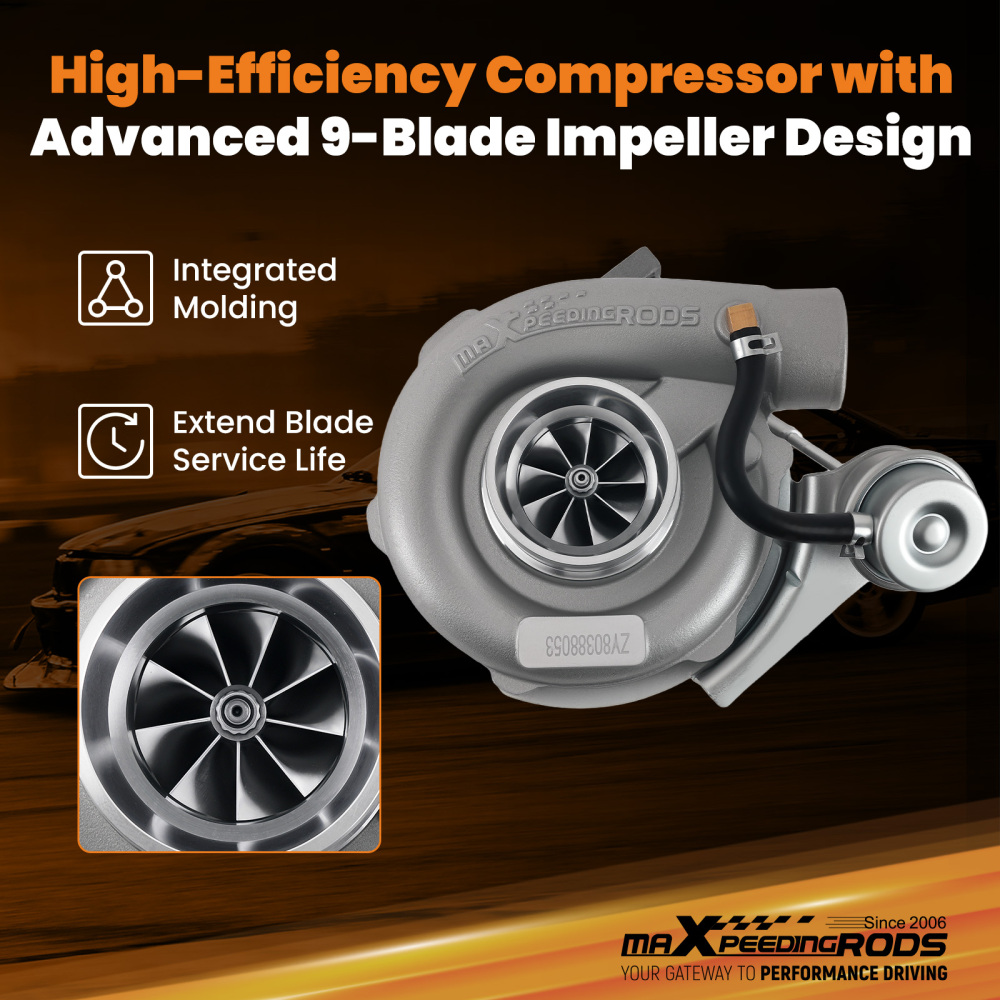

4. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation
5. Appearance upgrade: New compressor wheel design

*Product

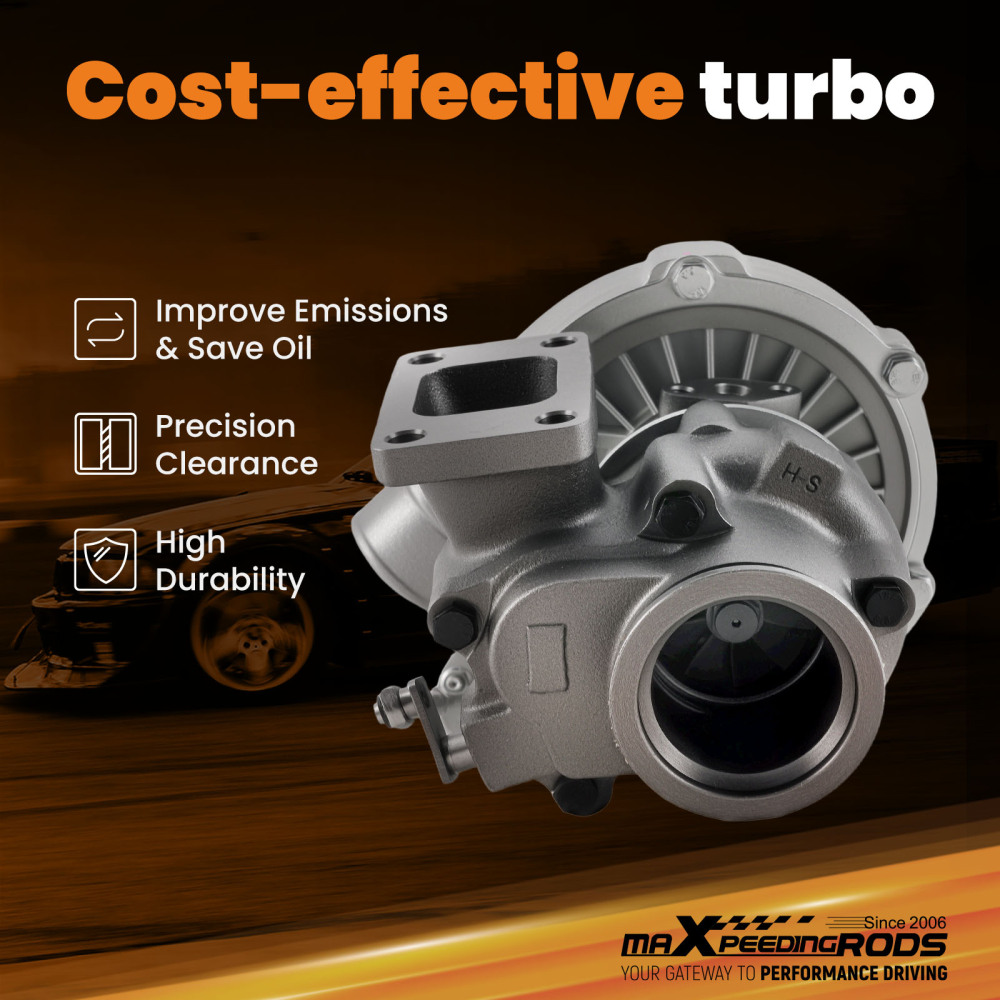

1. Cost-effective turbo increase 20-40% power for your car

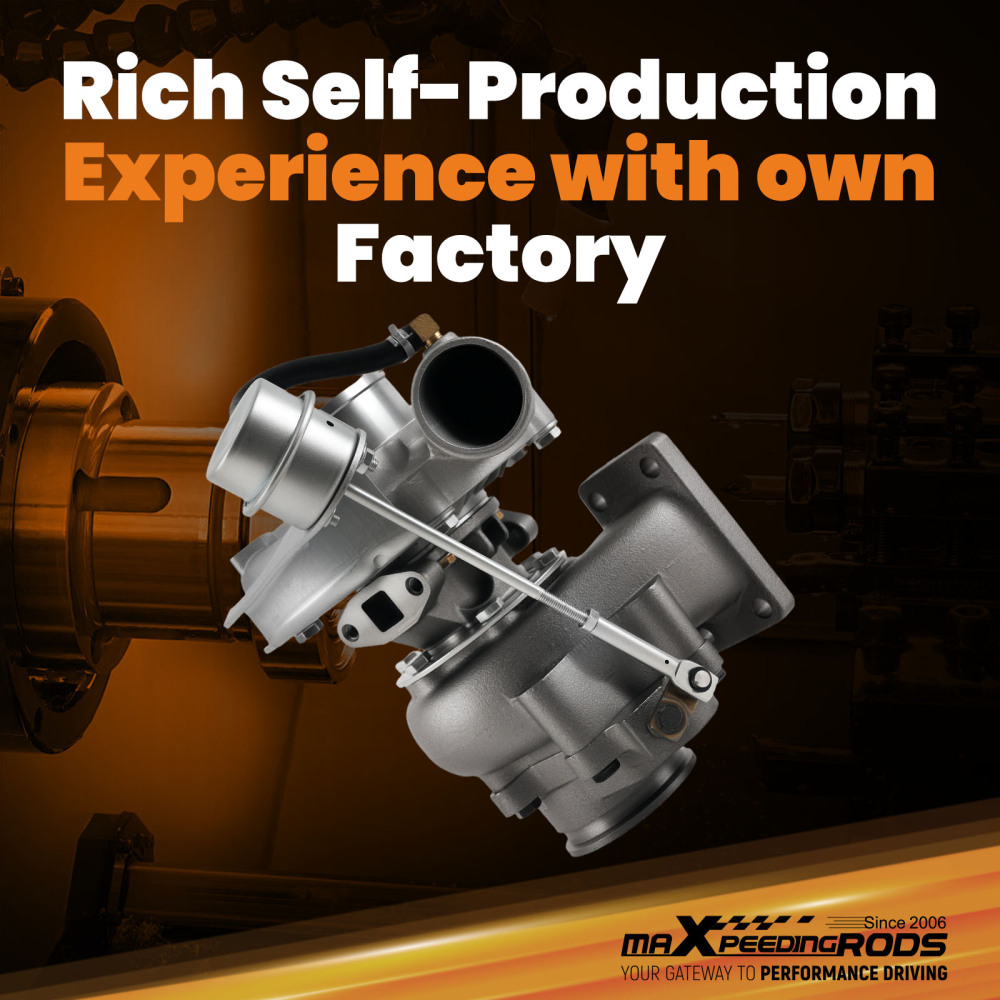

2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
4. Built for durability and strength

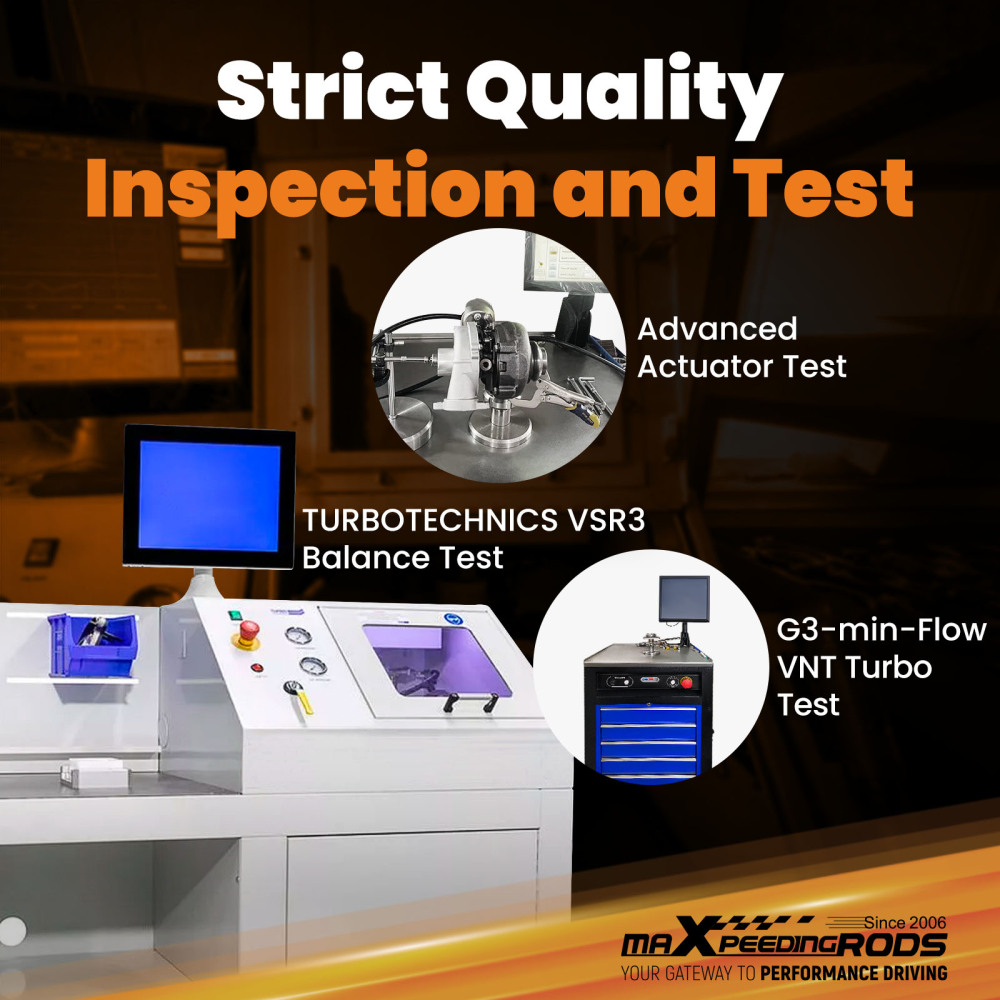

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS  VSR3
2. G3-min-Flow VNT Turbo testing
3.  Advanced Actuator Tester/Programmer

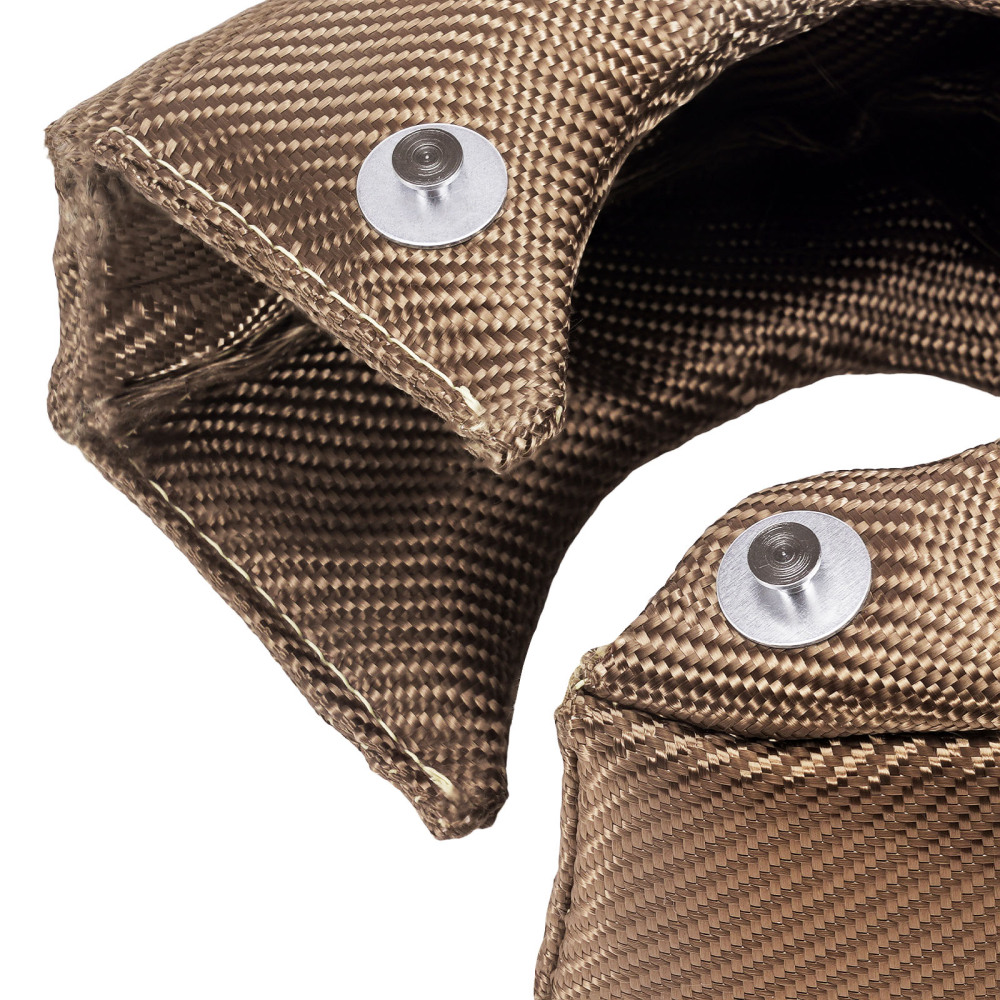

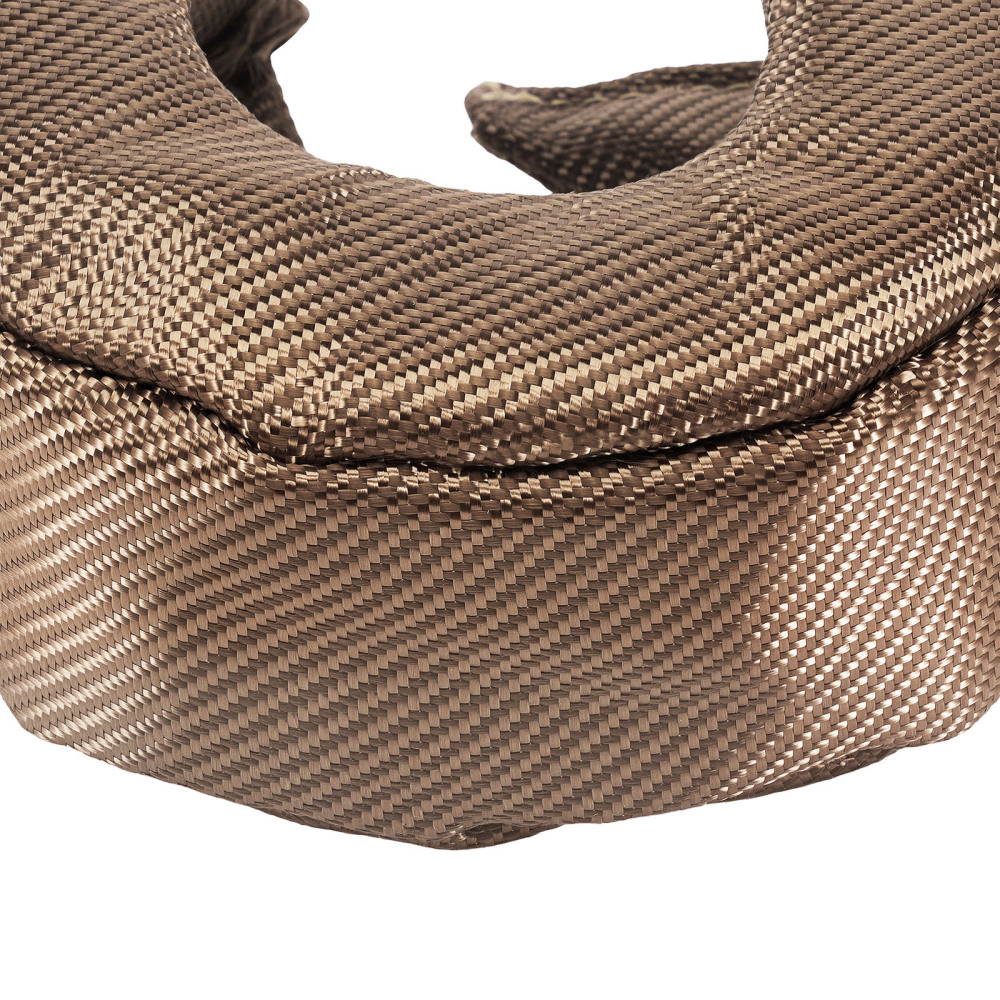

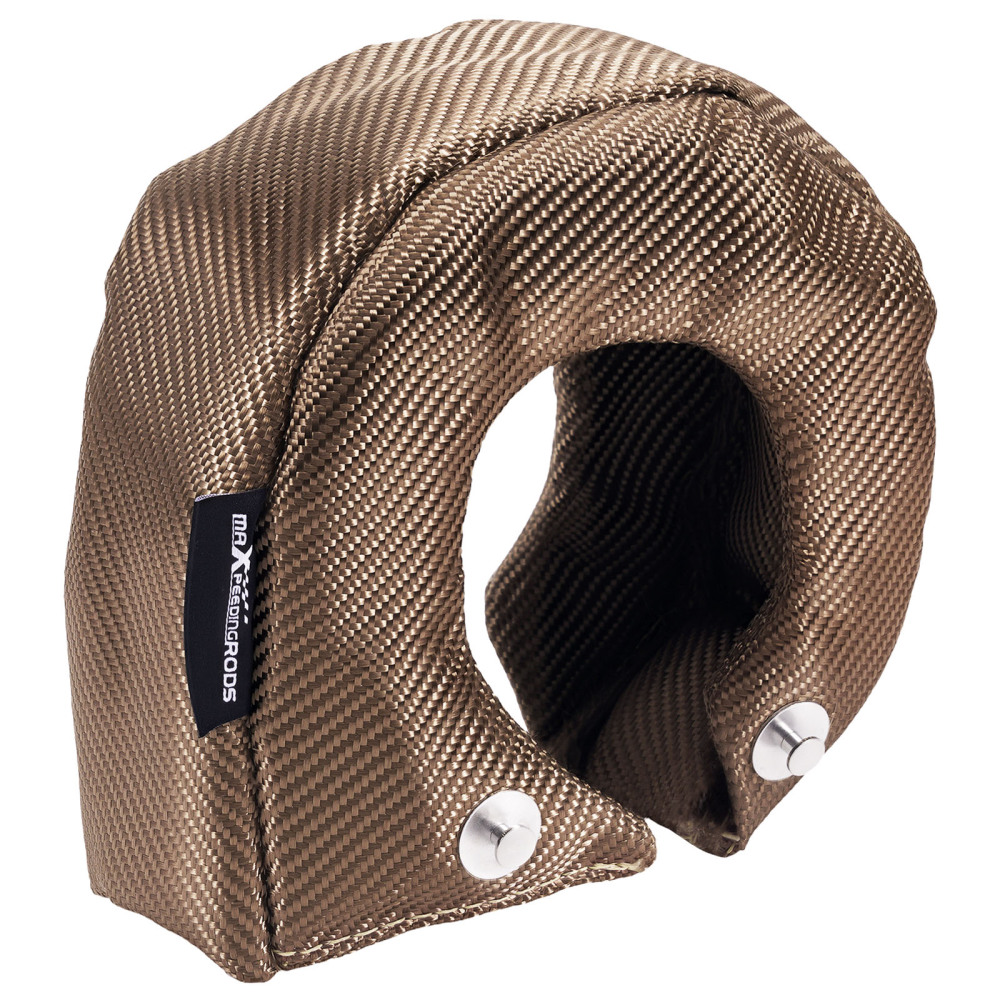

Turbo Heat Shield

1. Keep crucial engine components protected from the heat of the turbo. while increasing spool time and reducing underhood temperatures.

2. Our high-quality basalt fiber can withstand high temperatures up to 800°C.

Note:

Turbo

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

Turbo Heat Shield

* Universally fits on any T3 turbocharger.
* The Turbo Shield is non-flammable, the product may ignite if exposed to flammable fluids.
* Please take all necessary precautions to insure that the oil supply line and all fluid fittings are in proper working order, sealed and without leaks.
