GT35 GT3582 T3 AR0.70 0.63 Billet Turbocharger 600hpsW/ Titanium Fiber Blanket

Billet GT3582 Universal T3 Turbocharger + Turbo Heat Shield Combo Kit | Up to 600HP | For 2.5L-6.0L 4/6 Cylinder Engines

Application：

Perfect for all 4/6 cylinder and 2.5L-6.0L engines
Capable of Boosting Horse Power up to 600HP

*Note:
1. Please confirm that there is enough space in your car to install this turbo before purchasing.
2. Lack of oil will cause the turbocharger shaftplay and damage, please adjust the oil pressure and ensure that the turbocharger is fully lubricated.

Product Specific：

1.Turbo

Turbine Side:
Exhaust Inlet Flange: T3 Flange
Exhaust Outlet Flange:  V-Band
Turbine Trim: 84.2
Turbine A/R: 0.63
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm
Compressor Side:
Compressor Trim: 56.9
Compressor A/R: 0.7
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Compress Inlet Size(Air intake): 4 inch (103.5mm)
Compressor Outlet Size: 2.5 inch (63.6mm)

Bearing Type: Floating/Journal Bearing
Thrust bearing: 270 degree
Cooling Type: Water + Oil Cooling
Horse Power: Up to 600HP
Turbo Type: Individual
Wastegate: W/O Wastegate
Oil Feed/Inlet: M10*7/16-24
Oil Drian/Outlet: M14.1 & 2*M8*1.25
Water Inlet/Outlet: M14* 1.5
Maximum PSI: 22
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above
Pakage Size: 26 x 25 x 23 cm
Pakage Weight: 8350g

2.Turbo Heat Shield

Material: Basalt fiber/Titanium Fiber

Condition: 100% Brand New

Accessories: You will get what you can see in the pictures exactly

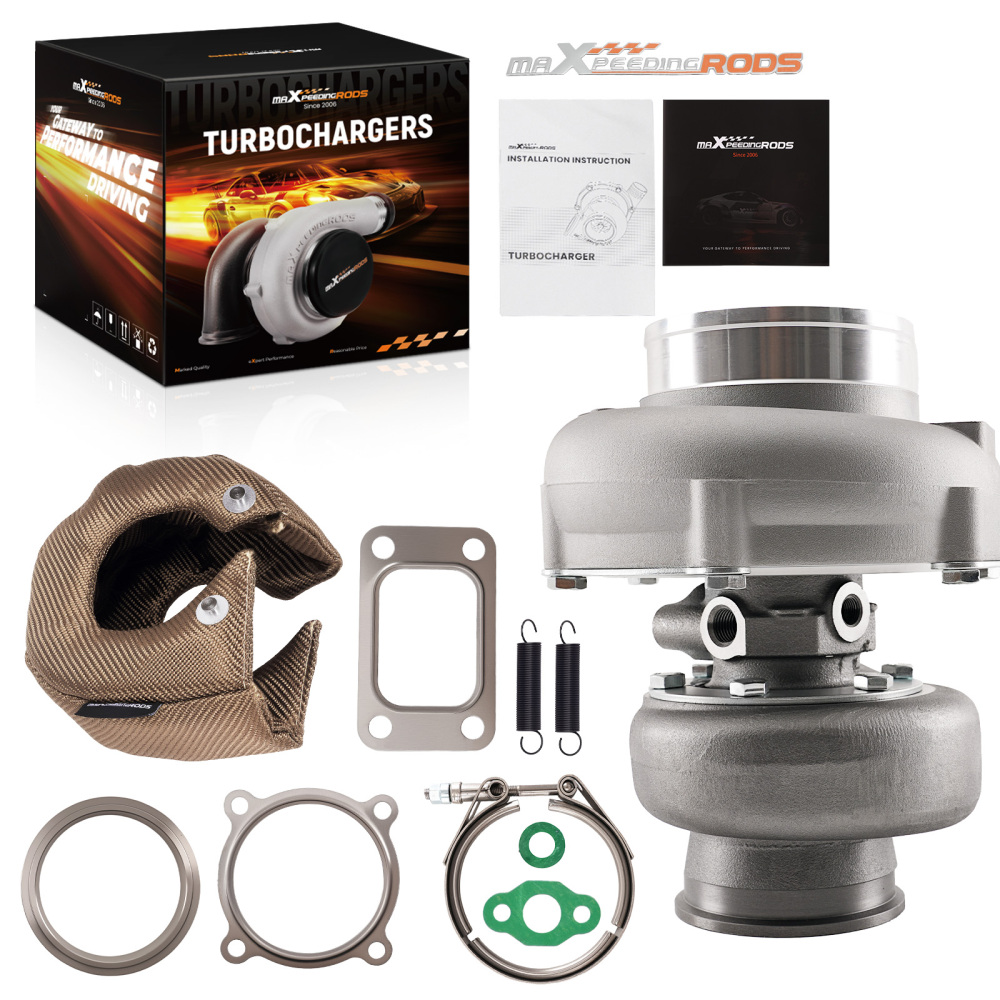

Package Included:

1x Turbocharger
1x Turbo Heat Shield
2x Flange gaskets
2x Oil feed/drain gaskets
1x V-Band  flange adapter ring & Clamp
1x Manual
1x Brochure
1x Sticker

Features:

Turbo

*Product Material
1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.
5. Appearance upgrade
(1) Turbine outlet V-BAND: Easy installation
(2) Anti-surge compressor housing: Increase air intake
(3) New compressor wheel design

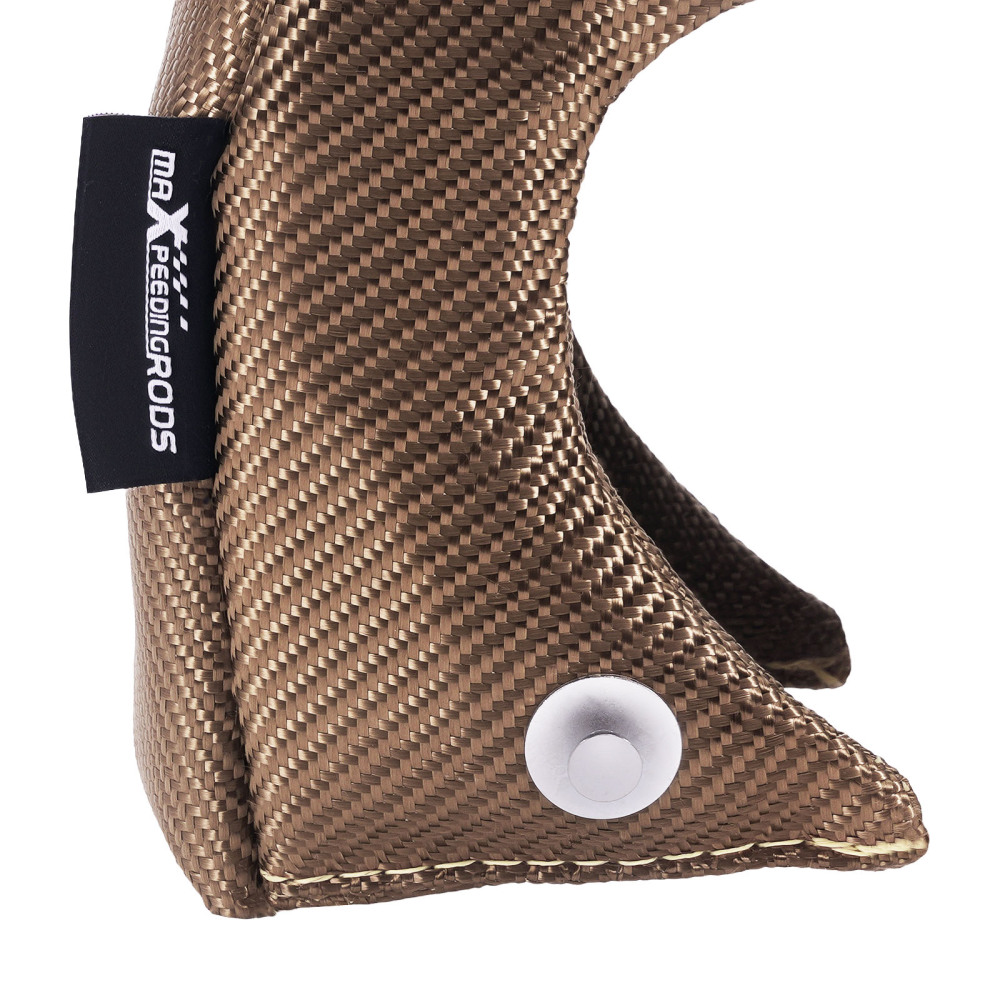

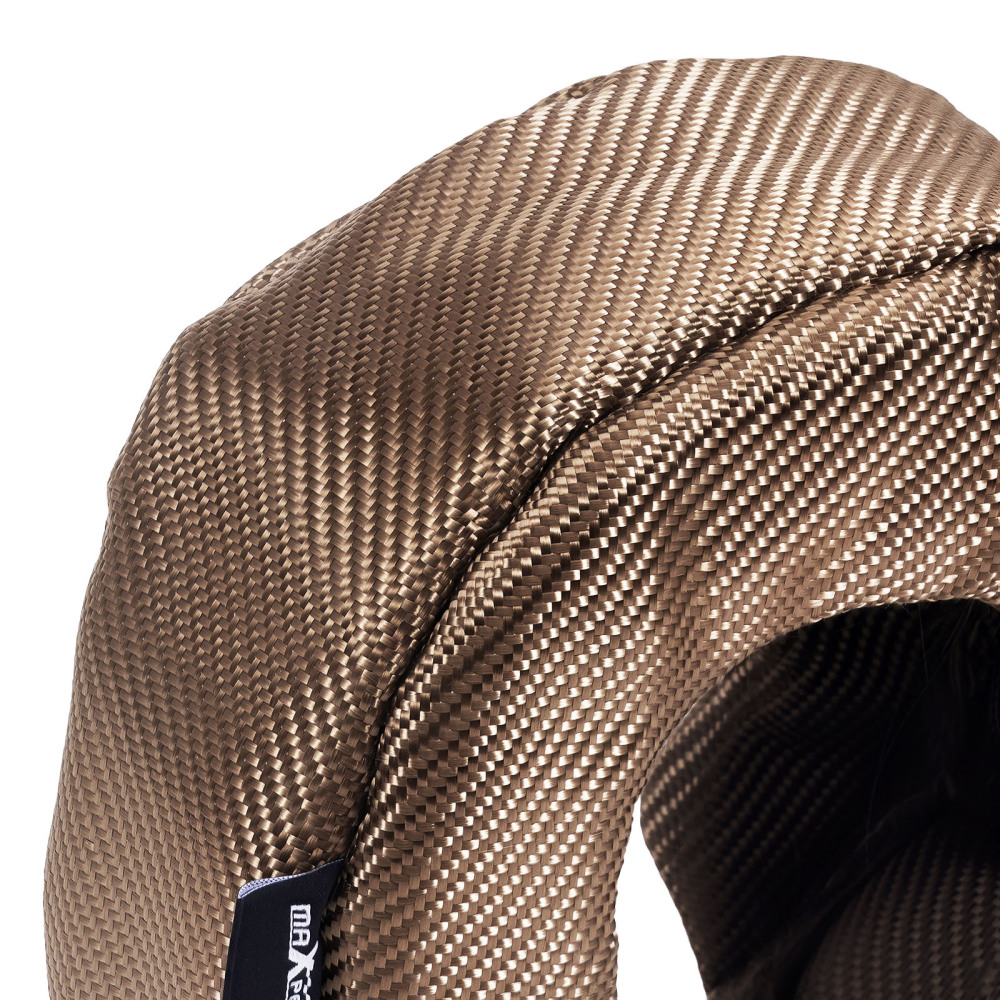

Turbo Heat Shield

1. Keep crucial engine components protected from the heat of the turbo. while increasing spool time and reducing underhood temperatures.

2. Our high-quality basalt fiber can withstand high temperatures up to 800°C.

Note:

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
