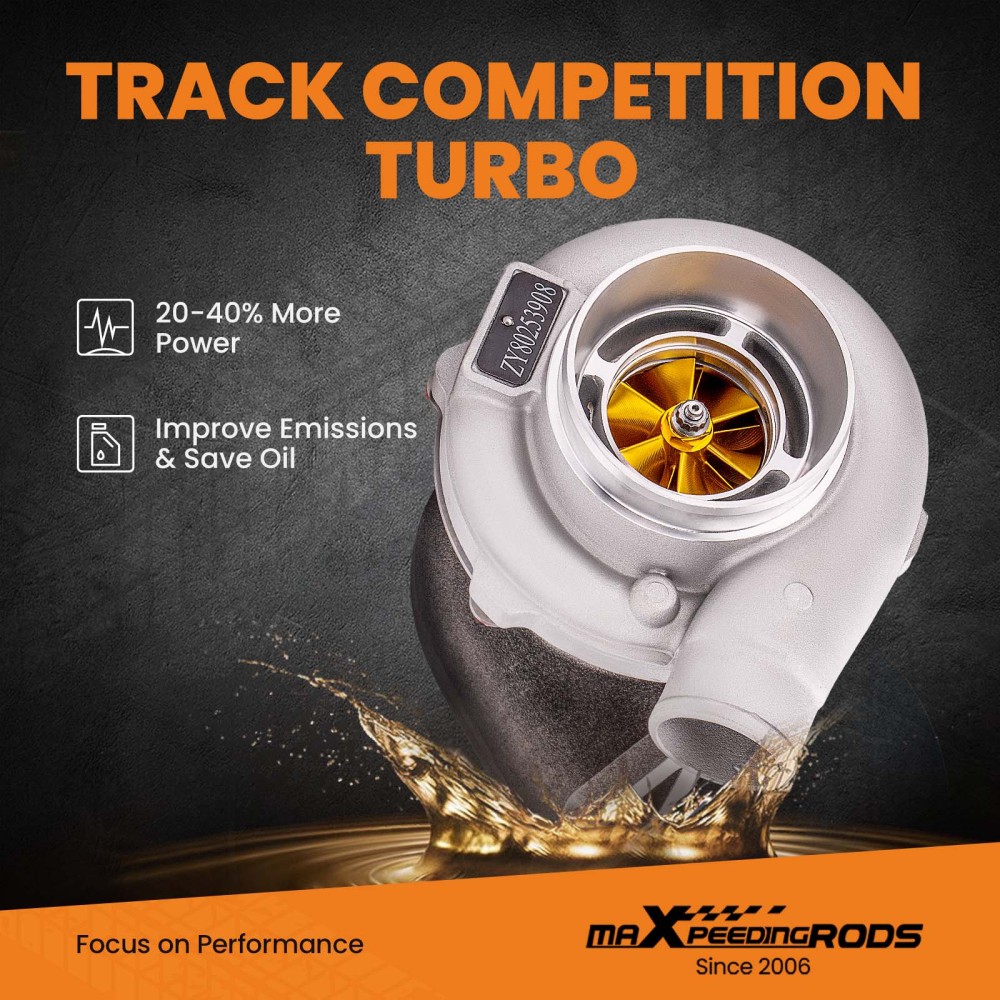

GT3037 GT3076R GT30 Turbor Up to 600HP+ T3 .82 A/R +Basalt fiber Heat Shield

Billet GT3037 Universal T3 Turbocharger +Turbo Heat Shield Combo Kit | Up to 500BHP | For 2.5L-3.0L 4/6 Cylinder Engines

Application:

Perfect for all 4/ 6 cyl 2.5L-3.0L engines
Horse Power: Boost Horse Power up to 500BHP

Notice:This model is a universal turbo. Please confirm whether there is enough space in your car to install this turbo before purchasing.

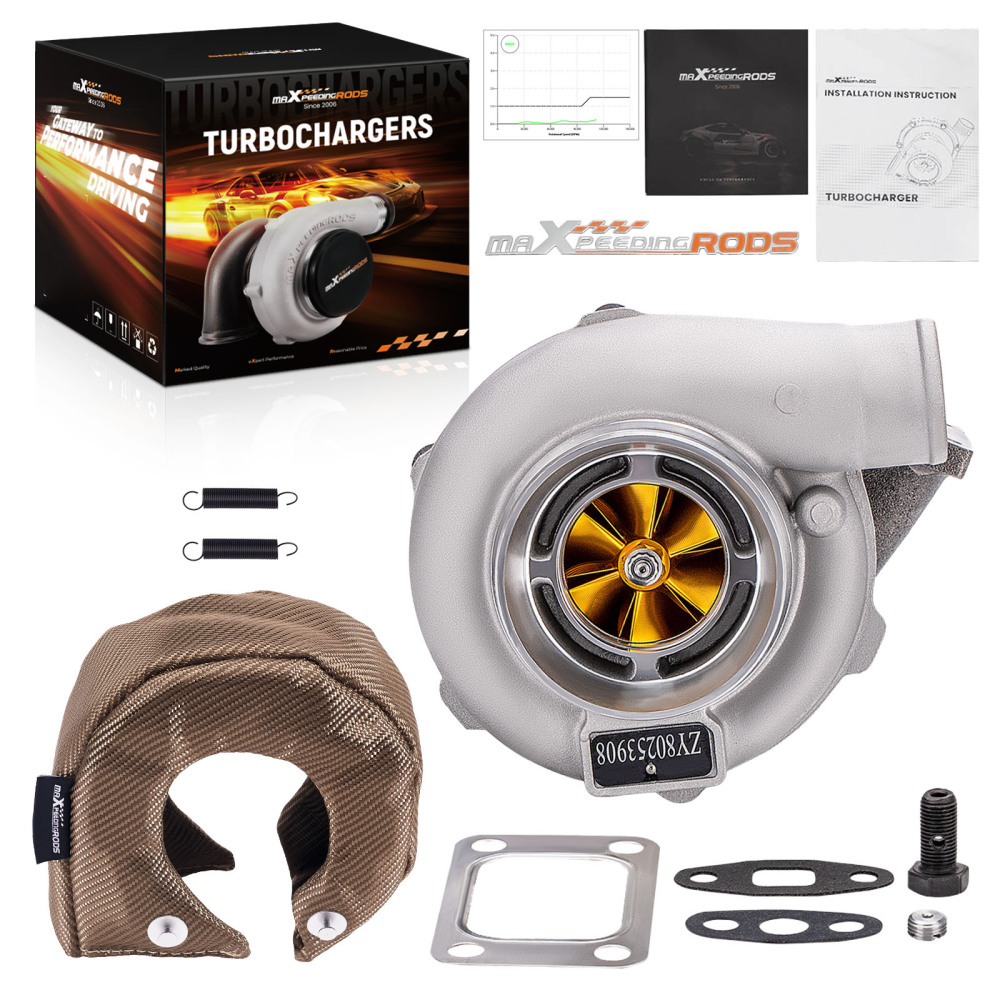

Package Included:

1x Turbocharger
1x Turbo Heat Shield
All items exactly as shown in product images

Specification:

Turbo

Exhaust Inlet (Turbo Manifold) Flange: Standard T3 Flange
Exhaust Outlet Flange: 4-Bolt Flange
Turbine Trim: 74.2
Turbine Inducer Diameter:  64.8mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.82
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter: 76mm
Compressor A/R: 0.6

Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
Water: M18*1.5
Wastegate: w/o Wastegate
Thrust Bearing: 270 Degrees
Turbo Type: Individual
Bearing: Journal Bearing
Cooling Type: Water + Oil
Accessories: You will get exactly as shown in the picture above
Package Size:30 x 28 x 24cm
Package Weight: 8750g

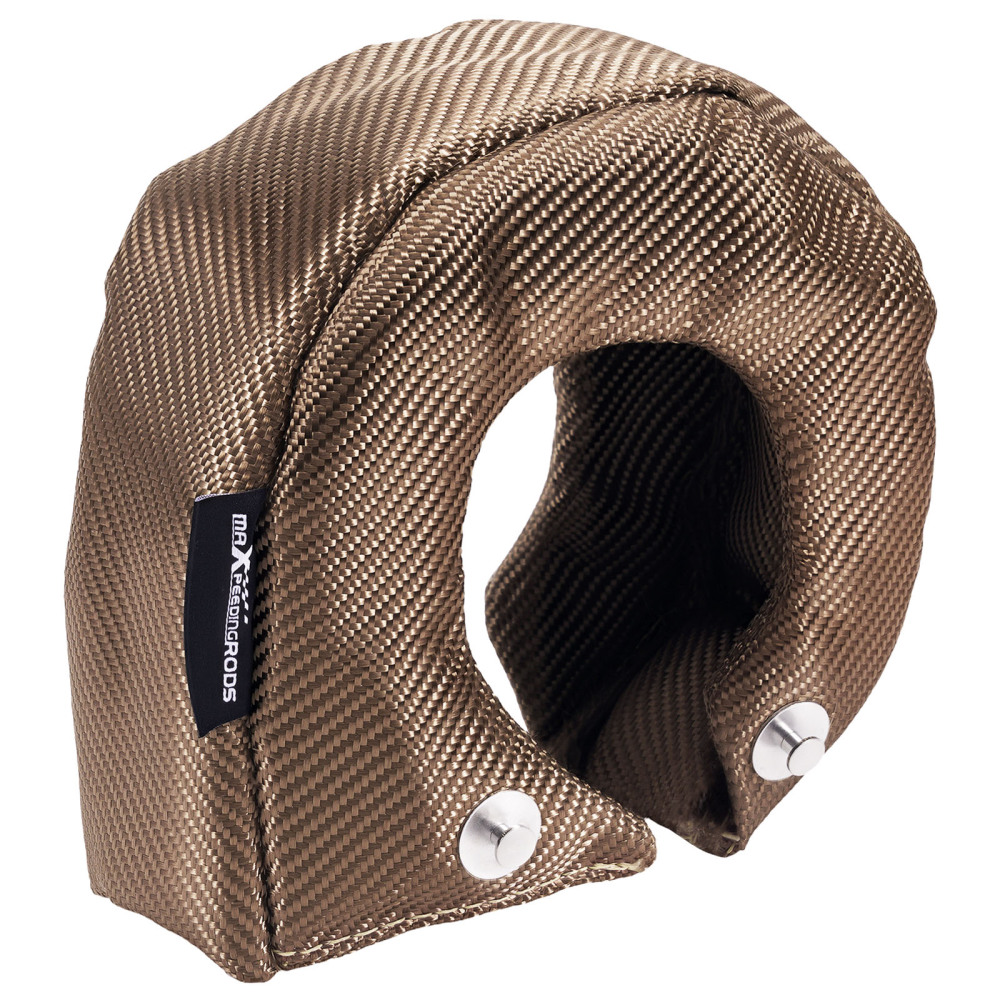

Turbo Heat Shield

Material: Basalt fiber/Titanium Fiber

Condition: 100% Brand New

Accessories: You will get what you can see in the pictures exactly

Features:

Turbo

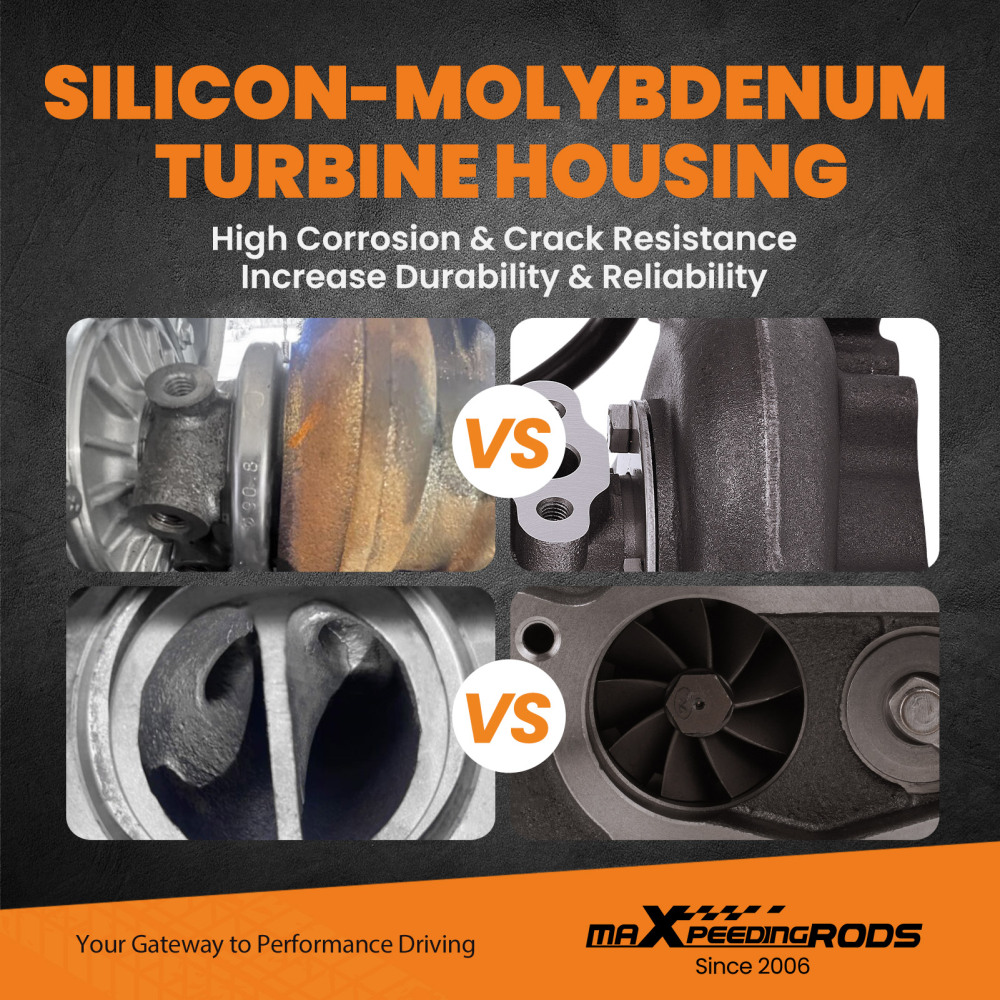

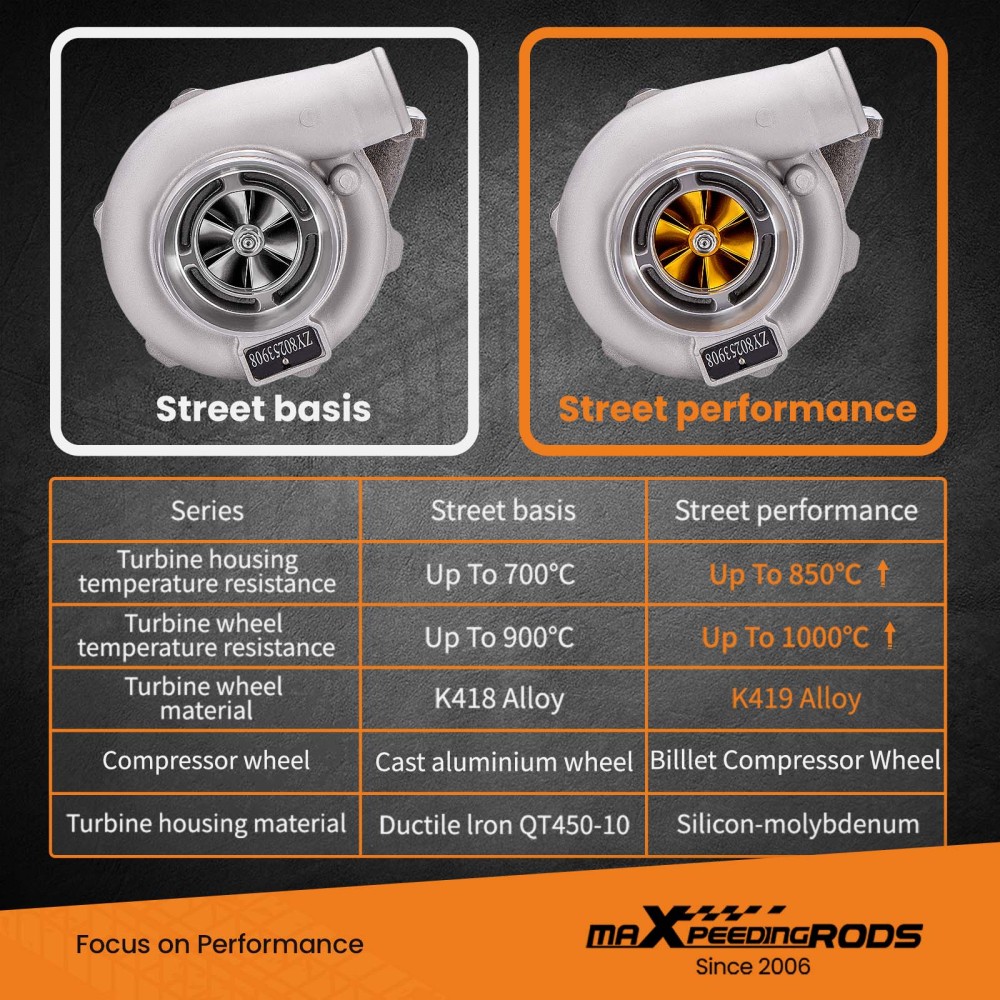

1. Turbine housing: Silicon-Molybdenum alloy steel - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases durability and reliability.

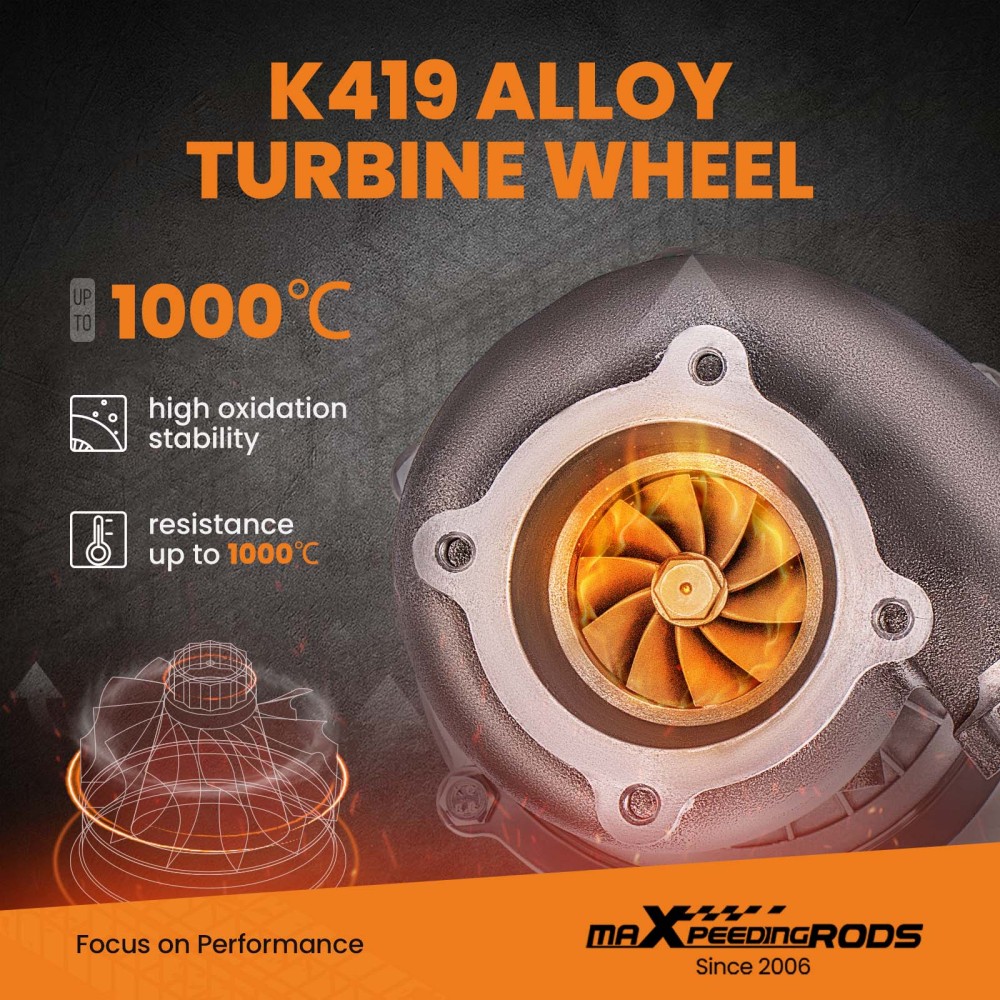

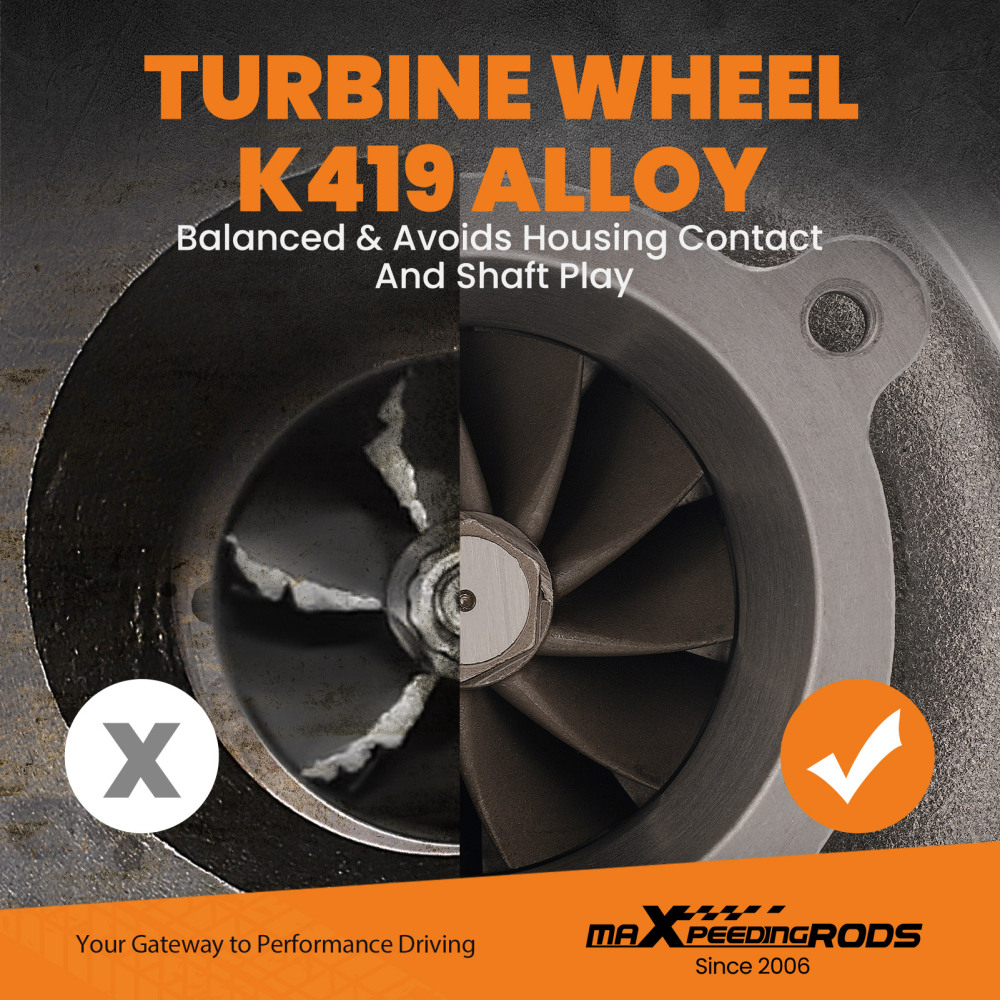

2. Turbine Wheel: K419 alloy - High temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown for smooth reliable operation.

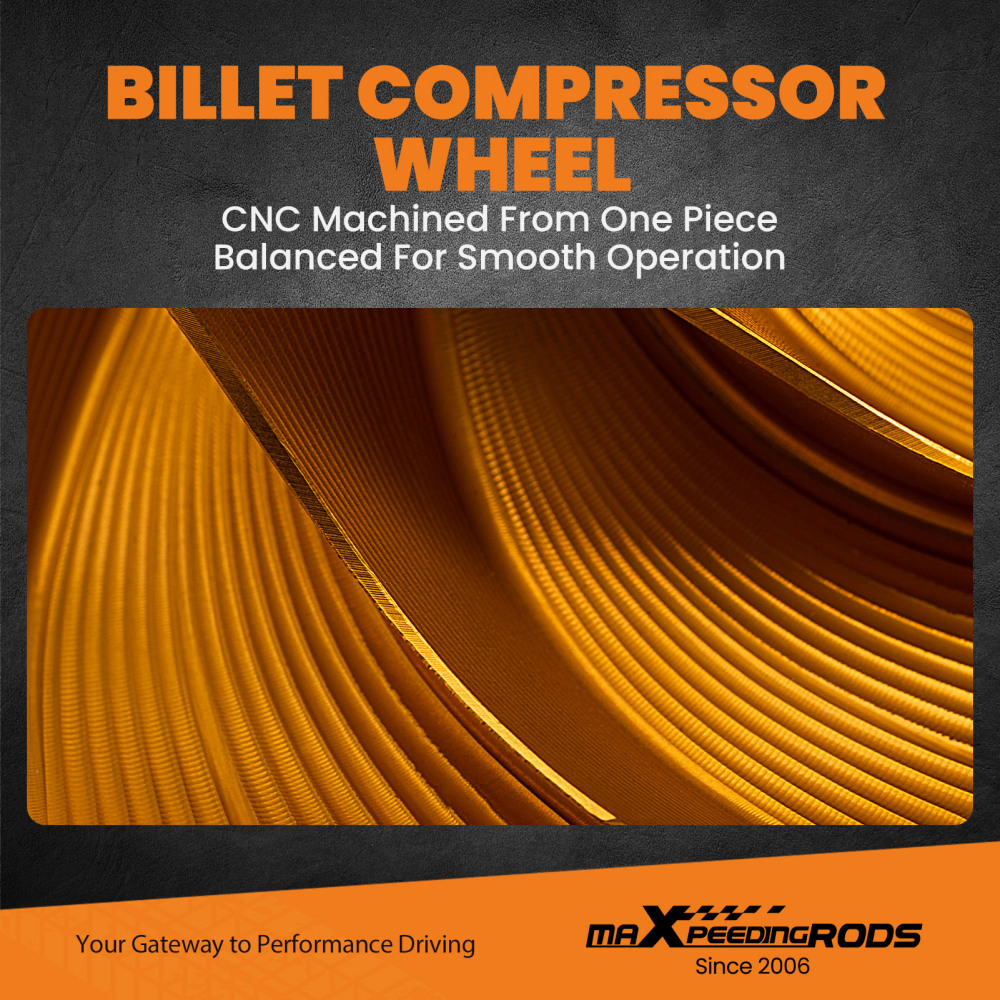

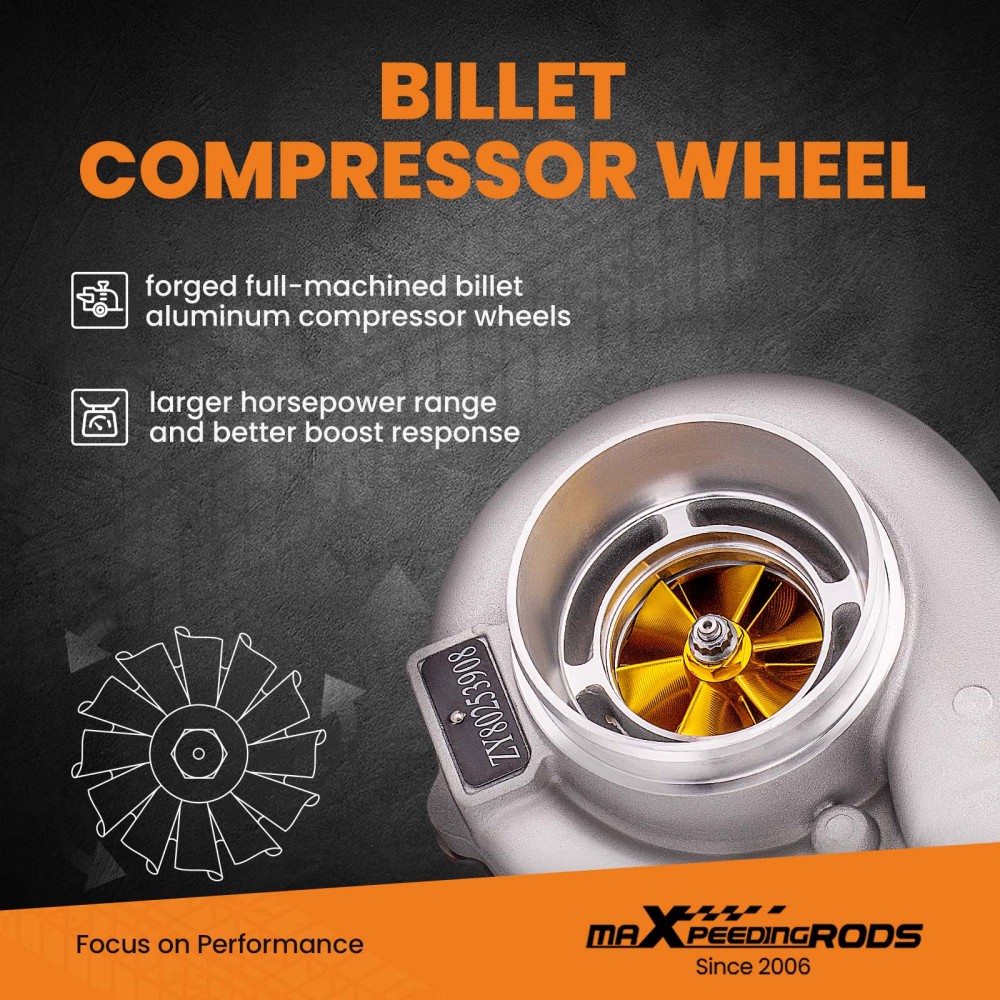

3. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.

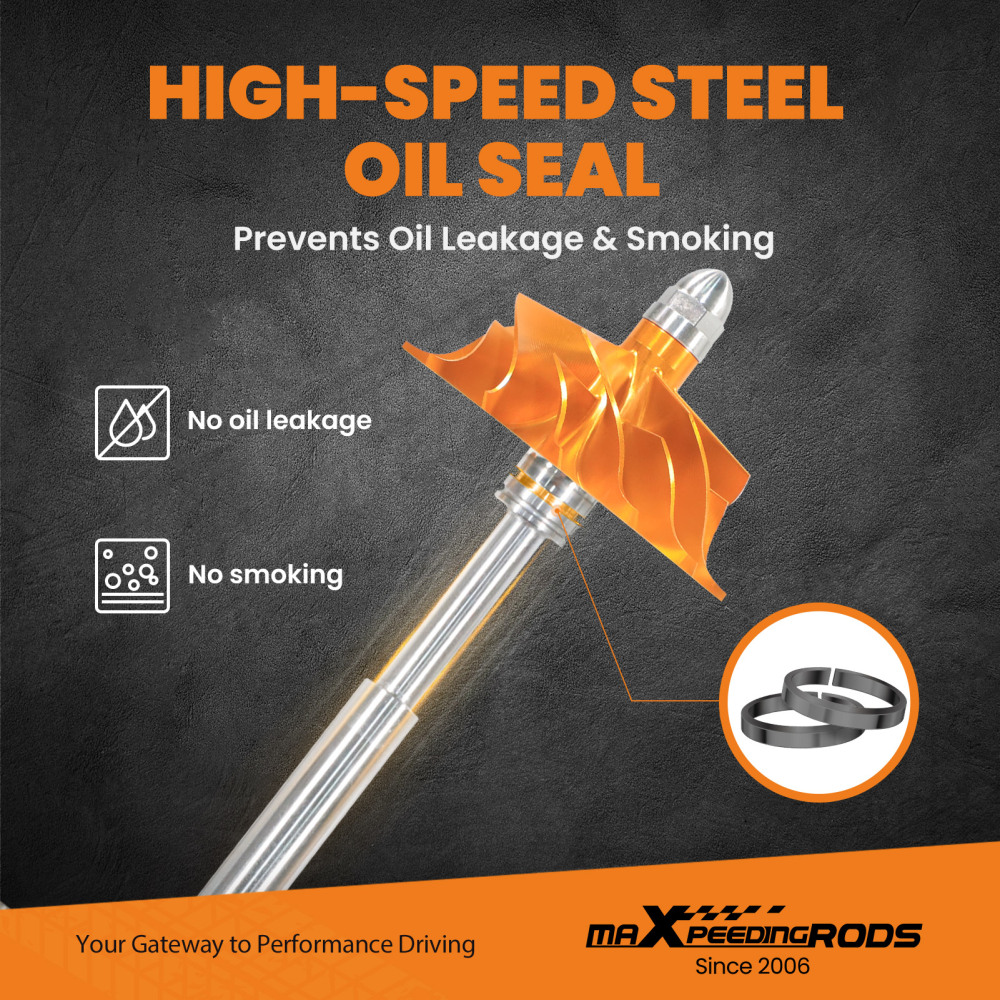

4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.

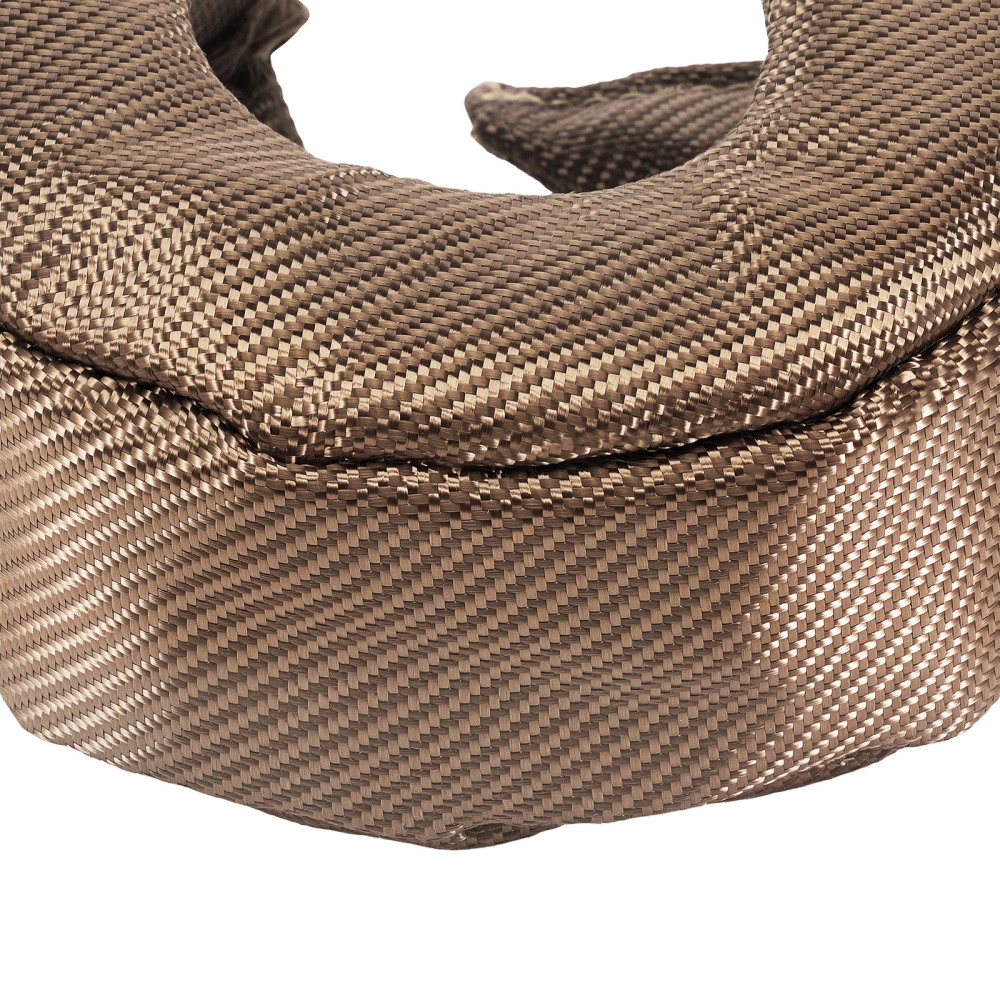

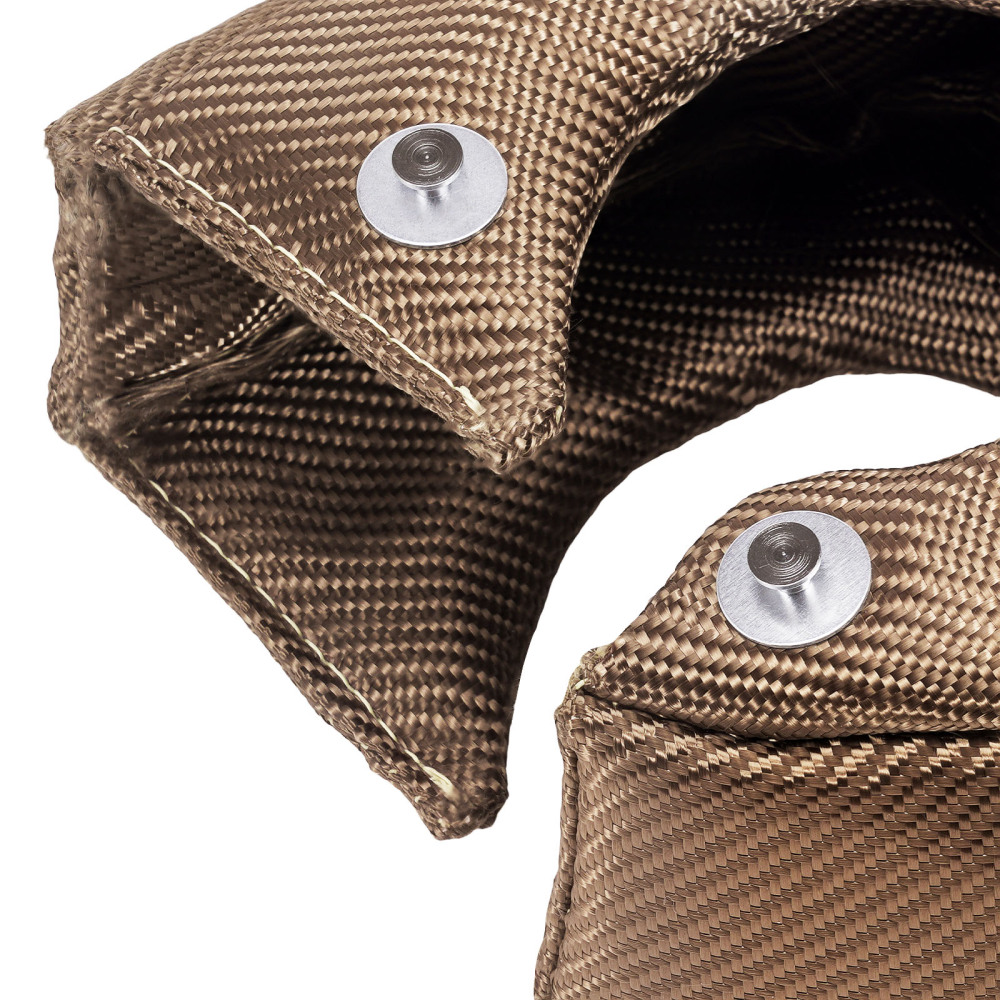

Turbo Heat Shield

1. Keep crucial engine components protected from the heat of the turbo. while increasing spool time and reducing underhood temperatures.

2. Our high-quality basalt fiber can withstand high temperatures up to 800°C.

Notice:

Turbo

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

Turbo Heat Shield

* Universally fits on any T3 turbocharger.
* The Turbo Shield is non-flammable, the product may ignite if exposed to flammable fluids.
* Please take all necessary precautions to insure that the oil supply line and all fluid fittings are in proper working order, sealed and without leaks.
