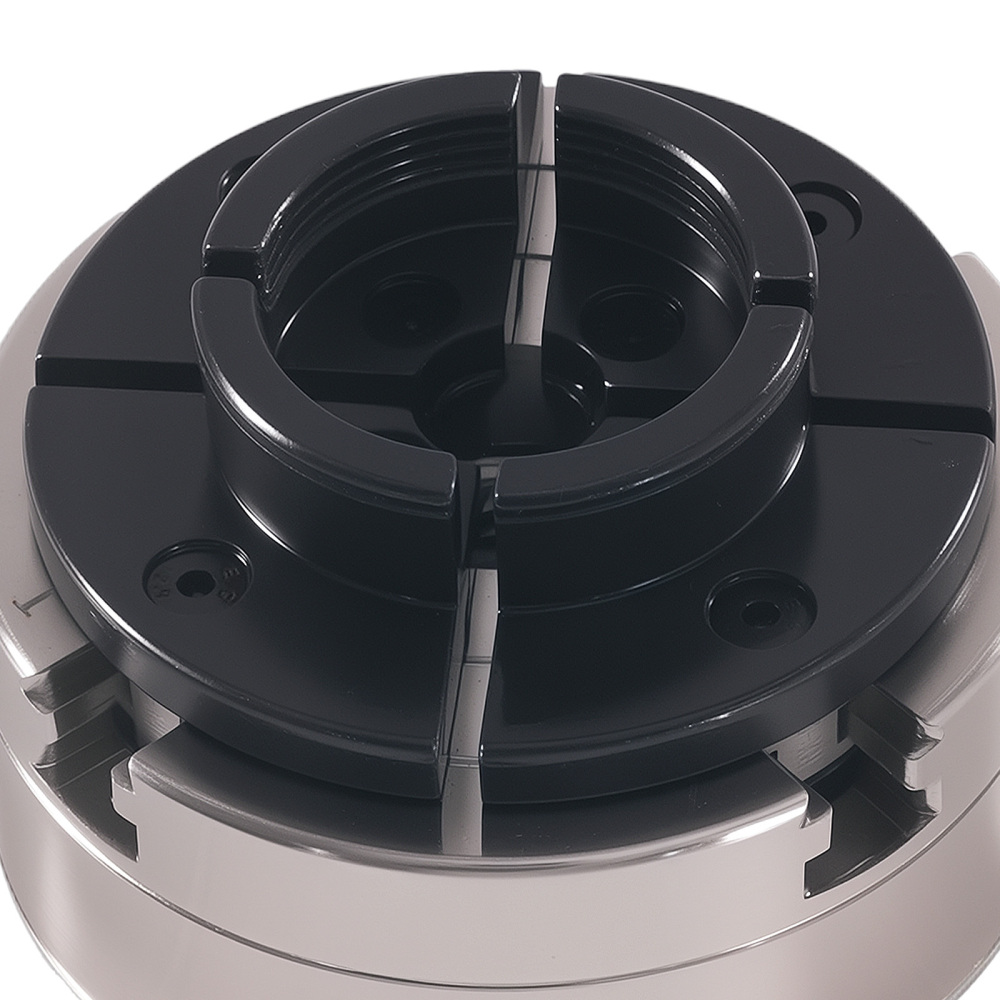

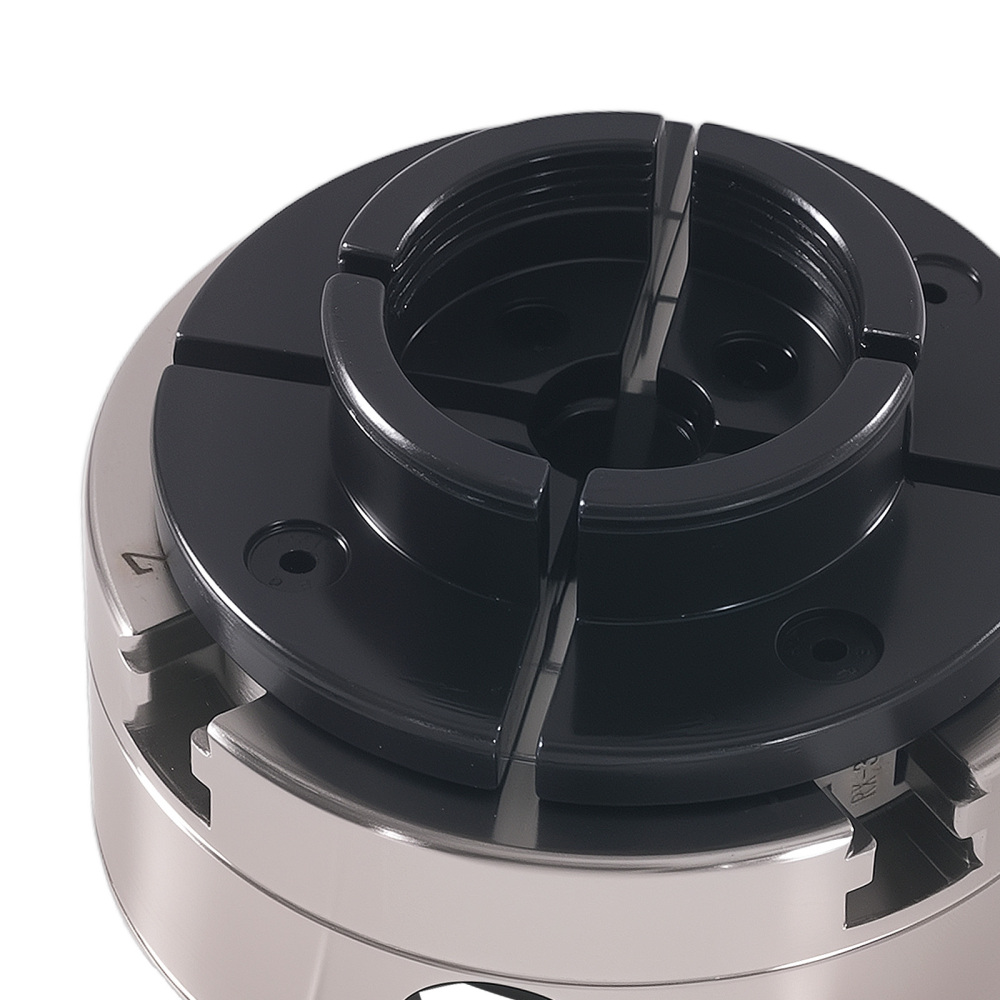

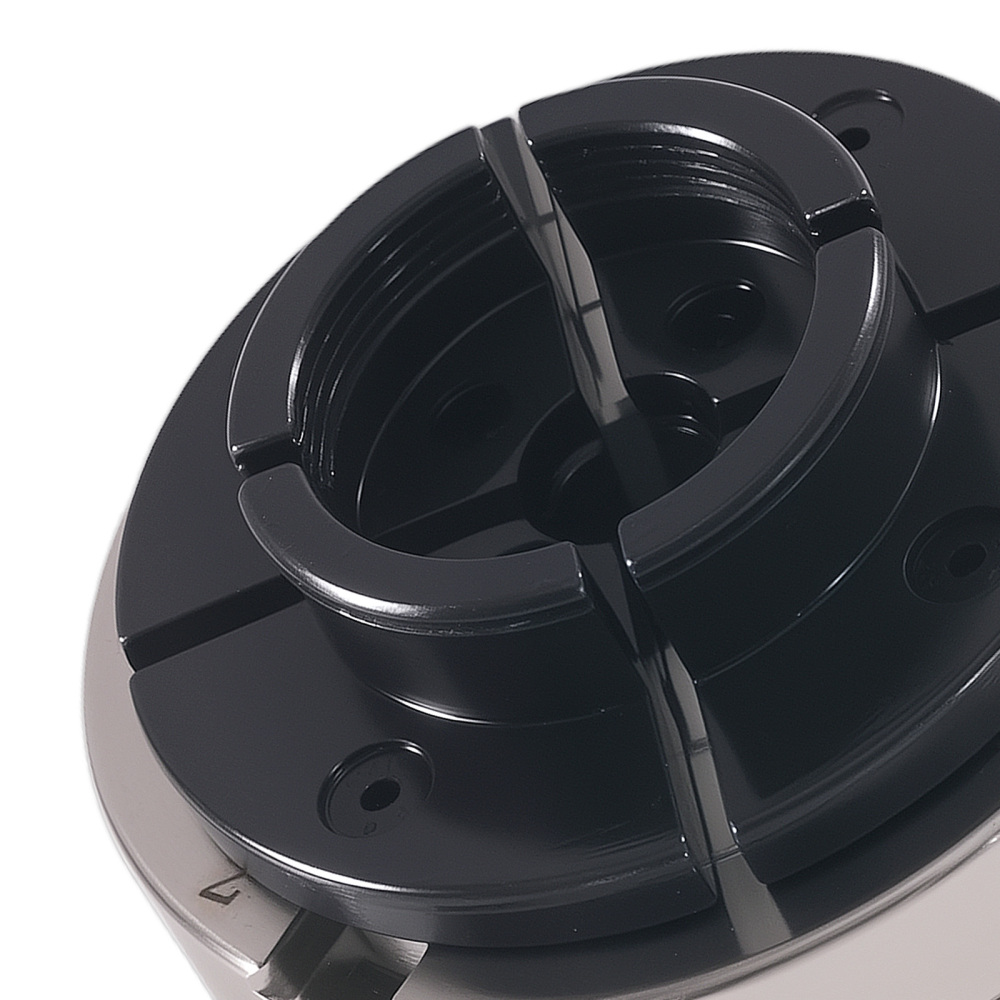

KP96 96mm Self Centering Chuck 4 Jaw for Woodworking Lathe M33x3.5 3.75in

Application

For woodworking
For drilling
For grinding

Specification

Condition: New
Material: 45# steel
Model: KP96
Chuck Outer Diameter: 3.75 in / φ96 mm
Clamping range (inner jaws): 1.26-2.75 in (32-70 mm)
Clamping range (outer jaws): 1.77-3.4 in (45-86 mm)

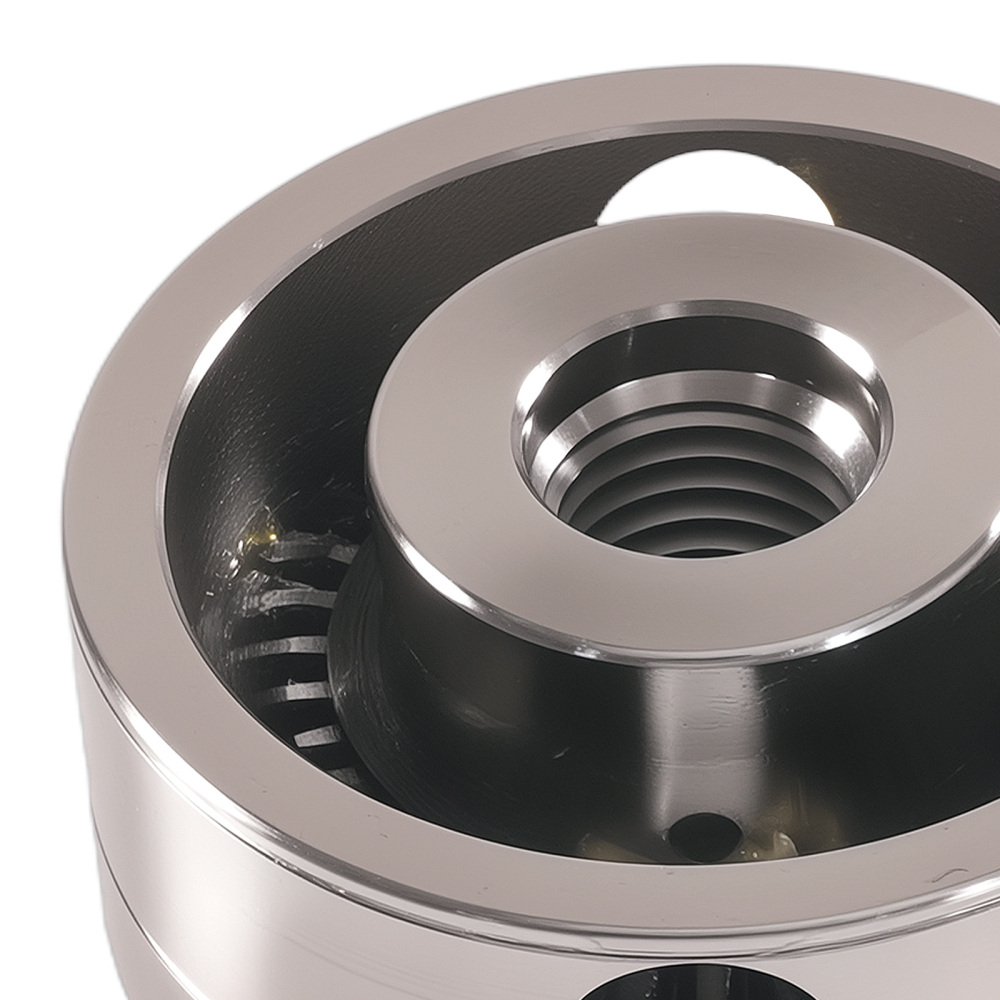

Chuck Internal Thread: M33x3.5TPI
Outer Diameter Runout: ≤0.15 mm
Test Bar Radial Runout: ≤0.40 mm at a distance of 50 mm
Test Ring End Face Runout: ≤0.15 mm
Surface Treatment and Color: ≤Ra1.6, Chrome Plated Natural Color

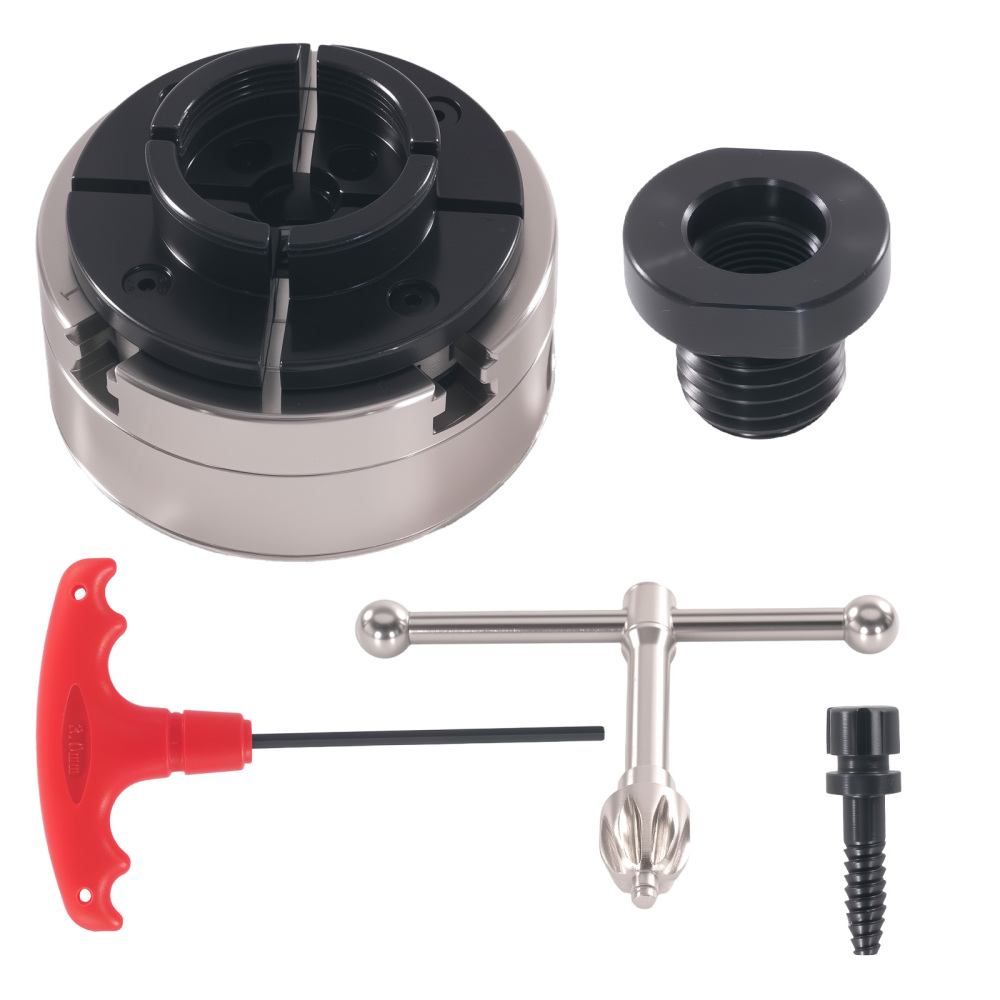

Package included

Chuck body *1
Adapter *1
Wood screw *1
Integrated wrench *1
T-wrench *1
Showing as the picture

Feature

High-Strength #45 Material: Quenched and hardened for exceptional hardness and rust resistance
High Precision: Precision casting, machining, and calibration ensure structural stability and machining accuracy
Versatile Single Jaw: Adjustable jaw design with T-handle wrench for clamping bowls, plates, vases, cups, etc.
Simple & User-Friendly: Streamlined, compact design requiring only screws, handles, and T-handle rotation
Wide Range of Applications: Suitable for woodworking, drilling, grinding, personal use, and industrial production

Note

Installation and removal require only screws and handles
Clamping and spreading are achieved by rotating the T-handle wrench
