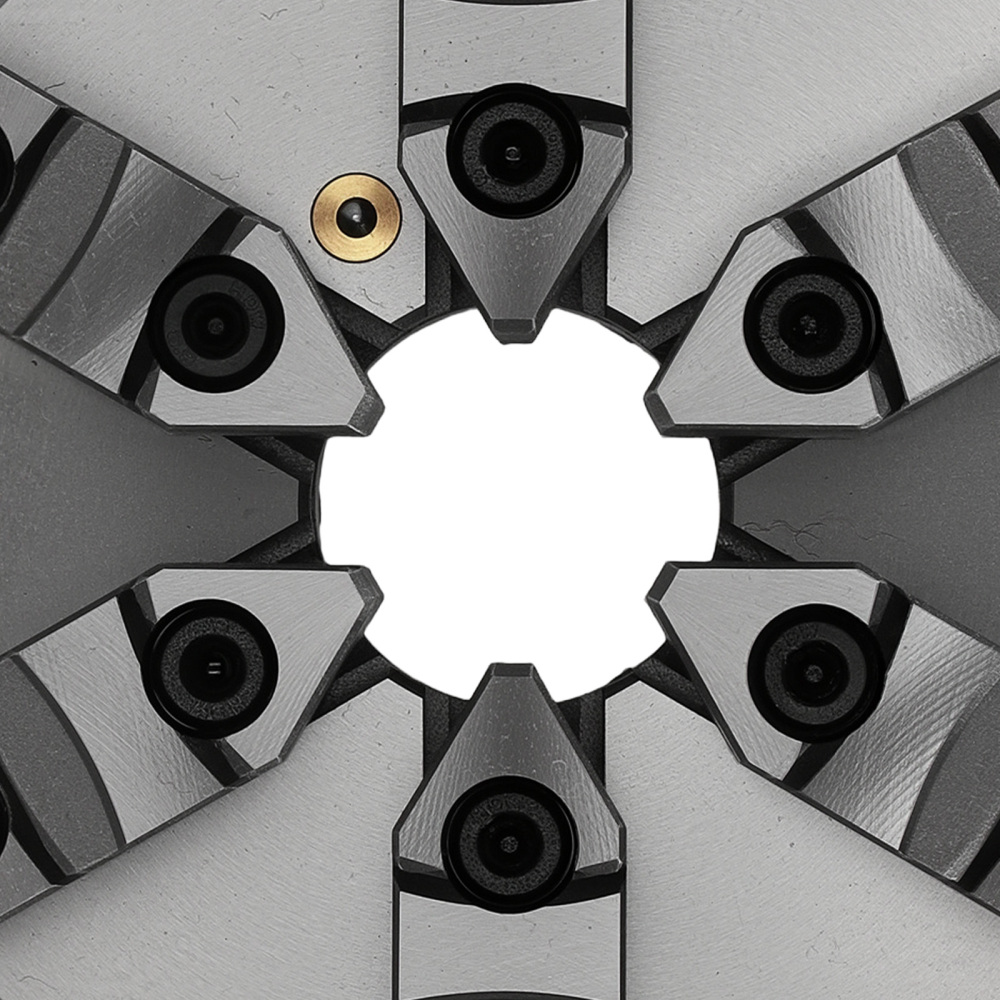

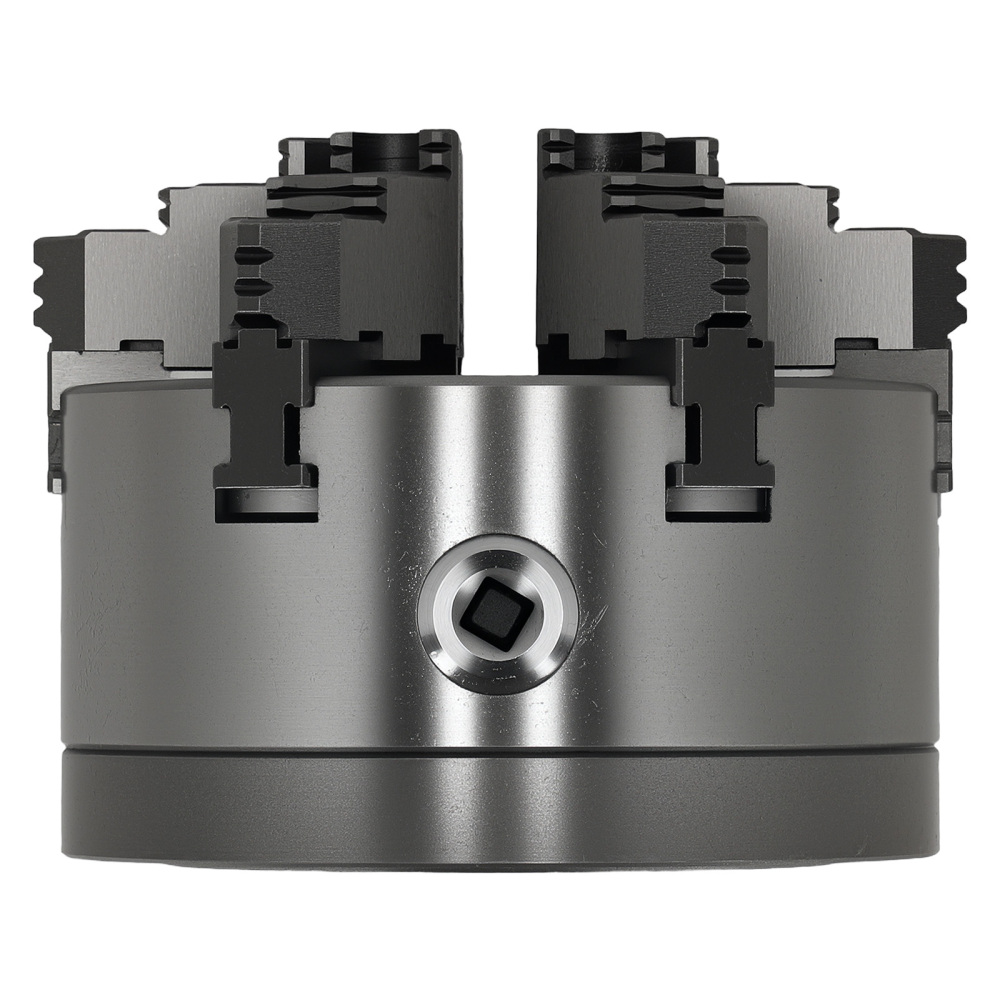

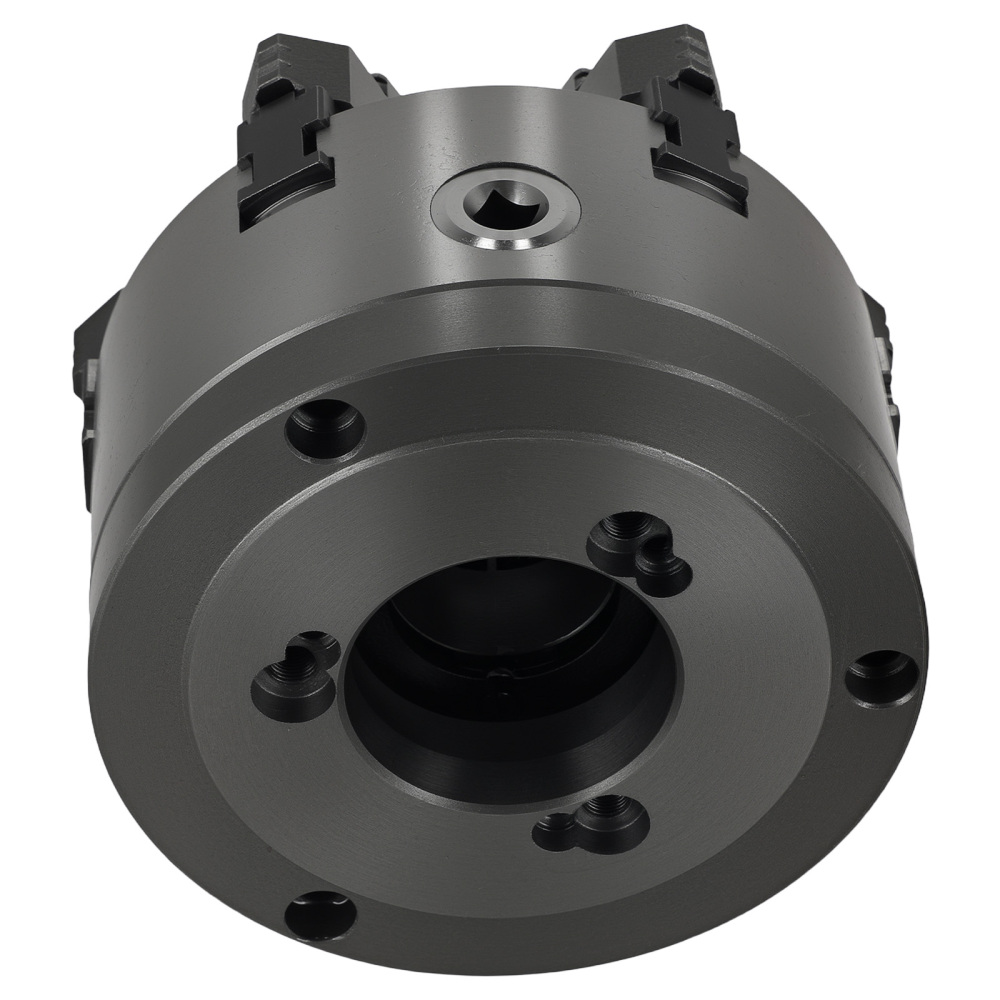

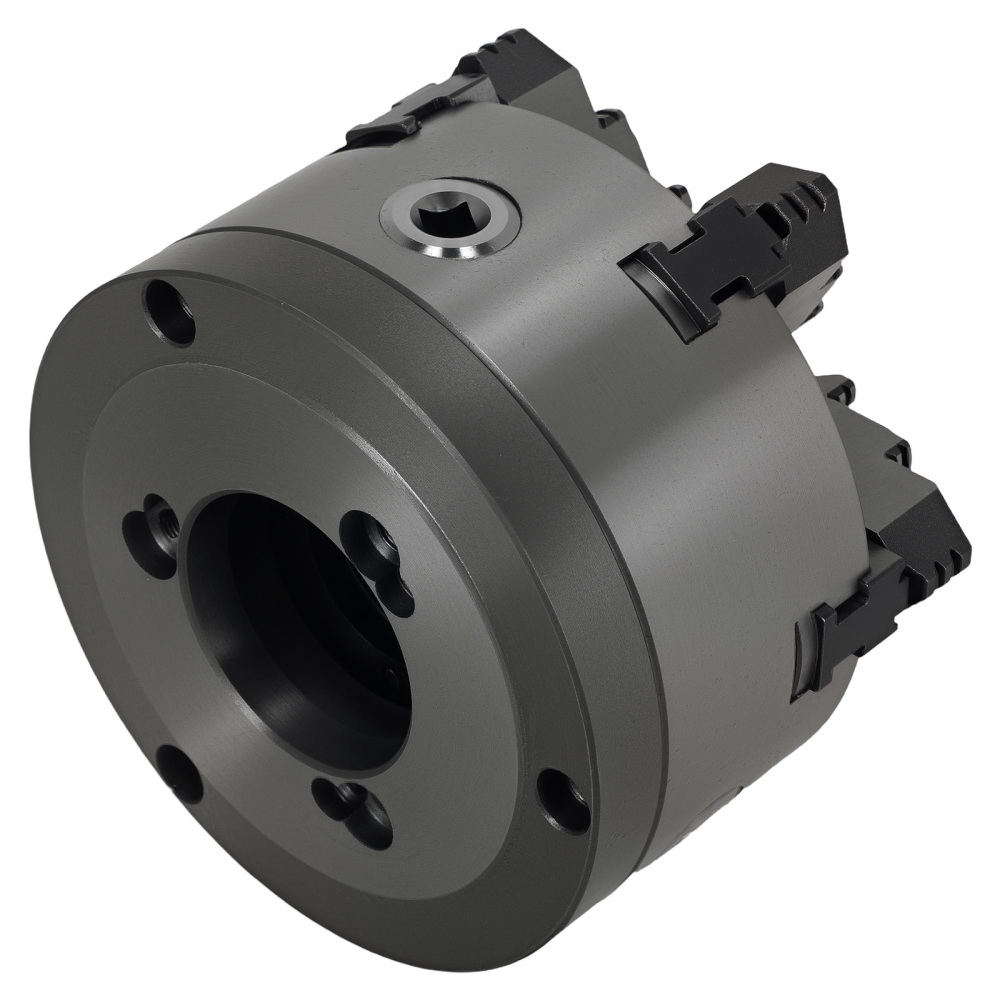

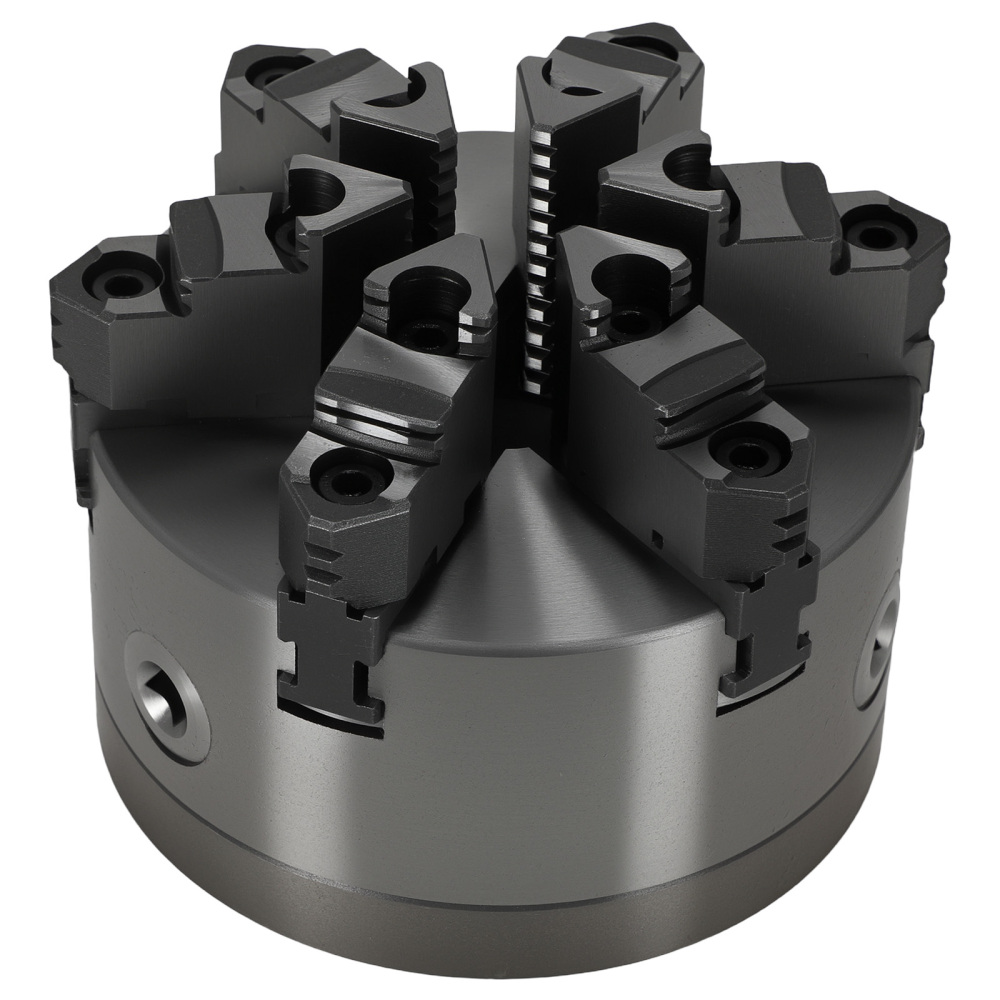

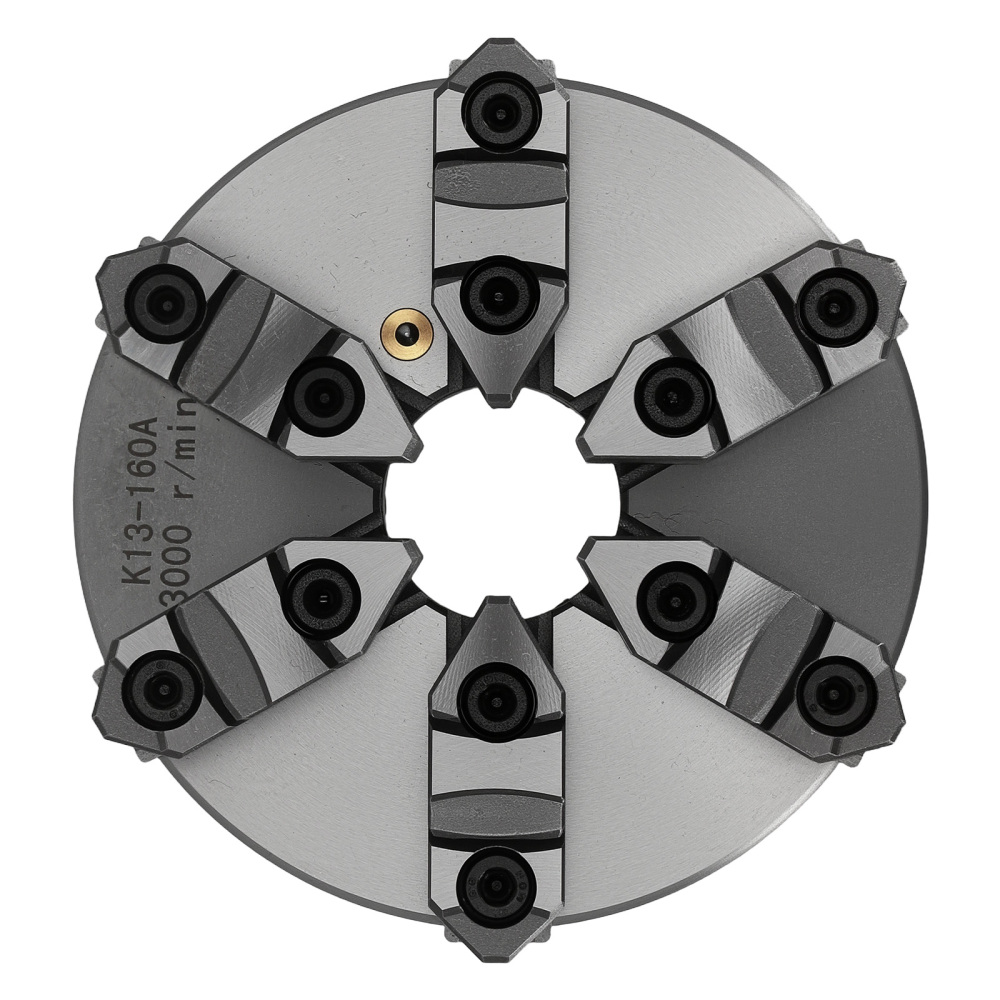

6in Self Centering 6-Jaw Lathe Chuck K13-160A D1-4 160mm Cast Iron New

Application

For metal working, drilling, and milling tasks

OE/Part number

K13-160A（ D1-4）

Specification

Condition: New
Chuck Type: :6-Jaw Lathe Chuck with Backing Plate,SeparateJaws
Model: K13-160A (D1-4)
Chuck Body Material: Cast Iron
Inner Diameter: 1.57in/40mm
Outer Diameter: 6in/160mm
Internal Jaw Clamping Range: 0.12-5.71in/3-145mm
External Jaw Clamping Range: 1.97-6.3in/50-160mm

Package included

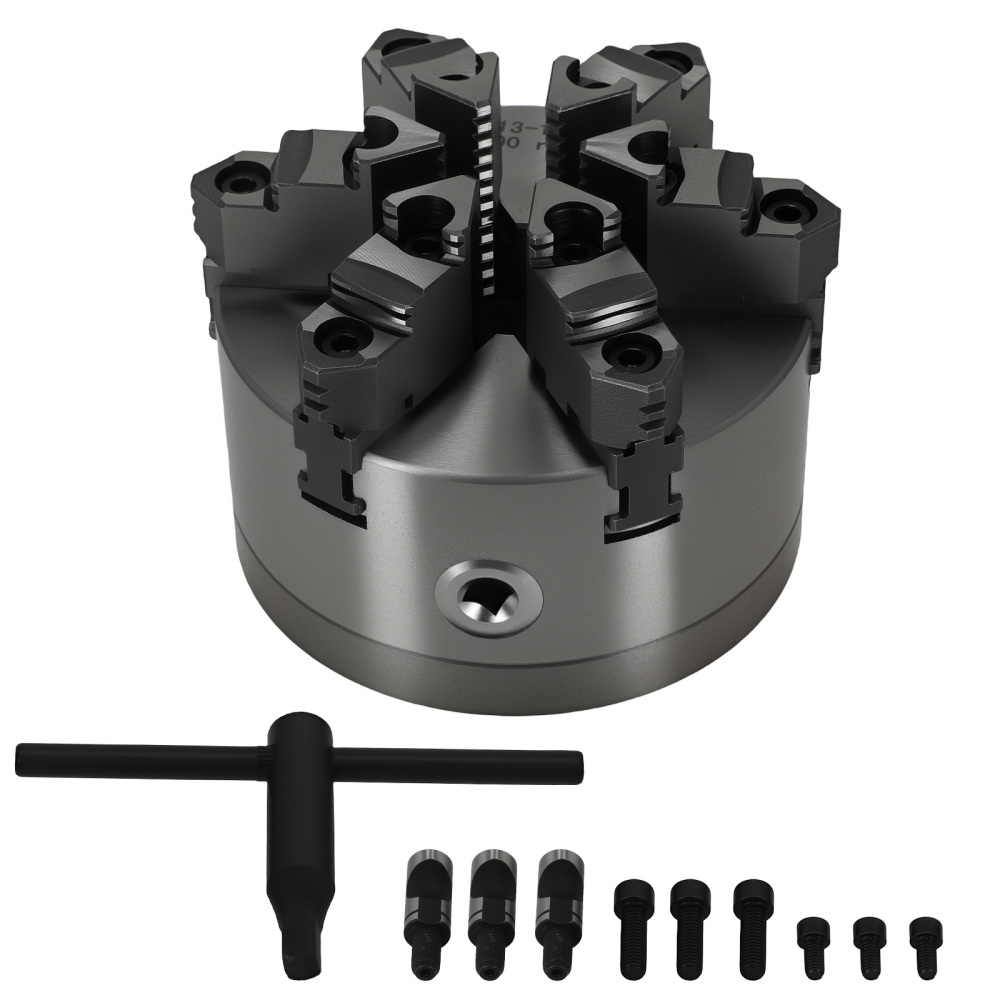

1* 6-Inch 6-Jaw Lathe Chuck with Mounting Plate
1* T-shaped wrench
1* D1-4 Cam Lock Adapter Backing Plate
Showing as the picture

Feature

Constructed from high-quality cast iron for exceptional durability
Self-centering mechanism ensures precise and stable clamping
Supports both internal and external clamping for versatile applications
Equipped with D1-4 cam lock adapter backing plate for secure machine connection
Effortless setup with included T-shaped tool for quick installation

Note

Use T-shaped wrench for proper assembly
Ensure correct installation steps are followed for smooth operation
Inspect product upon delivery for any transit damage
Do not use if signs of compatible for man-made sabotage are present
Store in dry environment to maintain rust resistance
