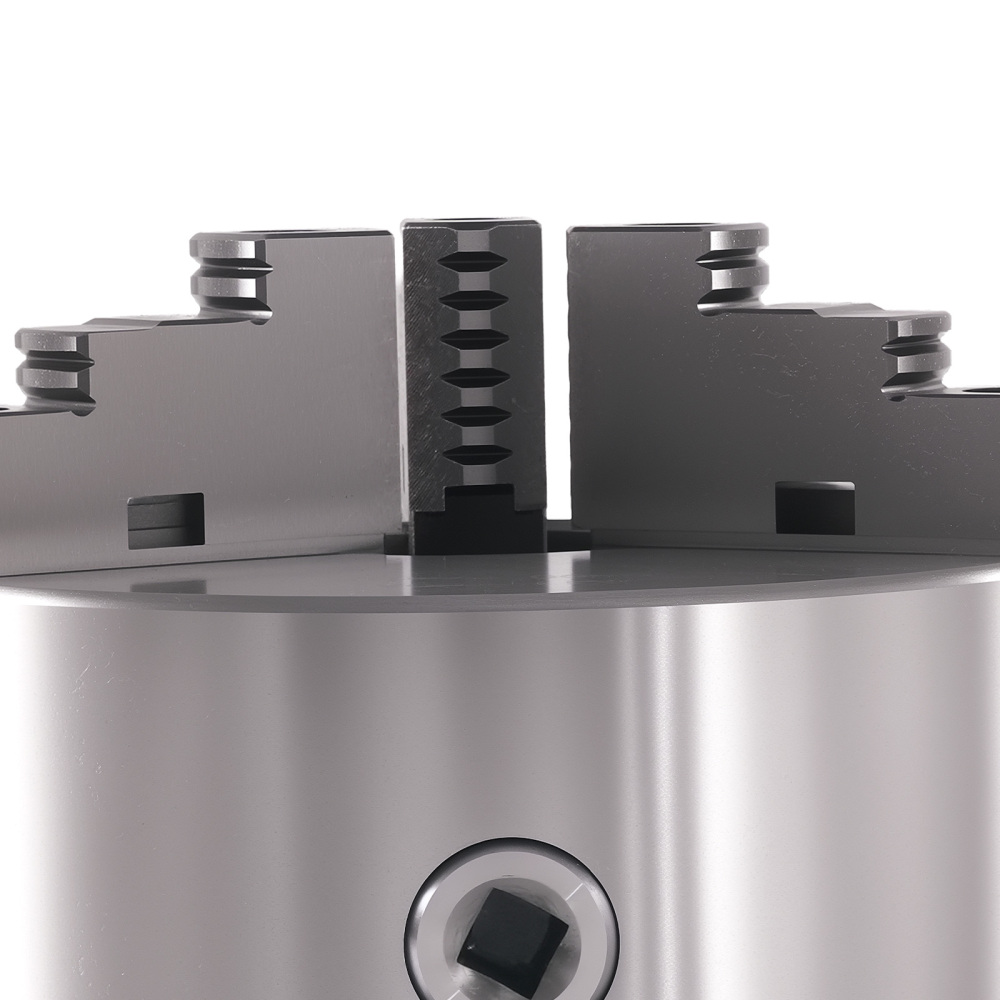

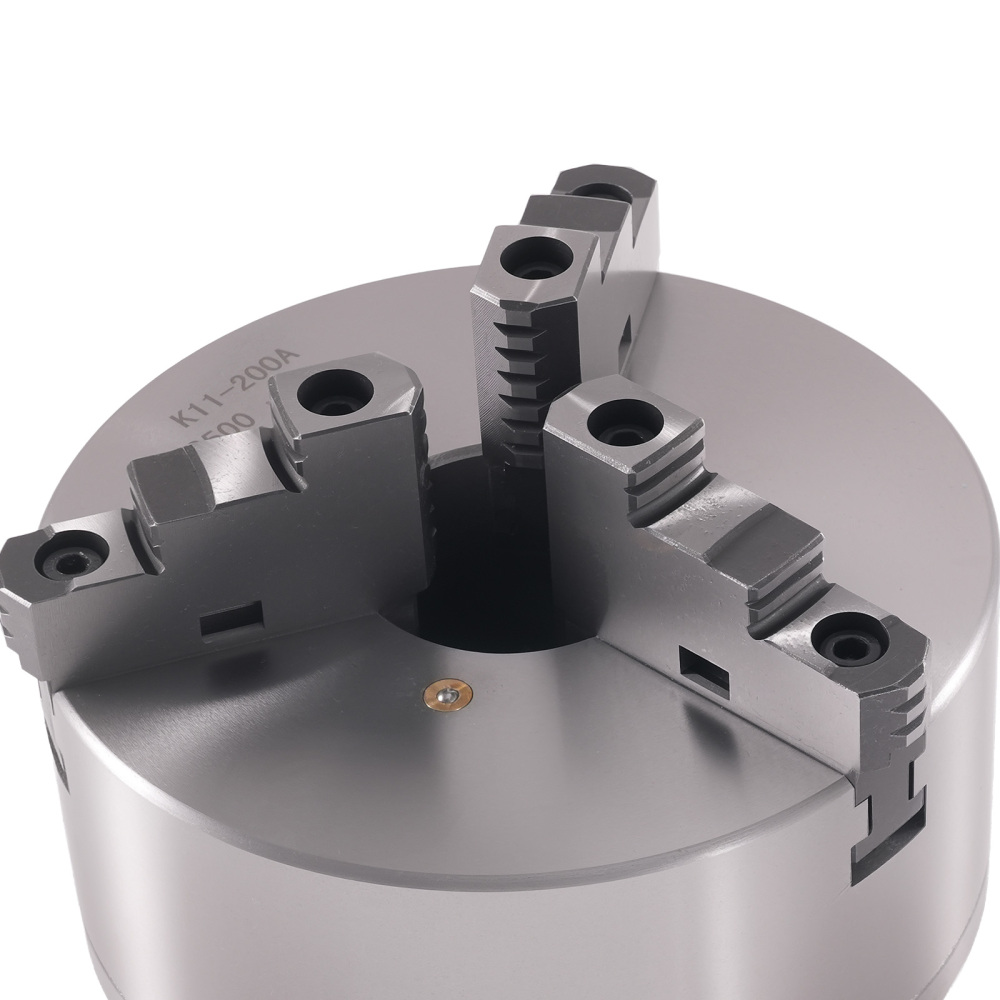

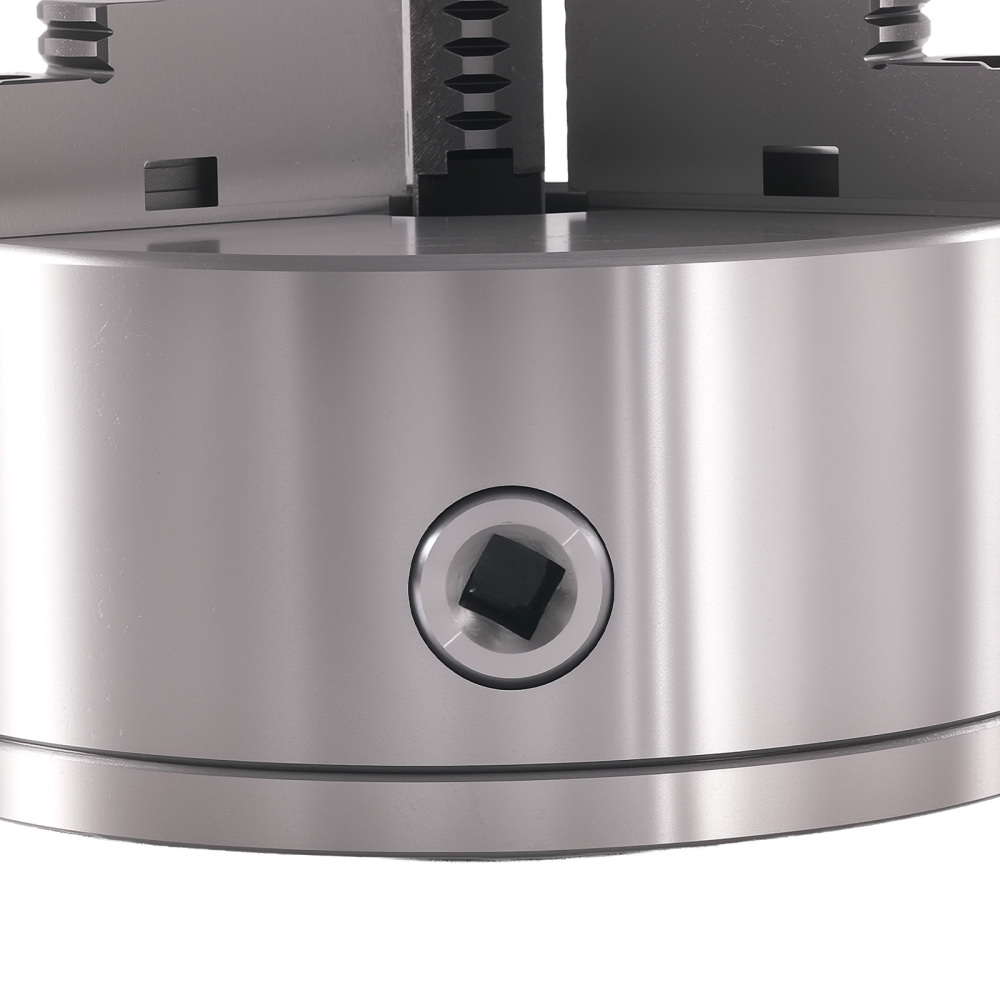

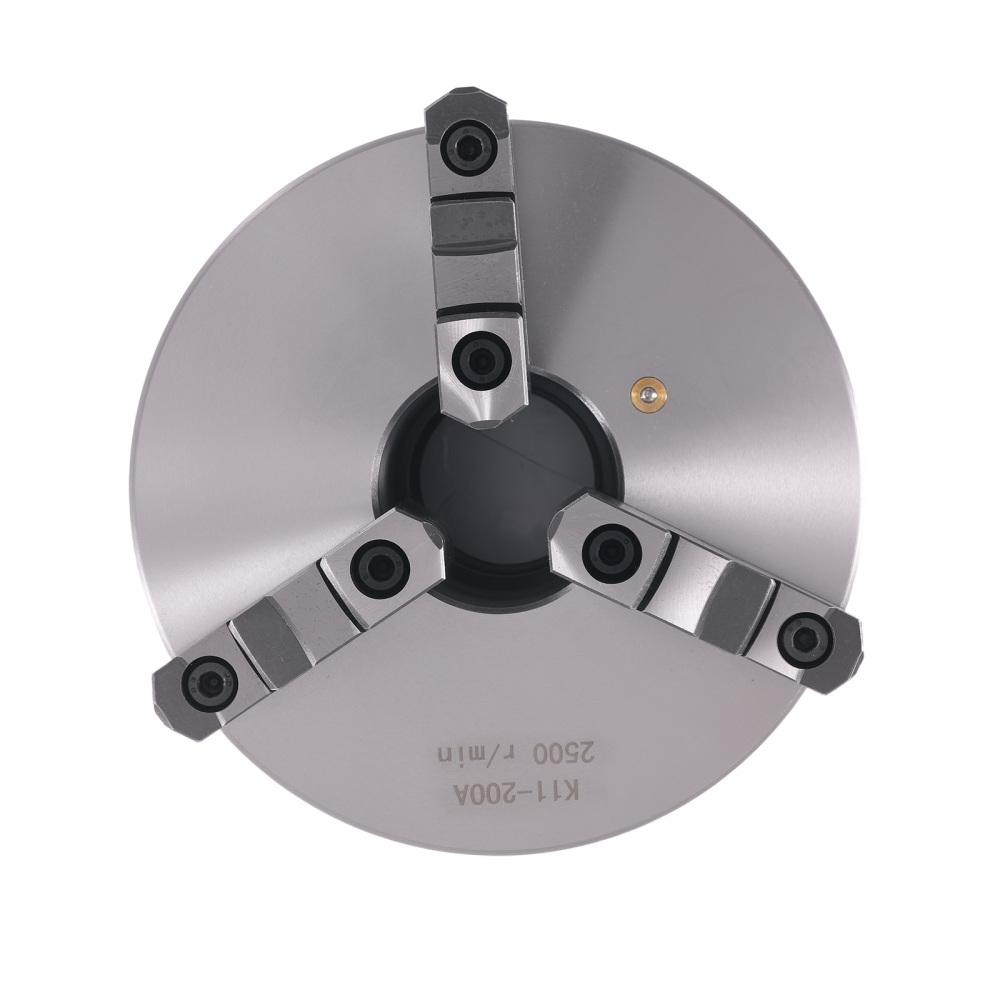

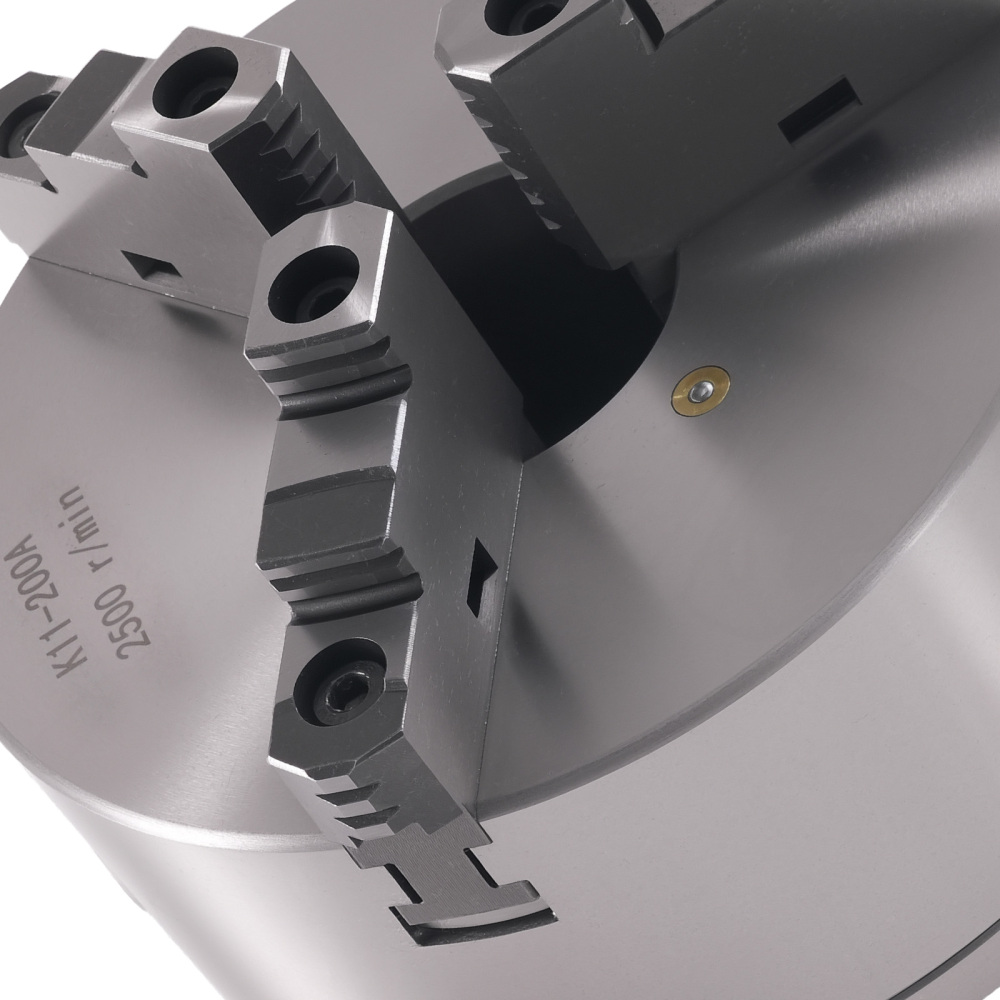

8in Self Centering 3-Jaw Chuck K11-200A 2-1/4-8 Thread Lathe with Adapter

Application

For metal turning, drilling, and milling tasks
For internal and external clamping of small workpieces
For use on most lathes requiring high-precision self-centering chuck
For efficient and stable clamping performance in industrial applications

OE/Part number

K11-200A（2-1/4-8）

Specification

Condition:New
Chuck Type: 3-Jaw Lathe Chuck with Backing Plate,SeparateJaws
Model: K11-200A（2-1/4-8）
Screws: M8
Inner Diameter: 2.56in/65mm
Outer Diameter: 8in/200mm
Chuck Body Material: Cast Iron
Internal Jaw Clamping Range: 0.16-7.87in/4-200mm
External Jaw Clamping Range: 2.56-7.87in/65-200mm
Backing Plate: 2 1/4 in-8 threaded adapter

Package included

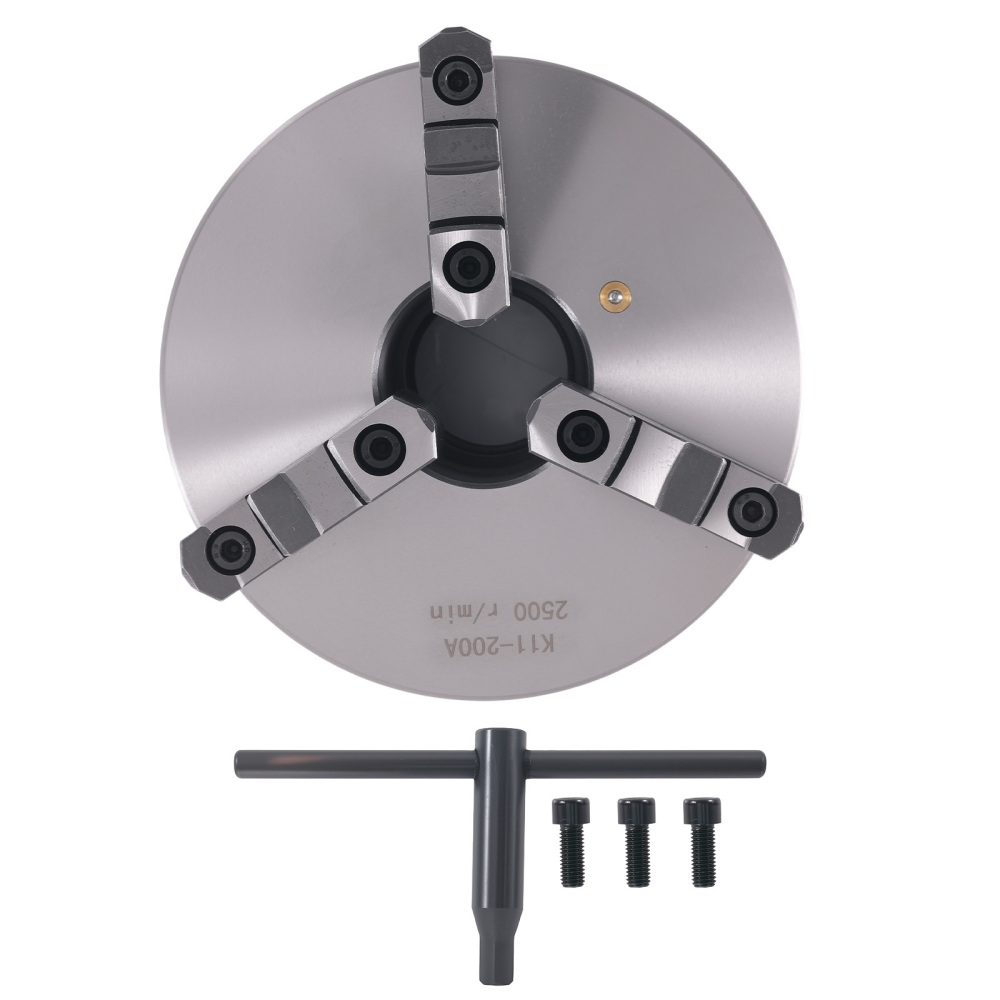

1* 3-Jaw Lathe Chuck with Backing Plate
1* T-Wrench
3* Screws
1* 2 1/4in-8 Threaded Adapter Backing Plate
Showing as the picture

Feature

Self-centering design ensures high-precision clamping without repeated calibration
Made from premium cast iron with quench-hardened jaws for exceptional durability
Equipped with fine gears for precise control over clamping accuracy
Supports both internal and external clamping for versatile machining applications
T-shaped tool included for easy and hassle-free installation
