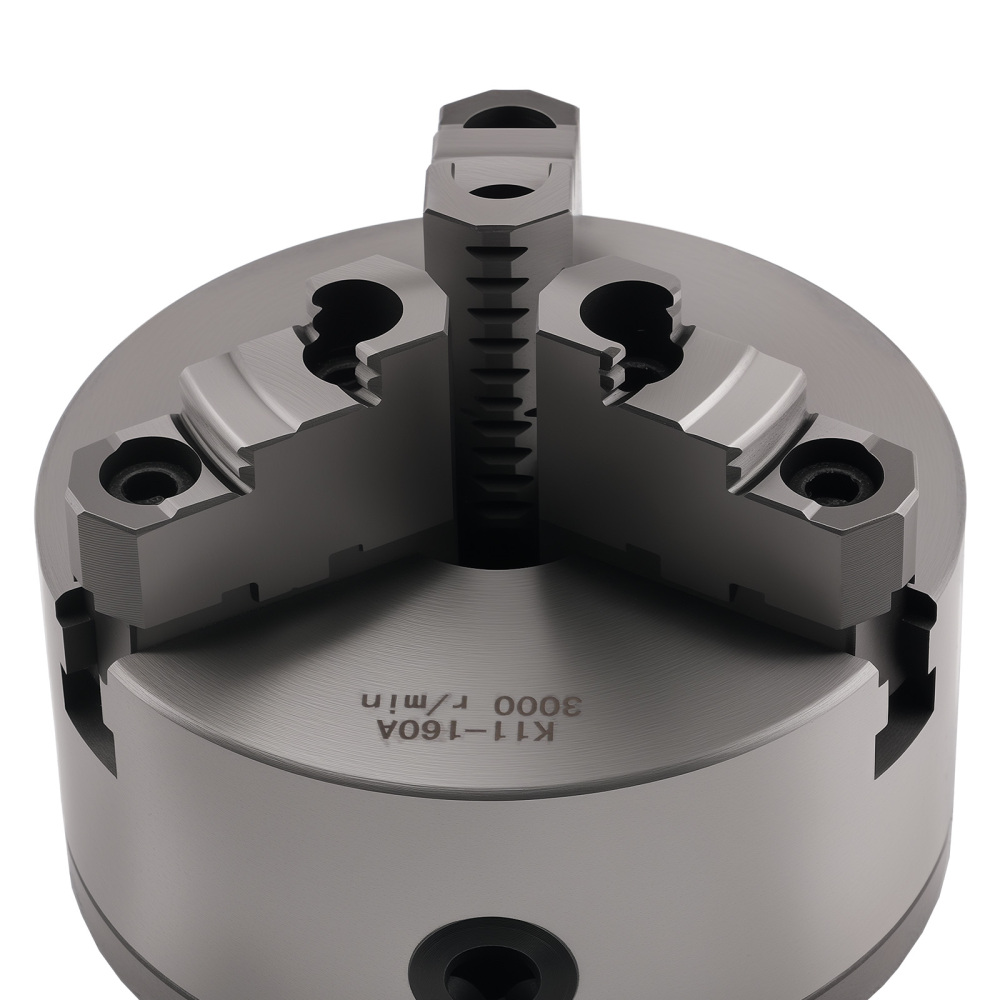

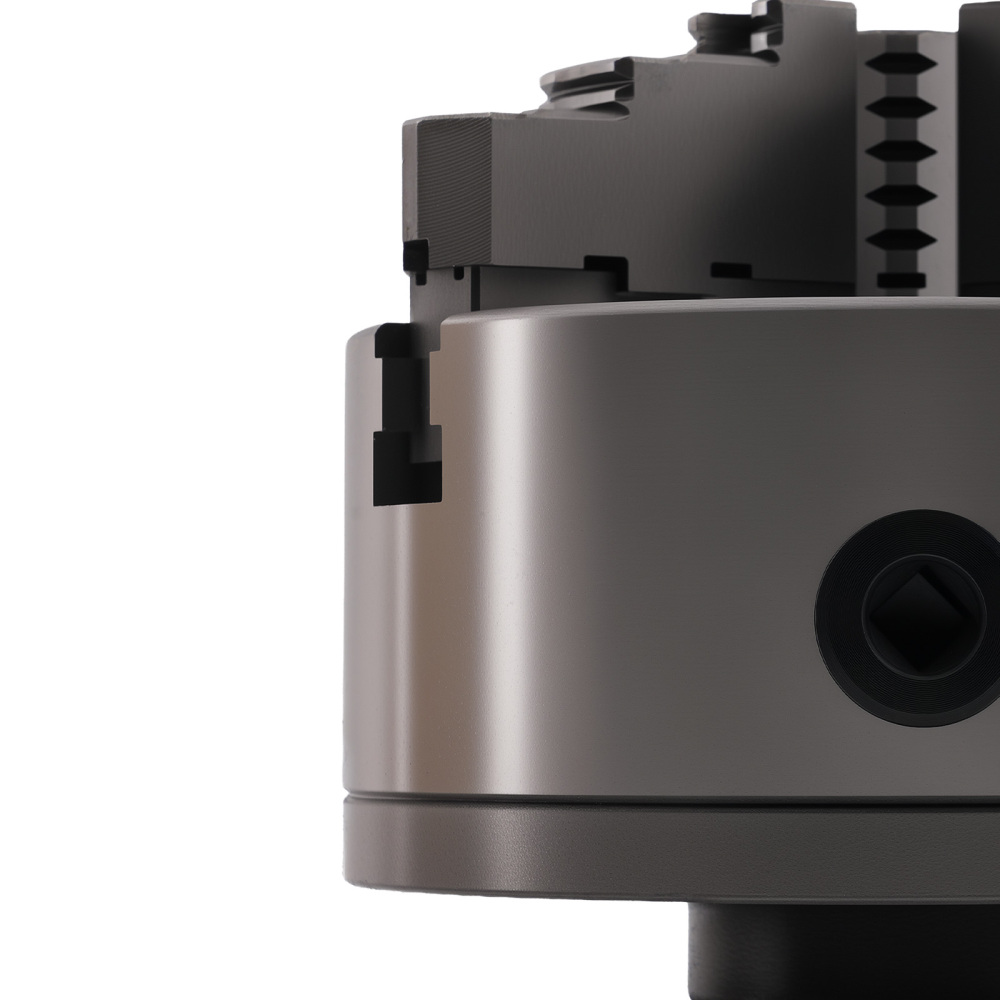

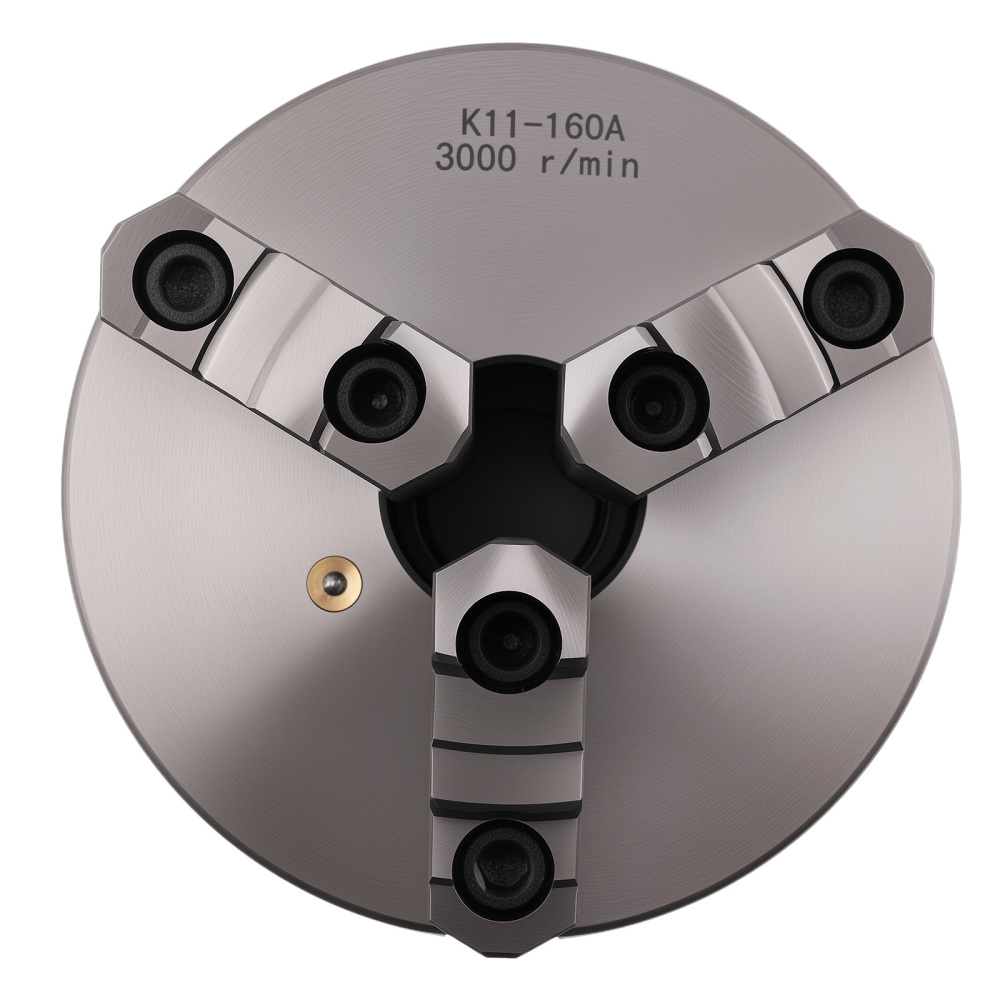

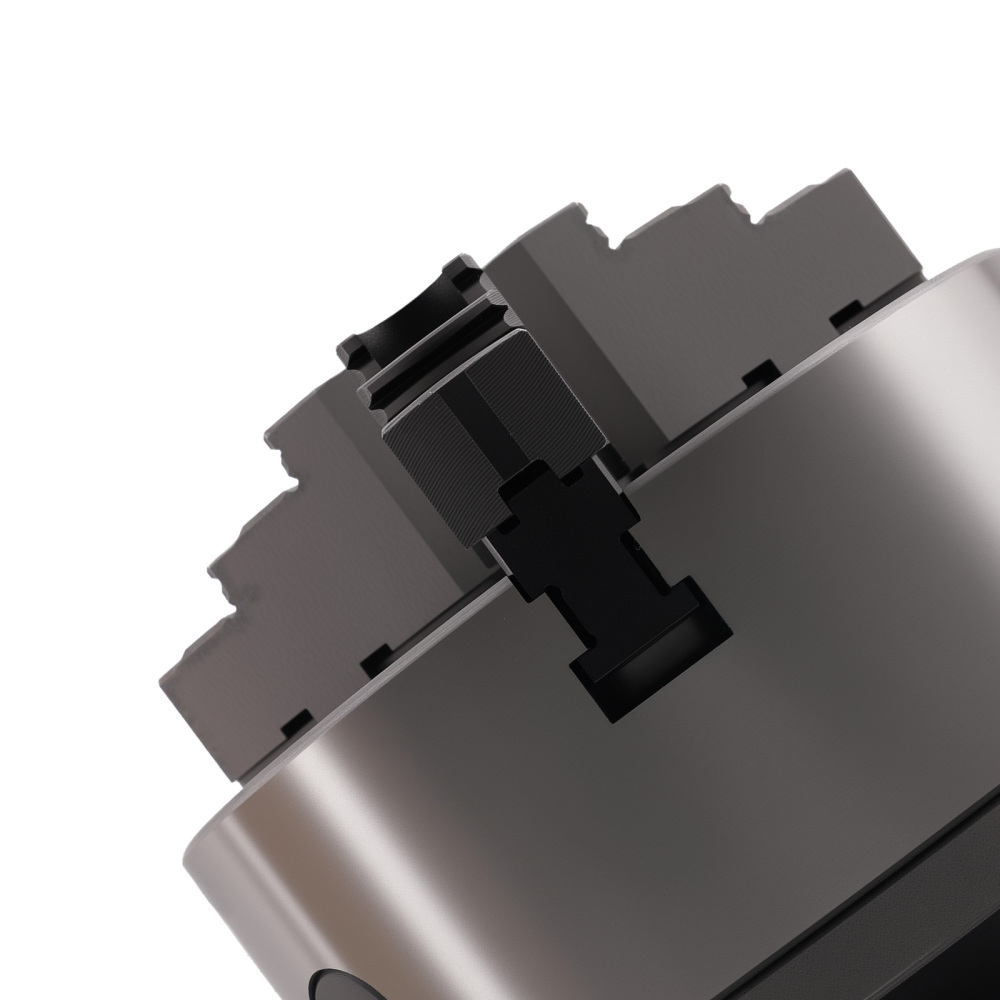

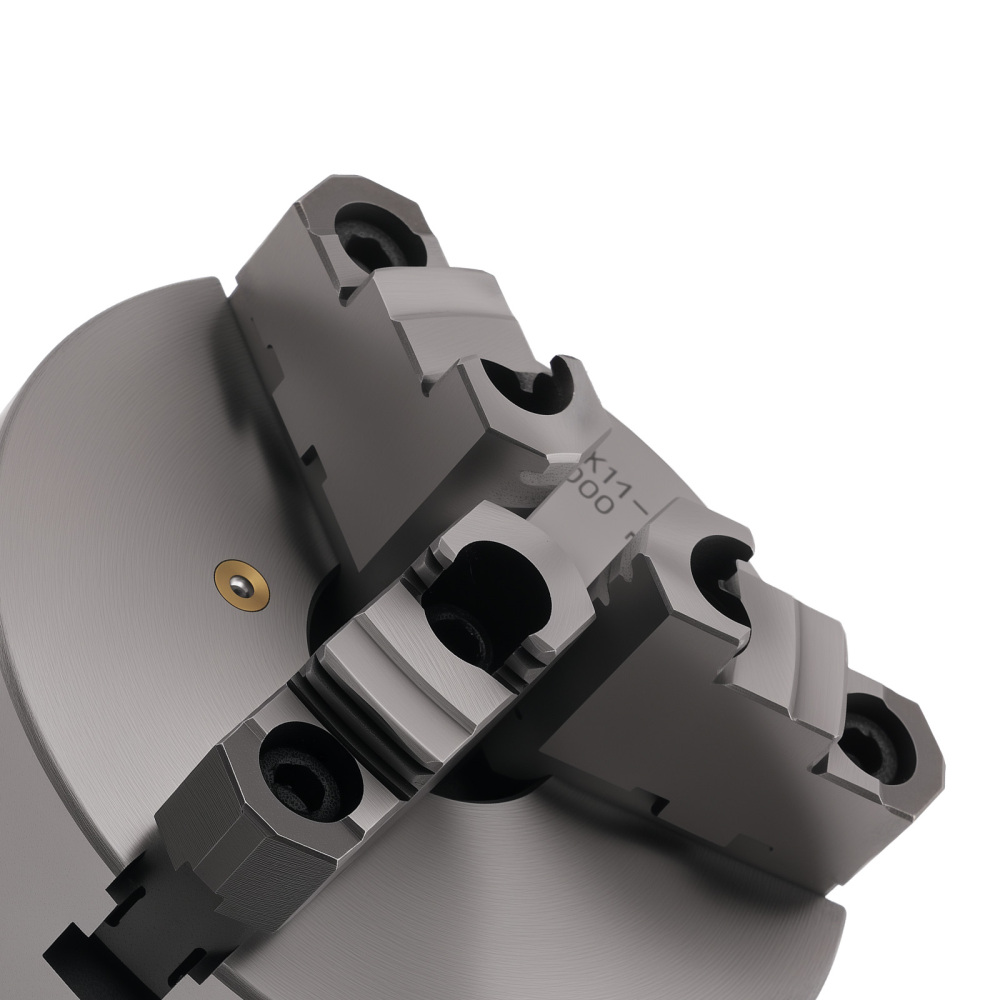

160mm 3-Jaw Self Centering Chuck K11-160A 6 Inch Lathe w/ Backing Plate M8

Application:

for metal turning, drilling, and milling operations

for precision machining tasks requiring high clamping accuracy

for both internal and external clamping applications

for small workpiece clamping with consistent performance

for most lathe machines enhancing efficiency and flexibility

OE/Part number:

K11160A1-1/2-8,K11-160A1-1/2-8

Specification:

Condition: New

Chuck Type: 3-Jaw Lathe Chuck with Backing Plate,Separate Jaws

Model: K11-160A（1-1/2-8)

Screws: M8

Inner Diameter: 1.77in/45mm

Outer Diameter: 6in/160mm

Jaw Hardness: ≥53 HRC

Internal Jaw Clamping Range: 0.12-5.71in/3-145mm

External Jaw Clamping Range: 1.97-6.3in/50-160mm

Package included:

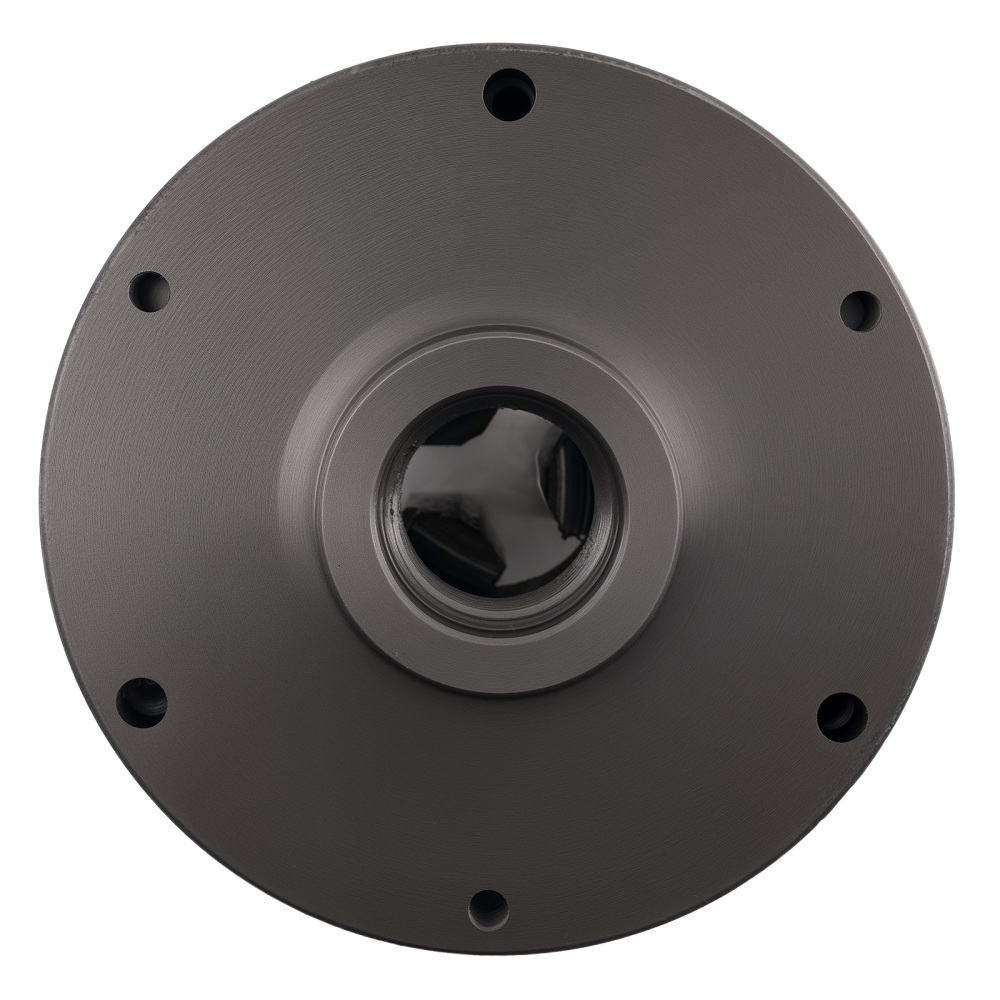

1* 6-Inch 3-Jaw Lathe Chuck with Backing Plate

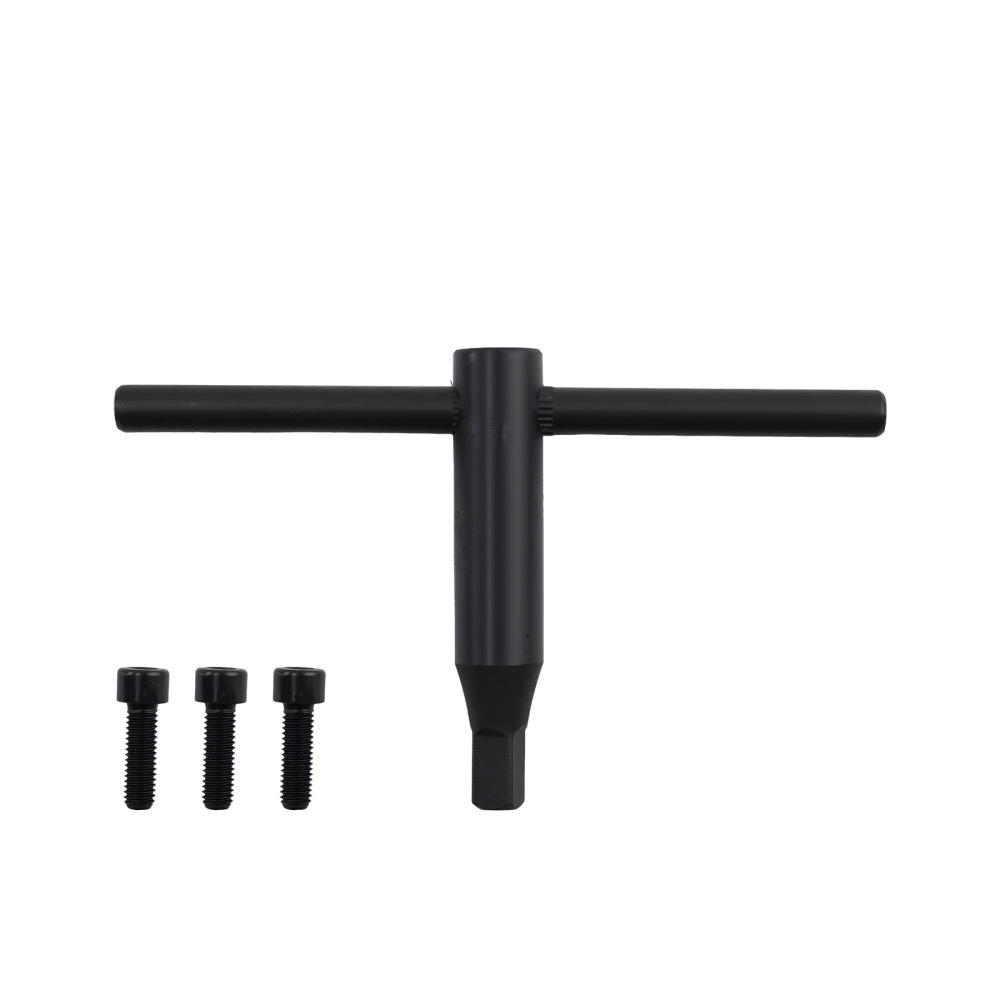

1* T-shaped clamping tool

1* set of jaws

3* Screws

Showing as the picture

Feature:

-Self-centering design ensures high-precision clamping without repeated calibration

-Constructed from premium cast iron for exceptional durability and hardness

-Quench-hardened components provide enhanced rust resistance and long service life

-Equipped with fine gears for precise control over clamping accuracy

-Simple, compact design allows hassle-free installation and reliable operation

Note:

-Achieves faster and steadier machine connection for improved performance

-Designed for use in turning, drilling, and milling applications

-Ensure correct installation sequence using the included T-shaped tool

-Verify compatibility with your lathe's mounting system before purchase
