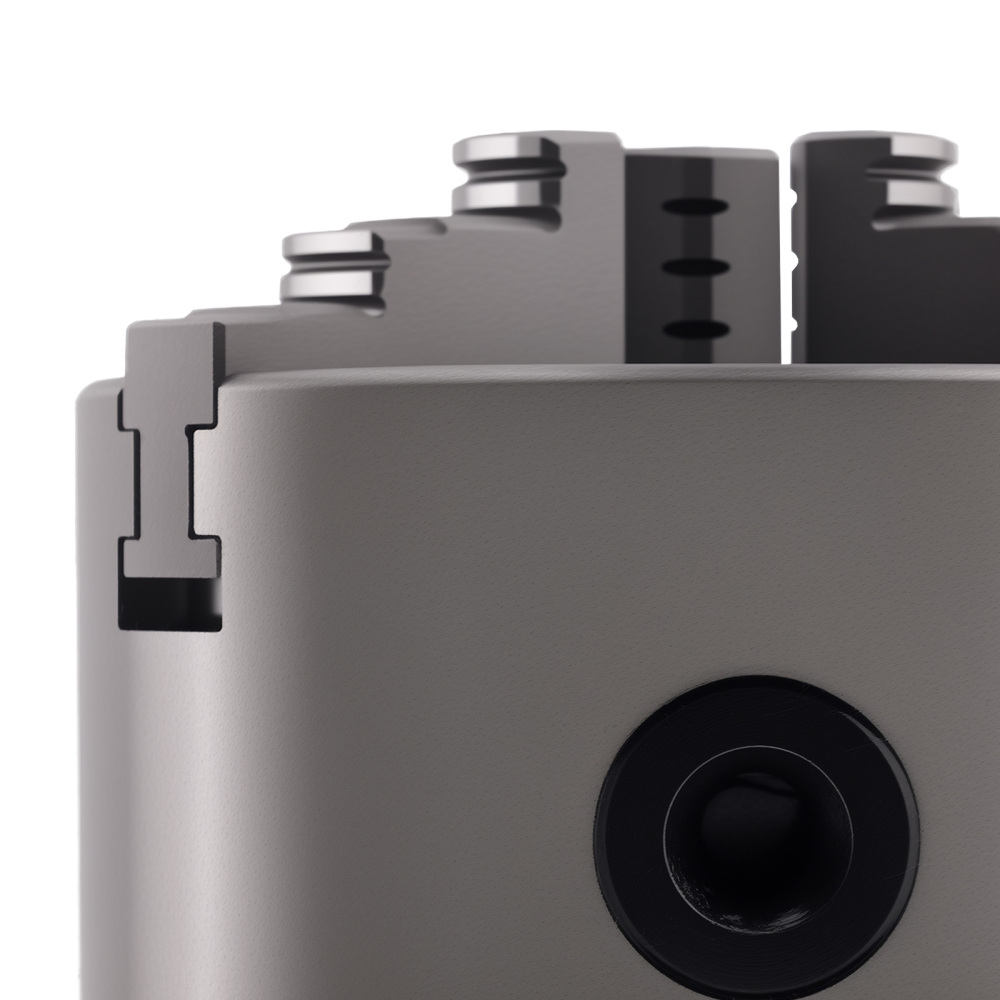

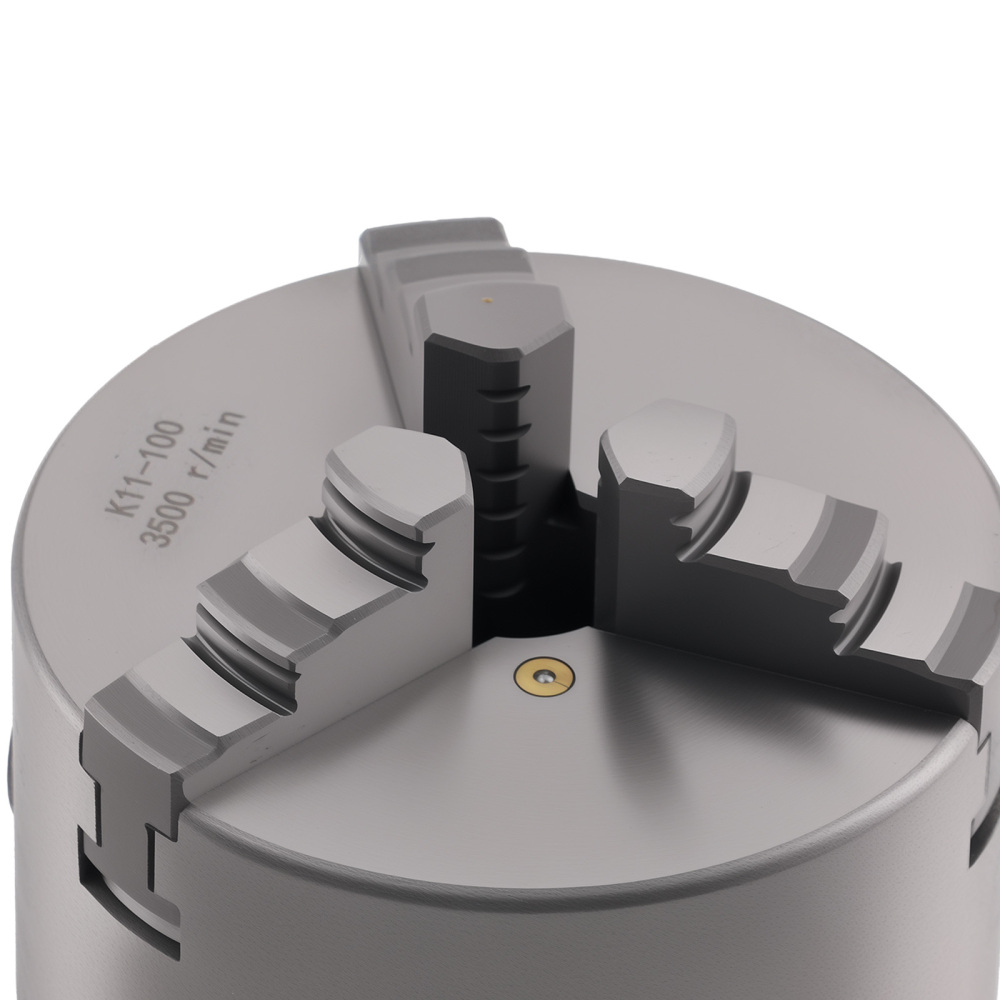

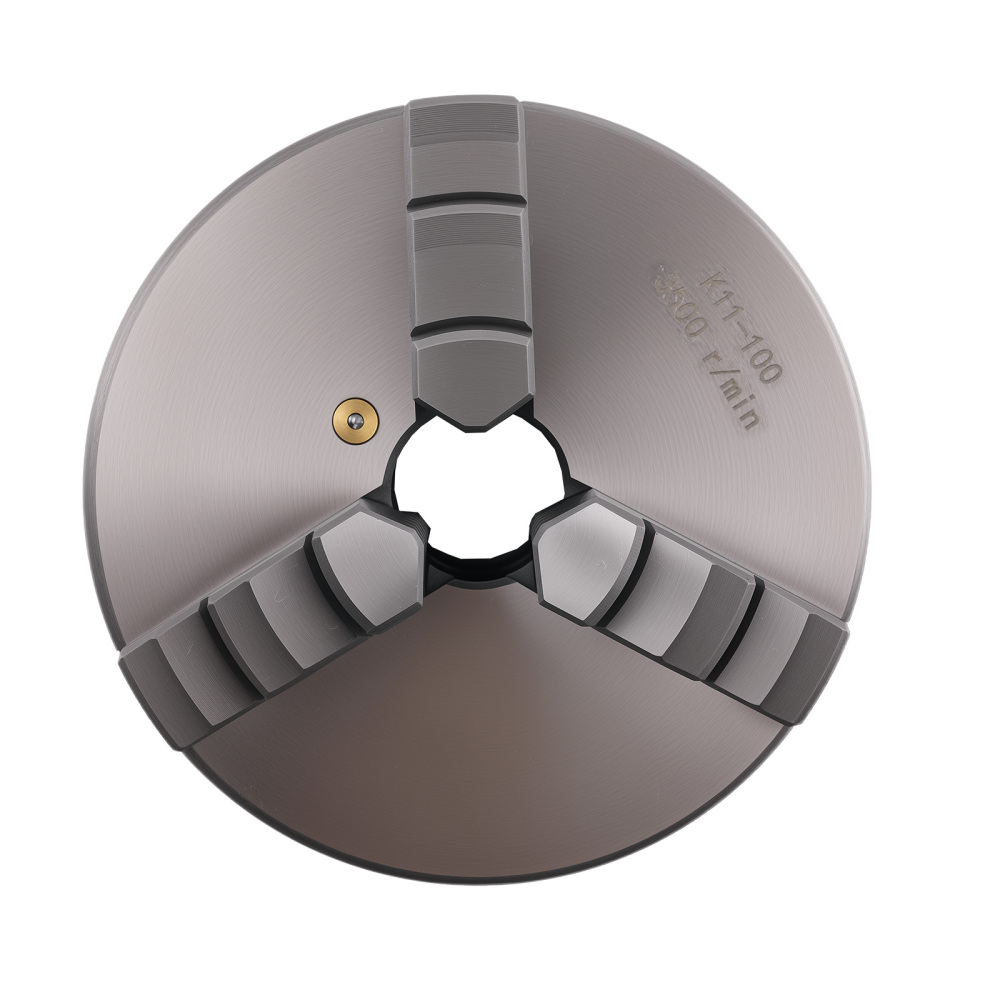

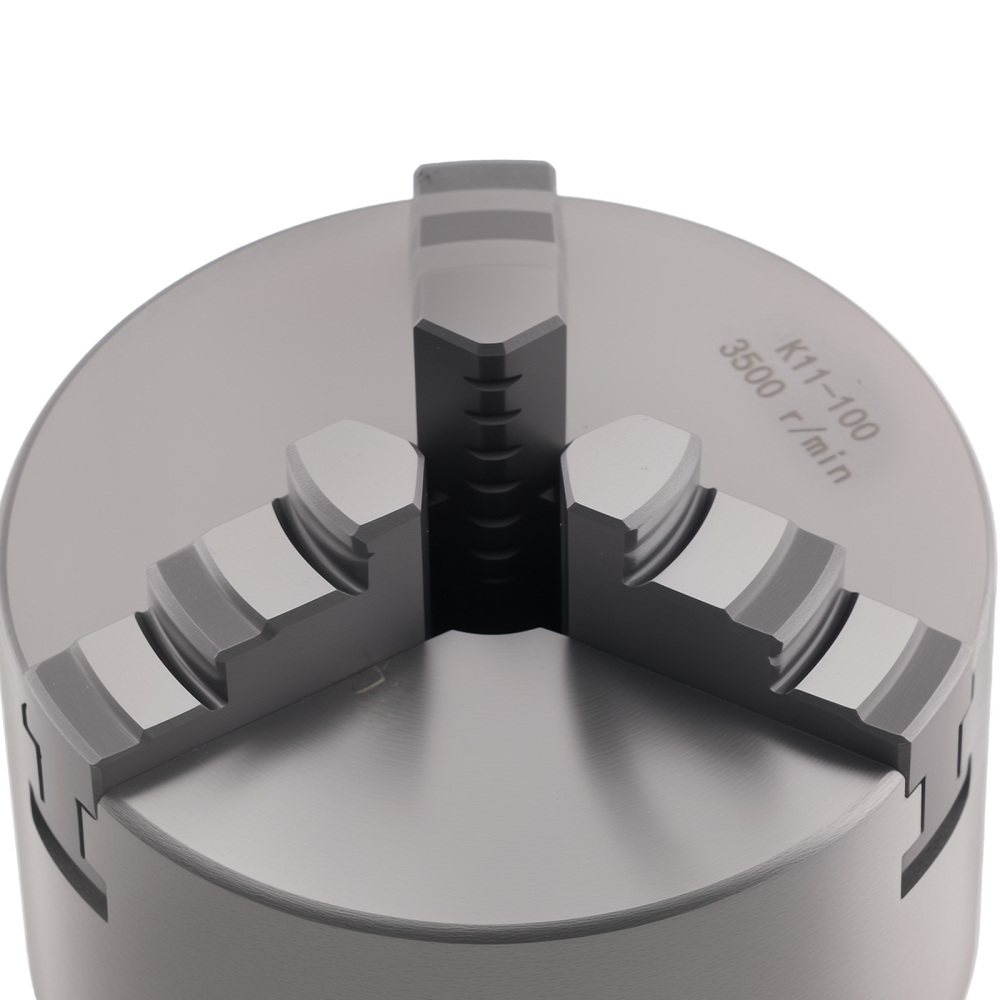

100mm 3 Jaw K11-100 Self Centering Chuck Lathe 0.05mm Precision Silver CNC

Application:

for general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories

OE/Part number:

K11-100,K11100

Specification:

Condition: New

Chuck Type: Three Jaw Chuck

Model: K11-100

Color: Silver

High Precision: ≤0.002" / 0.05 mm

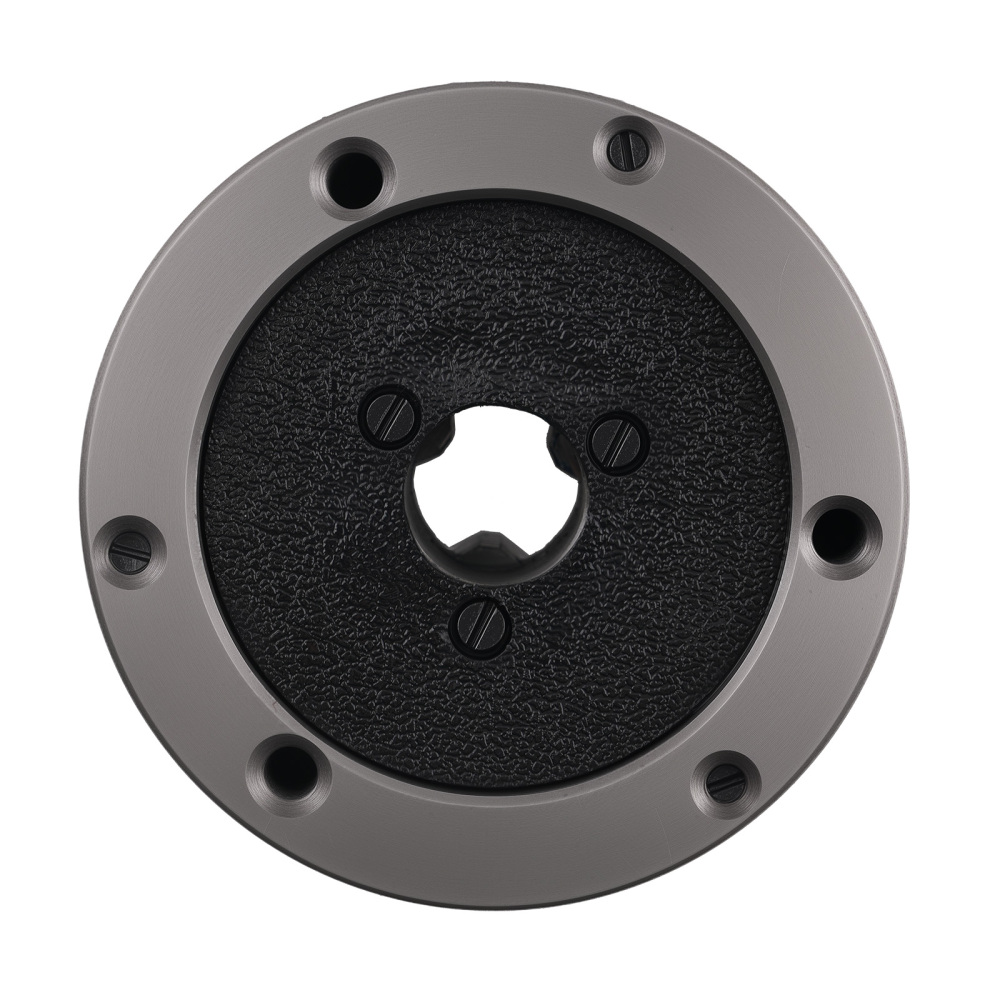

Mounting Thread: 3-M8

Outside Diameter: 3.94" / 100 mm

Bolt Circle Diameter: 3.31" / 84 mm

Center Thru Hole Diameter: 0.866" / 22 mm

Chuck Body Thickness: 2.16" / 55 mm

Internal Jaw Clamping Range (A-A1): 0.078"-1.18" / 2-30 mm

Internal Jaw Jamming Range (B-B1): 1.18"-3.54" / 30-90 mm

External Jaw Clamping Range (C-C1): 1.18"-3.15" / 30-80 mm

Accuracy: 0.002" / 0.051 mm

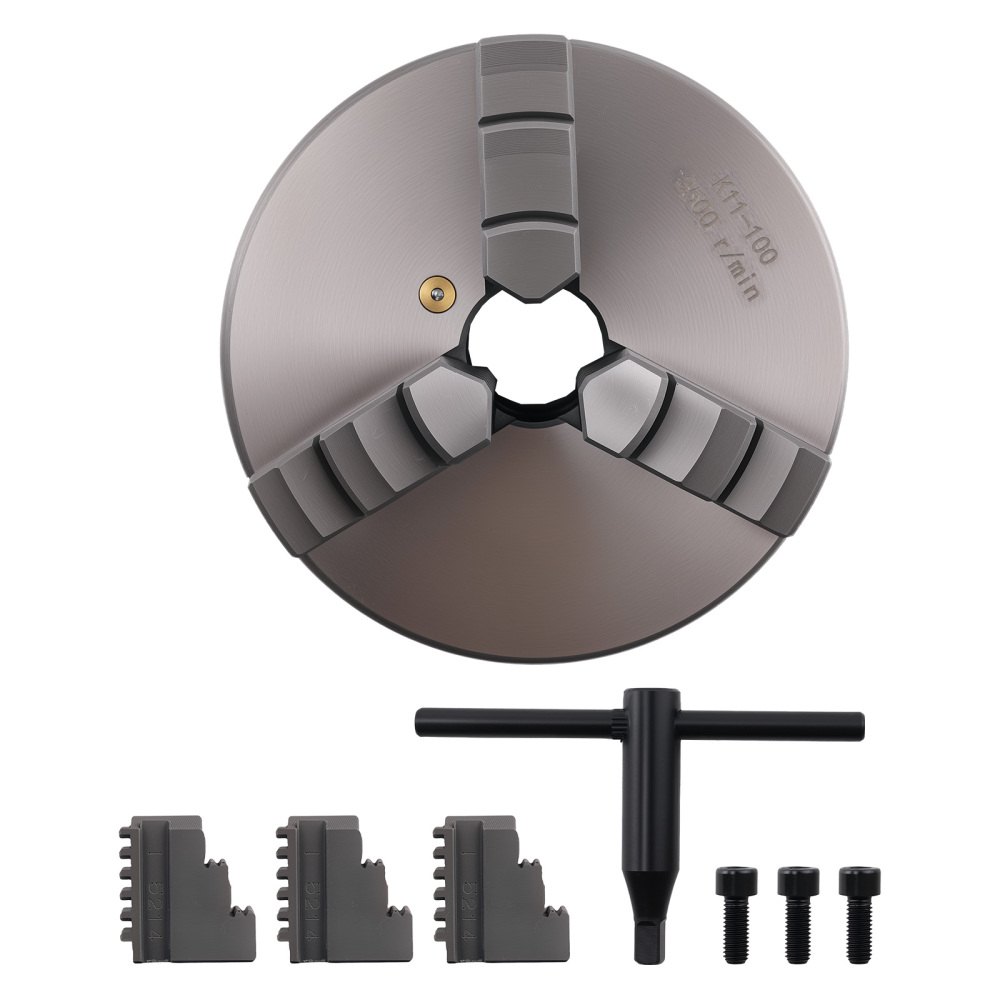

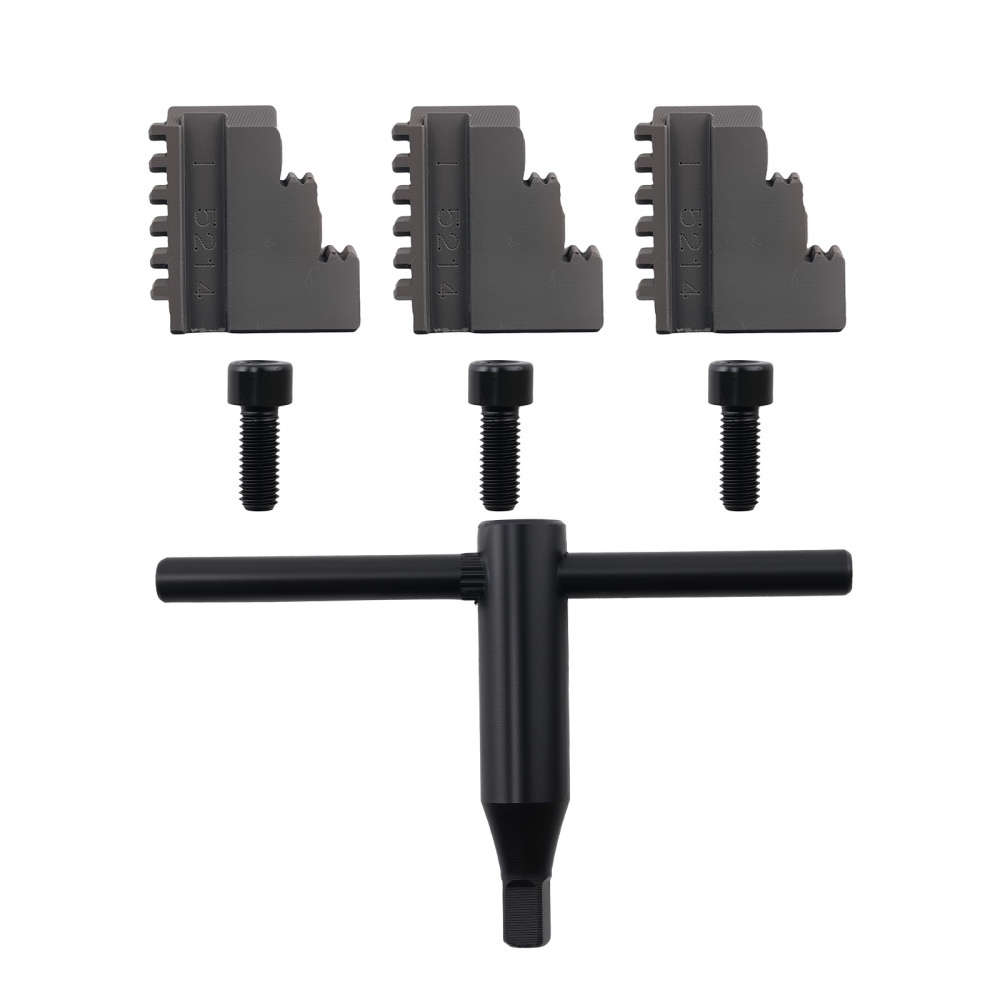

Package included:

1* 4" / 100 mm Lathe Chuck Body

3* Internal Jaws

3* External Jaws

3* Mounting Bolts

1* Chuck Key

Showing as the picture

Feature:

-3 Jaw Self Centering Lathe Chuck

-Sttructure of solid jaws

-New and High Quality.

-This chuck is easy to install and easy to operate. It is suitable for all kinds of general-purpose lathes, economical CNC lathes, grinding machines, milling machines, drilling machines, and machine tool accessories.

Note:

-Please make sure that the model and appearance of your equipment are exactly the same as our products.

-It is the customer's responsibility to buy the right products.

-If you are not sure, please contact us in time.

-Thank you for your cooperation.
