GT35 GT3582 T3 .63 A/R Dual Ball Bearing Turbo Anti-Surge+High-Silica Blanket

Upgraded Dual Ceramic Ball Bearing & Billet Wheel GT35 GT3582 Racing Turbocharger  Wtih Carbon Fiber Turbo Heat Shield

Application:

Perfect for all 4/6 cylinder and 2.5L-6.0L engines
Capable of Boosting Horse Power up to 600HP

*Note:
1. Please confirm that there is enough space in your car to install this turbo before purchasing.
2. Lack of oil will cause the turbocharger shaftplay and damage, please adjust the oil pressure and ensure that the turbocharger is fully lubricated.

Specification:

1.Turbo

Turbine Side:
Exhaust Inlet Flange: T3 Flange
Exhaust Outlet Flange: 4-Bolt
Turbine Trim: 84.2
Turbine A/R: 0.63
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm
Compressor Side:
Compressor Trim: 56.9
Compressor A/R: 0.7
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Compress Inlet Size(Air intake): 4 inch (103.5mm)
Compressor Outlet Size: 2.5 inch (63.6mm)

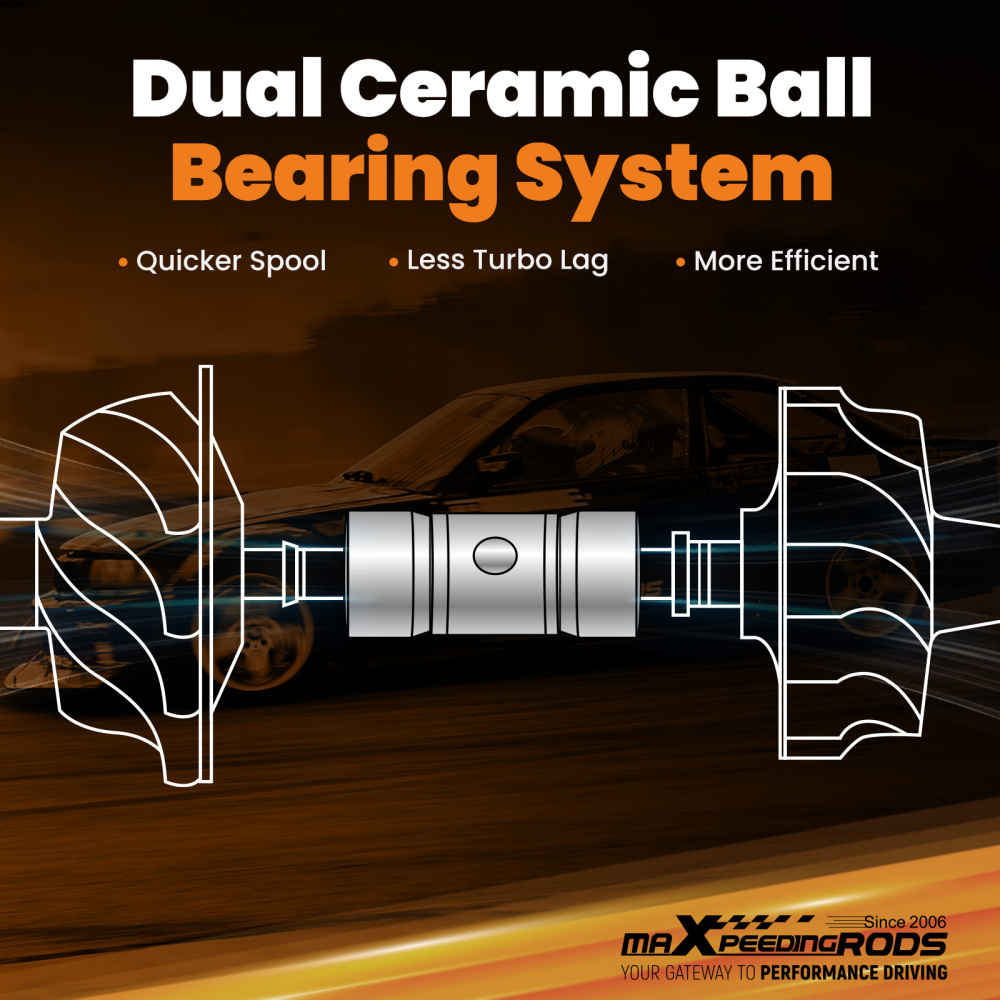

Bearing Type: Dual Ceramic Ball Bearing
Cooling Type: Water + Oil Cooling
Horse Power: Up to 600HP
Turbo Type: Individual
Universal Fitment: Yes
Finish: Matte
Wastegate: w/o Wastegate
Oil Feed/Inlet: M10*7/16-24
Oil Drian/Outlet: 2*M8*1.25
Water Inlet/Outlet: M14* 1.5
Maximum PSI: 22
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above
Pakage Size: 27*23*29 cm
Pakage Weight: 8750g

2.Turbo Heat Shield

Material: Carbon fiber, high-silica material, and metal wire
withstand high temperatures up to 500°C

Condition: 100% Brand New

Accessories: You will get what you can see in the pictures exactly

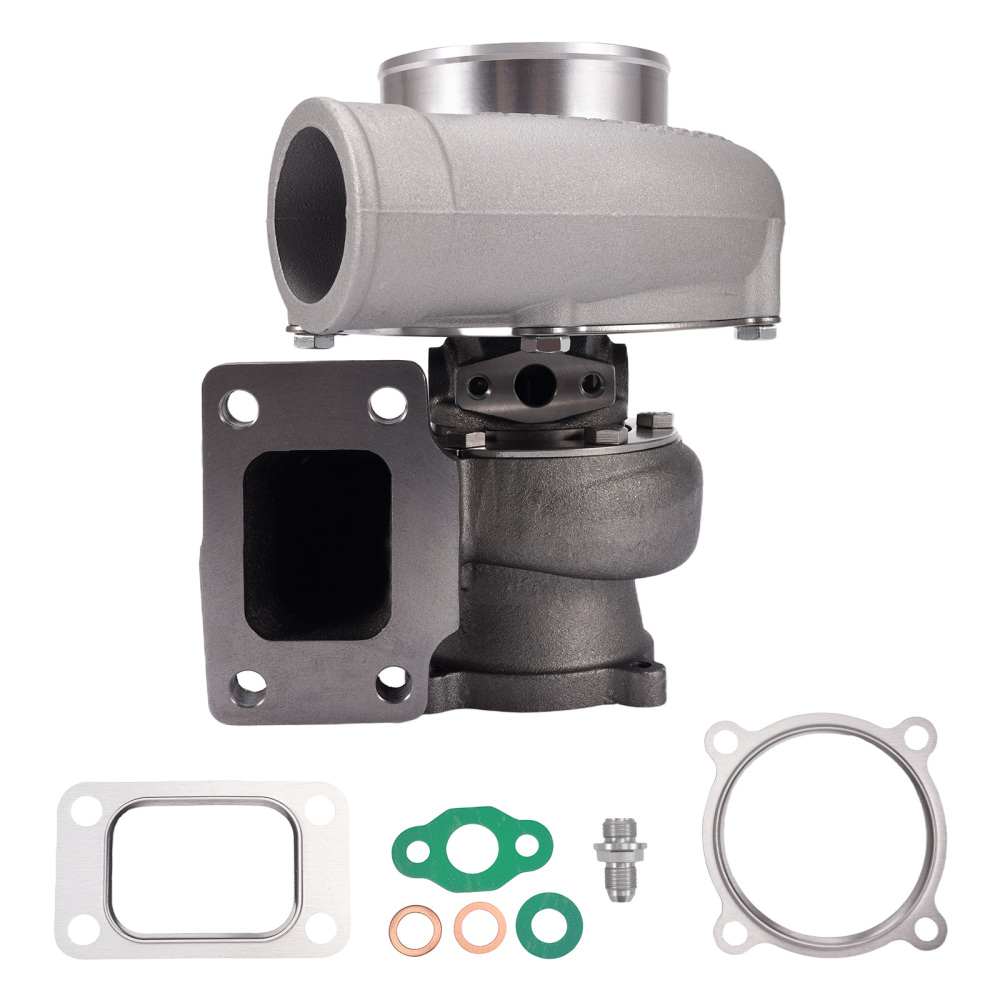

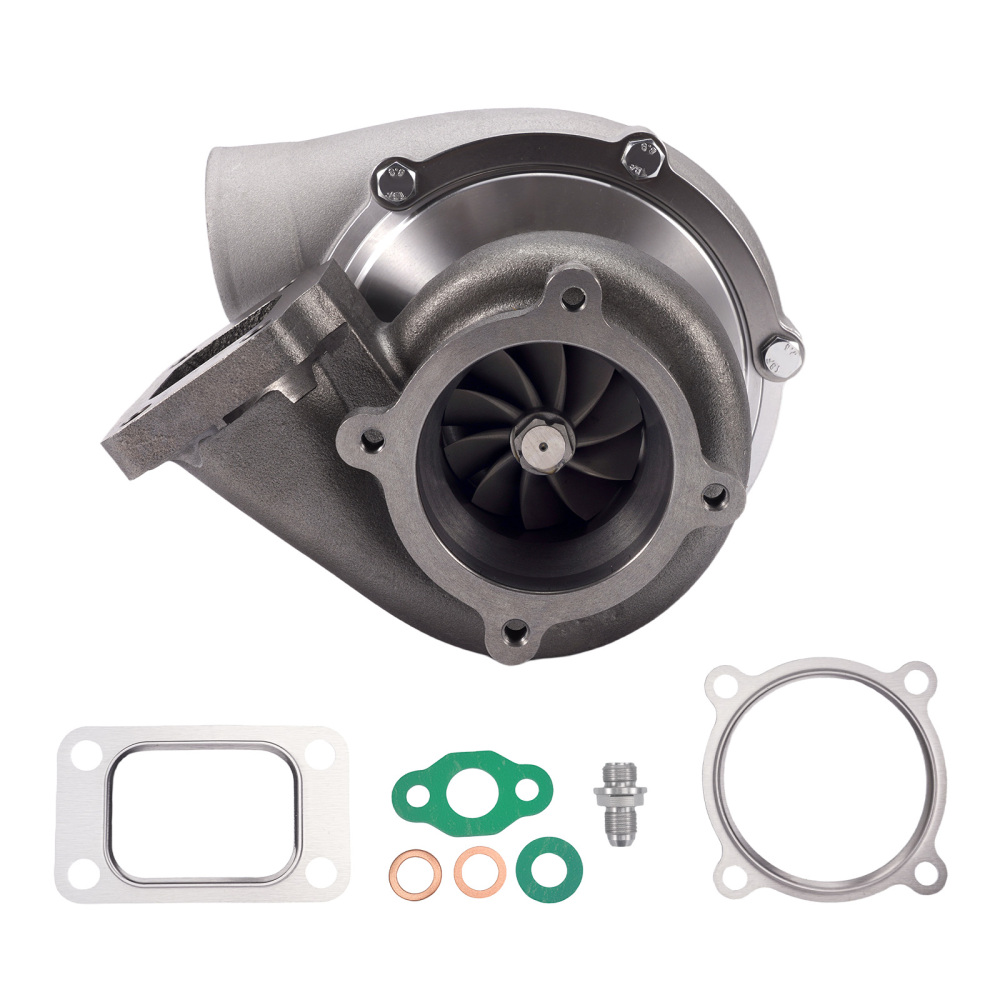

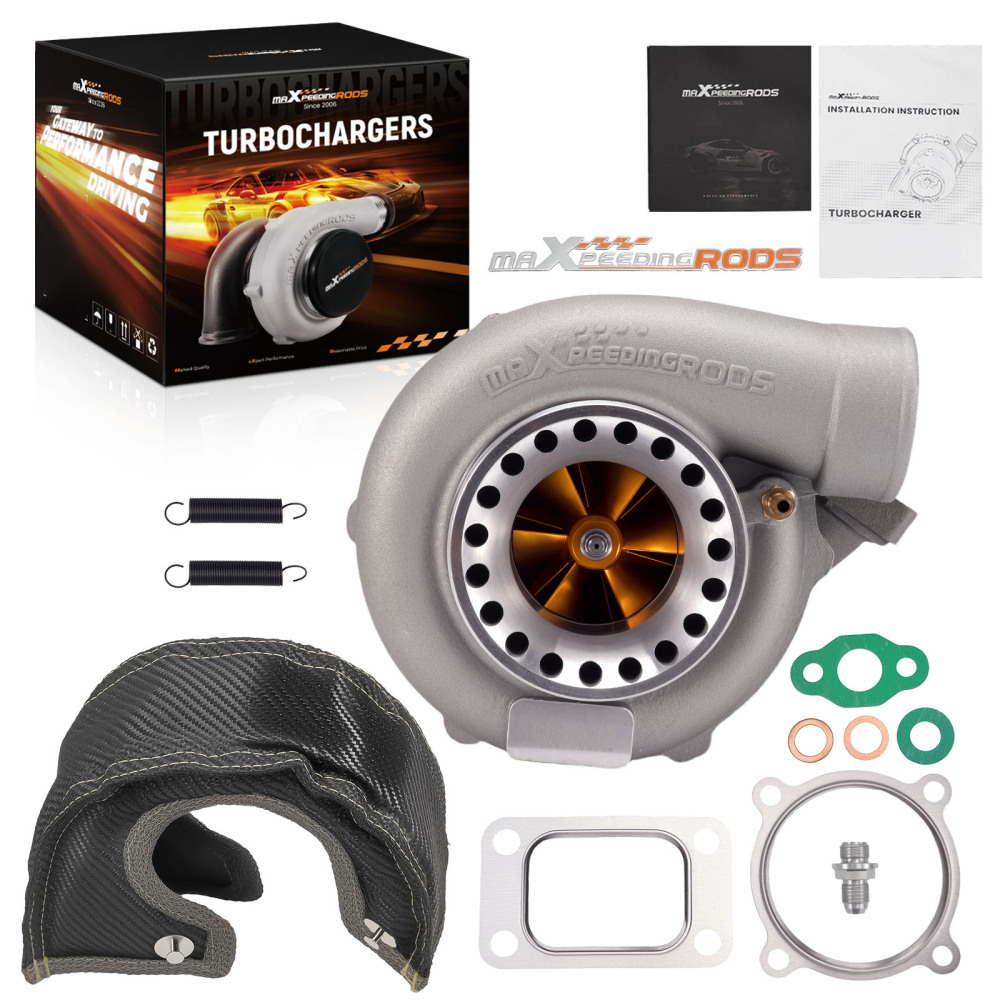

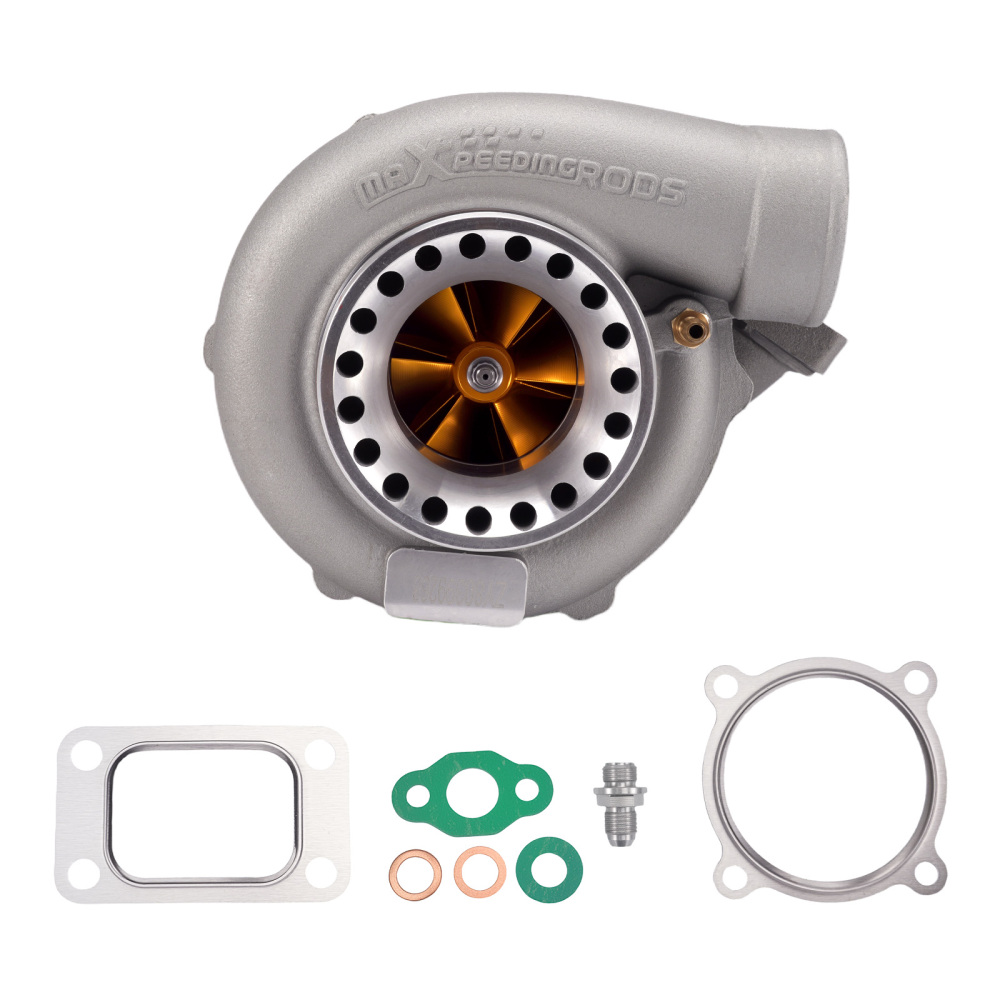

Package Included:

1x Turbocharger
1x Turbo Heat Shield
2x Flange gaskets
2x Oil port gaskets
2x Washers
1x Restrictor
1x Manual
1x Brochure
1x Sticker

Features:

Turbo

*Product Material

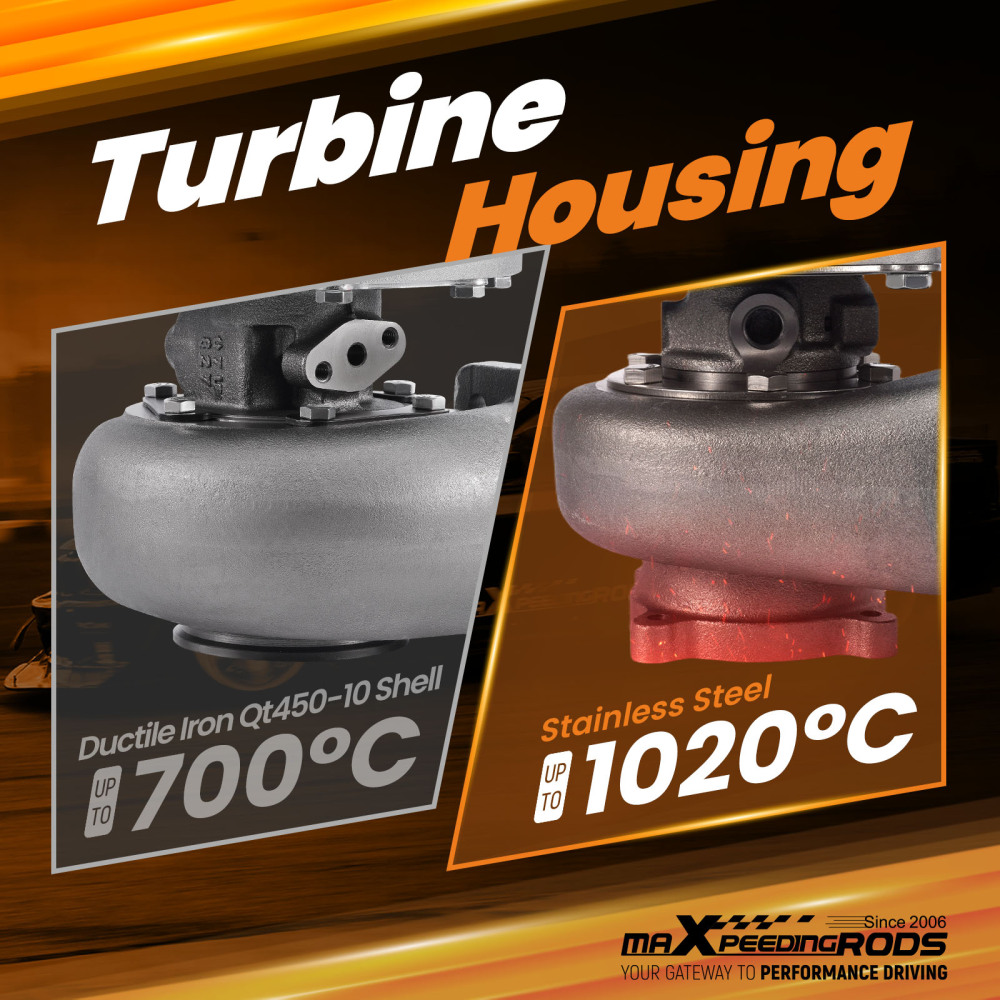

1. Turbine Housing: Stainless steel turbine housing - temperature resistant up to 1020℃

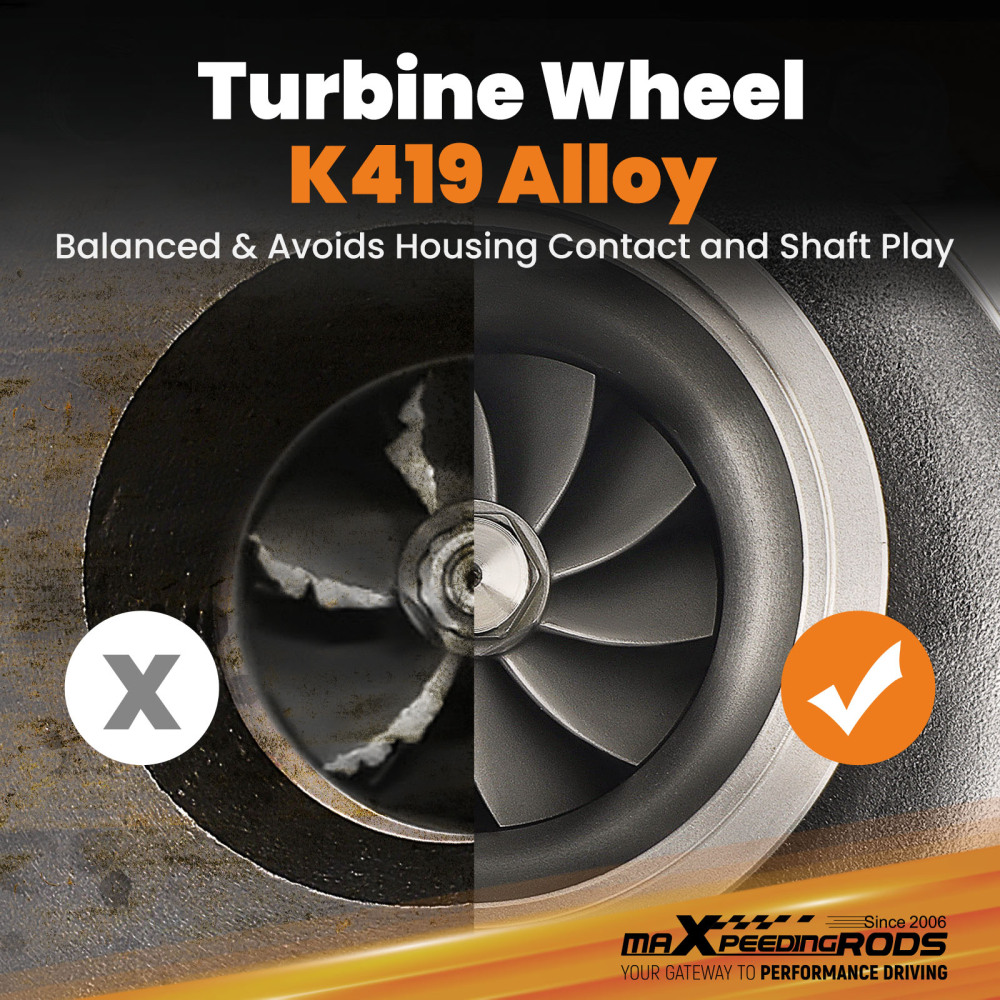

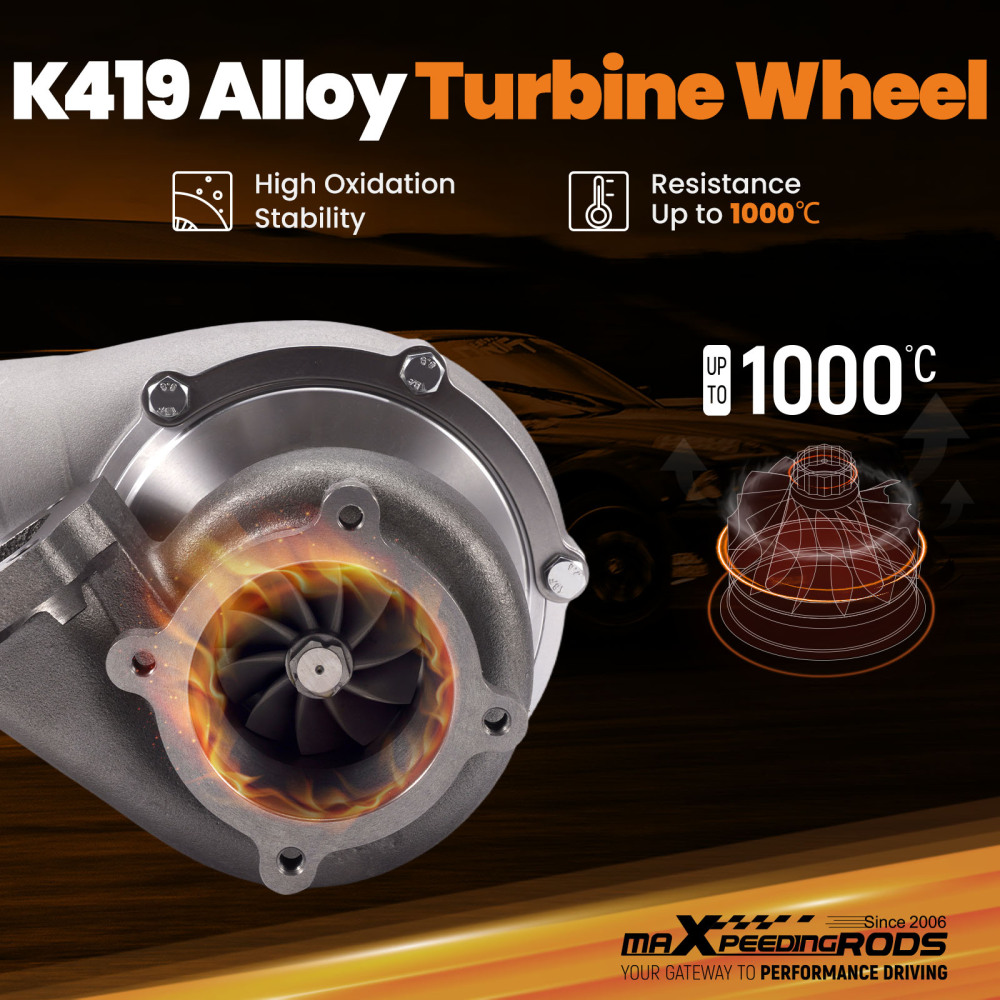

2. Steel Turbine Wheel: K419 alloy - high oxidation stability and resistance  up  to 1000℃
3. Compressor Housing: ZL104 aluminum with lightweight

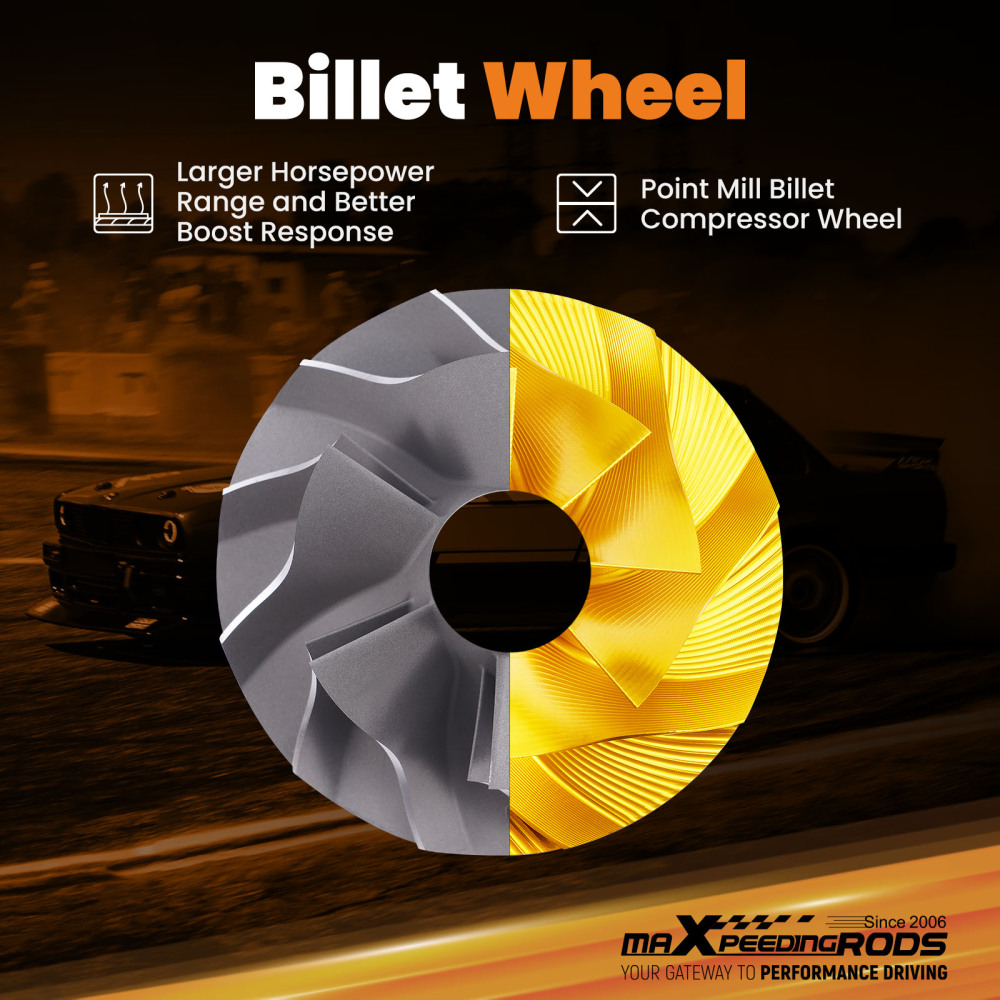

4. Billet Compressor Wheel: Forged CNC full-machined billet aluminum compressor wheel provides a larger horsepower range and maximum boost response

*Product Feature

1. Racing turbocharger
2. Excellent high temperature resistance, high efficiency and durability
3. Rich experience in turbo production and own factory

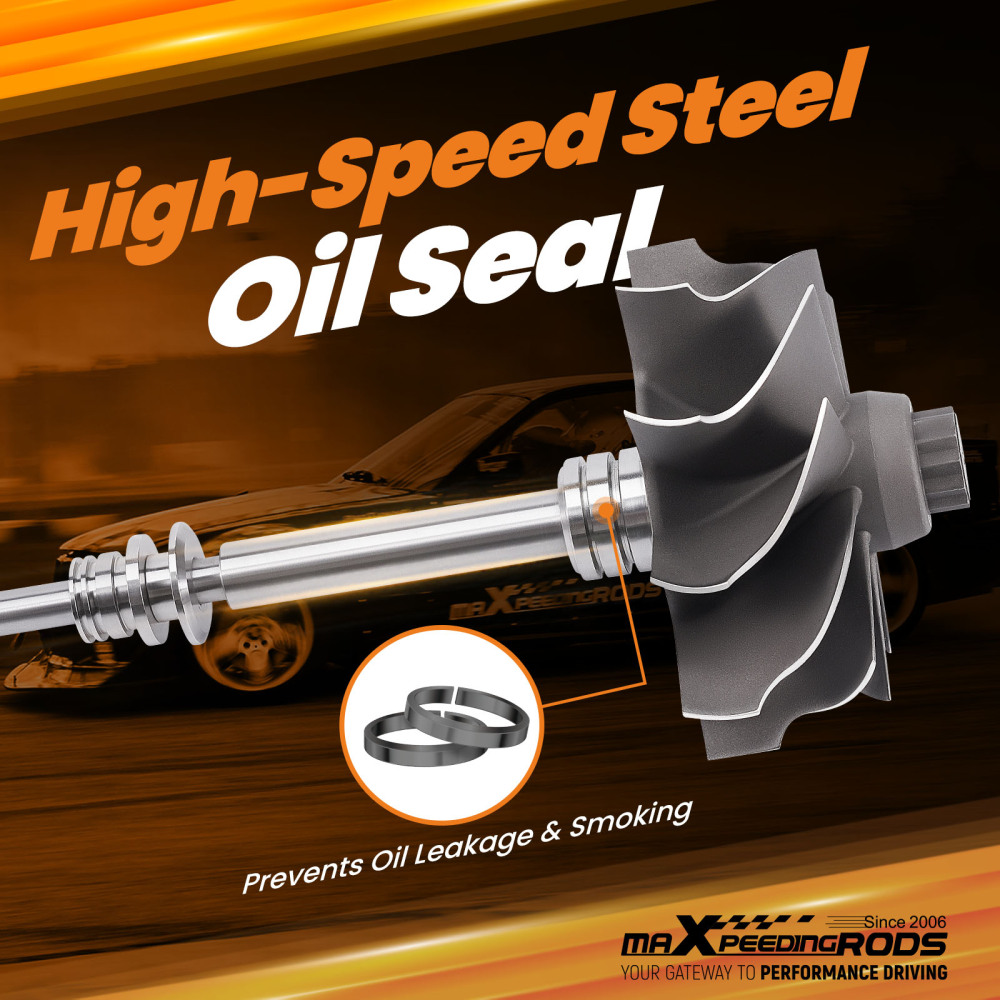

4. High-Speed oil seal ring and Precision clearance

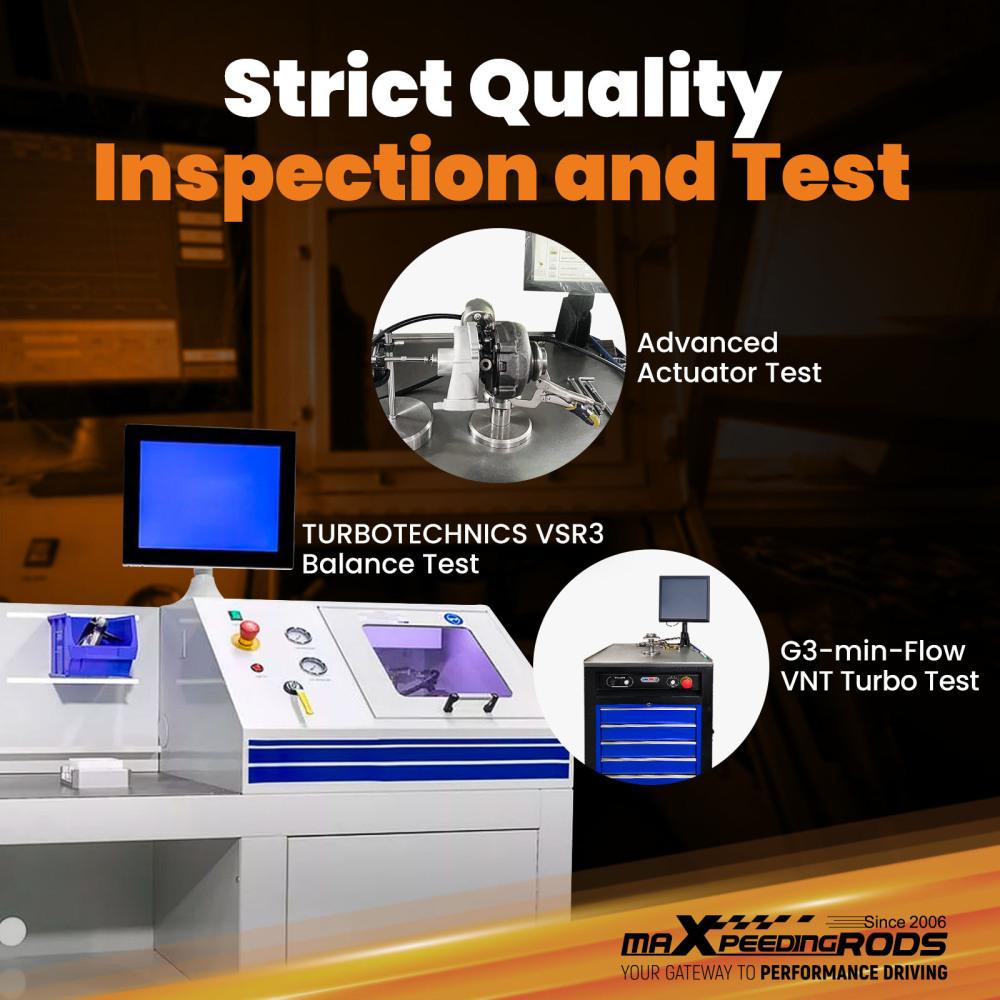

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICS  VSR3
2. G3-min-Flow VNT Turbo testing
3.  Advanced Actuator Tester/Programmer

Turbo Heat Shield

1. Keep crucial engine components protected from the heat of the turbo. while increasing spool time and reducing underhood temperatures.
2. Our high-quality silicone cloth boasts can withstand high temperatures up to 500°C.

Notes:

Turbo

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

Turbo Heat Shield

* Universally fits on any T3 turbocharger.
* The Turbo Shield is non-flammable, the product may ignite if exposed to flammable fluids.
* Please take all necessary precautions to insure that the oil supply line and all fluid fittings are in proper working order, sealed and without leaks.
