GT3037 GT3076 T3 VBand Turbo 500BHP Turbocharger .82 A/r .60+Basalt Fiber Shield

GT3037 Universal T3 Turbocharger +Turbo Heat Shield Combo Kit | Up to 500BHP | For 2.5L-3.0L 4/6 Cylinder Engines

Application:

Perfect for all 4/ 6 cyl 2.5L-3.0L engines
Horse Power: Boost Horse Power up to 500BHP

Notice:This model is a universal turbo. Please confirm whether there is enough space in your car to install this turbo before purchasing.

Specification:

Turbo

Exhaust Inlet (Turbo Manifold) Flange: Standard T3 Flange
Exhaust Outlet Flange: V-Band
Turbine Trim: 74.2
Turbine Inducer Diameter:  64.8mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.82
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter: 76mm
Compressor A/R: 0.6

Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
Water: M18*1.5
Wastegate: w/o Wastegate
Thrust bearing: 270 Degrees
Turbo Type: Individual
Bearing: Journal Bearing
Cooling Type: Water + Oil
Accessories: You will get exactly as shown in the picture above
Package Size:30 x 28 x 24cm
Package Weight: 8750g

Turbo Heat Shield

Material: Basalt fiber/Titanium Fiber

Condition: 100% Brand New

Accessories: You will get what you can see in the pictures exactly

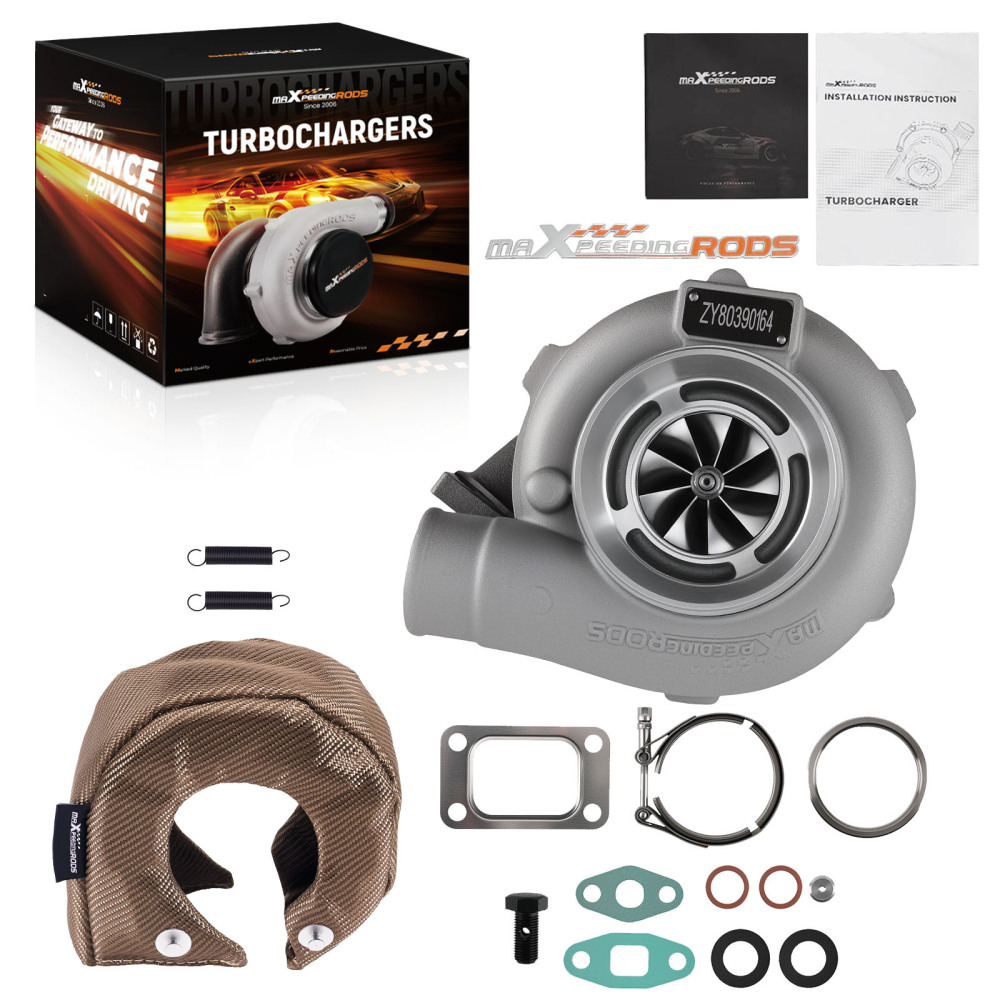

Package included:

1x Turbocharger
1x Turbo Heat Shield
1x Flange gasket
4x Oil/Water port gaskets
1x V-Band  flange adapter ring & Clamp
1x Oil restrictor
1x Manual
1x Brochure
1x Sticker

Features:

Turbo

*Product Material

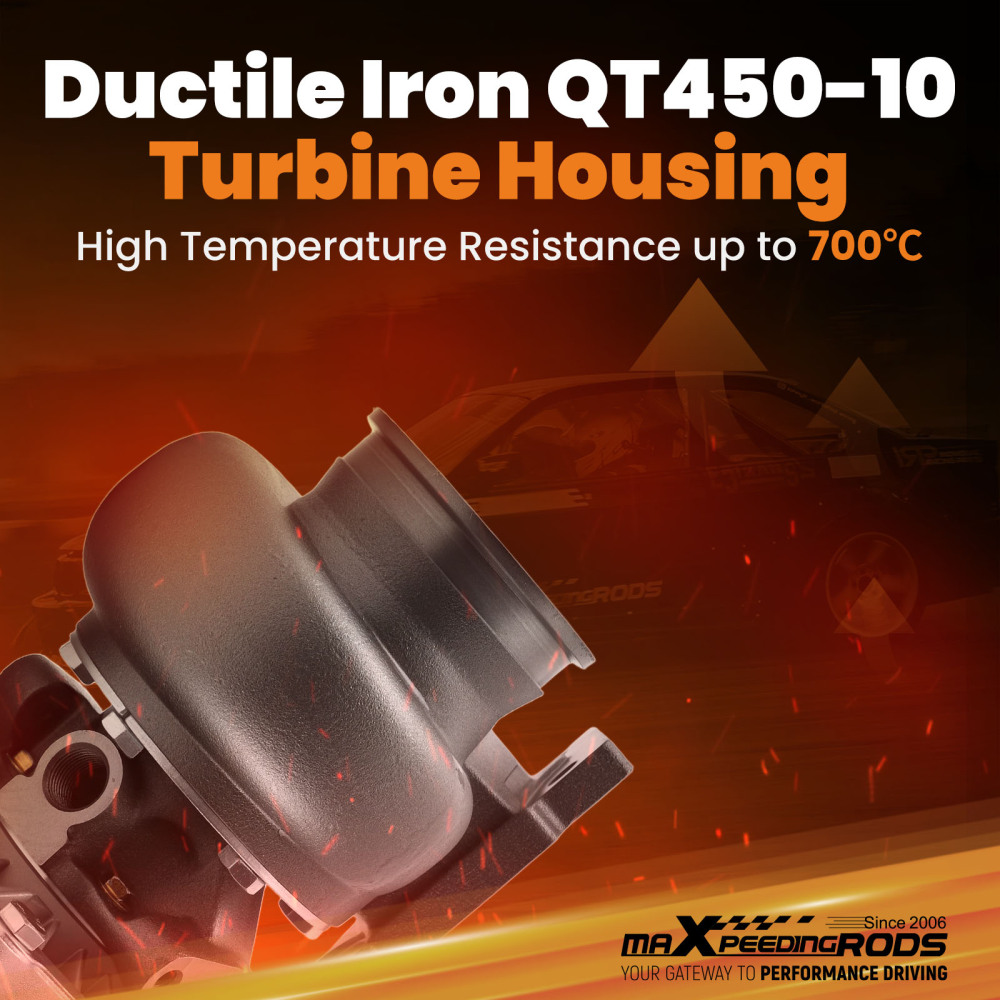

1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃

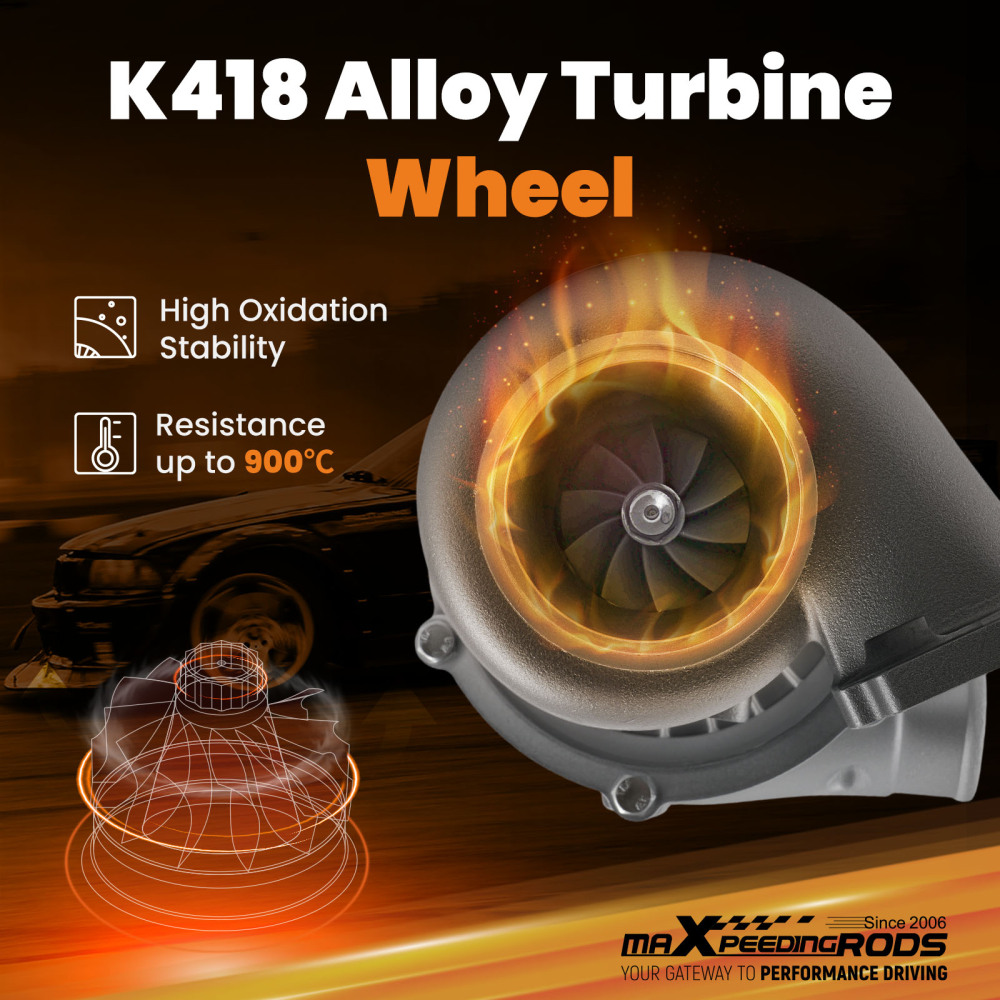

2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃

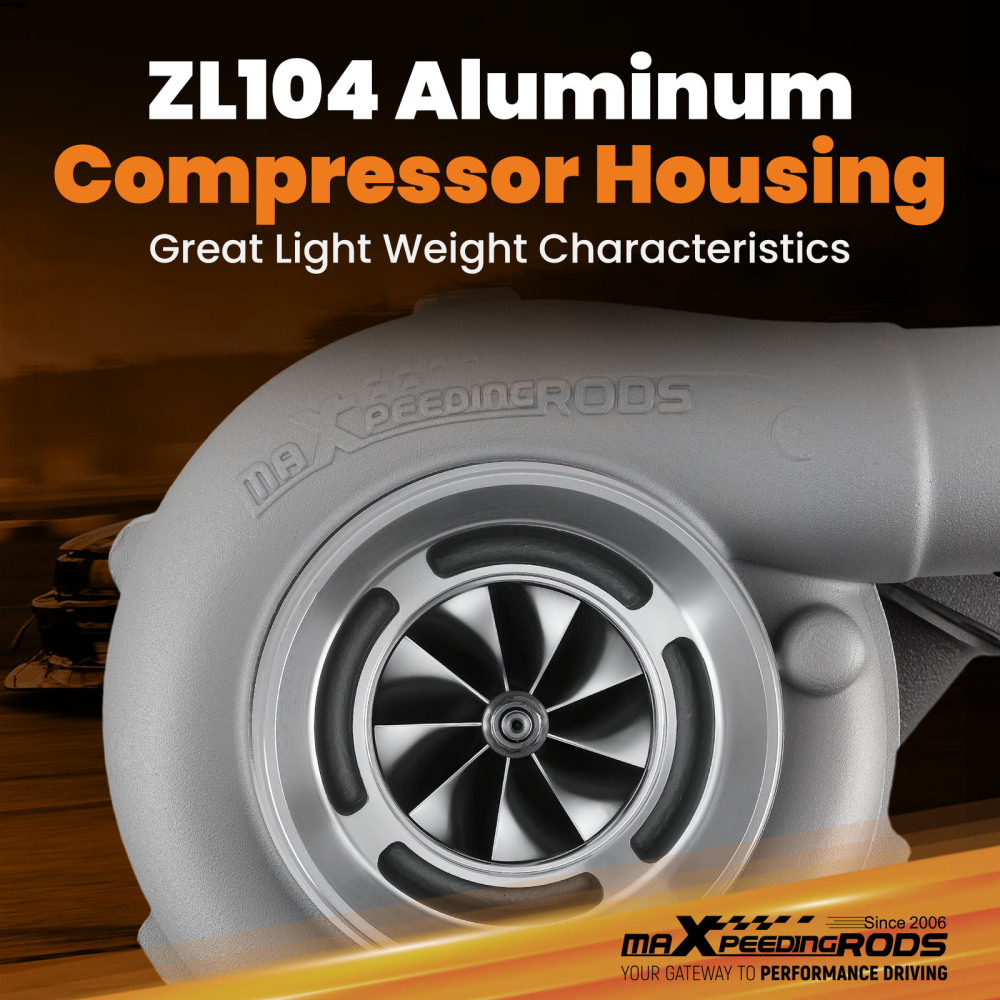

3. Compressor housing: ZL104 aluminum with lightweight

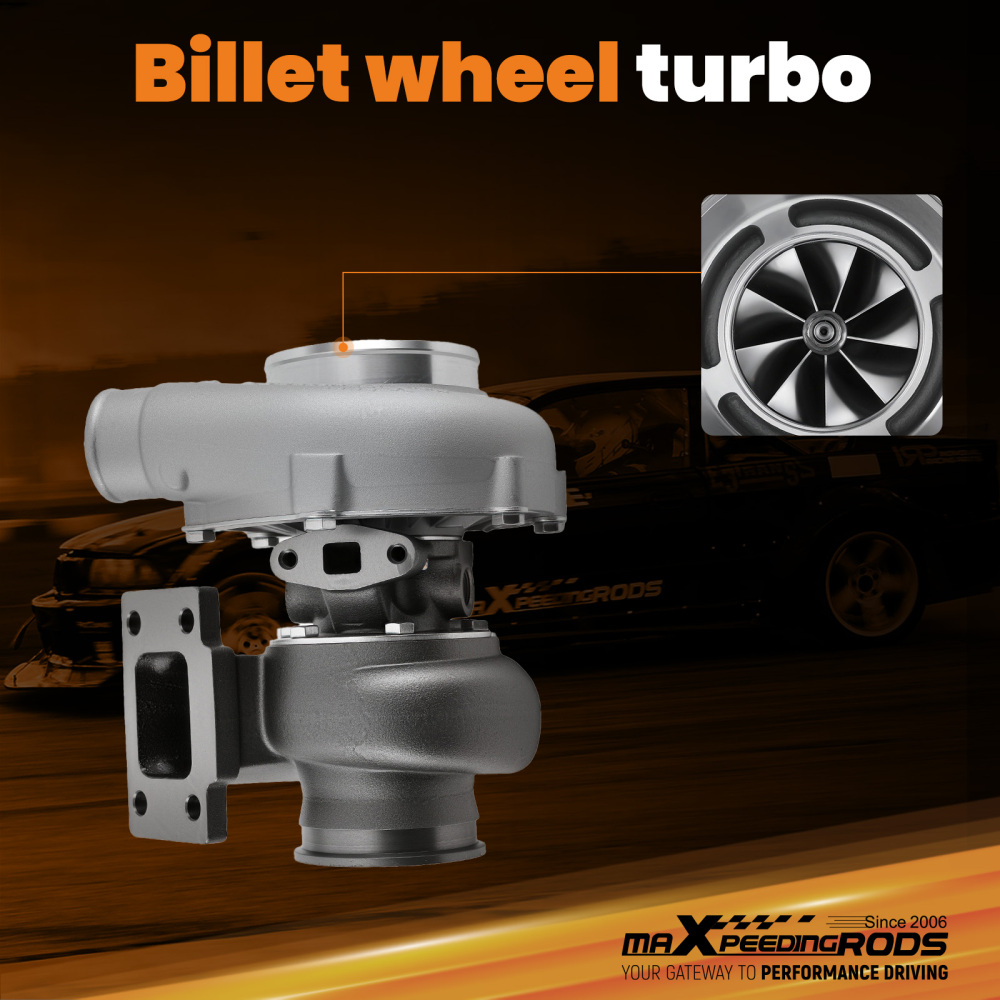

4. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.
5. Appearance upgrade

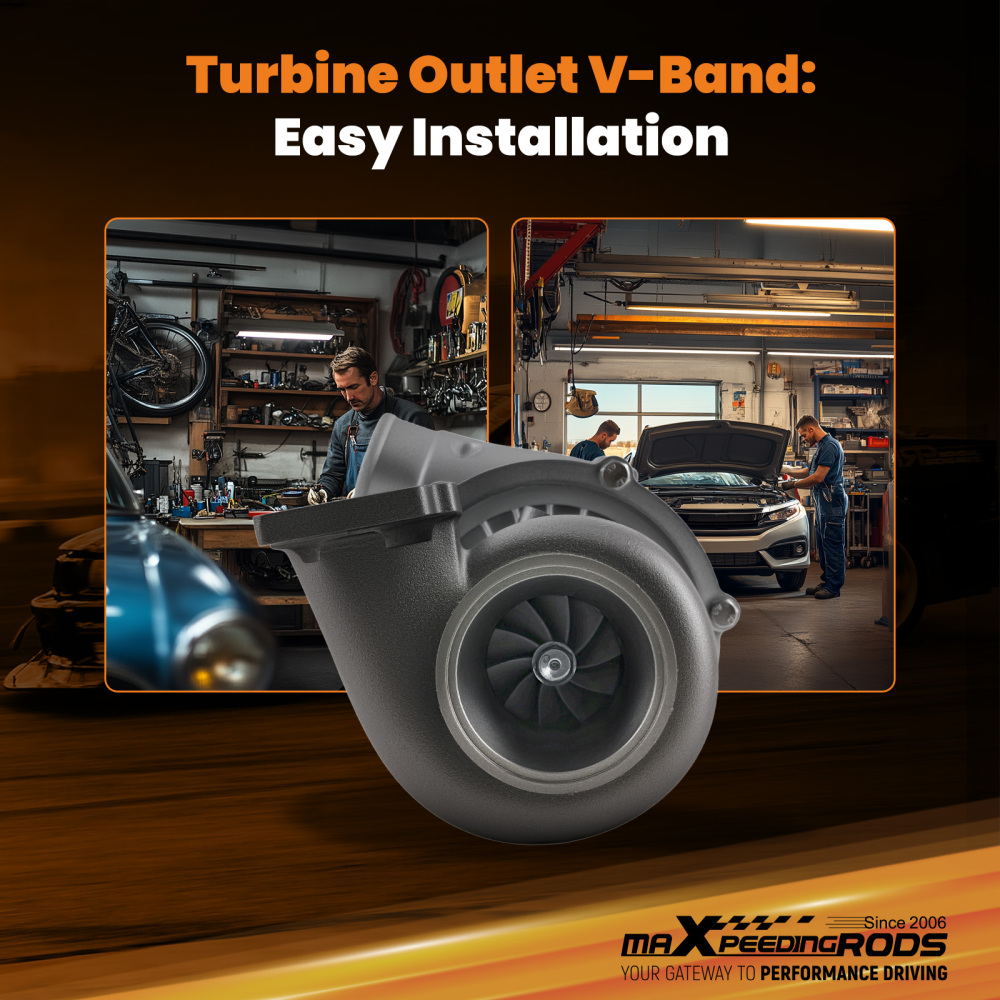

(1) Turbine outlet V-BAND: Easy installation

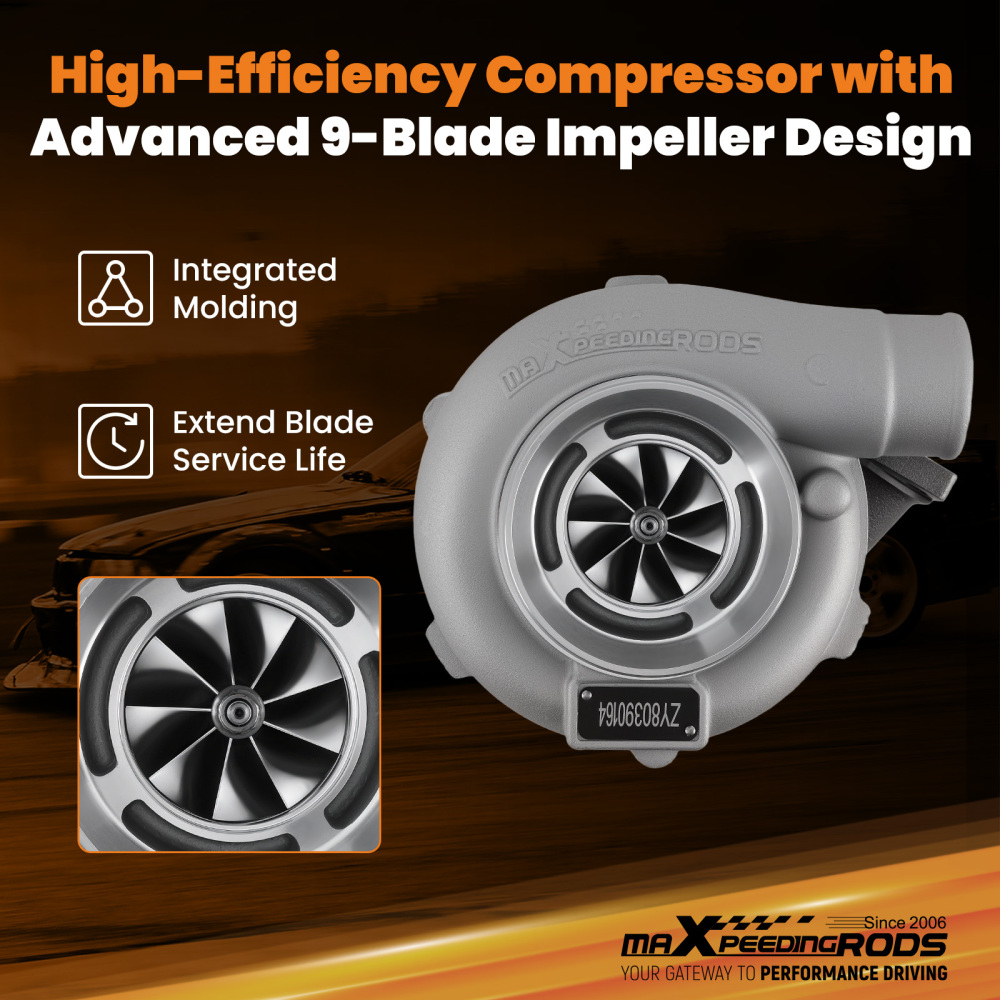

(2) New compressor wheel design

*Product

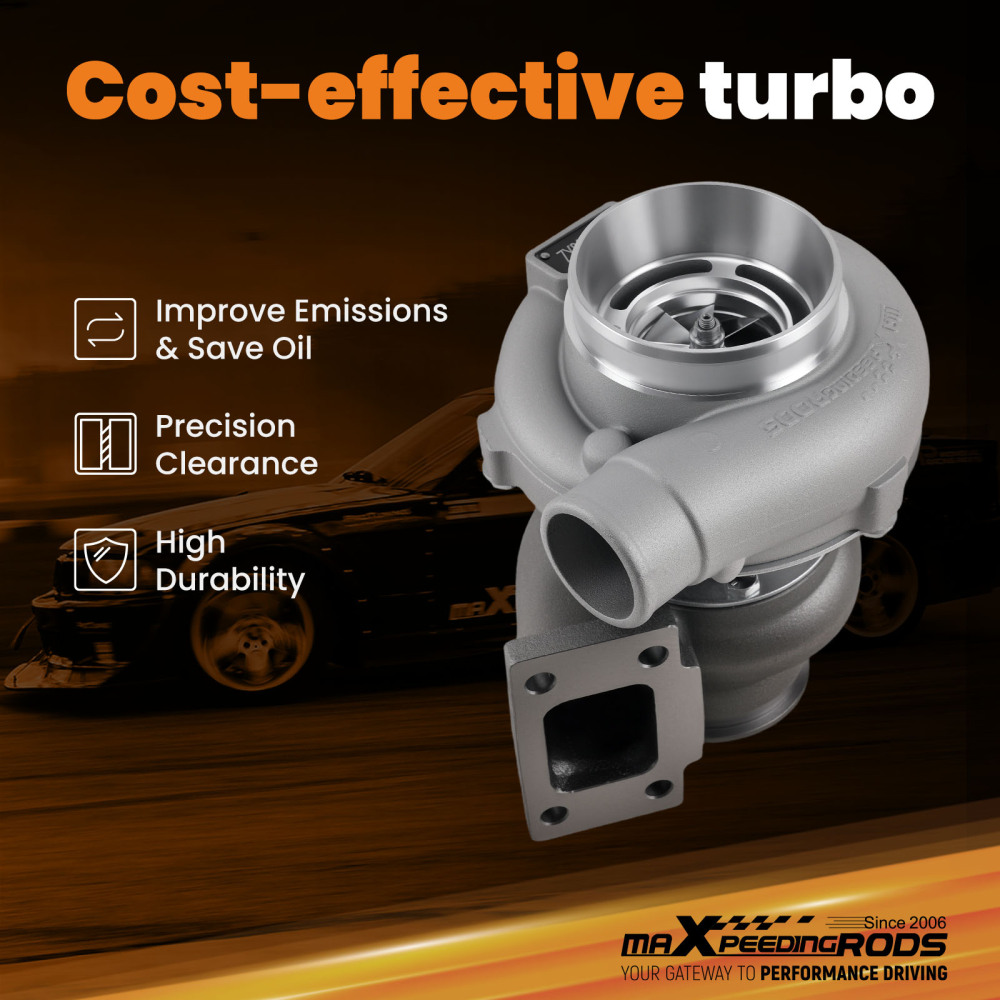

1. Cost-effective turbo increase 20-40% power for your car

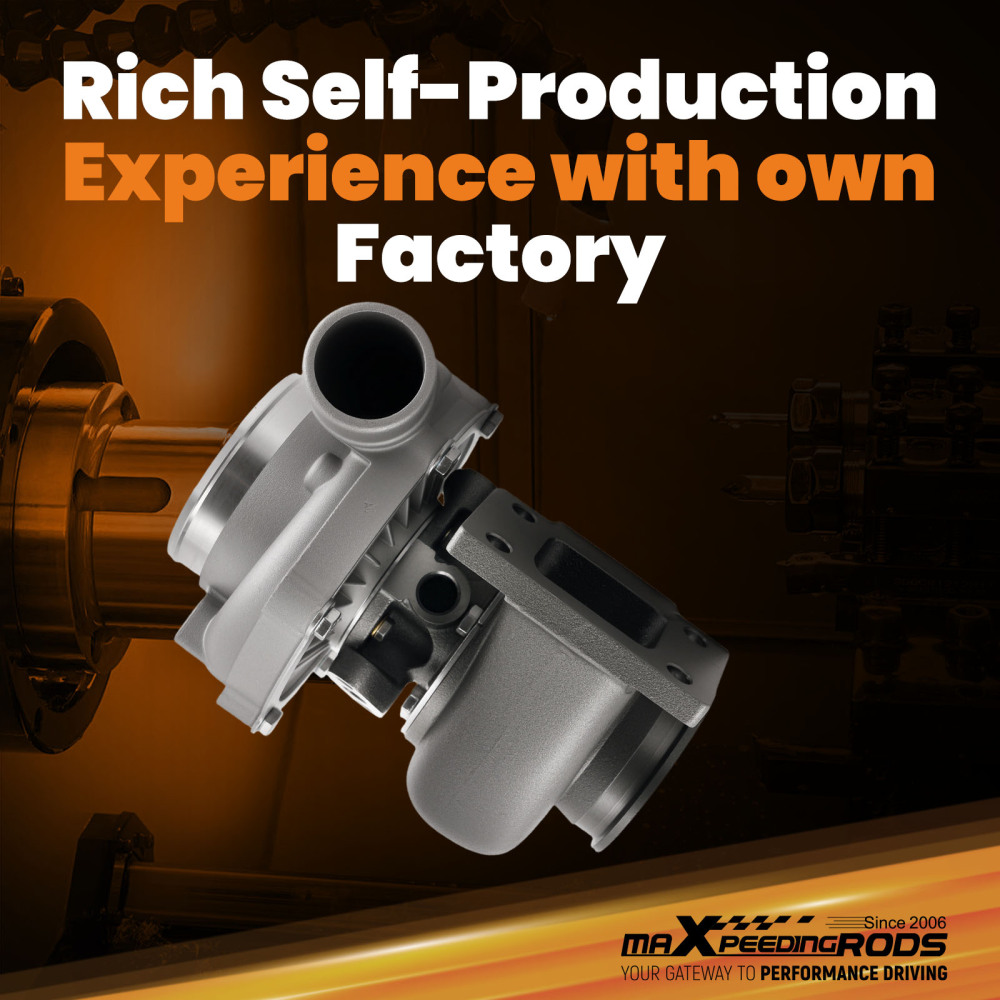

2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
4. Built for durability and strength

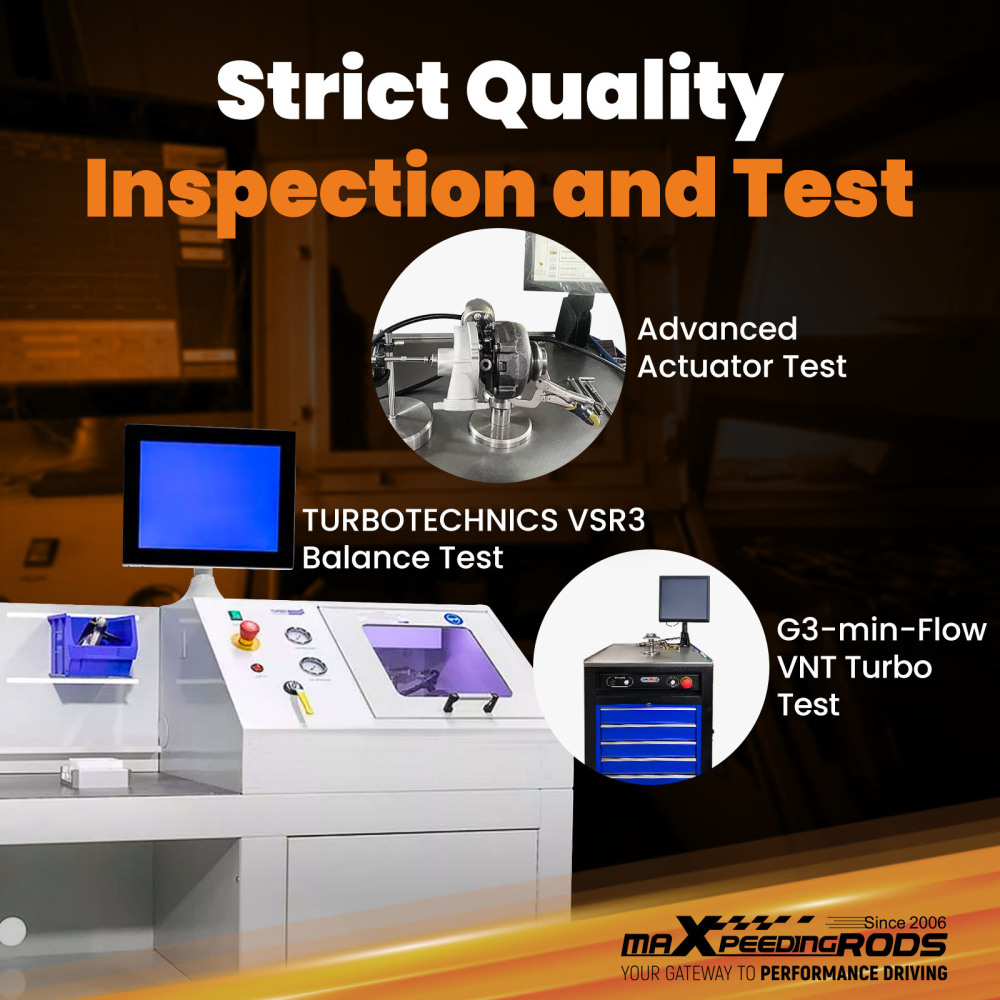

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

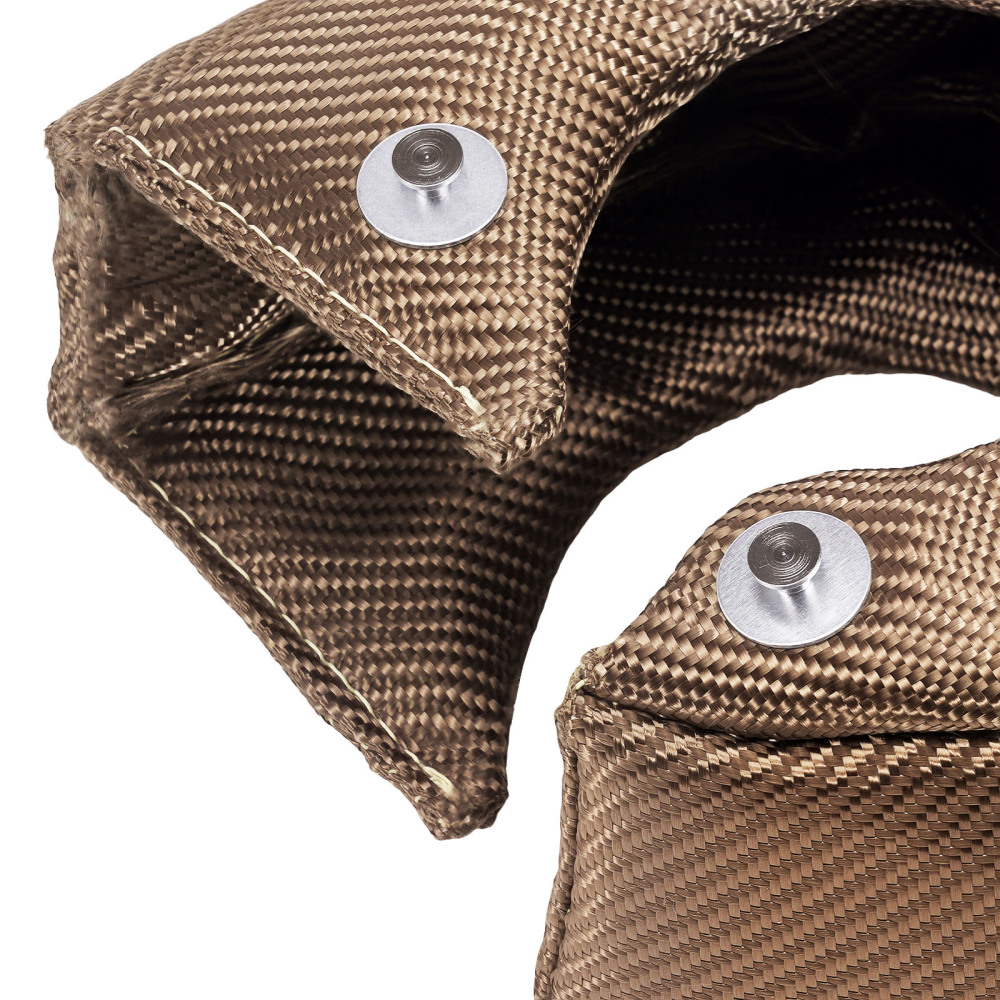

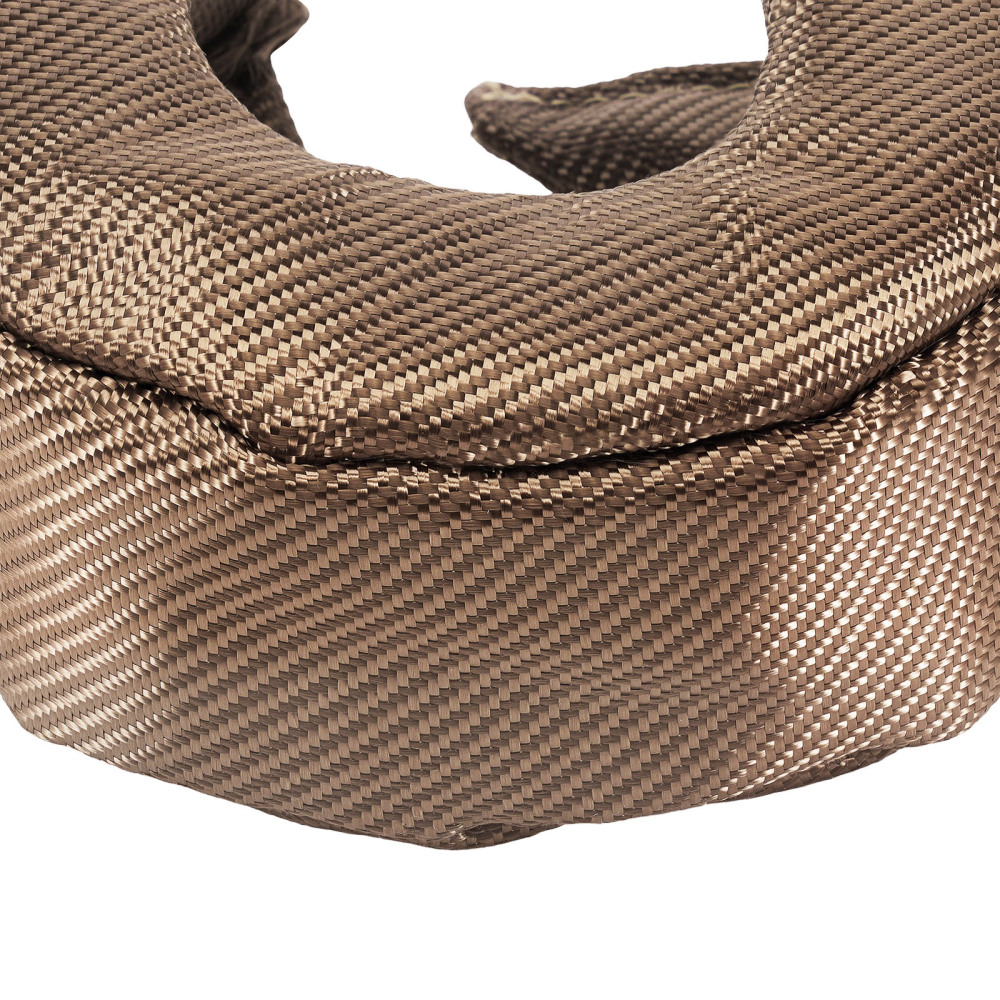

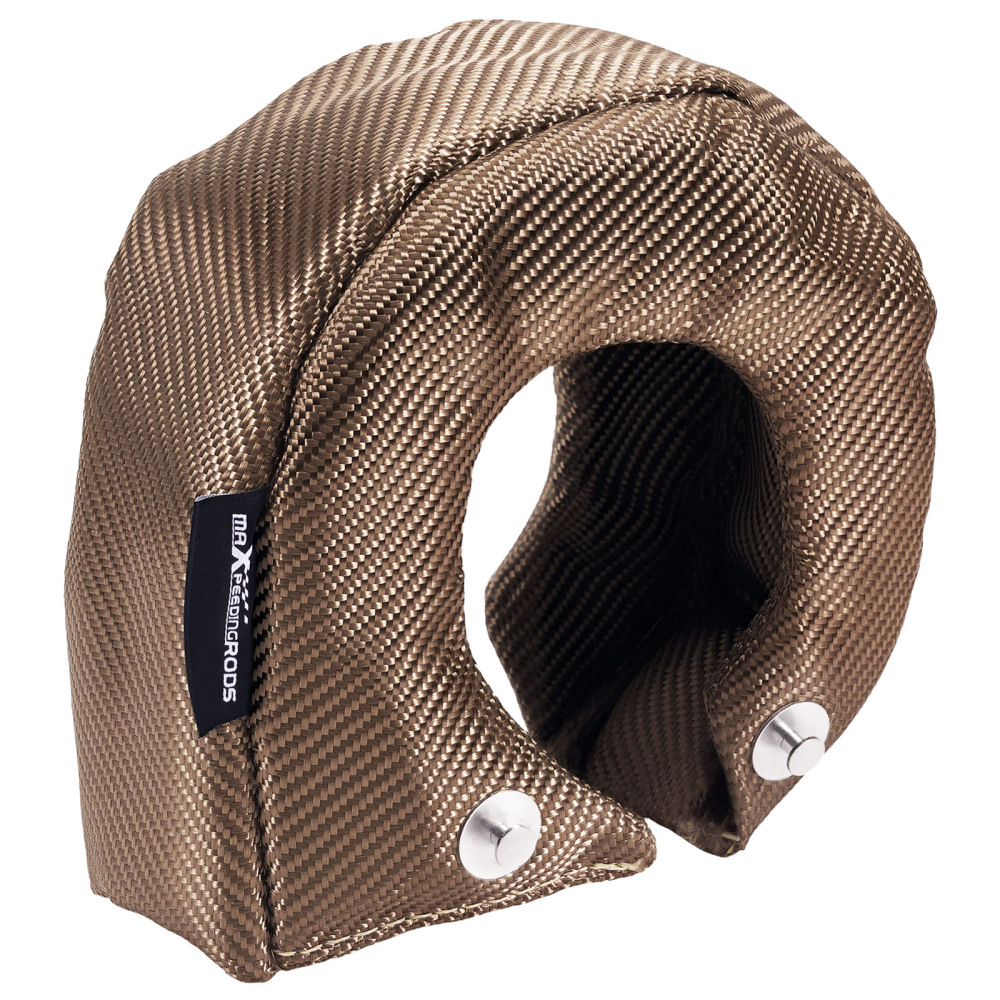

Turbo Heat Shield

1. Keep crucial engine components protected from the heat of the turbo. while increasing spool time and reducing underhood temperatures.

2. Our high-quality basalt fiber can withstand high temperatures up to 800°C.

Notice:

Turbo

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

Turbo Heat Shield

* Universally fits on any T3 turbocharger.
* The Turbo Shield is non-flammable, the product may ignite if exposed to flammable fluids.
* Please take all necessary precautions to insure that the oil supply line and all fluid fittings are in proper working order, sealed and without leaks.
