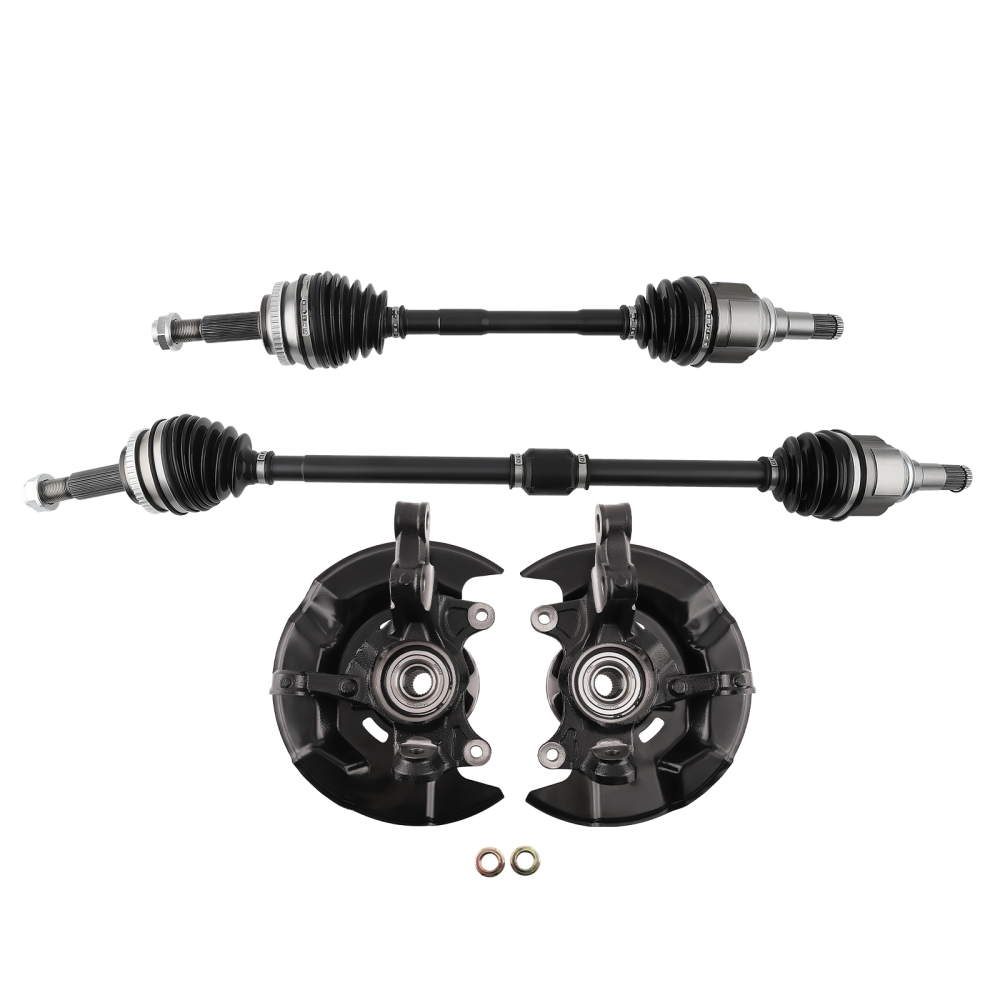

Steering Knuckles And CV Axle Shaft Set compatible for Toyota Matrix 1.8L 2009-2013 66-5224

Application:

Compatible for TOYOTA  Compatible for COROLLA 2009 - 2013
Compatible for TOYOTA  MATRIX 1.8L 2009 - 2013

Part Number:

Steering Knuckle:

698-381，698-380，LK031，LK032，698381，698380
4321202220，4321212440，43502-02080，43502-32080，47782-02130，47782-12260
90363-40066，9052179002，4321102220，4321112490，47781-02130，47781-12260，90080-36136

CV Axle:

66-5224, TO-8308A, TO-8233, 665224, TO8308A, TO8233, 19183737, 19204706, 19204984, 4341001130, 4341001131

Specification:

Wheel Bearing Hub Knuckle Assembly:
Color: Black
Material: Cast Iron
Hub Included: YES
Position: Front, Left, Right

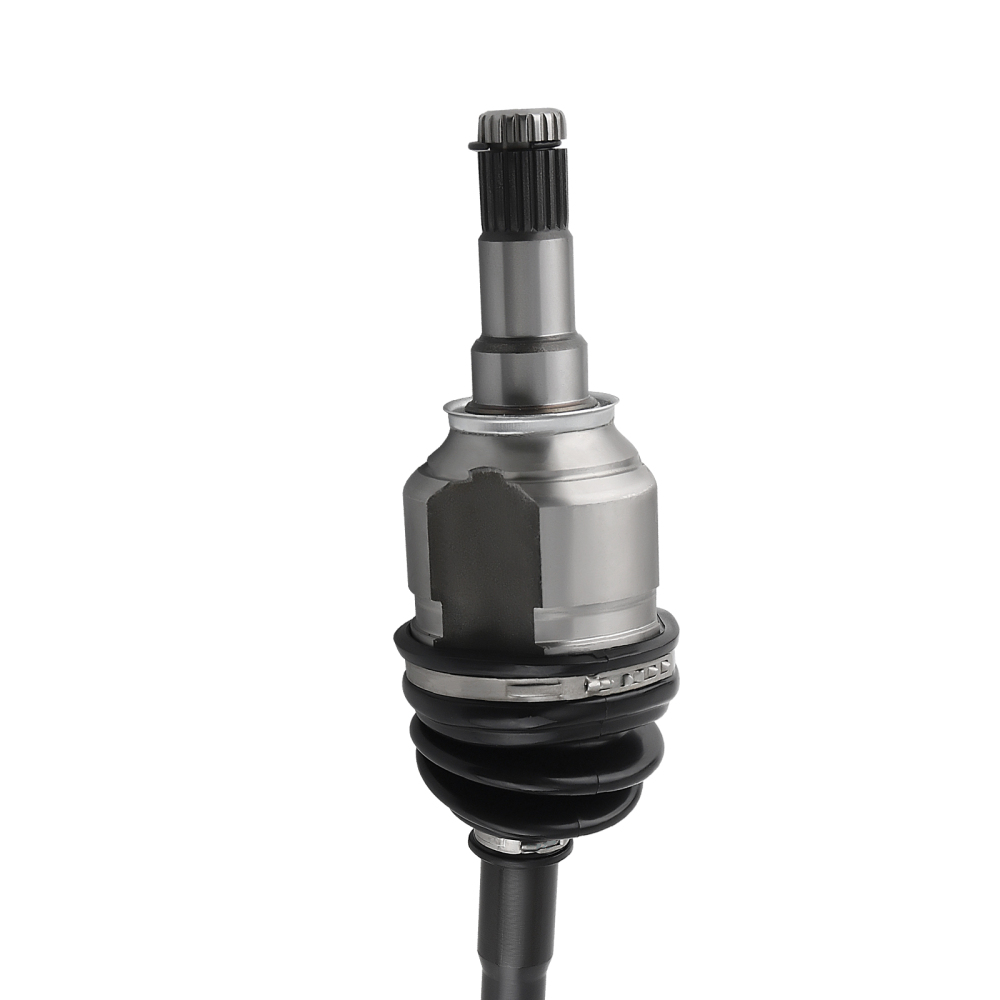

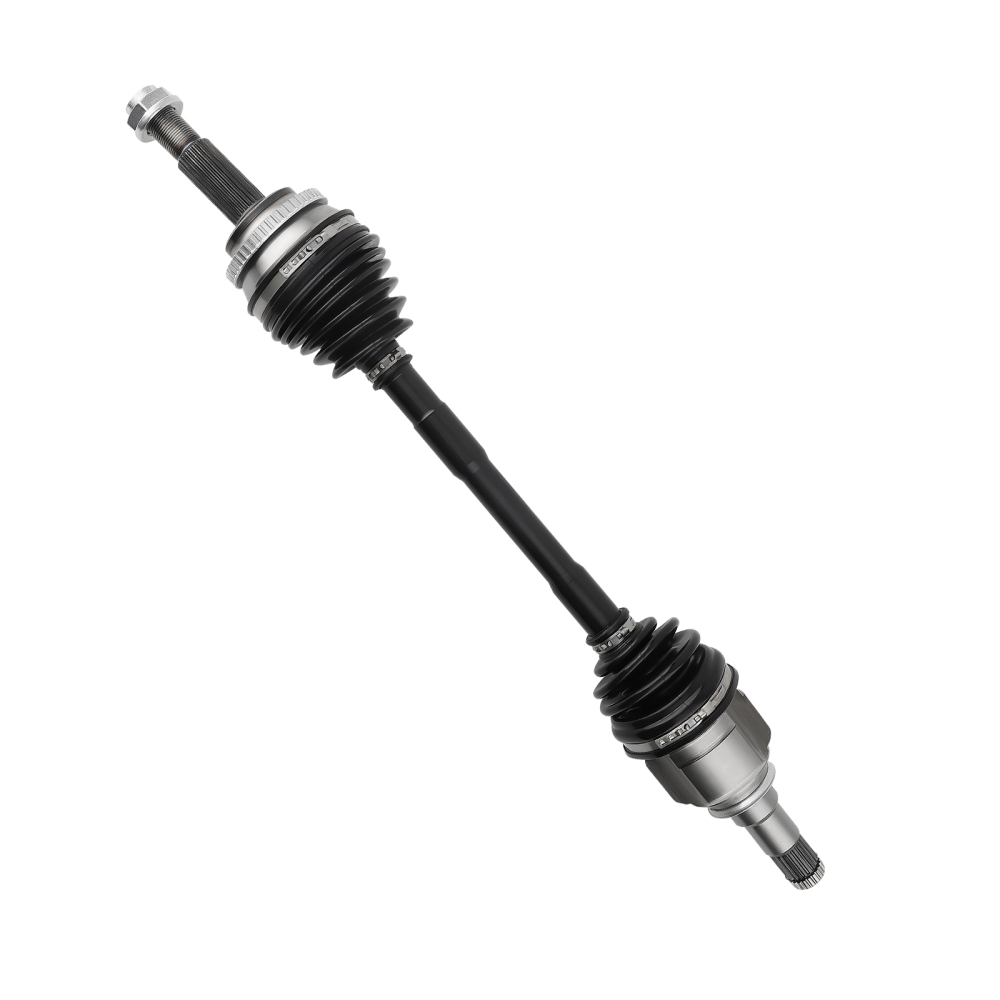

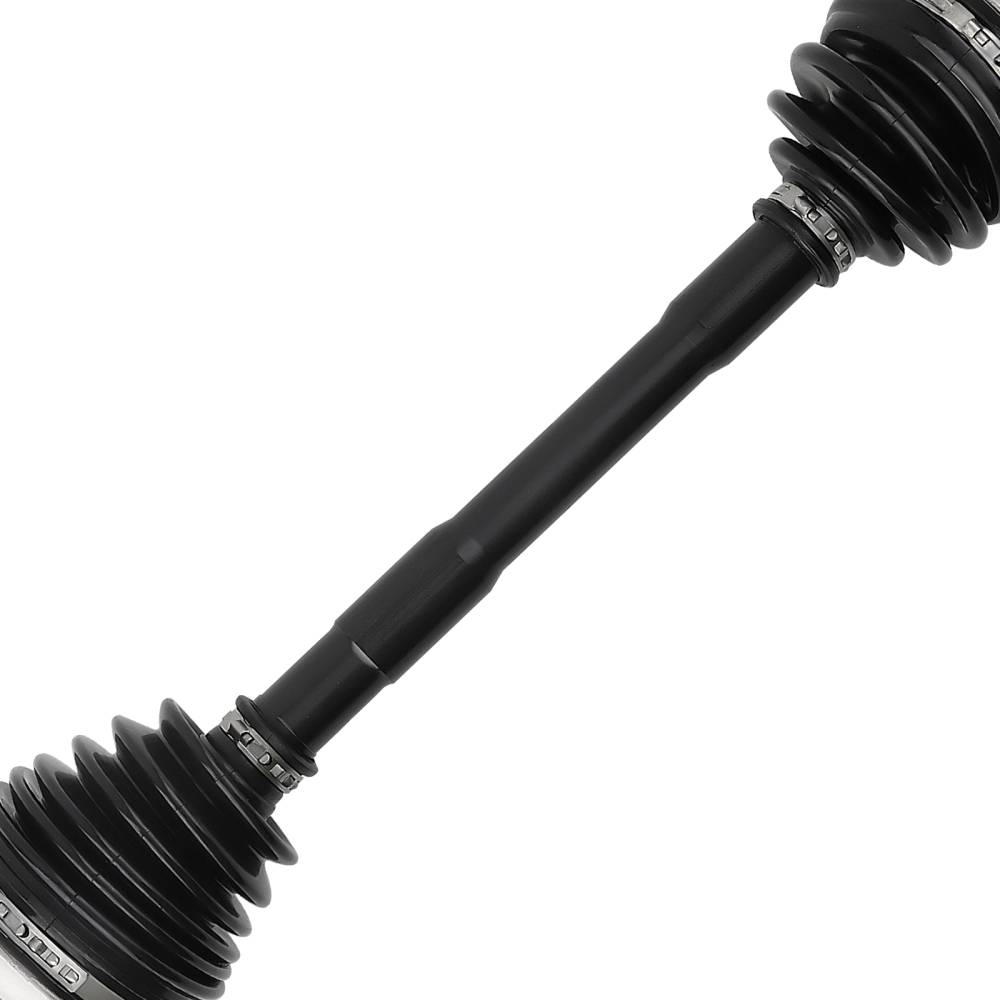

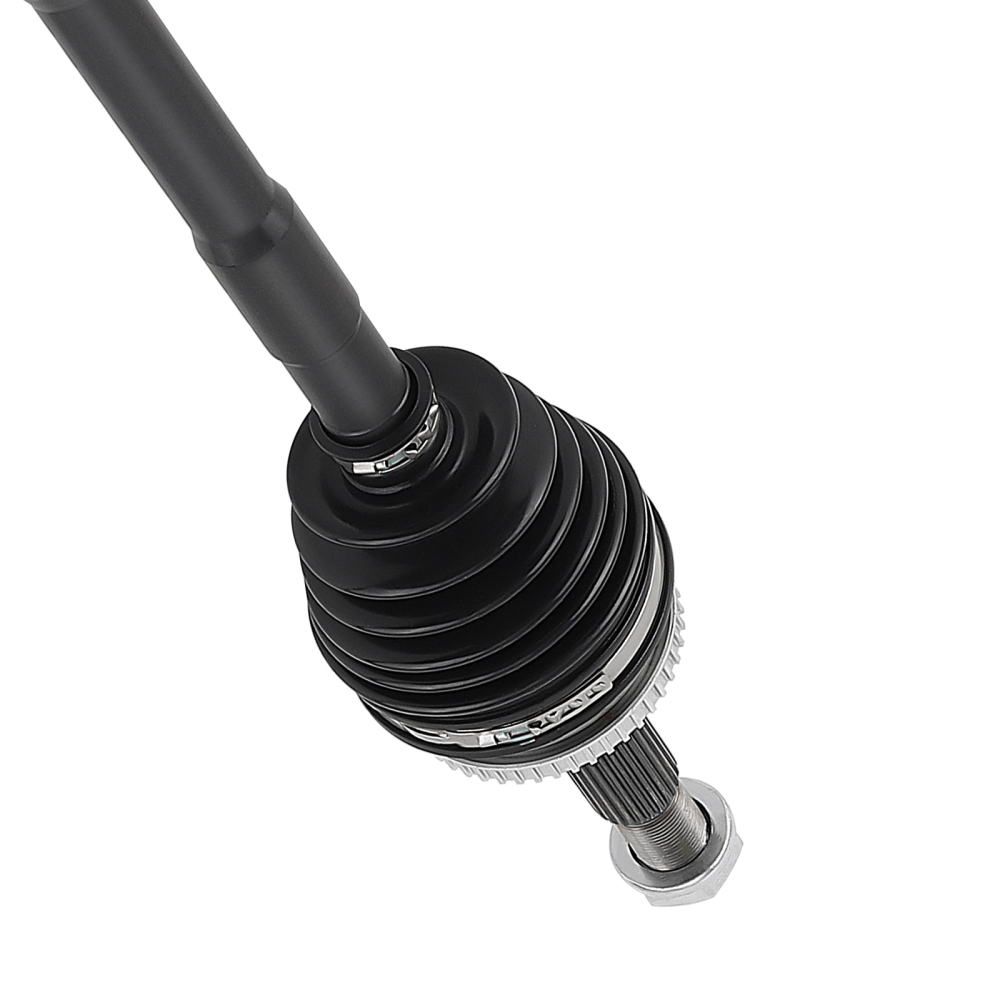

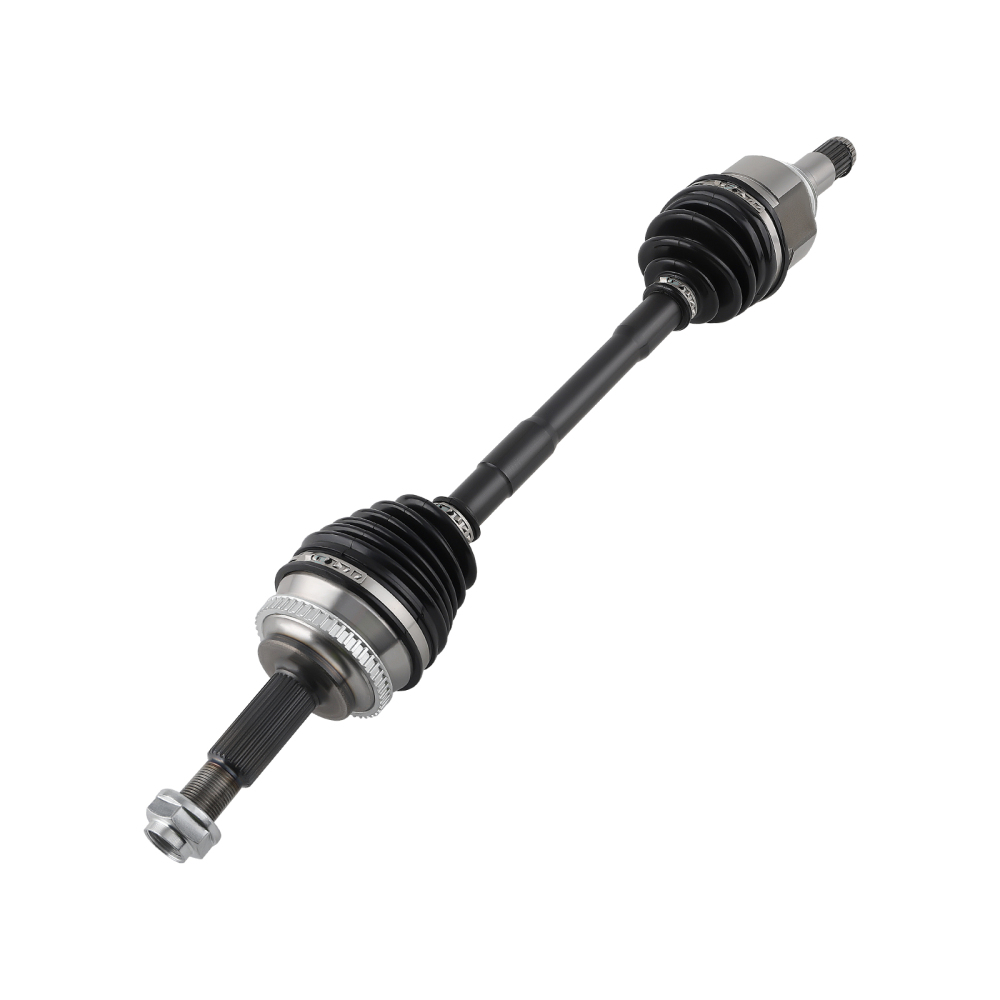

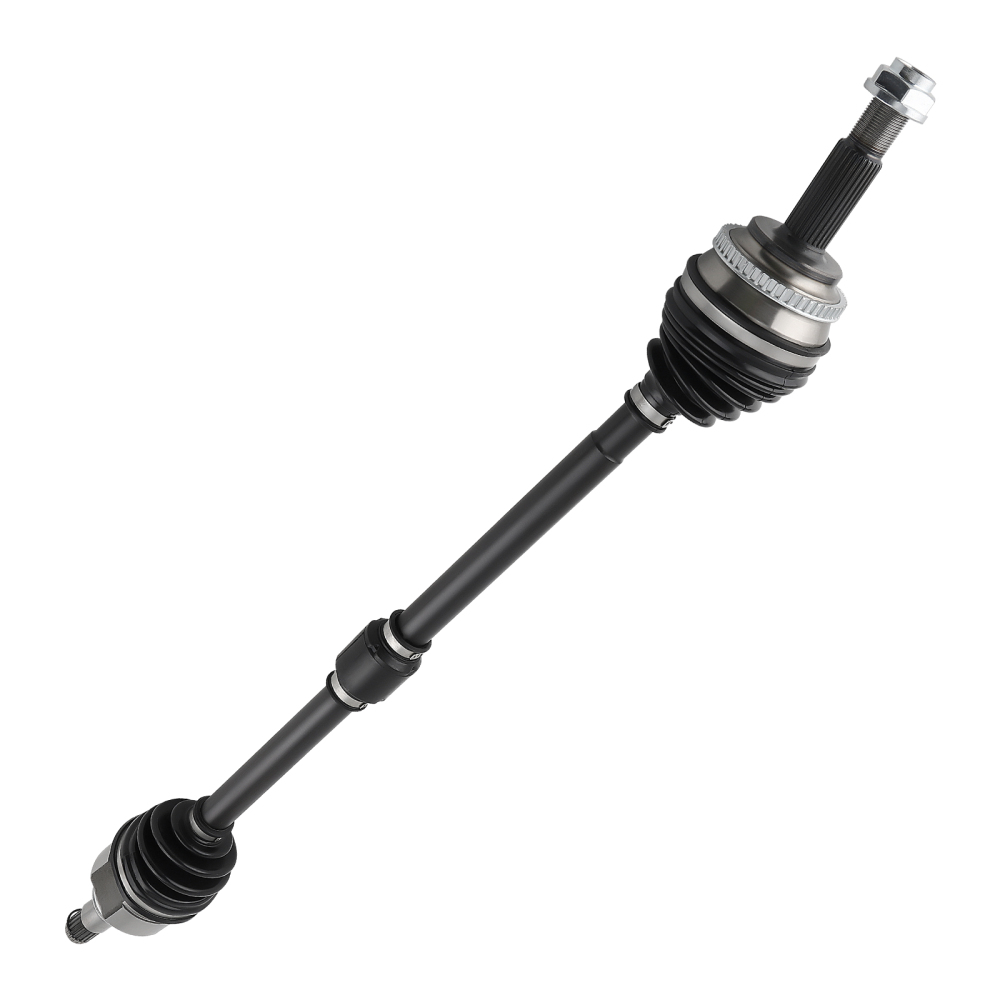

CV Axle Assembly:
Compatible Type: Compatible for FWD
Placement on Vehicle: Front,Left,Right
Compressed Length (IN): 36.02 in / 915 mm(Right);25.51 in / 648 mm(Left)
ABS Ring Tooth Count: 48
Axle Nut Hex Size: 1.18 in / 30 mm
Axle Nut Thread Size: M22x1.5
Axle Nut Socket Size: 32
Shaft Material: 40CR
Surface Finish: Black Coating
Outboard Splines: 26 Tooth
Inboard Splines: 20 Tooth

Features:

- Made of Cast Iron, anti-rust, durable and high stability.
- Anti-Rust Protection
- Machined to OE Specs
- Pre-assembled and Direct Replacement

Package Includes:

1x Front Steering Knuckle & Wheel Hub Bearing Assembly - Passenger Side - KA698380
1x Front Steering Knuckle & Wheel Hub Bearing Assembly - Driver Side - KA698381
2x Axle Assemblies(Front Left+Right)

Note：

* Professional installation is highly recommended (No Instruction Included).
* If you are not sure about the compatibility, or you are looking for other car parts, just contact us.
* We are happy to offer any help. Bellow information will help:
VIN(Vehicle Identification Number), detailed car model, part number and photos of the parts.
