for Toyota Corolla Base Sedan 09-17 Adj Damper 24-Steps Coilovers Suspension Kit

Introduction

MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

Application

Compatible for TOYOTA COROLLA (E140) AZE141L XRS 2009-2010
compatible for TOYOTA COROLLA (E140/E160) ZRE142L LE 2009-2013
compatible for TOYOTA COROLLA (E150/E170) ZRE172L all 2014-2019
compatible for TOYOTA MATRIX (E140) LE 2009-2014

Specification

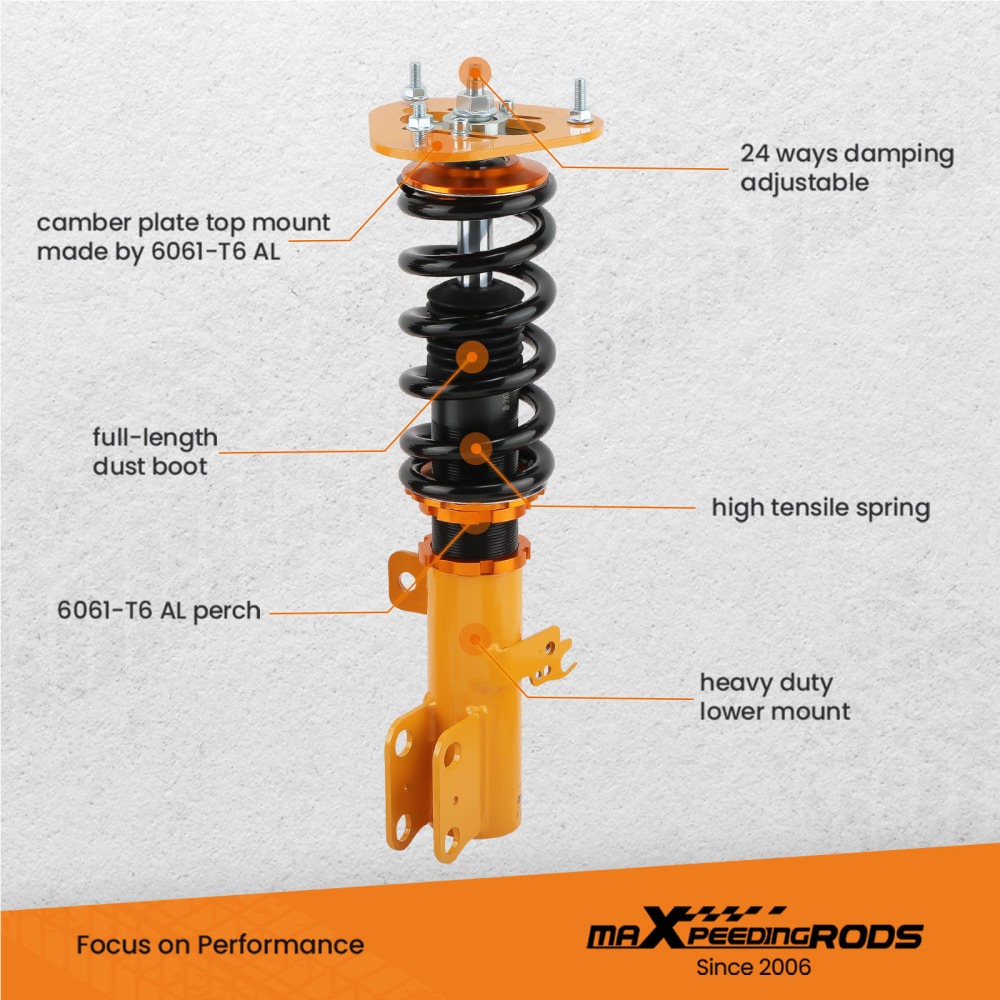

Top mounts: pillow ball top mount with camber plate front, standard rubber top mount rear.
Damping: 24 levels rebound damping adjustable
Spring rate Front: 10 kg/mm (560 lbs/in)
Spring rate Rear: 6 kg/mm (336 lbs/in)
Spring length Front: 200mm
Spring length Rear: 160mm
Adjustable height: lowering 1-3 inch
Coilover overall length Front: 360mm-455mm
Coilover overall length Rear: 313mm-370mm
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: gold

Package included

product included: complete coilovers 2 front and 2 rear,a pair wrench for height adjustment.

Dimension

Gross weight: 25.8kg
Package size: 63*51*21cm

Feature

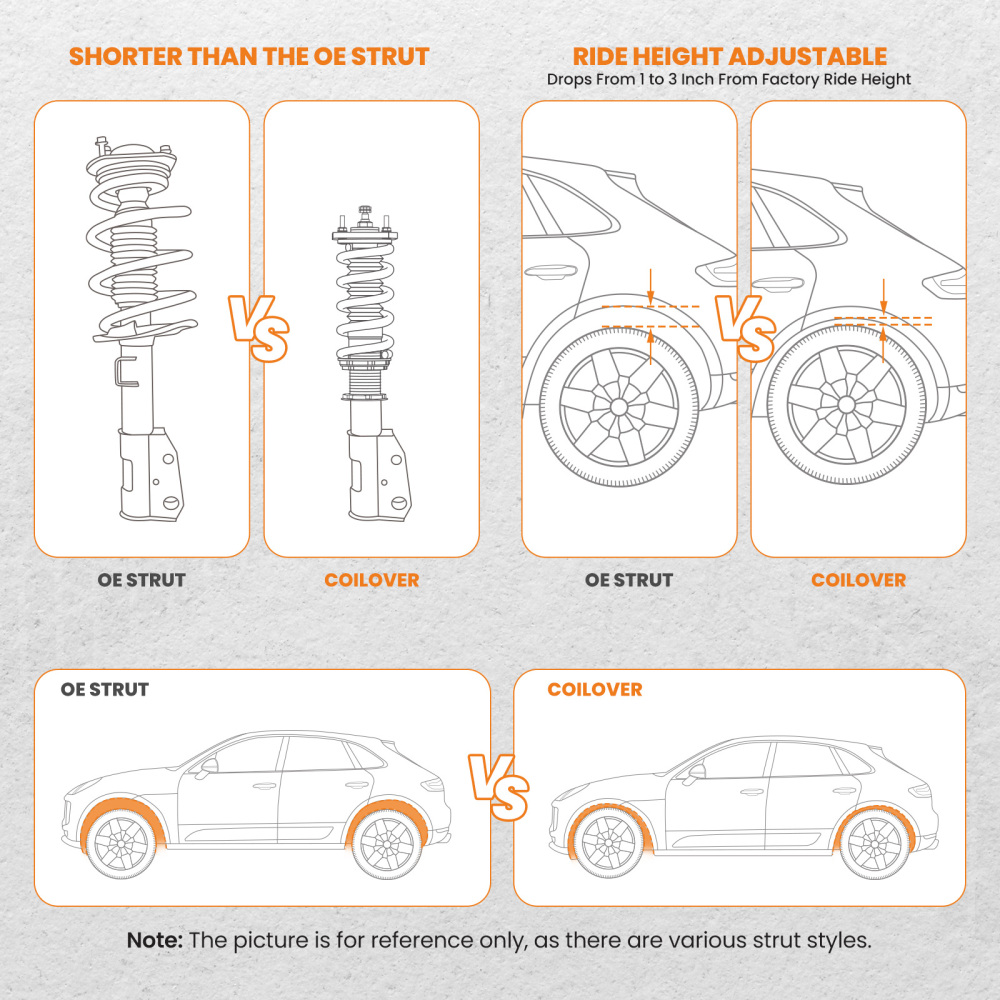

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.

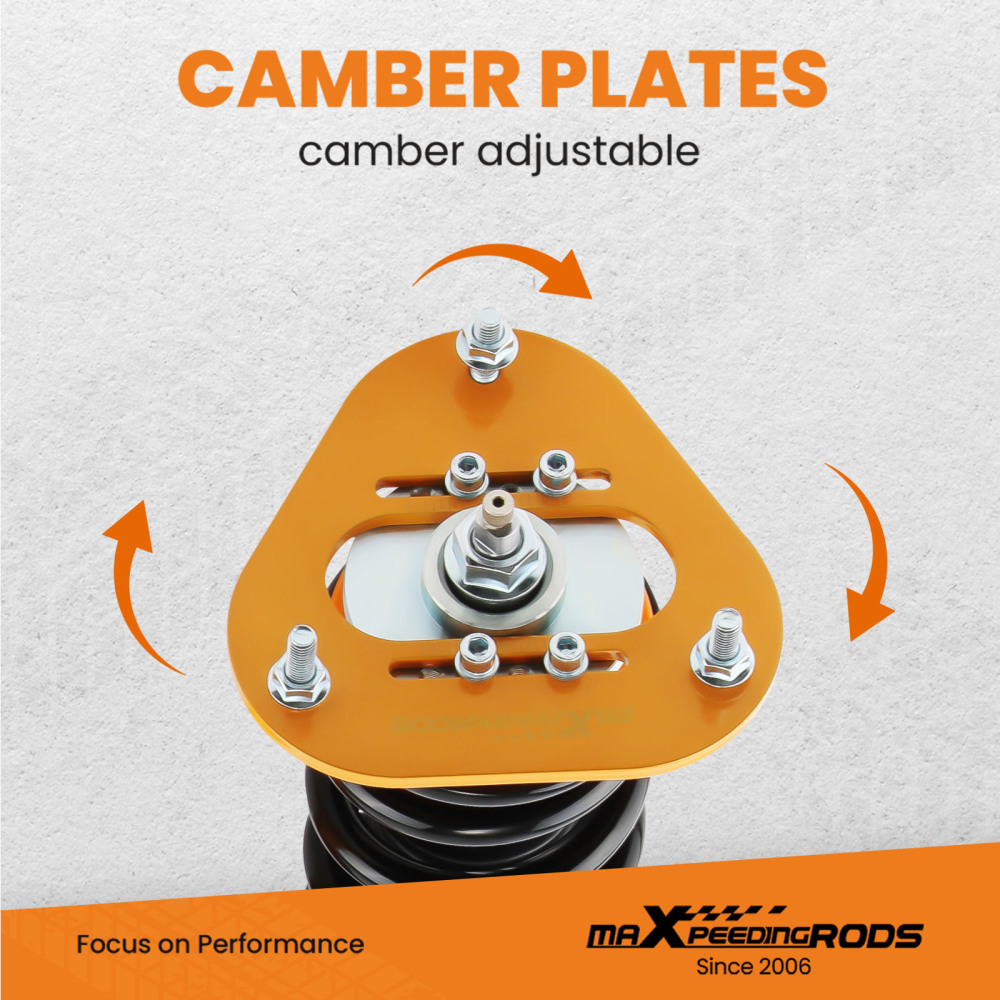

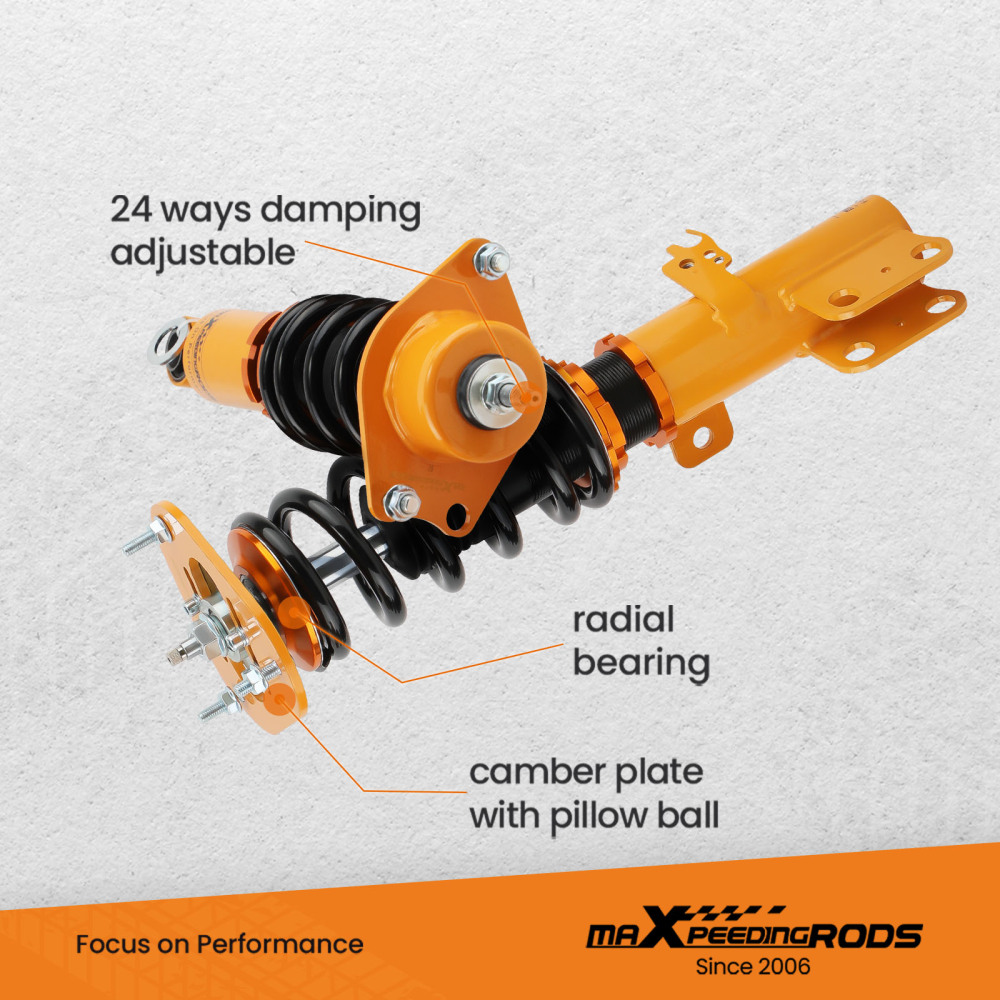

2.Camber plate top mounts help to eliminate the need for a separate camber kit.（Only Front)
3.Pillow ball top mount - It improves the steering feel and response.（Only Front)
4. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts. (Only Rear)
5. Twin-Tube structure allows sufficient stroke within the shock absorber.

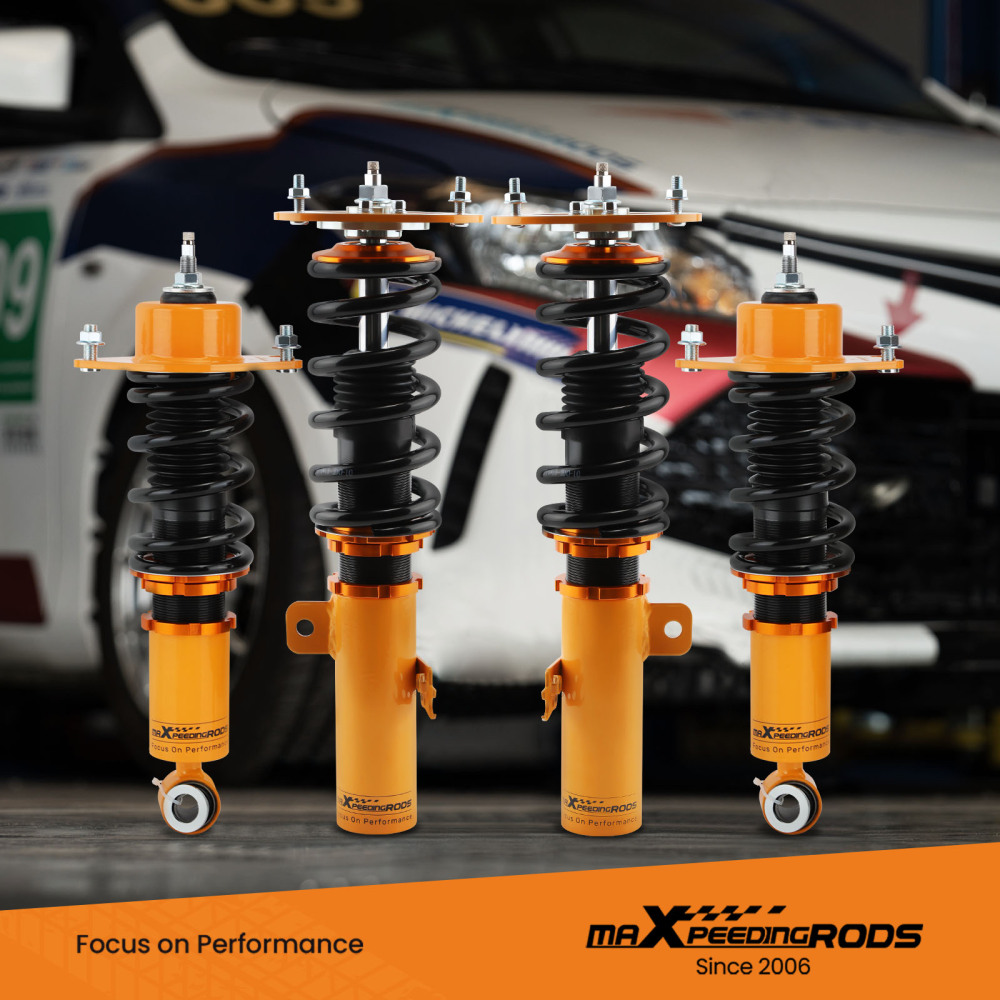

6. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.

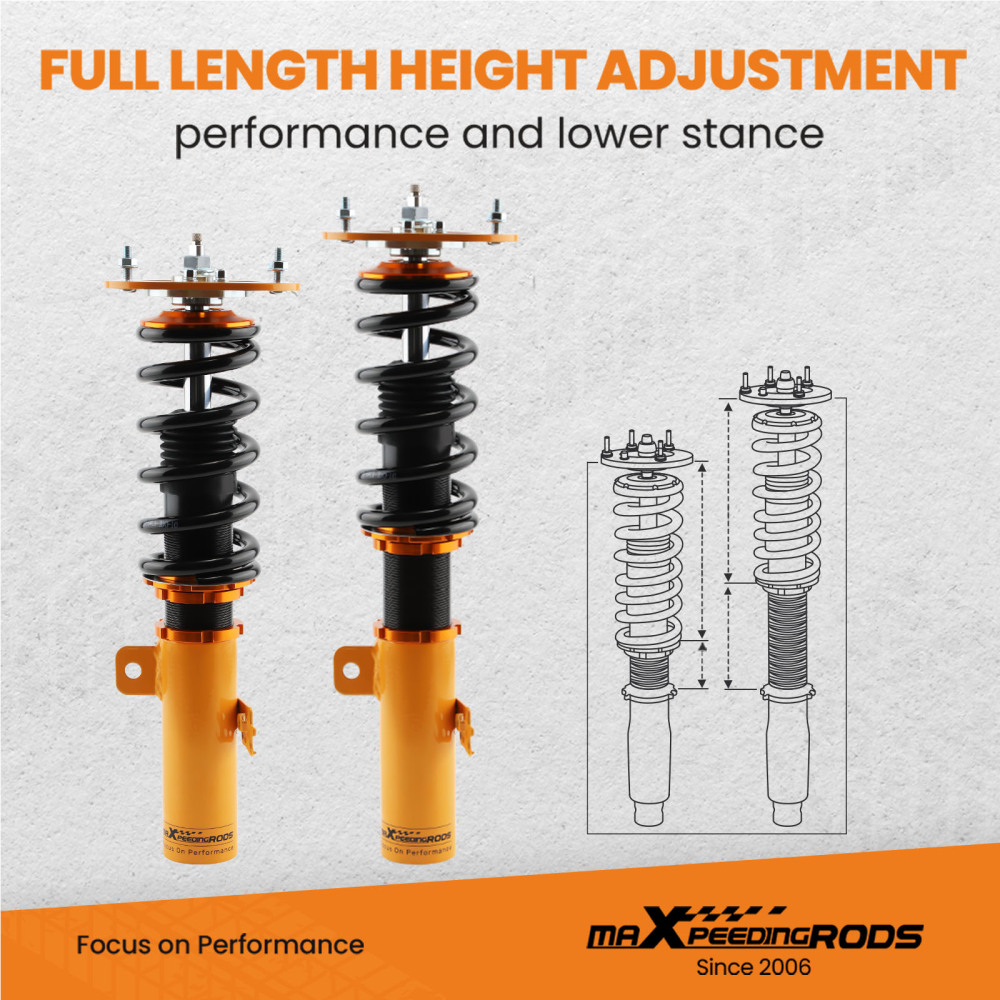

7. Separate height adjustment does not affect damper stroke.
8. Height can be adjusted with coilovers installed on the vehicle.

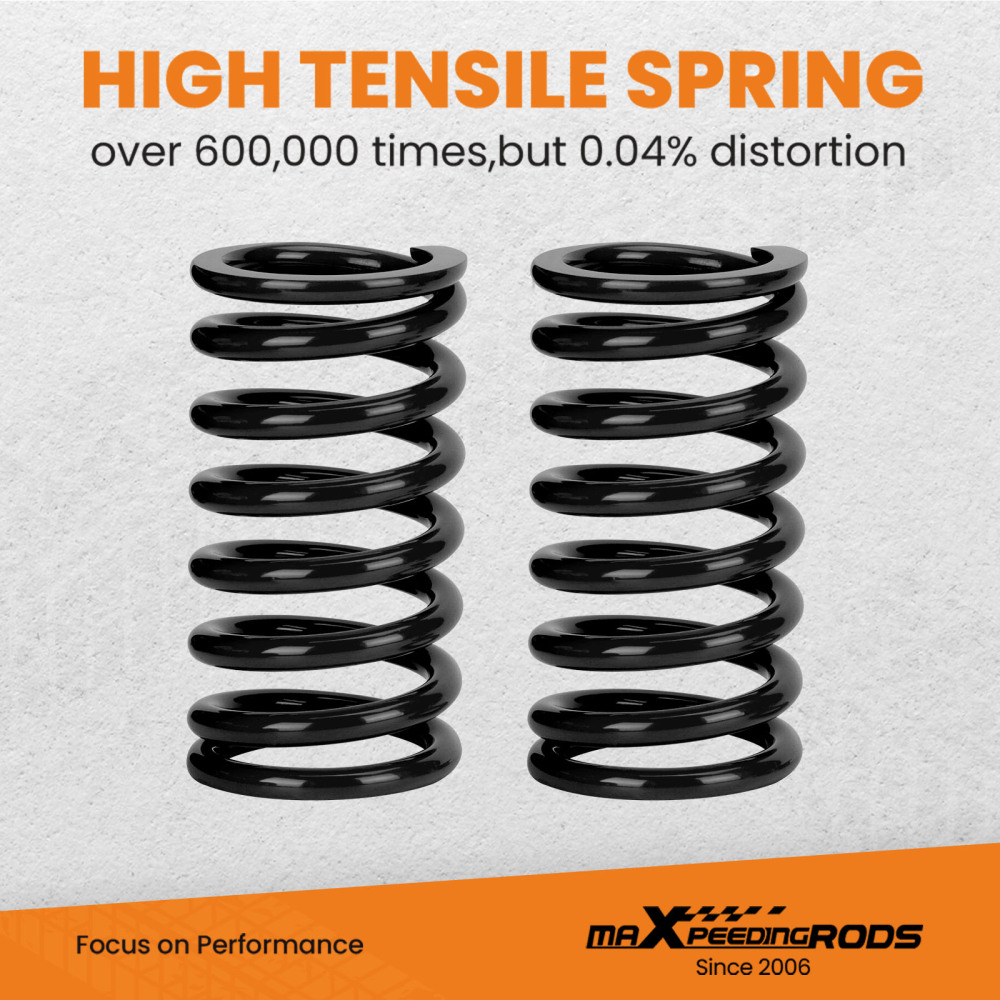

9. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
10. Height Adjustment tools included.
11. Full rebuildable.
12.A 24 rebound dampening adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
