Turbo Turbocharger compatible for Mitsubishi Pajero 4M40 2.8L 94-97 TD04-12T 49377-03043,

Turbo Turbocharger compatible for Mitsubishi Pajero 4M40 2.8L TD04-12T

Applications:

Compatible for Mitsubishi Pajero 2.8L with 4M40 Engine 1994-97

Part Number & OEM Number:

49377-03010, 49377-03020, 49377-03030,
49377-03031, 49377-03033,
49377-03040, 49377-03041, 49377-03043,
49377-03050, 49377-03051, 49377-03053,
ME200897, ME200898, ME201257,
ME201258, ME201635, ME201636, ME201637,

Cooling Type: Oil Cooled Model
Turbo Model: TD04-12T
Bearing Type: Journal Bearing
Exhaust (Turbo Manifold) Flange: 3 Bolt
Exhaust Outlet Flange: 4 Bolt
Engine: 4M40
Oil Inlet: M10*1.25
Thrust Bearings: 270 Degrees
Condition: Brand New
Turbo Type: Individual
Universal Fitment: No
Finish: Matte
Package Size: 26 x 25 x 23 cm
Package Weight: 5280g

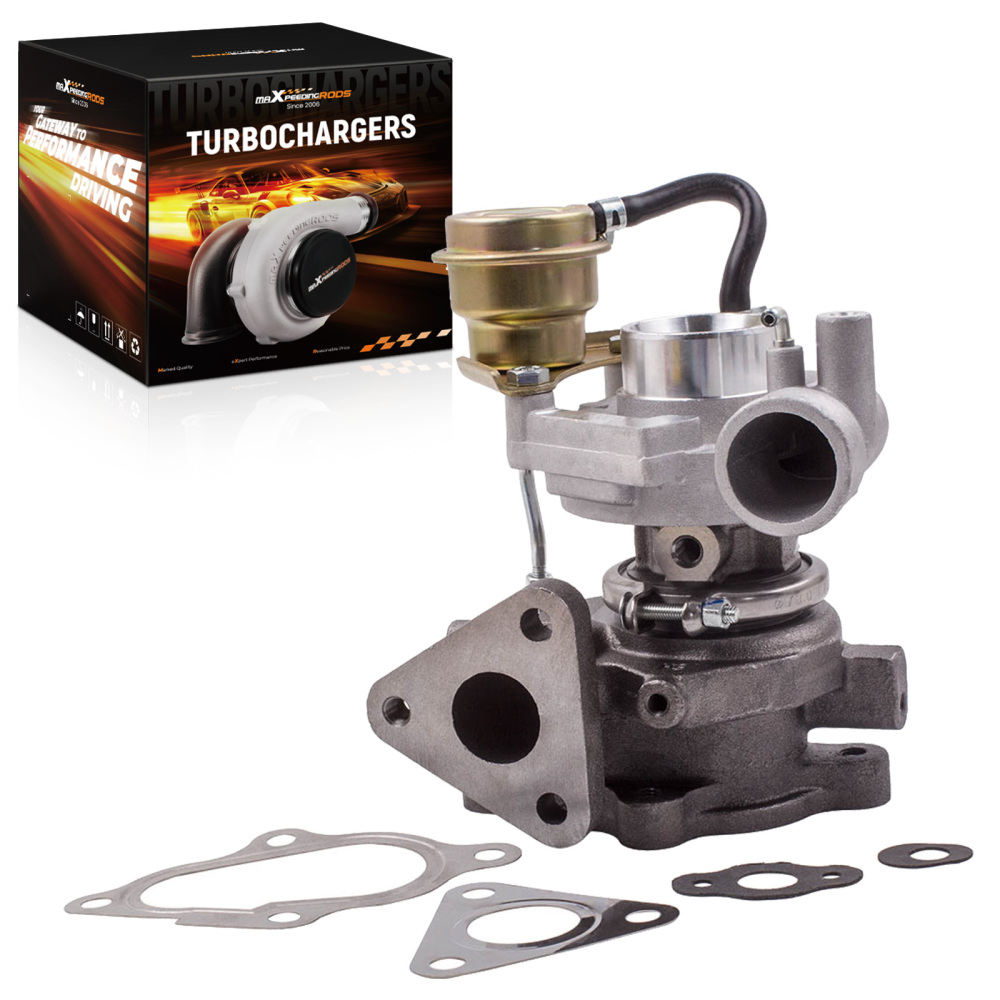

Accessories: You will get exactly as shown in the picture above

Feature:

* Product Material

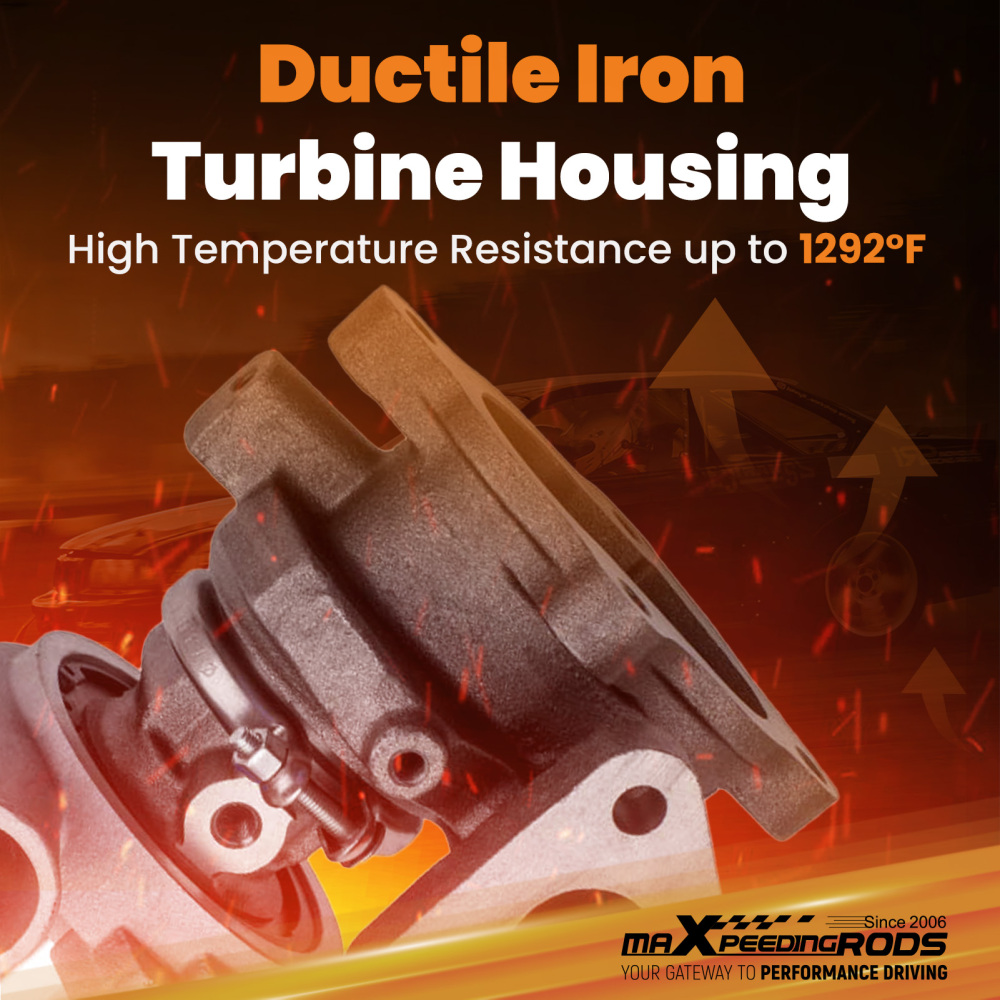

1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃

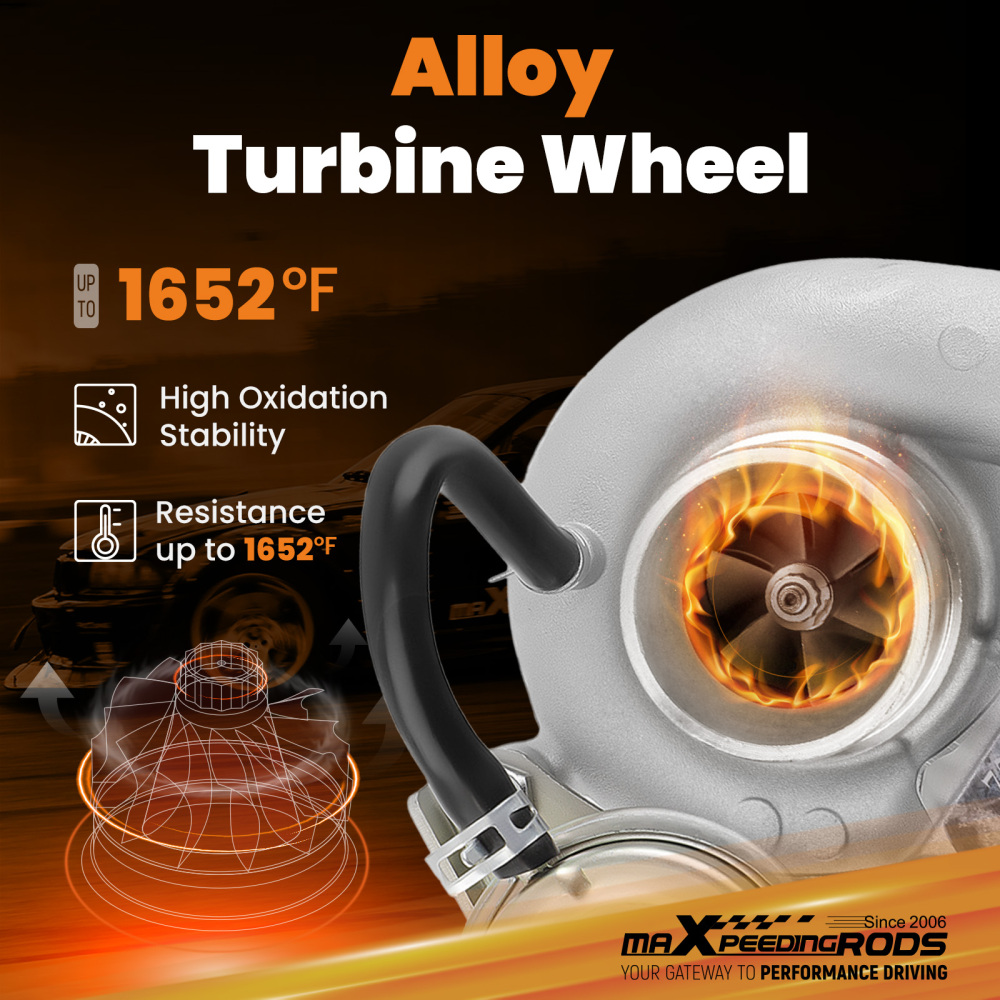

2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃

3. Compressor housing: ZL104 aluminum with lightweight

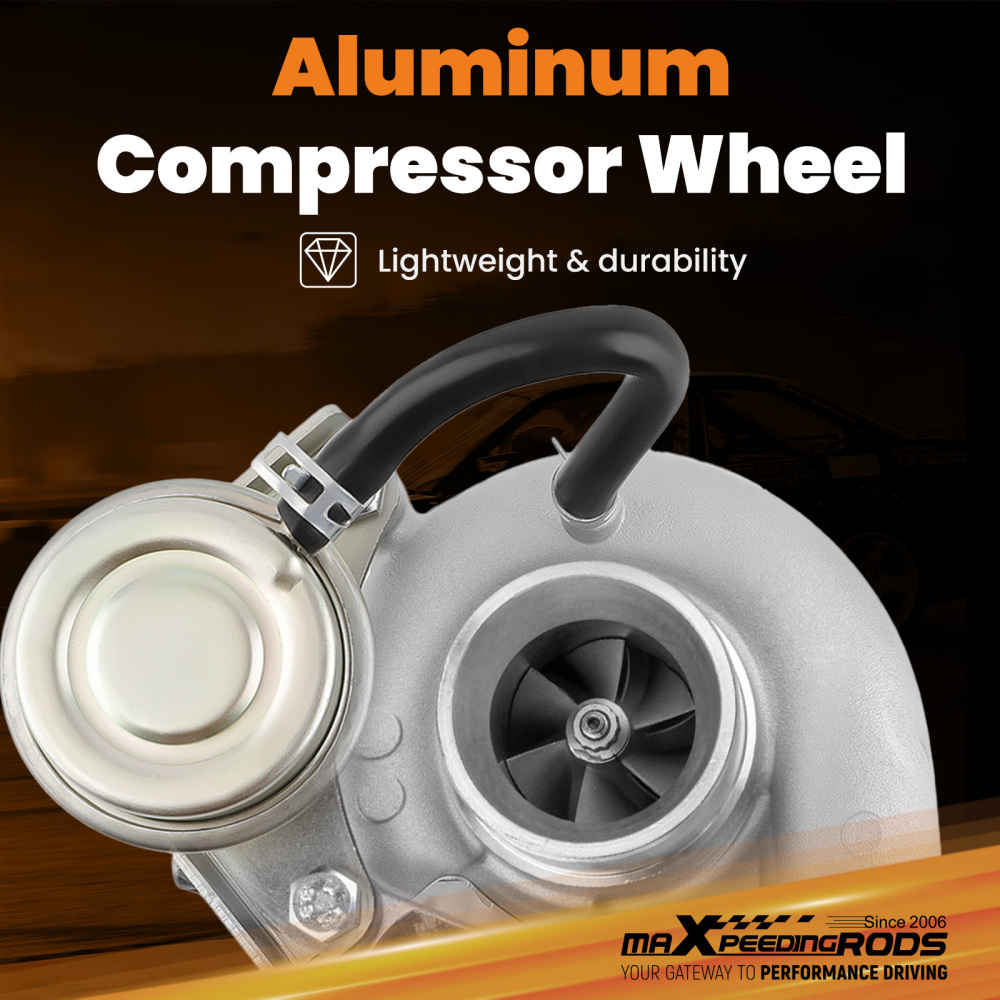

4. Compressor wheel: Cast aluminium blades – superior air tightness & corrosion resistance

* Product

1. OEM size can be directly replaced

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

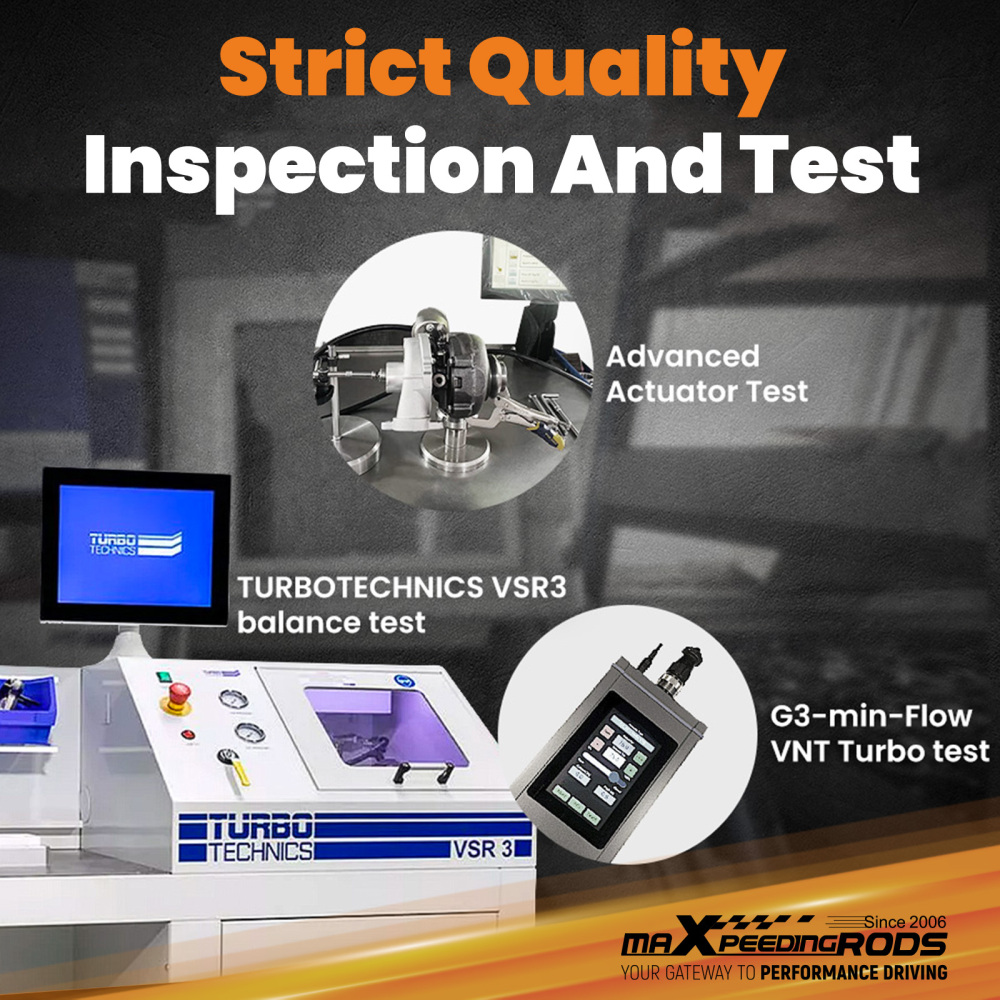

1. 100% balancing Test by TURBOTECHNICS VSR3

2. G3-min-Flow VNT Turbo testing

3. Advanced Actuator Tester/Programmer

Important Notice:

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

* Please confirm your original turbo PART NUMBER before Purchasing.

* Professional installation is highly recommended,

* Before installation, please check the oil supply sufficient, clearnliness the air filter and gasoline , and the gasoline air tightness.
