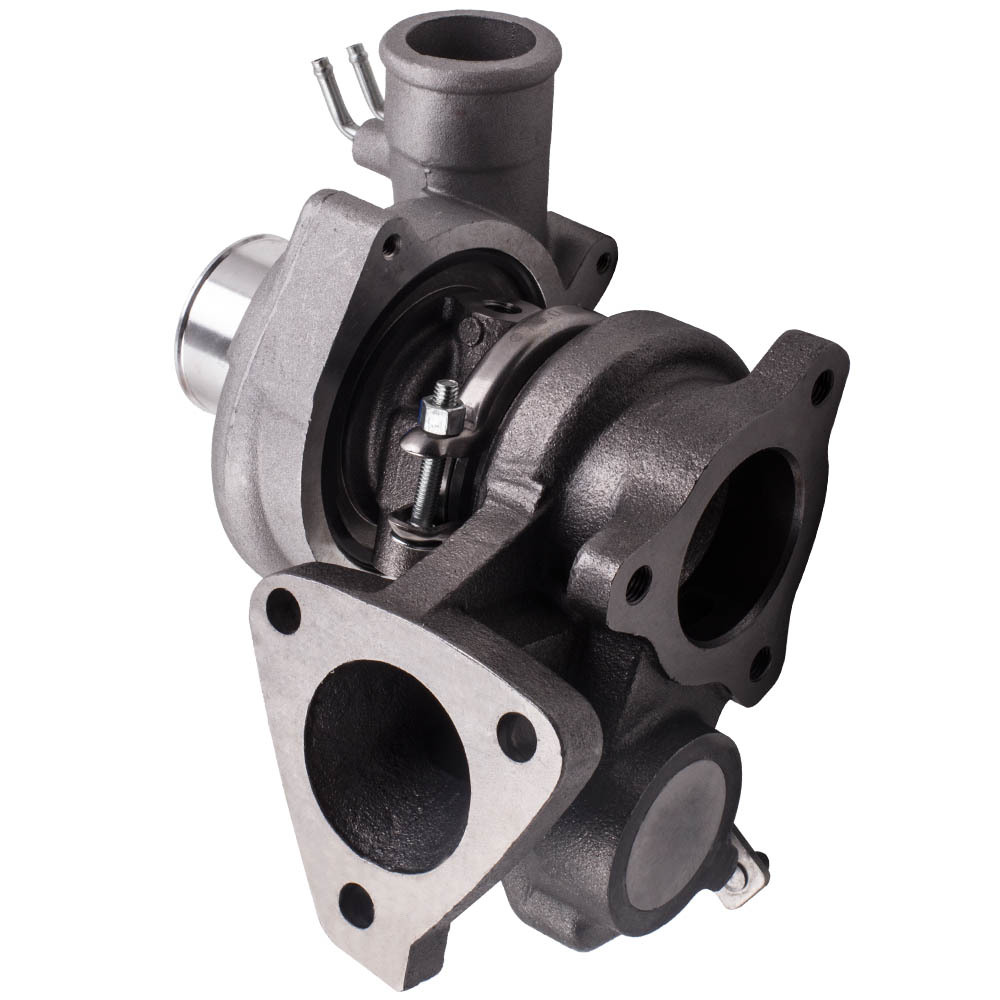

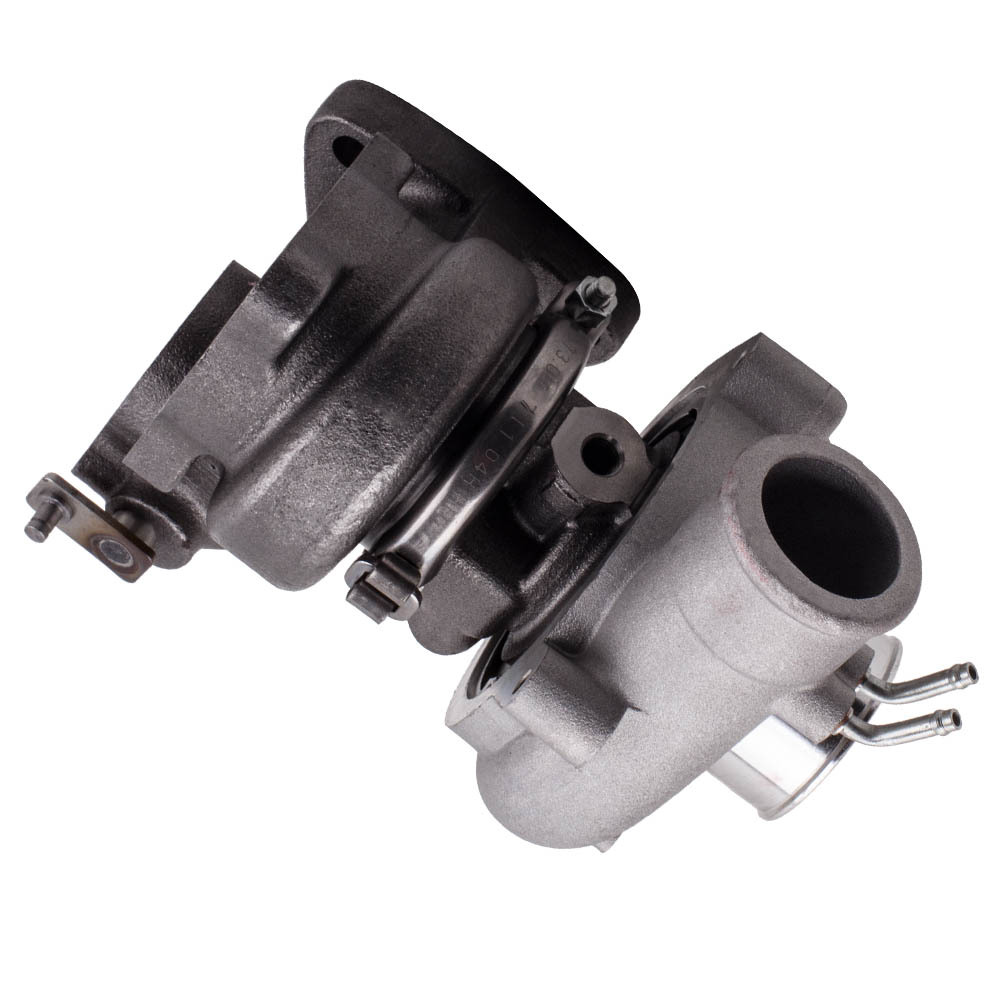

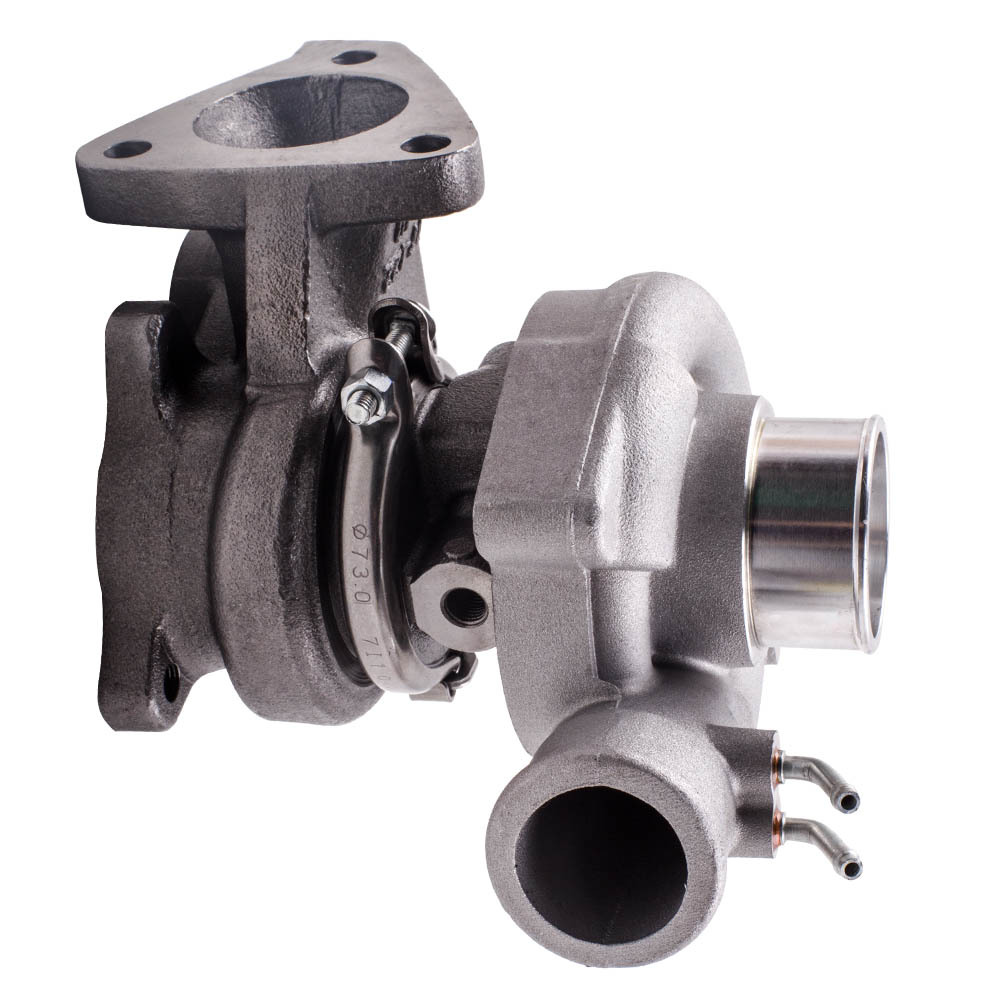

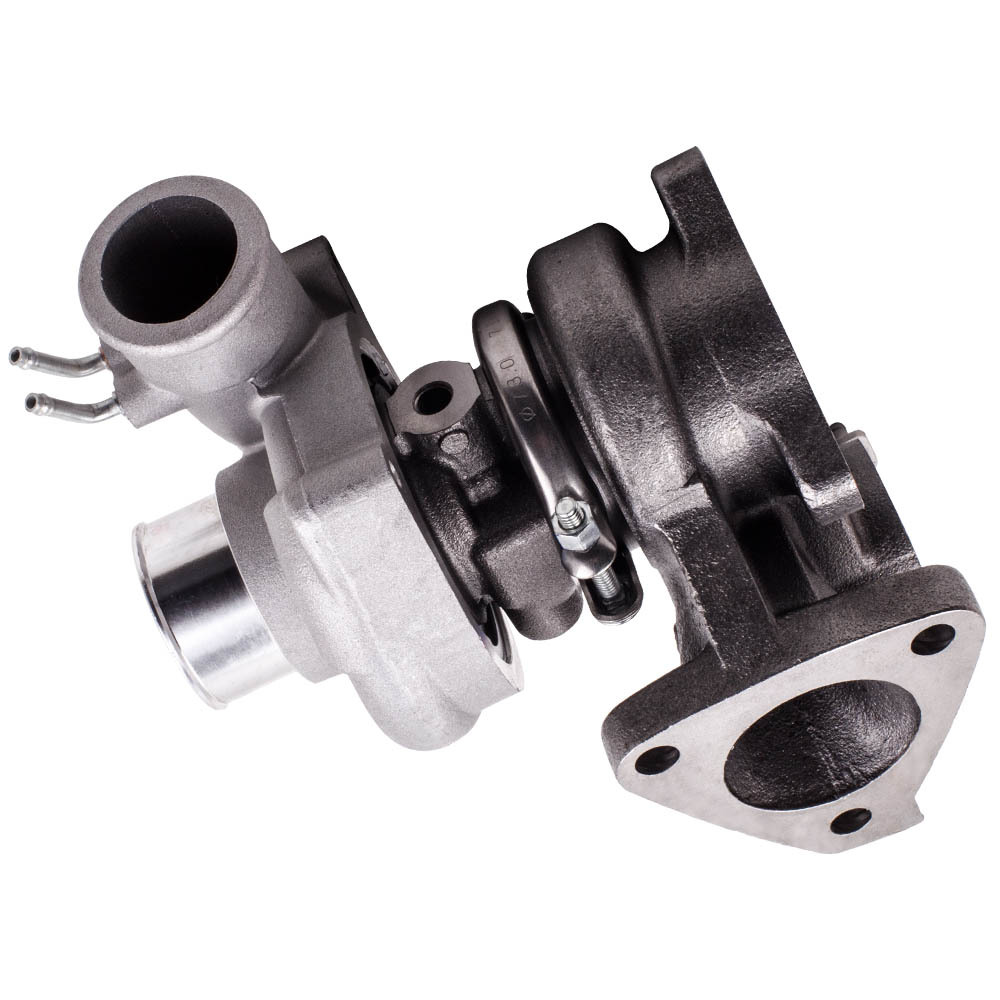

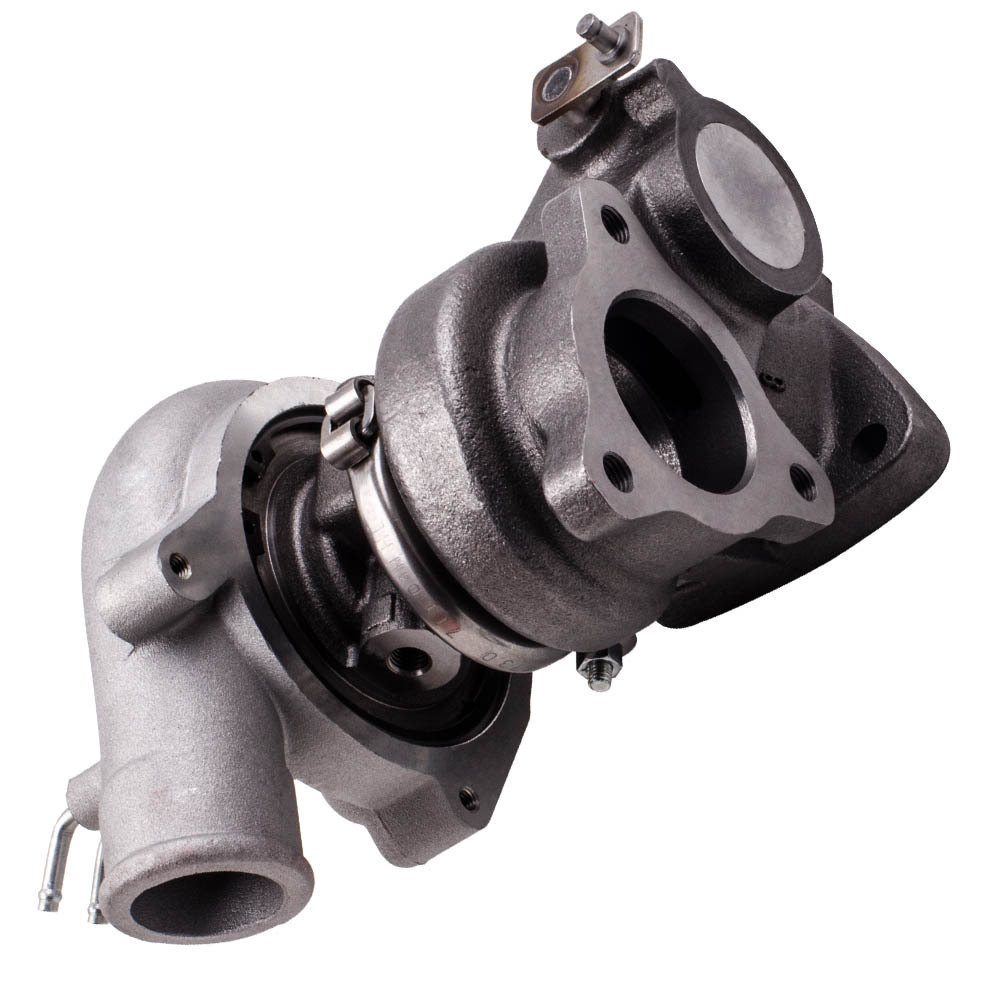

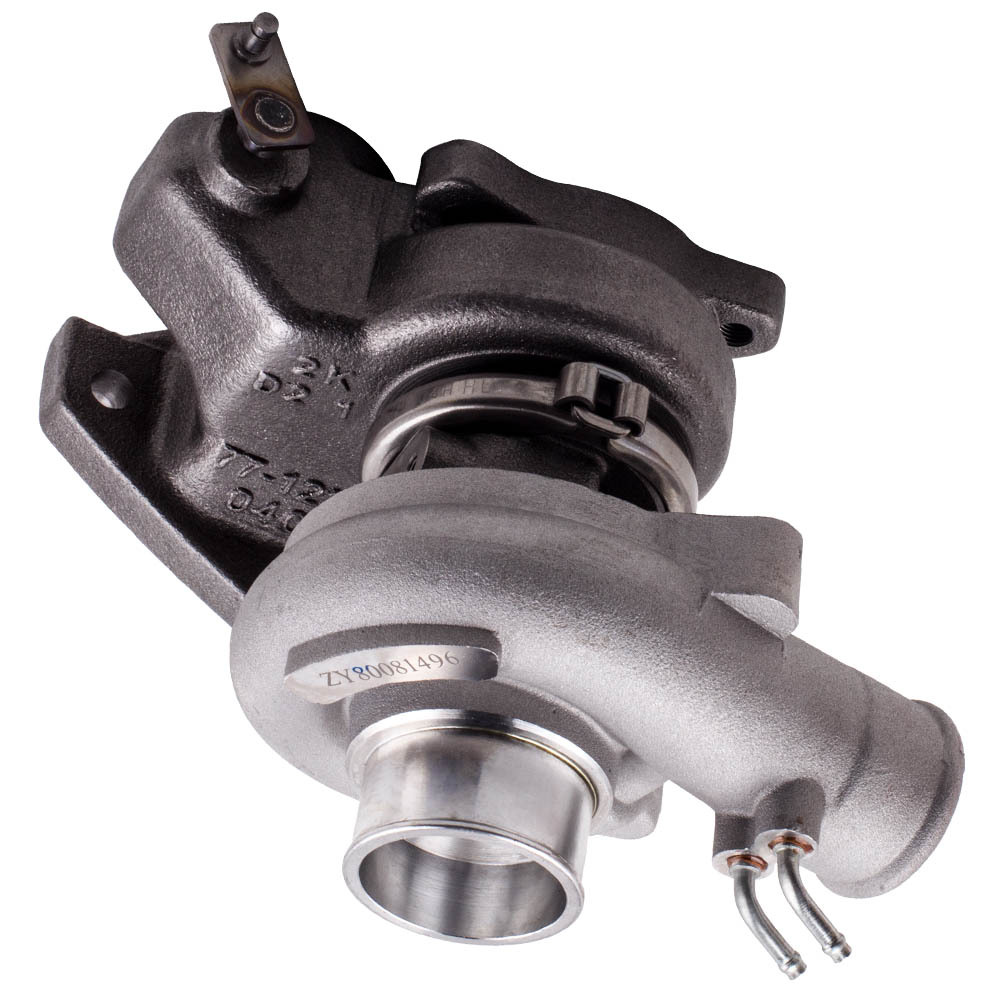

Compatible for Mitsubishi L200 L300 2.5L 4D56T 49177 Oil Cooled TD04-09B Turbo Charger

  • * OEM-Quality. Direct Replacement
  • * Ductile Iron QT450-10 - High temperature resistance (up to 700℃)
  • * K418 Alloy - Stable & High Oxidation & Temperature Resistance(up to 900℃)
  • * Cast Aluminium Blade - Good Air Tightness & Corrosion Resistance
Stock In Stock
Item Number 3002907904

MORE OPTIONS

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G
GGTD040203
GGTD040203
1
OEM-quality and size with little modification
2
Turbine housing uses cast iron withstand temperatures up to 700℃
3
Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900℃
4
Cast aluminium blades with good gas tightness and corrosion resistance

Introduction

A turbocharger (also called turbo), is a turbine-driven forced induction device that increases an internal combustion engine’s efficiency and power output by forcing extra air into the combustion chamber. The key difference between a turbocharger and a conventional supercharger is precisely that a turbocharger is powered by a turbine driven by the engine's exhaust gas. A turbo consists of a compressor, a cartridge, a turbine and an exhaust valve. Maxpeedingrods provides turbochargers to enhance overall engine performance compatible for Mitsubishi series.

OE No.

49177-01500,49177-01501,49177-01510, 49177-01511,49177-01515,
MD168053,MD168054, MD106720,MD108153,MD094740,

Application

Compatible for Mitsubishi Pajero, Shogun 2.5L 4D56/4D56T 88 - 96
Compatible for Mitsubishi Triton, L200 2.5L 4D56/4D56T 88 - 96
Compatible for Mitsubishi Express L300 2.5L 4D56/4D56T 88 - 96
Compatible for Mitsubishi Delica 2.5L 4D56/4D56T 88 - 96

Specification

Turbo Model : TD04-09B
Part Number & OEM Number:
49177-01500; 49177-01501; 49177-01510; 49177-01511; MD168053; MD168054; MD106720; MD108153
Exhaust (Turbo Manifold) Flange: 3 Bolt
Exhaust (Downpipe) Flange: 3 Bolt
Cooling Type: Oil Cooled Model
Bearing Type: Journal Bearing
Condition: New
Accessories: You will get exactly as shown in the picture
Warranty: 2 years warranty for any manufacturing defect

Features

- High nickel alloy shell with high temperature resistance.
- Imported floating bearing structure and precise dynamic balance.
- Aluminum blades with precision machining forging.
- Turbine-driven forced induction device.
- Enhance engine power and reduce energy consumption.
- Improve fuel economy and reduce exhaust emissions.

Notice

- Please confirm your old turbo part number can match up with one of the part numbers above.
- Professional installation is highly recommended (No Instruction Included).
- For any needs please contact us.
