Compatible for Lexus RC RC-F GS-F L10 LC 500 5.0 L 2UR-GSE V8 ARP2000 4340 Connecting Rods

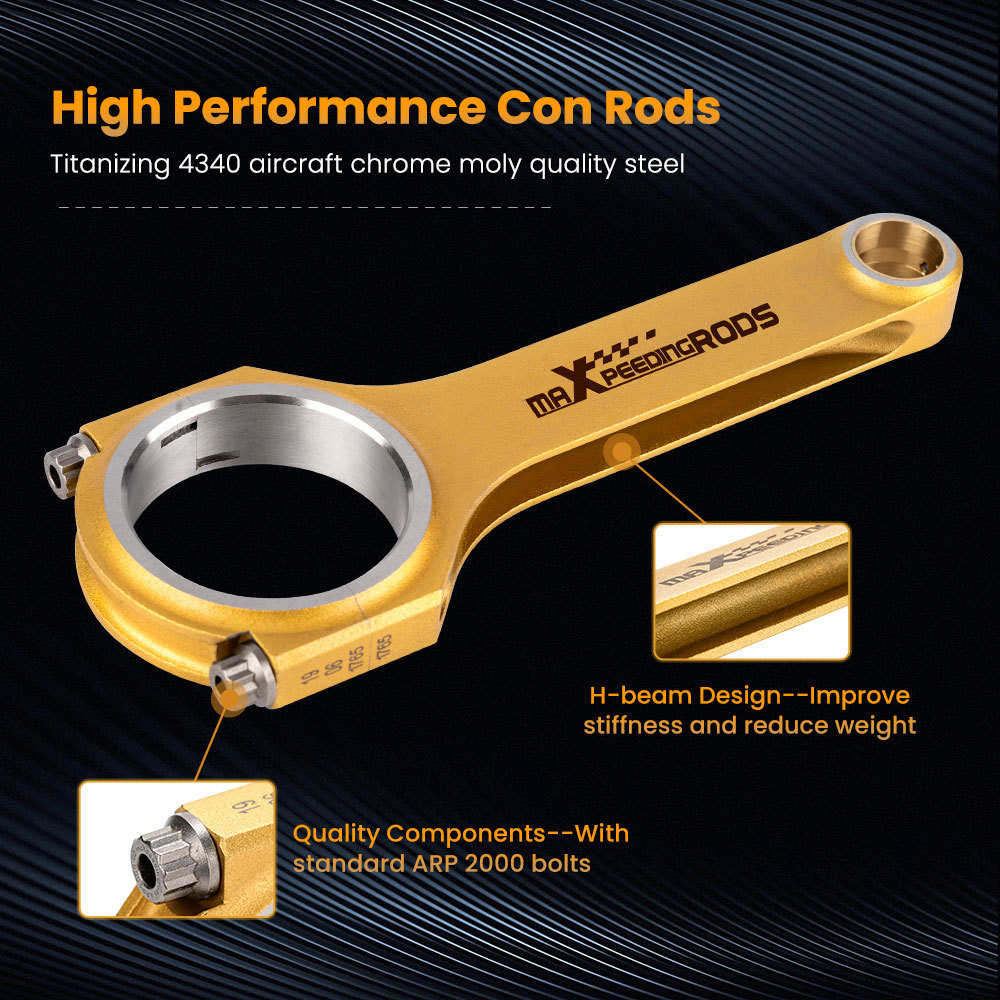

  • * H-Beam con rods compatible for Lexus IS-F (USE20) / LC 500 / RC-F (USC10) / GS-F (URL10)

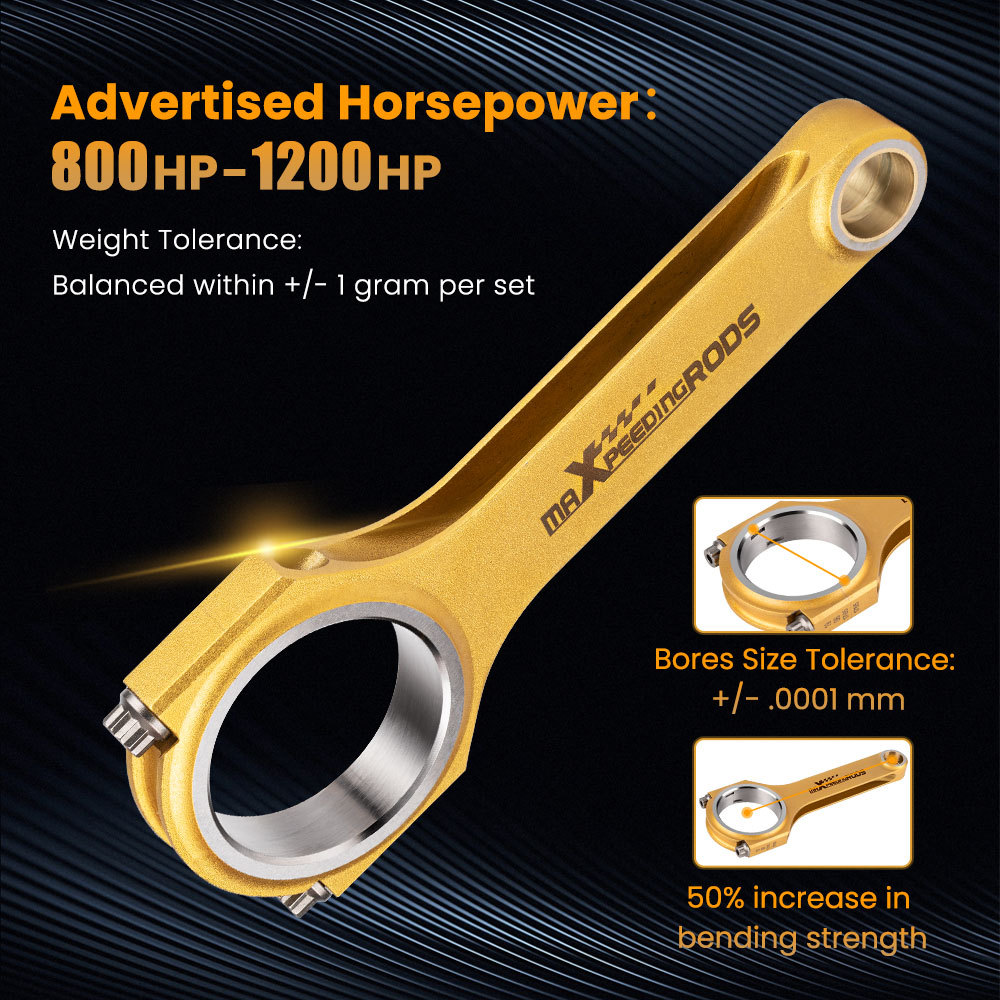

  • * Advertised Horsepower Rating: 800+HP
  • * Material: Titanizing Forged 4340 aircraft chrome moly quality steel
  • * Dimensions: Center to center length: 144.3mm; Big end diameter: 56mm; Small end diameter: 22mm ( tapered small end); Big end width:xx mm; Small end width: xx mm

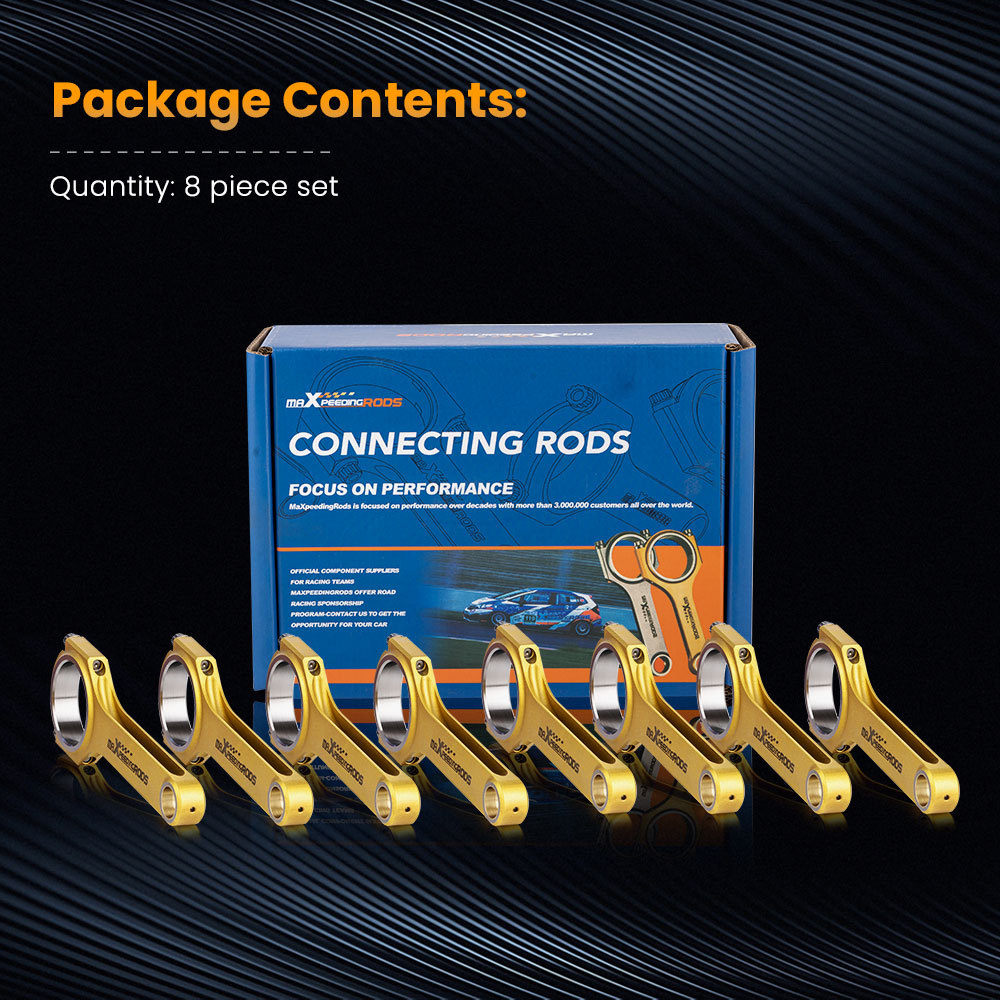

  • * Package Contents: 8 Pieces of H-Beam Connecting Rods; 16 Pieces of ARP 2000 3/8" Bolts (Note: Extra cost for upgrading to ARP L19 bolts)
  • * Performance Con Rods
  • * Advertised RPM Rating: 7000-9000 rpm
  • * Fastener Tensile Strength (psi):200.000 - 230.000 psi
  • * Balanced to within +/- 1 gram per end
  • * The big end bores are honed to a +/-.01mm tolerance
  • * Heat-treating & Shot-peened for remained consistent and strong
Stock In Stock
Item Number 3002035061

MORE OPTIONS

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G
CR-TOY-2UR-GSE-T
CR-TOY-2UR-GSE-T
High Quality Components
High Quality Components
With Standard ARP 2000 Bolts(Upgradable ARP L19)
Precision Machining Manufacturing
Precision Machining Manufacturing
Shot Peening for improved fatigue life. 100% CNC machined for superior tolerances, Precision rod cap alignment dowels
Professional H-Beam Design
Professional H-Beam Design
Improve stiffness, reduce stress risers and reduce weight

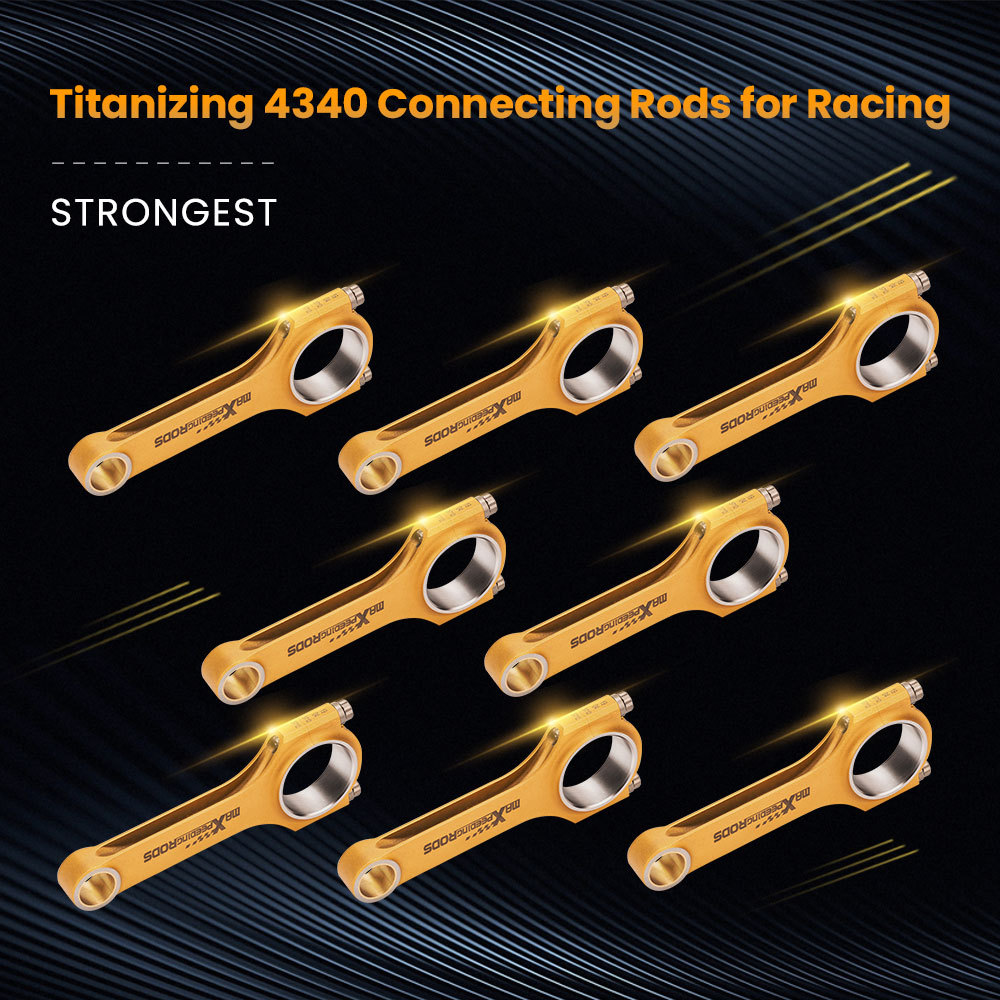

High Performance Material
High Performance Material
Titanizing Forged 4340 aircraft chrome moly quality steel for racing

Application

Compatible for Lexus IS IS-F XE20 5.0 L 2UR-GSE V8 2005–2015
Compatible for Lexus RC RC-F 5.0 L 2UR-GSE V8 2014–Present
Compatible for LexusGS-F L10 5.0 L 2UR-GSE V8 2011–Present
Compatible for Lexus LC 500 5.0 L 2UR-GSE V8 (petrol) 2017–Present

Specification

- Performance Con Rods
- Type: Forged 4340 aircraft chrome moly quality steel for racing

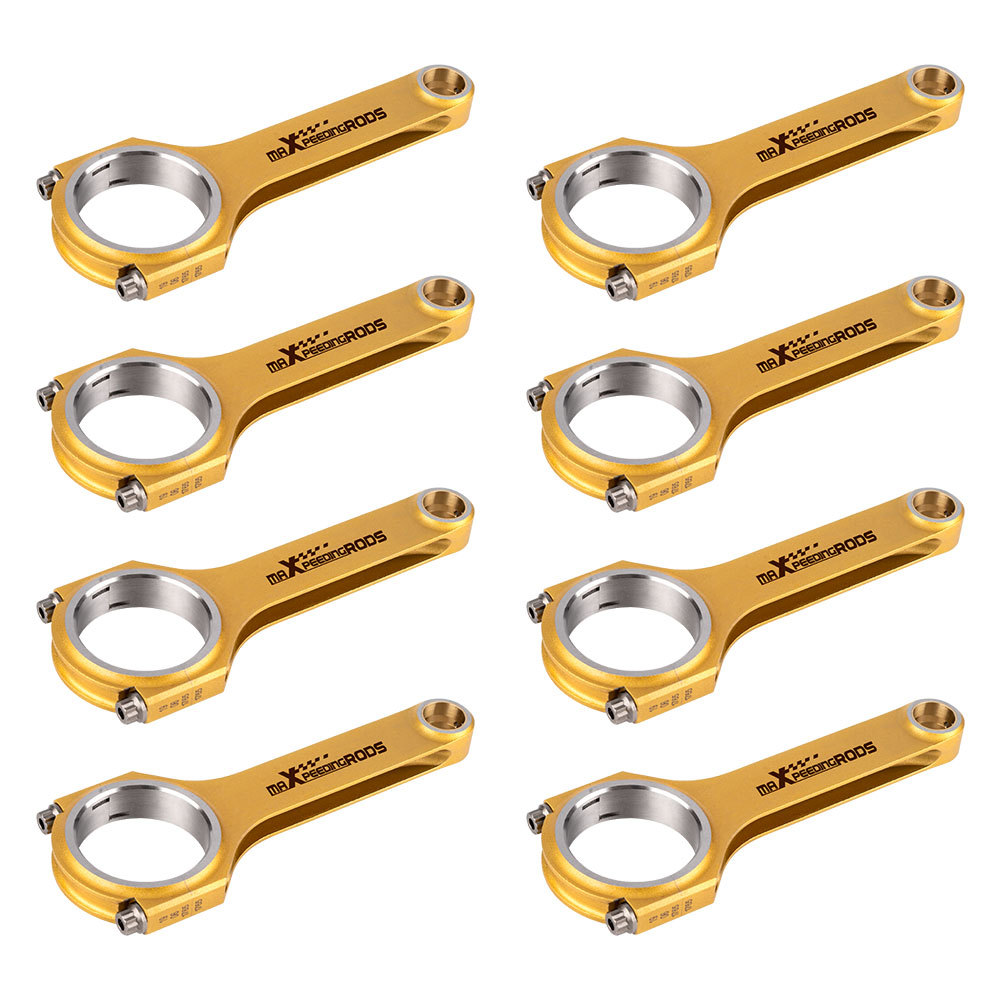

- H-beam Conrods Quantity: 8 Pieces a set
- Bolts: Including Genuine 3/8" ARP 2000 bolts
- Note: Extra cost for upgrading to ARP L19 bolts
- Bolts Size: 3/8"
- Tolerance: Balanced to +/- 1 gram in set
- Piston Bolt Hole: +-4/1000mm
- Power: 600hp ~ 800PS per set
- Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
- Top acceleration: 9000rpm
- Warranty: one year warranty for any manufacture defect

Dimensions

Center to center length: 144.3mm
Big end diameter: 56mm
Small end diameter: 22mm
Big end width: xx
Small end width: xx

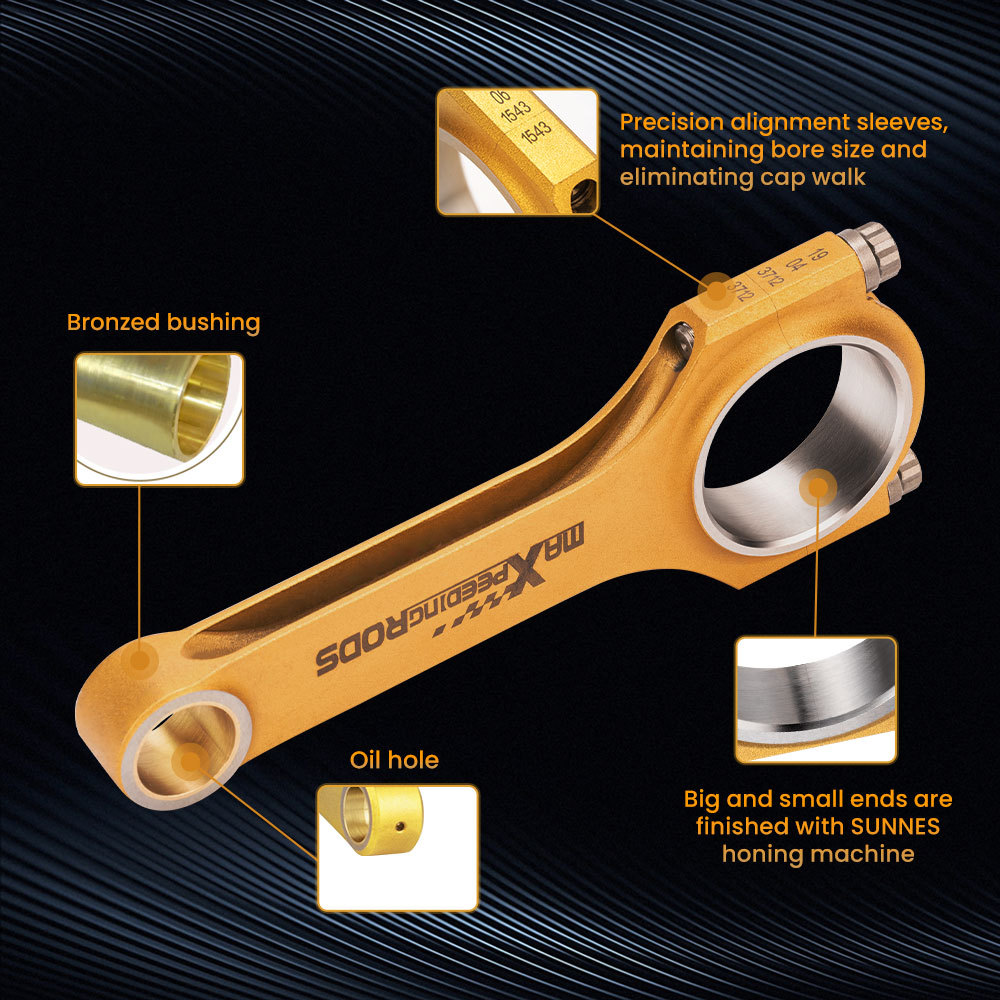

Features

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

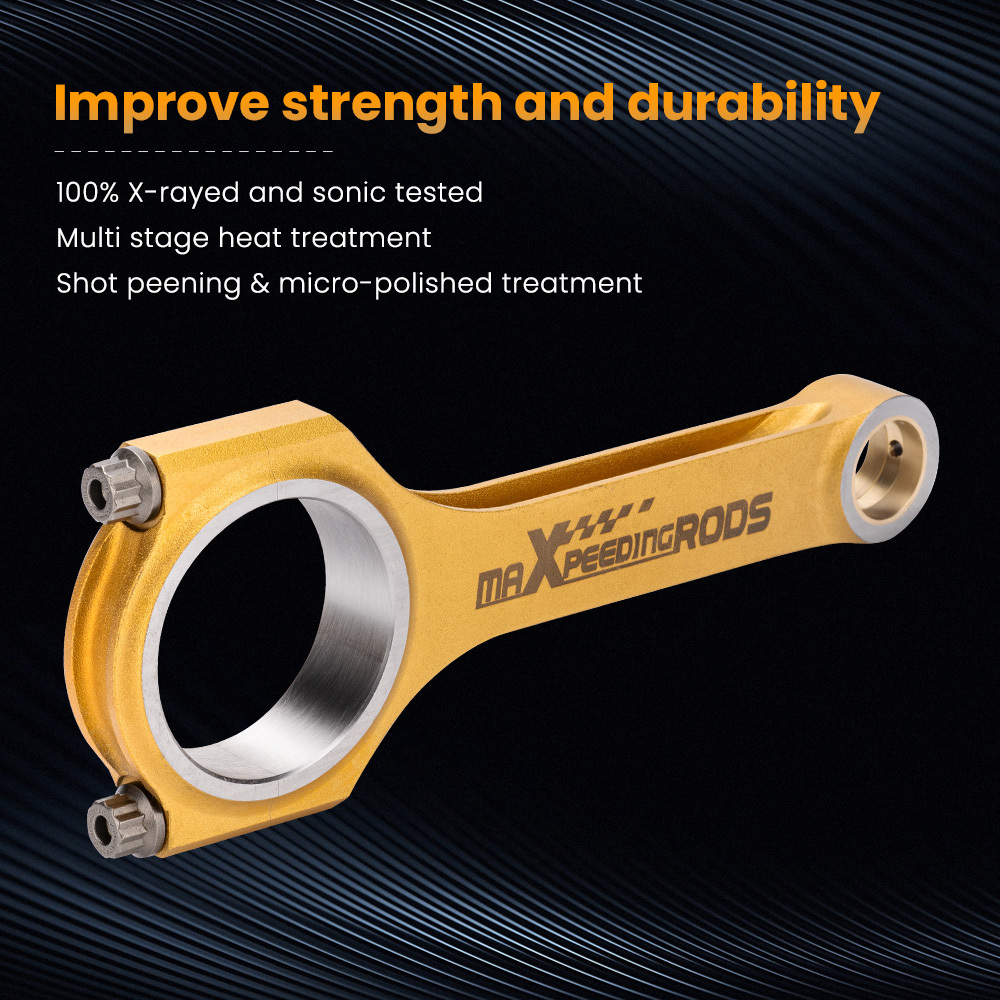

- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

- Professional installation is highly recommended (No Instruction Included)
- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
