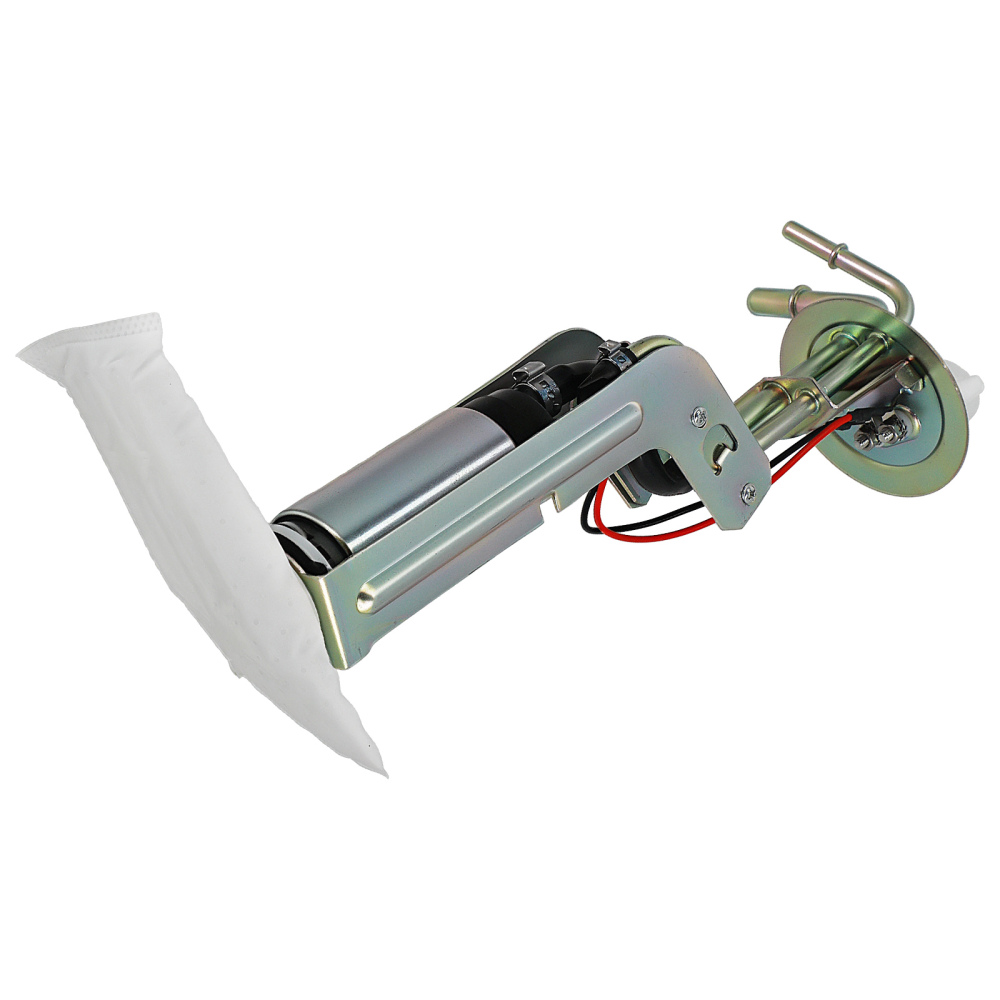

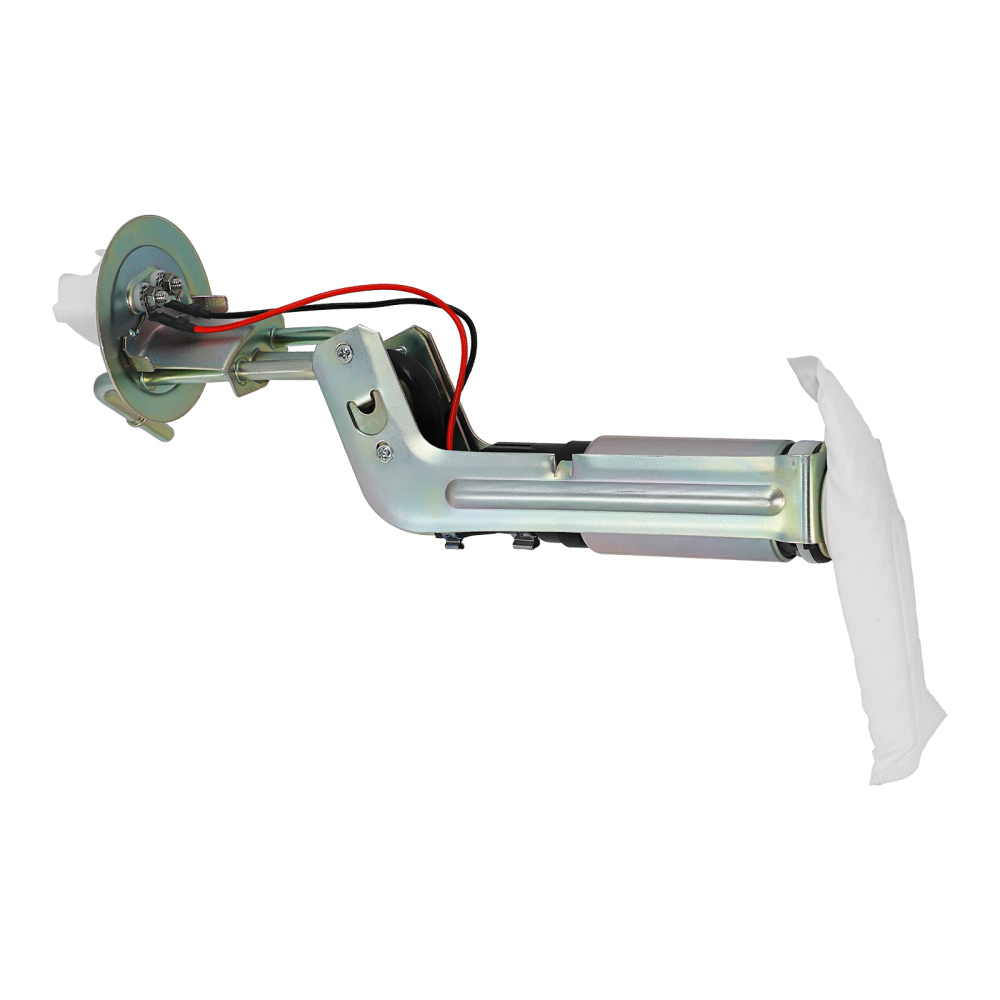

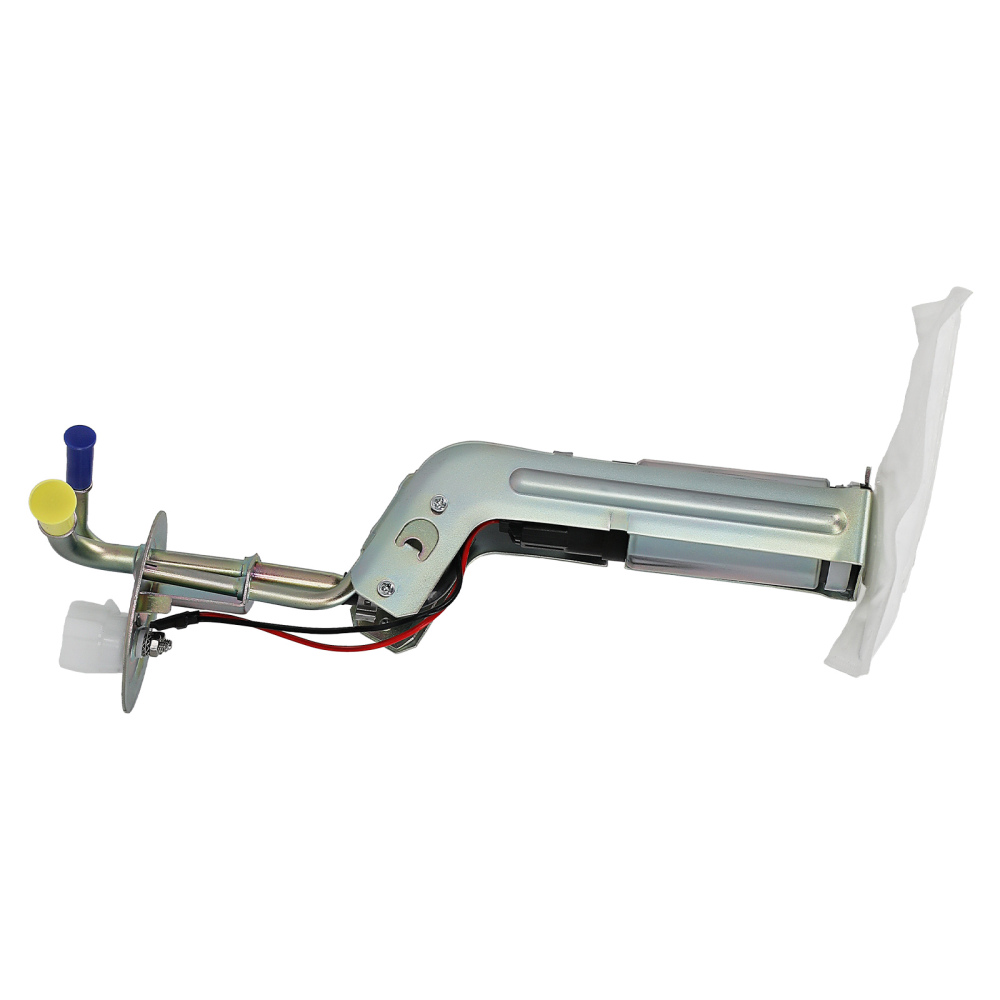

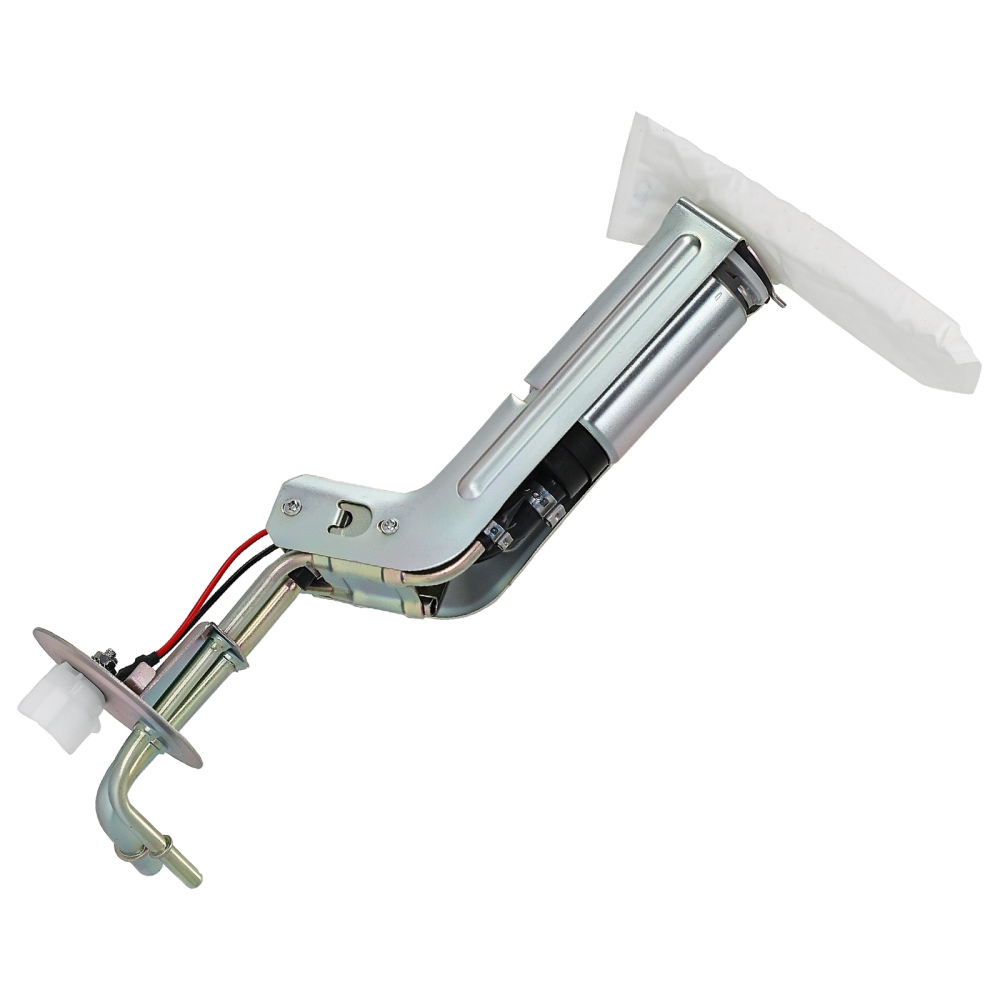

Electric Fuel Pump Module Assembly compatible for Ford Mustang Base GT 1994-1997 3.8L 4.6L

Application

Compatible for Ford Mustang Base Convertible 2-Door 3.8L 232Cu. In. V6 GAS OHV Naturally Aspirated 1994-1997
compatible for Ford Mustang Base Coupe 2-Door 3.8L 232Cu. In. V6 GAS OHV Naturally Aspirated 1994-1997
compatible for Ford Mustang GT Convertible 2-Door 4.6L 281Cu. In. V8 GAS SOHC Naturally Aspirated 1996-1997
compatible for Ford Mustang GT Coupe 2-Door 4.6L 281Cu. In. V8 GAS SOHC Naturally Aspirated 1996-1997
compatible for Ford Mustang GT Convertible 2-Door 5.0L 302Cu. In. V8 GAS OHV Naturally Aspirated 1994-1995
compatible for Ford Mustang GT Coupe 2-Door 5.0L 302Cu. In. V8 GAS OHV Naturally Aspirated 1994-1995
compatible for Ford Mustang SVT Cobra Convertible 2-Door 5.0L 302Cu. In. V8 GAS OHV Naturally Aspirated 1995
compatible for Ford Mustang SVT Cobra Coupe 2-Door 5.0L 302Cu. In. V8 GAS OHV Naturally Aspirated 1995
compatible for Ford Mustang SVT Cobra R Coupe 2-Door 5.8L 5753CC 351Cu. In. V8 GAS OHV Naturally Aspirated 1995

OE/Part number

E2191H, P7482H, HP10145, SP237H, 67099, EP2015H

Specification

Condition: Brand New
Type: Fuel Pump Assembly
Drive Type: Electric
Fuel Type: Gasoline
Voltage: 12V
Flow Rate: ≥39.6GPH
Pressure: 43.51 PSI
Inlet Type: Quick Connect
Inlet Quantity: 1
Inlet Diameter：0.248 inch
Outlet Type: Quick Connect
Outlet Quantity: 1
Outlet Diameter：0.374 inch
Material: Metal
Housing Material: Plastic
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Internal Or External Strainer: External

Package included

1* Fuel Pump
1* Sending Unit
1* Fuel Strainer

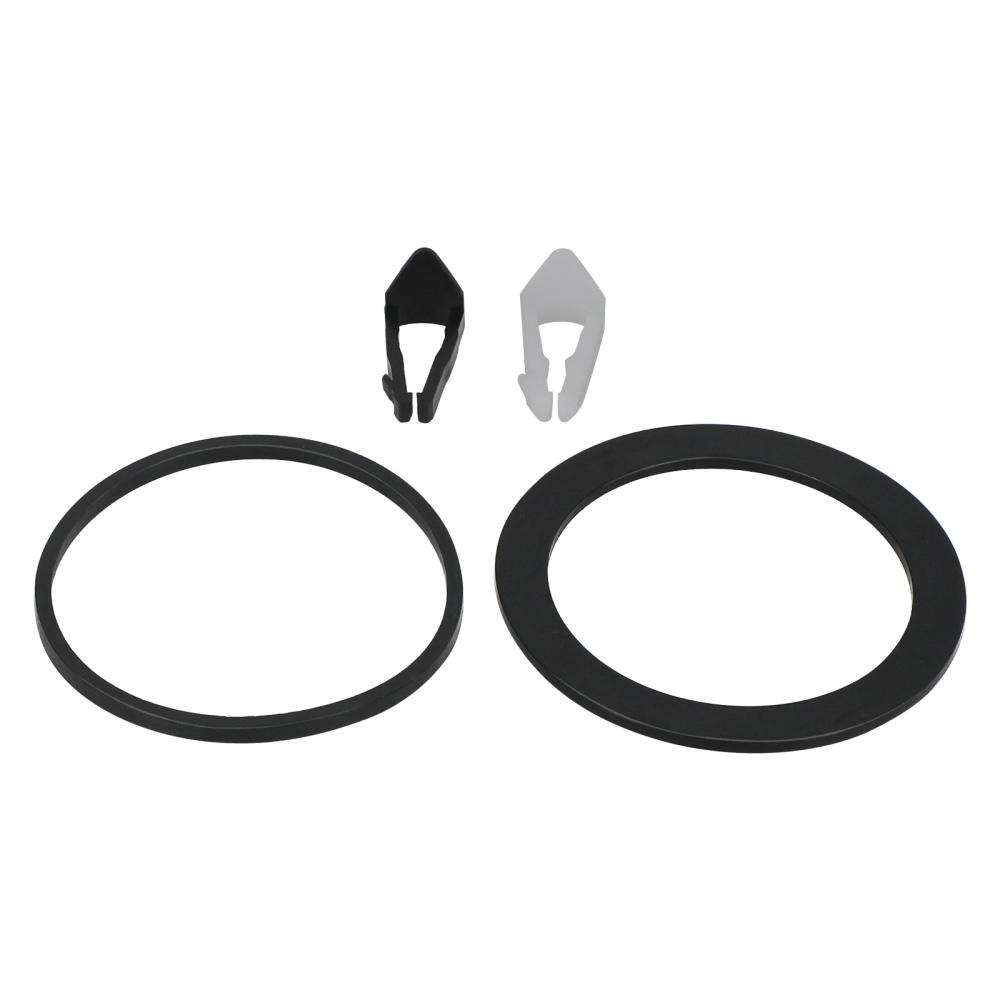

1* Sealing Ring
Showing as the picture

Feature

Fuel Pump Assembly Product Characteristics:
1.High-precision automotive grade fuel tank pressure sensor
(CMOS technology and MEMS hybrid technology, modular design, waterproof and dustproof, -40~125°C zero drift, 2% FSO precision measurement, 1ms extremely fast response, to ensure the national six emission standards.)
2.Dual-channel long-life level sensor
(Dual-channel dual-contact design, more stable and longer life.
HERAEUS conduction tape, Dupont resistance, laser cutting process, liquid level
display is more accurate.)
3.Low level design
(The minimum tank liquid level of 10mm still continuously maintains the fuel supply pressure to ensure the safety of driving at low liquid levels.)
4.High dust holding layer filter
(Nylon skeleton one-time injection molding process, low temperature resistance, low resistance, high toughness, long life.
Imported SEFAR mesh fabric, dust holding capacity of 575g/㎡, 60μm particle filtration efficiency of more than 90%.)
5.Platform R&D
(Patented products, standardized design, data and OE are fully interoperable, good stability, high recognizability, low noise, and work efficiency increased by 20%.)

Testing:
100% Fuel Level Sensor Testing
100% Fuel Pump Assembly Drop Test
100% Fuel Pump Assembly Noise Test
100% Durability Test of Fuel Ppump Assembly
100% Fuel Pump Assembly Air Tightness Test

Certifications:
CE
IATF16949
IOS14001

Note

1.Professional Installation Is Highly Recommended.
2.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
