Aluminum Engine Radiator compatible for Toyota Corolla 1.8L 2009-2017 13106 CU13106

Application

Compatible for Toyota Corolla 1.8L L4 2009-2017
compatible for Toyota Matrix 1.8L L4 2009-2014
compatible for Pontiac Vibe 1.8L L4 2009-2010

OE/Part number

Radiator:13106, 164100H261, 164100T030, CSF3445, CU13106, TO3010323

Condenser:7-3755, 3755, SC3030105, TO3030312, 3686, 8845012280, 8845012340

Specification

Condition: New
Type: Radiator & Compatible for AC Condenser
Fitment: Direct Replacement
Core Material: Aluminum
Radiator Tank Material: Plastic
Radiator Core ：23-5/8x14-15/16x5/8 In.
Radiator Inlet Diameter：1-5/16 In
Radiator Inlet Location： Top left
Radiator Outlet Diameter：1-5/16 In
Radiator Outlet Location：Bottom right
Radiator Core Row Quantity：1
Radiator Flow Type: Cross Flow
Radiator Engine Oil Cooler Included：No
Radiator Transmission Oil Cooler Included：Yes
Radiator Transmission Type：AT
Condenser Core : 23-3/4x 14-1/8 x5/8 In.

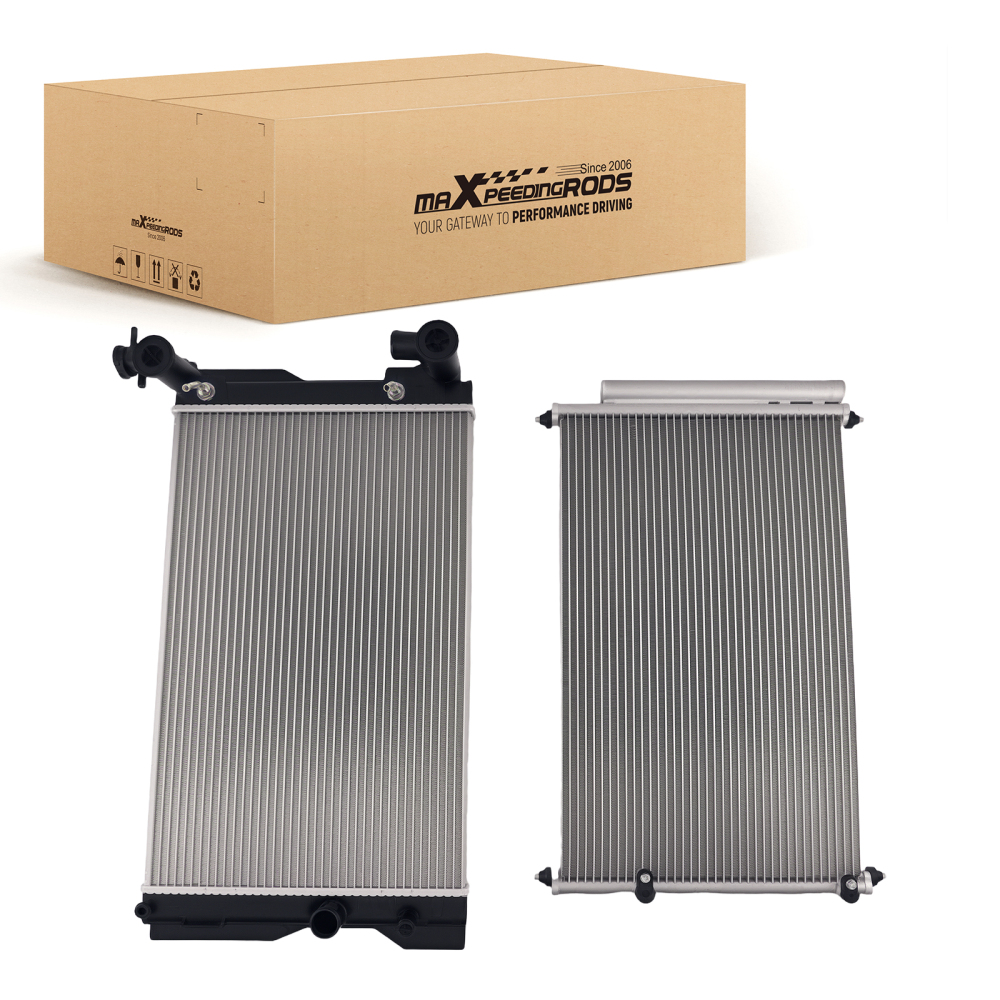

Package included

1* Radiator
1* Compatible for AC Condenser
Showing as the picture

Feature

1.Upgraded Protection Packaging
Premium reinforced shell and advanced packaging ensure maximum durability and reduce transit damage.

2.Advanced Cooling Technology
Aluminum construction offers expansive heat-dissipation surfaces, while folded-edge diffuser tape enhances airflow for superior thermal performance.

3.Precision Leak-Proof Design
Engineered with high-precision manufacturing to eliminate leakage risk, ensuring reliable long-term operation.

4.Easy Installation
Our radiator is designed to be installed quickly and effortlessly, saving your time and effort.
