Air Controller for Air Spring Bag Kit Onboard Compressor Dash Gauge Panel Single Path

Introduction

Control your air springs from inside the cab with just one button — no need to get out. This universal kit works with most light to medium-duty trucks and vans.

Application

UNIVERSAL
FIT FOR MOST 1/2, 3/4
AND 1 TON PICKUPS AND VANS

Specification

Condition: Brand New
Drilling Required: Yes
Installation instruction included

Package included

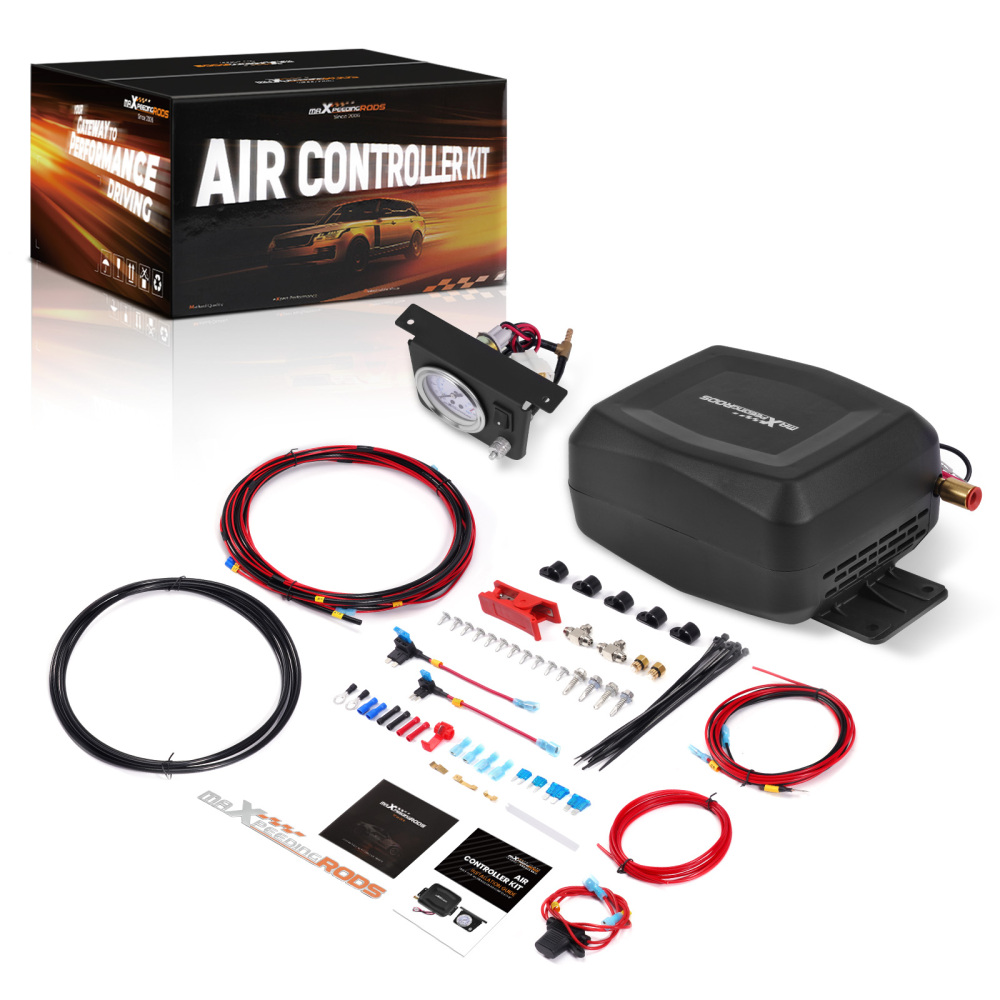

Package includes（as the picture shows):

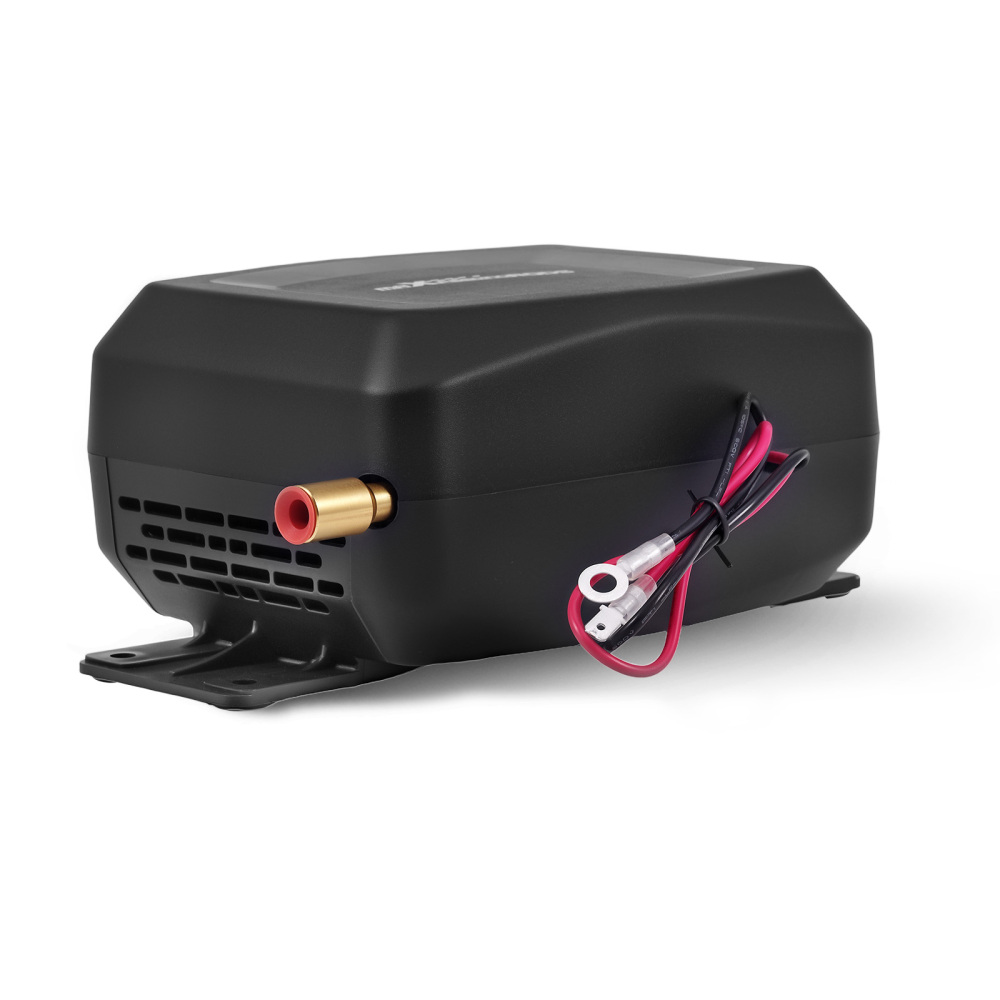

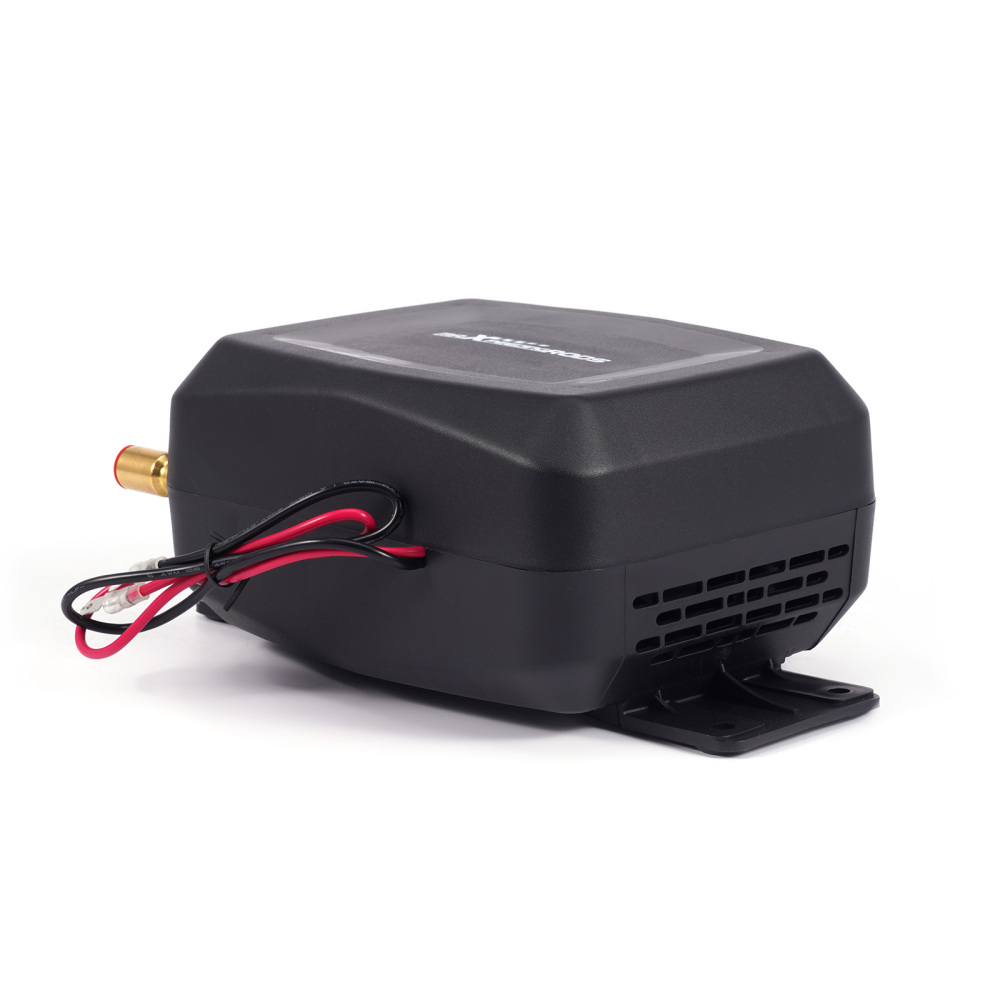

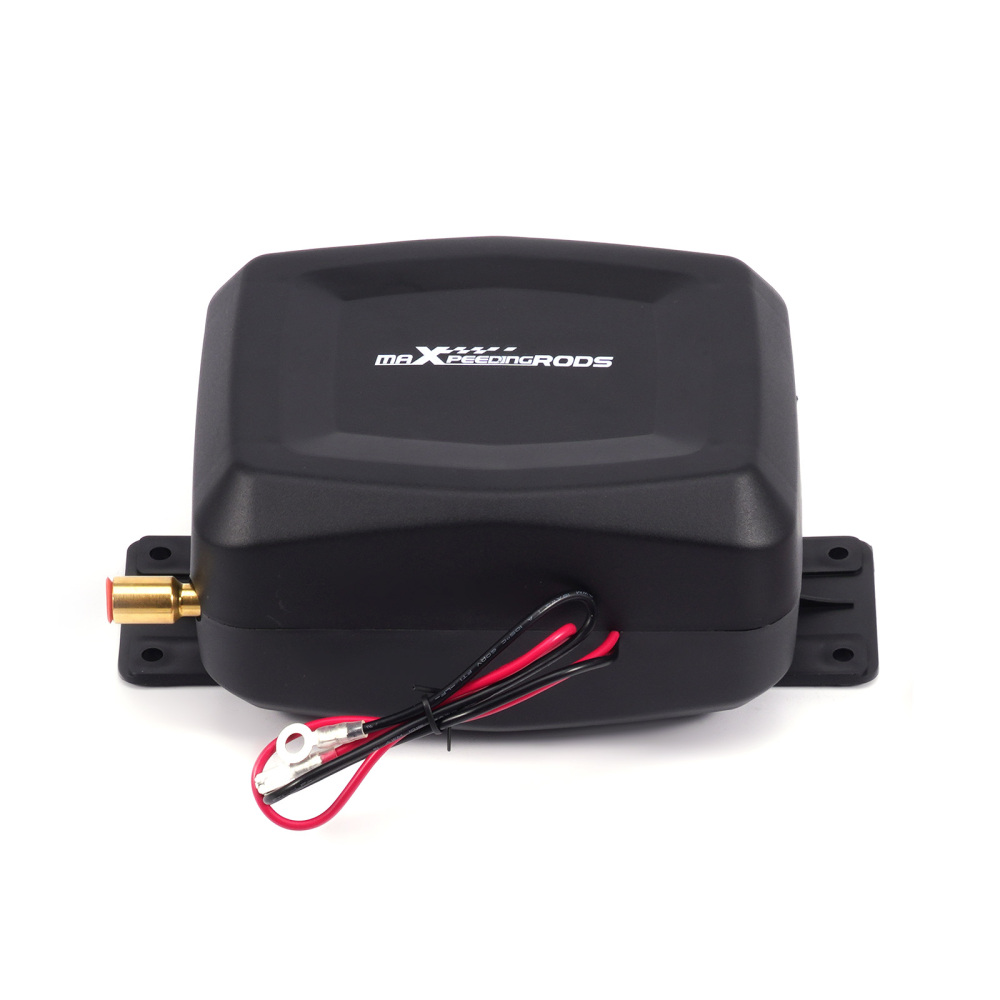

1 x 12V MXR Air Compressor（Black）
1 x Gauge panel （Push buttons for up and down）

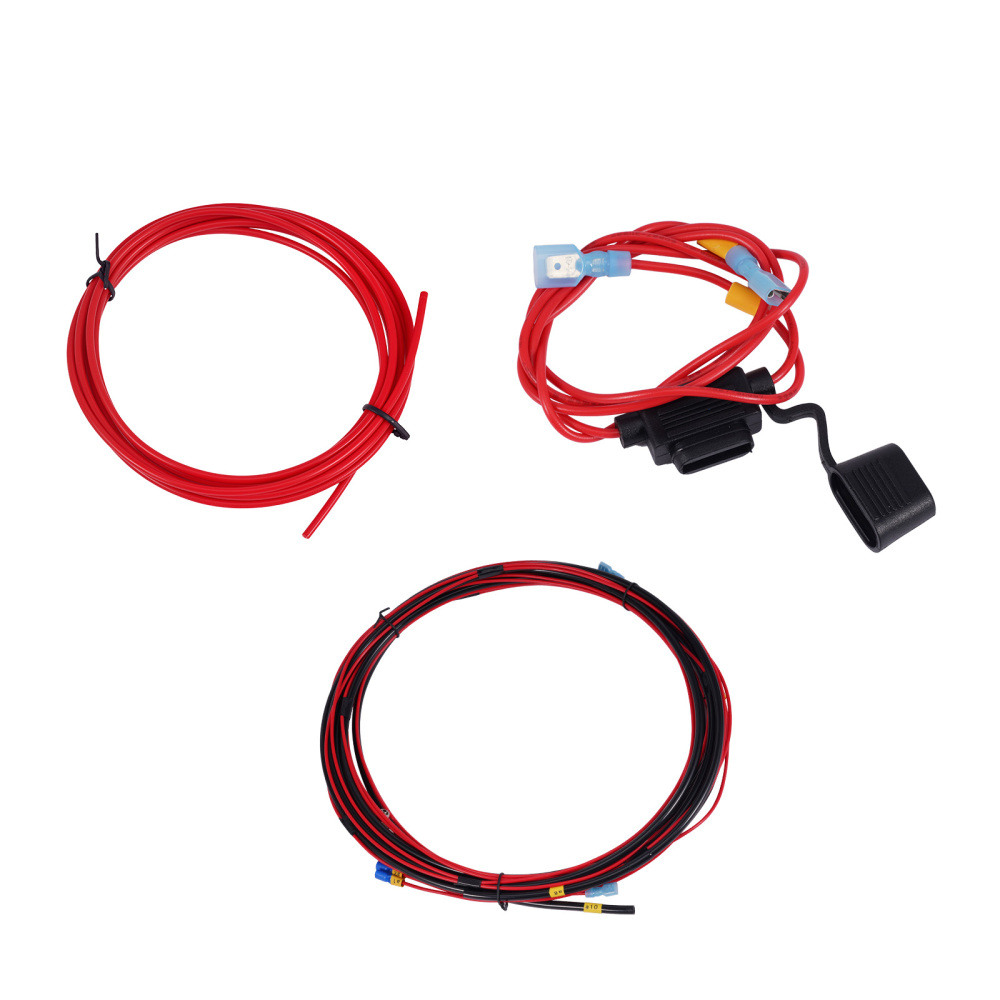

1 x Air Line φ1/4"（5 M)

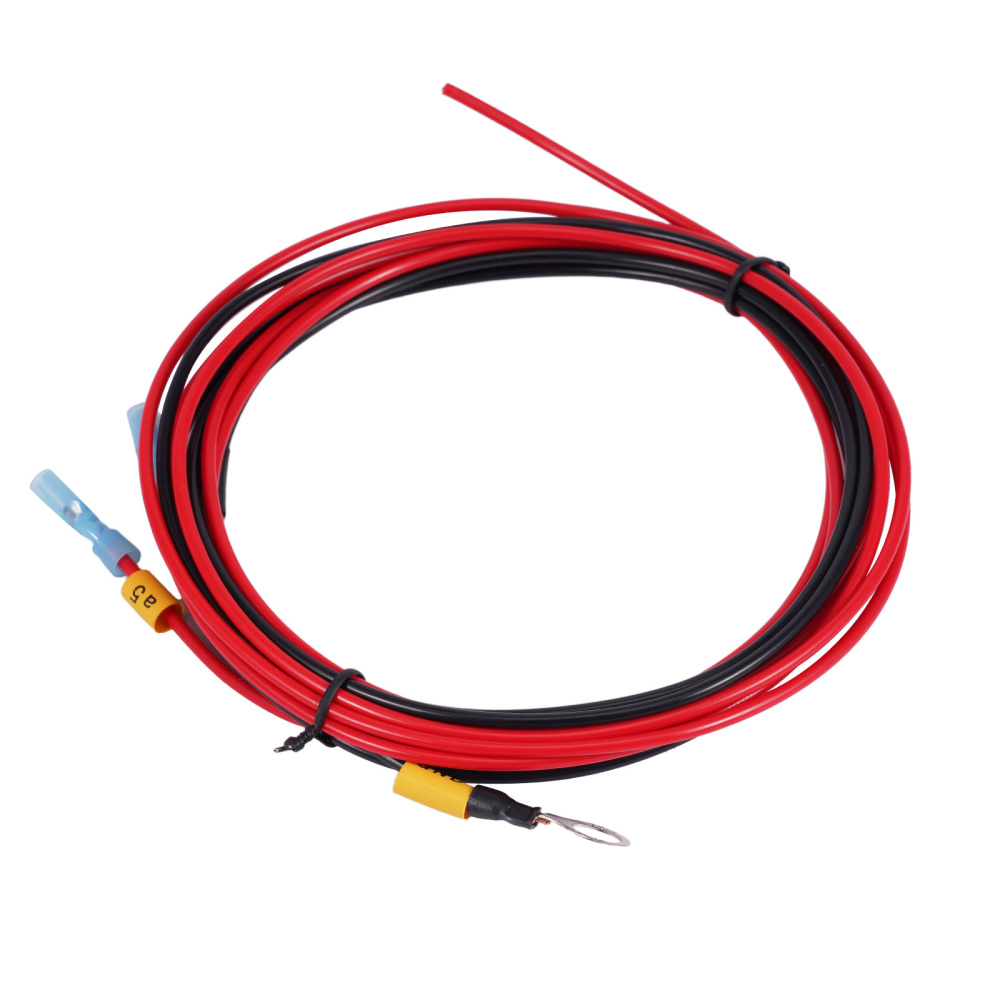

1 x Air compressor wire harness
1 x Backlight wire harness
2 x Quick-connect tee
And some other accessories

Feature

Control & Monitoring
Monitor and adjust air pressure from the driver's compatible for seat
Single-path controls for one pair of air springs

Performance & Compatibility
Ideal for light to medium-duty use, occasional hauling or towing
Compatible with any brand of air spring
Maximum pressure: 100 psi | Recommended: 5–70 psi

Durability & Protection
Flame-retardant wiring harness
Waterproof compressor casing
Strict quality inspection for long-term reliability

Installation & Components
Pre-assembled wiring for faster, easier setup

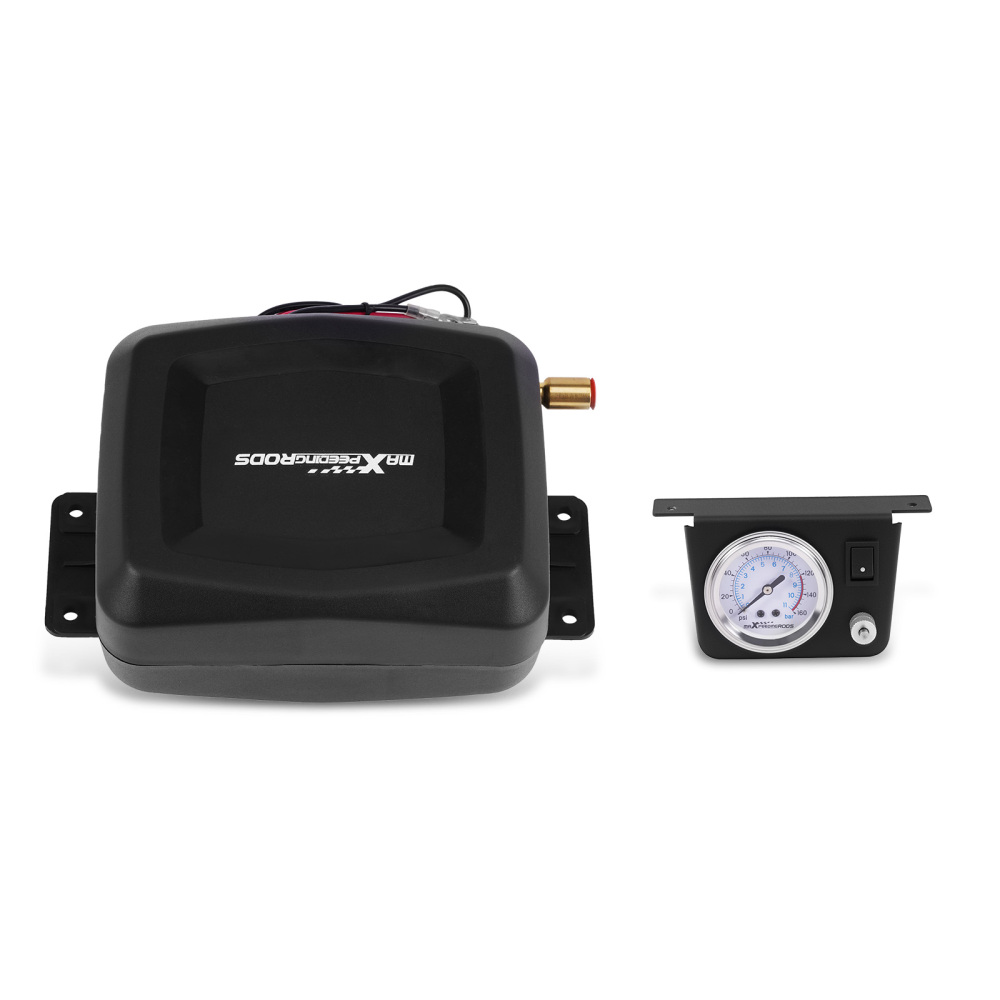

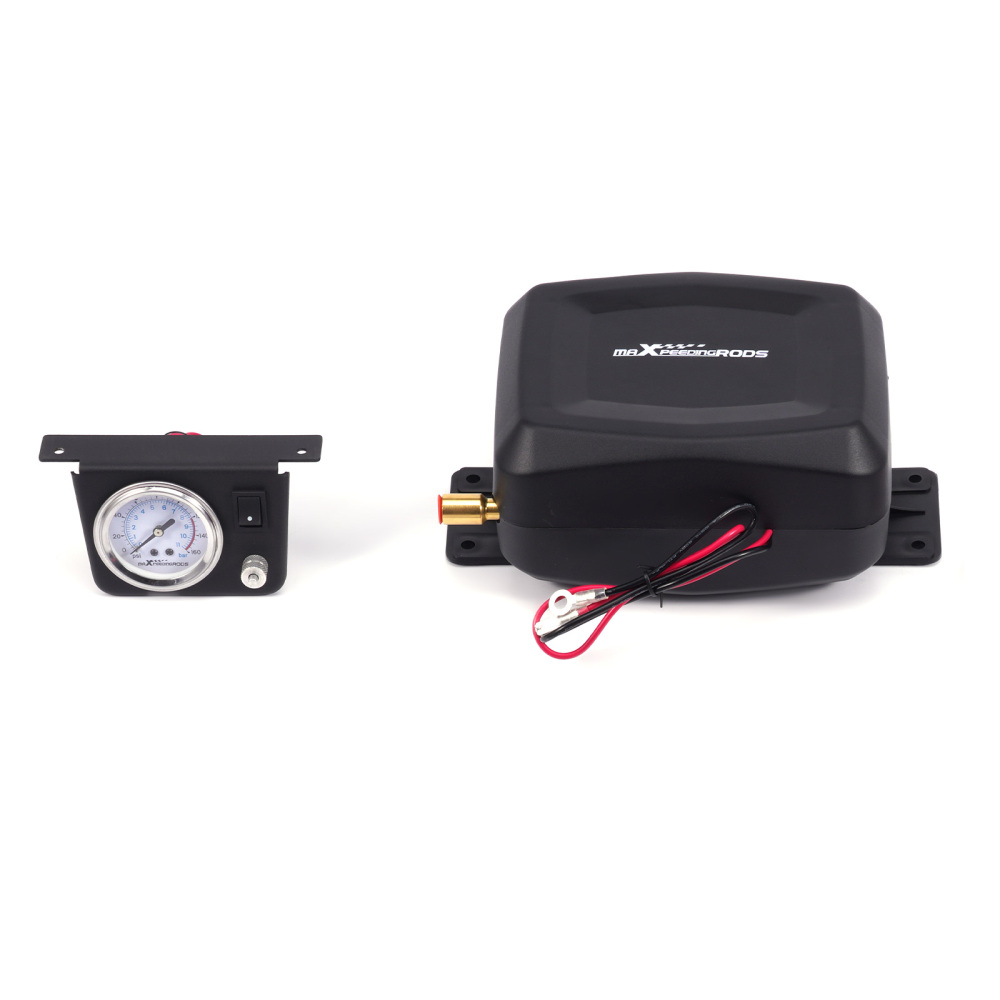

Includes onboard compressor, single‑gauge dash panel, air lines, and hardware

AIR TIGHTNESS TEST

AIR TIGHTNESS TEST
· After inflating the air spring bag, inspect all air line fittings for potential leaks.
· Spray soapy water on the fittings. If there is a leak, expanding bubbles will appear around the leaking area.
· If the leak is at the tubing connection, ensure the cut is square and the tube is fully inserted into the fitting.
· If the leak is at the threaded air fitting, tighten it another quarter turn and test again.
. Before driving, ensure the entire system is leak-free, airtight, and that all air lines and wiring harnesses are securely fastened.
