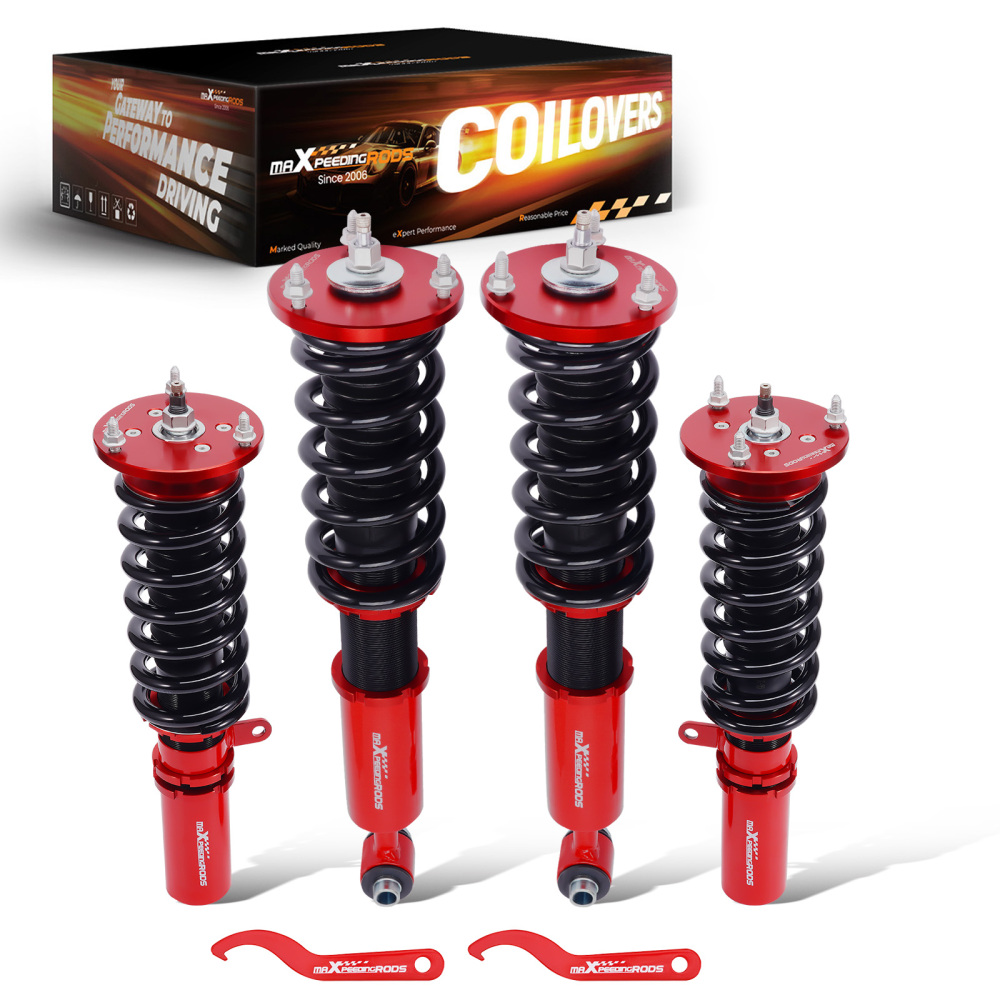

2004 - 2010 compatible for BMW 5 Series E60 Sedan Adjustable Damper 525i 530i 535i 550i Coilover Kit lowering kit

Introduction

MXR-B3 is based on MXR-B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.

Application

Compatible for BMW 5 series E60 2004-2010 Sedan RWD
Model: 525i,528i,530i,535i,545i,550i,520d,525d,530d,535d
Note:
1. Will not fit M models.
2. The front damper knuckle insert diameter is 62mm.
Please verify the model and dimensions before purchasing to ensure compatibility.

Specification

Damping adjustable: Available, 24 levels of rebound damping force
Camber adjustable: Not available

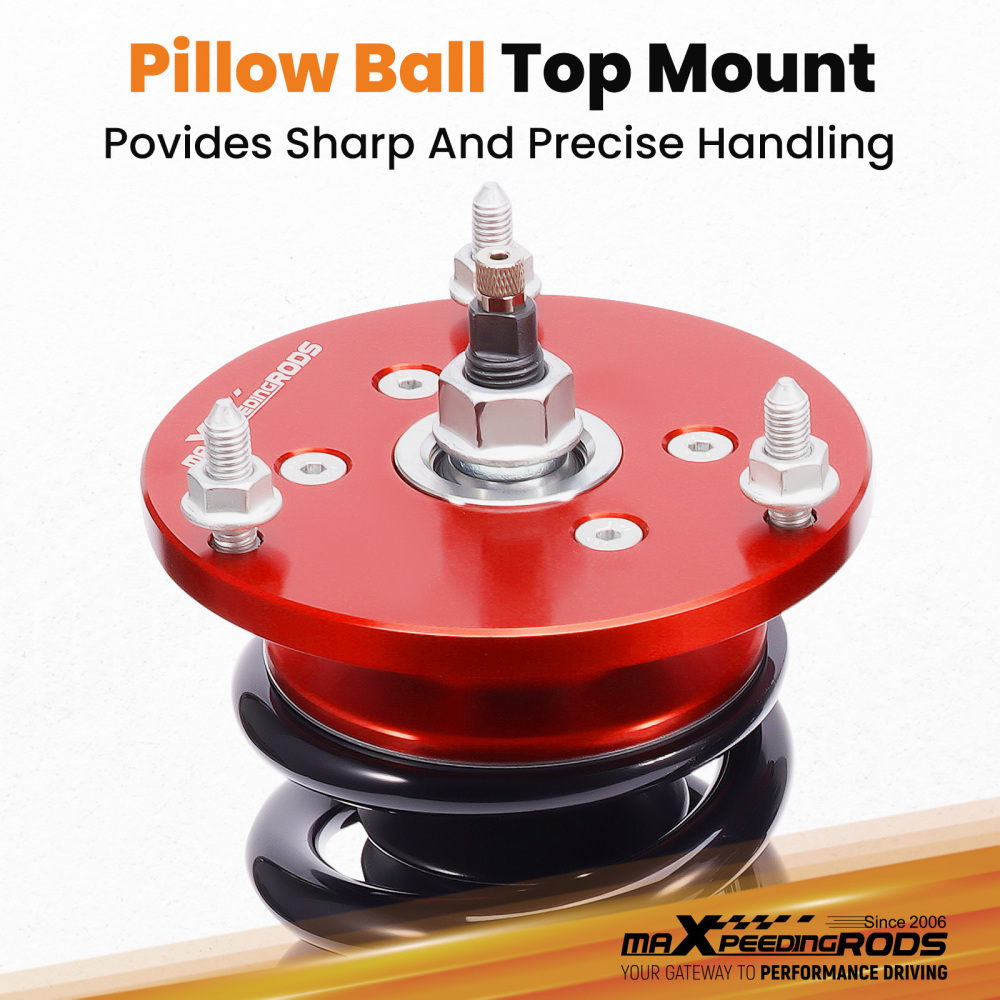

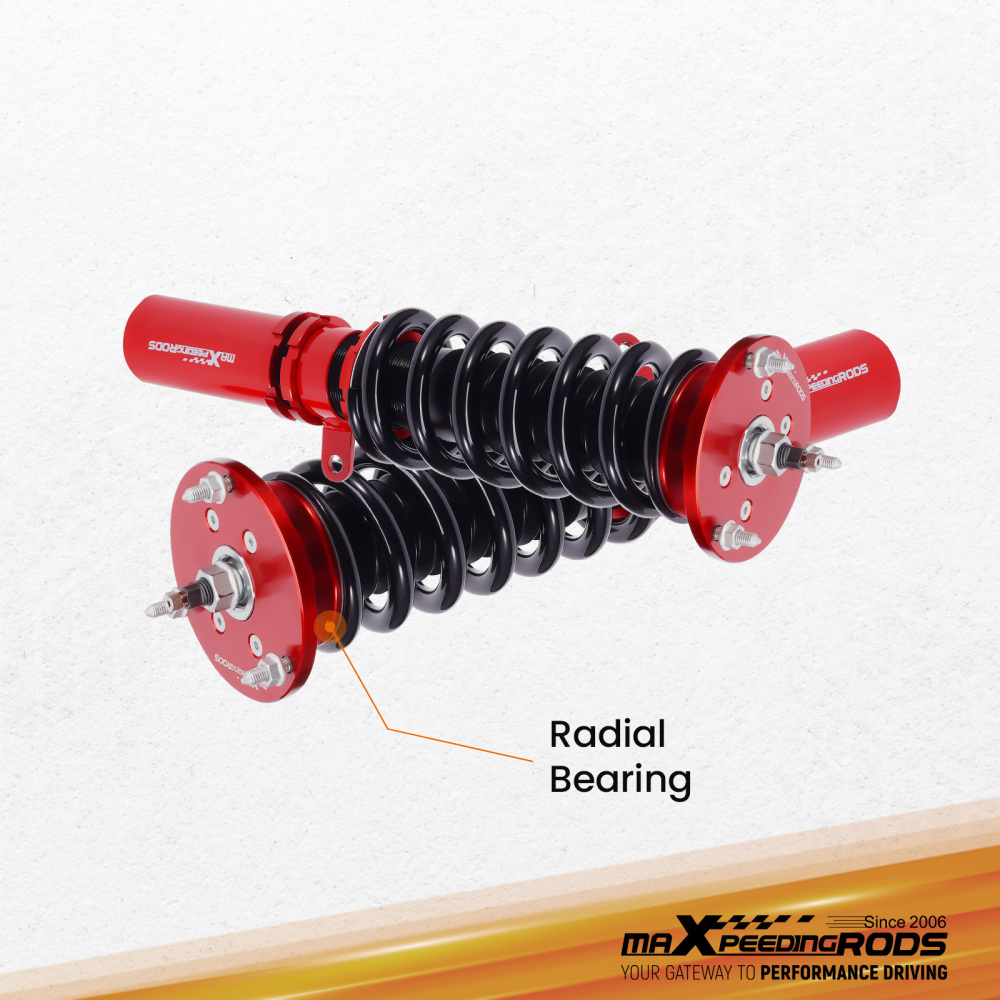

Front top mount: Pillow ball
Rear top mount: Standard rubber
Height adjustable: Yes, lowering 1-3 inches depending on the vehicle models

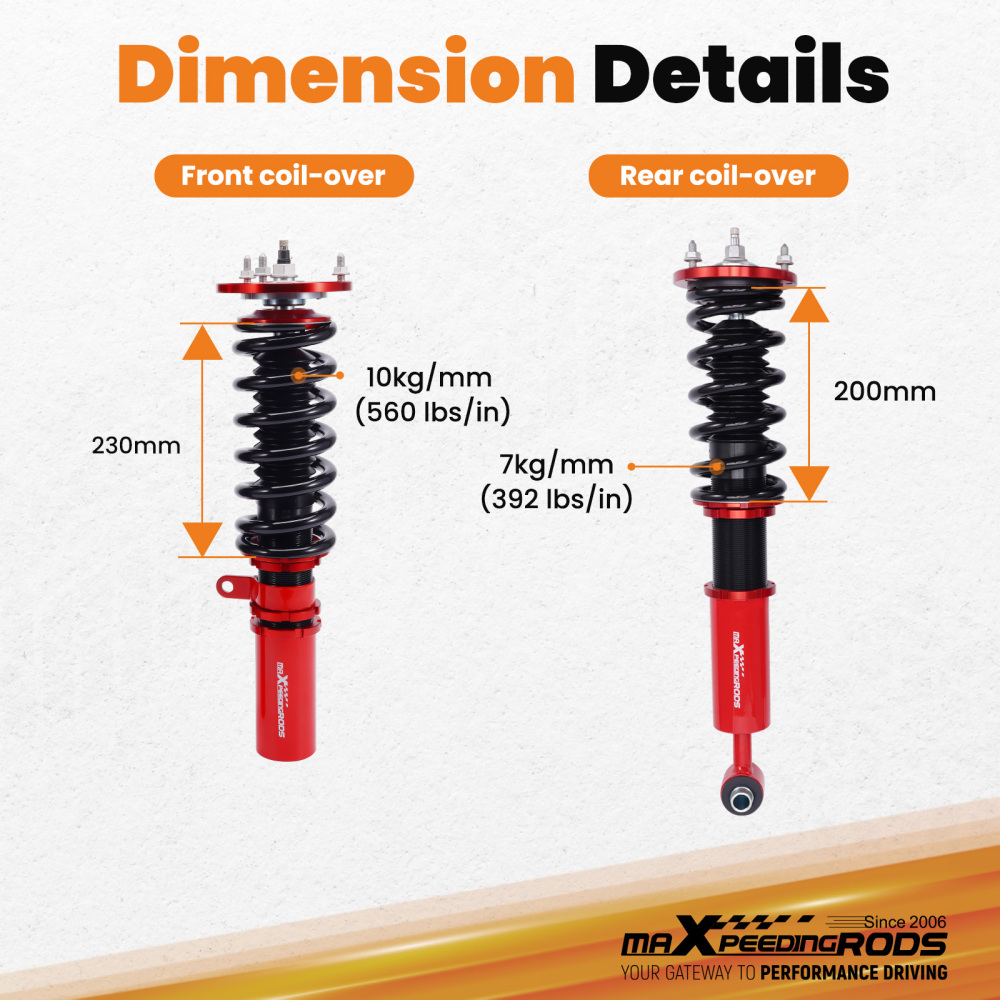

Spring Rate Front: 10 kg/mm(560 lbs/in)
Spring Rate Rear: 7 kg/mm(392 lbs/in)
Front spring inner diameter: 70.5 mm
Rear spring inner diameter: 70.5 mm
Spring length Front: 230 mm
Spring length Rear: 200 mm
Spring Preload advised: 7-10 mm
Color: Red body with black spring

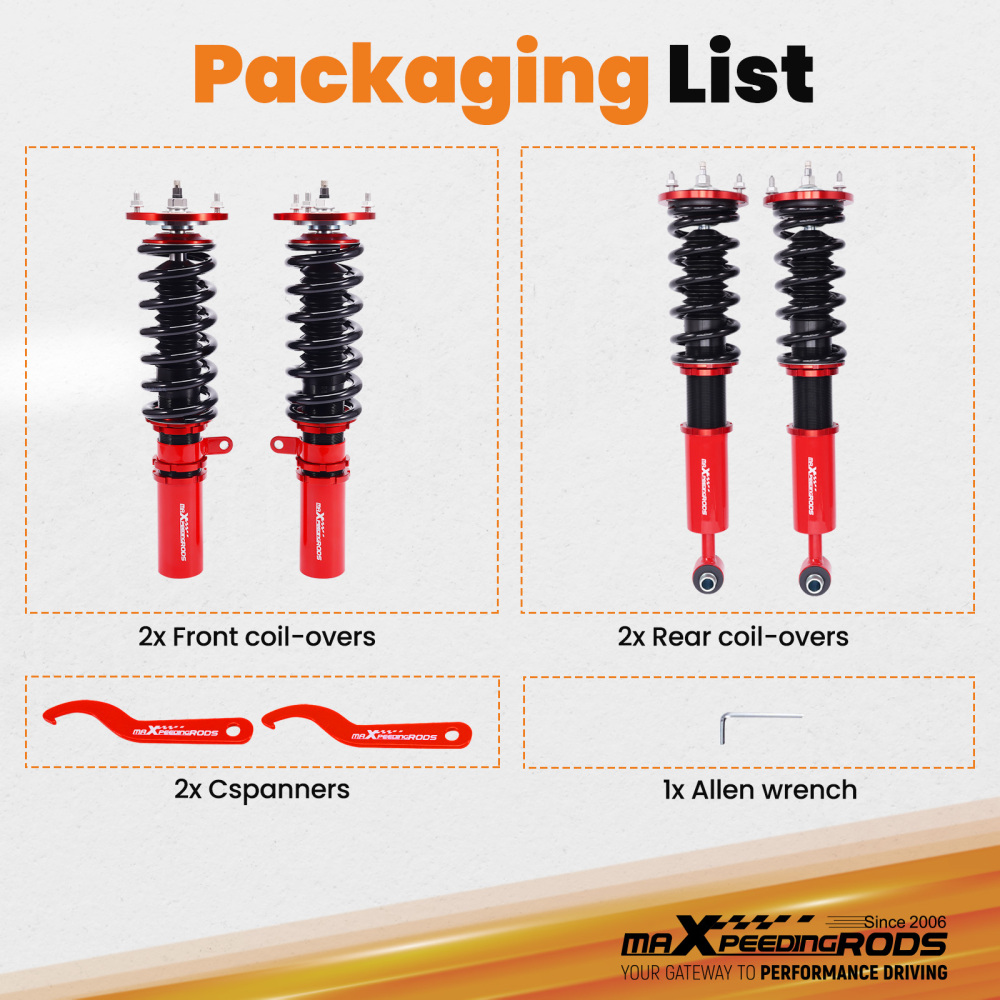

Package included

Package included：
1 x Set of Coilover Spring Kit (2 Front + 2 Rear)
1 x Pair of wrenches for height adjustment

Dimension

Package size: 71*51*21 cm
Weight: 27900 g

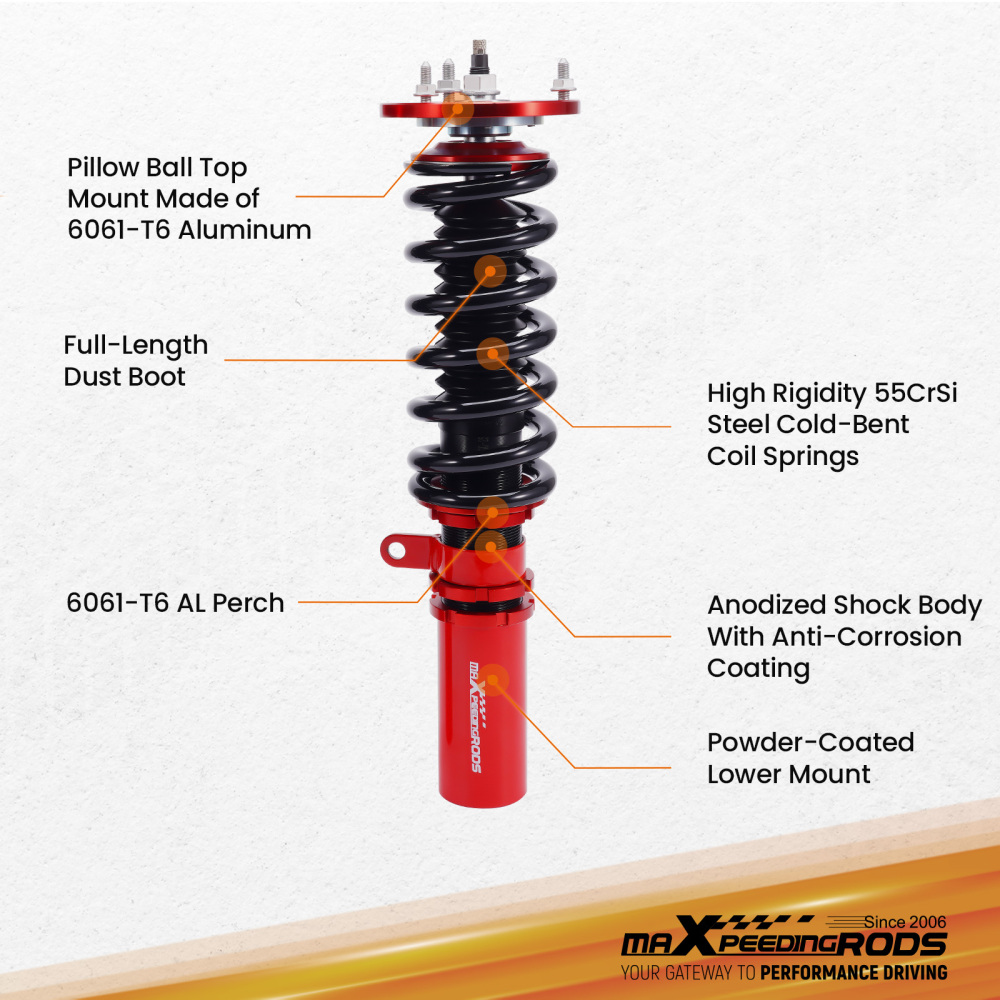

Feature

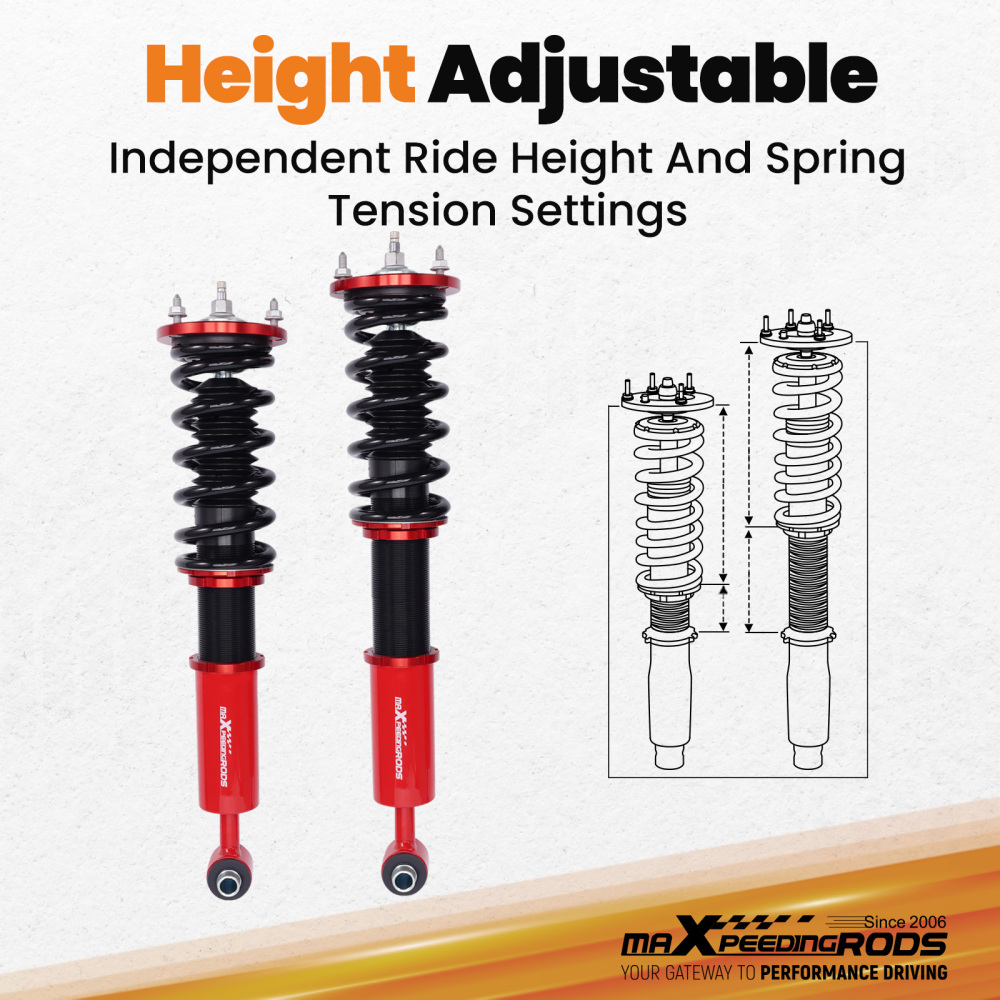

1. Lowered height adjustment from 1" - 3" (depends on vehicle models) which allows a lower center of gravity and also adds a more aggressive stance
2.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
3. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
4. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response. ( for some models)

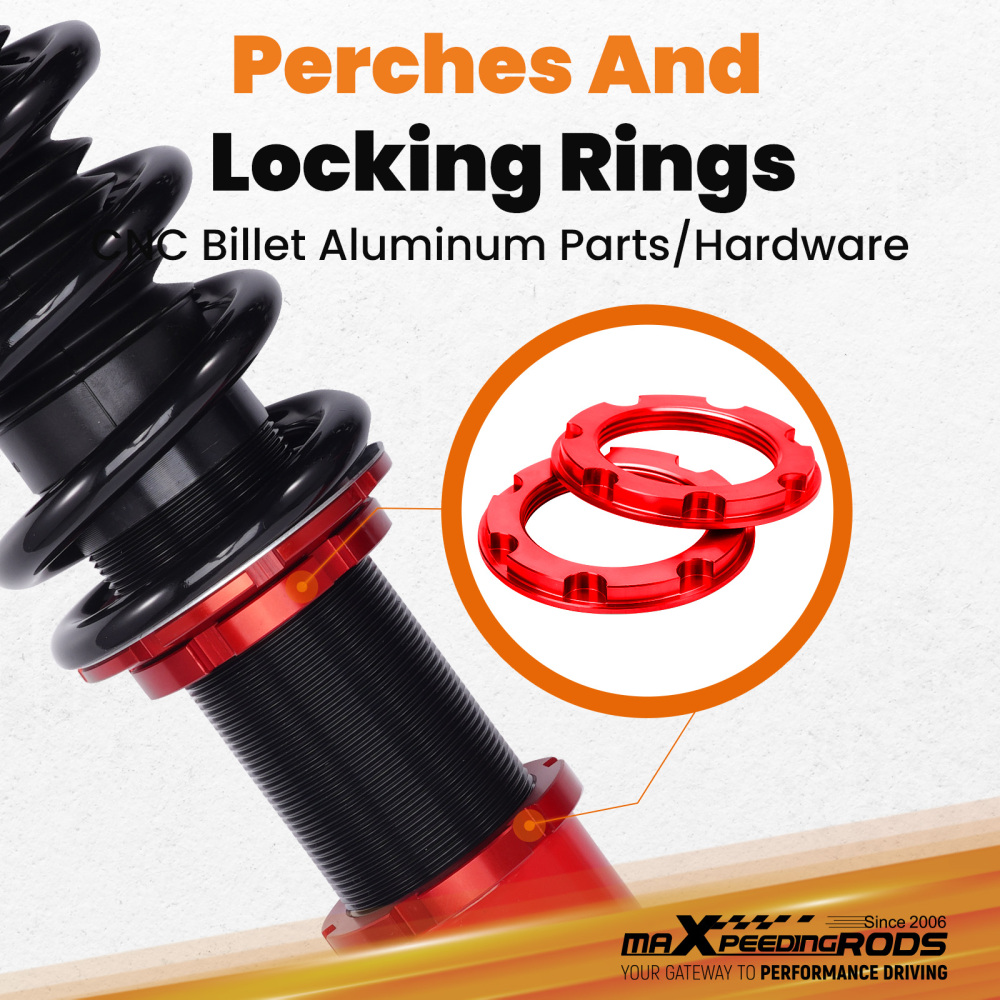

5. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

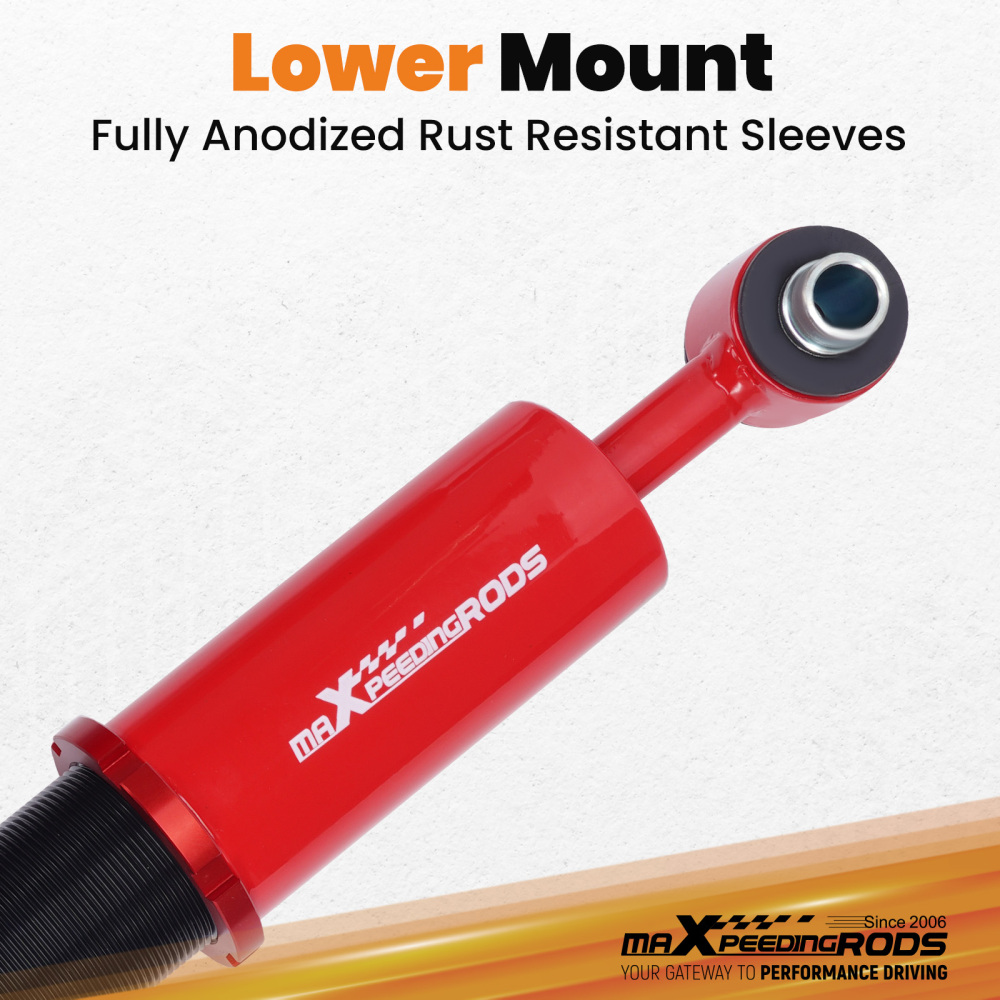

6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

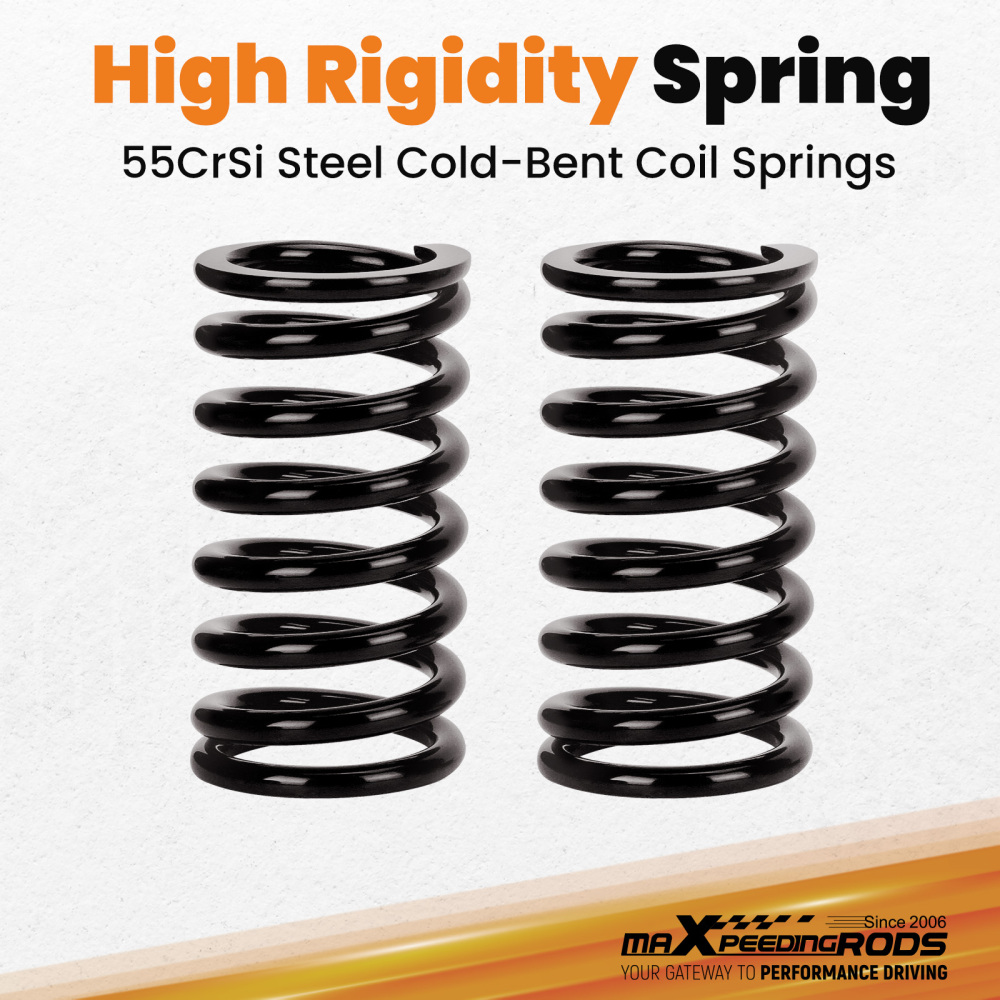

7. High tensile spring--- 600,000 times continuously test to assure its high tensile strength.

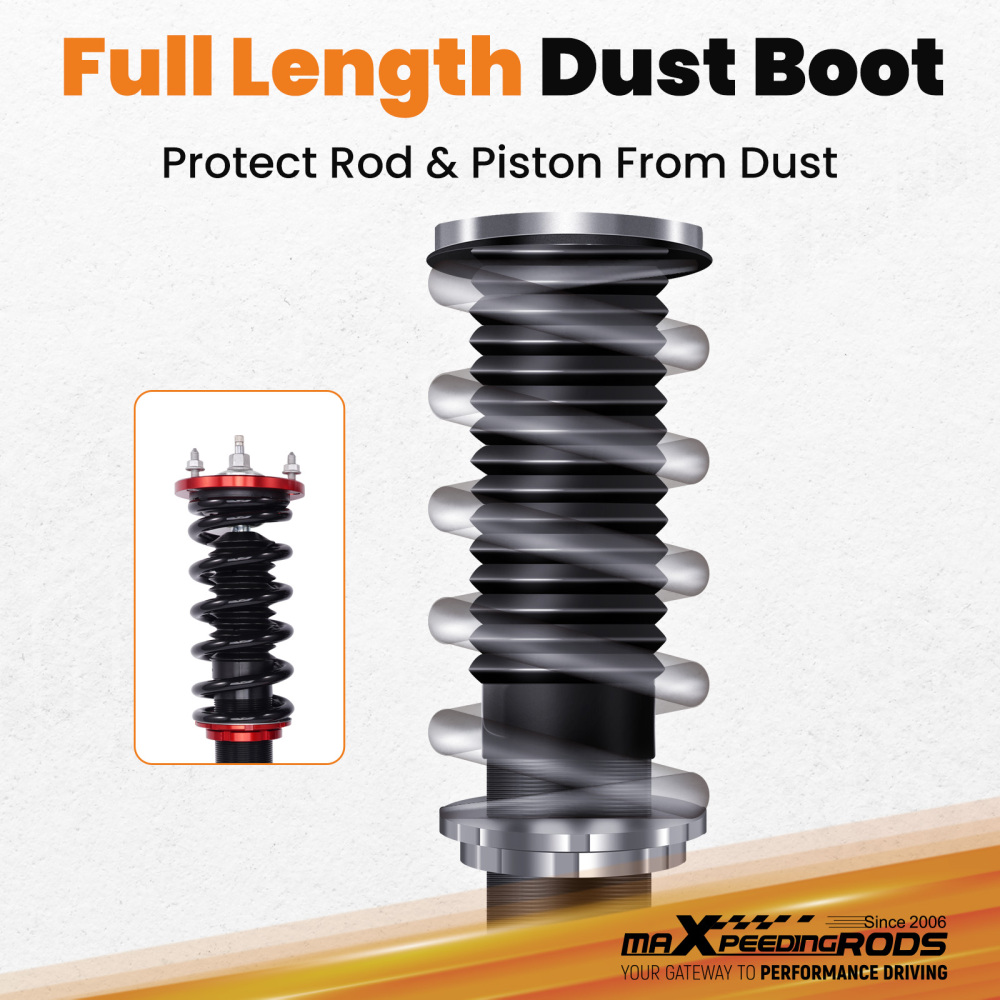

8. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.

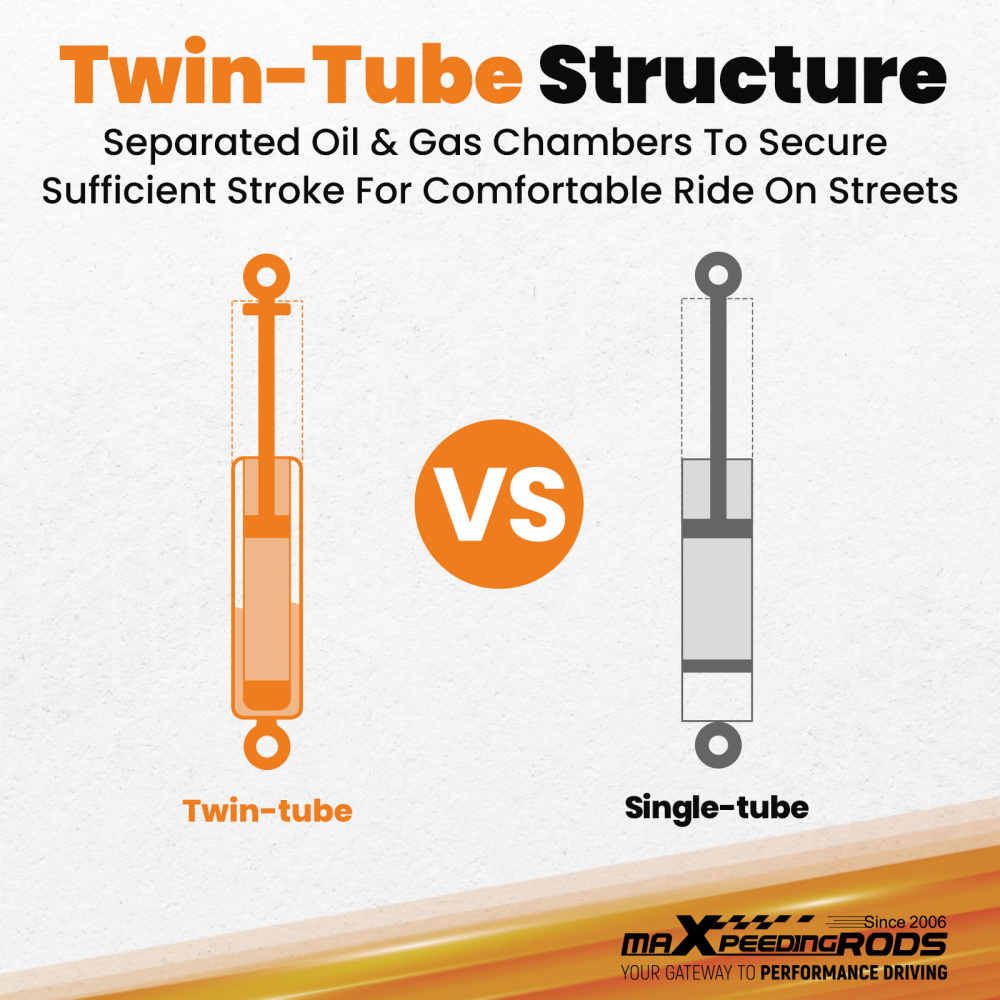

9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
10. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
