.63 A/R Stage III T04E T3/T4 Turbocharger+Oil Line+Manifold compatible for Nissan TD42 4.2L

Item Number 3002910308
Stock In Stock

MORE OPTIONS

Combination offer

  • A
  • B
  • C
  • D
  • E
  • F
  • G







Fitment:Compatible for Nissan Safari / Compatible for Patrol 4.2L TD42

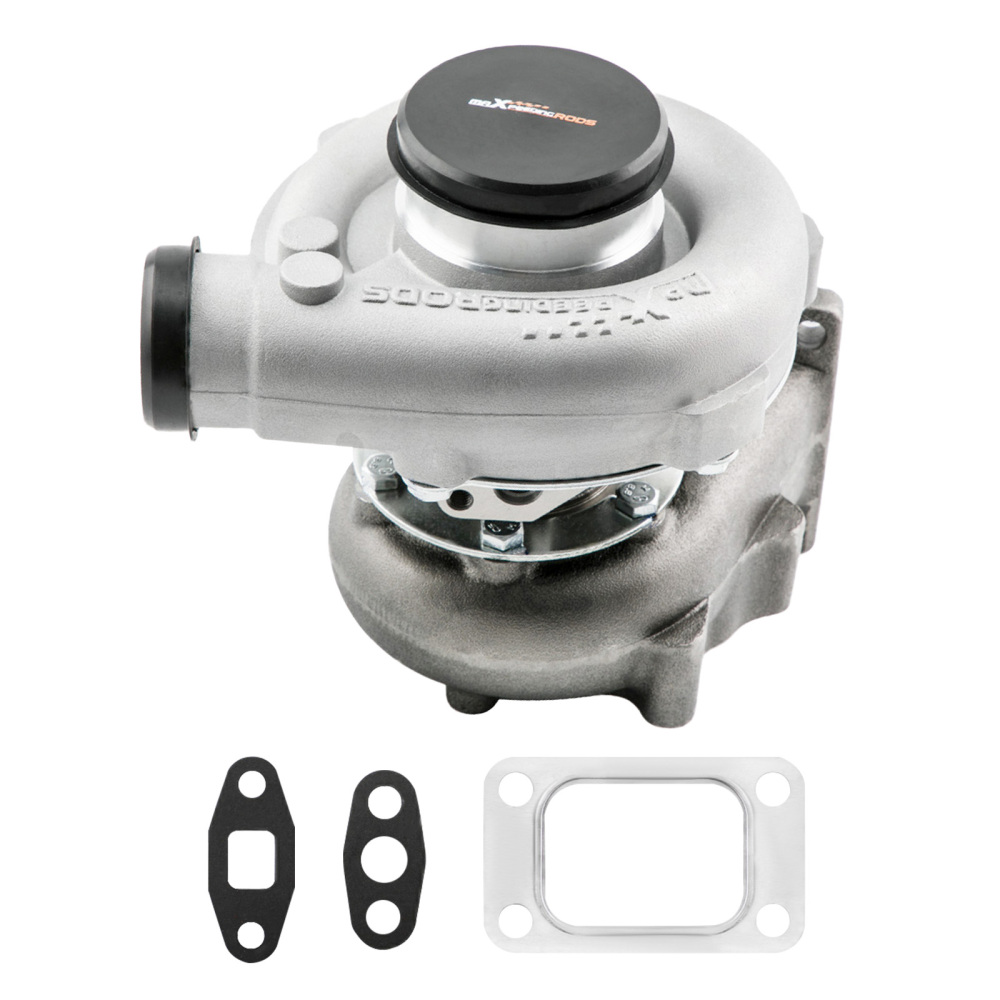

Turbo Specifications:
Perfect for 1.5L-2.5L engines
Perfect for 3.2L-5.0L engines in twin turbo application, capable to 800HP
Boost pressures are 7psi(.5 Bar) to 21psi(1.5 Bar)

Exhaust (Turbo Manifold) Flange:  T3 T4 4 bolt Flange Patterns
Exhaust Flange:  Standard T3 5 bolt flange pattern

Cooling Type: Oil Cooling
Bearing Type: Journal Bearing/Floating Bearing
Thrust Bearing: 270 degrees
Horse Power: Up to 400 HP
Wastegate: W/O Wastegate
Actuator Type: W/O Actuator

Oil Inlet: M12*1.25
Oil Outlet: 2*M8*1.25
Turbo Type: Individual
Universal Fitment: Yes
Finish: Matte
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above
Package Size: 27x 25x 24 cm
Package Weight: 7250g

Compressor:
Trim: 44
A/R: .5
Inducer: 50.5
Exducer: 76

Turbine:
Trim: 73
A/R: .63
Inducer: 65.5
Exducer: 55.9

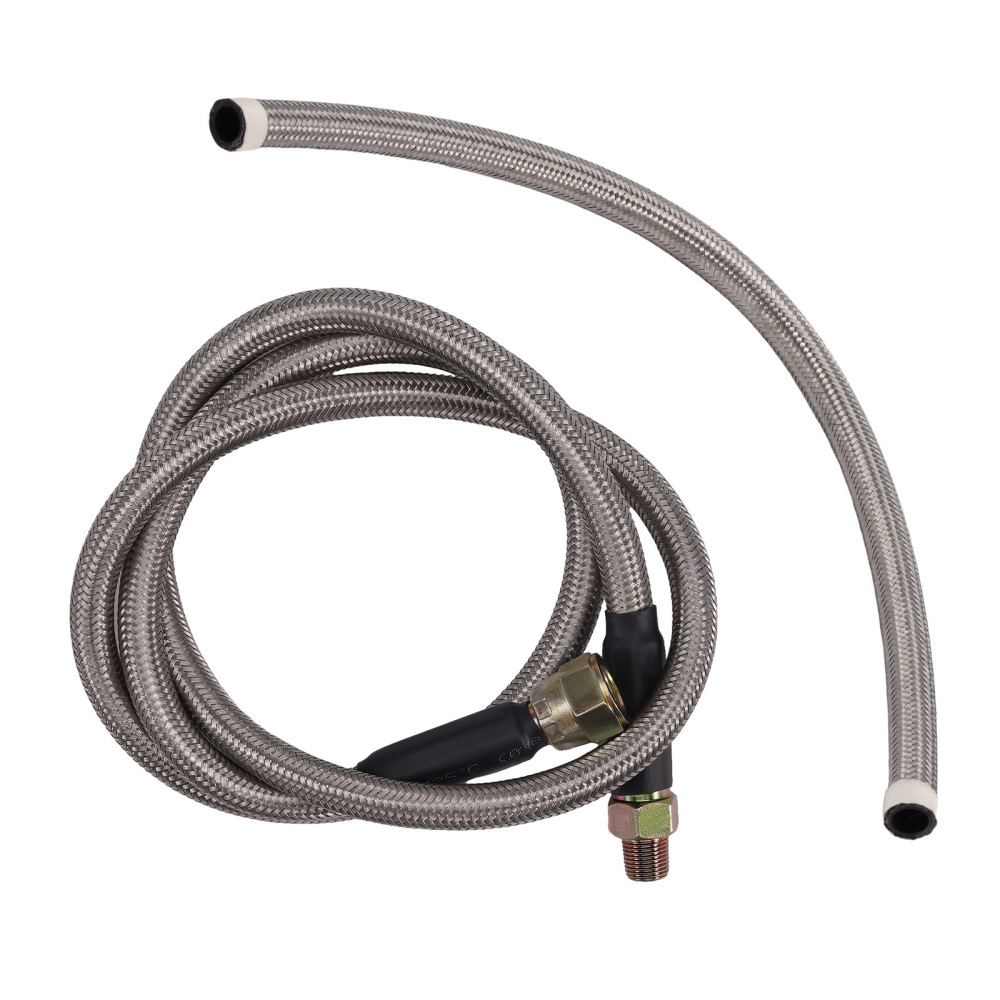

Oil Specifications:
* OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
* OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm

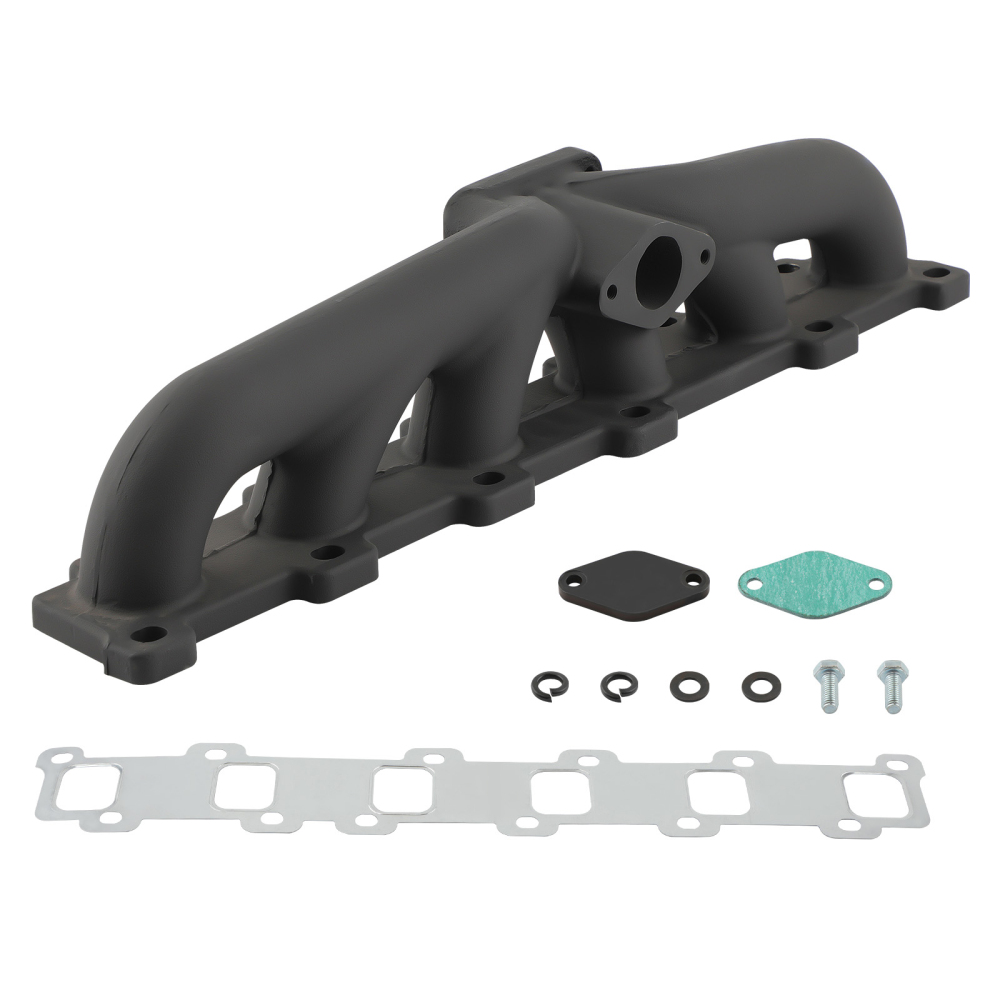

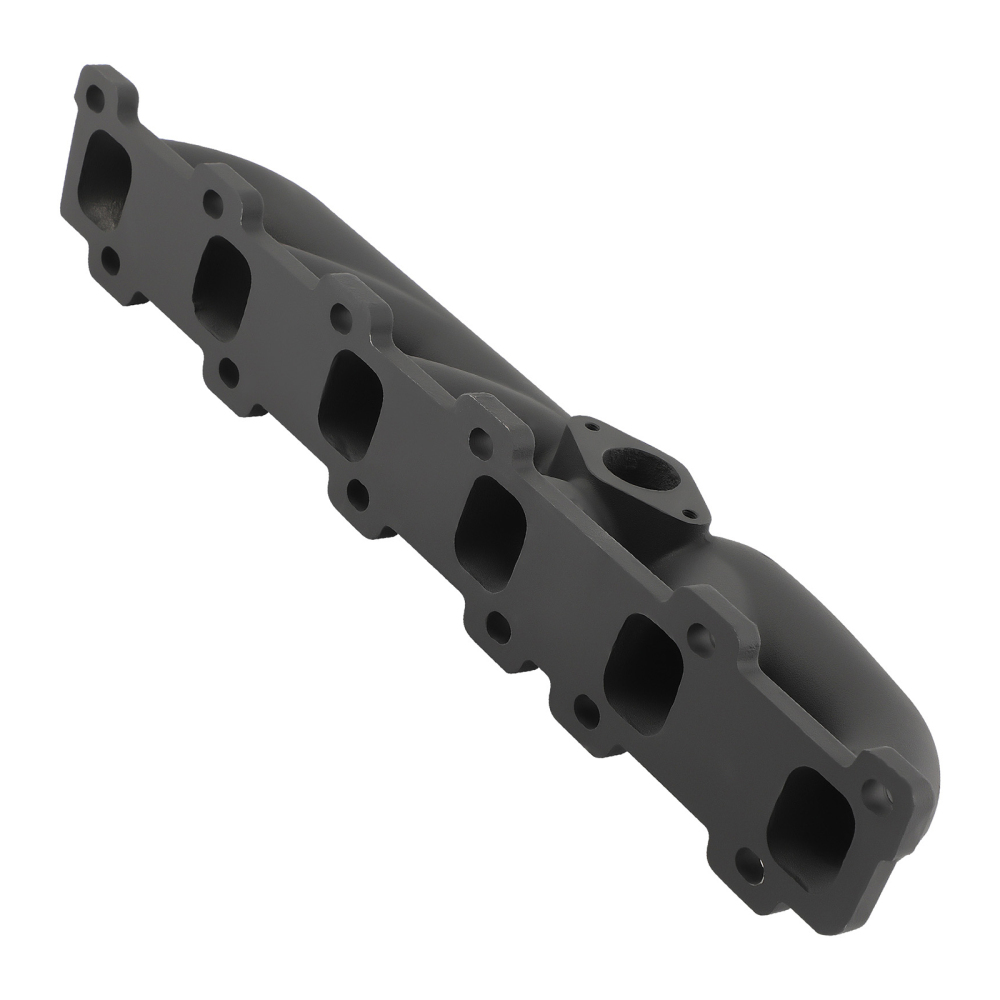

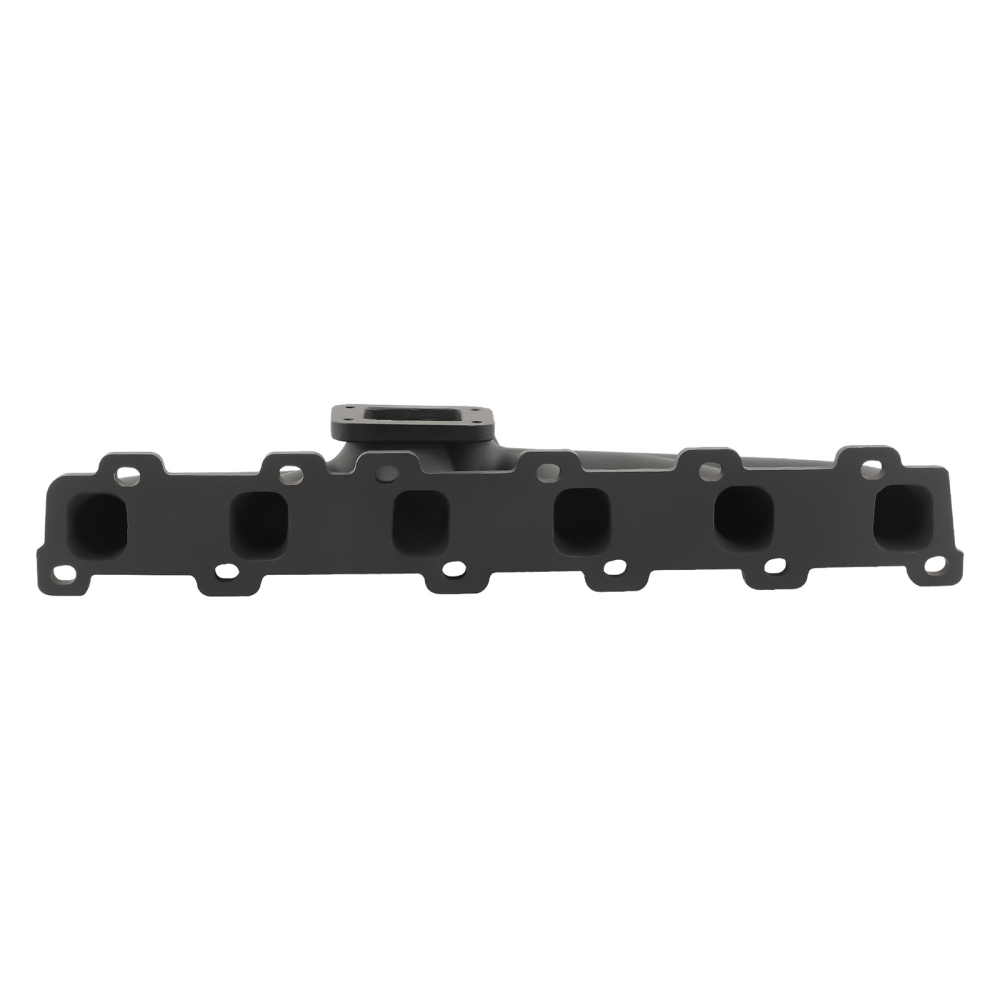

Manifold Specifications:
Material: Cast Iron
Mounted type: Top mounted / High mounted
Turbo Flange: T3
Wastegate size: 38mm. You can plate it off if intending to use internally wastegated turbo (the blank plate is included)

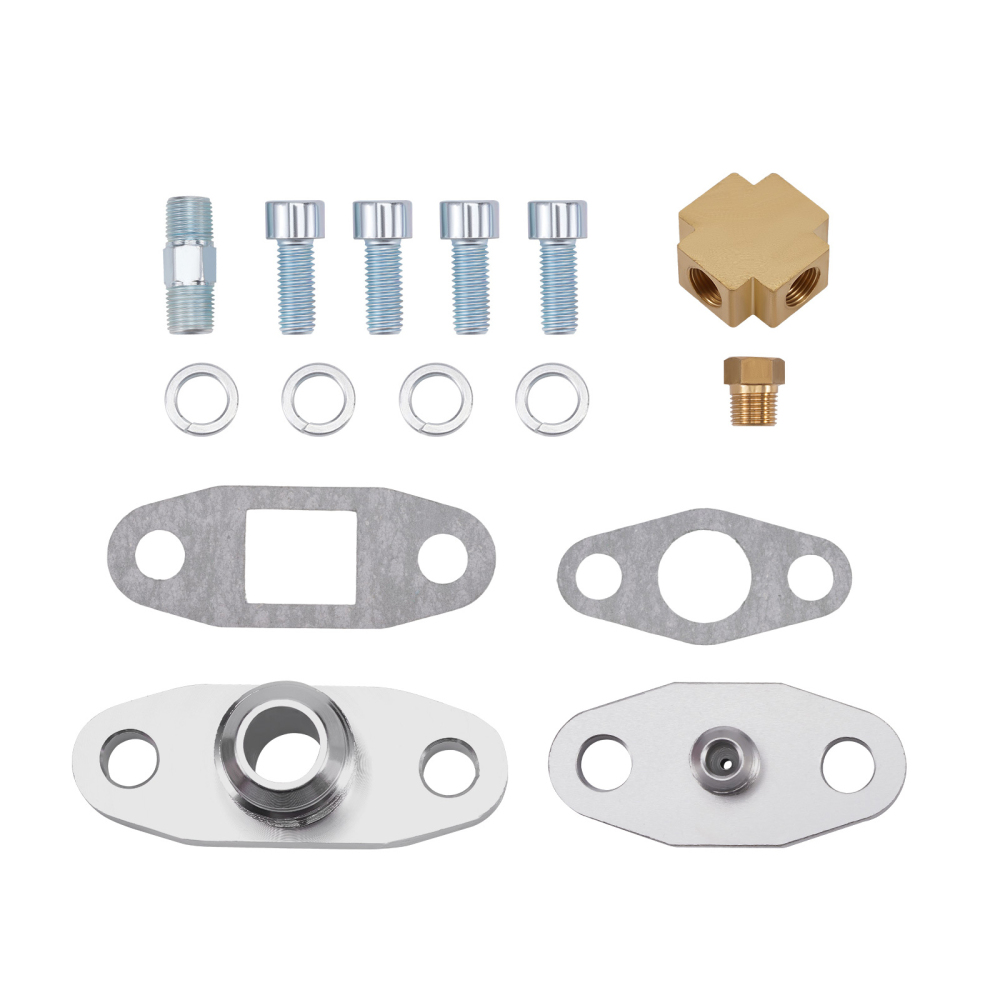

Package Includes:
1 x Turbocharger Kit
1 x Braided Turbo Oil Feed Line
1 x Braided Turbo Oil Return Line
1 x Manifold
(You will get exactly as shown in the picture above)



NOTE:

* Does NOT have a internal wastegate so you must have a external wastegate on your manifold.
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.
* Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
