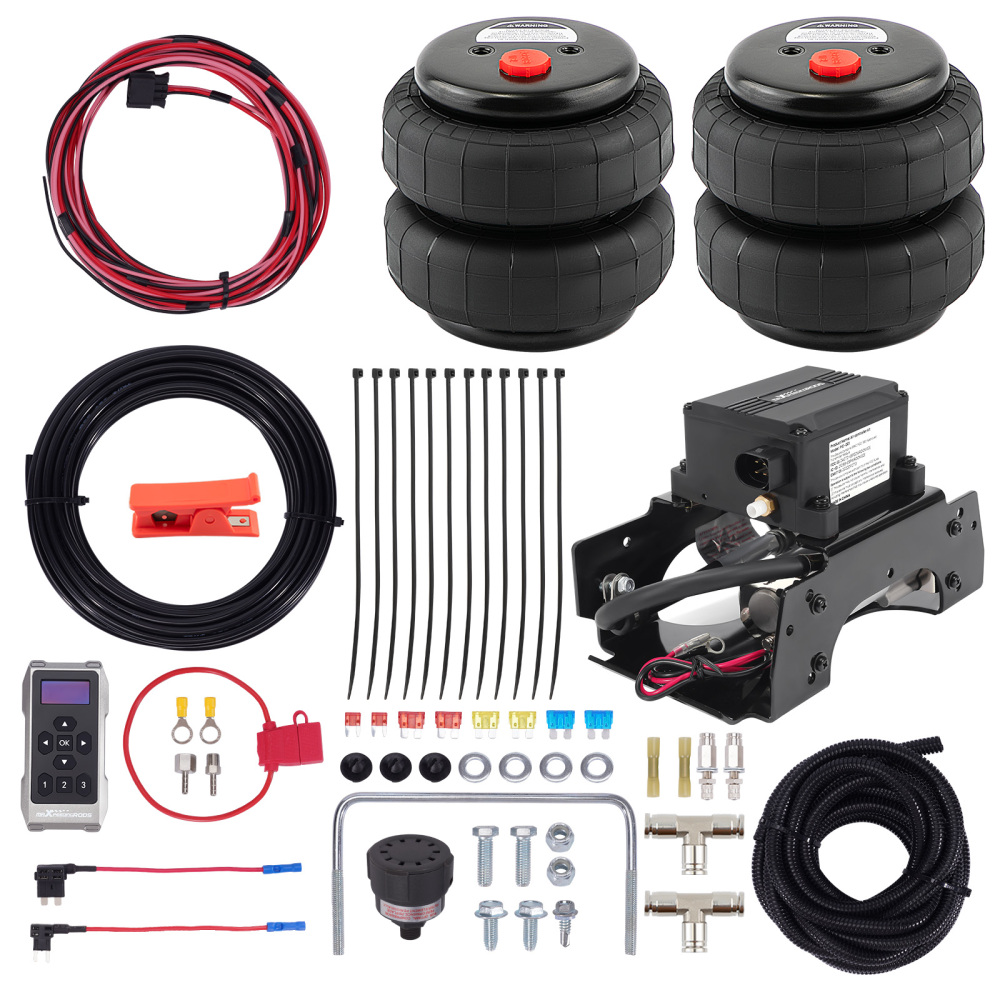

Wireless Air Controller Kit + Air Suspension Bags compatible for Dodge Ram 1500 2500

Package Includes(based you choose under the tittle):

• Option 1: Only Air Spring Bags
• Option 2: Air Spring Bags + Air Shock Compressor Kit
• Option 3: Air Spring Bags + Wirless Air Shock Compressor Kit

Fit for:

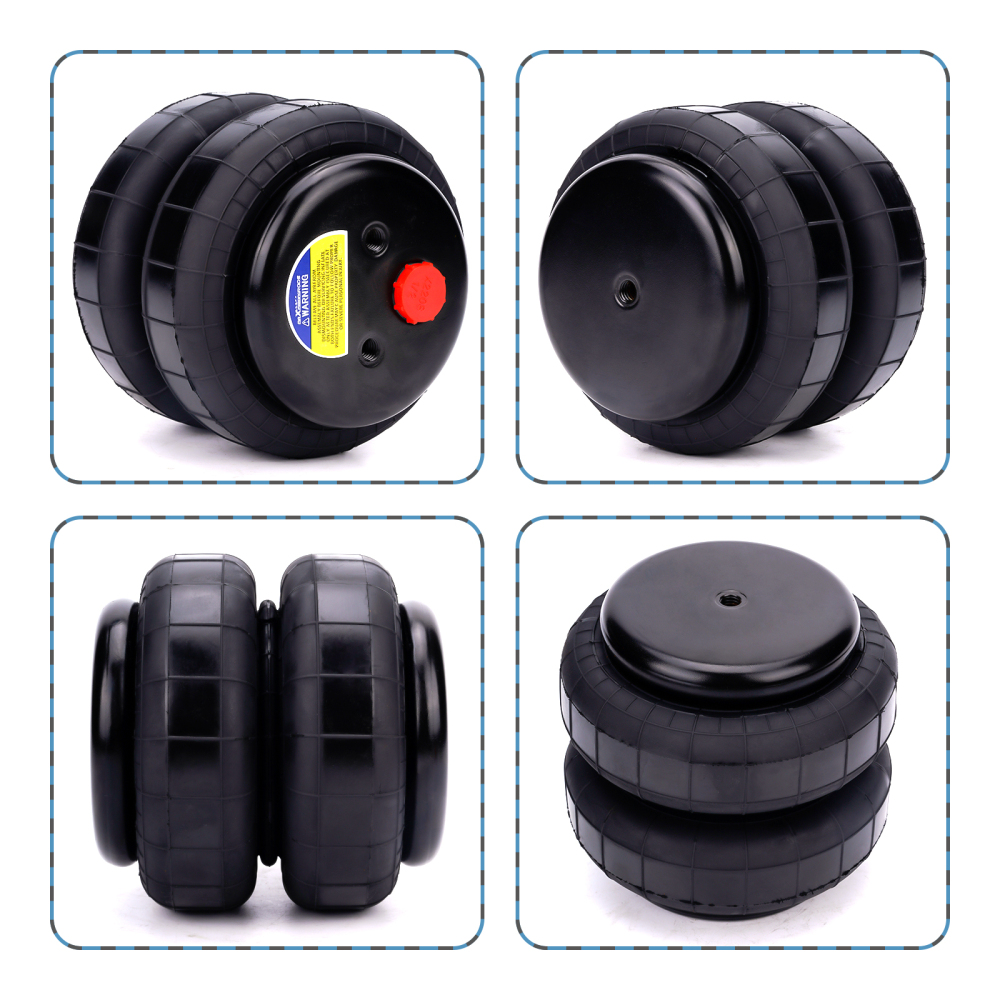

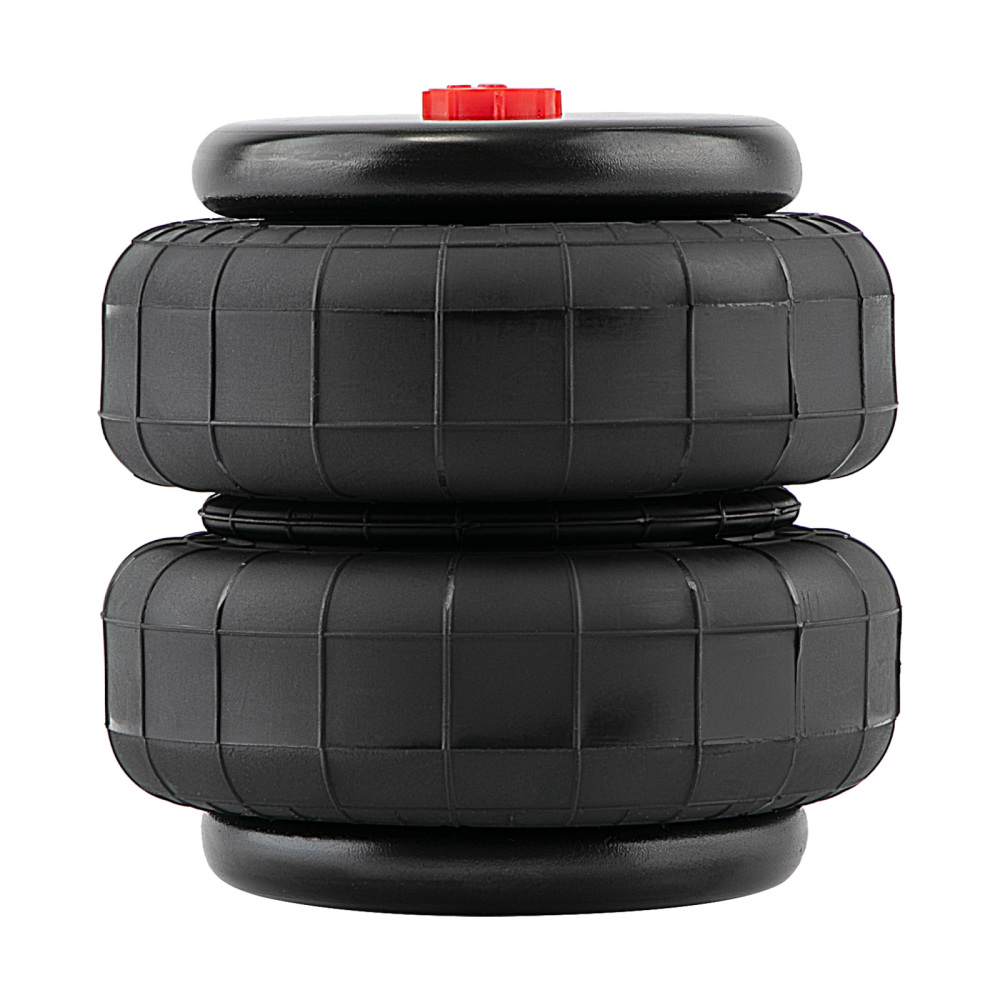

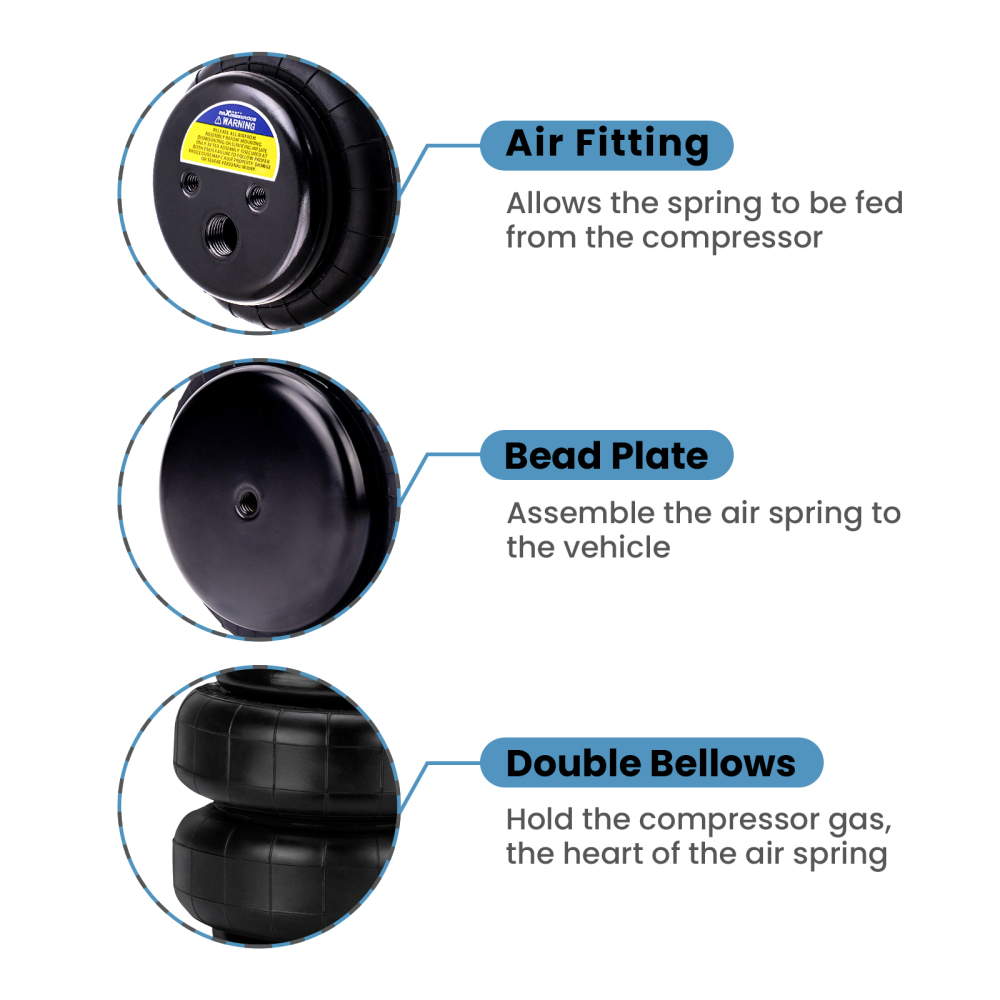

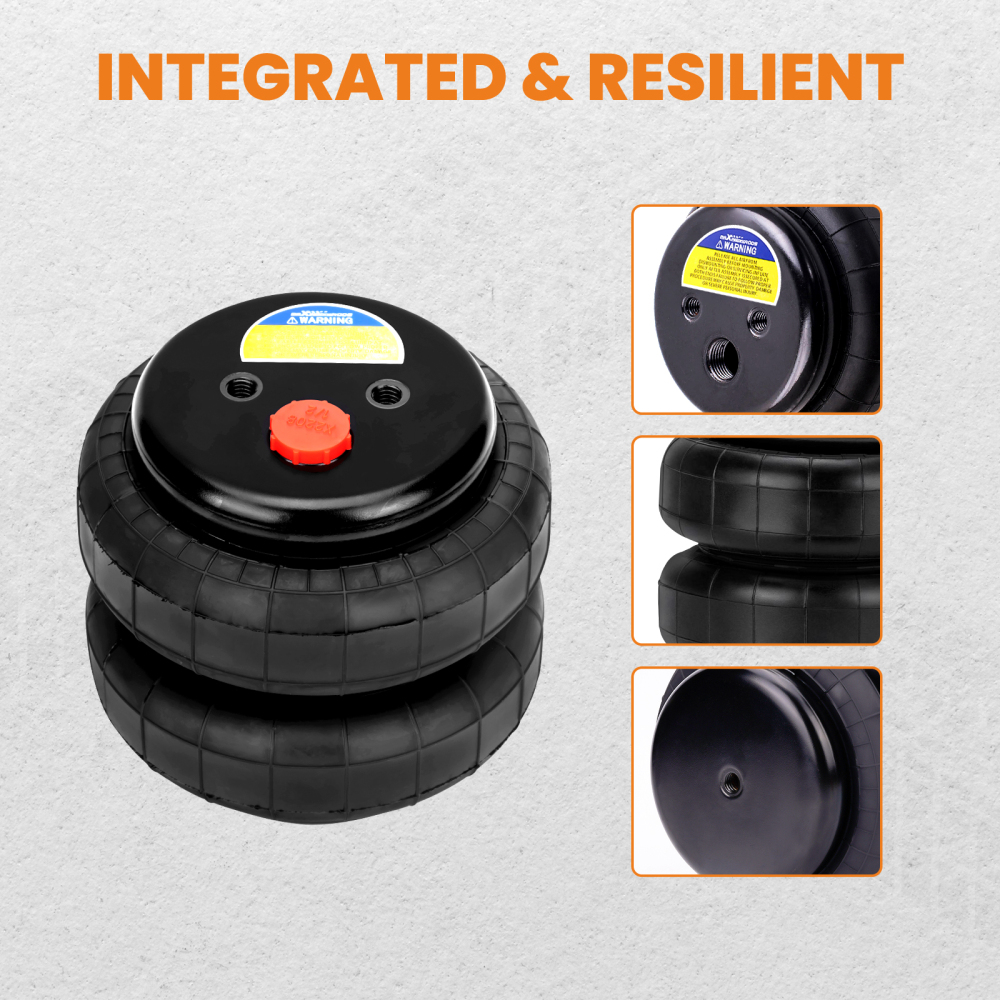

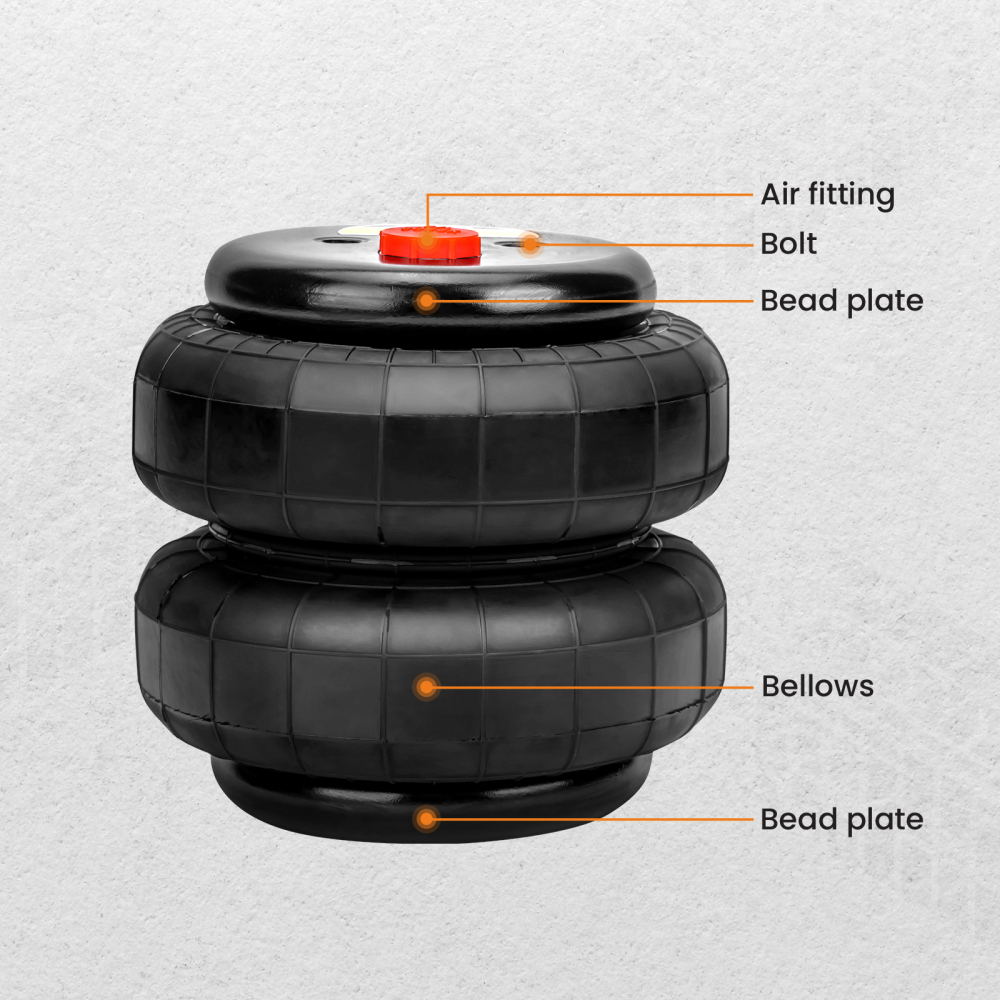

About the air spring bags

Universal Air Suspension Bags compatible for Ford F150/F250, compatible for GMC Sierra, compatible for Chevrolet Silverado, compatible for Dodge Ram 1500 2500 3500, etc

Please confirm whether the air spring bag parameters below (especially height, diameter, bolt specifications) are consistent with ours before purchasing. (Fits for most brand trucks)

About the air spring controller kit & wireless air spring controller kit

• UNIVERSAL FIT FOR MOST 1/2, 3/4 AND 1 TON PICKUPS AND VANS
• Compatible for Dodge ram 1500 2500 3500
• Compatible for Chevy Siverado 1500 2500 3500
• Compatible for GMC Sirra 1500 2500 3500
• Compatible for Ford F-150 F-250 F-350
• Compatible for Toyota Tundra Tacoma

Feature:

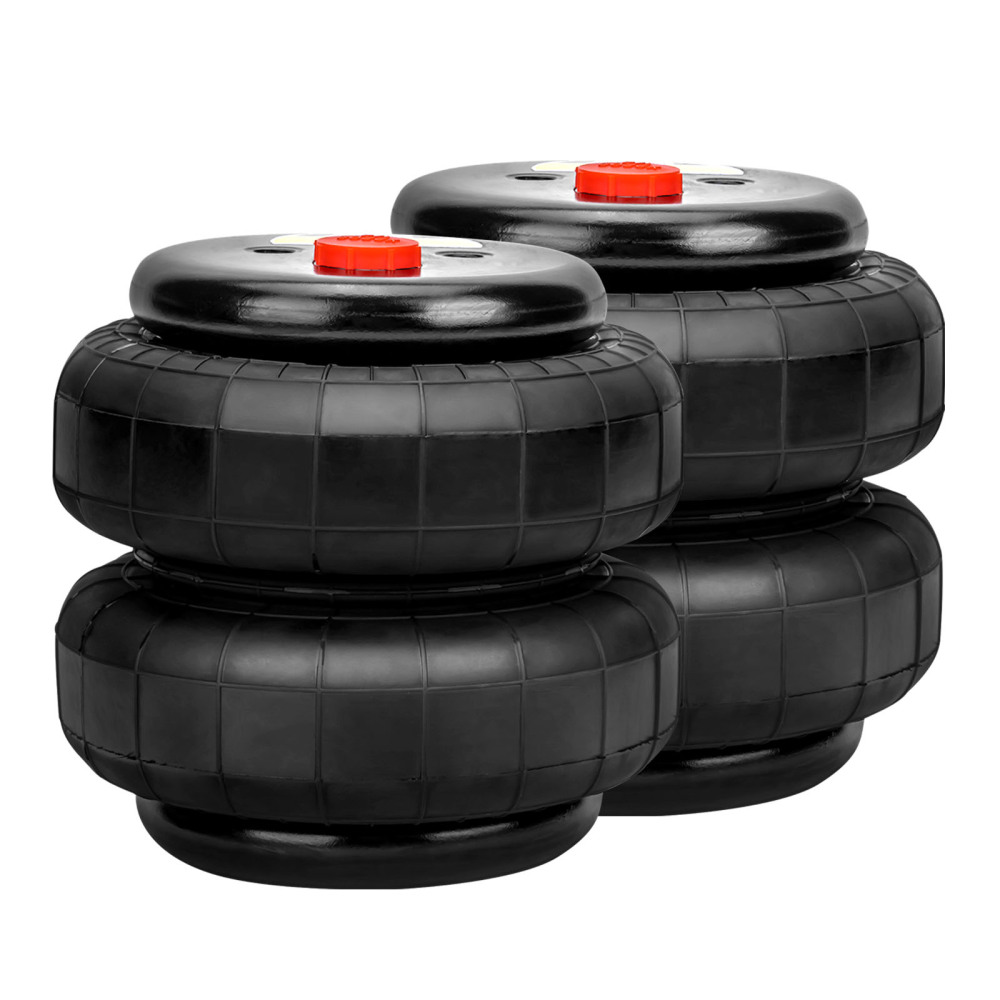

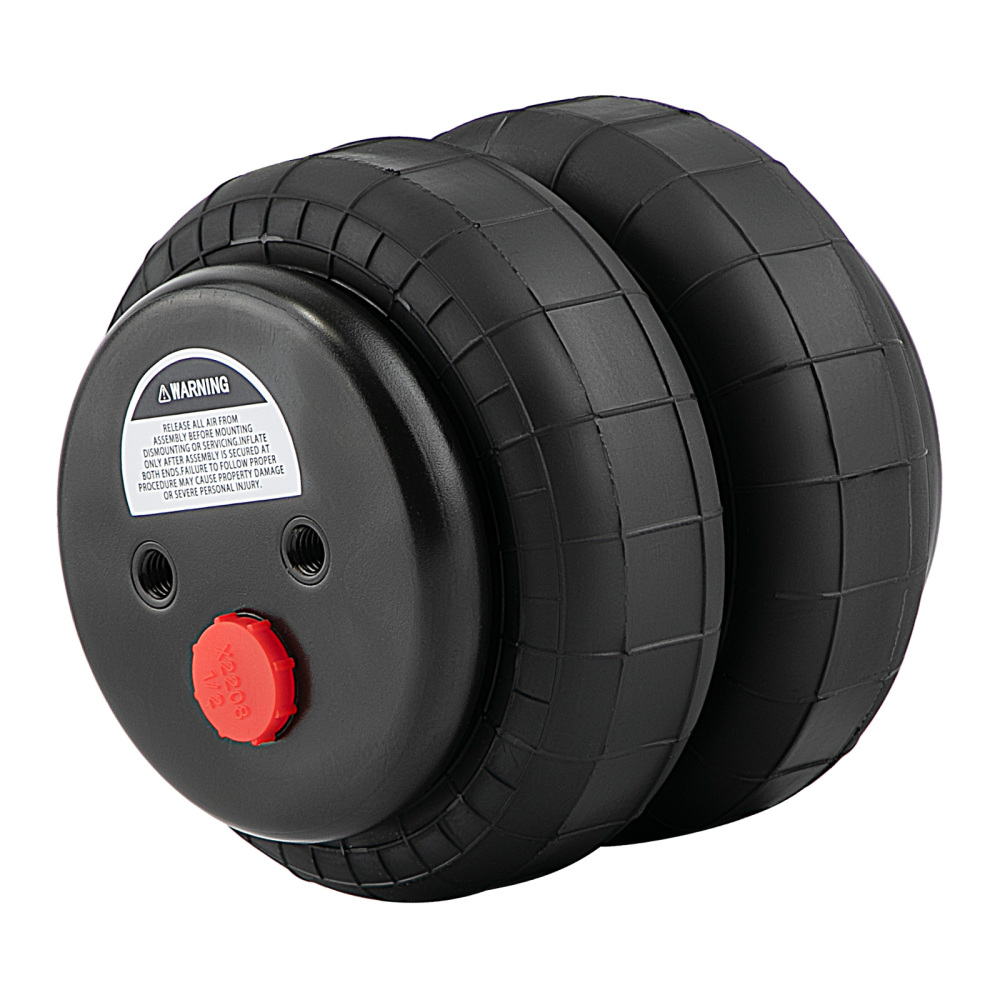

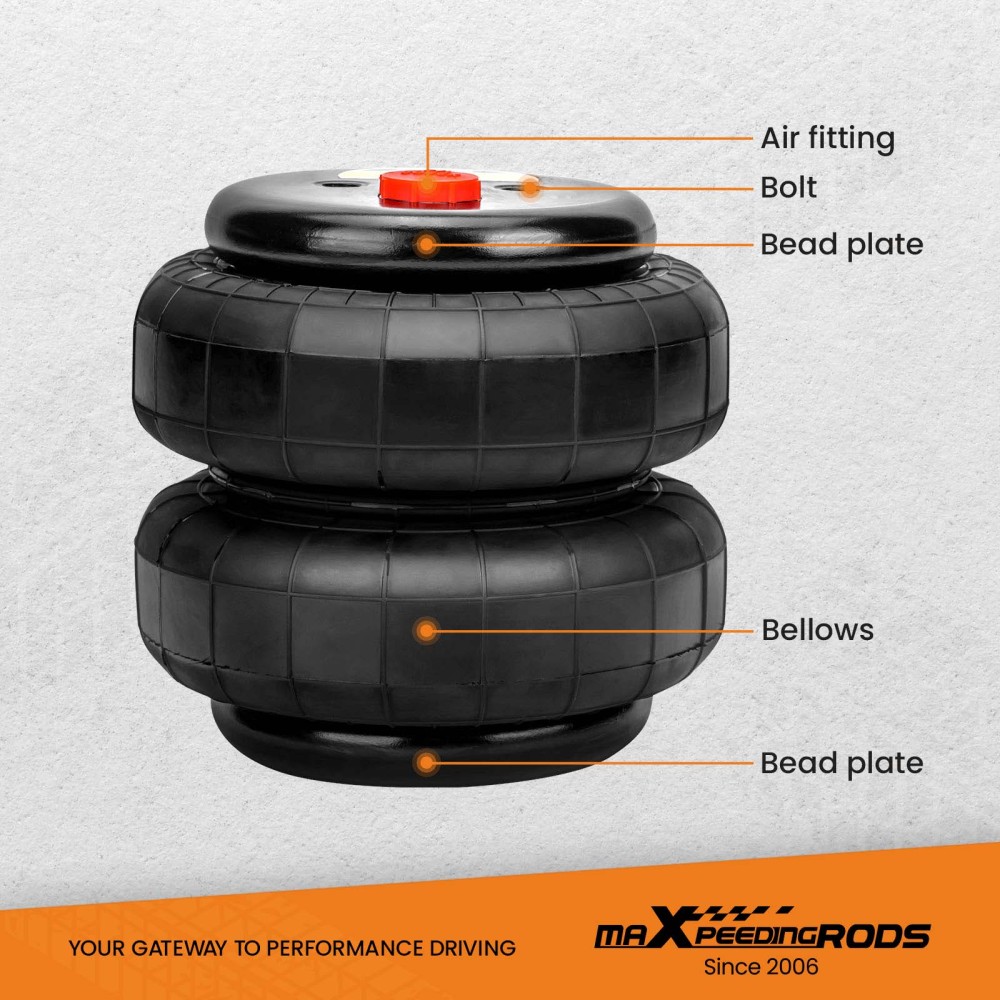

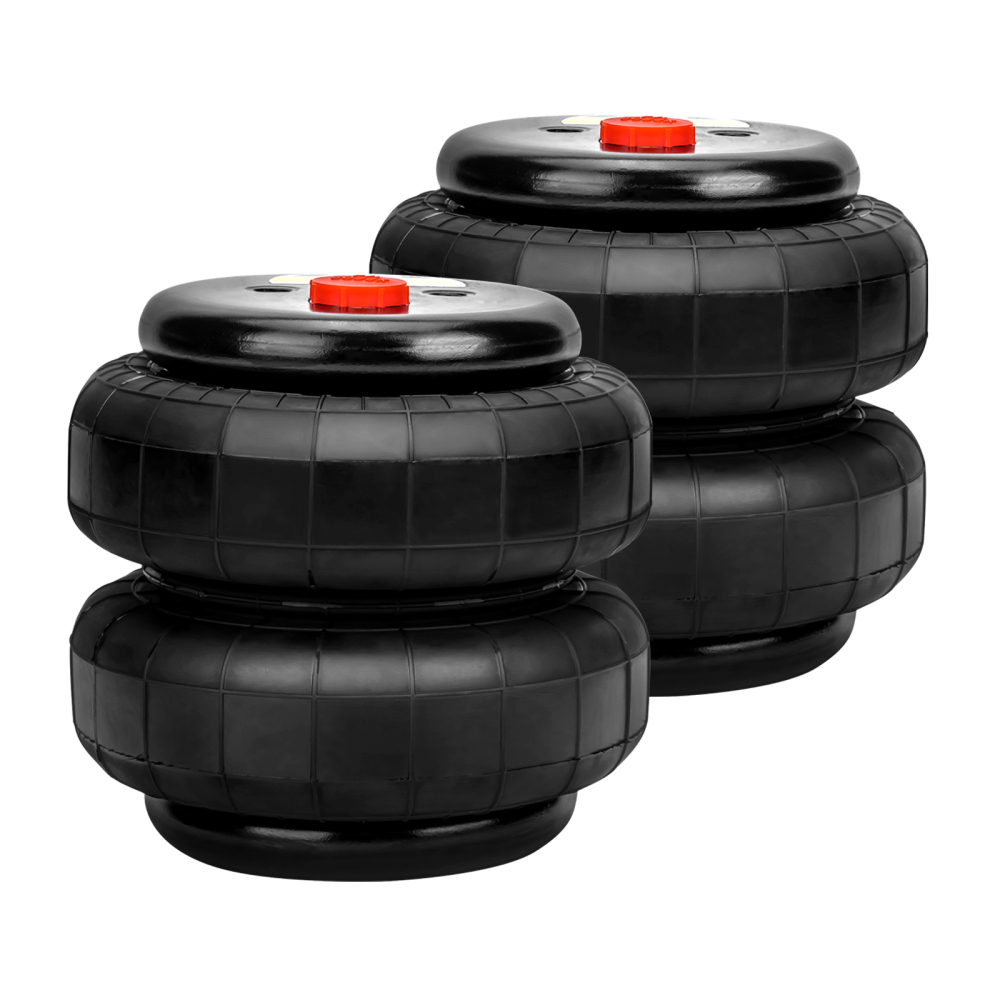

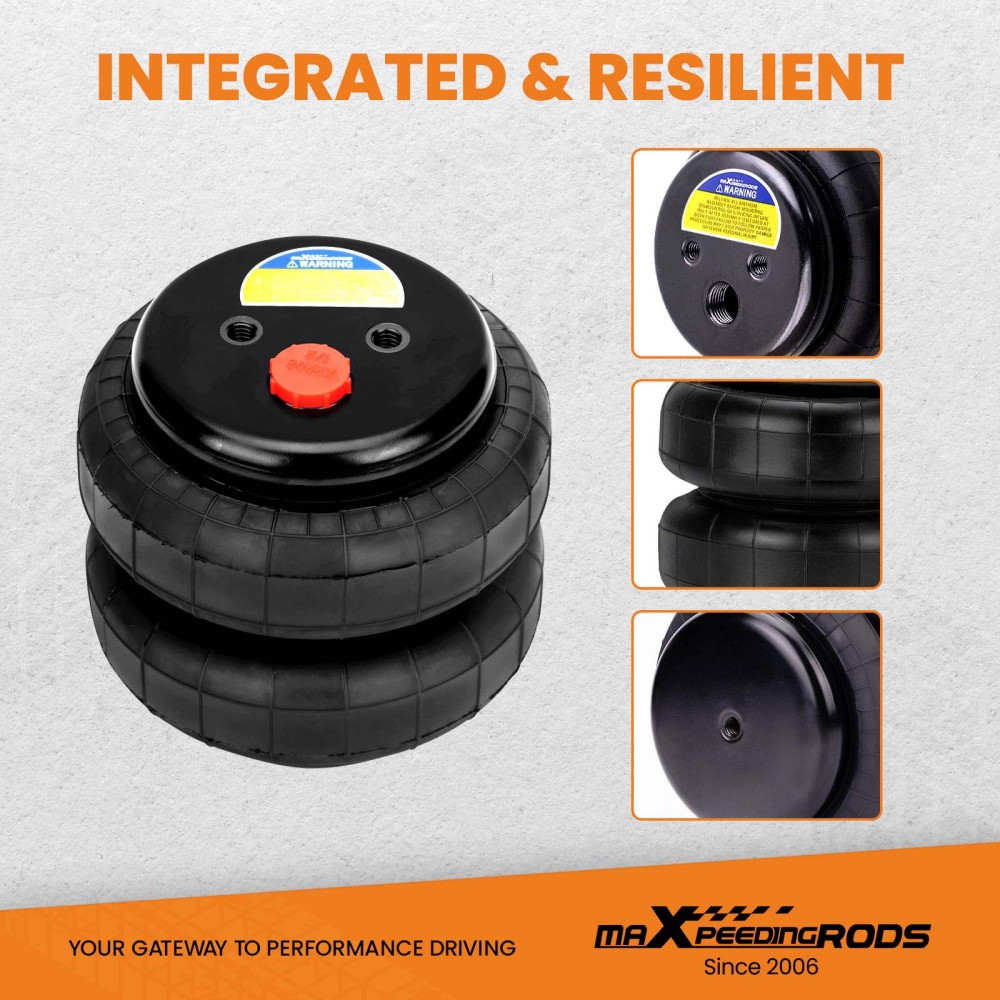

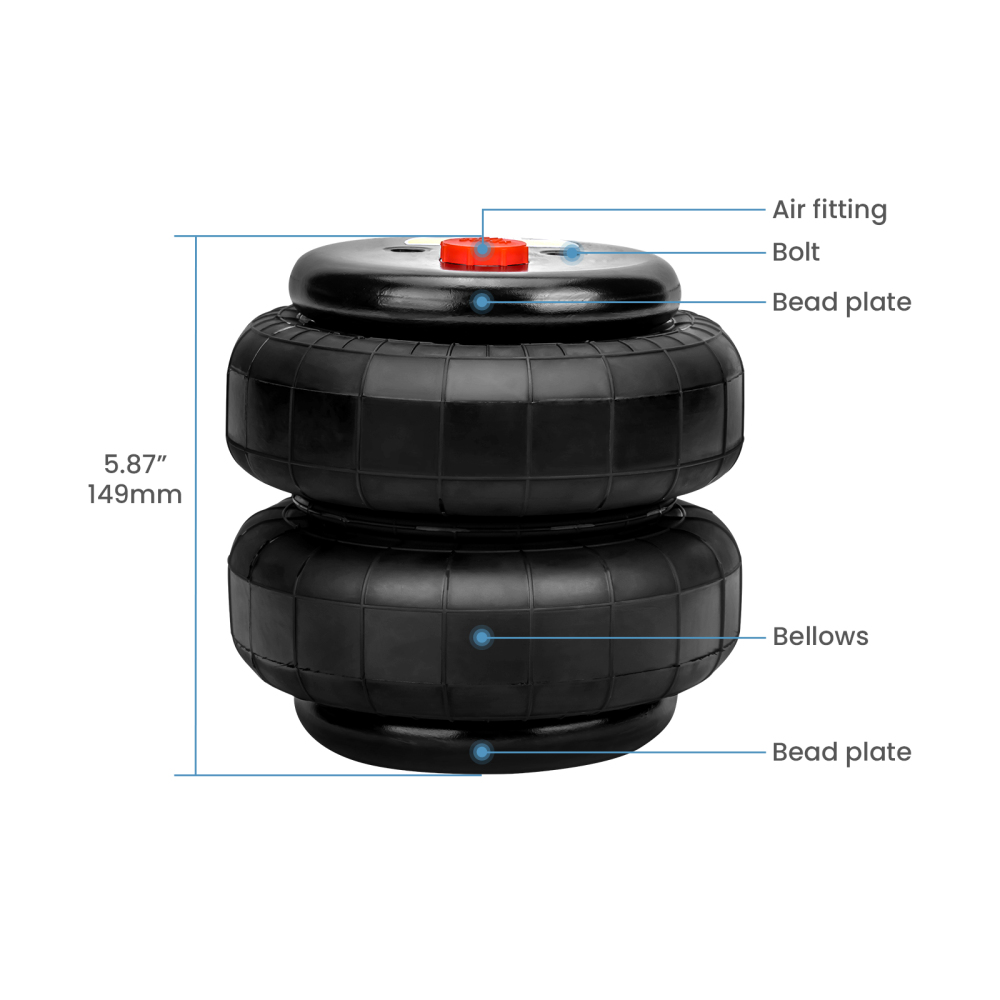

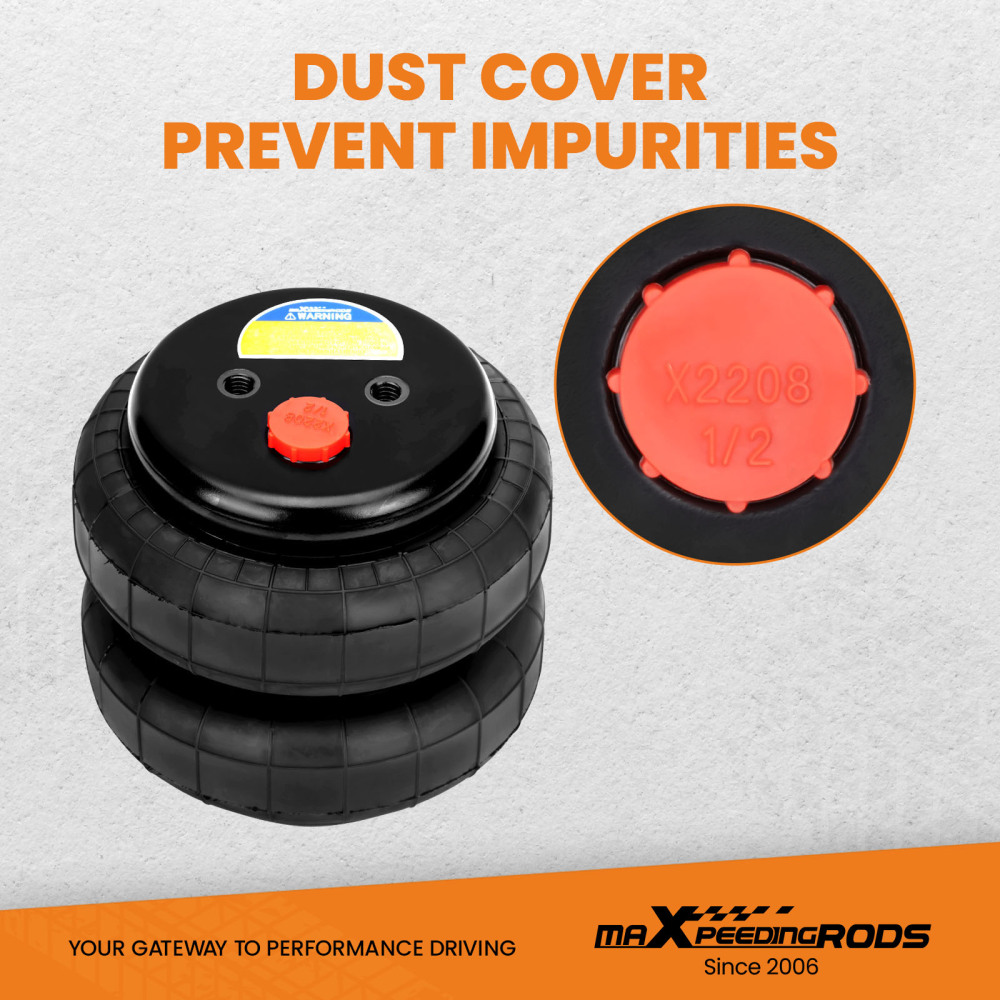

About the air spring Bags

1. Condition: 100% Brand New
2. Loading cap. at 3.0bar: 2.88KN
3. Loading cap. at 7.0bar: 7.25KN
4. Placement on Vehicle: Left,Right,Front,Rear

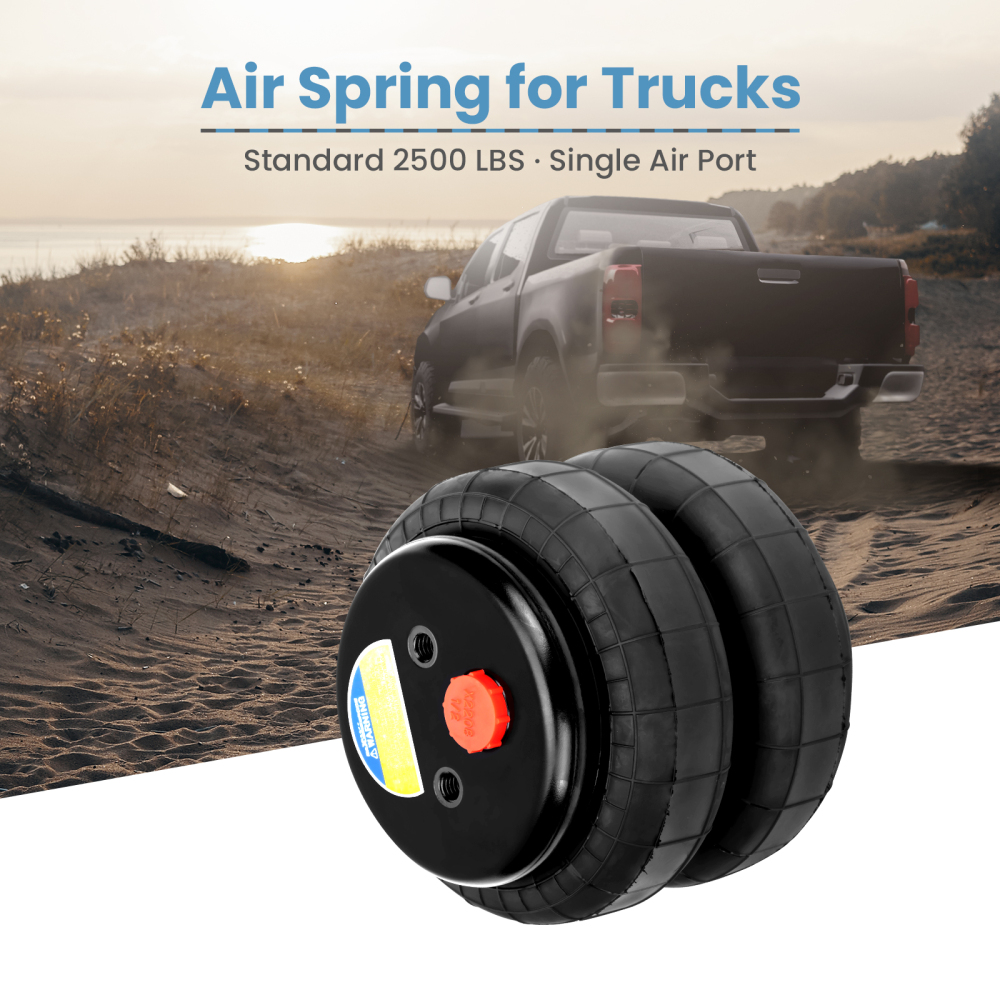

5. Air spring bag capacity: 2500LBS

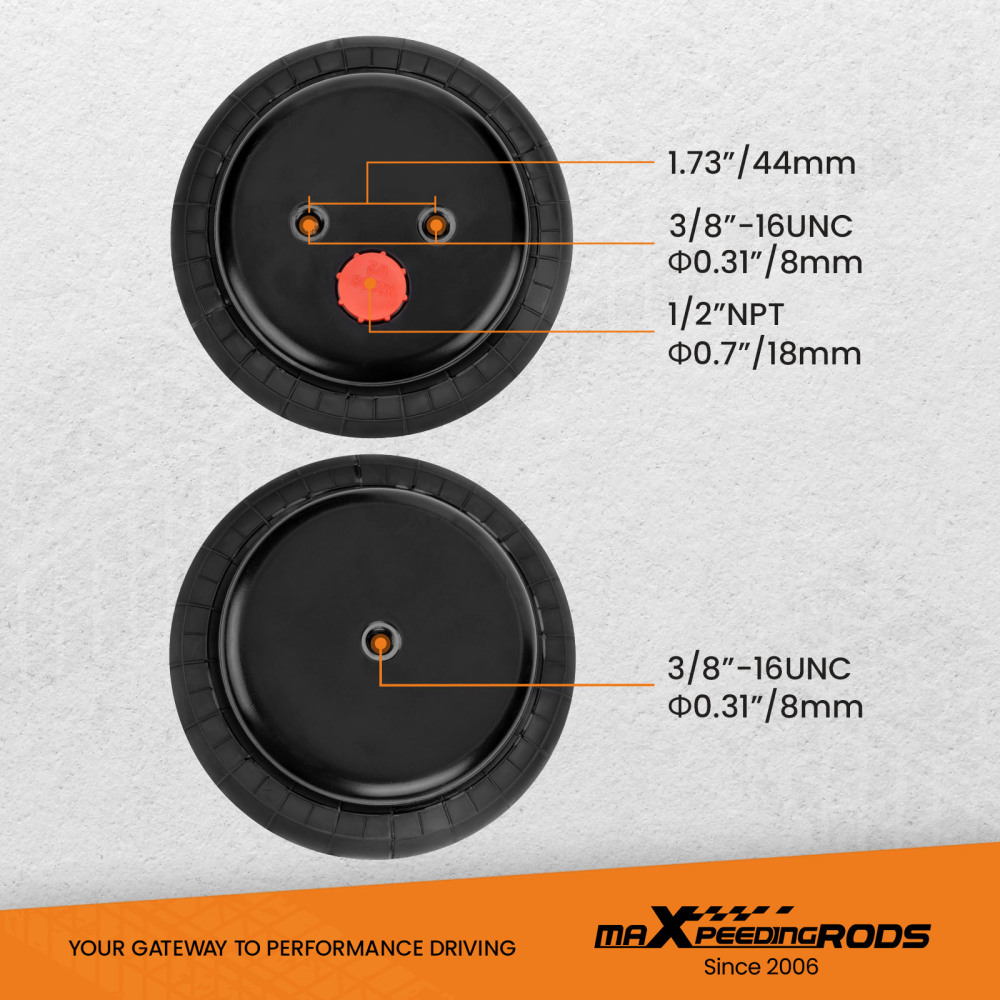

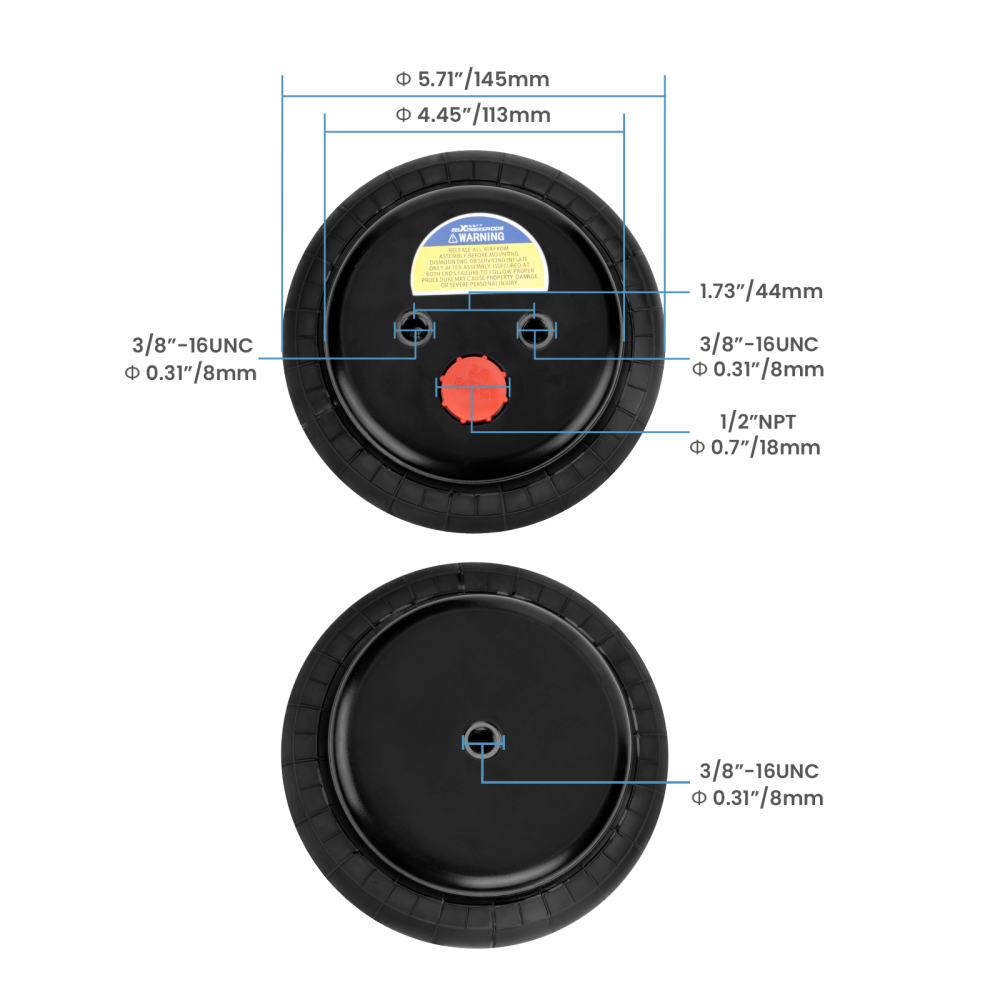

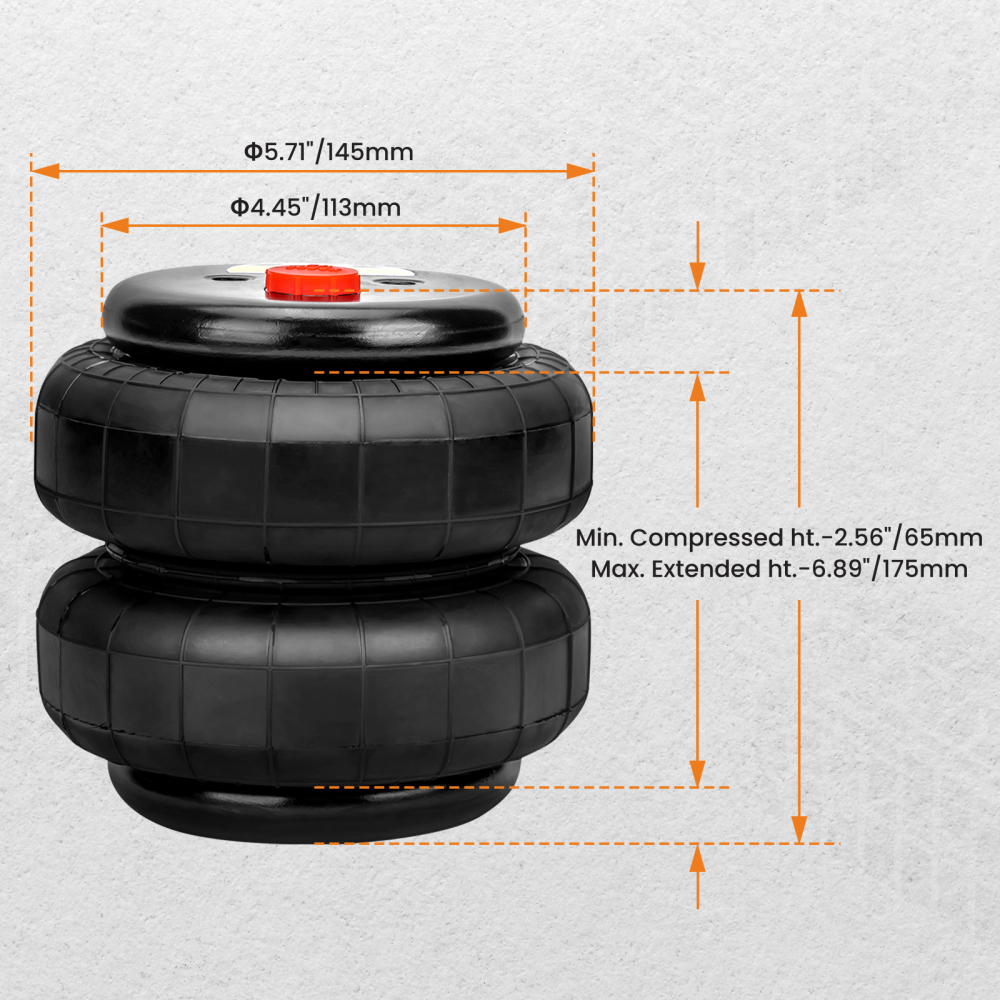

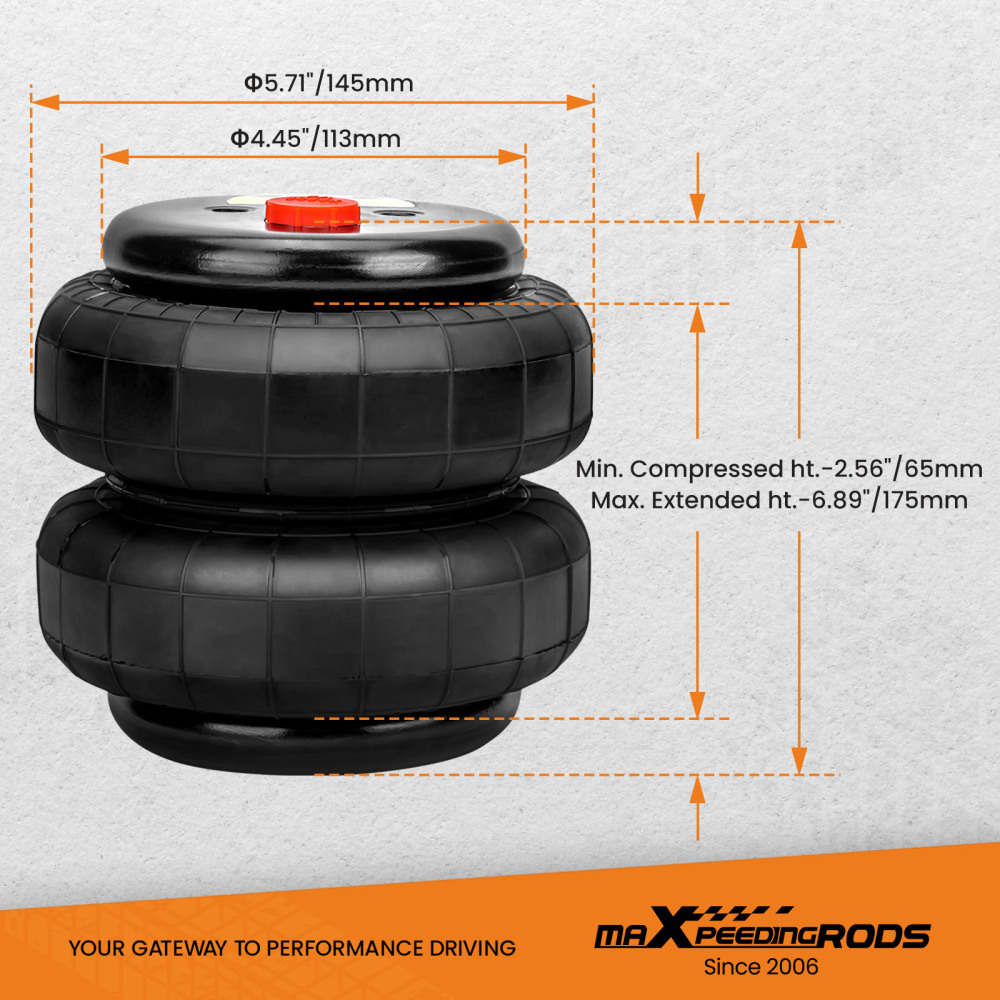

6. Min height: 72mm±5mm
7. Max height: 218MM±5mm
8. Working stroke: 146mm±5mm

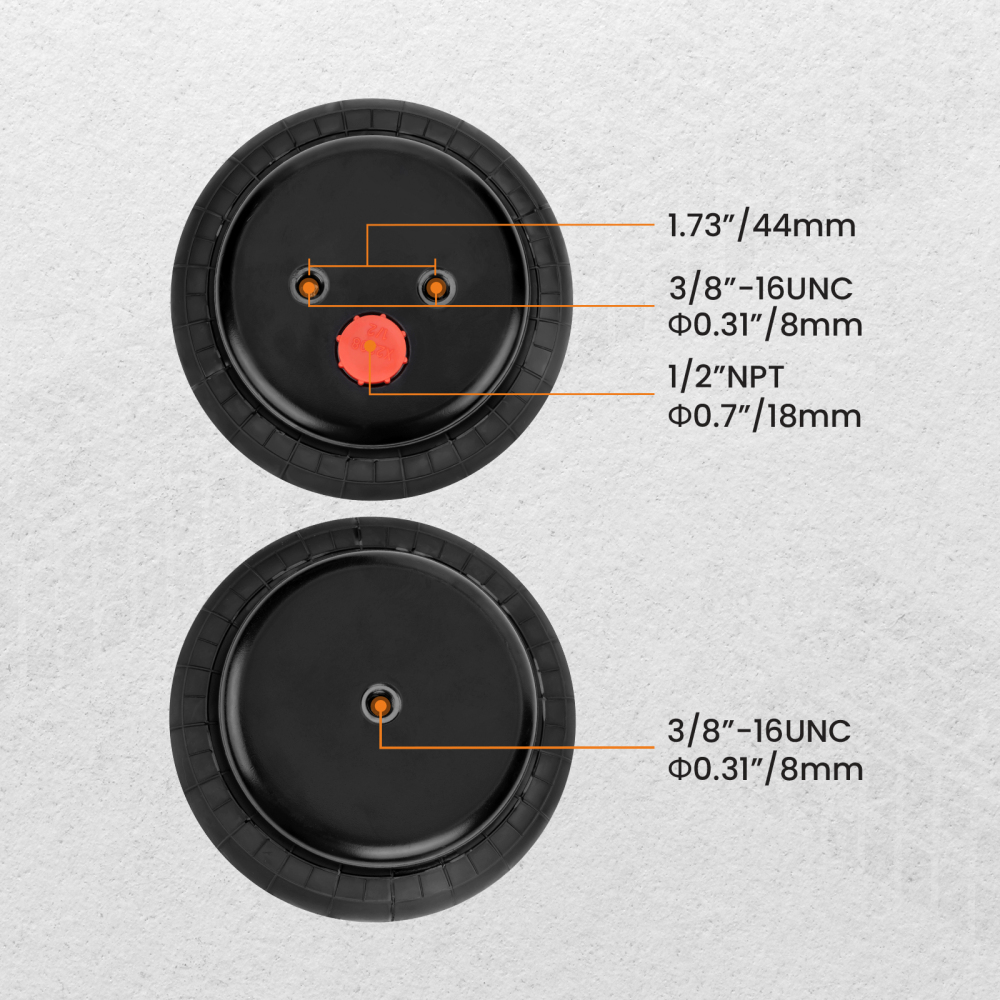

9. Single air port size: 1/2NPT
10. Air fitting elbow connector: G1/2-φ6(male) (Not included in the package)
11. Install hole size: 3/8-16UNC
12. Top plate diameter: 113mm
13. Air spring bag body diameter: 148mm±2mm

About the air spring controller kit

• 1、Allows you to monitor and adjust the air pressure in the air spring bag from the driver's cab.
• 2、Performs well for light-duty or medium-duty applications and for occasional hauling or towing.

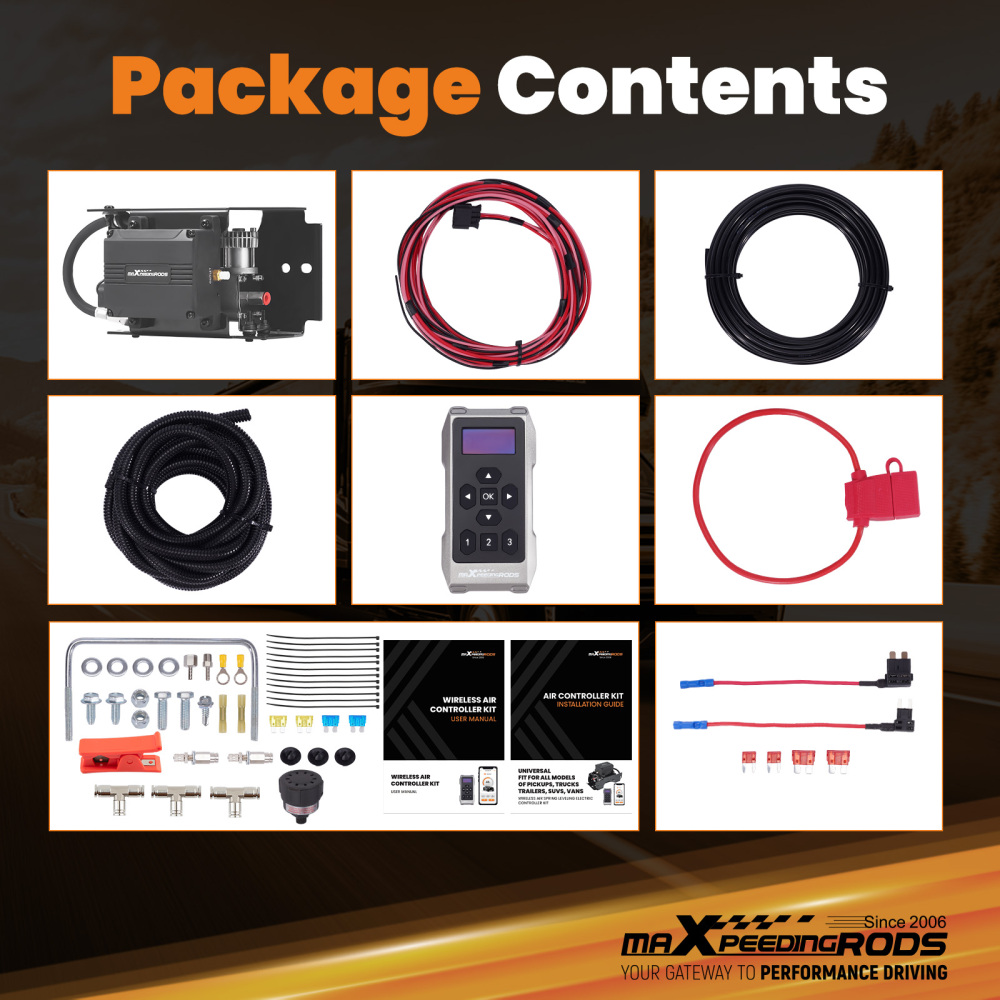

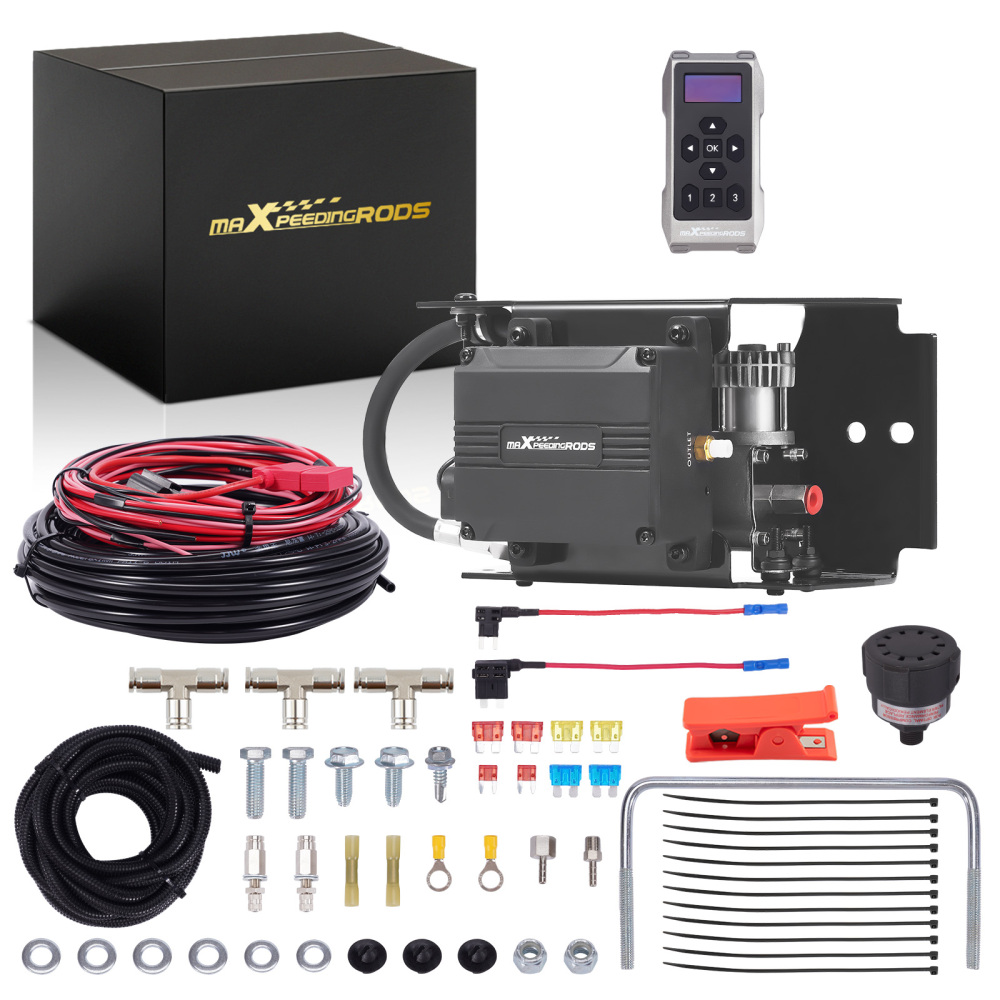

• 3、Includes onboard air compressor, single-gauge dash panel, air lines and hardware.
• 4、Compatible with any brand of air springs.
• 5、Single-path controls let you adjust 1 pair of air springs/shock.
• 6、Strict quality inspection to ensure long-term use without damage
• 7、Maximum air pressure: 120 psi.
• 8、Recommended working pressure: 5-70 PSI
• 9、Wire harness has flame retardant properties.
• 10、The air compressor has quality assurance.
• 11、The air compressor has a waterproof casing.

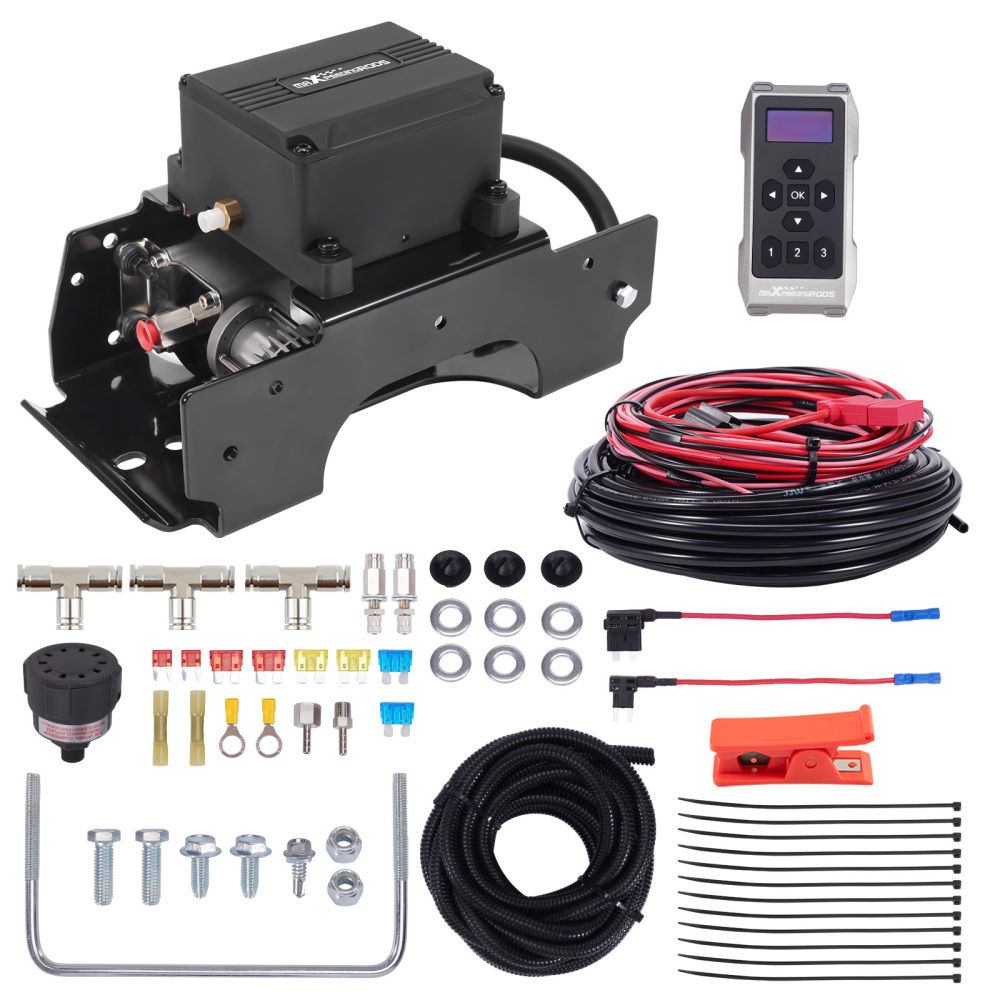

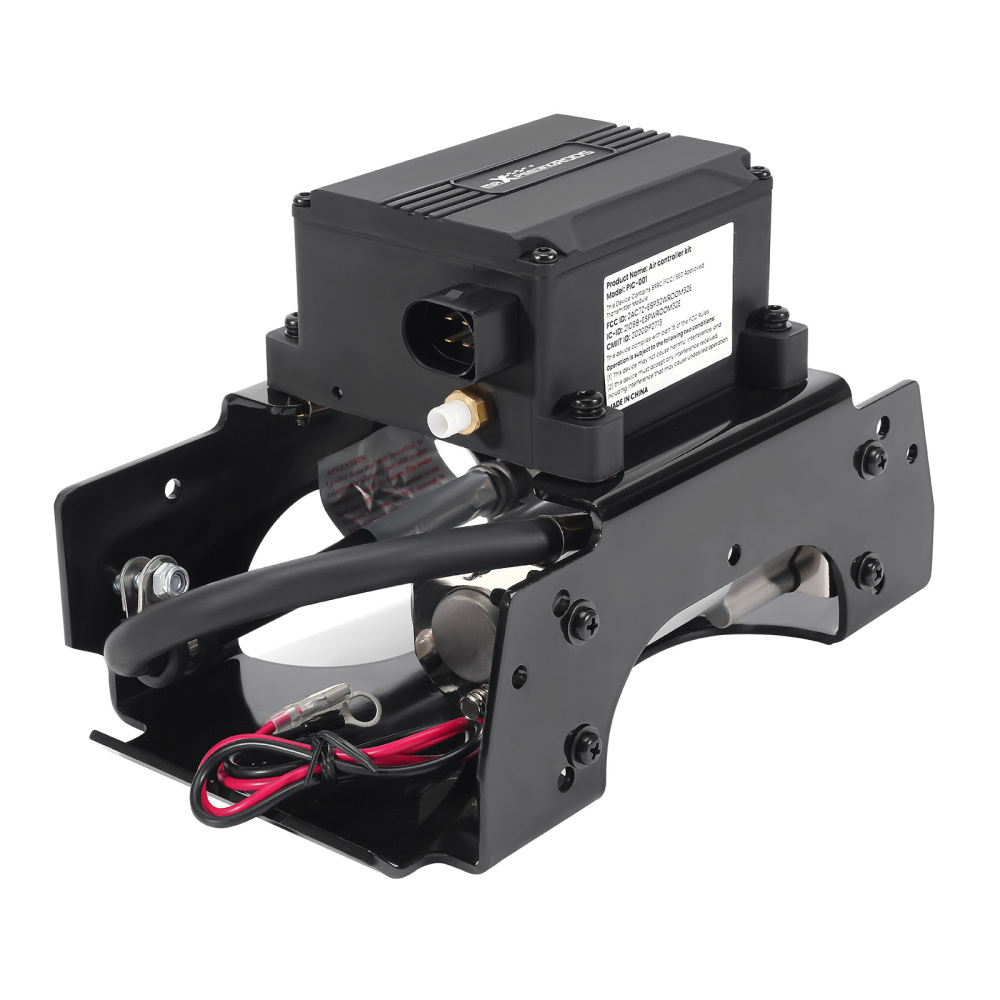

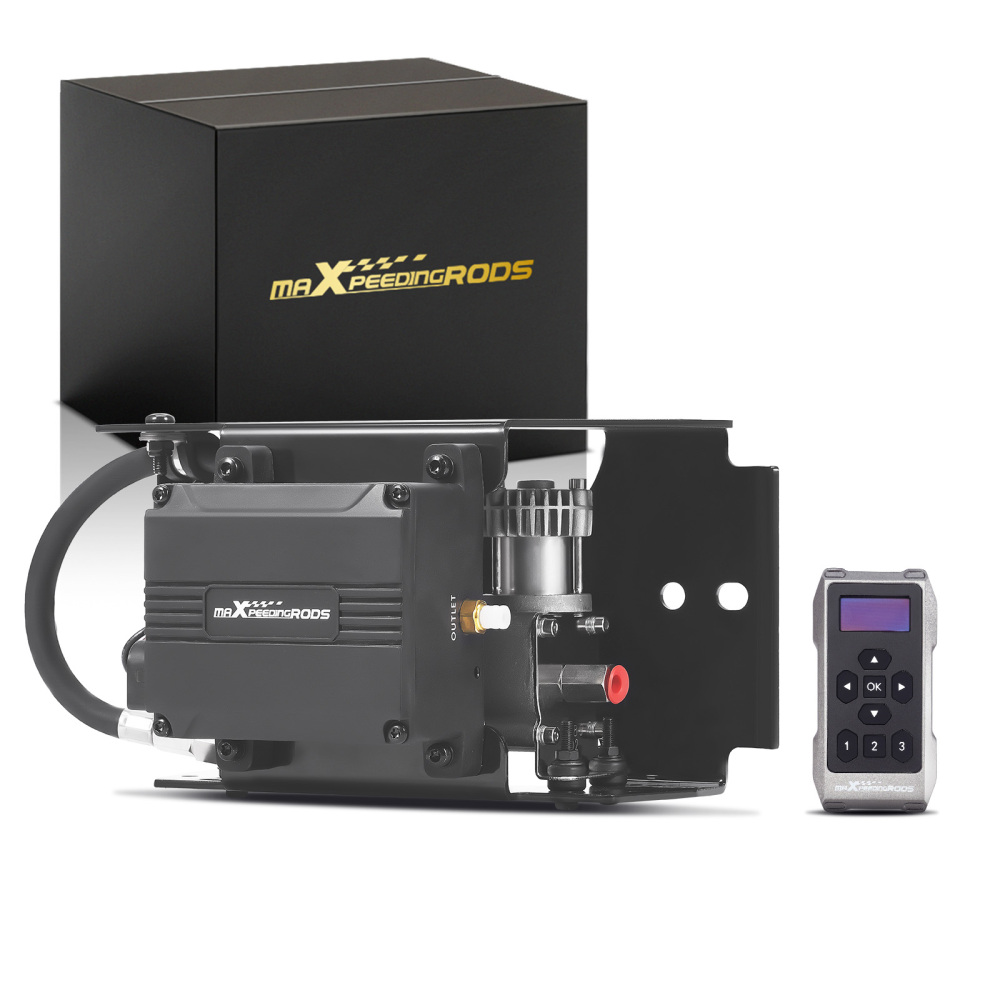

About the wireless air spring controller kit

Description & Feature:

MaXpeedingrods Wireless Controller Kit allows you to adjust the air springs from inside and outside the cab using a handheld remote controller or smartphone, eliminating the need for wiring and drilling holes in the cab. Moreover, it can be pre-set to meet your needs in different situations. At the same time, it can be used with any brand of air spring bags. Also, MaXpeedingrods Wireless Air Controller Kit comes with complete instructions for easy installation and is 1 year warranty, which is very easy-to-use and reliable.

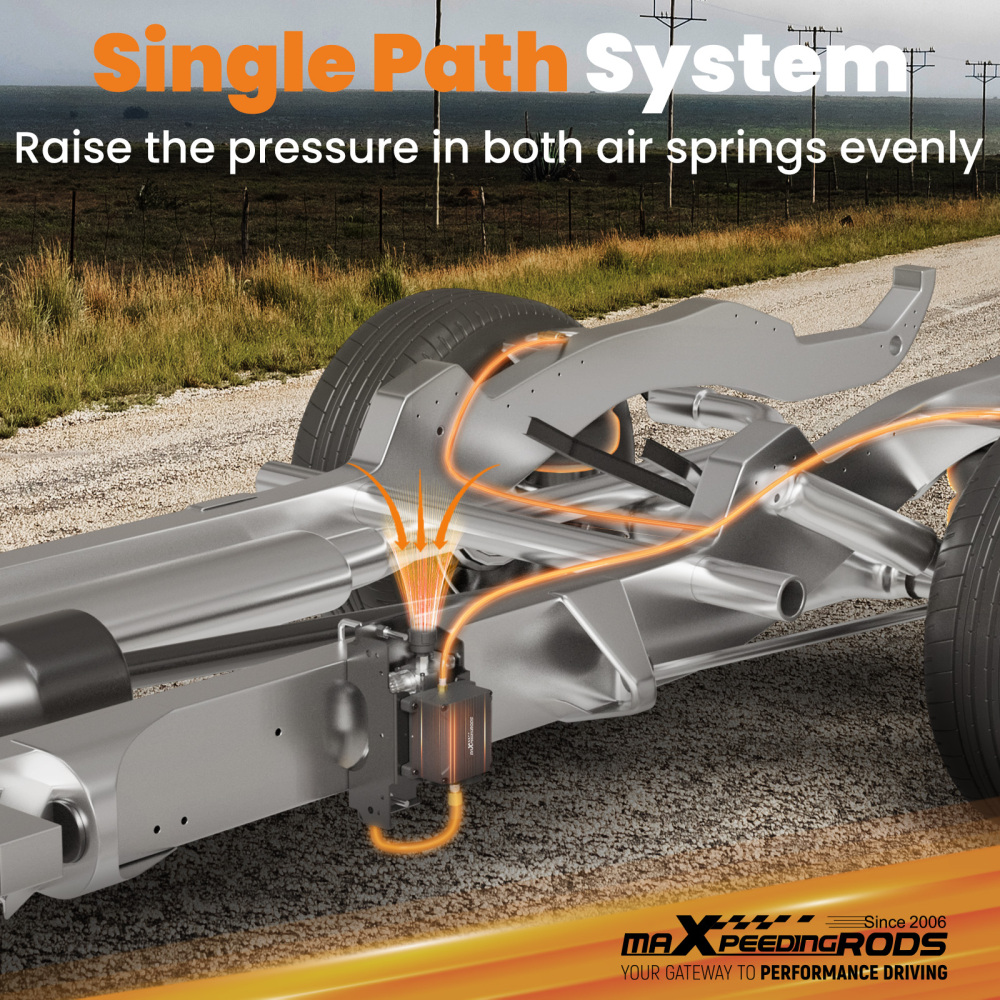

• 1. Single-path controls let you adjust 1 pair of any brand air springs.
• 2. Heavy-duty compressor, Maximum air pressure is 120 psi.

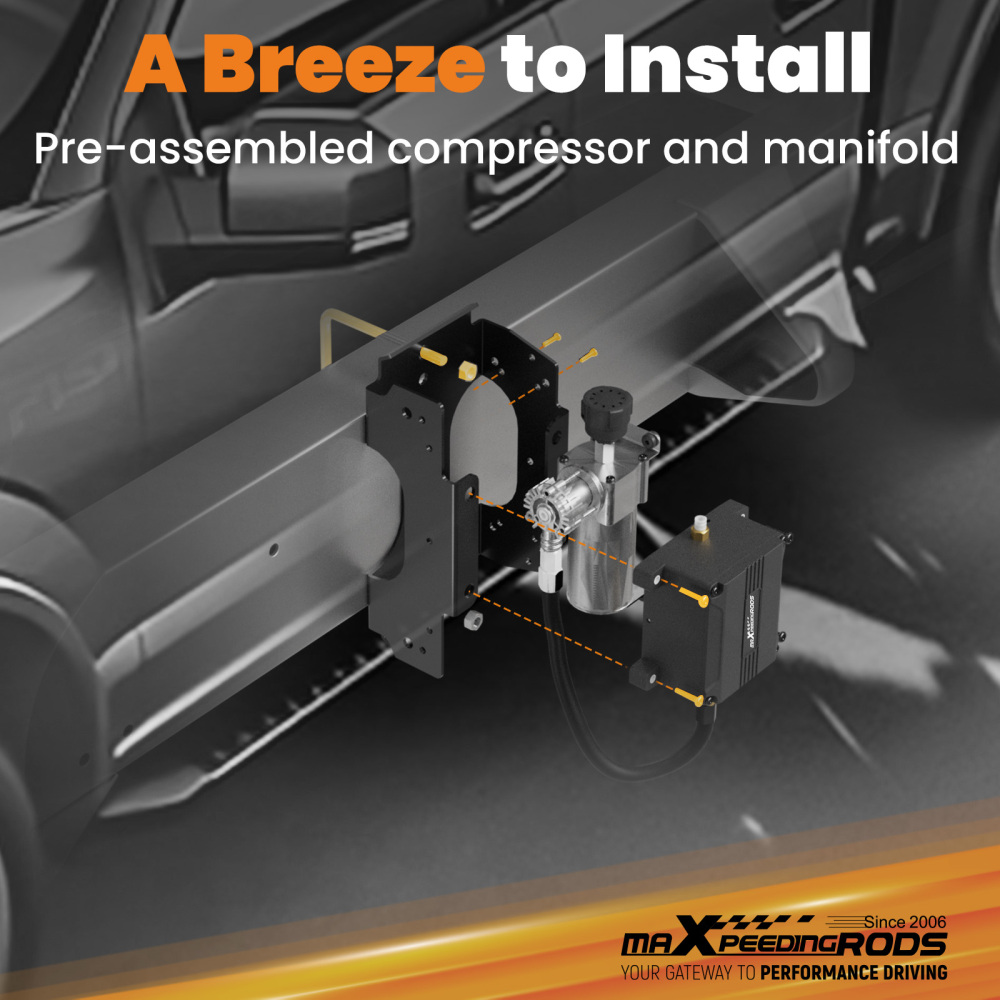

• 3. Convenient and quick all-in-one installation.

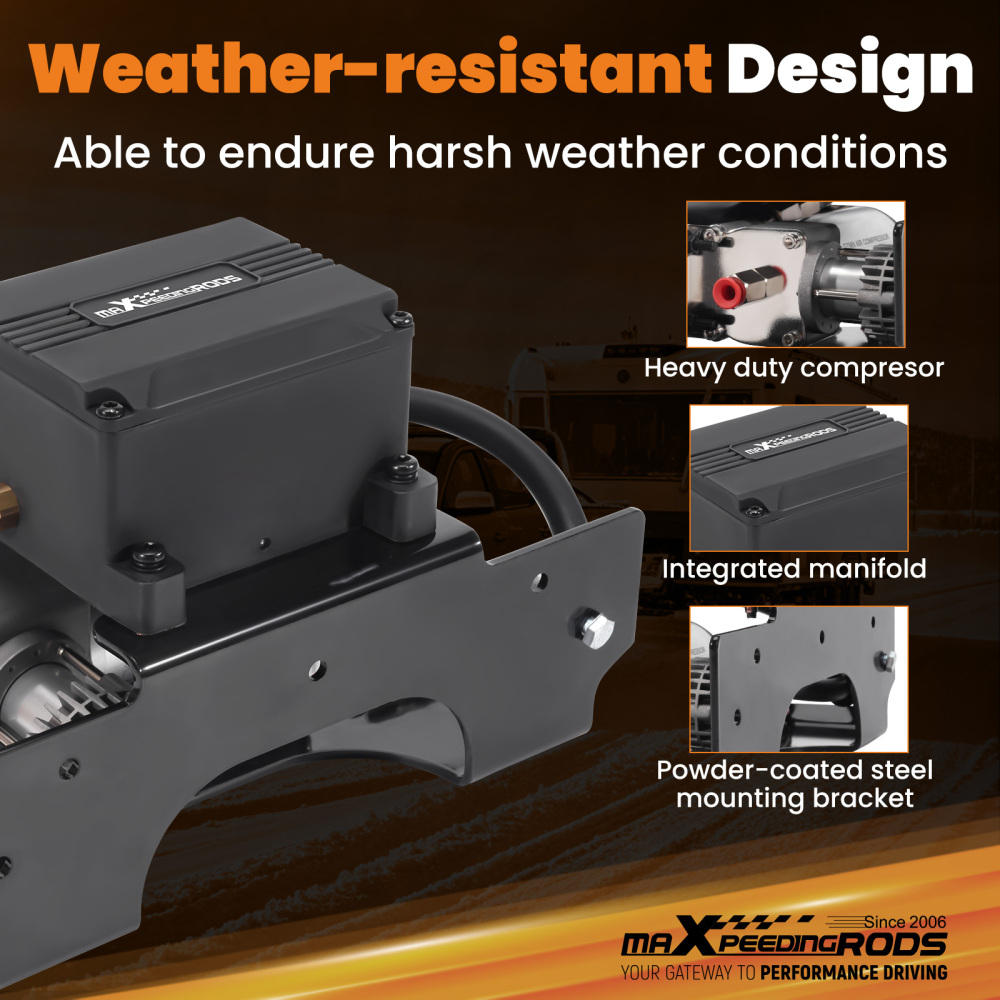

• 4. Professionally designed integrated manifold.
• 5. No air lines or wiring harnesses are required in the cab.
• 6. A wireless controller can activate the compressor from inside or outside the cab.
• 7. Free app turns your phone into a fully functional controller.
• 8. Three preset values can be customized to meet the needs of different scenarios.
• 9. The integrated installation can meet the installation requirements of various models.
• 10. 100% factory tested to be leak free.
• 11. Recommended working pressure: 50-70 PSI.
• 12. The compressor undergoes rigorous fatigue testing to ensure quality.
• 13. The air controller kit has passed the rigorous salt spray testing.
• 14. The connection signal between the remote control and the application APP is very stable within a range of about 20 meters from the vehicle.
• 15. The wireless remote control is factory matched to be used directly.

Warranty: one year for Any Manufacture Defect

Notice:

*There' Instruction; professional installation is suggested.
* Please do not hesitate to contact us for anything we can help
