Wide Angle Steering Kit Drift Drifting Lower Control Arms compatible for BMW E46 1999-2005

Application:

for E46 models 3-series 1999-2005: 320i, 323i, 323ci, 323cic, 325i, 325ci, 325cic, 325xi, 328i, 328ci, 328cic, 330i, 330ci, 330cic, M3

Specification:

- Material: Steel

- Finish: Powder-coated

- Placement on Vehicle: Front, Rear, Left, Lower, Right

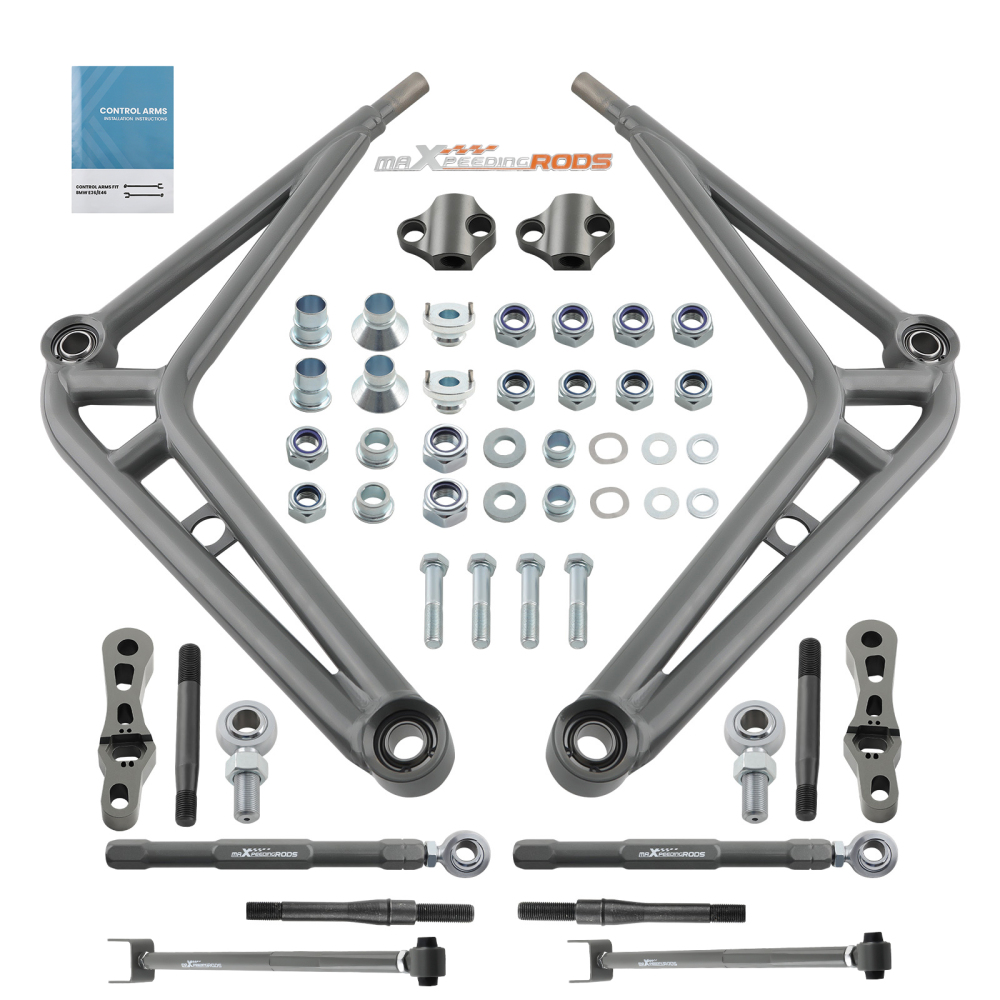

Package Includes:

- L+R Rear Lower Adjustable Camber Arm Kit

- L+R Control Arms with Pillow Ball Bearings and Sway Bar Link Mounts
- Adjustable Rose Joint Lower Control Arm Bushings
- Extended Tie Rods with Pillow Ball Bearings
- Lock Adapter with Adjustable Ackerman (For Drift or Grip)
- All bolts and nuts included for installation

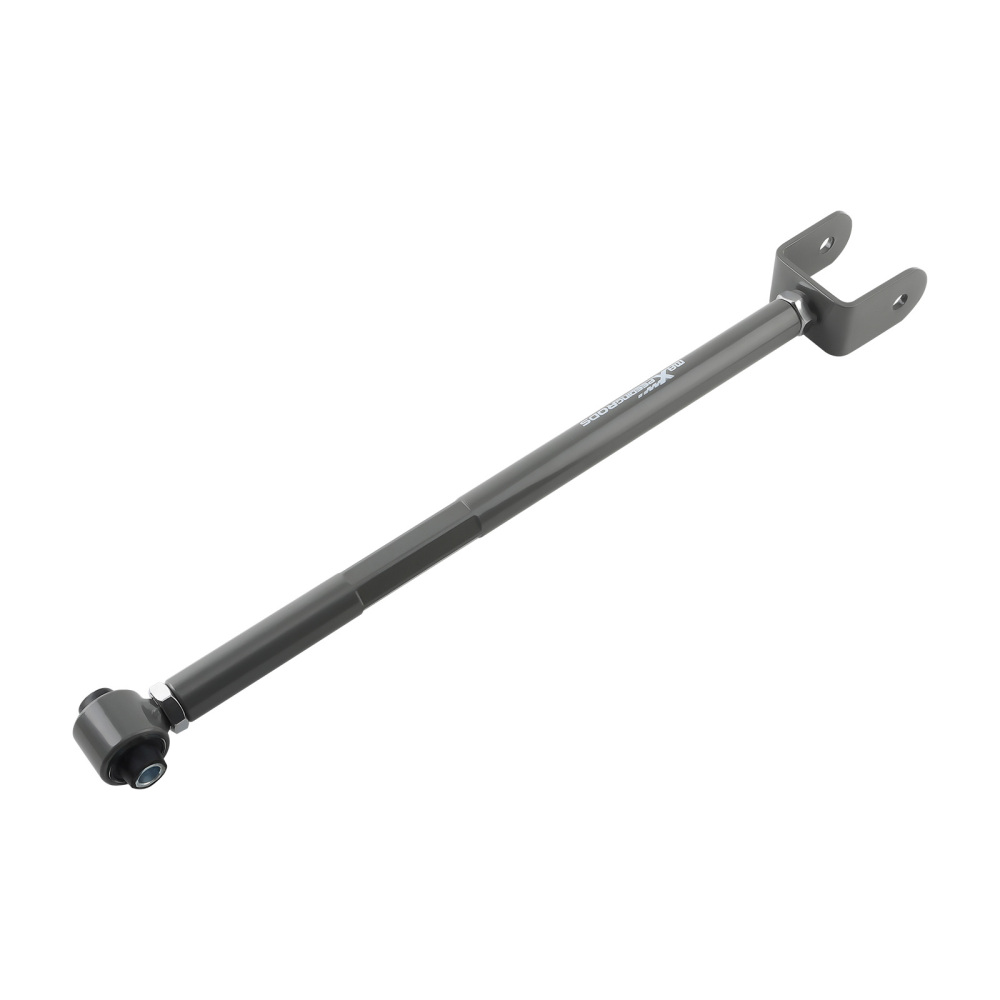

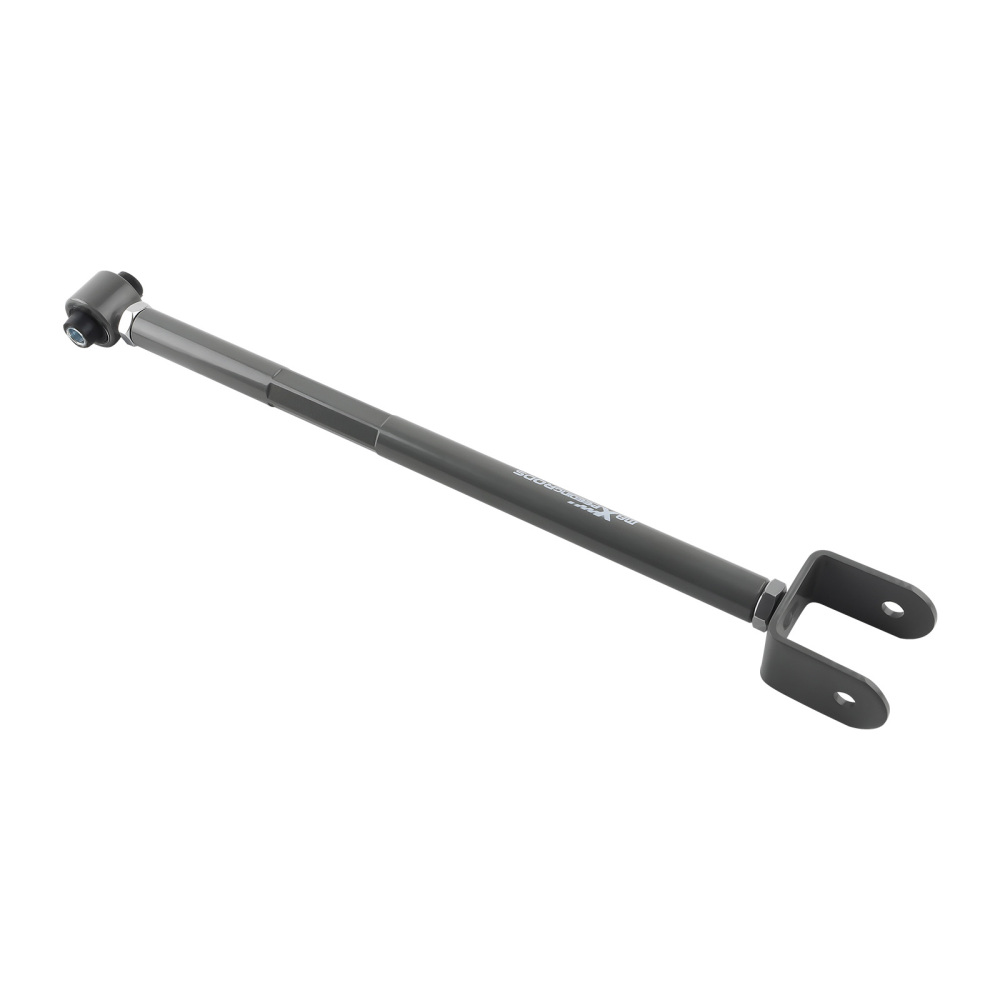

Rear Lower Camber Arm:

* Eye-to-eye Length range: 525-570mm/20.67''-22.44''
* Notes: Allows For +3.0 To -1.0 Degrees Of Rear Lower Camber Adjustment

* Bushing:
   Inner diameter; width: φ12; 55.5mm
   Outer diameter; width: φ32; 32mm
* Nuts: M18*1.5

Front Control Arm Kit:

- High-Strength Alloy Steel
- Forged ball joint with CNC precision machining
- Powder-coated Finish with long time Rust protection
- Ball bearing bushing with Dust proof design
- Track is increased by 50mm each side, steering angle is increased to 70°, steering ratio is quickened by approximately 40%

Note:

- Please feel free to contact us for whatever we can help.

- Professional installation is highly recommended.
