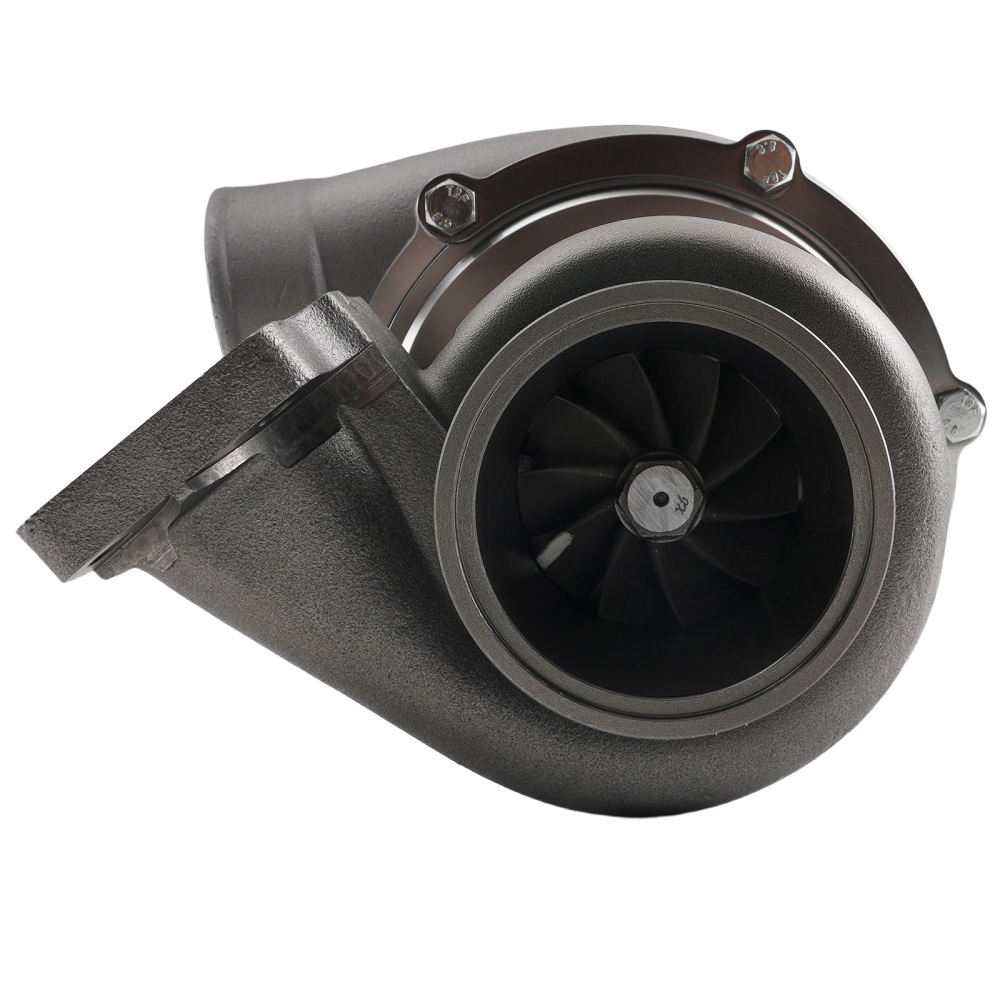

Upgraded Billet GT35 GT3582 T3 0.7 AR Turbo 600HP w/ Oil Supply Return Line Kit

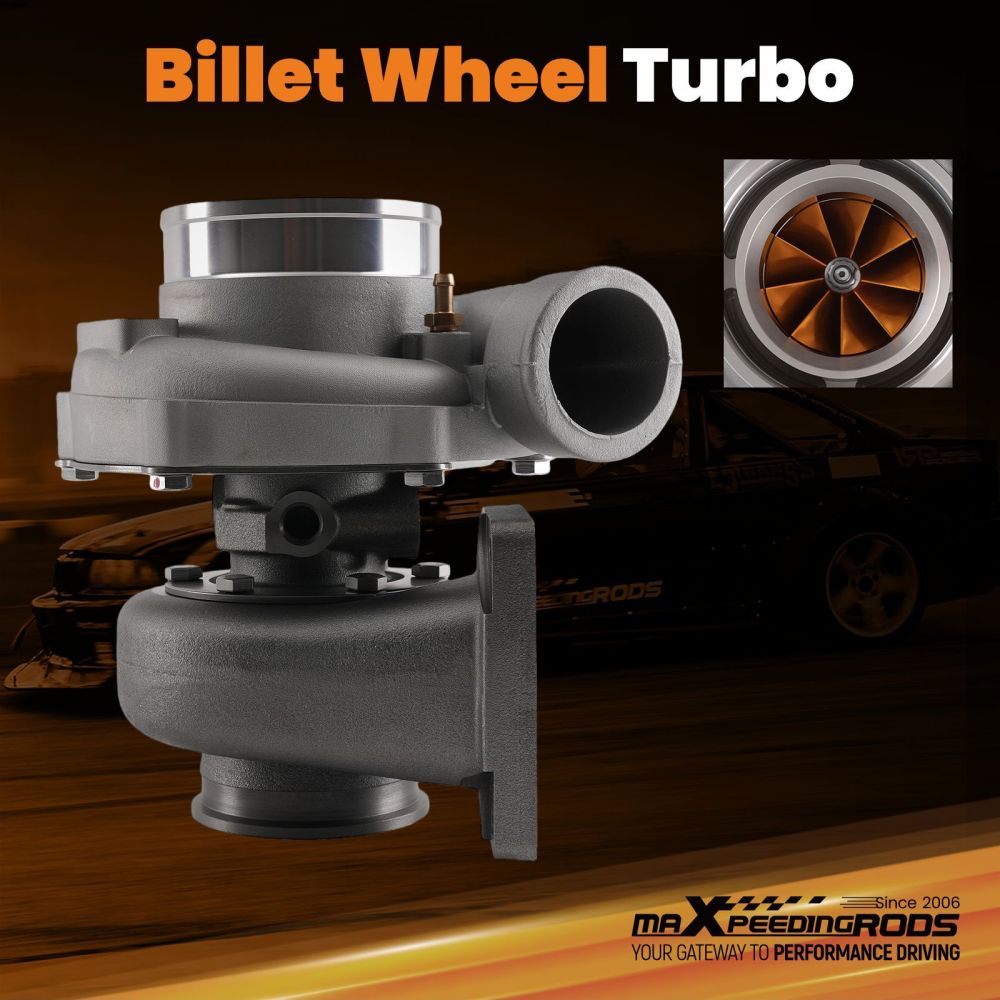

Billet Wheel GT3582 Universal Replacement Turbocharger w/ Oil Lines

Application

Perfect for all 4/6 cylinder and 2.5L-6.0L engines
Capable of Boosting Horse Power up to 600HP

*Notice:Please confirm that there is enough space in your car to install this turbo before purchasing.

Specification:

Turbine Side:

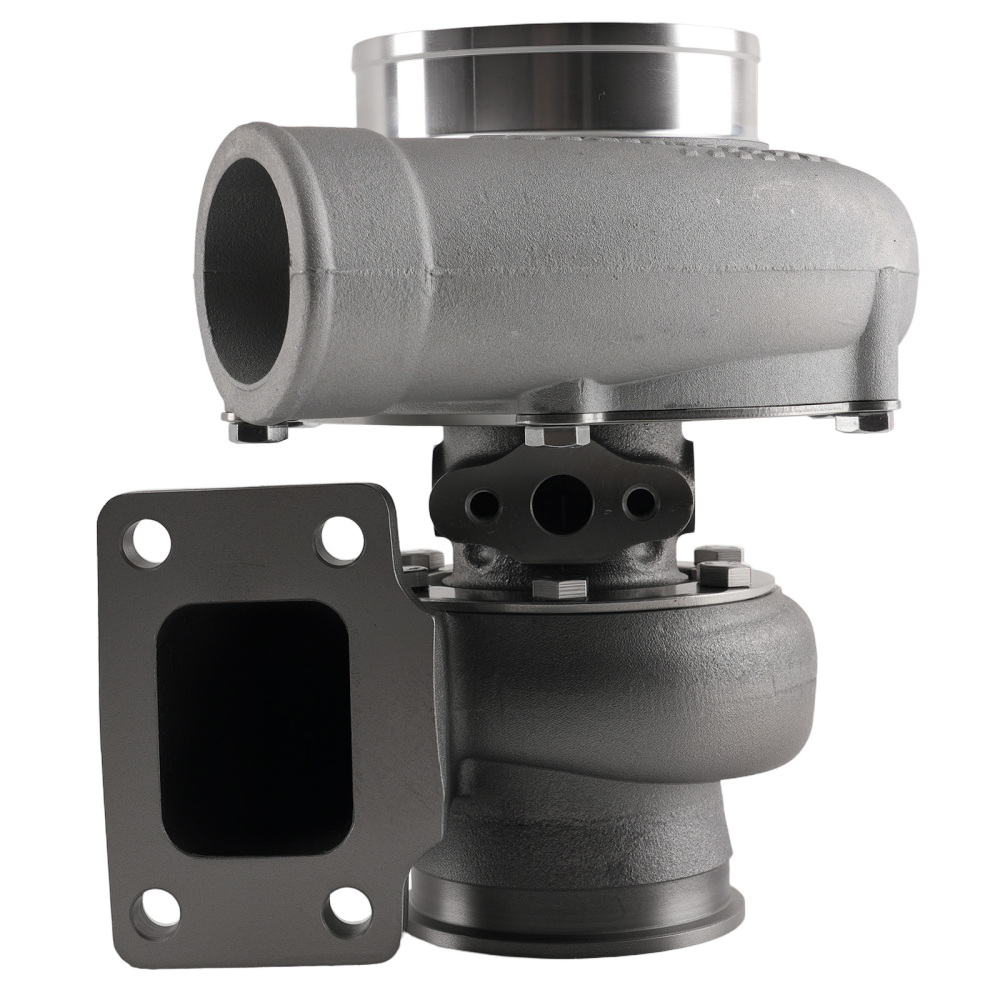

Exhaust Inlet Flange: T3 Flange
Exhaust Outlet Flange:  V-Band
Turbine Trim: 84.2
Turbine A/R: 0.63
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm
Compressor Side:
Compressor Trim: 56.9
Compressor A/R: 0.7
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Compress Inlet Size(Air intake): 4 inch (103.5mm)
Compressor Outlet Size: 2.5 inch (63.6mm)

Bearing Type: Wet Float
Thrust bearing: 270 degree
Cooling Type: Water + Oil Cooling
Horse Power: Up to 600HP
Turbo Type: Individual
Universal Fitment: Yes
Finish: Matte
Wastegate: W/O Wastegate
Oil feed/inlet: M10*7/16-24
Oil drian/outlet: M14.1 & 2*M8*1.25
Water inlet/outlet: M14* 1.5
Maximum PSI: 22
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above
Pakage Size: 26 x 25 x 23 cm
Pakage Weight: 8350g

Turbo Oil Return / Feeding Line Kit:

Turbo Oil Feed + Return Drain Line Kit Combo. It helps circulate oil from the Turbocharger to the oil pan.
The kit provides a anodized look, and gives a best cooling on your turbo and long lasting life.
Turbo Oil returen /Feeding line kit：
* Stainless Steel Braided
* Includes complete install kit
* It helps circulate oil from the Turbocharger to the oil pan.
* The kit provides a anodized look
* gives a best cooling on your turbo and long lasting life.

* Oil Return Line :  Length: 600mm ||  AN10
* Oil Feed Line :  Length: 1000mm || AN4 (7/16"-20) || 1/8npt

Features

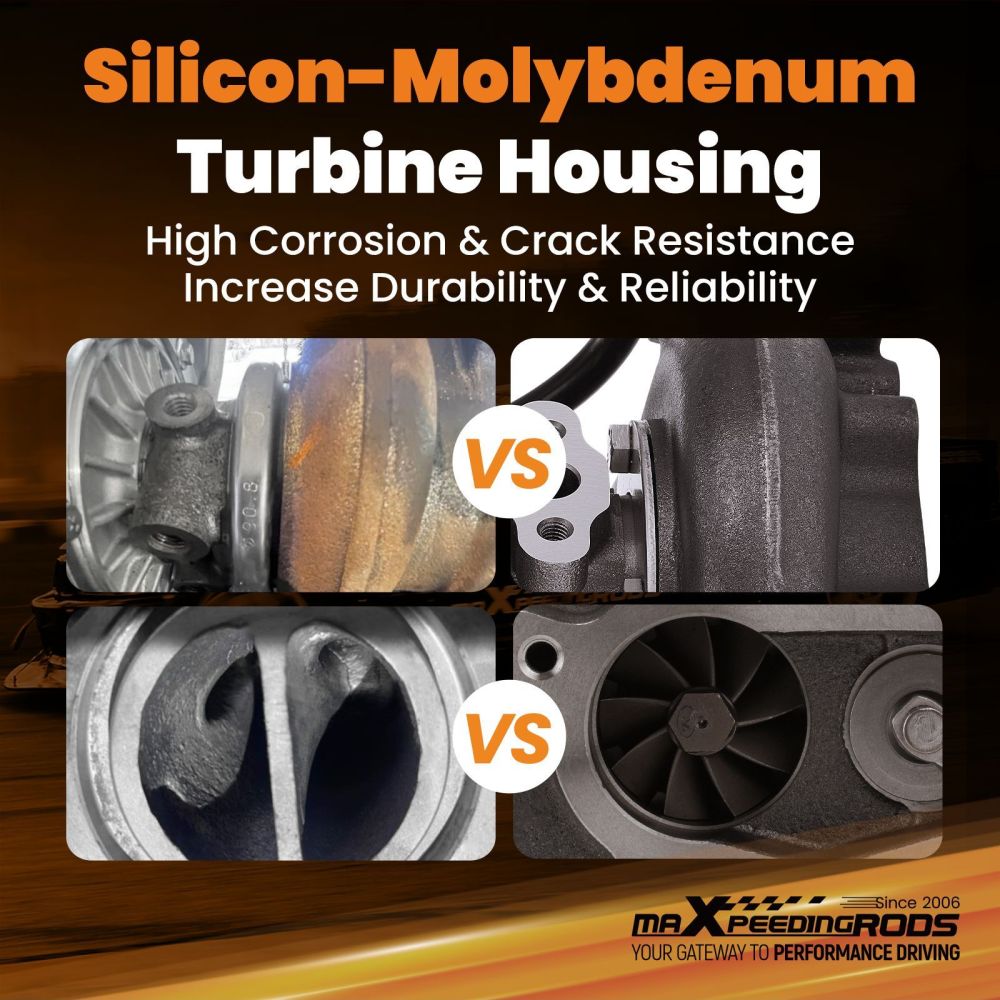

1. Turbine housing: Silicon-Molybdenum - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases durability and reliability.

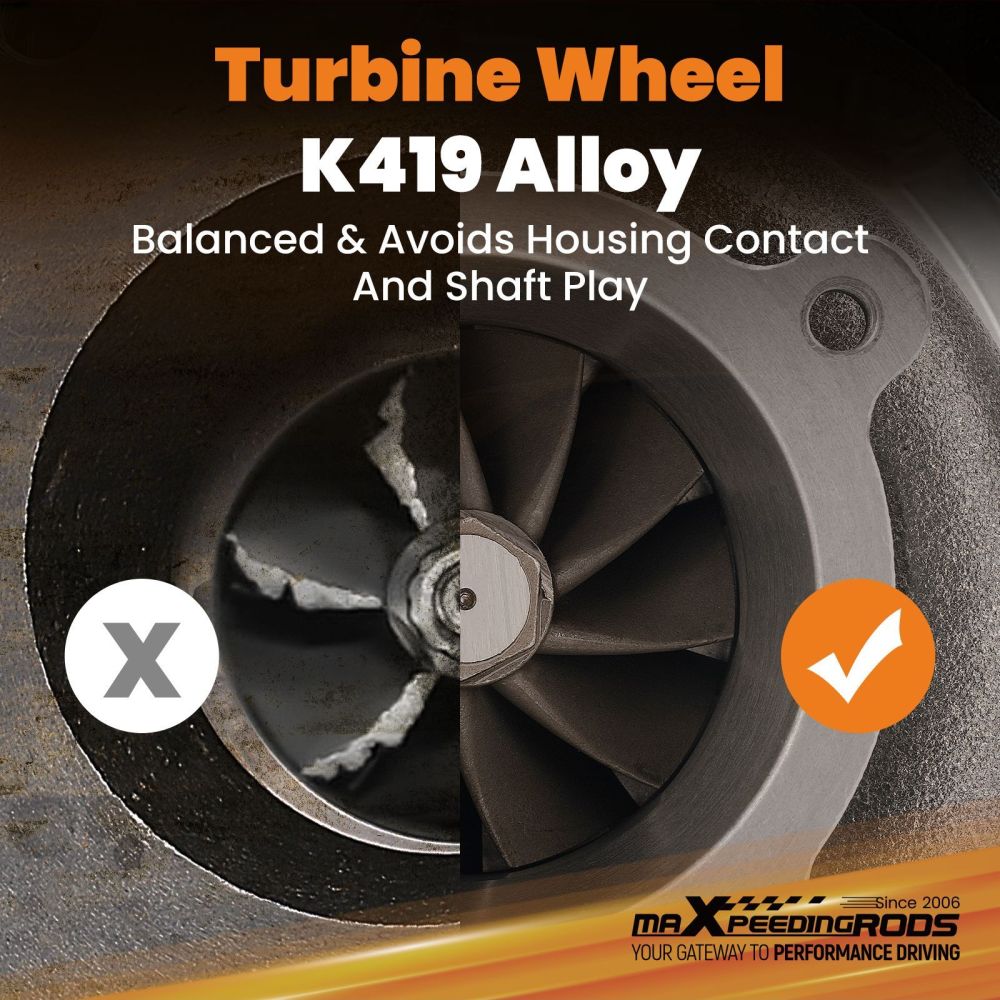

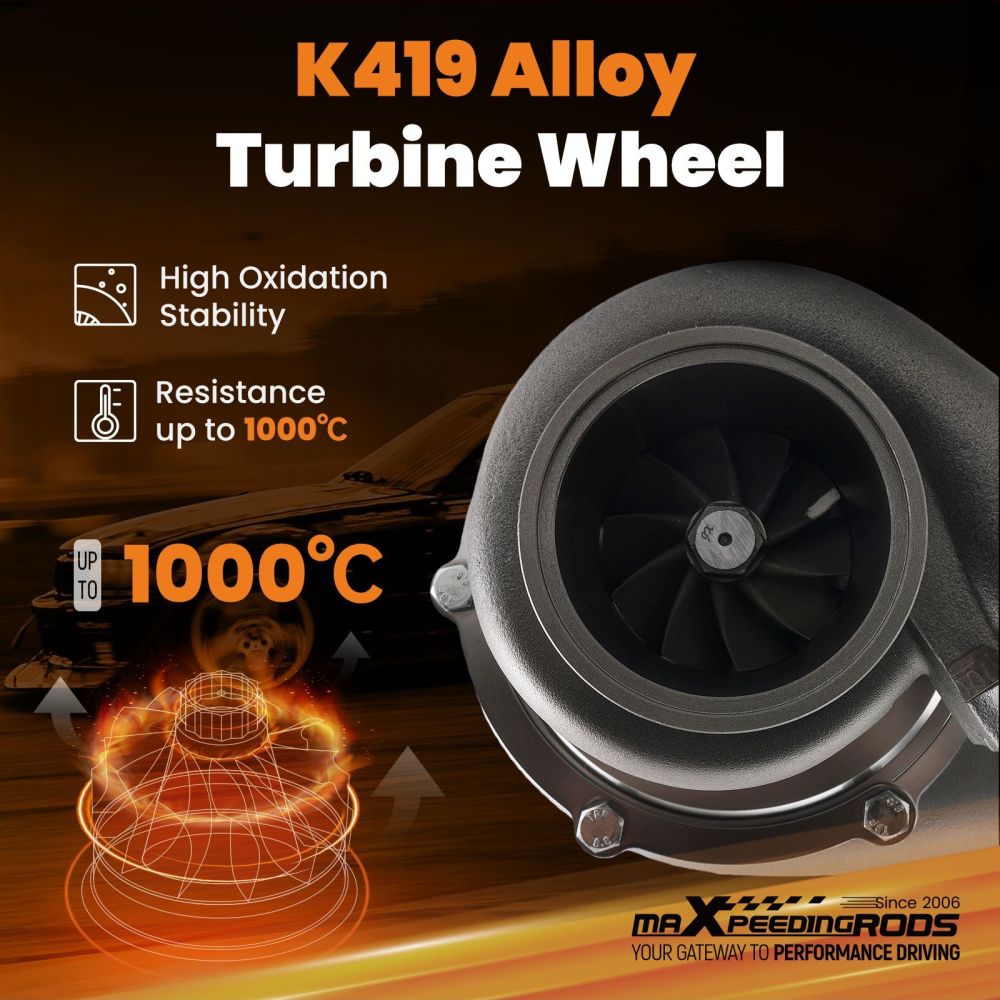

2. Turbine Wheel: K419 alloy - H temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown for smooth reliable operation.

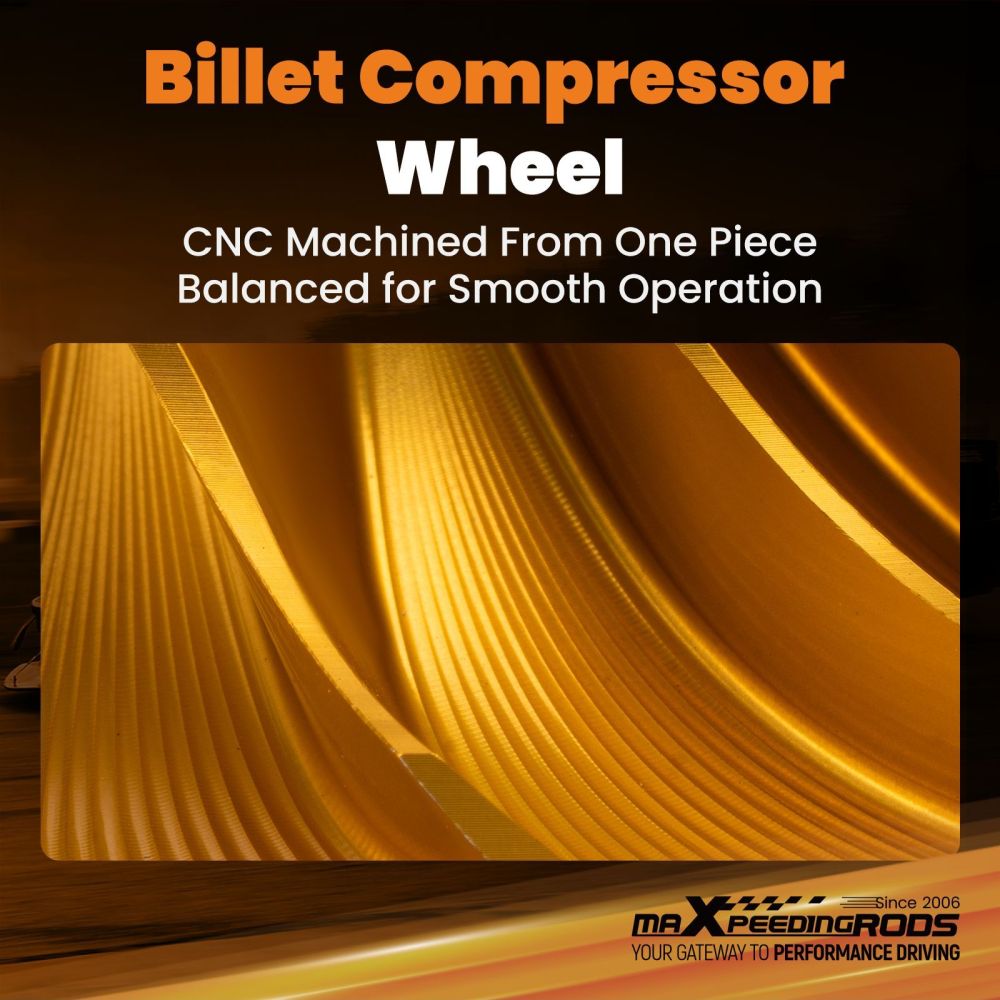

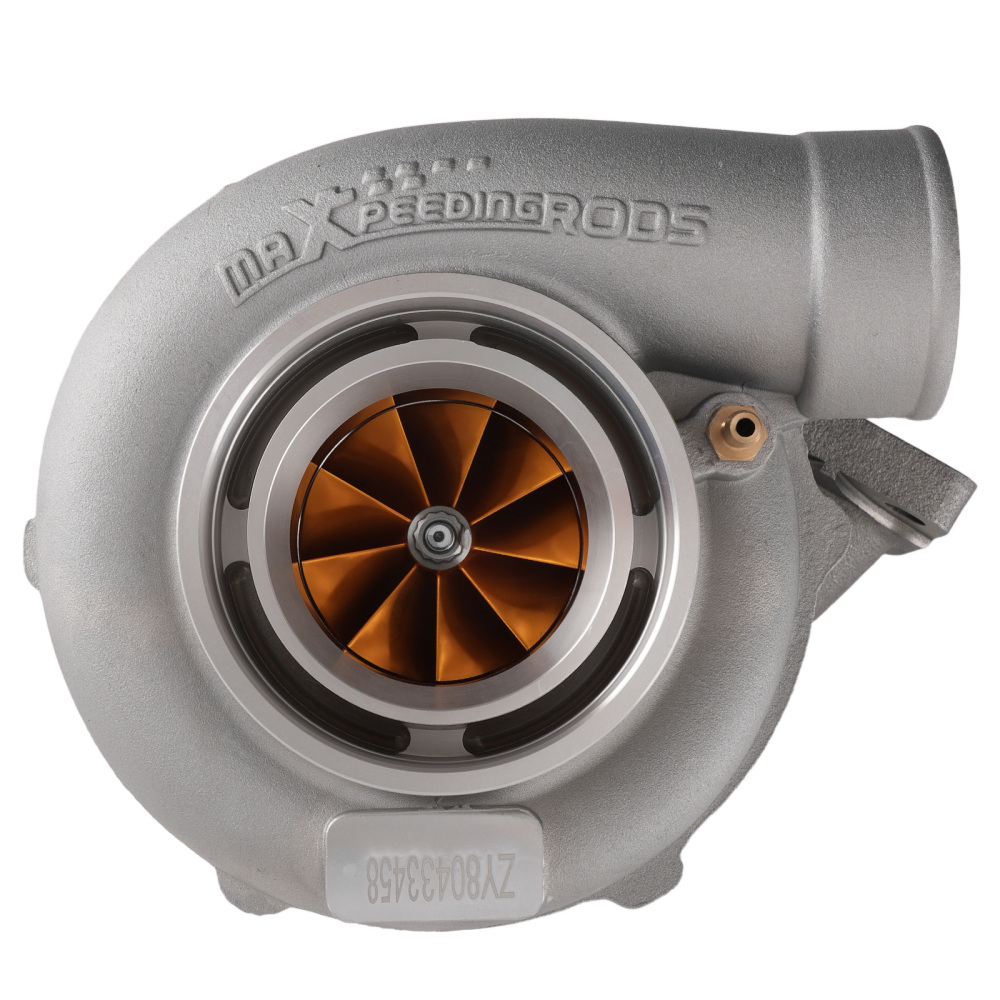

3. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.

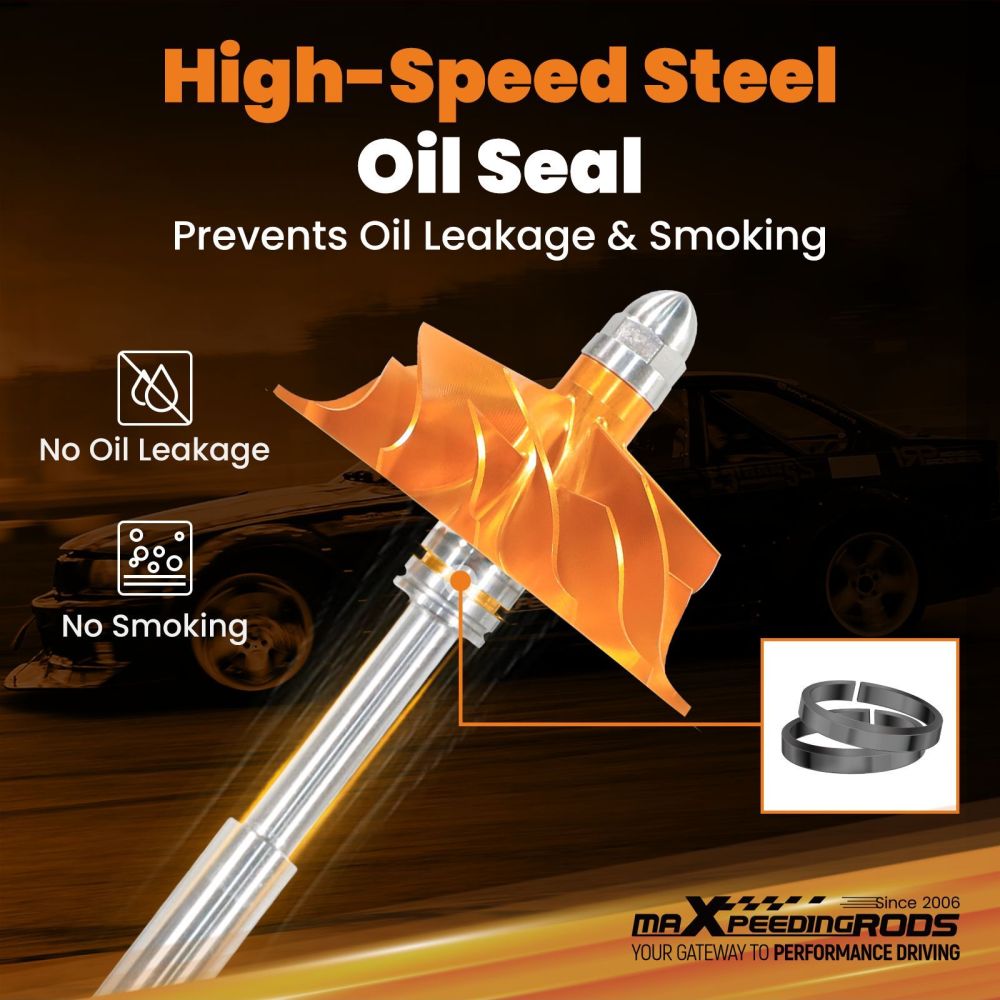

4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.
5. Appearance upgrade
(1) Turbine outlet V-BAND: Easy installation
(2) Anti-surge compressor housing: Increase air intake
(3) New compressor wheel design

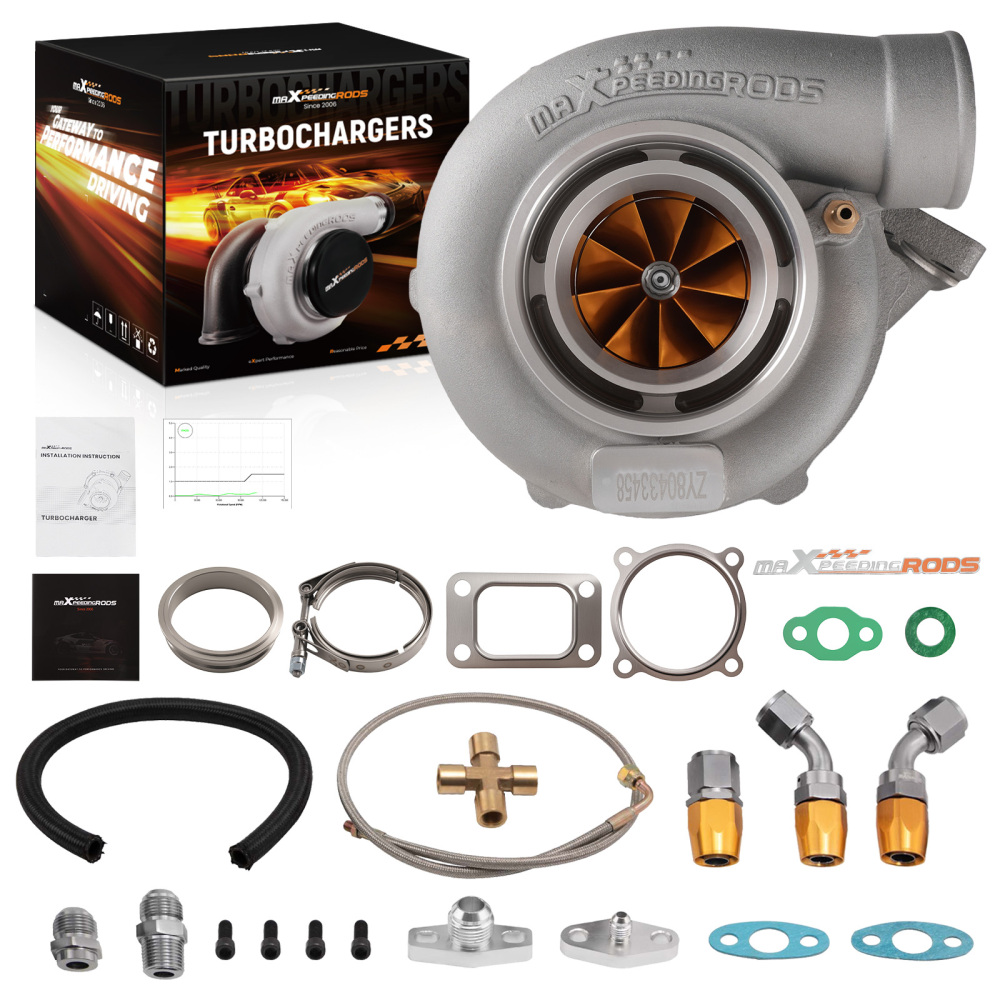

Package included:

1x Turbocharger
2x Flange gaskets
2x Oil feed/drain gaskets
1x V-Band  Flange Adapter Ring & Clamp
1x Oil Line Kit
1x Manual
1x Brochure
1x Sticker

Notice

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
