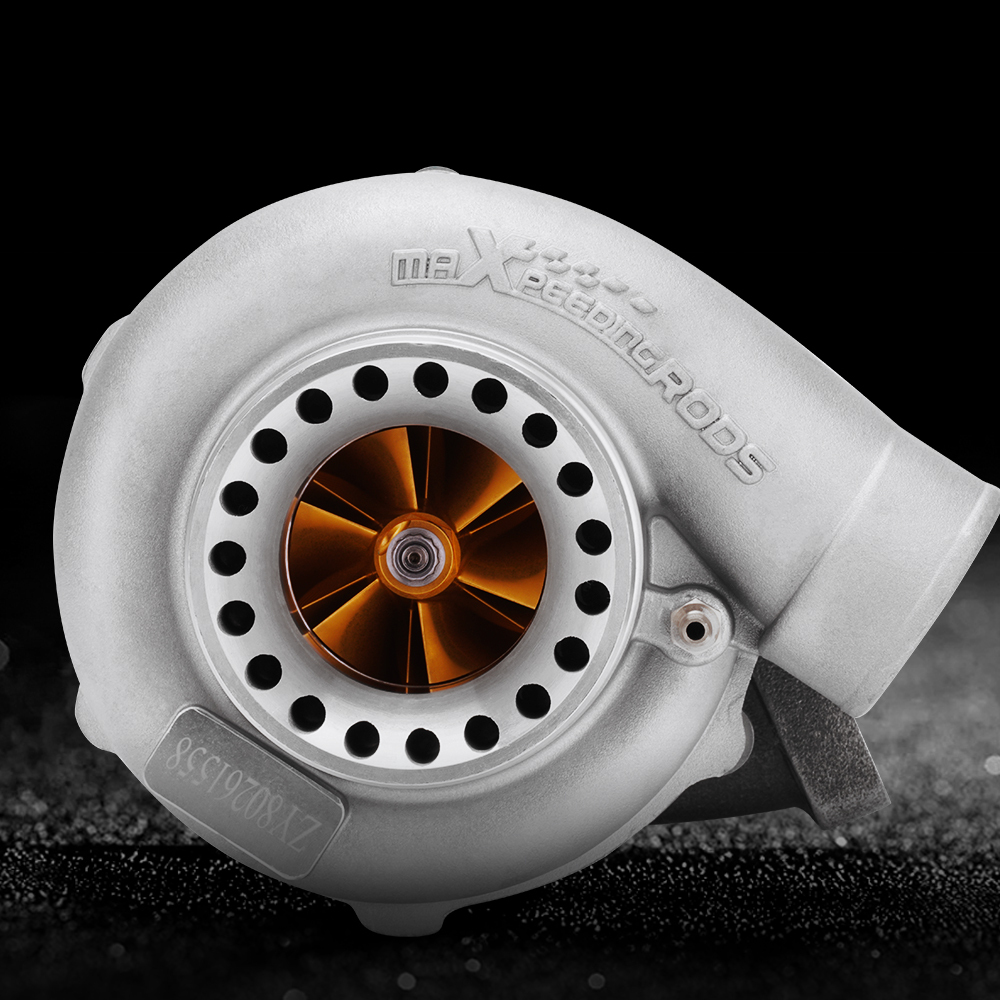

Universal Turbo GT35 GT3582 W/ Titanium Heat Shield Billet T3 .7 4 Bolts 600BHP

Street Billet GT3582 Universal T3 Turbocharger + T3 Turbo Heat Shield Combo Kit | Up to 600HP | For 2.5L-6.0L 4/6 Cylinder Engines

Application

Perfect for all 4/6 cylinder and 2.5L-6.0L engines
Capable of Boosting Horse Power up to 600HP

*Notice:Please confirm that there is enough space in your car to install this turbo before purchasing.

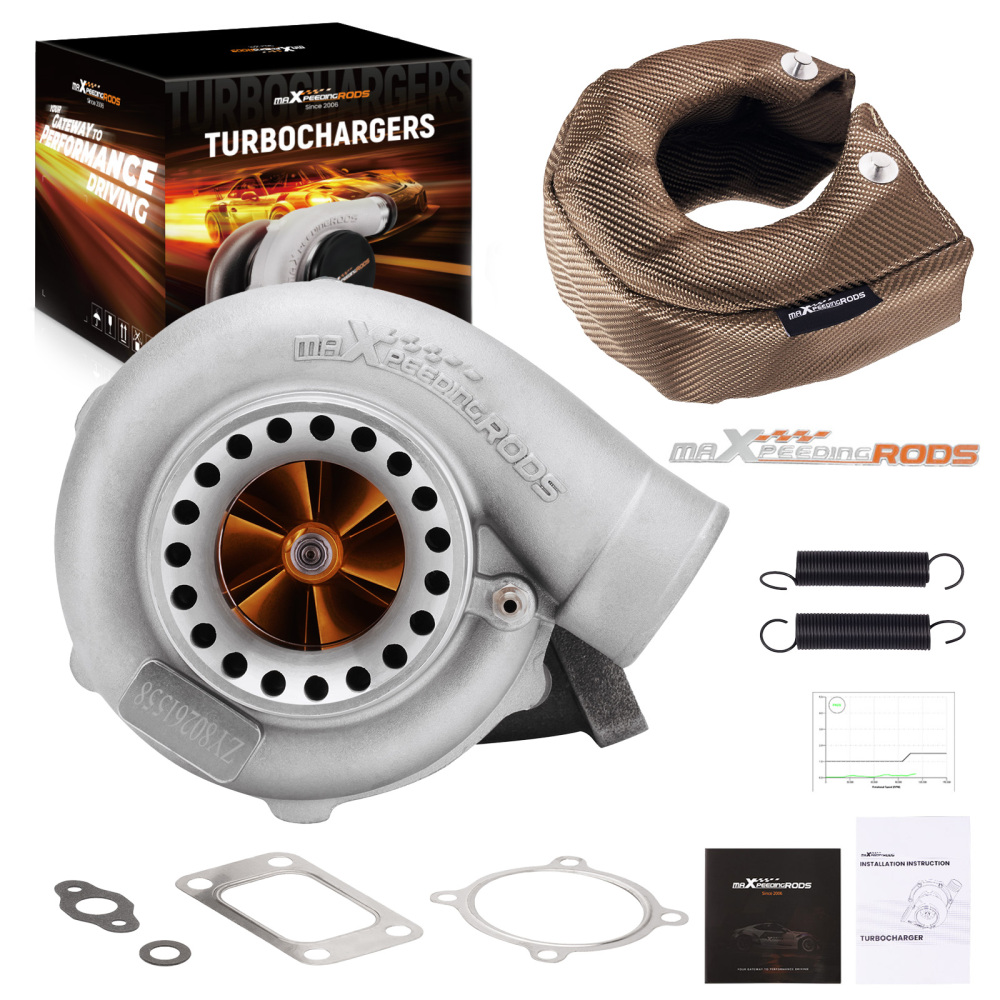

Package Included
Turbocharger Accessories
1 x Turbocharger
1 x Turbo Heat Shield
All items exactly as shown in product images

Specification:

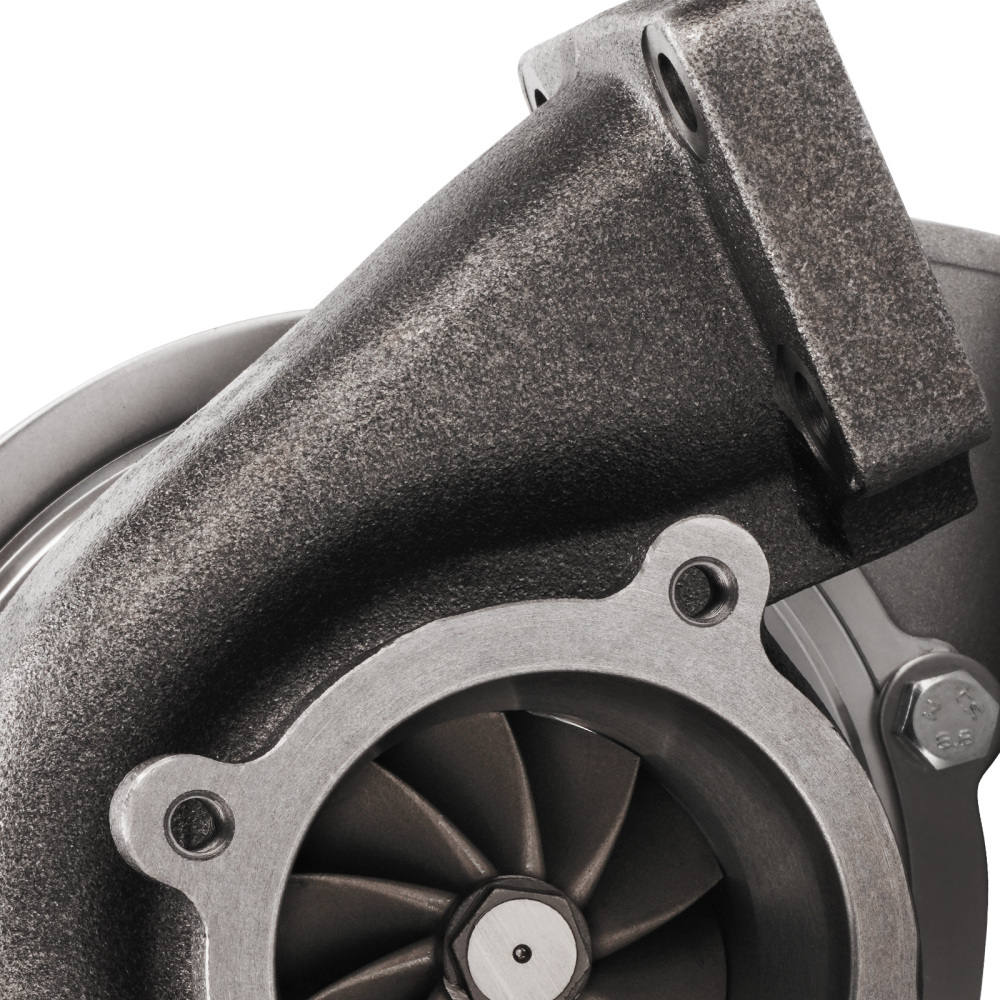

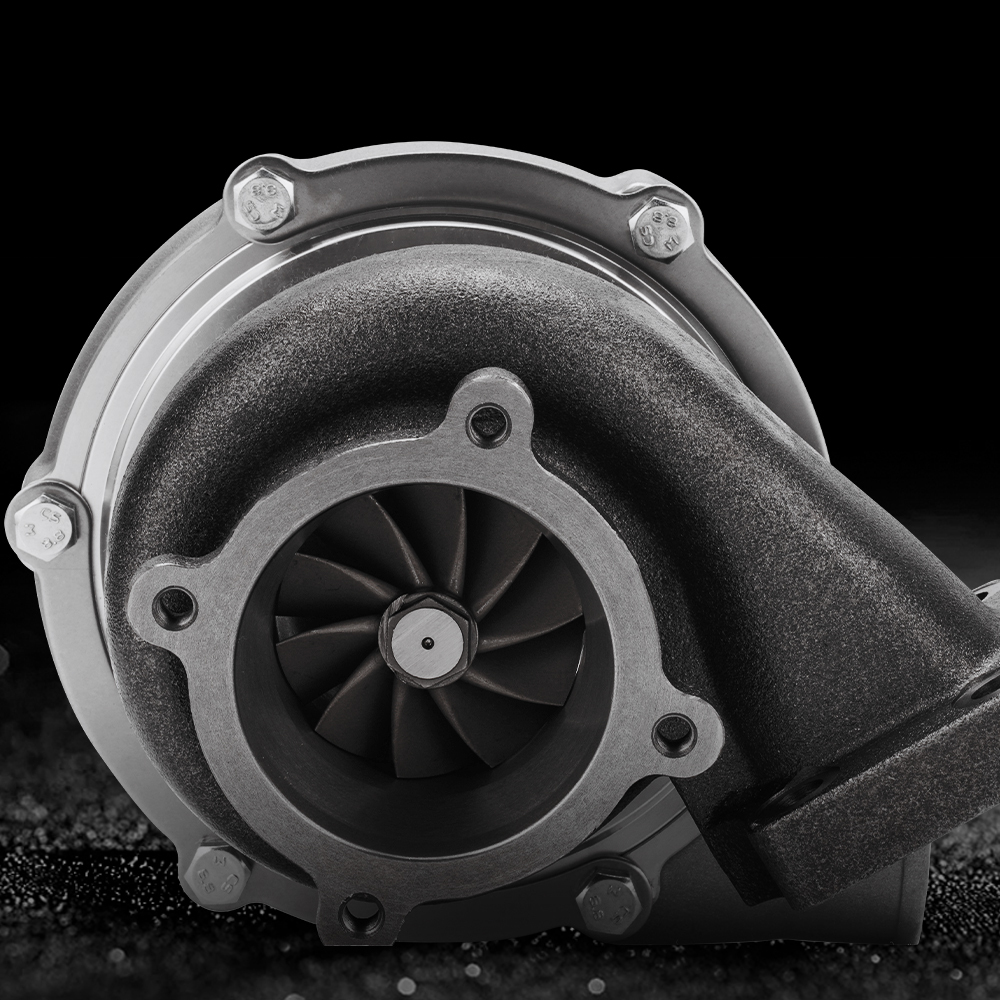

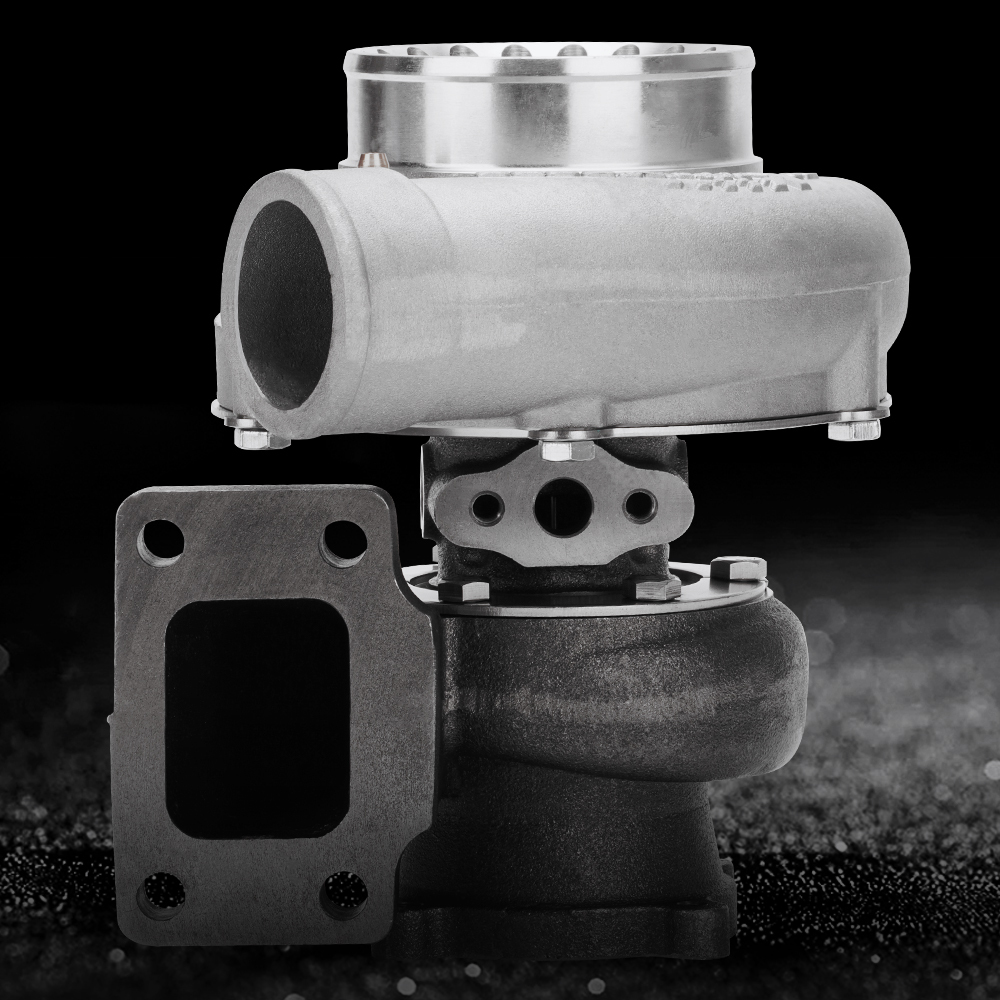

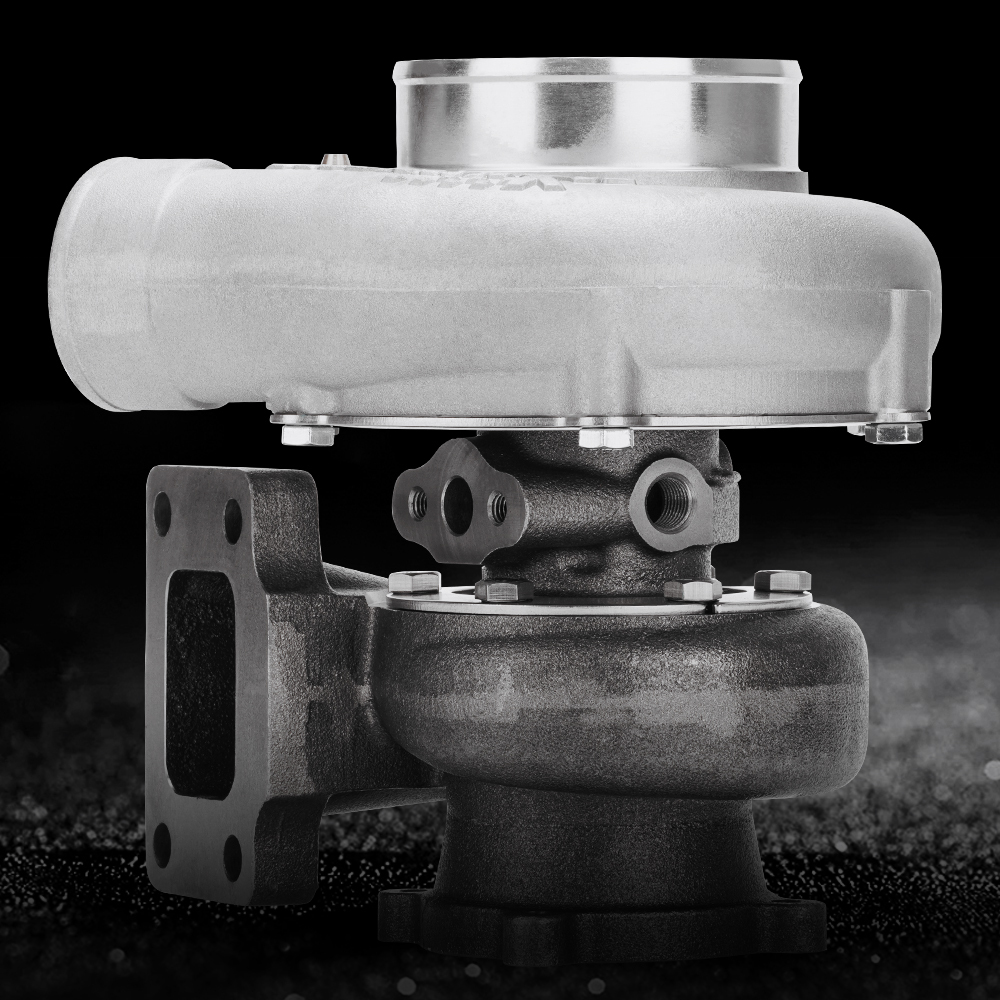

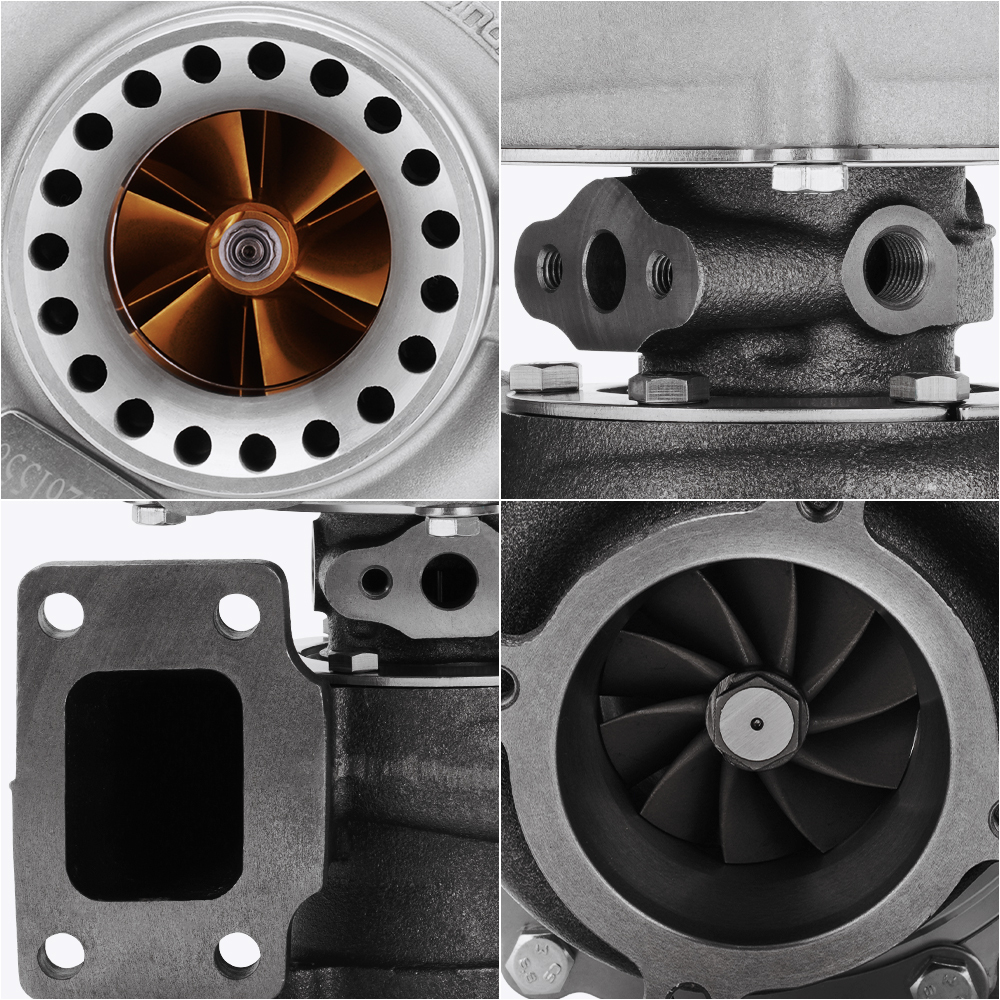

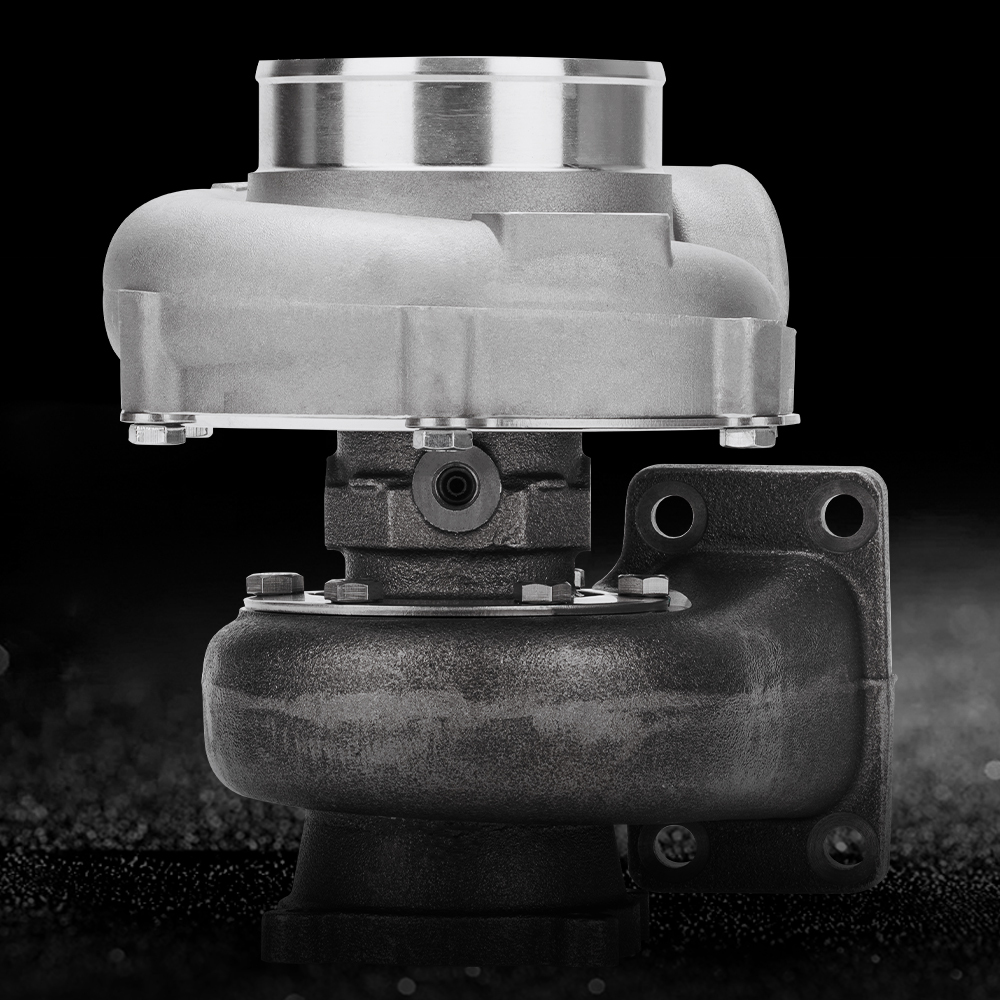

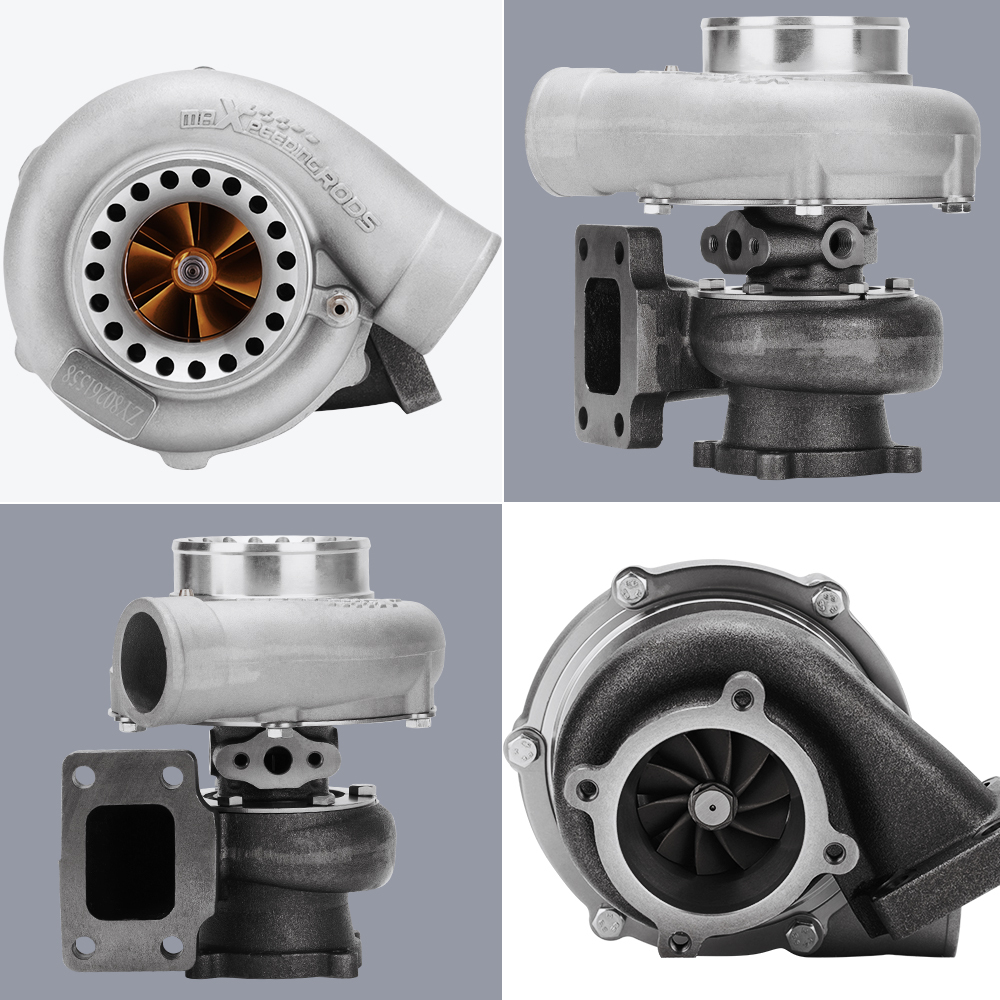

1.Turbo

Turbine Side:
Exhaust Inlet Flange: T3 Flange
Exhaust Outlet Flange: 4-Bolt
Turbine Trim: 84.2
Turbine A/R: 0.63
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm
Compressor Side:
Compressor Trim: 56.9
Compressor A/R: 0.7
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Compress Inlet Size(Air intake): 4 inch (103.5mm)
Compressor Outlet Size: 2.5 inch (63.6mm)

Bearing Type: Wet Float
Thrust bearing: 270 degree
Cooling Type: Water + Oil Cooling
Horse Power: Up to 600HP
Turbo Type: Individual
Universal Fitment: Yes
Finish: Matte
Wastegate: W/O Wastegate
Oil feed/inlet: M10*7/16-24
Oil drian/outlet: M14.1 & 2*M8*1.25
Water inlet/outlet: M14* 1.5
Maximum PSI: 22
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above
Pakage Size: 26 x 25 x 23 cm
Pakage Weight: 8350g

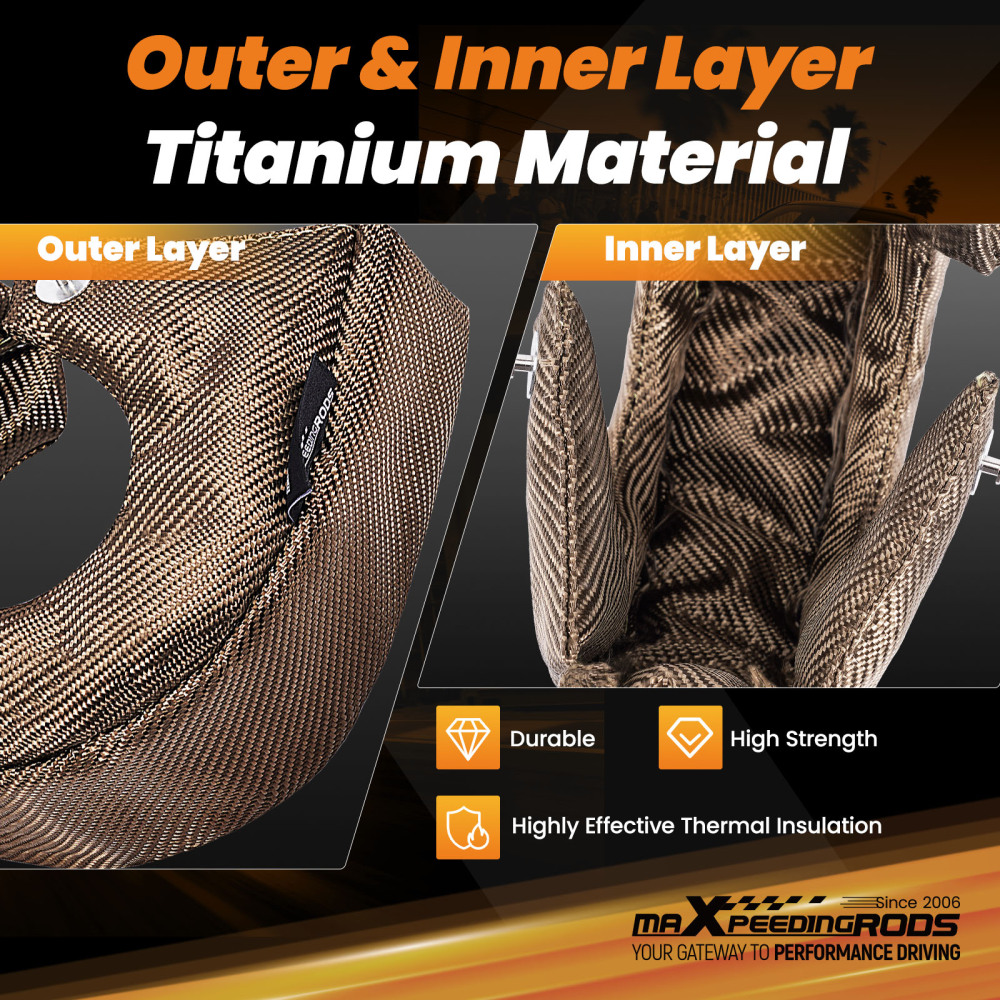

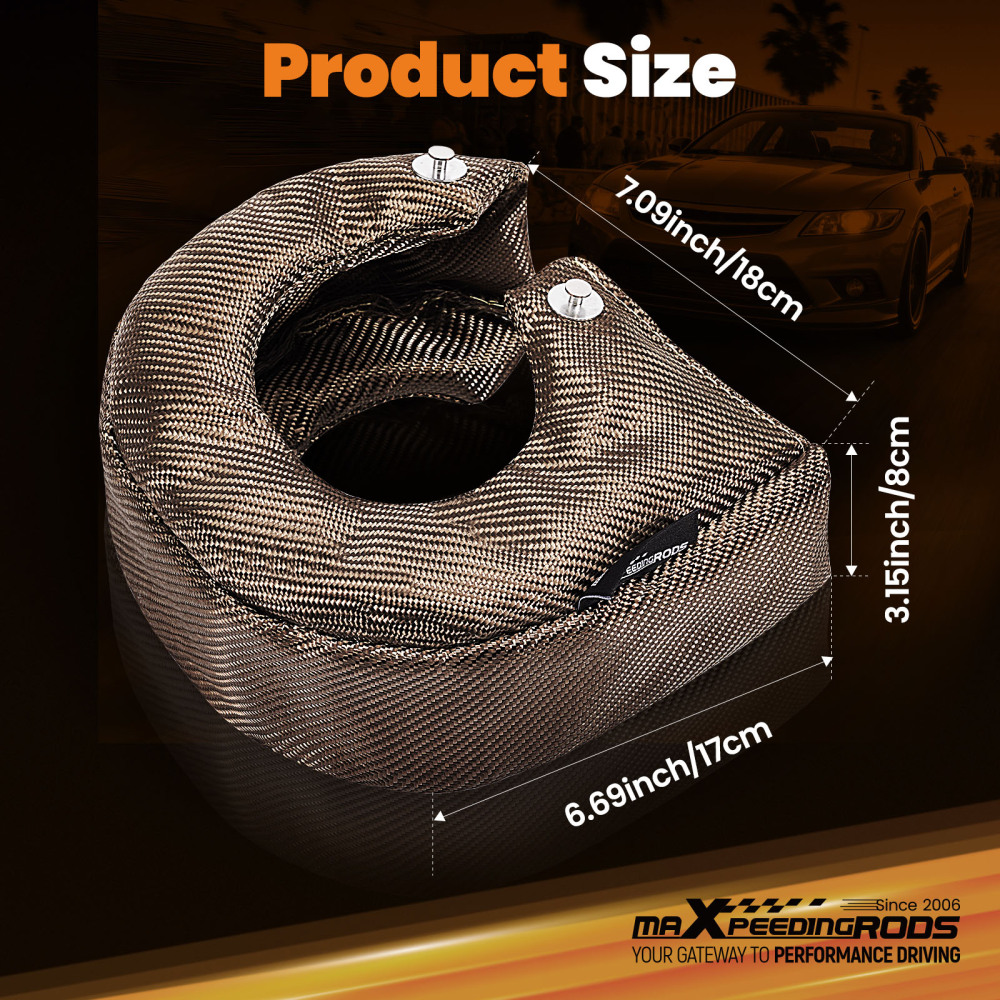

2.Turbo Heat Shield

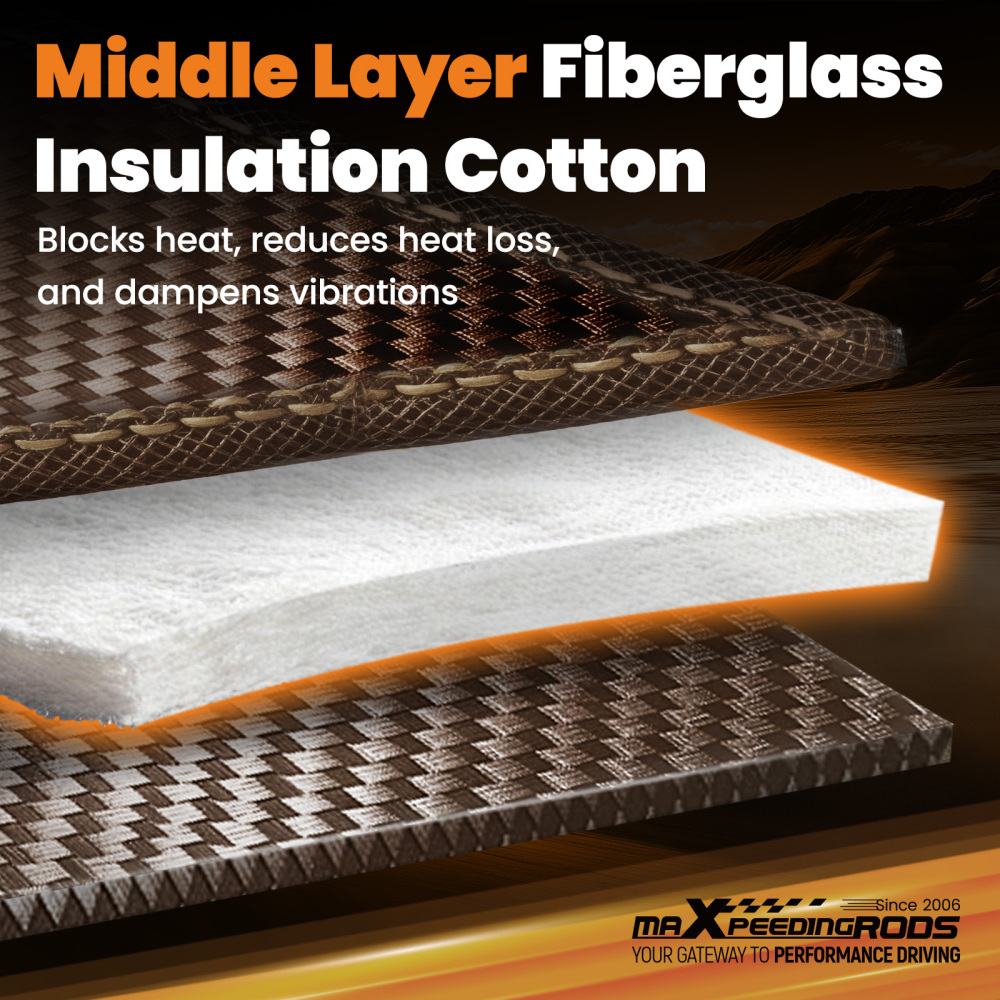

Material: Basalt fiber/Titanium Fiber

Condition: 100% Brand New

Accessories: You will get what you can see in the pictures exactly

Features

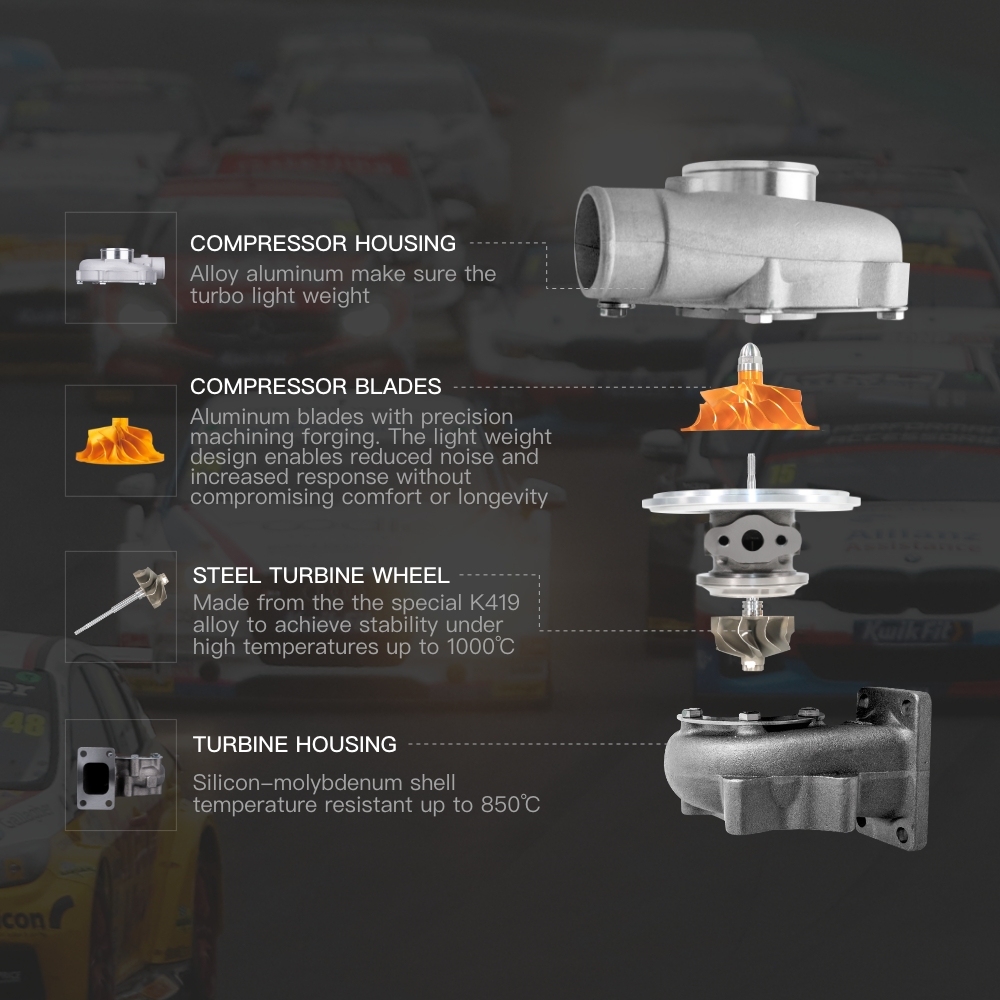

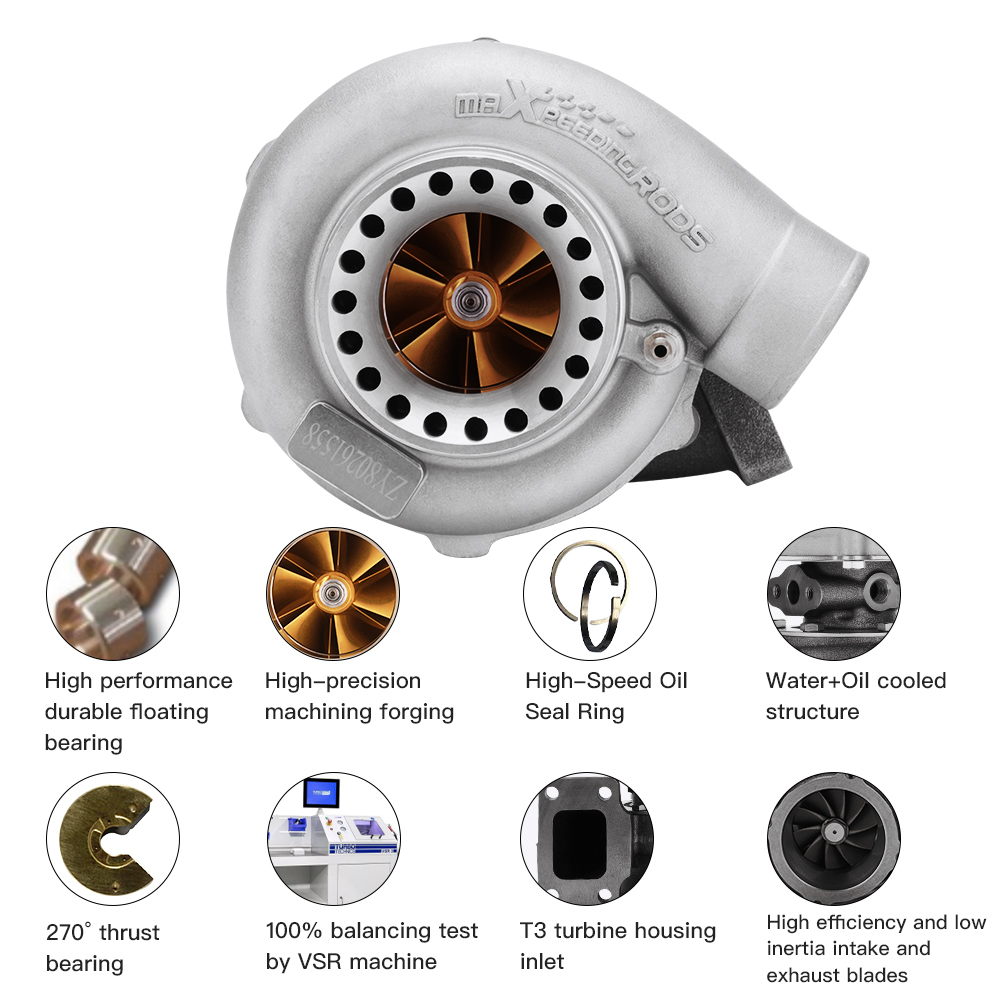

Turbo

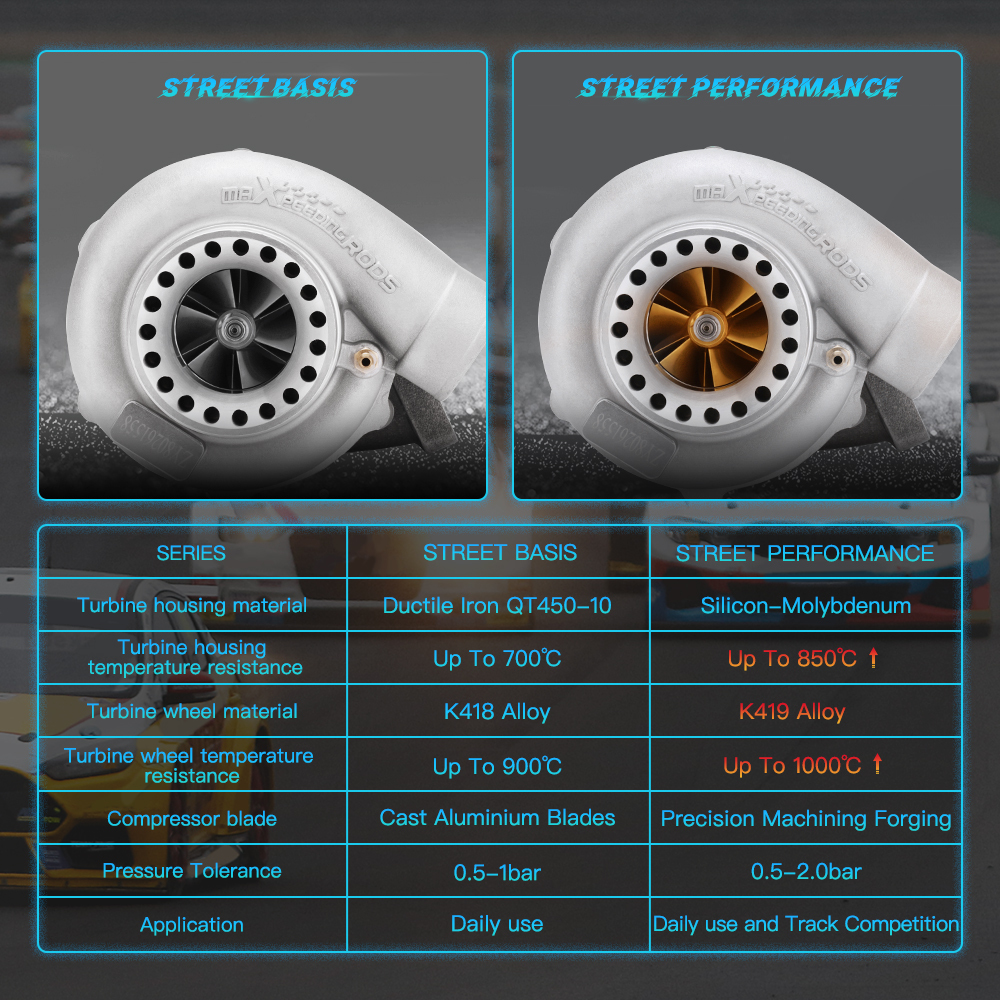

1. Turbine housing: Silicon-Molybdenum alloy steel - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases durability and reliability.

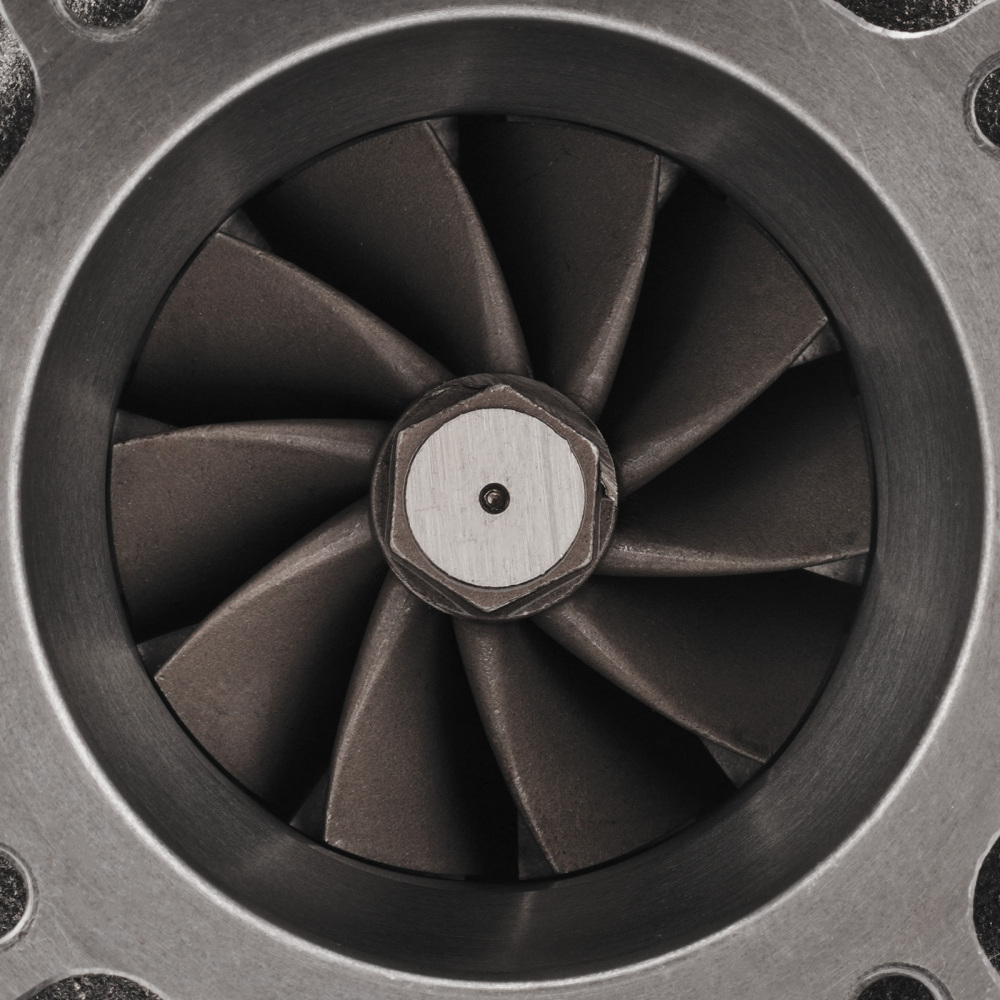

2. Turbine Wheel: K419 alloy - High temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown for smooth reliable operation.

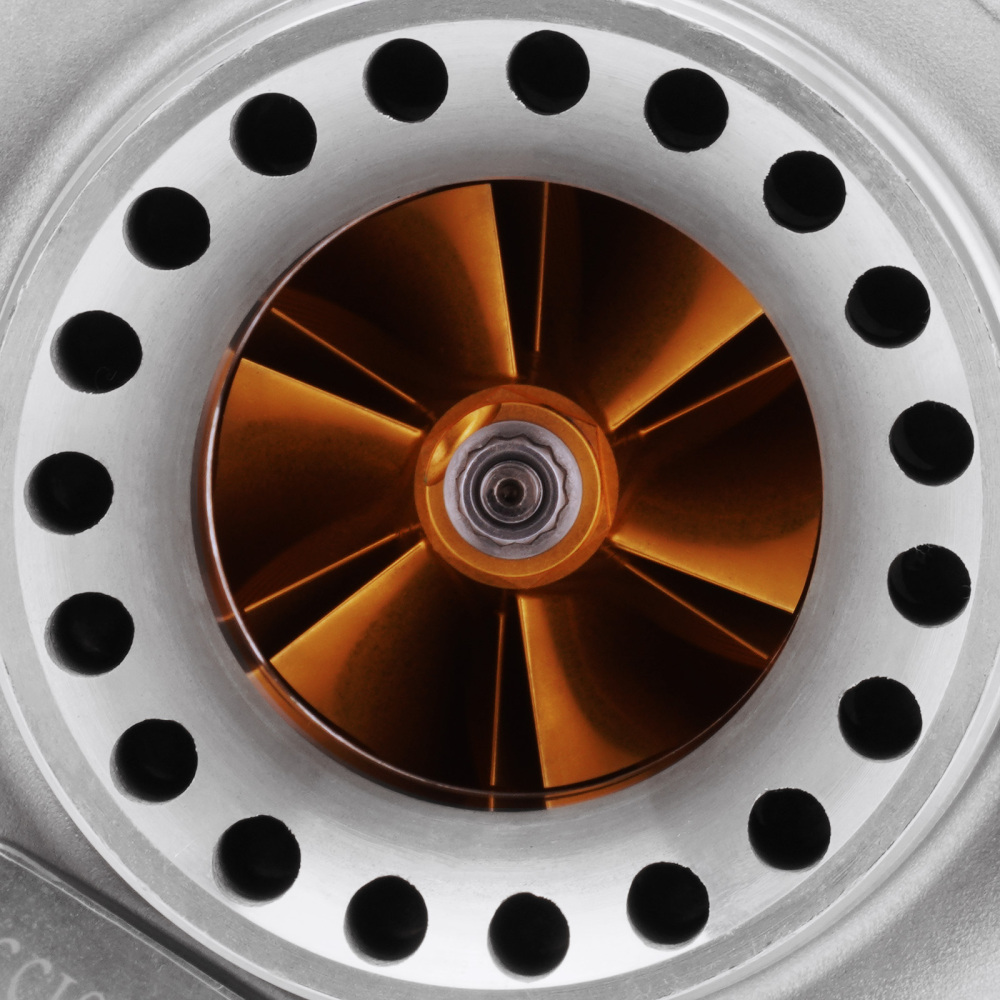

3. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.
4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.

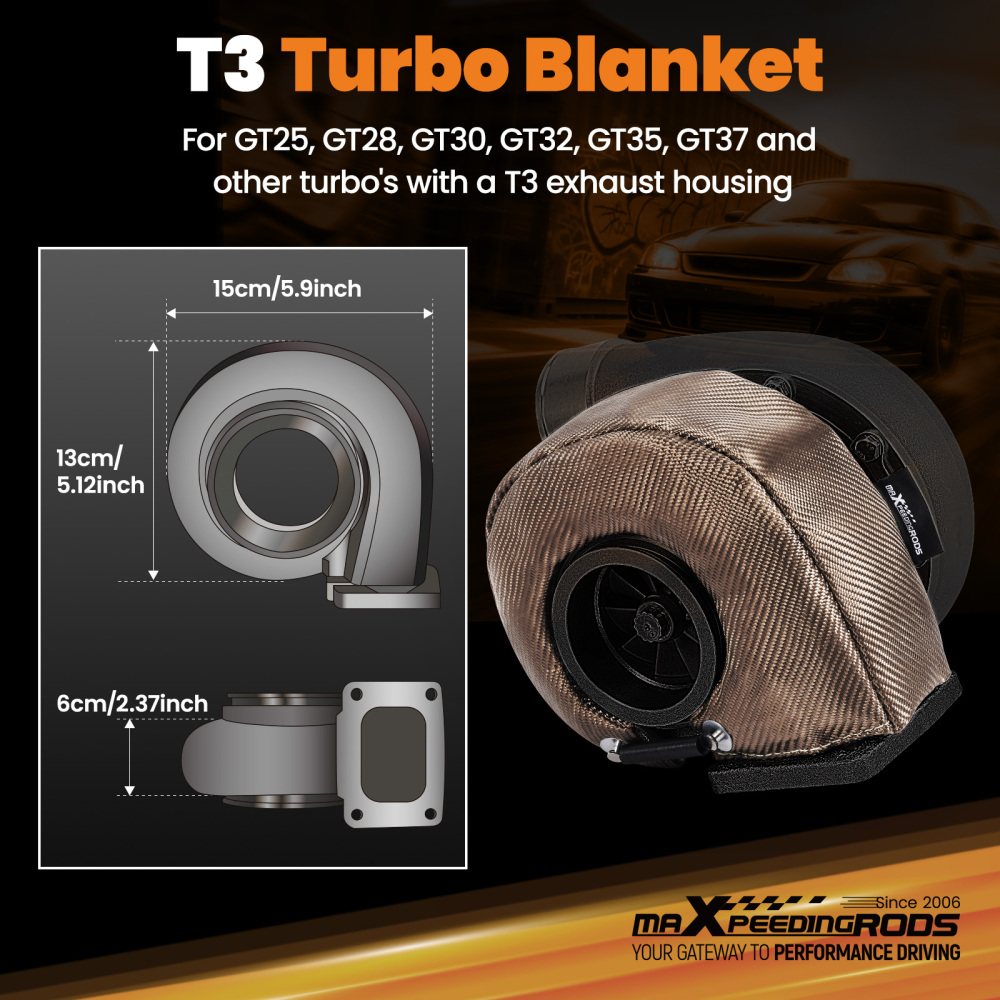

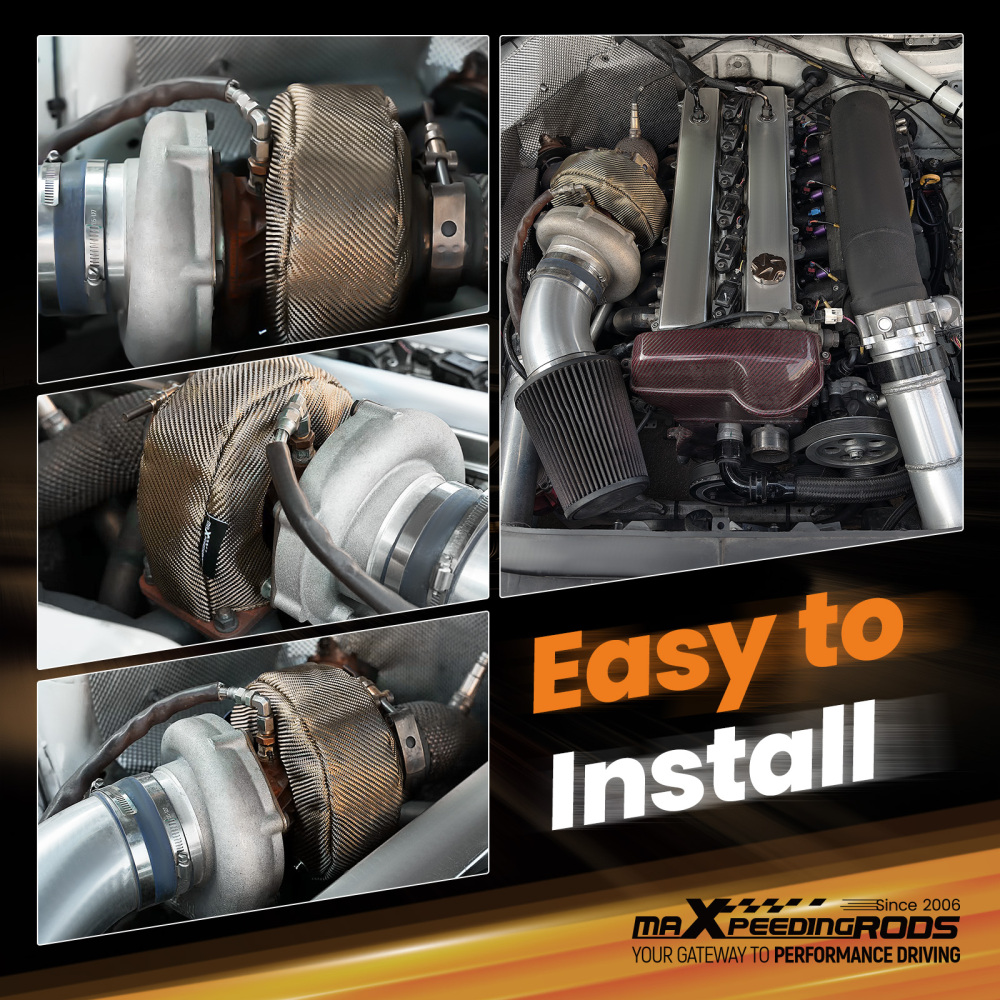

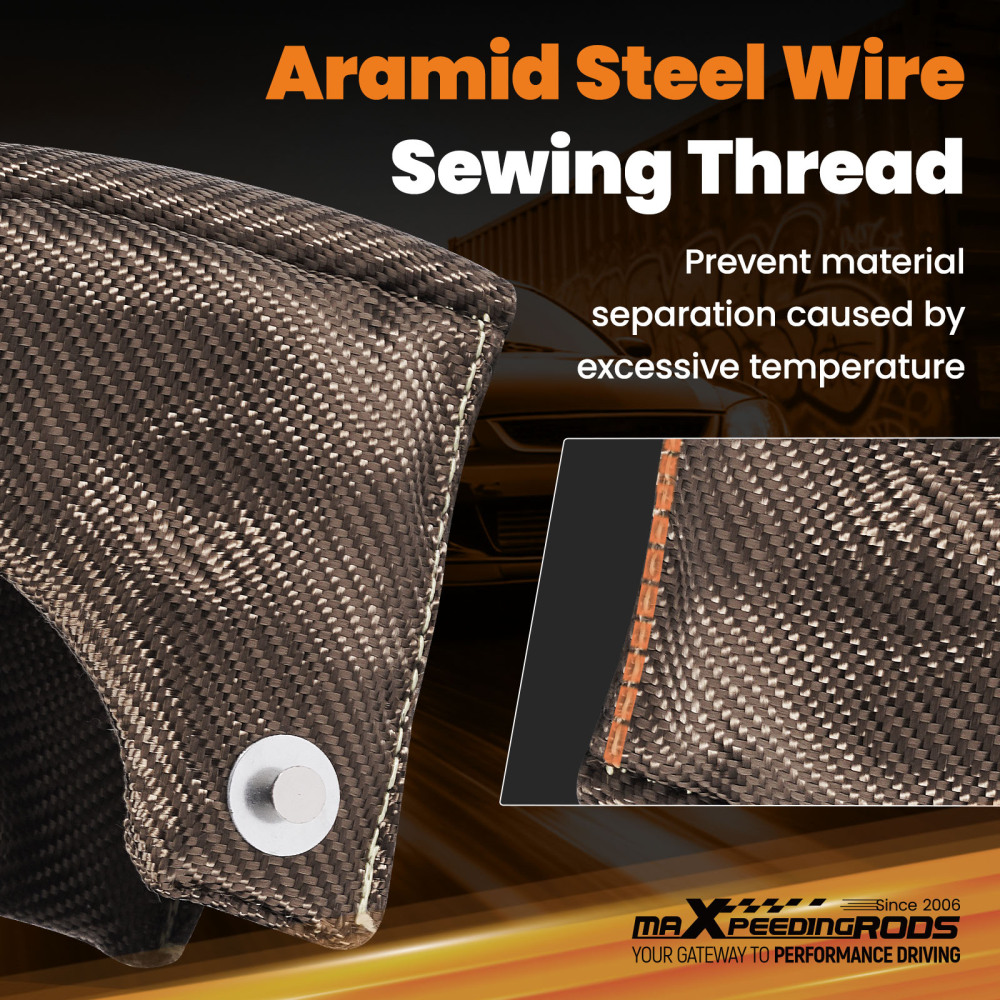

Turbo Heat Shield

1. Keep crucial engine components protected from the heat of the turbo. while increasing spool time and reducing underhood temperatures.

2. Our high-quality basalt fiber can withstand high temperatures up to 800°C.

Notice

Turbo

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!

Turbo Heat Shield

* Universally fits on any T3 turbocharger.
* The Turbo Shield is non-flammable, the product may ignite if exposed to flammable fluids.
* Please take all necessary precautions to insure that the oil supply line and all fluid fittings are in proper working order, sealed and without leaks.
