Universal for GT2871 Turbocharger Water Cold +3 inch Intercooler pipe Clamps
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "Universal for GT2871 Turbocharger Water Cold +3 inch Intercooler pipe Clamps")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "Universal for GT2871 Turbocharger Water Cold +3 inch Intercooler pipe Clamps")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "Universal for GT2871 Turbocharger Water Cold +3 inch Intercooler pipe Clamps")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "Universal for GT2871 Turbocharger Water Cold +3 inch Intercooler pipe Clamps")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "Universal for GT2871 Turbocharger Water Cold +3 inch Intercooler pipe Clamps")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "Universal for GT2871 Turbocharger Water Cold +3 inch Intercooler pipe Clamps")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "Universal for GT2871 Turbocharger Water Cold +3 inch Intercooler pipe Clamps")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "Universal for GT2871 Turbocharger Water Cold +3 inch Intercooler pipe Clamps")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "Universal for GT2871 Turbocharger Water Cold +3 inch Intercooler pipe Clamps")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "Universal for GT2871 Turbocharger Water Cold +3 inch Intercooler pipe Clamps")
Combination offer
- A
- B
- C
- D
- E
- F
- G
Application
Perfect for all 1.5L-2.0L engine，for all 4 cylinder
Horse Power: Boost Horse Power up to 350BHP
Specification
Turbo
Exhaust Inlet (Turbo Manifold) Flange: Standard T25 Flange
Exhaust Outlet (Downpipe) Flange: 5-Bolt
Turbine Trim: 76
Turbine A/R: 0.64
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Compressor Trim: 48
Compressor A/R: 0.60
Compressor Inducer Diameter: 49.2mm
Compressor Exducer Diameter: 71 mm
Bearing Type: Wet Float
Cooling Type: Water + Oil
Internal Wastegate: Yes
Warranty: one year for any manufacture defects
Oil Restrictor: Yes
Oil Restrictor size：inside diameter 2mm
Accessories: You will get exactly as shown as picture above
Exhaust Outlet (Downpipe) Flange: 5-Bolt
Turbine Trim: 76
Turbine A/R: 0.64
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Compressor Trim: 48
Compressor A/R: 0.60
Compressor Inducer Diameter: 49.2mm
Compressor Exducer Diameter: 71 mm
Bearing Type: Wet Float
Cooling Type: Water + Oil
Internal Wastegate: Yes
Warranty: one year for any manufacture defects
Oil Restrictor: Yes
Oil Restrictor size：inside diameter 2mm
Oil Feed Size: 12mm
Oil Inlet: M12*1.25
Oil Outlet:M14 & 2*M8*1.25
Water: M14*1.5
Water Thread Size: M14*1.5
Horse Power: Boost Horse Power up to 350BHPAccessories: You will get exactly as shown as picture above

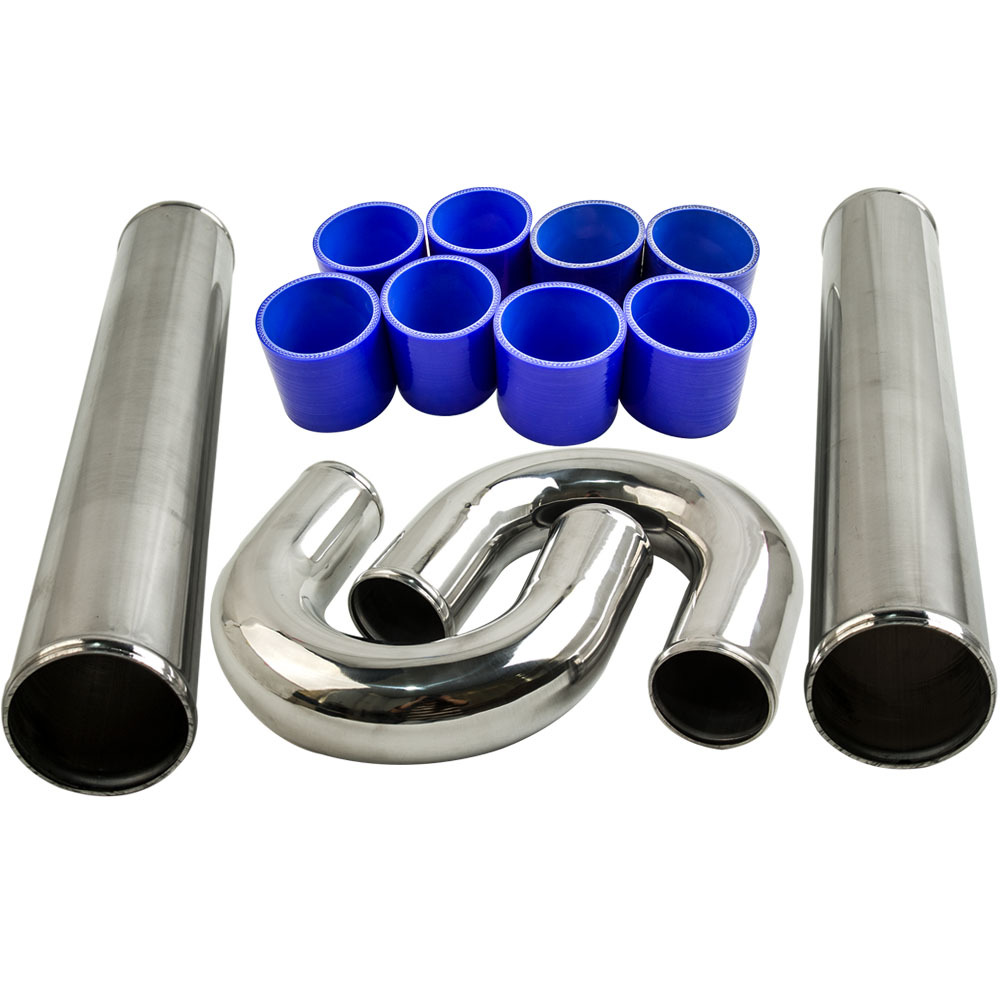

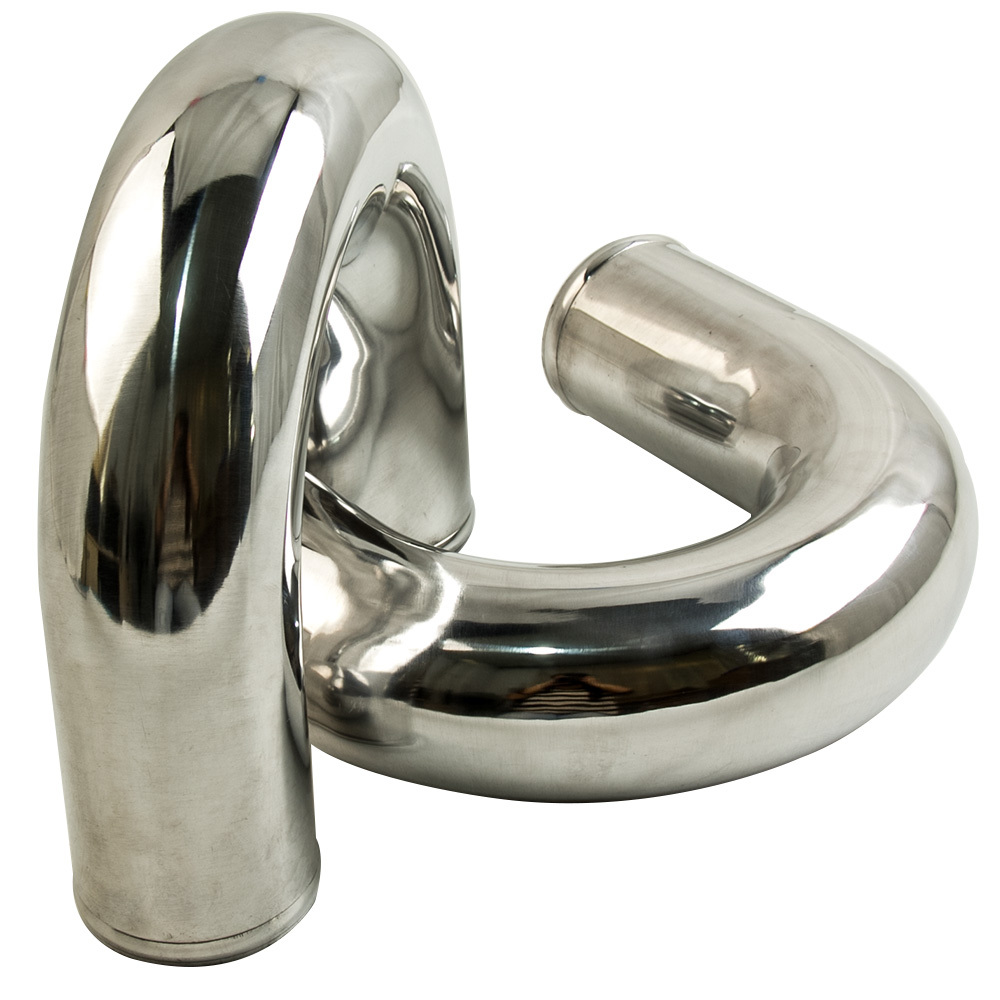

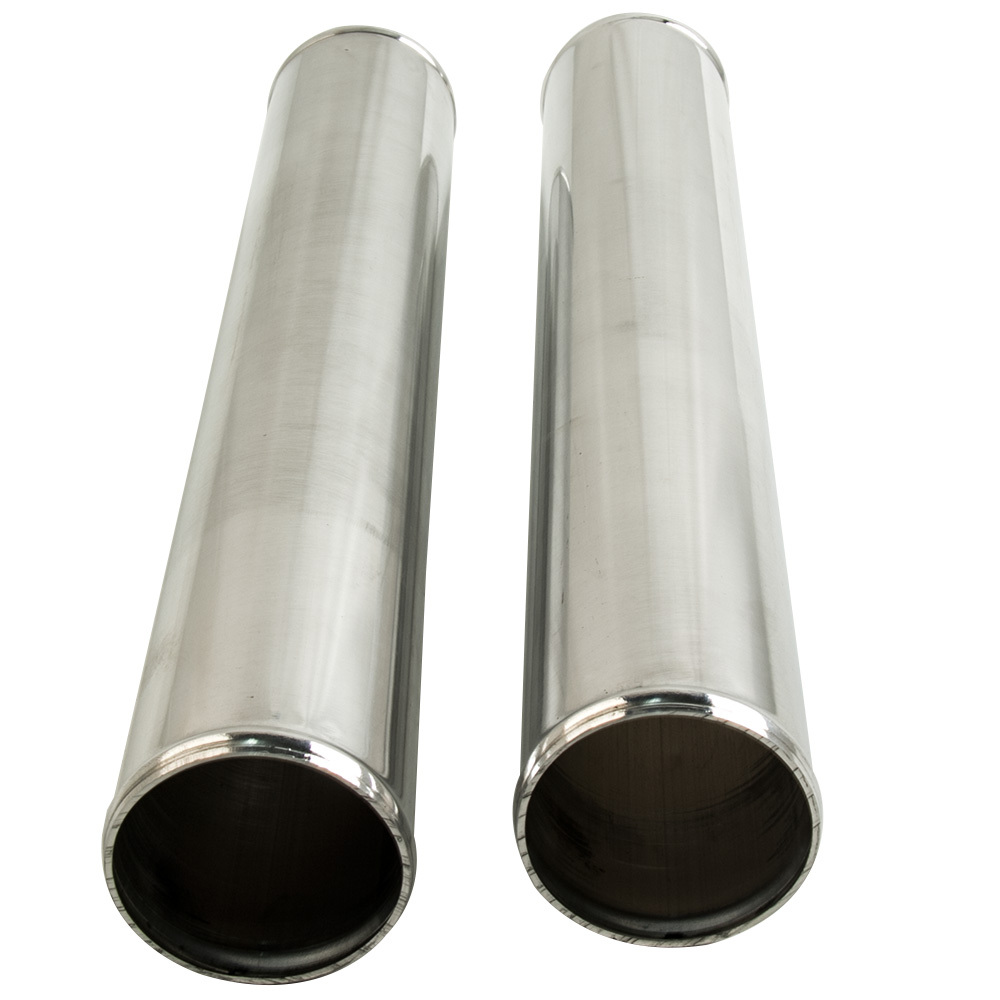

Piping Pipe Kit
Pipe length: 19.68''(500mm)
New Never been tried or installed.
100% quality assurance tested
Made out of high quality of 6061 aluminum Manual polishing finished
100% quality assurance tested
Made out of high quality of 6061 aluminum Manual polishing finished
Condition: New
Notice
* Please check the specifications carefully before ordering. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles.
* This is universal application turbo, so modification might be required for some vehicles.
* Professional installation is highly recommended (No Instruction Included).
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding.
