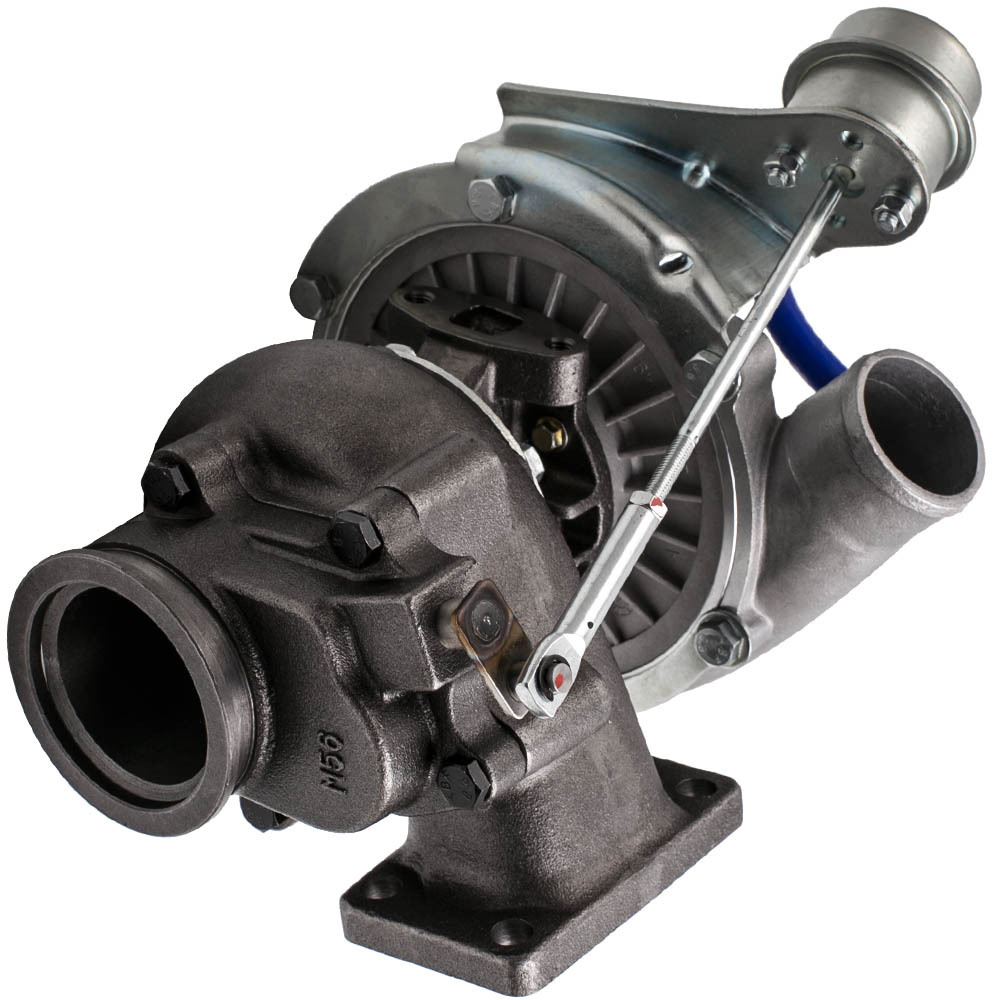

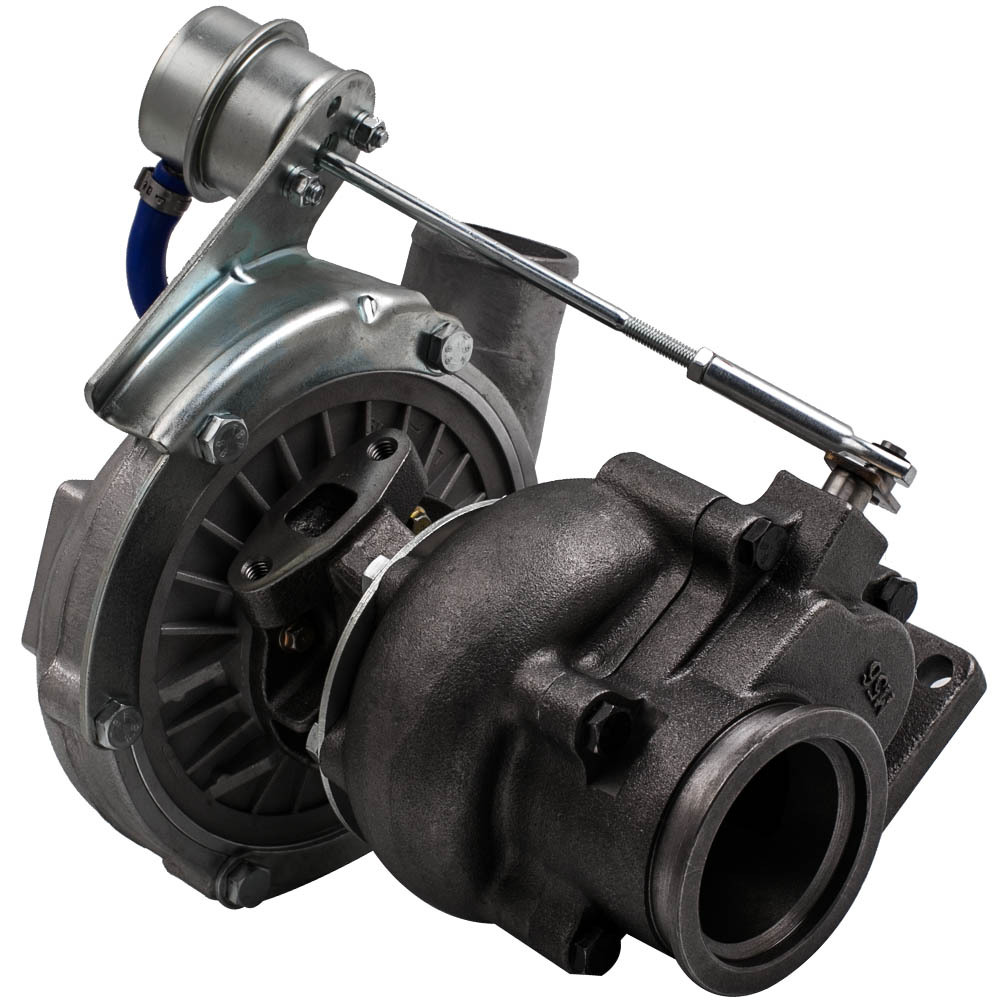

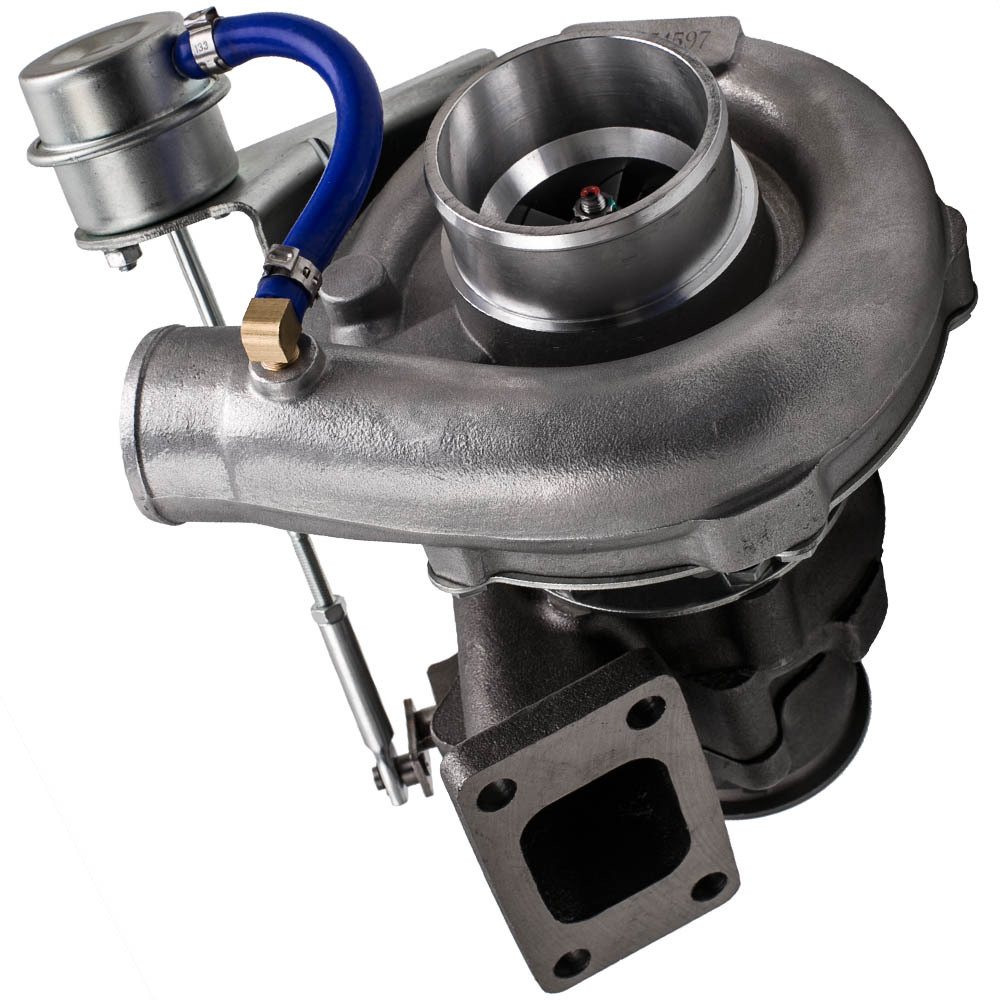

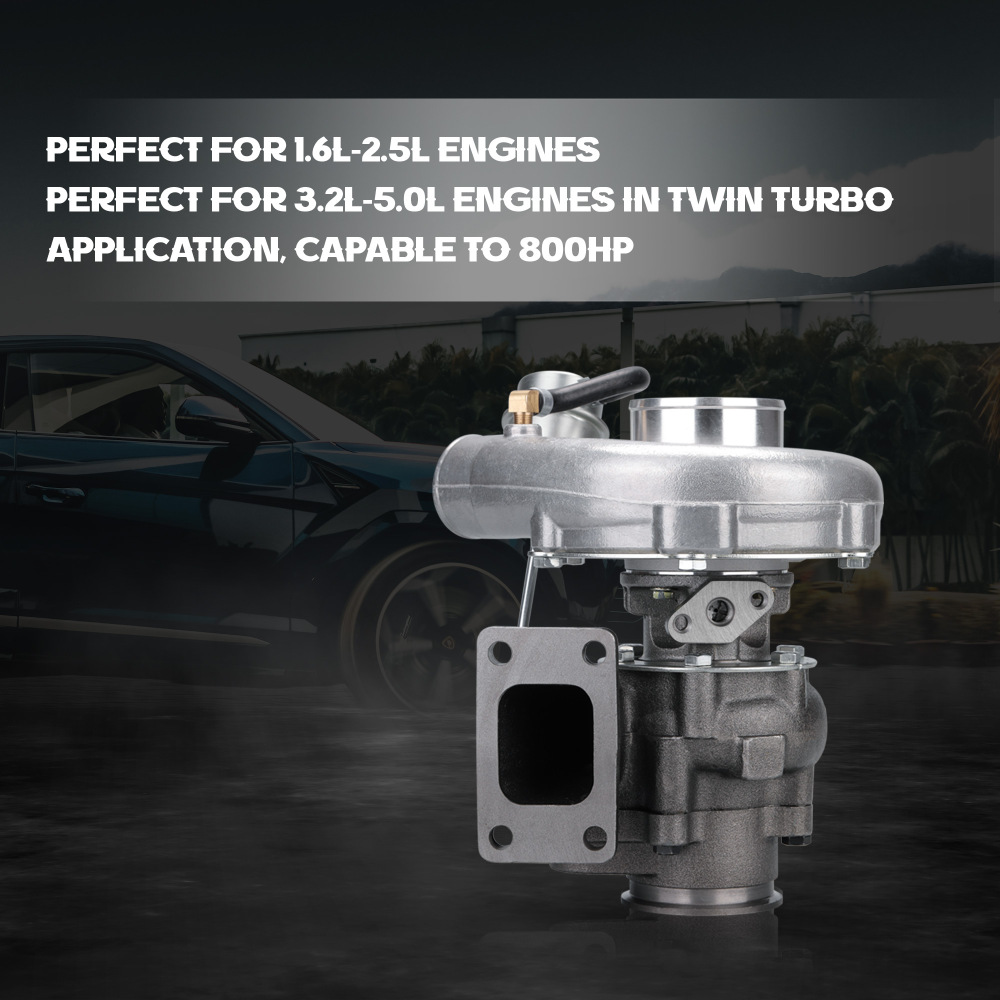

Compatible for Nissan Safari compatible for Patrol GQ GU Y60 TD42 4.2L TD TurbochargerandTurbo

Compatible for 1.5L to 2.5L any 4/6 cylinder engine

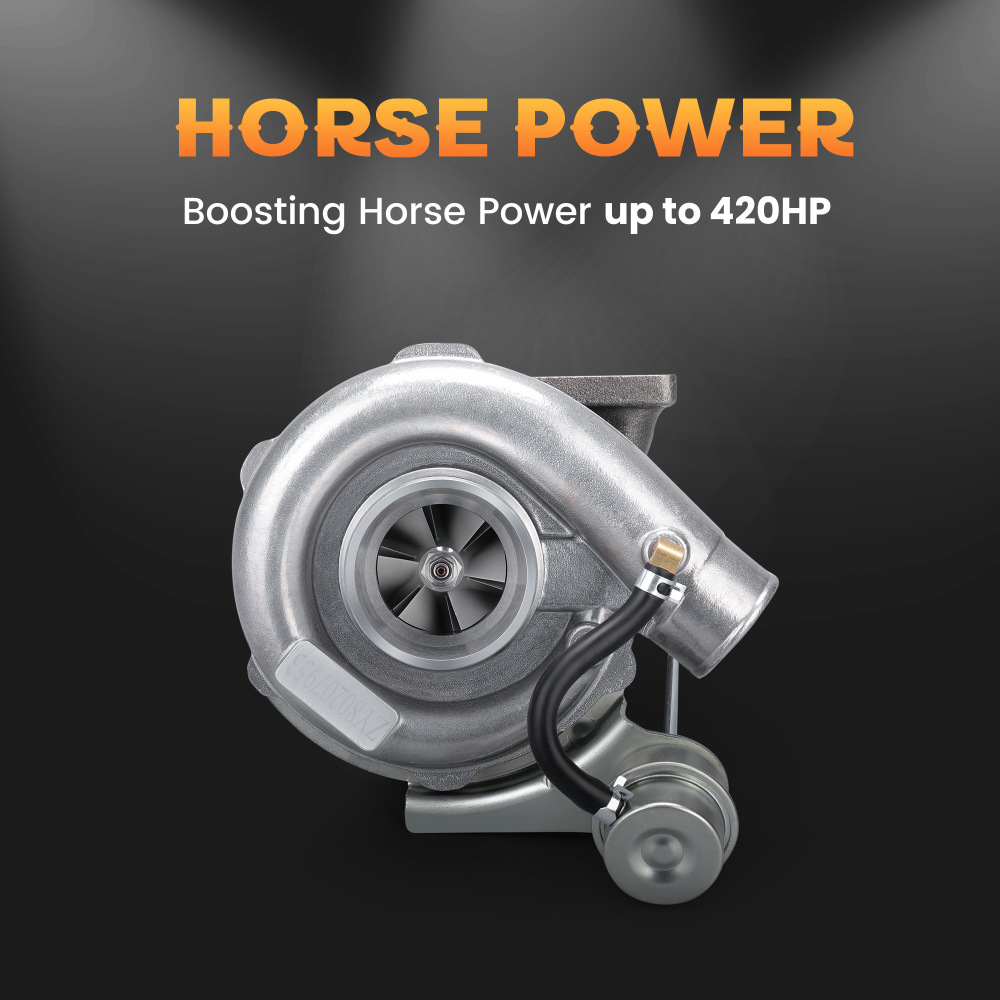

Horse Power: Capable of Boosting Horse Power up to 420HP

Cooling Type: Oil Cooled

Maximum PSI 18（1.2Bar）

Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns

Exhaust Outlet (Downpipe) Flange: V-Band Flange

Turbine Trim: 73

Turbine Inducer Diameter: 65.5 mm

Turbine Exducer Diameter: 55.9mm

Turbine A/R: 0.63

Compressor Trim: 55

Compressor Inducer Diameter: 50.5 mm

Compressor Exducer Diameter: 76 mm

Compressor A/R: 0.5

Bearing: Journal Bearing

Warranty: one year

Internal Wastegate: Yes

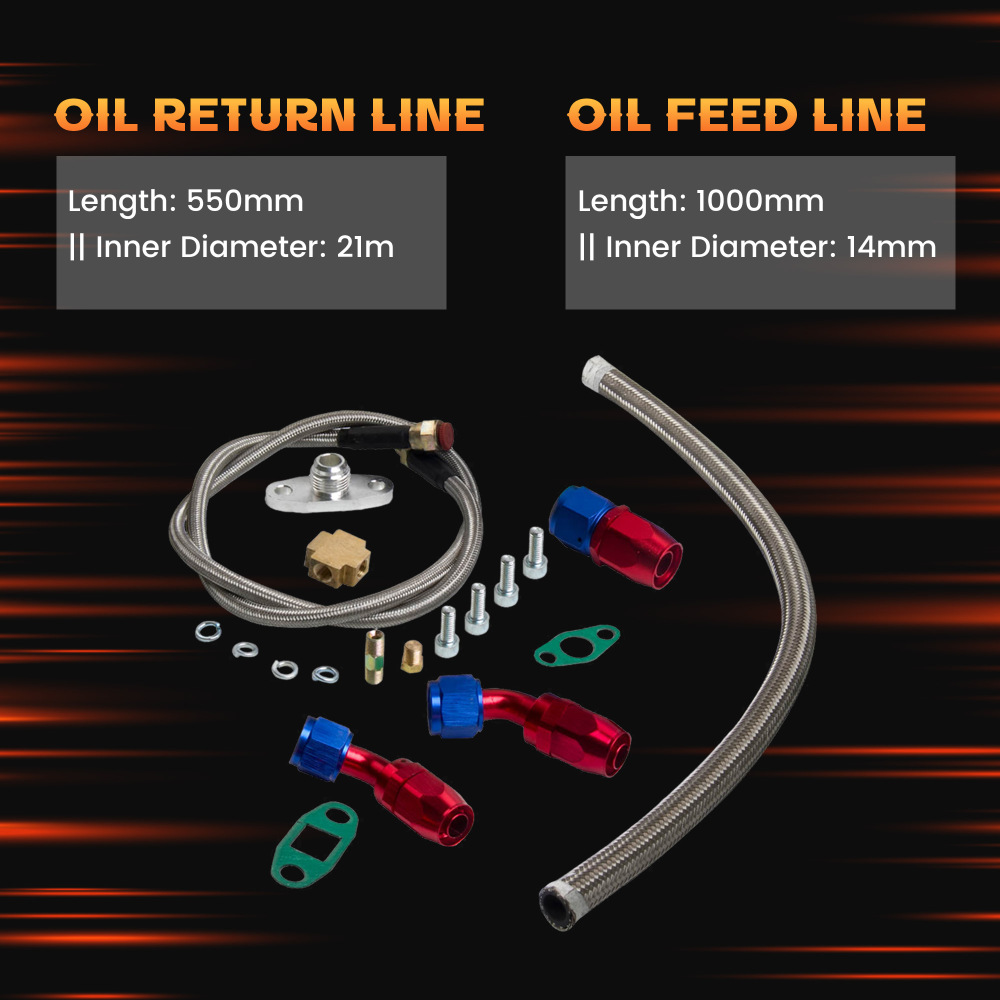

Oil Specifications:

OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm

​OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm

Oil Inlet: M12*1.25 & 2*M8*1.25

Oil Outlet: 2*M8*1.25

Condition: New

Bearing Type: Floating Bearing

Warranty: one year warranty for any manufacturing defect

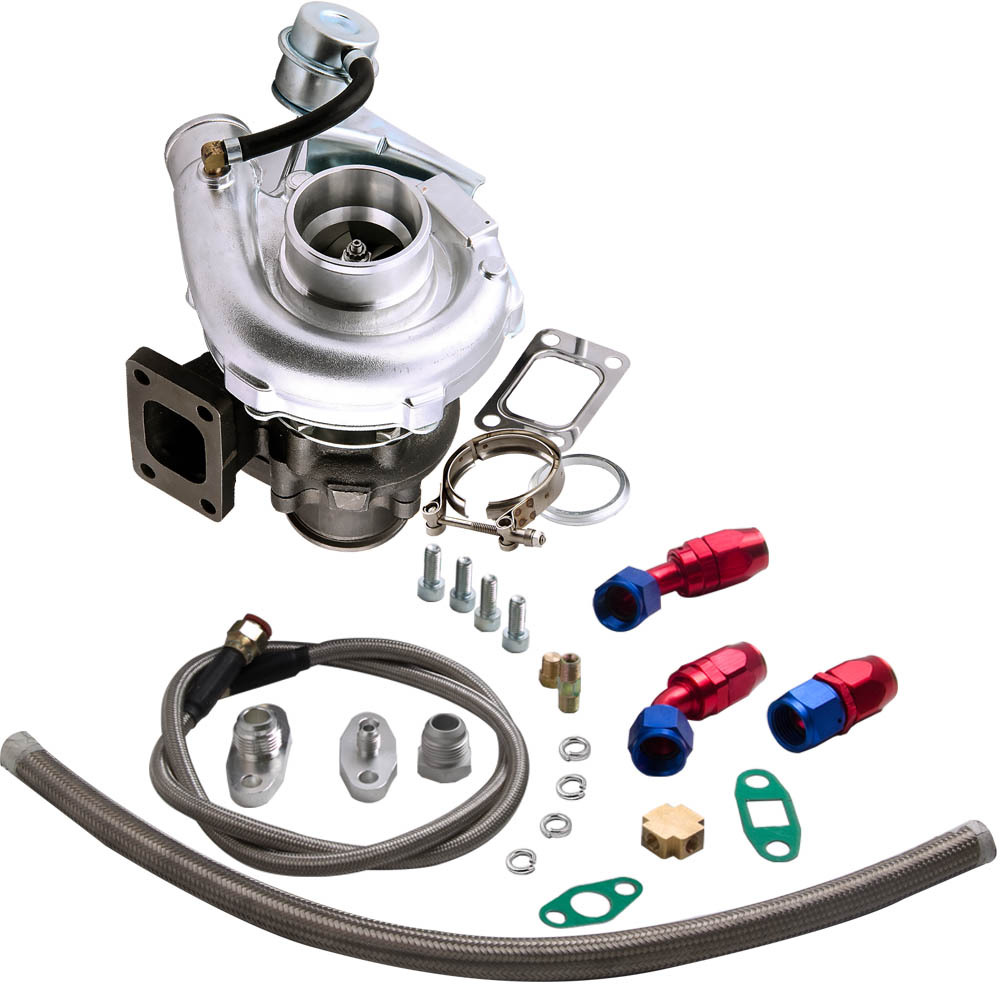

Accessories: You will get exactly as shown in the picture above

- Universal turbochargers.

- High temperature resistance.

- Turbine-driven forced induction device.

- Enhance engine power and reduce energy consumption.

- Improve fuel economy and reduce exhaust emissions.

* Please check the specifications carefully before placing orders. If you are not sure about these information, please feel free to contact us.

* This is universal application turbo, so modification might be required for some vehicles.

* Please check our store for other auto parts you may be interested in.

* No instruction included; Professional installation and alignment suggested.

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding.
