- * H-Beam con rods compatible for Triumph TR5 TR250 GT6 TR6 late model Conrods Note: Re-bore engine is need for fit TR250/TR5 compatible for Triumph TR 5 250 1967 - 1968 Convertible 2.5 PI compatible for Triumph TR 6 - 1969 - 1976 Convertible 2.5, 2.5 PI
- * Performance Con Rods Advertised Horsepower Rating: 800HP
- * Material: Forged 4340 aircraft chrome moly quality steel
- * Dimensions: Center to center length: 146.05mm； Big end diameter: 51.34mm； Small end diameter: 20.637mm； Big end width: xx； Small end width: xx

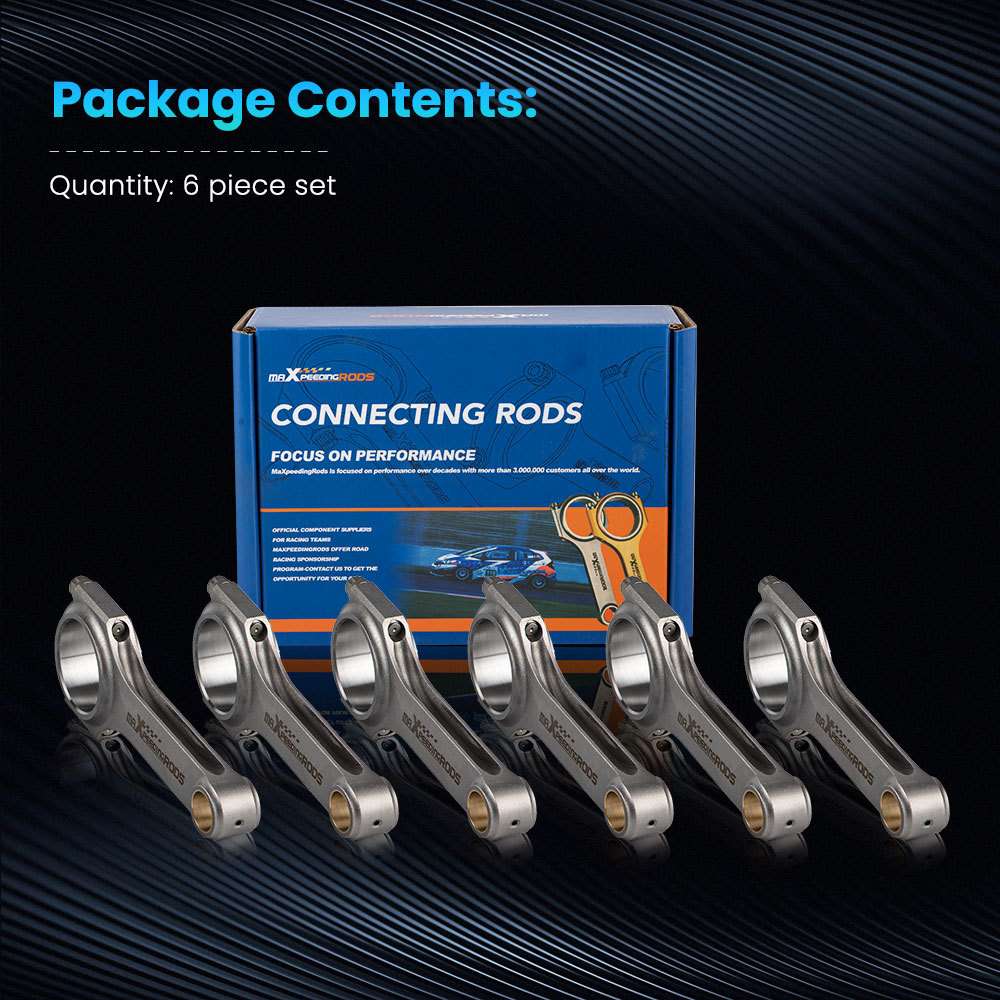

- * Package Contents: 6 Pieces of H-Beam Connecting Rods; 12 Pieces of ARP 2000 5/16" Bolts (Note: Extra cost for upgrading to ARP L19 bolts)
- * Performance Con Rods
- * Advertised RPM Rating: 7000-9000 rpm
- * Fastener Tensile Strength (psi):200,000 - 220,000 psi
- * Balanced to within +/- 1 gram per end
- * The big end bores are honed to a +/-.01mm tolerance
- * Heat-treating & Shot-peened for remained consistent and strong
Compatible for Triumph TR5 TR250 for GT6 TR6 late model
Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing

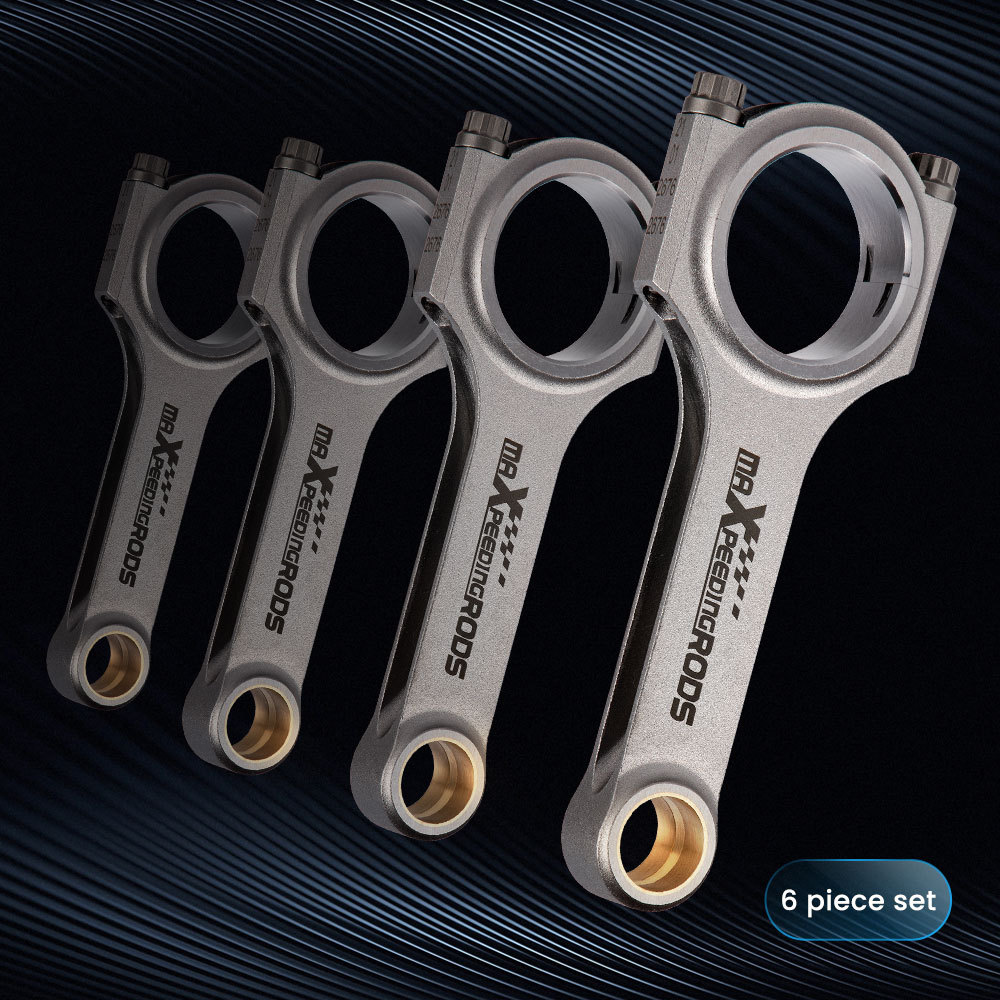

H-beam Conrods Quantity: 6 Pieces as showing in picture
Bolts: Including ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 5/16" bolts

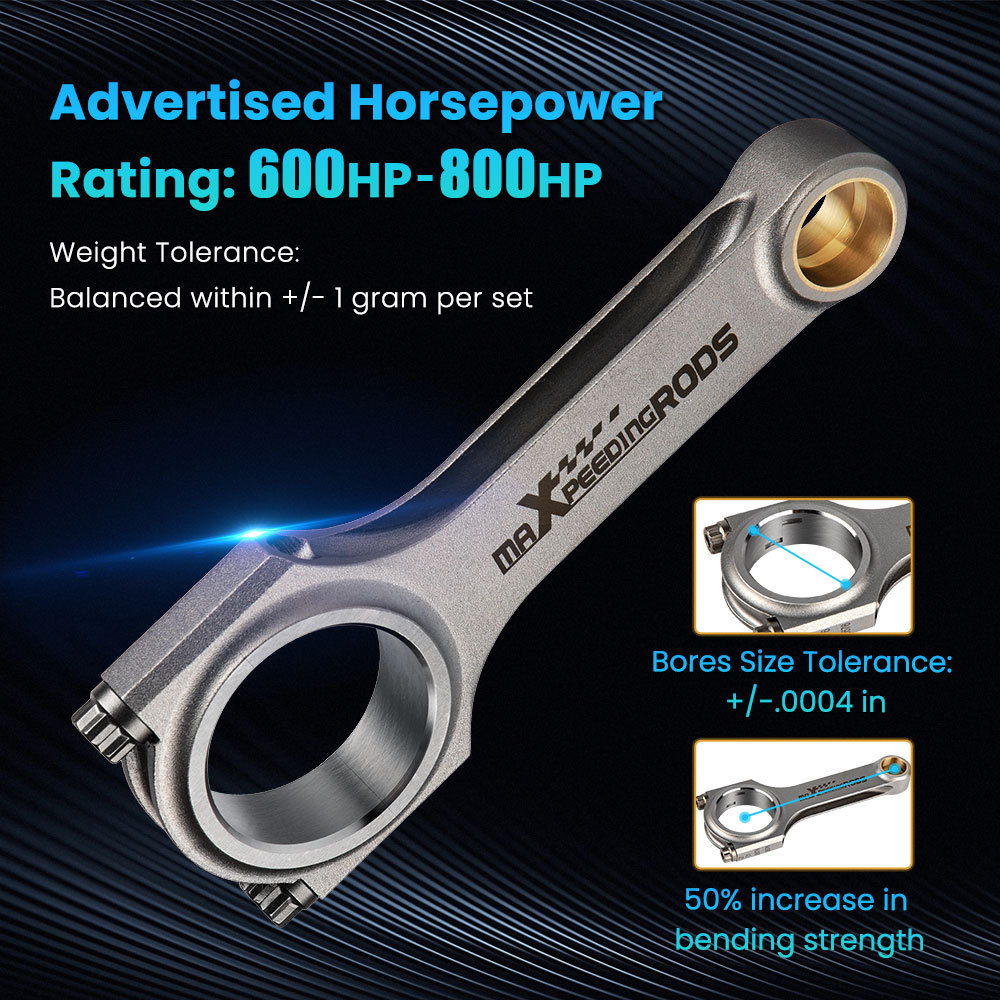

Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 7000rpm
warranty: one year warranty for any manufacturing defect
Center to center length: 146.05mm
Big end diameter: 51.34mm
Small end diameter: 20.63mm
Big end width: xx
Small end width: xx
- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine

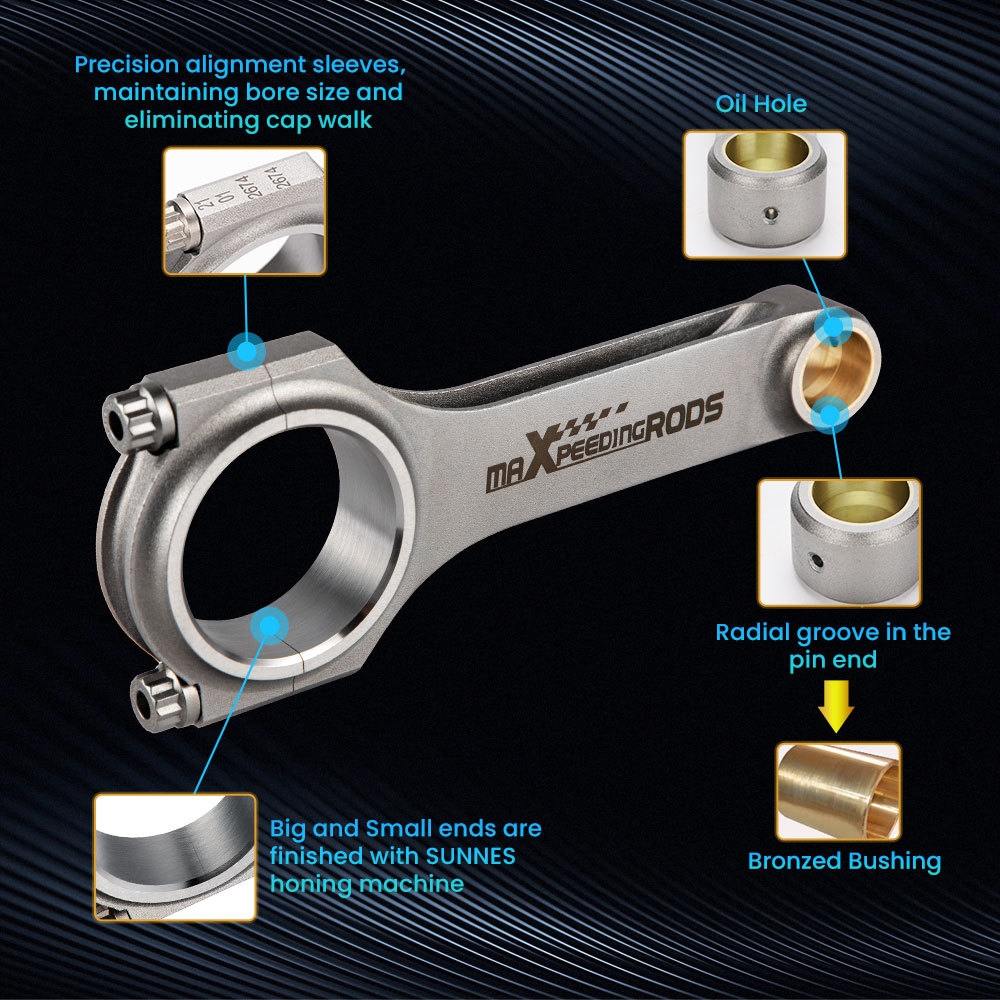

- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin
- Professional installation is highly recommended (No Instruction Included)
- Custom Service: If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
- Learn more about CUSTOM SERVICE
