Third Function Valve Kit compatible for Kubota L2501, L3301, L3901 with LA 525 Loader

Application

Compatible for Kubota L2501, L3301, L3901 with LA 525 Loader and L3200, L3800 with LA 524 Loader.
(Note: can’t be used on tractors with cabs or closed cabs)

Specification

Condition: New
Joystick Handle Power: 12V,
Valve Power: 12v
Solenoid Operated, Max Operating Pressure: Pressure Line(P)= 5080 PSI, Tank Line(T)= 3050 PSI, A & B Work Line= 5080 PSI. Flow Rating: 15 GPM(Gallon Per Minute). Valve Pressure: 3000PSI Rated.

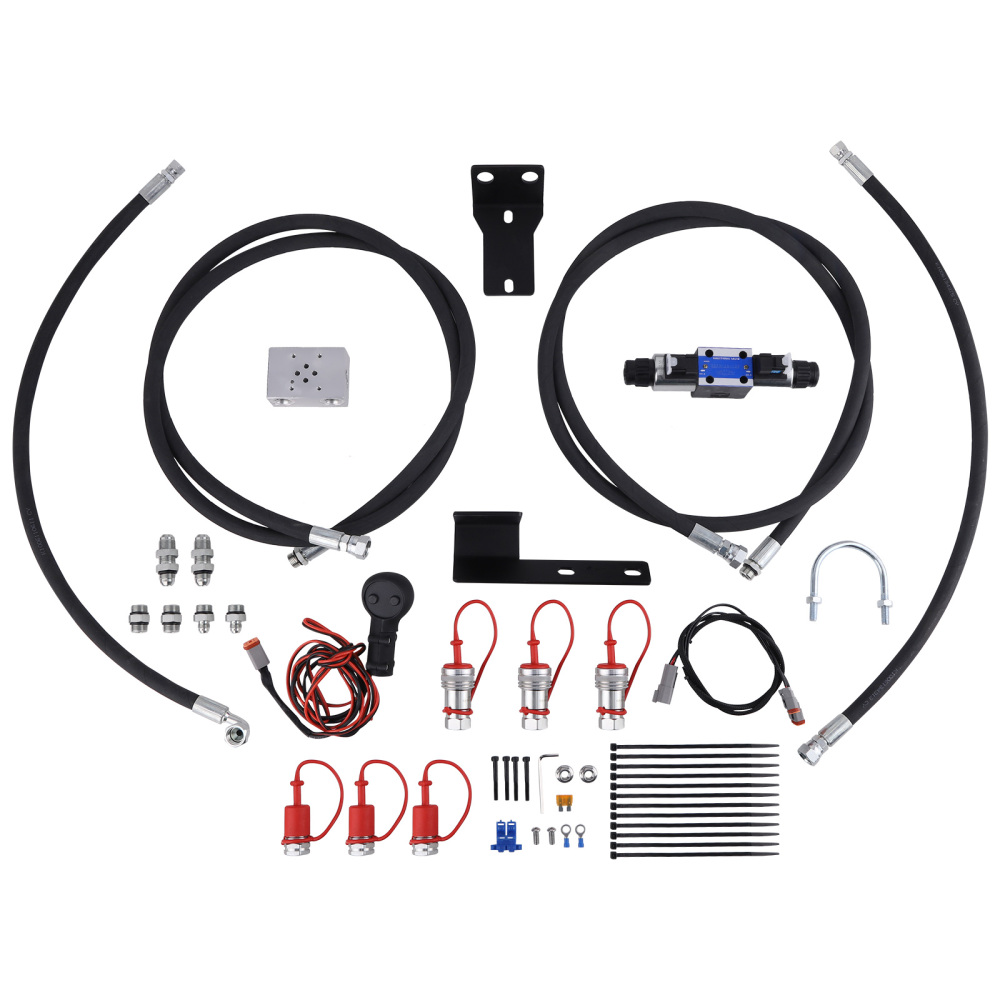

Package included

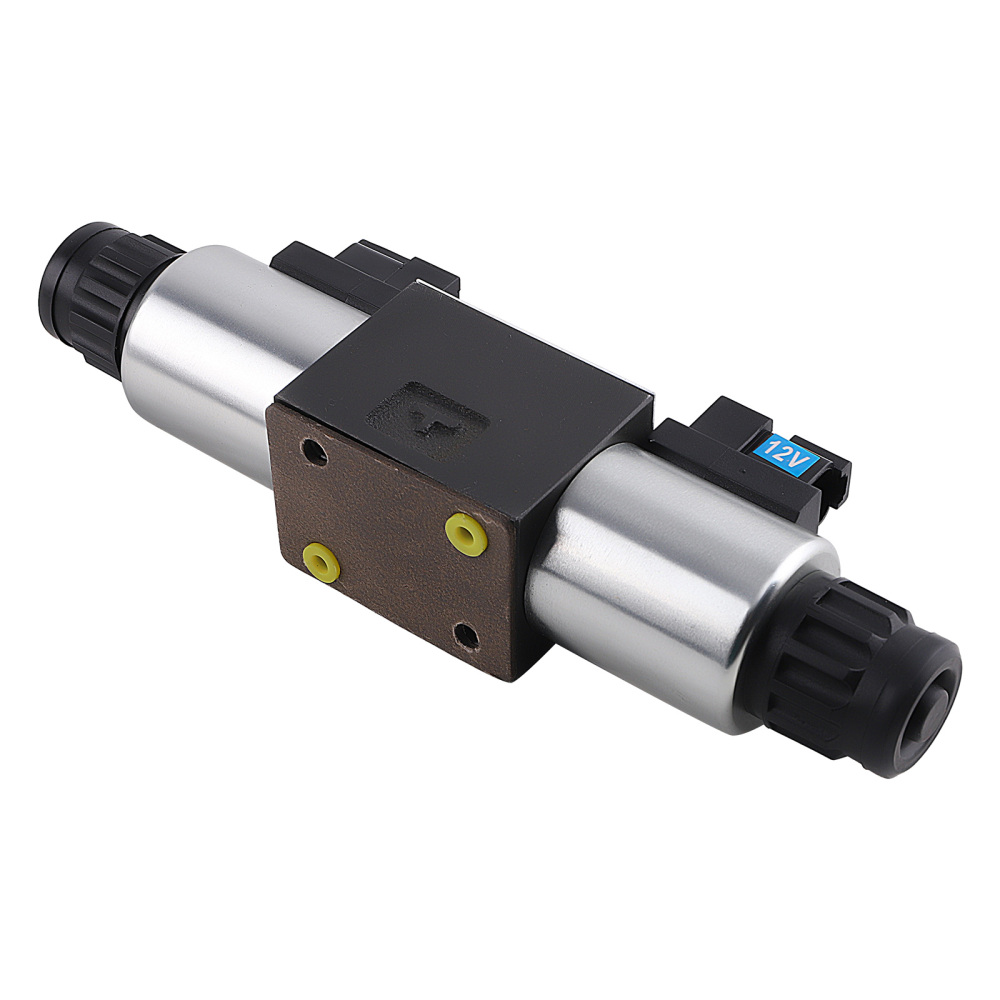

1x 12V Solenoid Operated Valve.
1x Joystick Handle with 2 Momentary Push Button Switches.
1 set x Wiring Harness with Weatherproof Deutsch Connectors.

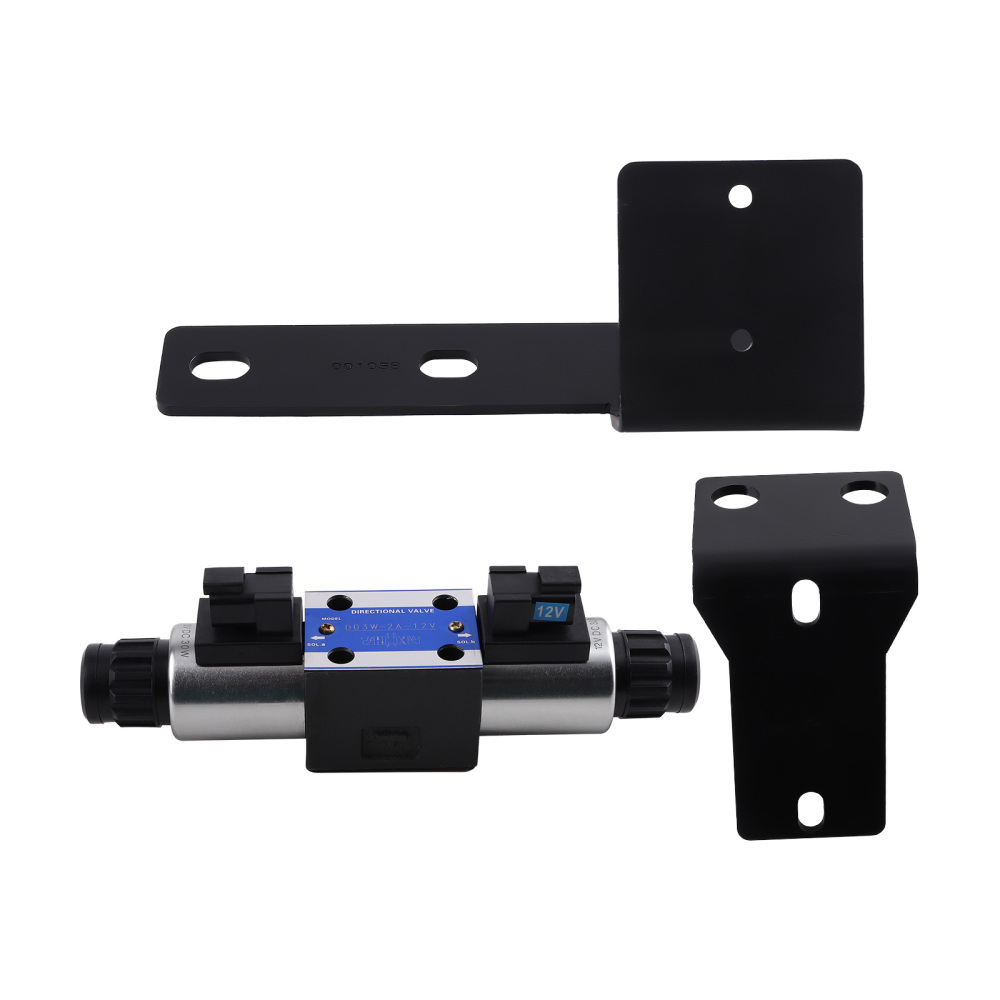

1x Valve Mounting Bracket with hardware.
6x Assorted Dust Caps.

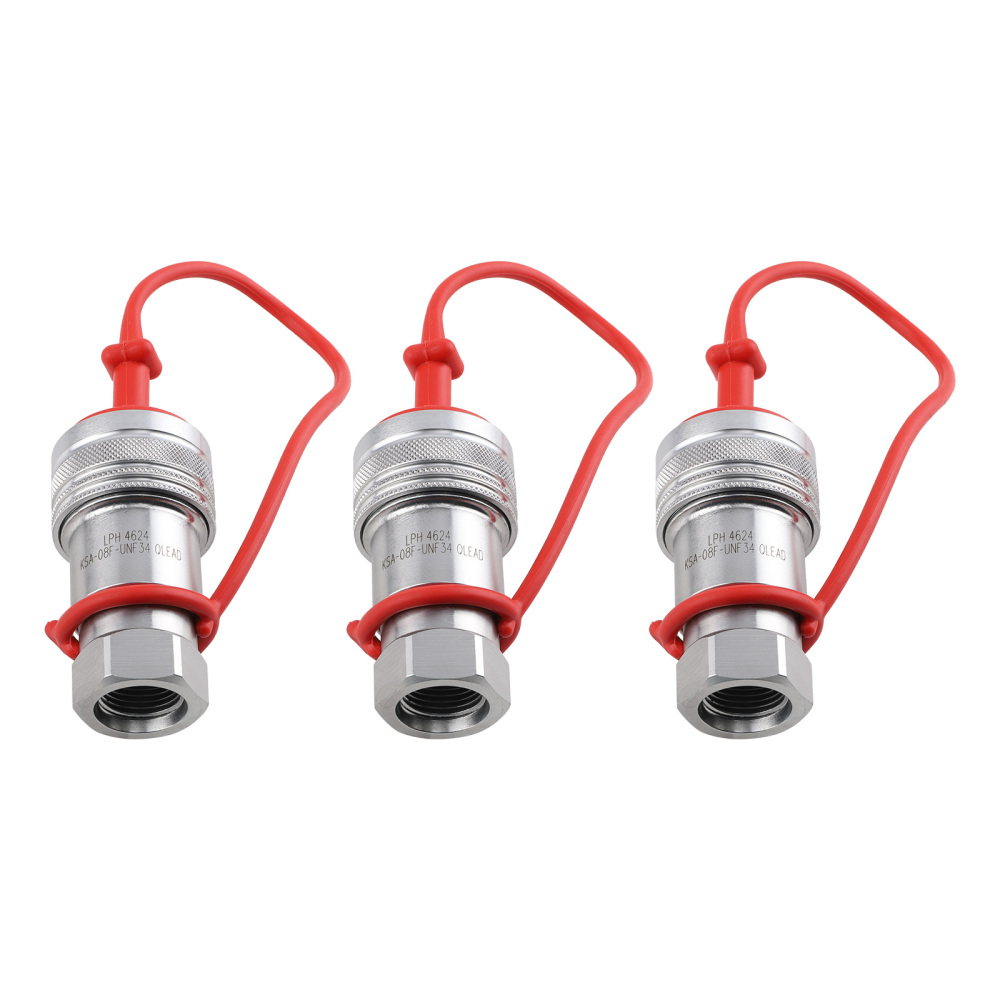

3x 1/2” Body Ag Poppet Female Couplers.
3x 1/2” Body Ag Poppet Male Couplers.

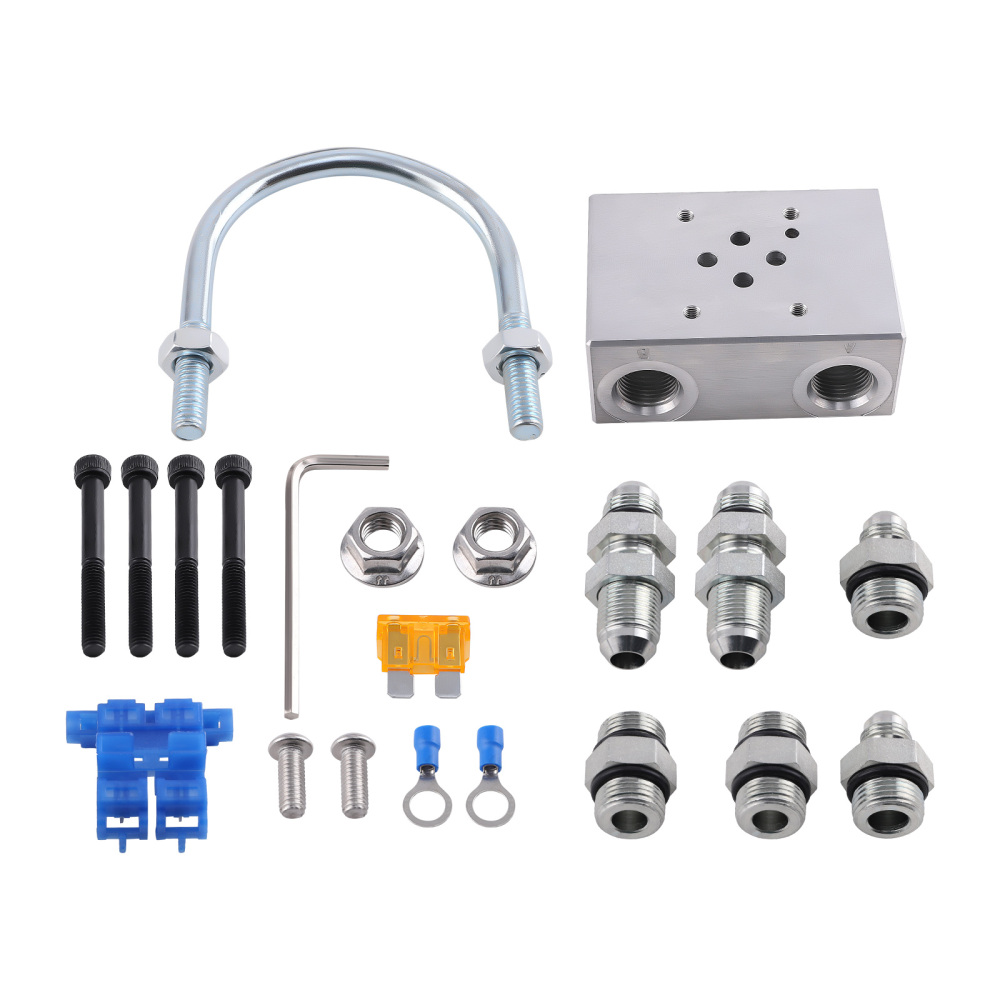

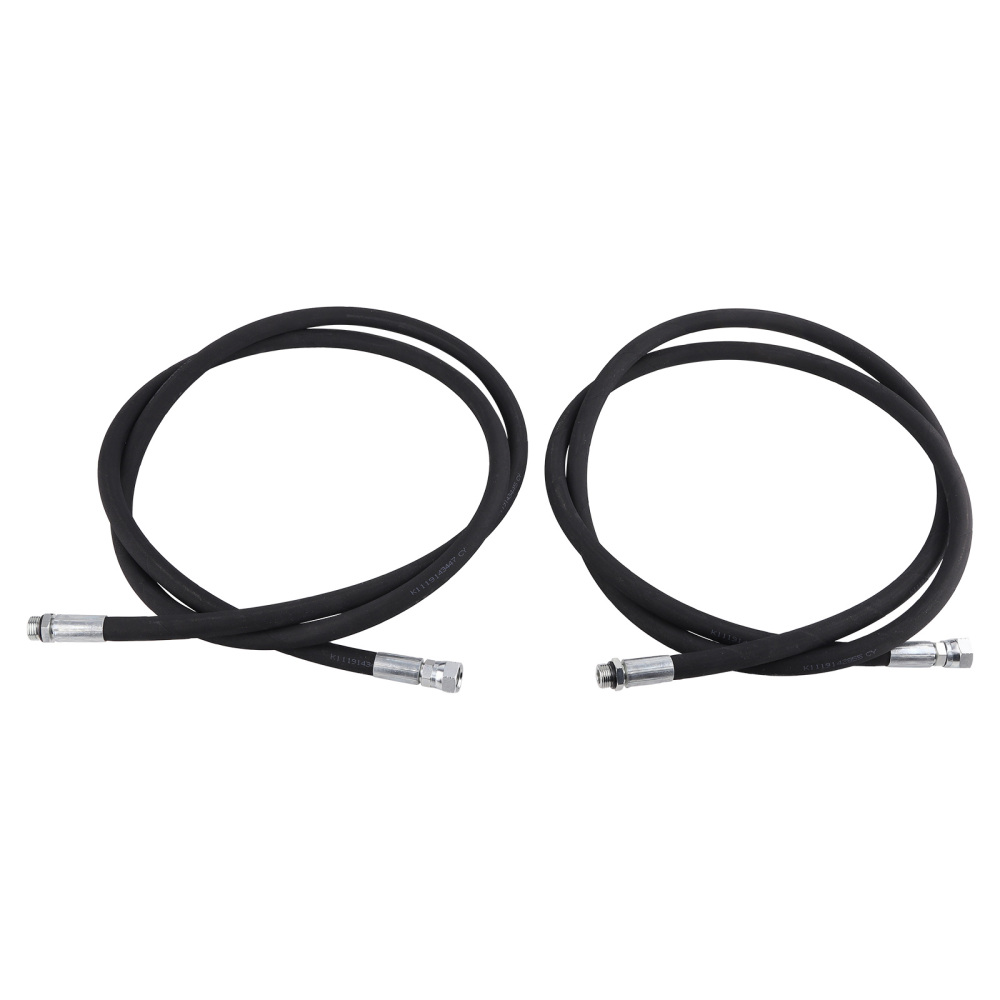

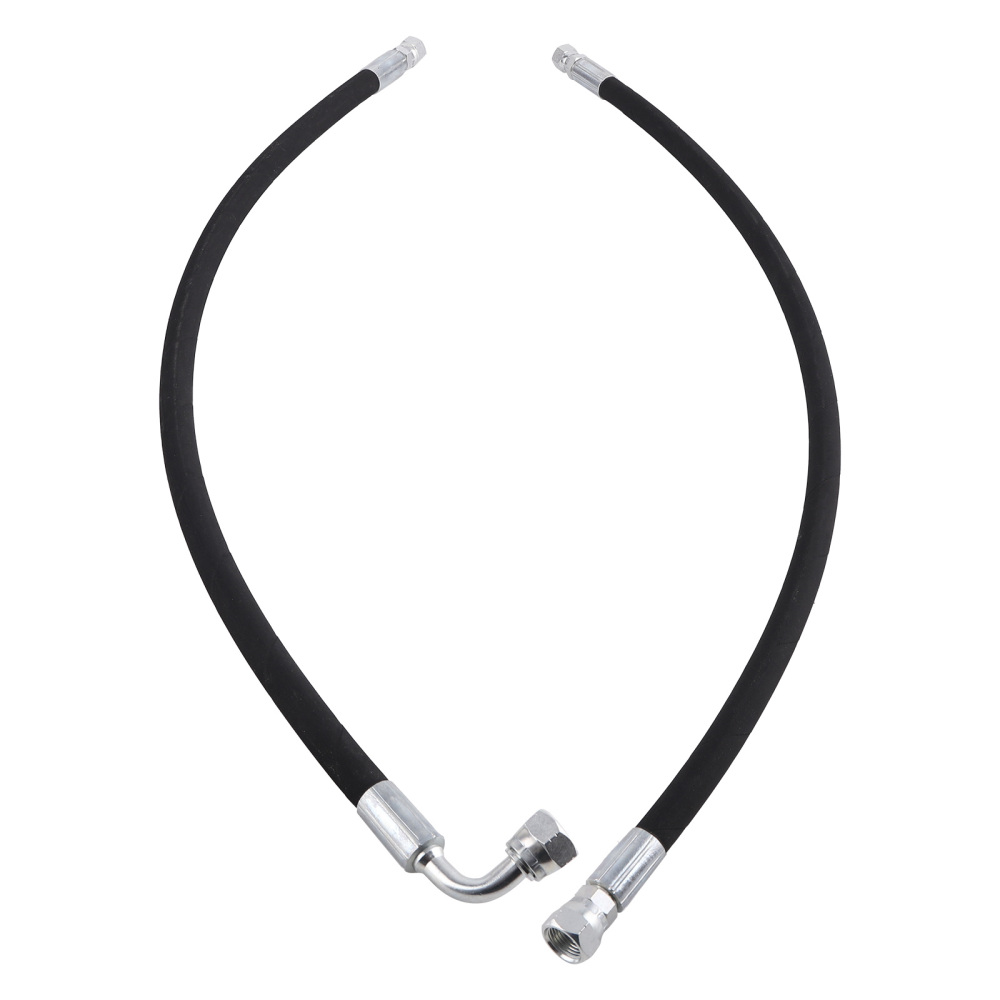

4x Hydraulics Hose Assemblies. Set of Adapters & Fittings & Zip Ties.
1x Installation Manual.
(Showing as the picture)

Feature

1. The third function valve kit is commonly used to operate hydraulic attachments such as grapples, augers, snowplow tilt, snow blowers.
2. It allows you to independently control the hydraulic function of the attachment without interfering with the operation of the tractor's main hydraulic functions.
3. The valve is Made by aluminum alloy with hardend process, ensuring it’s solid for rugged use.
4. High quality Metal and constructed for Anti-rust and Anti-corrosion.
