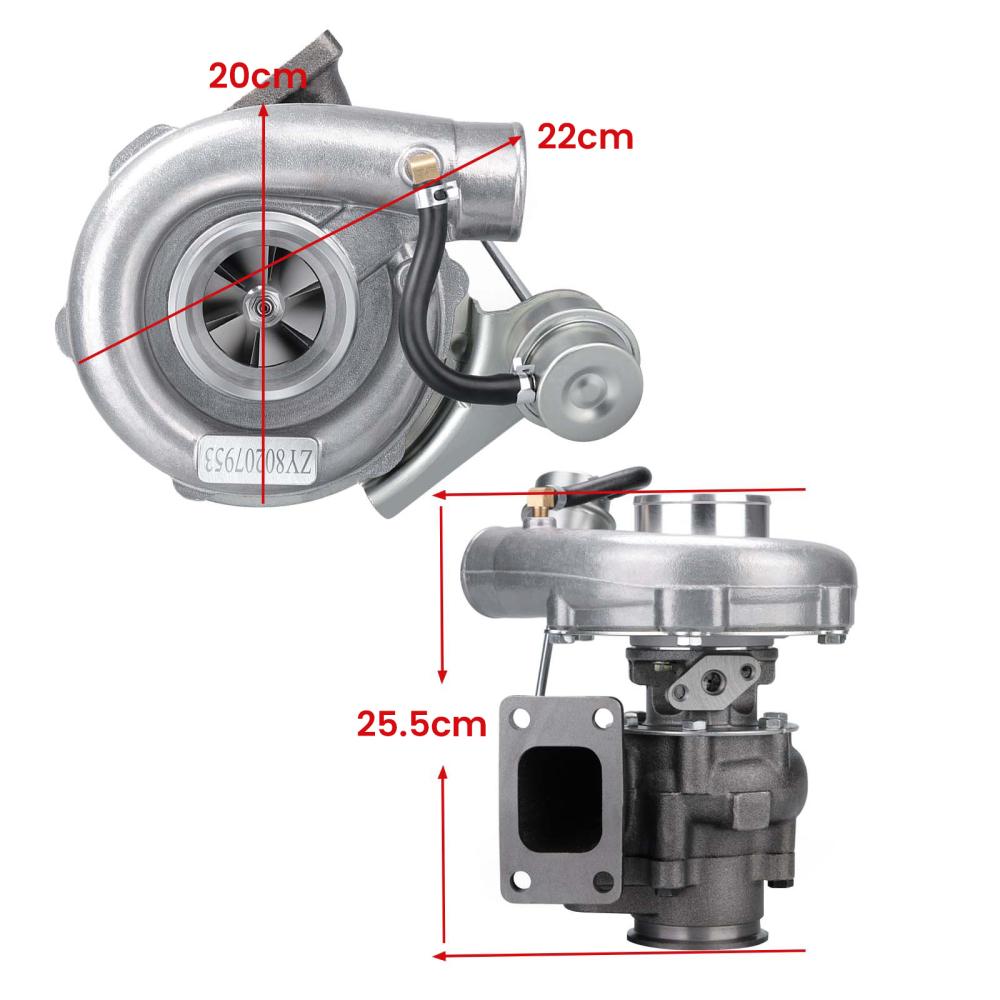

Turbo compatible for Nissan Safari compatible for Patrol 4.2L TD42 GQ GU Y61 t3 w/ engine Exhaust Manifold

Application

Compatible for Nissan Patrol Safari Y60 GR Petrol 4.2L TB42 TB42S TB42E
compatible for Nissan Patrol Safari Y60 GR Petrol 4.5L TB45 TB45S TB45E
compatible for Nissan Patrol Safari Y60 GR GQ Diesel Turbo Diesel 4.2L TD42
compatible for Nissan Patrol Safari Y61 GR Diesel 4.2L TD42 TD422 TD42T3

Maximum PSI 18（1.2Bar）

Specifications

Package Included
* One T3/T4 Turbo Turbocharger
* One Exhaust Manifold
Manifold Flange: T3 Flange
Manifold Mount Type: top mount / high mount
Manifold External Wastegate: 38mm. You can plate it off if intending to use internally wastegated Turbo (The blocking plate is included as shown in the picture)
Turbo Exhaust Flange: Standard T3 Flange
Turbo Cooling Type: Oil Cooled Only
Turbo Bearing: Journal Bearing
Turbine Port: V-band
Horse Power: Boost Horse Power up to 420HP
Compressor Wheel A/R: 0.5 ||Ind: 50.5 mm|| Exd: 76 mm|| Trim: 55
Turbiner Wheel A/R: 0.63 ||Ind: 65.5 mm|| Exd: 55.9 mm|| Trim: 73

Oil Inlet: M12*1.25 & 2*M8*1.25

Oil Outlet: 2*M8*1.25

Manifold Feature

- New
- Specific design to increase the volumetric efficiency of the engine, resulting in a gain in power output.
- Improve Exhaust Gas Flow and Increase Turbo Spool up and Reduces Turbo Lag
- Manufactured from high quality cast iron for durable usage
- Continuous tests under extreme conditions to withstand high temperature
- Special surface treatment to resist corrosion.
- Accurate dimensions with exquisite workmanship
- Tubes sized and shaped to match cylinder-head exhaust port

Notice

* No instruction will be included; professional installation and alignment is suggested.
* Performance aftermarket parts; modification may be needed.
* Please feel free to contact us for whatever we can help.

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding.
