t3 t4 T3T4 Turbo V-Band A/R .63 Universal amp; 76mm 3inch intercooler piping Kits
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "t3 t4 T3T4 Turbo V-Band A/R .63 Universal amp; 76mm 3inch intercooler piping Kits")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "t3 t4 T3T4 Turbo V-Band A/R .63 Universal amp; 76mm 3inch intercooler piping Kits")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "t3 t4 T3T4 Turbo V-Band A/R .63 Universal amp; 76mm 3inch intercooler piping Kits")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "t3 t4 T3T4 Turbo V-Band A/R .63 Universal amp; 76mm 3inch intercooler piping Kits")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "t3 t4 T3T4 Turbo V-Band A/R .63 Universal amp; 76mm 3inch intercooler piping Kits")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "t3 t4 T3T4 Turbo V-Band A/R .63 Universal amp; 76mm 3inch intercooler piping Kits")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "t3 t4 T3T4 Turbo V-Band A/R .63 Universal amp; 76mm 3inch intercooler piping Kits")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "t3 t4 T3T4 Turbo V-Band A/R .63 Universal amp; 76mm 3inch intercooler piping Kits")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "t3 t4 T3T4 Turbo V-Band A/R .63 Universal amp; 76mm 3inch intercooler piping Kits")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "t3 t4 T3T4 Turbo V-Band A/R .63 Universal amp; 76mm 3inch intercooler piping Kits")
.jpg?x-oss-process=image/auto-orient,1/quality,q_100/resize,m_mfit,w_1000,h_1000 "t3 t4 T3T4 Turbo V-Band A/R .63 Universal amp; 76mm 3inch intercooler piping Kits")
Combination offer
- A
- B
- C
- D
- E
- F
- G
Application
Compatible for 1.5L to 2.5L any 4/6 cylinder engine
Maximum PSI 18（1.2Bar）
Specification
Turbo
Horse Power: Capable of Boosting Horse Power up to 420HP
Cooling Type: Oil Cooled
Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust Outlet (Downpipe) Flange: V-Band Flange
Turbine Trim: 73
Turbine Inducer Diameter: 65.5 mm
Turbine Exducer Diameter: 55.9mm
Turbine A/R: 0.63
Compressor Trim: 55
Compressor Inducer Diameter: 50.5 mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Bearing: Journal Bearing
Warranty: one year warranty for any manufacturing defect
Internal Wastegate: Yes
Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
Piping Pipe Kit
Pipe length: 19.68''(500mm)
New Never been tried or installed.
100% quality assurance tested
Made out of high quality of 6061 aluminum Manual polishing finished
Package Including

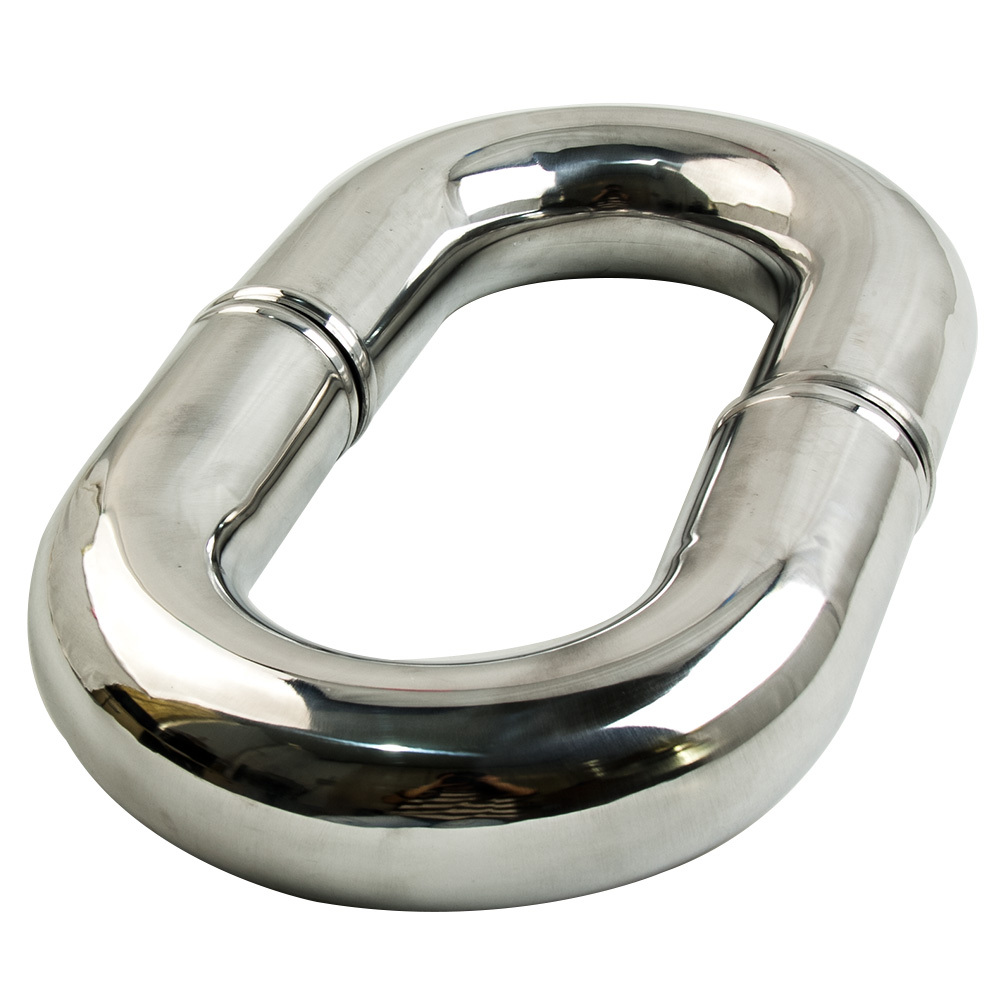

2x 180 degrees Pipes

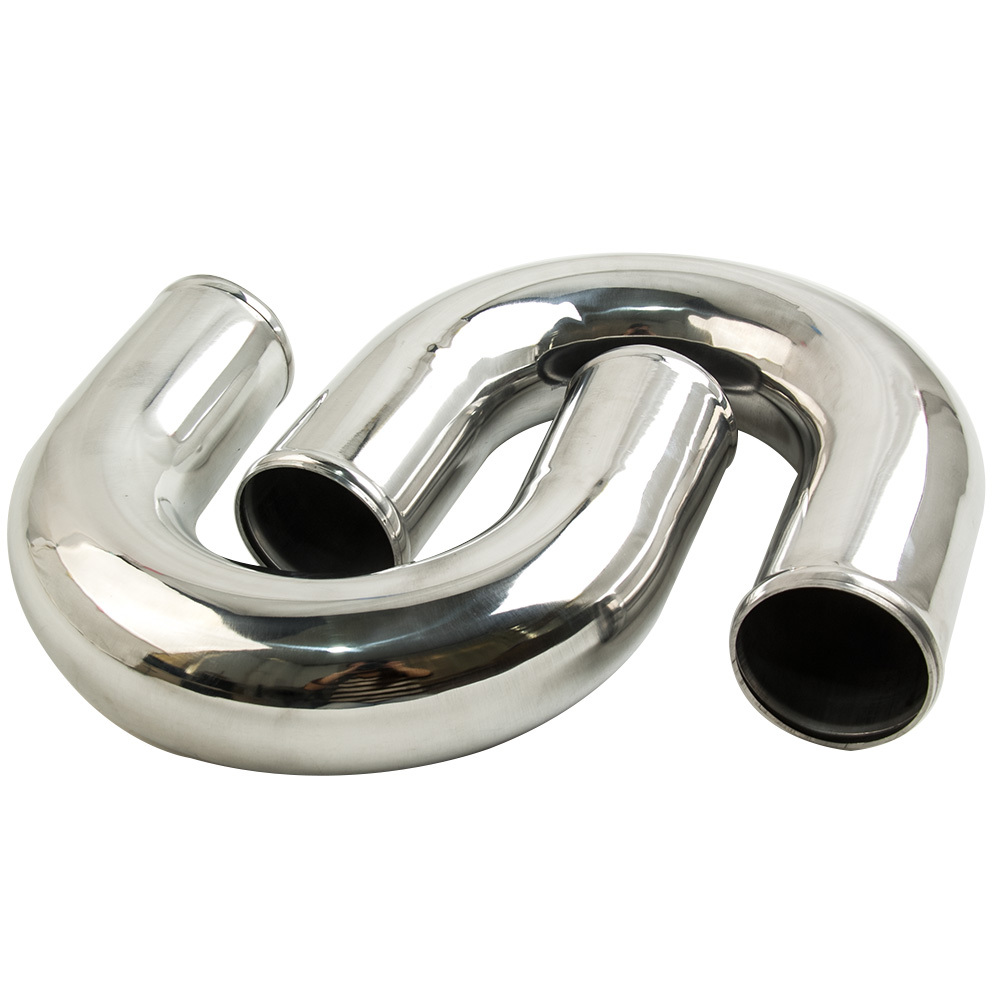

2x 90 degrees Pipes
2x 45 degrees Pipes
2x Straight Pipes

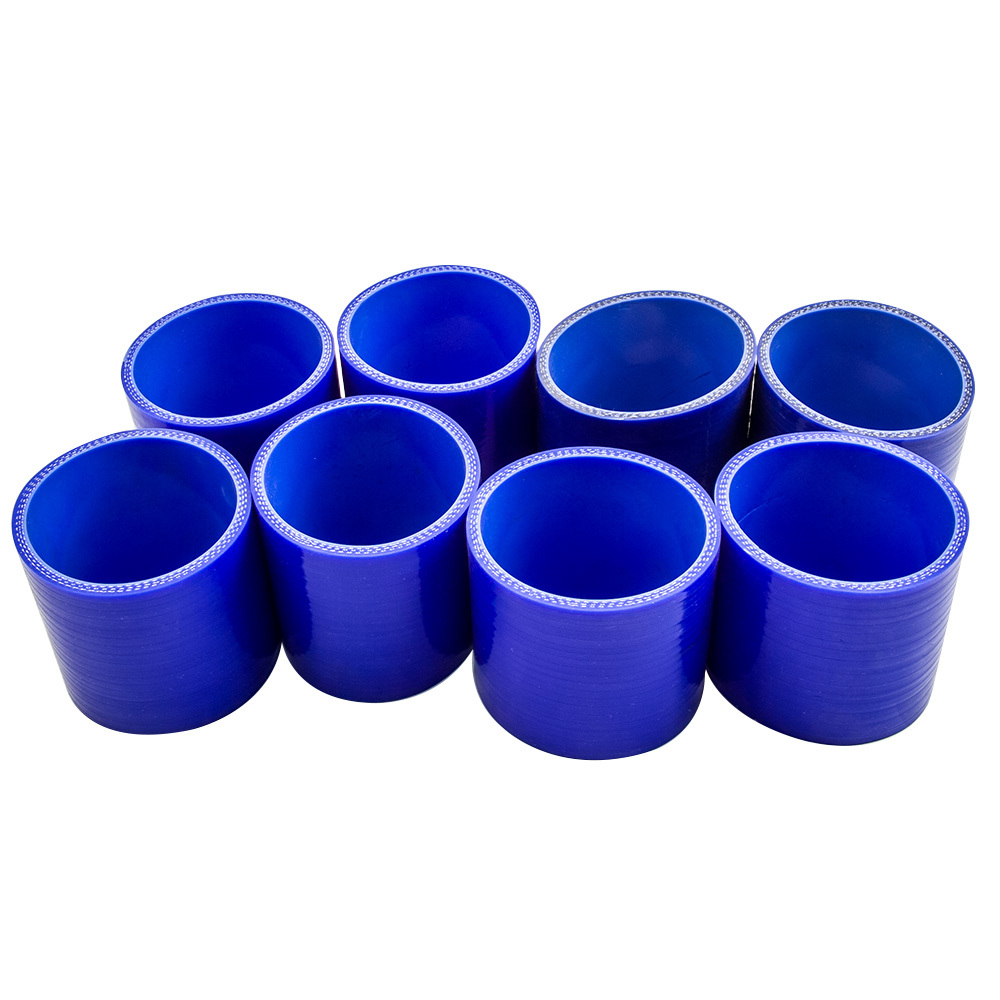

8x 3" inch Straight Couplers
16x T-bolt Clamps
2x 90 degrees Pipes
2x 45 degrees Pipes
2x Straight Pipes
8x 3" inch Straight Couplers
16x T-bolt Clamps
Turbo and gaskets
Notice
* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles.
* Professional installation is highly recommended (No Instruction Included).
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding.
