T04e T3/t4 Turbo Turbocharger Compressor V-band+boost Controller 1-30 Psi Adjust

Application

Compatible for 1.5L to 2.5L any 4/6 cylinder engine

Maximum PSI 18（1.2Bar）

Specification

Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange: V-Band Flange
Cooling Type: Oil Cooled
Wastegate: Internal Wastegate
Horse Power: Boost Horse Power up to 420HP
Compressor:
Trim: 44
Inducer Diameter:50.5 mm
Exducer Diameter:76 mm
A/R:0.5

Turbine:
Trim:73
Inducer Diameter:65.5 mm
Exducer Diameter:55.9 mm
A/R:0.63

Oil Inlet: M12*1.25 & 2*M8*1.25

Oil Outlet: 2*M8*1.25

Condition: New
Bearing Type: Floating Bearing
Warranty: one year

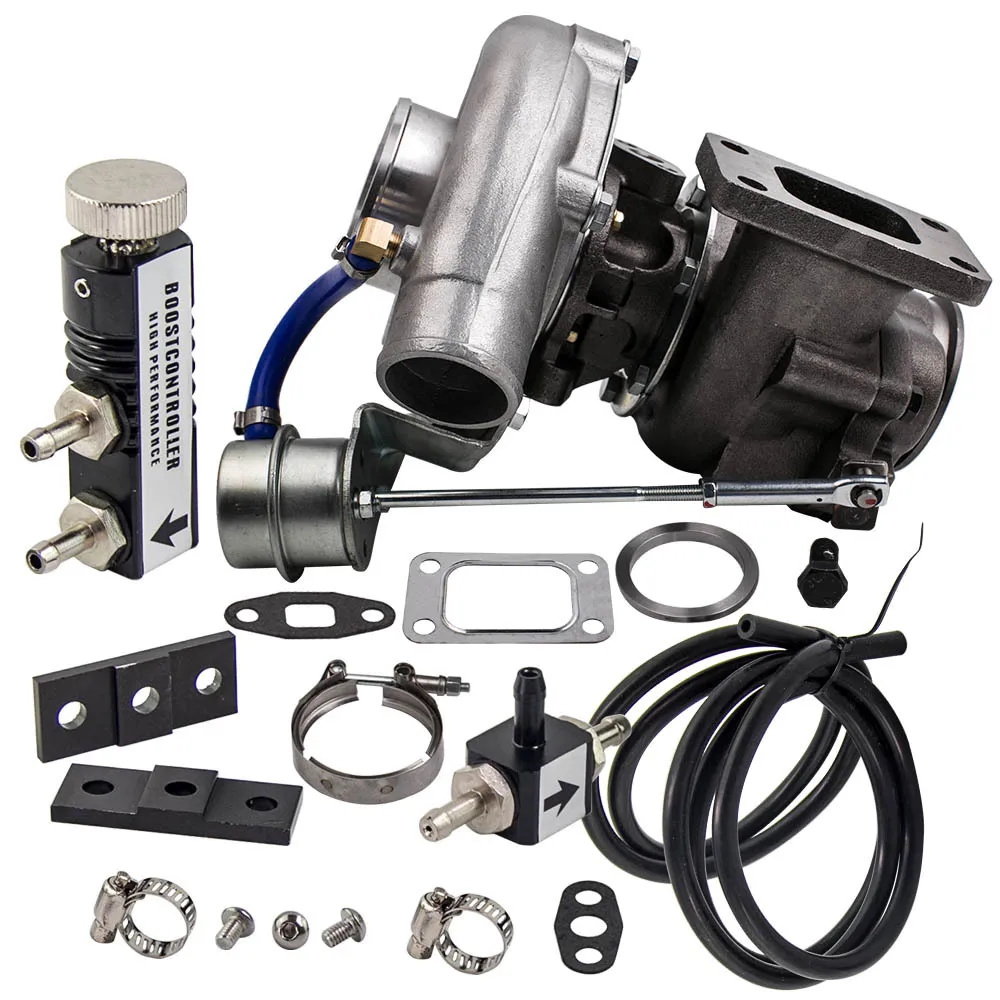

Accessories: You will get exactly as shown in the picture above

Turbo Boost Controller

Allows adjustable boost psi settings, light weight design to be mount under the hood. Hardware is included

Adjustable boost knob increases horsepower and torque, depends on boost level.

Universal fitment and great for all Turbo applications

CNC Machined Aluminum Body

1-30 PSI Adjustable

Notice

* Professional installation is highly recommended (No Instruction Included).
* For any needs please contact us.

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding.
