MaXpeedingrods Brand Introduction

Founded in 2006, MaXpeedingrods is a trusted global brand specializing in a full range of high-performance automotive parts. With a strong focus on suspension and coilovers, we hold a leading market share online and are widely recognized by enthusiasts worldwide. All products are engineered for reliable performance, durability, and perfect fitment, serving daily driving, street tuning, and light track use.

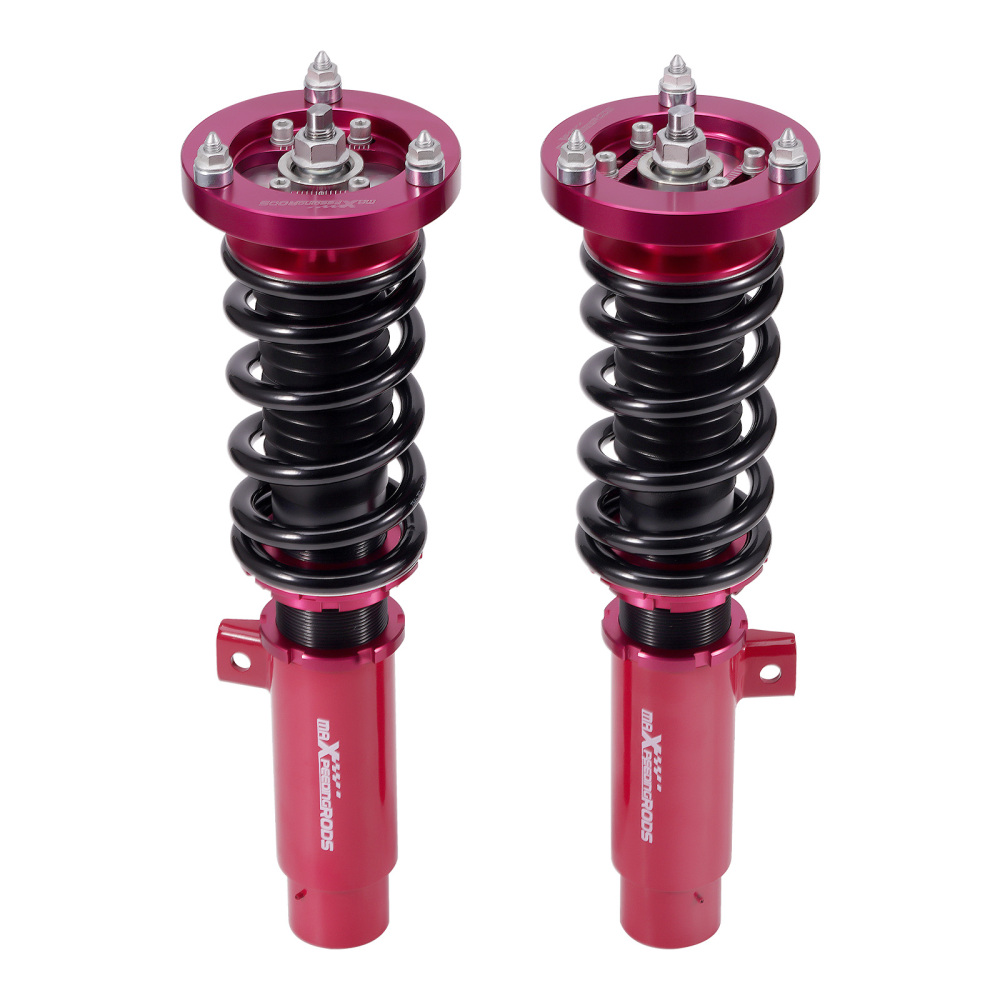

Coilovers

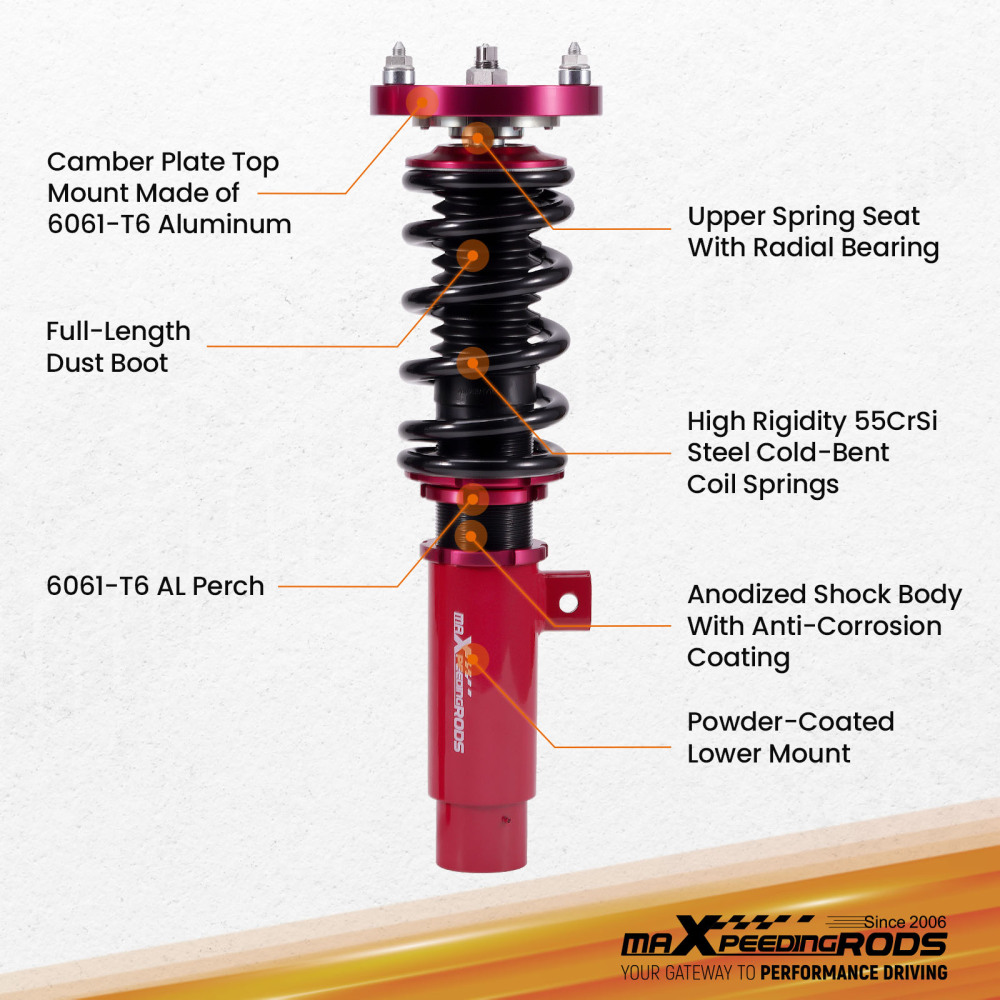

◆ Full-Length Threaded Body For True Ride Height Adjustment Without Sacrificing Suspension Travel.

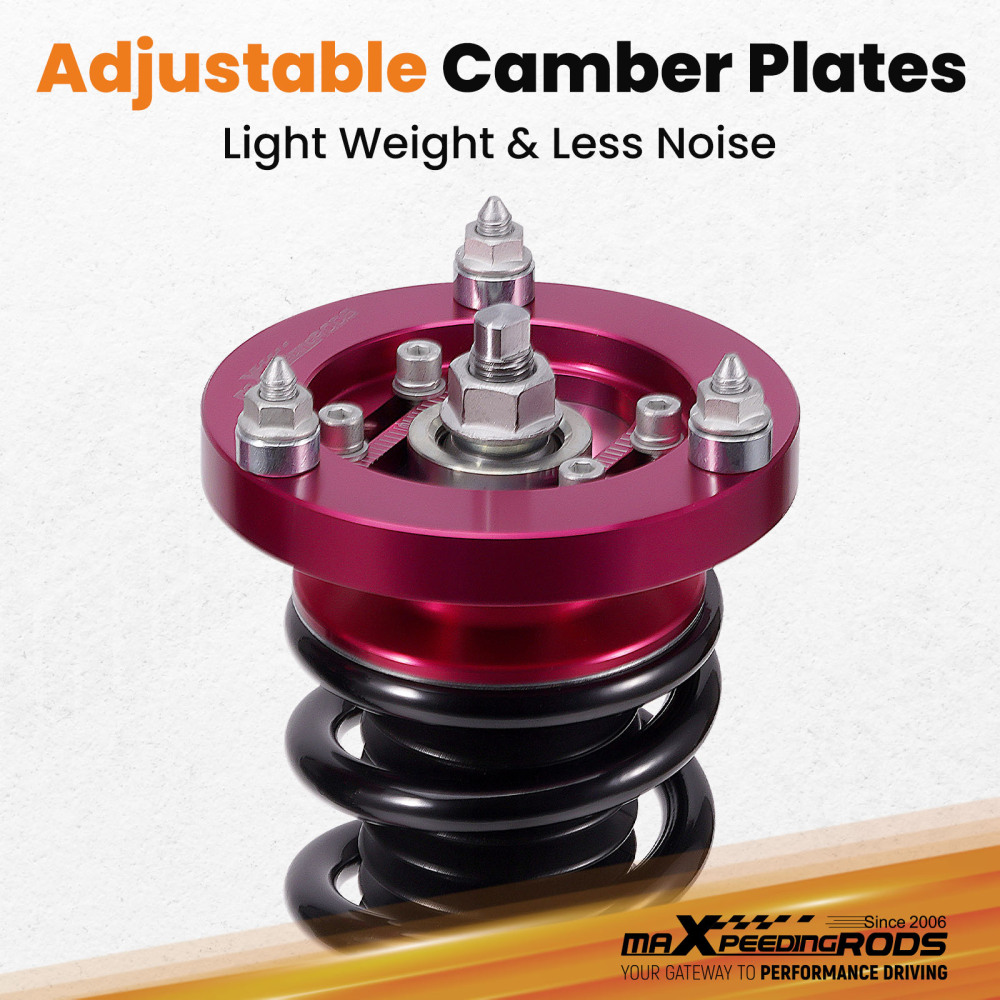

◆ Camber-Adjustable Pillow Ball Upper Mounts For Precise Alignment And Sharper Steering Response.

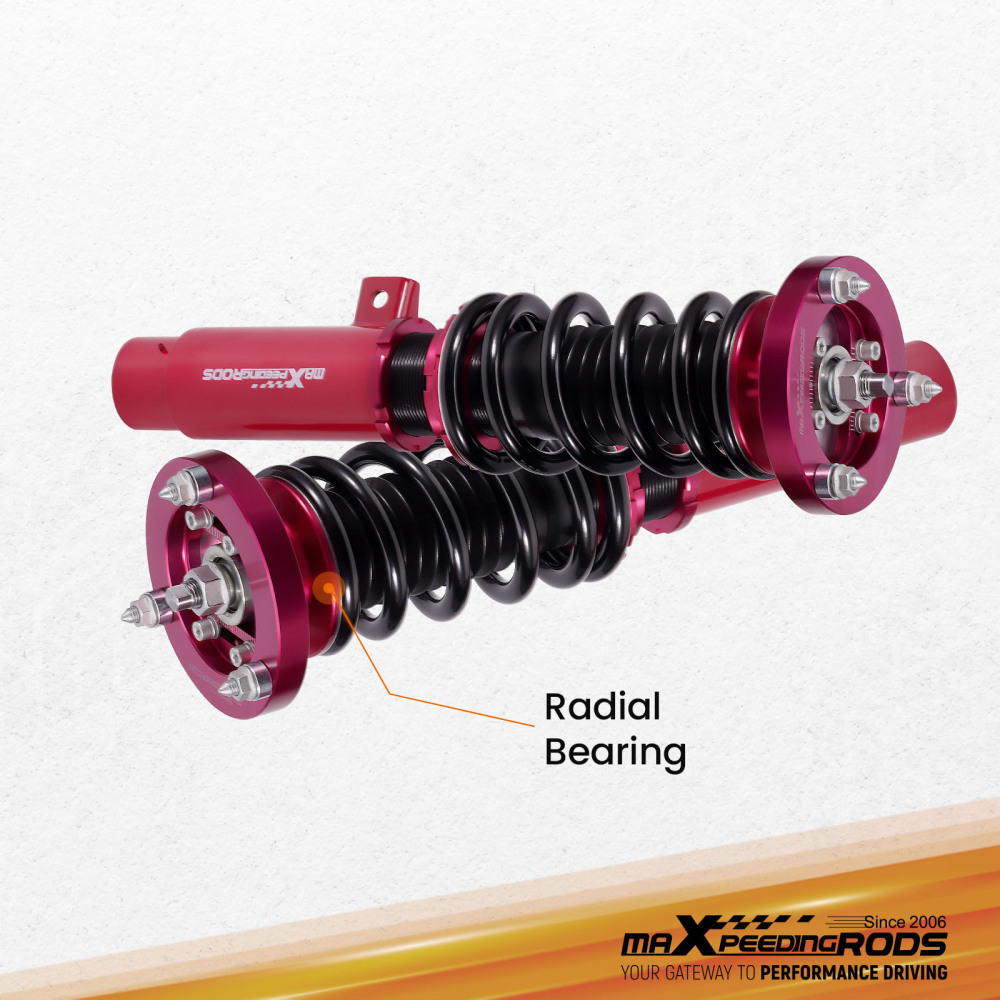

◆ Precision Pillow Ball Upper Mounts With Smooth Bearings For Stable Steering Response.

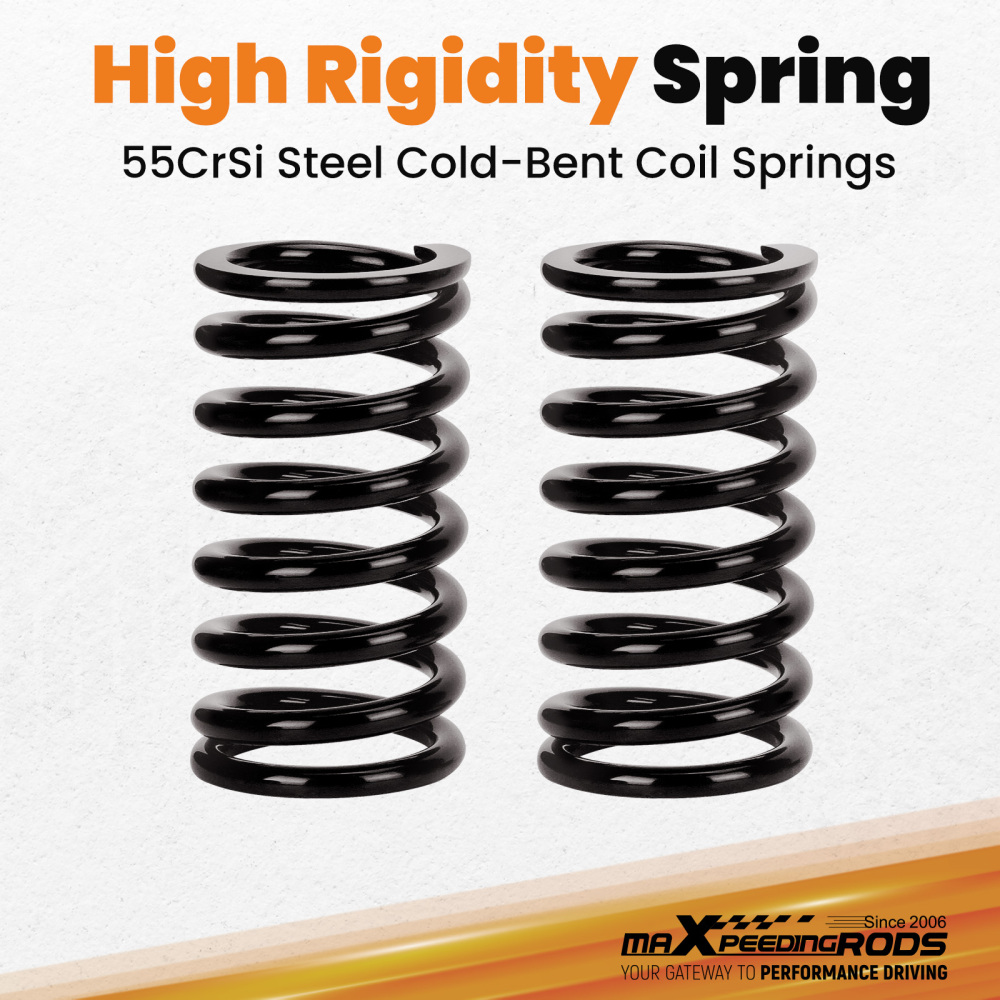

◆ Premium Cold-Coiled Springs Deliver Consistent Rate And Durable Performance.

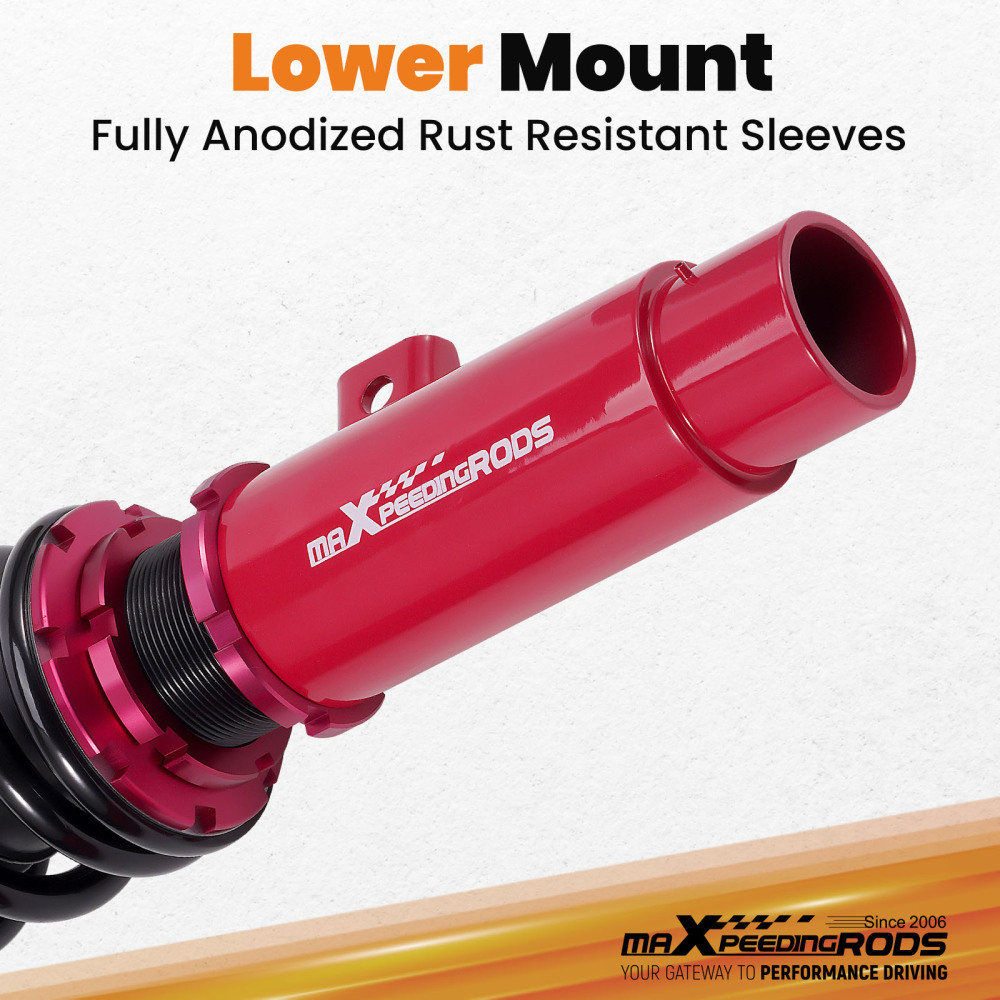

◆ Heavy-Duty Construction With Corrosion-Resistant Coating For Long-Lasting Durability.
◆ Direct Bolt-On Design, Vehicle-Specific Fit With All Necessary Hardware Included.
◆ Brand New Complete Kit with 1-Year Warranty

Adjustable Sway Bar End Links

1.Condition: New
2.Material: High-Quality Machined Steel Alloy
3.Galvanize Surface finish：provide excellent resistance to corrosion
4. Precision-Engineered Ball Joints
5. Precision Welding
6.With left hand and right-hand threads on each side
7. adjustable: eye to eye length range for 3 options(mm)
(1) Min 135 Max 175
(2) Min 205 Max 245
(3) Min 255 Max 296
8. Placement on Vehicle: Left, Right, Front


Fitment

Compatible for BMW 3 (E90) (2004-2011) 316i, 318i, 320i, 323i, 325i, 328i, 330i, 335i, 316d, 318d, 320d, 325d, 330d, 335d.
Compatible for BMW 3 Touring (E91) (2004-2012) 316i, 318i, 320i, 323i, 325i, 328i, 330i, 335i, 316d, 320d, 325d, 330d, 335d.
Compatible for BMW 3 Coupe (E92) (2005-2013)  316i, 318i, 320i,323i,325i,328i,330i,335i,320d,325d,330d, 335d
Compatible for BMW 3 Convertible (E93) (2006-2013) 318i, 320i, 323i, 325i, 330i, 335i,  320d, 330d, 325d.

Note: Fits RWD only, not fit M3 models.

Specification

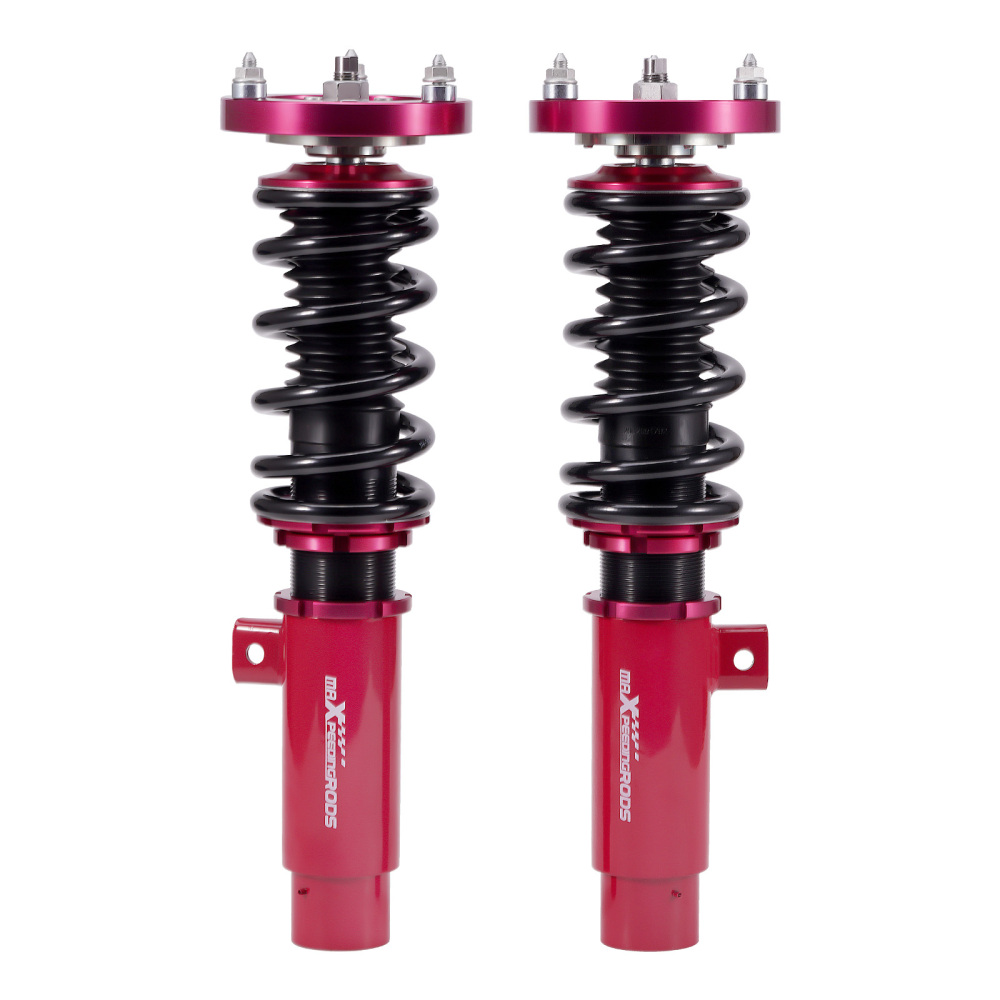

- Front top mount: Pillow ball with camber plate

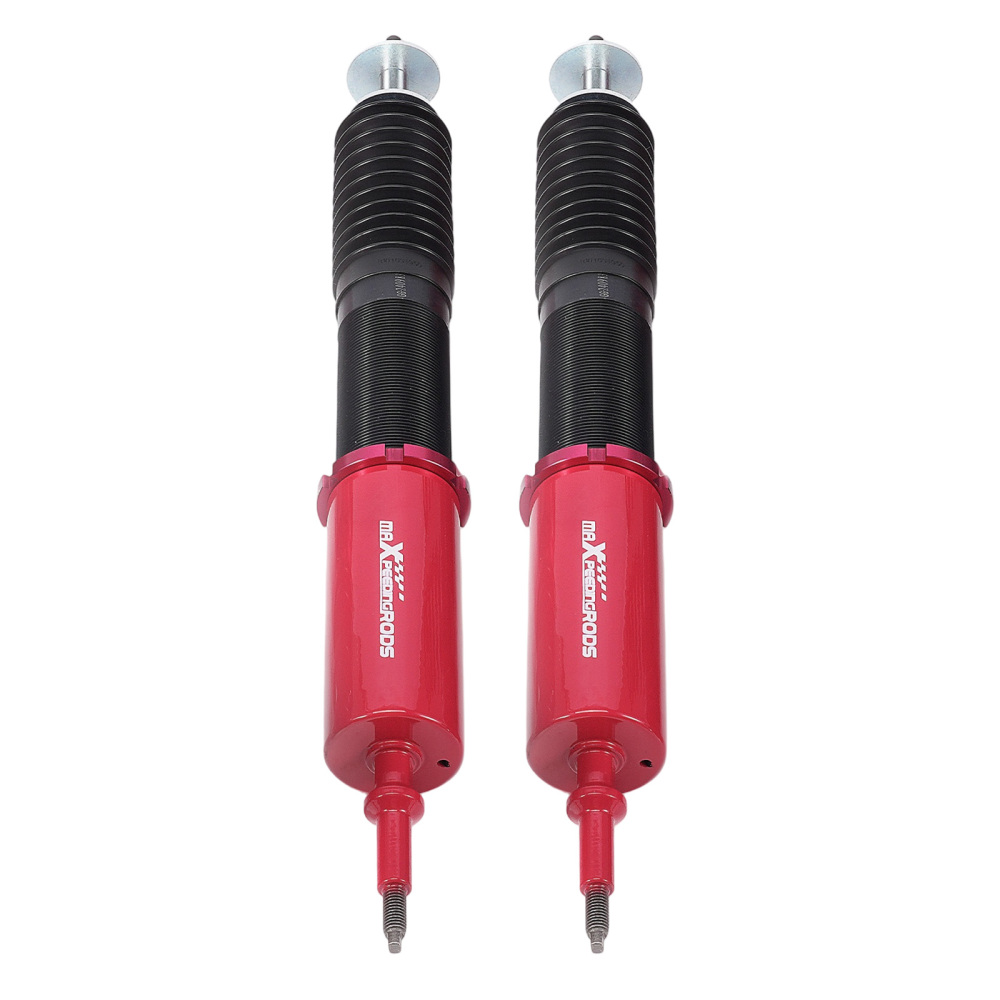

- Rear top mount: OE top mounts required
- Camber adjustable: Available
- Spring Rate Front: 8 kg/mm (448 lbs/in)
- Spring Rate Rear: 12 kg/mm (672 lbs/in)
- Spring length Front: 180 mm
- Spring length Rear: 230 mm

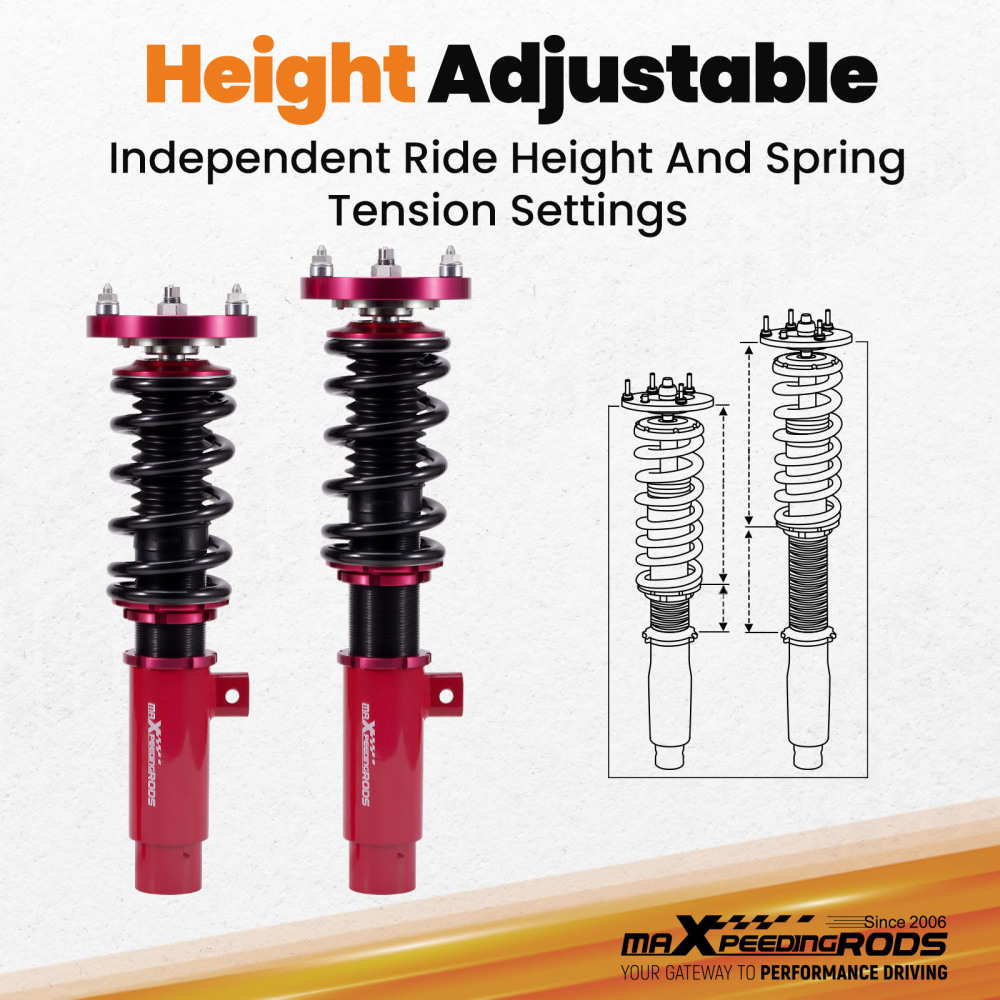

- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring Preload advised: 7-10 mm

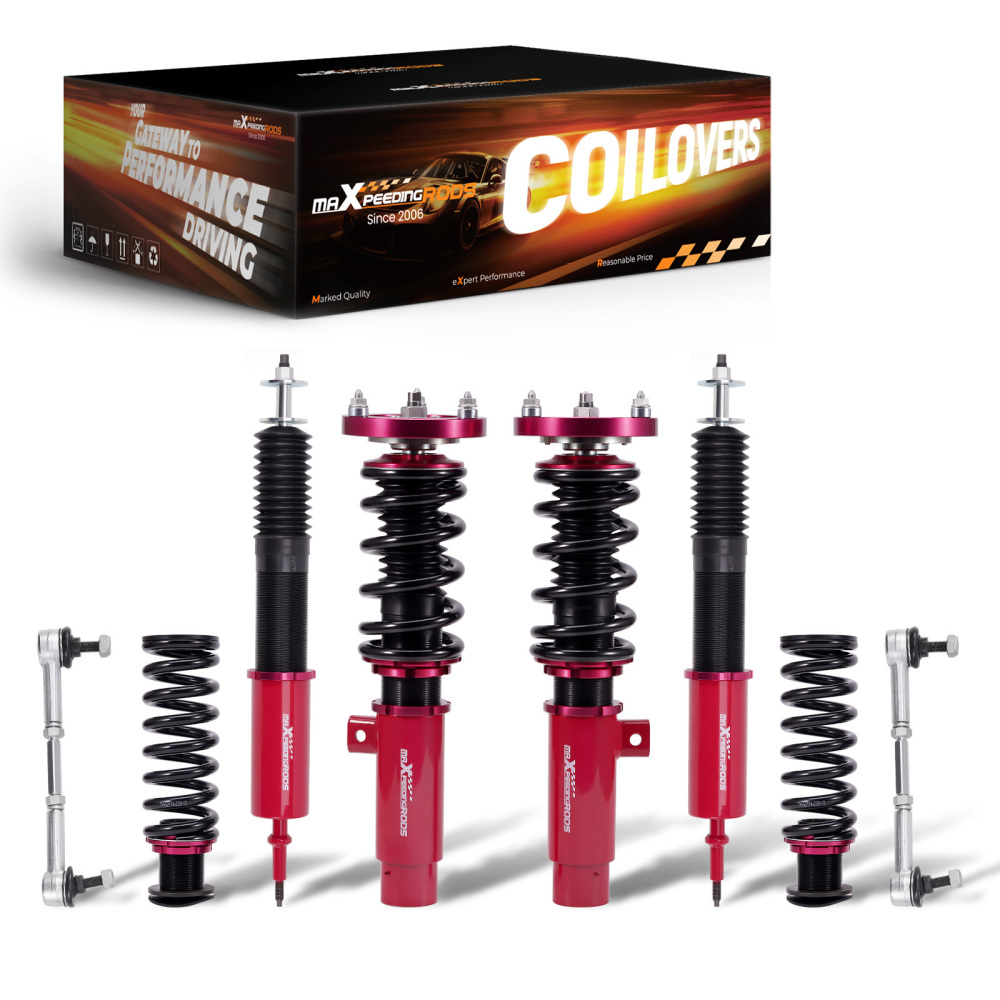

Package included

1 x Set of Coilover Spring Kit (2 Front + 2 Rear)

2 x  Front Adjustable Sway Bar End Links
1 x Pair of wrenches for height adjustment

★ 30-day Money Back & 12-Month Replacement Guarantee
