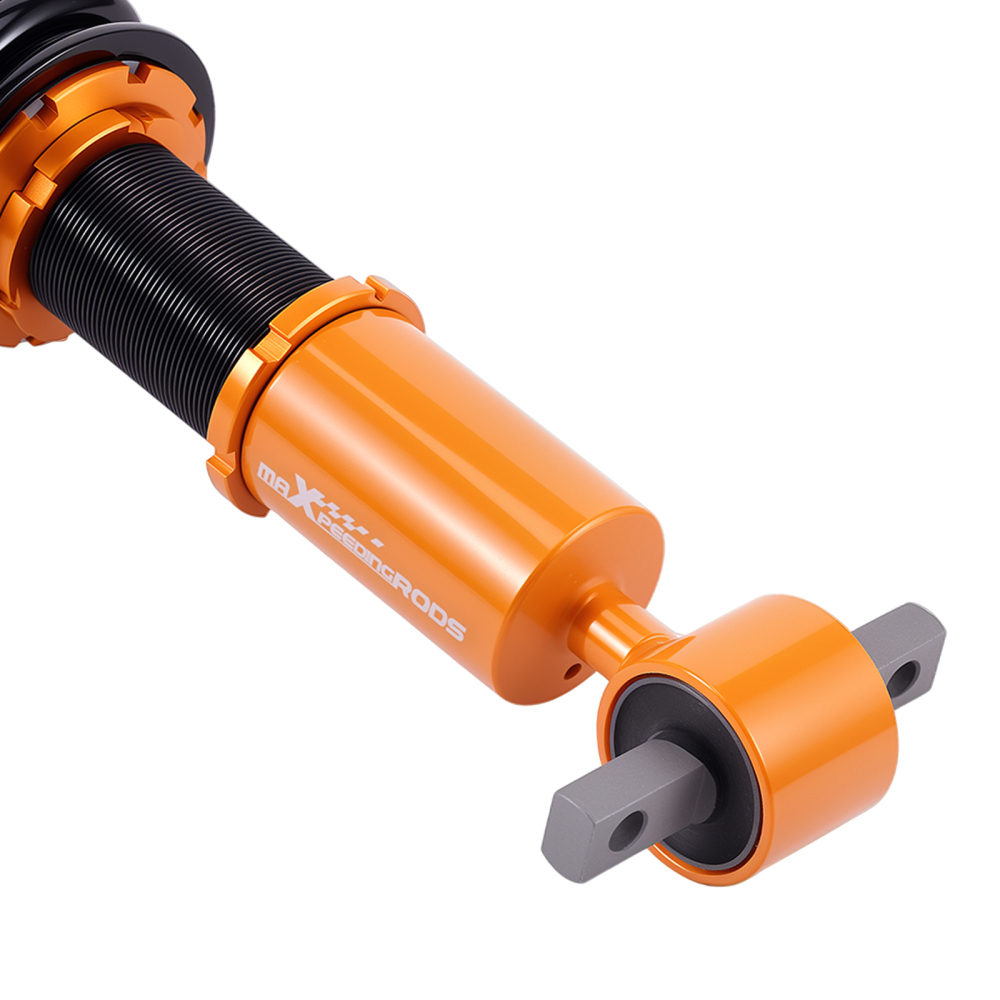

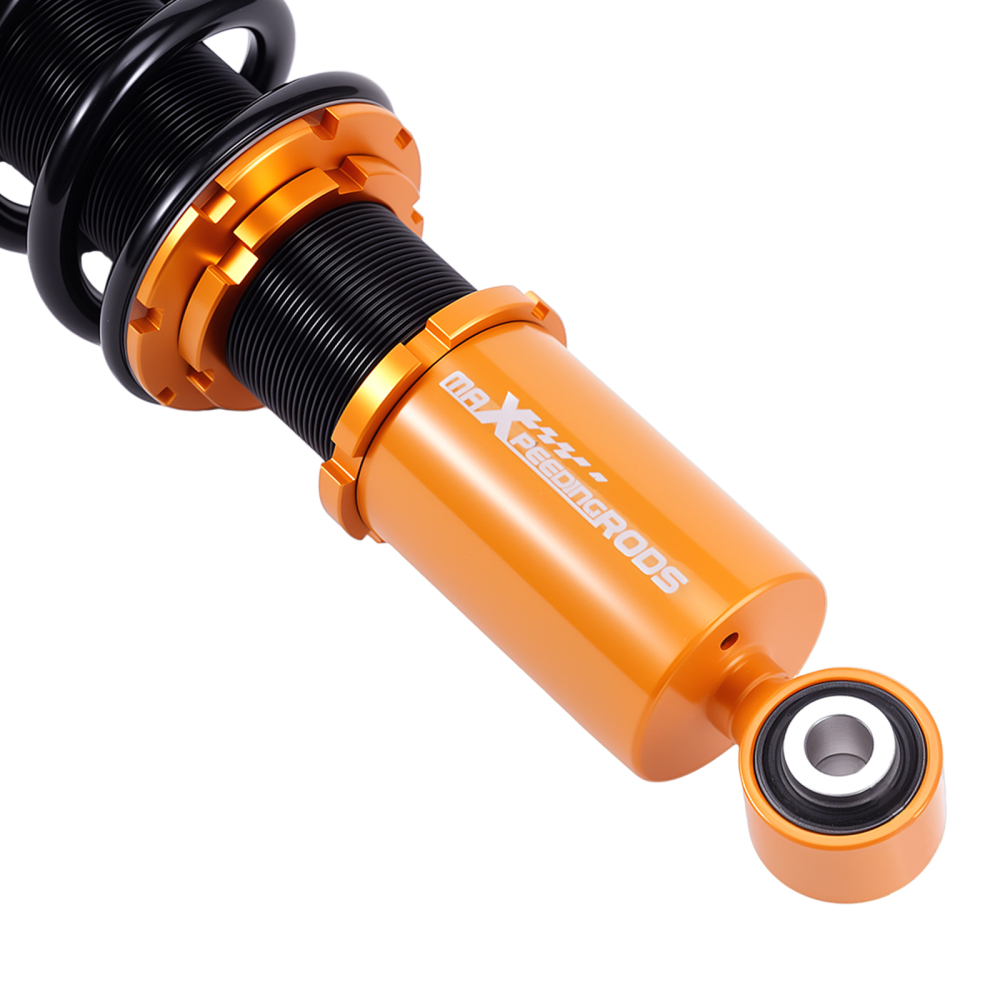

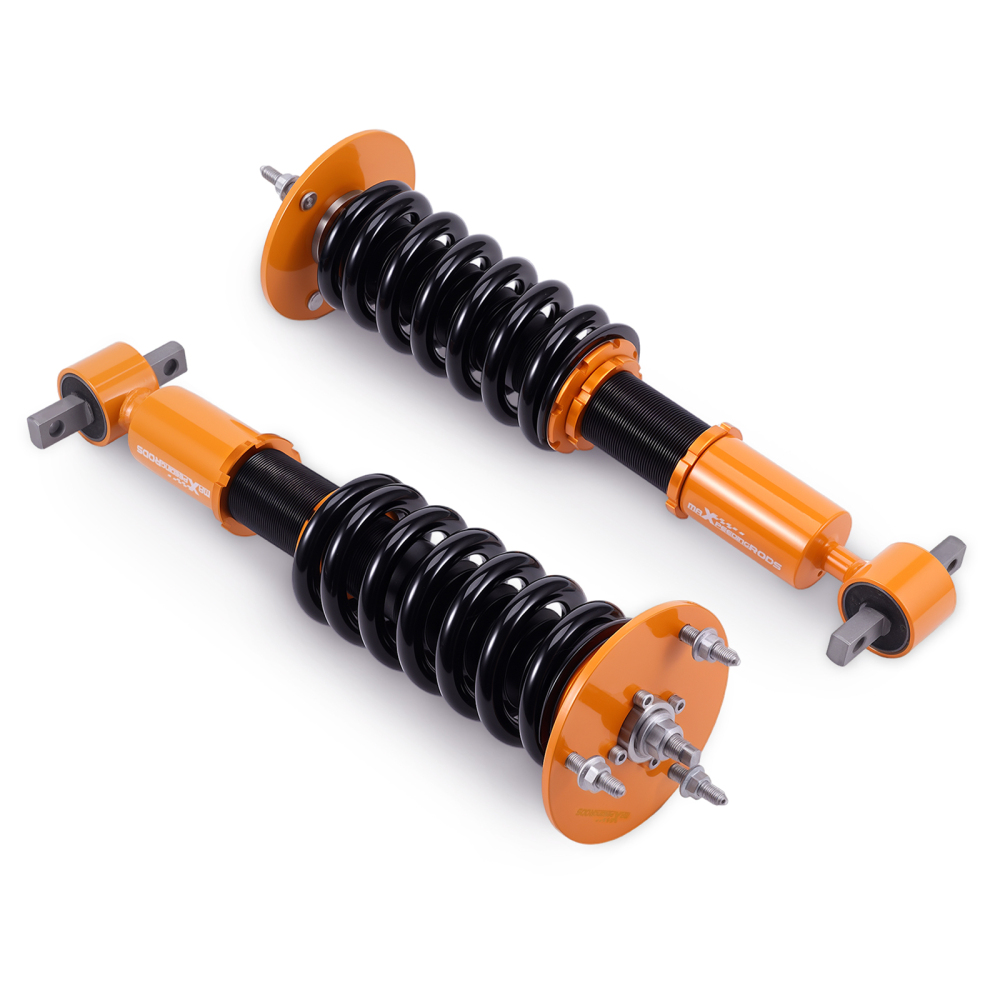

Air Suspension Conversion to Coilover compatible for Cadillac Escalade ESV 07-13 Struts

Specification

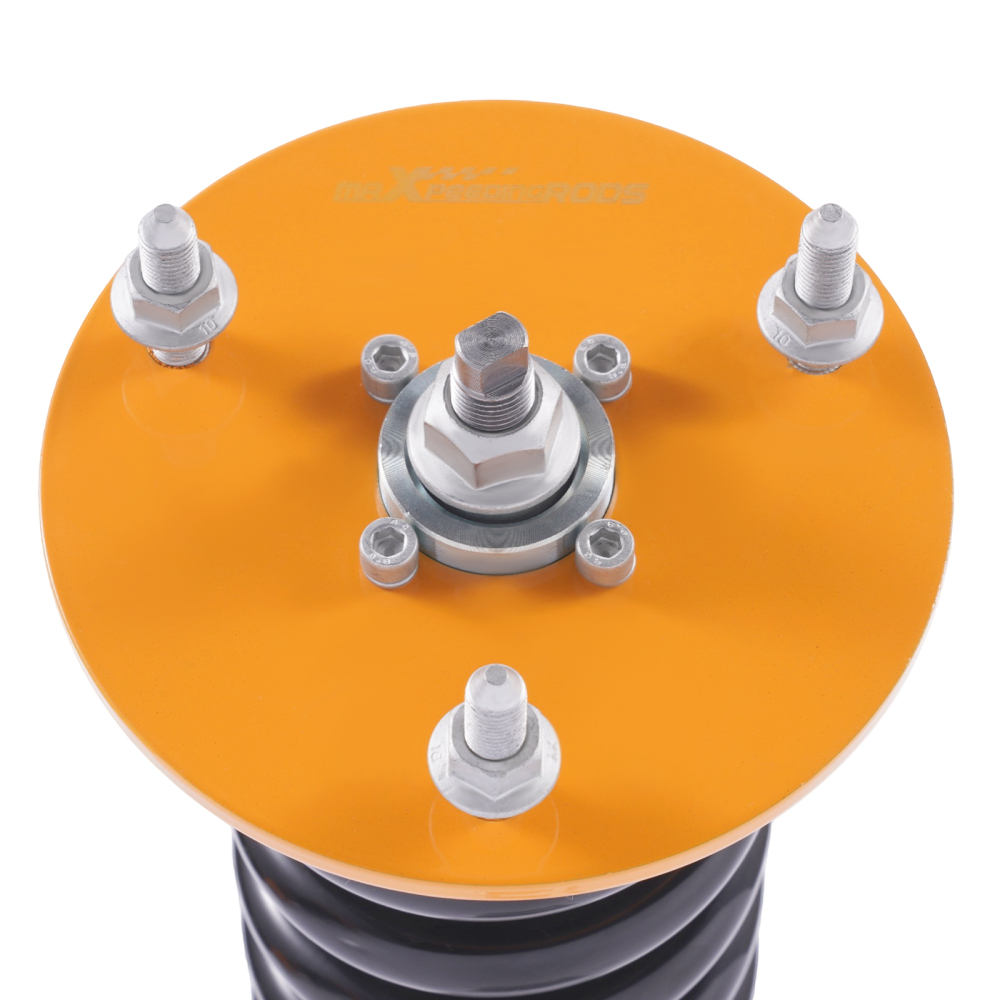

Front Top mounts: rubber top mounts
Damping: non-adjustable
Shock type: Twin tube
Spring rate Front: 18 kg/mm (1008 lbs/in)
Spring rate Rear: 6 kg/mm (336 lbs/in)
Spring length Front: 230mm
Spring length Rear: 255mm
Adjustable height: lowering 1-3 inch
Coilover overall length Front: 399mm-511mm
Coilover overall length Rear: 560mm-602mm
Color: Golden body with black spring

Package included

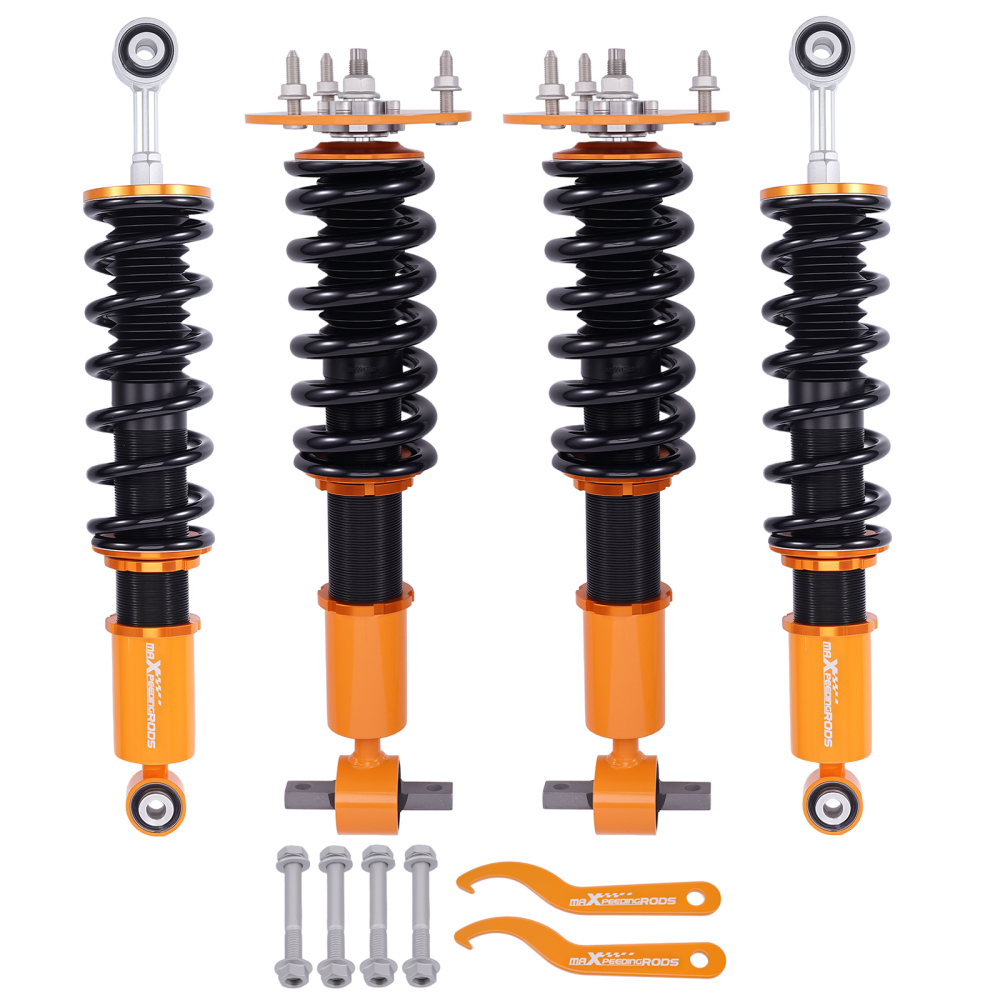

Package included：

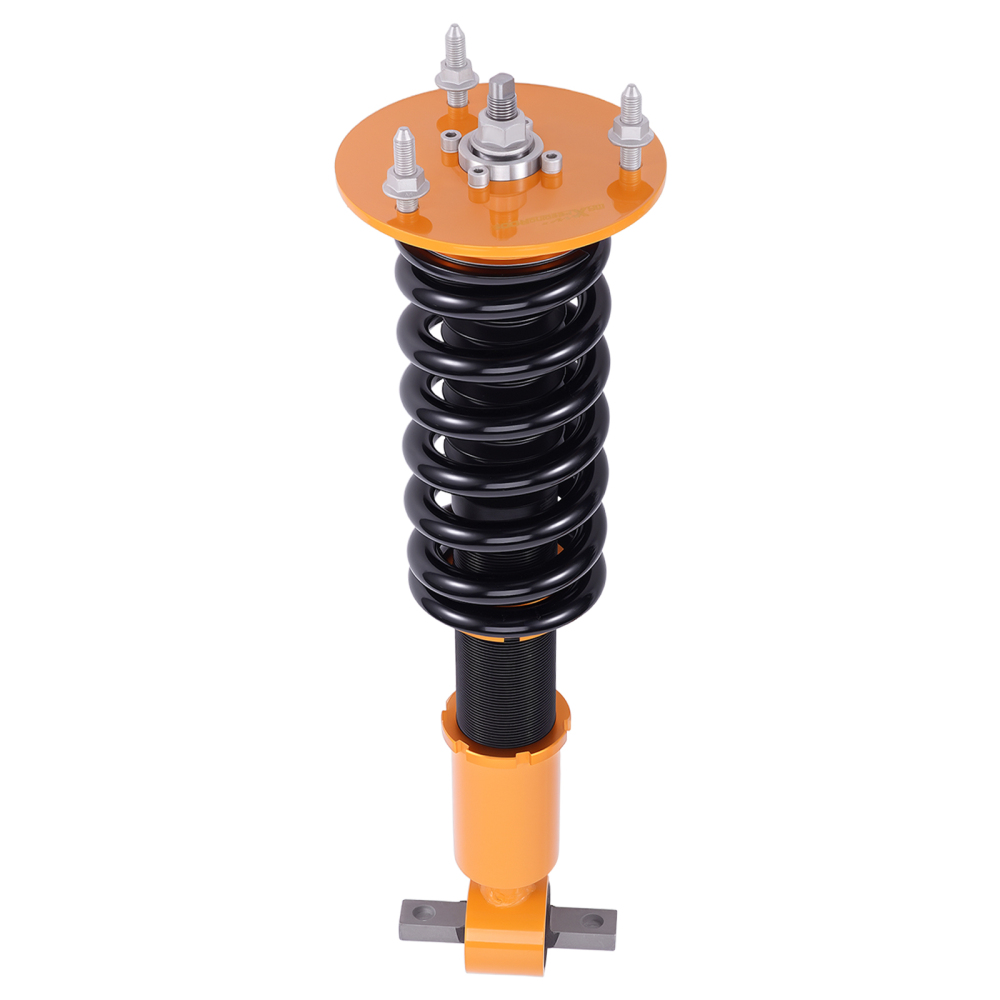

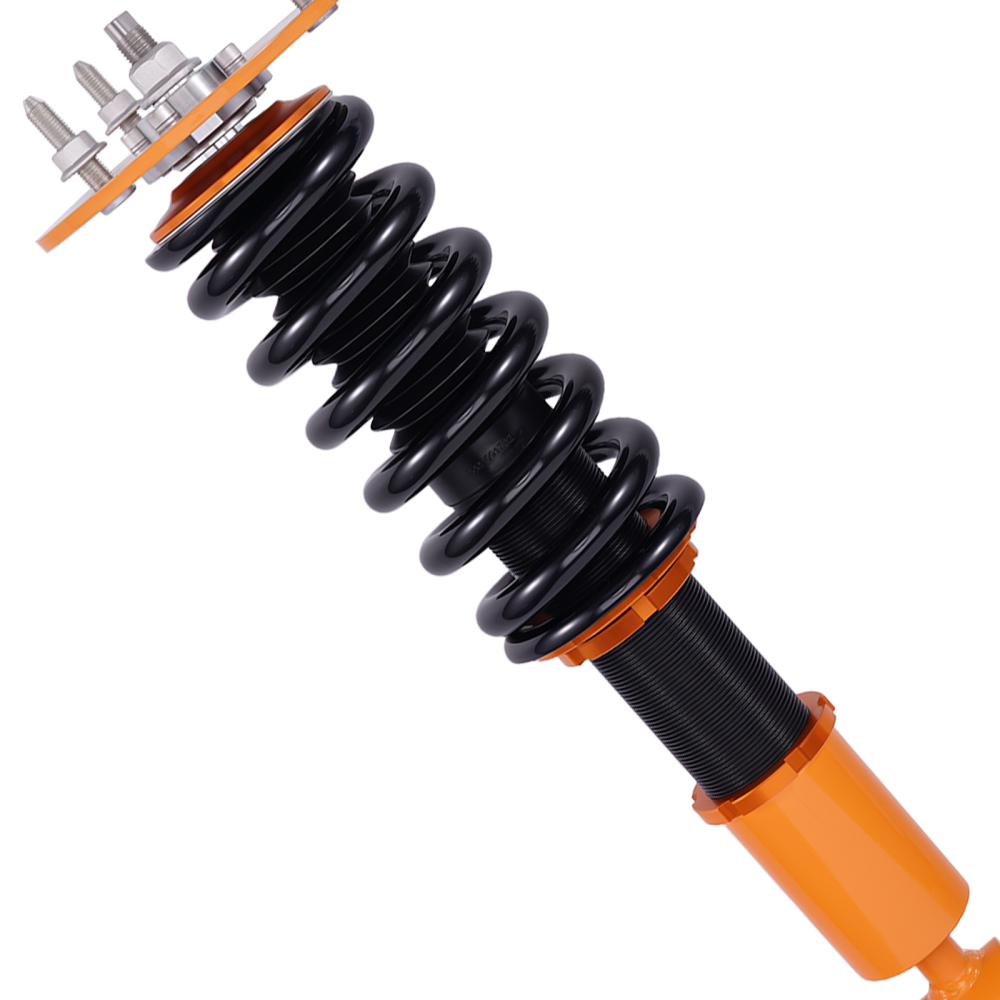

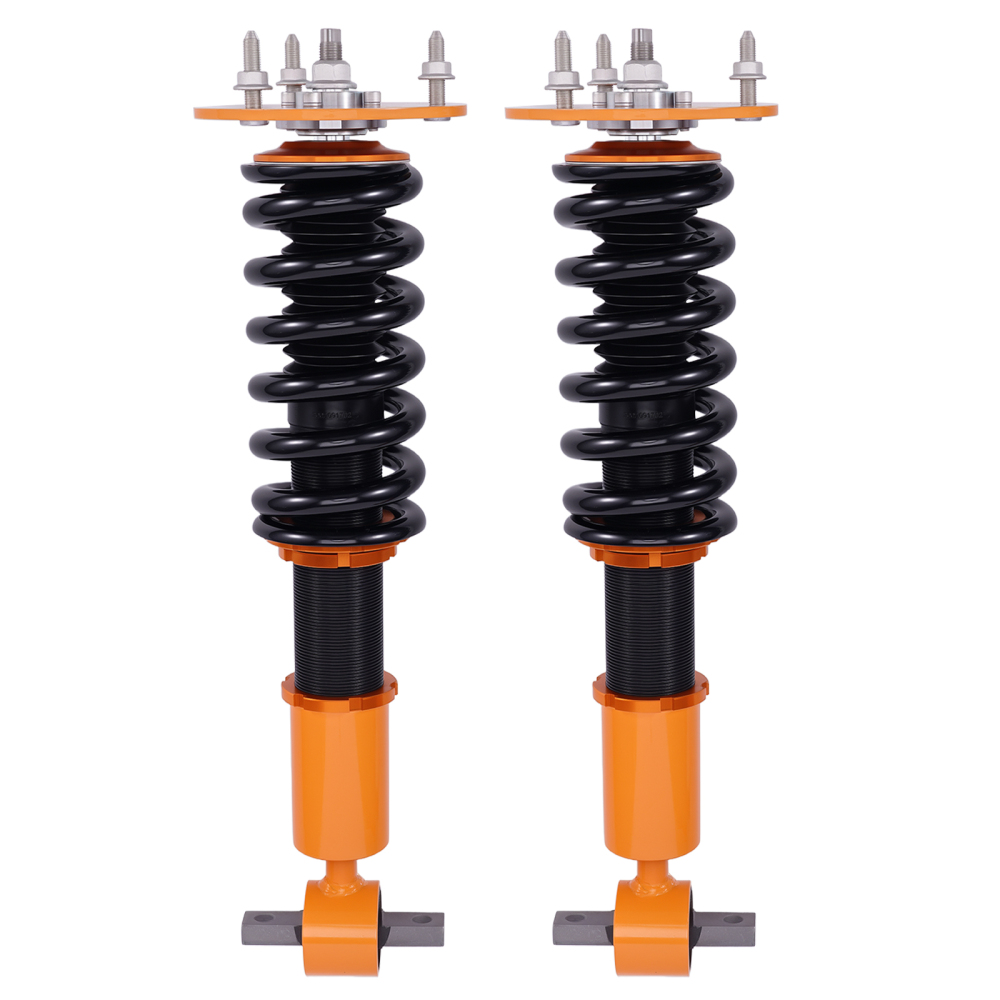

2x Front coil-overs

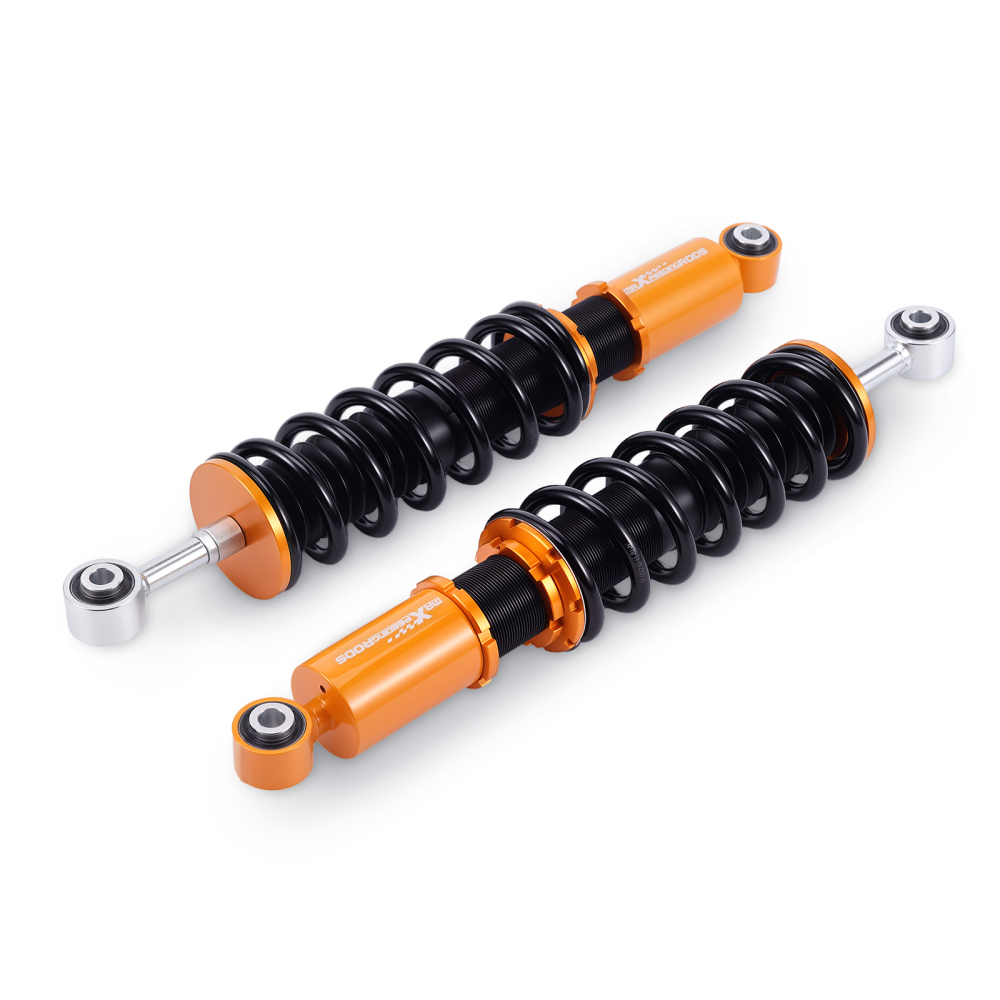

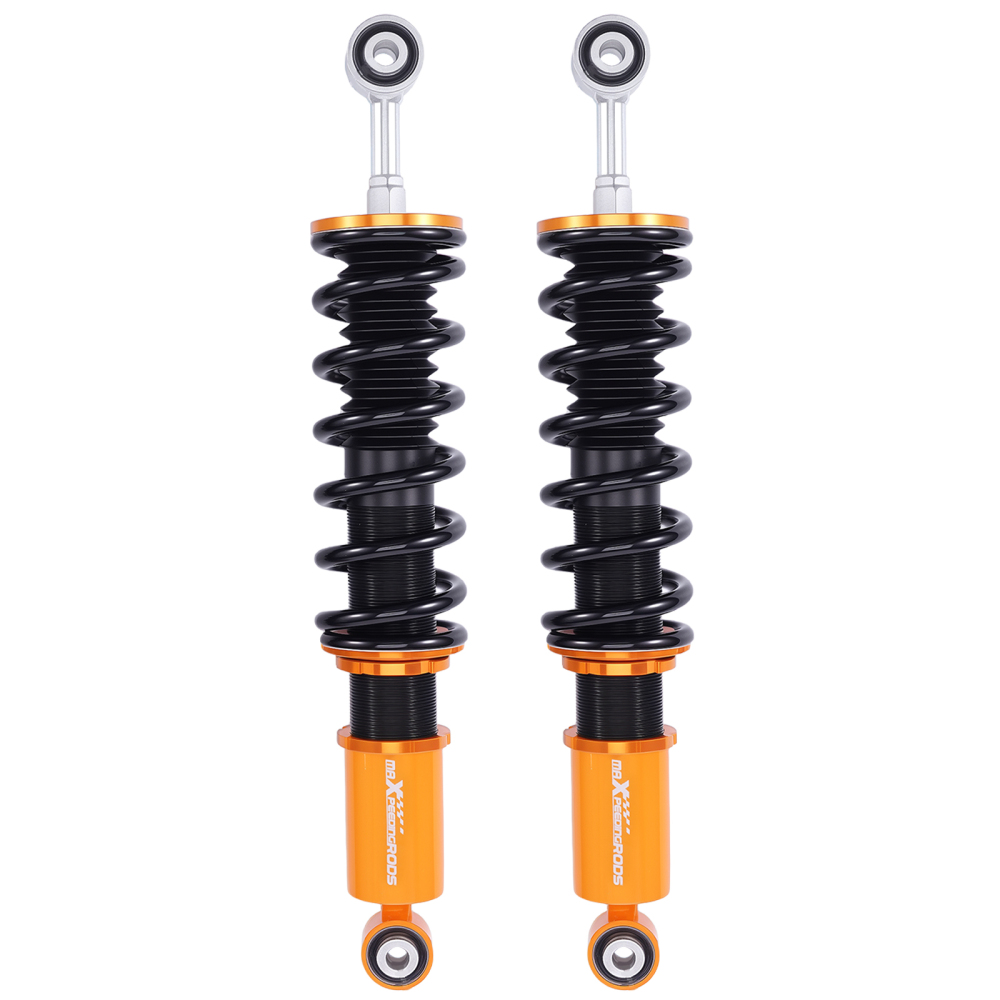

2x Rear coil-overs
2x C spanners

Dimension

Package Size: 70*50*20 cm
Weight: 32750 g

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.

3. Impact wrench is prohibited during the installation, it will loosen or damage the product.

4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

5. Regular maintenance is recommended for the coil-over. Applying WD-40 or a suitable protective spray every 3–4 months can help keep the components clean and moving smoothly.

Application

Compatible for Cadillac Escalade 2007 - 2013 Excludes Z55 FE3 sport suspension
compatible for Chevrolet Avalanche 2007-2012 for Z55 Suspension
compatible for Chevrolet Suburban 1500 2007-2012 for Z55 Suspension ,exclude flex fuel models
compatible for Chevrolet Tahoe 2007-2012 for Z55 Suspension ,exclude flex fuel models
compatible for GMC Yukon XL 1500 2007-2009 for Z55 Suspension ,exclude flex fuel models
