Turbo charger compatible for Subaru Impreza EJ20 EJ25 WRX STI TD05-20G Water + Oil Cooled

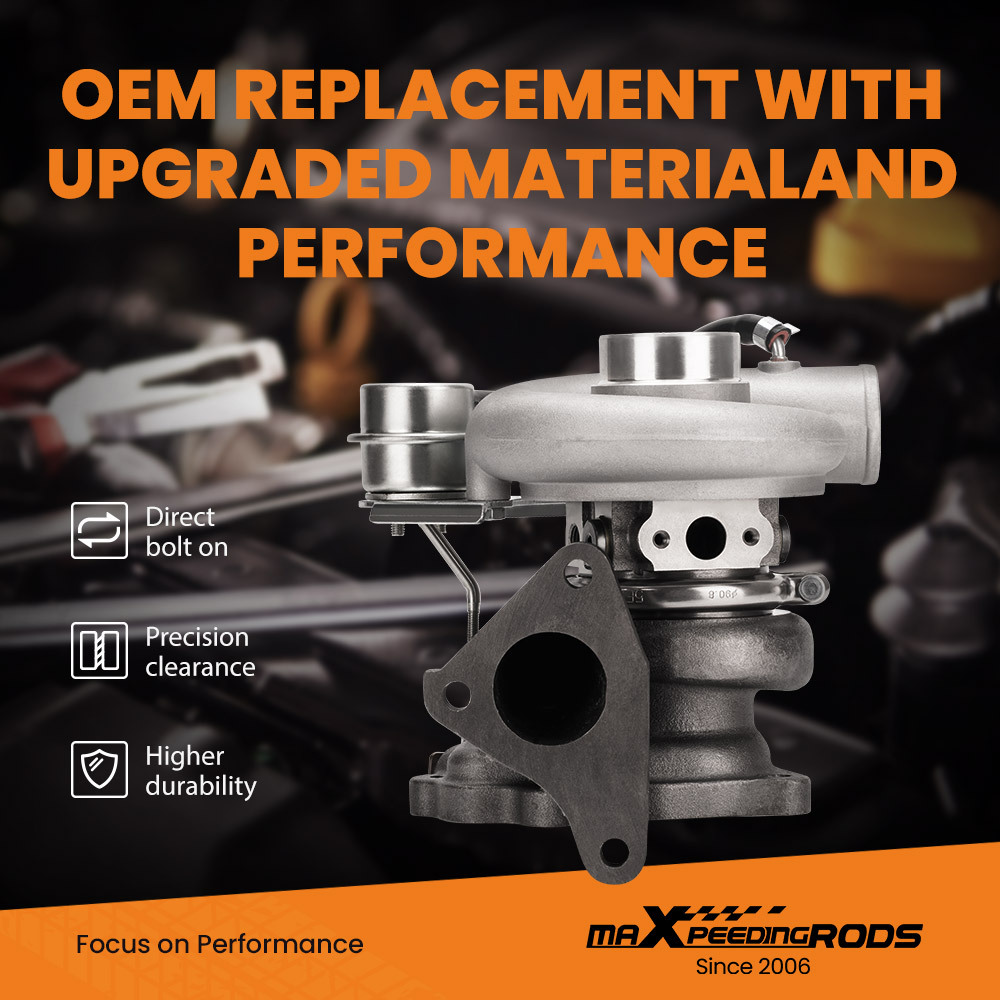

TD05-20G Turbo Turbocharger compatible for Subaru Impreza WRX STI EJ20 EJ25 02-06

Application:

Compatible for Subaru Impreza WRX / STI EJ20 EJ25 engine 2002 - 2006
Compatible for Subaru Impreza  WRX Limited Sedan 4-Door
Compatible for Subaru Impreza  WRX Limited Wagon 4-Door
Compatible for Subaru Impreza  WRX Sedan 4-Door
Compatible for Subaru Impreza  WRX STI Limited Sedan 4-Door
Compatible for Subaru Impreza  WRX STI Sedan 4-Door
Compatible for Subaru Impreza  WRX TR Sedan 4-Door
Compatible for Subaru Impreza  WRX Wagon 4-Door

*Notice: All for WRX Wagon engines and automatic sedan engines came with a TD04,all for manual WRX sedans including STI versions had a TD05 model. If your original turbo is TD04 model, some modification(connections, bolts,  fixed screws etc.) is required.

Engine Number:
For 2.5L 2458CC H4 GAS DOHC Turbocharged
For 2.0L 1994CC H4 GAS DOHC Turbocharged

Specification

Exhaust Outlet Flange: 5-Bolt Flange
Exhaust Intlet Flange: 3-Bolts Flange
Turbine Side:
Turbine Trim: 76.4
Turbine Housing: 7cm²
Turbine Inducer Diameter:56mm
Turbine Exducer Diameter: 48.96mm
Compressor Side:
Compressor Trim: 59.8
Compressor Inducer Diameter: 52.6mm
Compressor Exducer Diameter:67.9mm
Compressor Housing Inlet OD: 57.8mm

Oil Feed: M10*1.5
Oil Drain: M15 & 2*M6H
Water In/Out: M14*1.5
Turbine housing: 7cm²
Compressor housing inlet OD: 57.8mm,ID:53.62mm
Compressor housing outlet OD: 51.2mm,ID:41.2mm

Bearing: Wet Float/Journal Bearing
Cooling Type: Water + Oil cooled
Thrust Bearing:270 degree
Hosepower: Up to 380HP
Turbo Type: Individual
Condition: 100% Brand New
Package Size:30x 28x 24 cm
Package Weight: 7650g

Feature

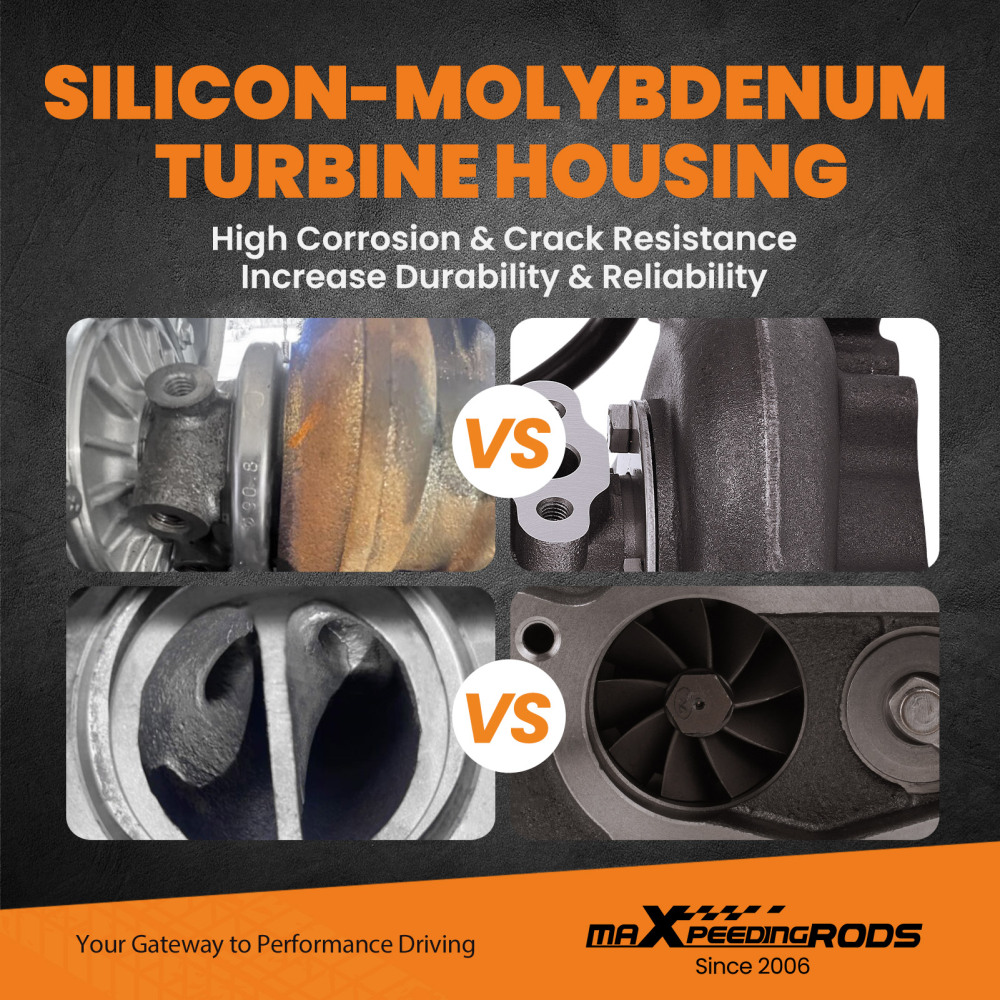

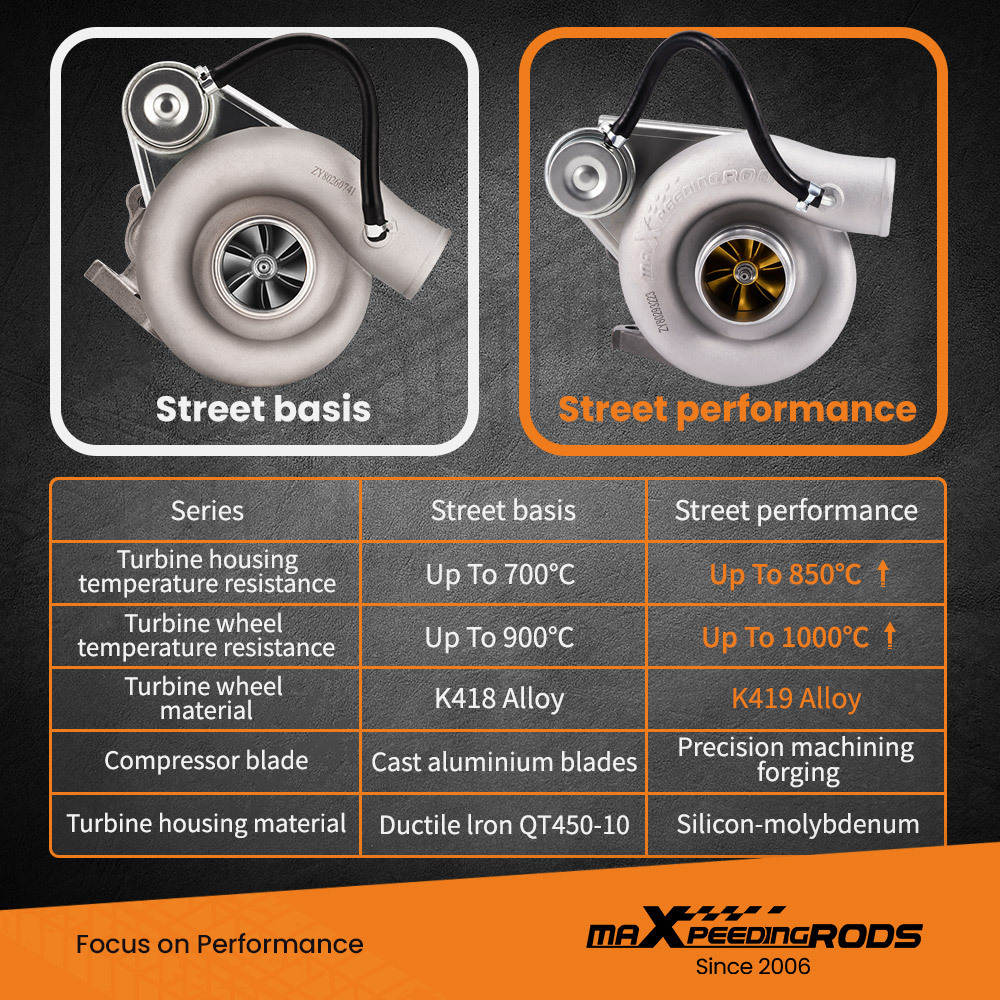

1. Turbine Housing: Silicon-Molybdenum alloy steel - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases durability and reliability.

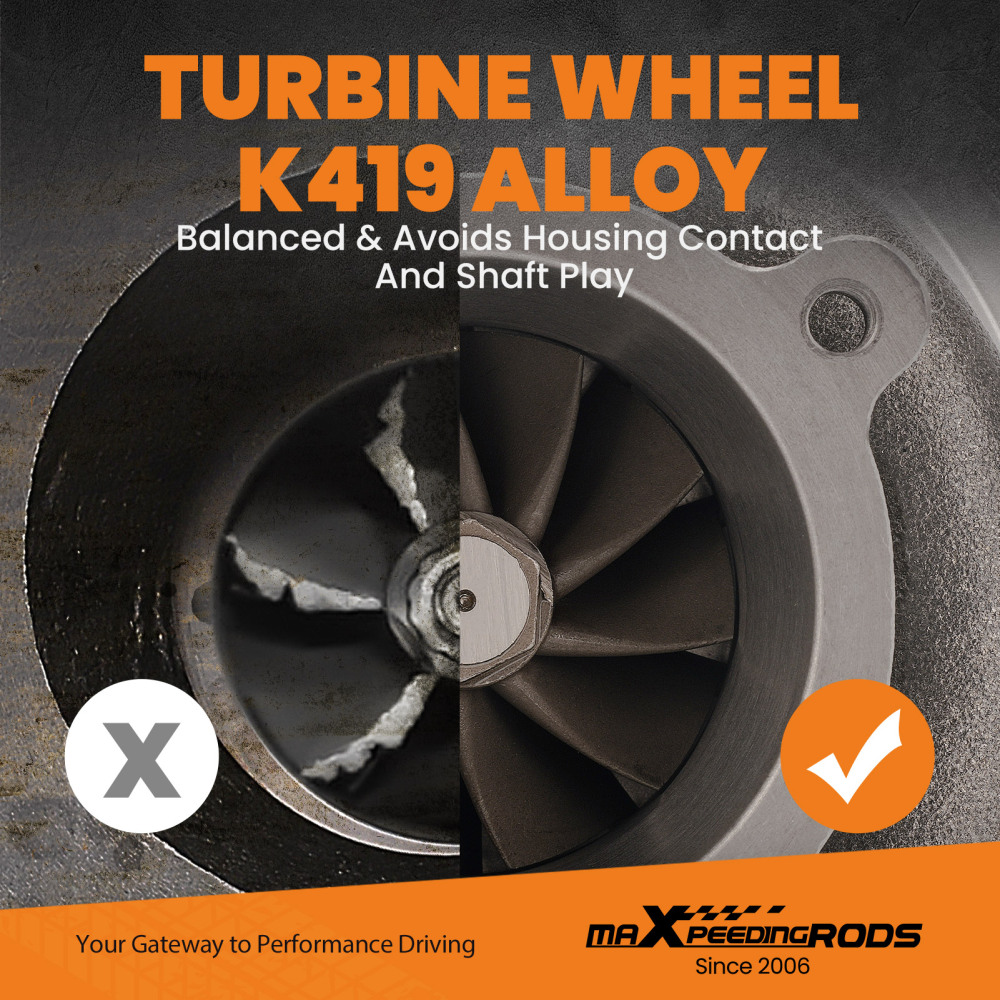

2. Turbine Wheel: K419 alloy - High temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown for smooth reliable operation.

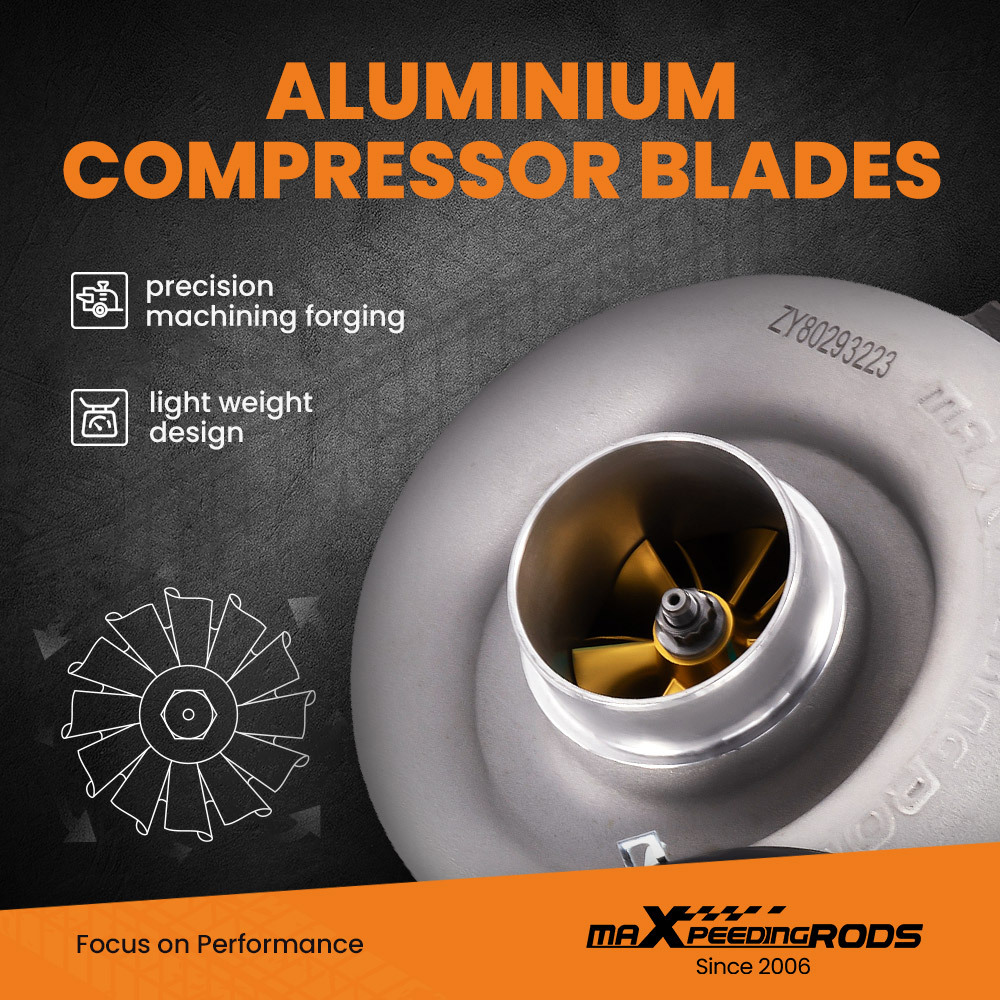

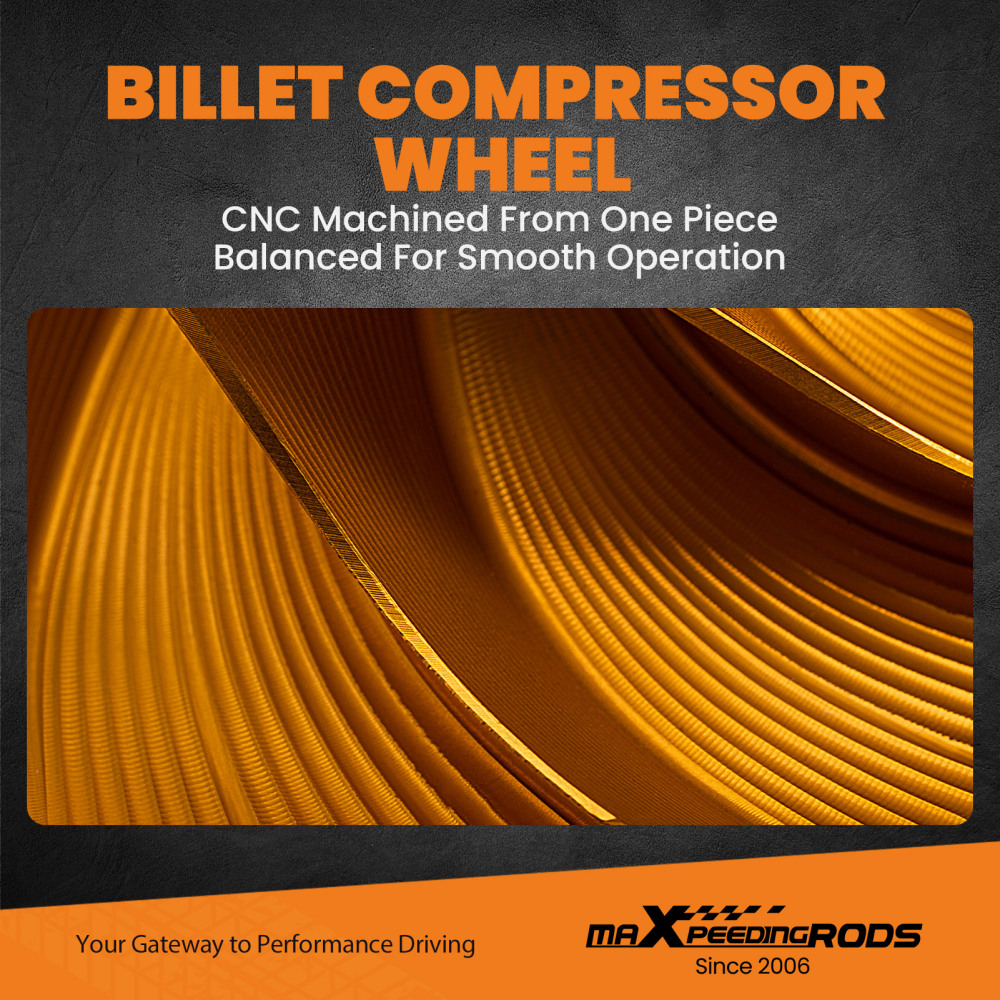

3. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.

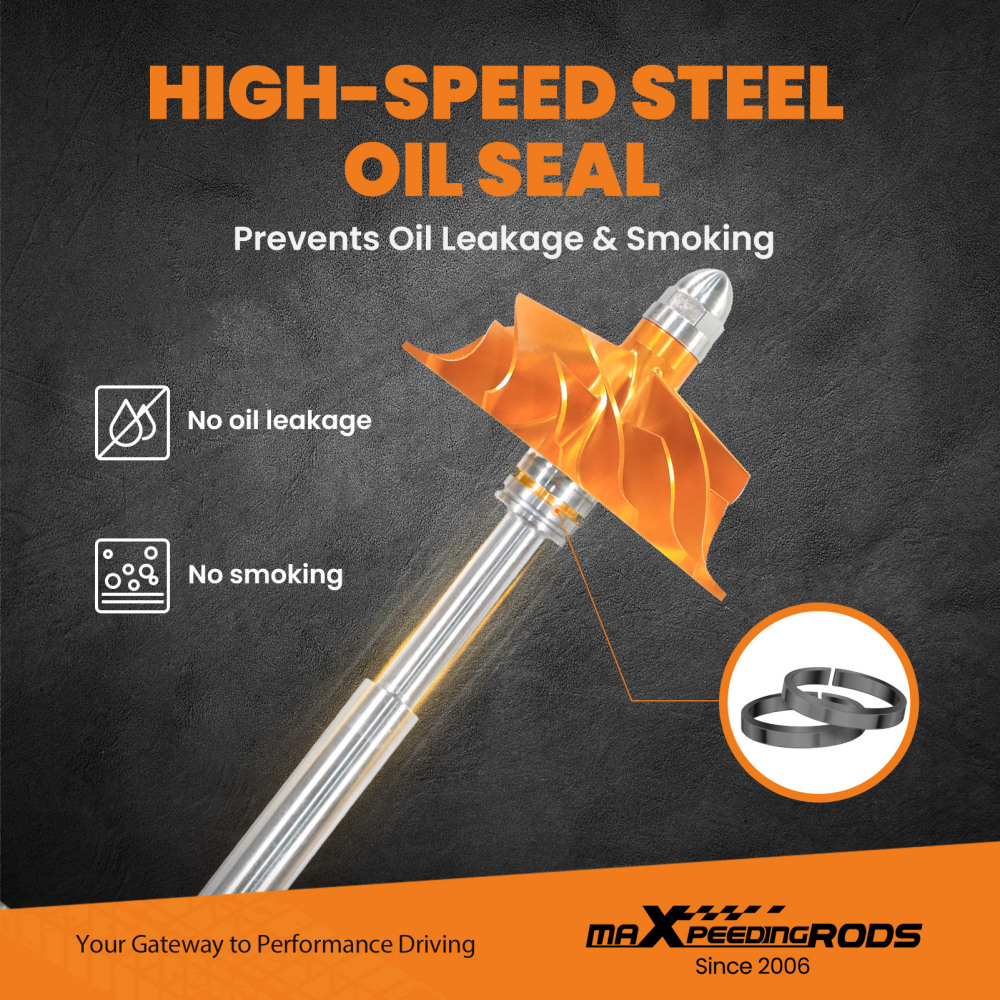

4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.

Note

* Please confirm your original fitment before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
