Steering Rack and Pinion compatible for Chevrolet Colorado V8 5.3L 2009-2012 15864178

Application

Compatible for Chevrolet Colorado All Engine RWD, From VIN # 68272519, 2006-2006
compatible for Chevrolet Colorado All Engine RWD, 2007-2008
compatible for Chevrolet Colorado L4 2.9L RWD, 2009-2012
compatible for Chevrolet Colorado L5 3.7L RWD, 2009-2012
compatible for GMC Canyon All Engine RWD, From VIN # 68272519, 2006-2006
compatible for GMC Canyon All Engine RWD, 2007-2008
compatible for GMC Canyon L4 2.9L RWD, 2009-2012
compatible for GMC Canyon L5 3.7L RWD, w/ Chassis Package (Z85);
w/ Sport Chassis Package (ZQ8); w/ Hydraulic Power Steering; w/ 16mm Diameter Tie Rods, 2009-2012
compatible for Chevrolet Colorado V8 5.3L RWD, w/ Sport Chassis Package (ZQ8), 2009-2012
compatible for GMC Canyon V8 5.3L RWD, w/ Sport Chassis Package (ZQ8), 2009-2012
compatible for Isuzu i-280 All Engine, From VIN # 68272519; w/ Chassis Package (Z85), 2006-2006
compatible for Isuzu i-290 All Engine, w/ Increase Capacity Package, 2007-2008
compatible for Isuzu i-370 All Engine RWD, w/ Increase Capacity Package, 2007-2008
w/ Hydraulic Power Steering; w/ 16mm Diameter Tie Rods

OE/Part number

22-1038, 221038, 1030269, 15864177, 15864178, 15921544, 15951337, 15951338, 8158641770, 8158641780, 8159215440

Specification

Steering Wheel Position:LHD
Come with inner tie rod ends:YES
Outer Tie Rods：NO
Distance Between Mounting Holes (IN):2.88
Input Shaft Diameter (IN)：0.75
Input Shaft Length (IN)：2.38
Number of Mounting Holes：2
Rack Length (IN)：46.38
Thread Length (IN)：2.5
Return Port Thread Size：0.439
Pressure Port Thread Size：0.472
Total Turns Lock To Lock (MM):2.94

Package included

1* Complete Rack and Pinion Assembly

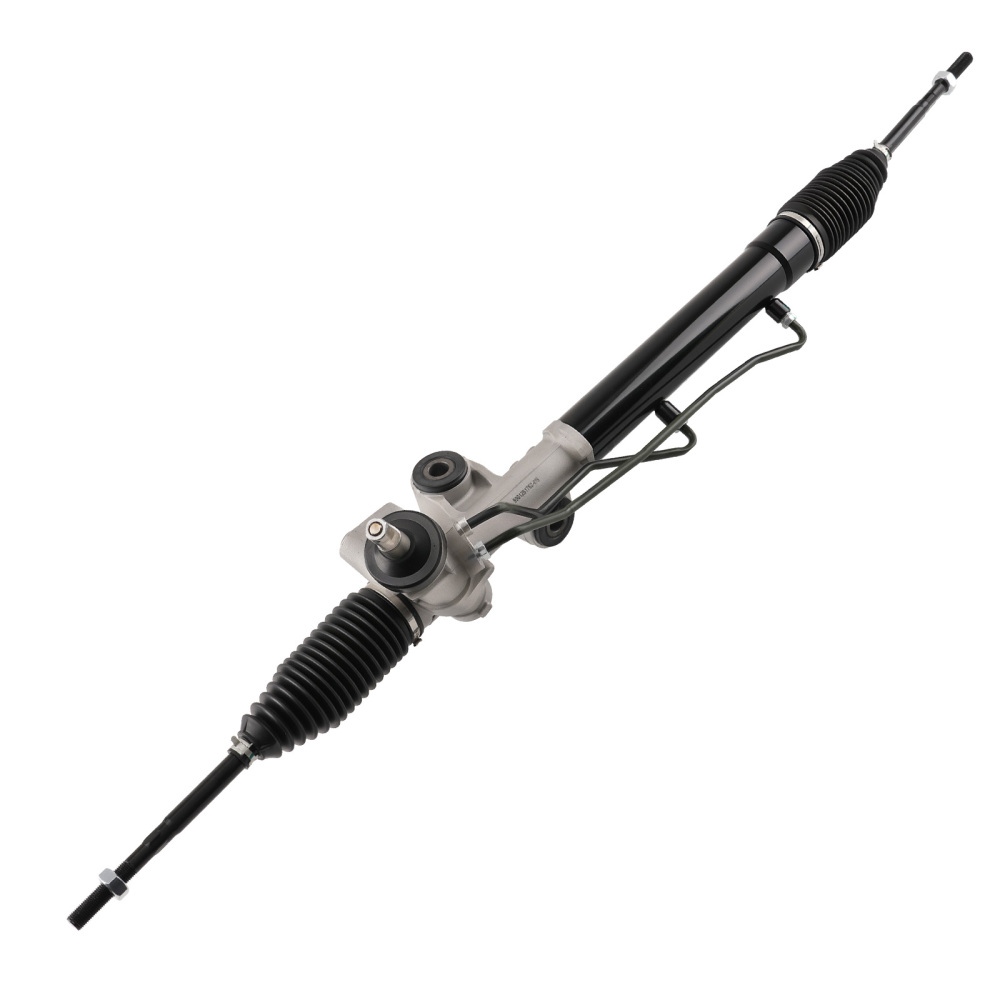

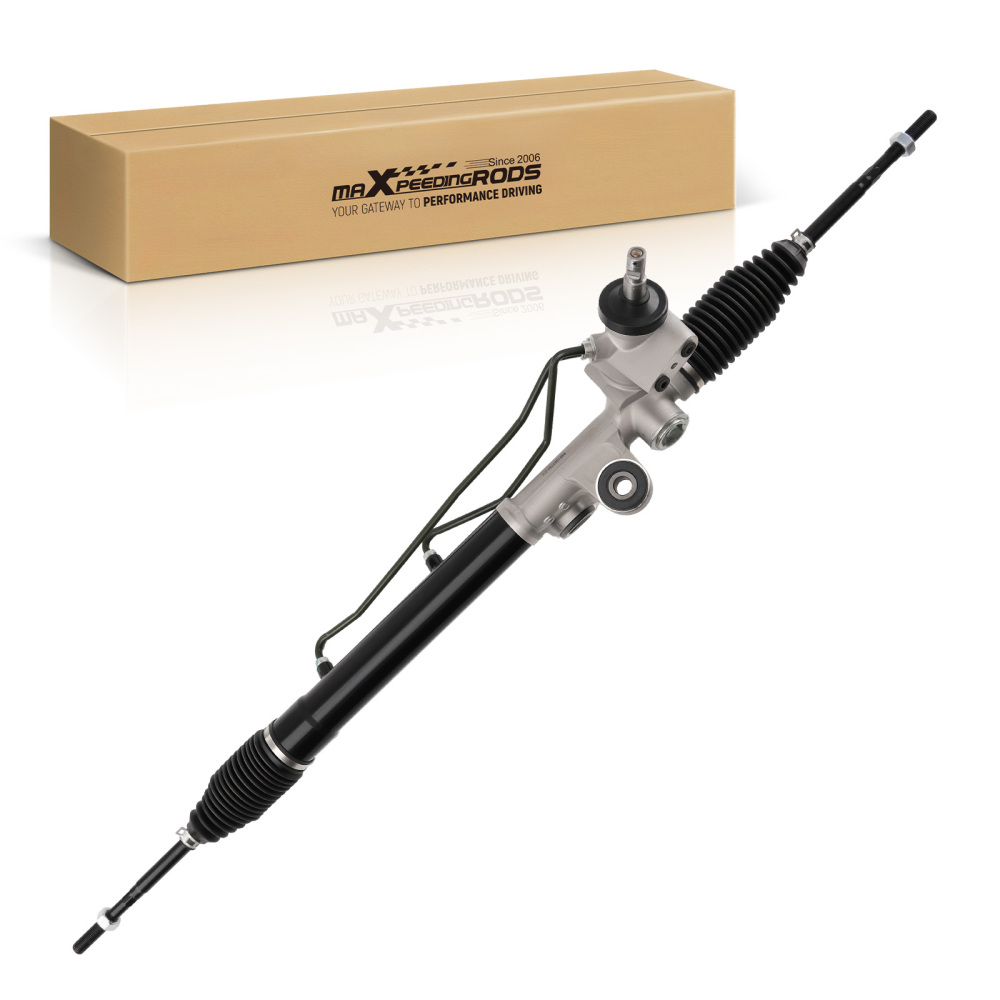

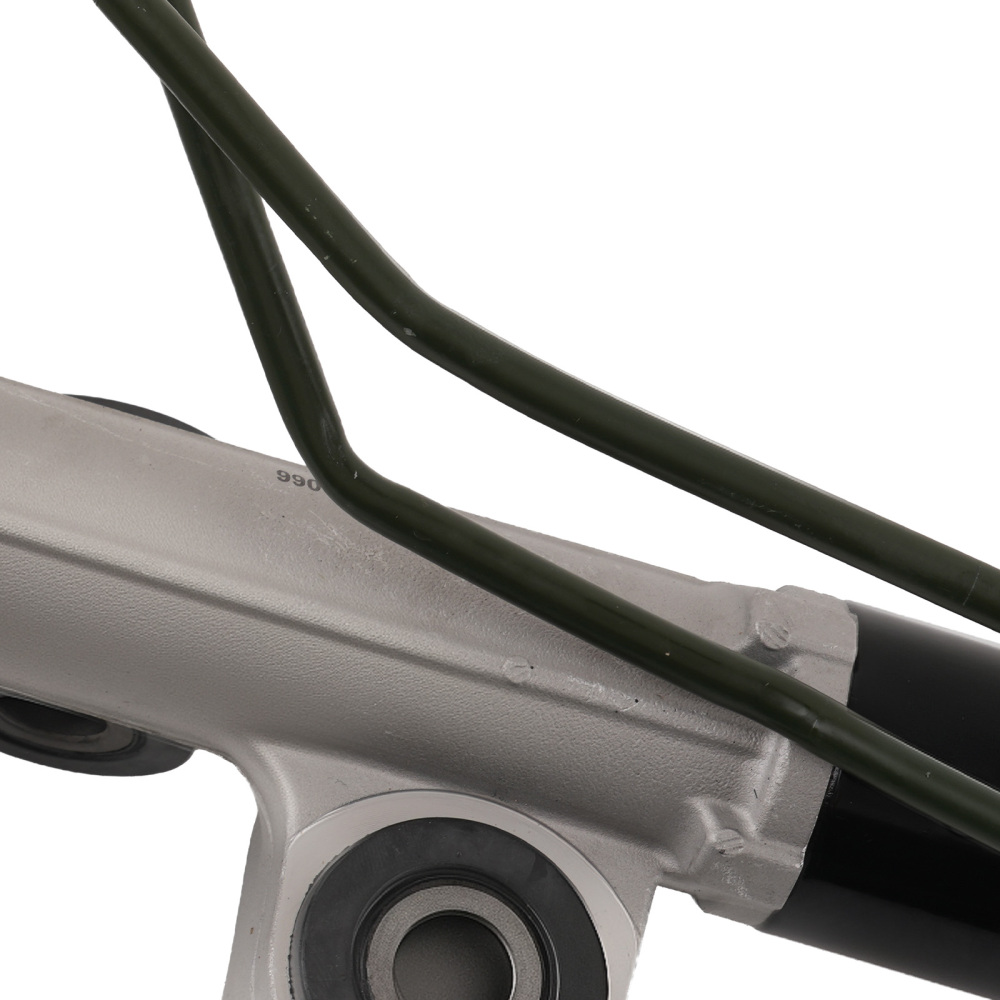

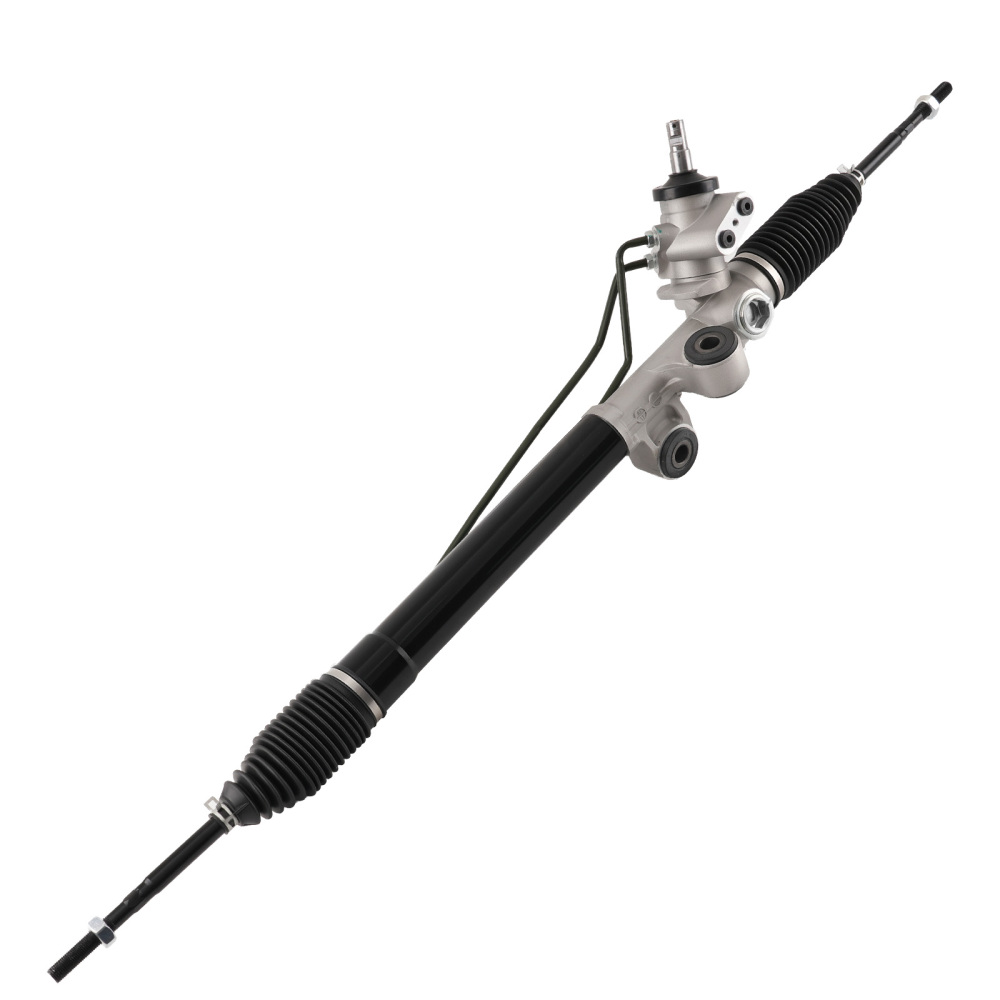

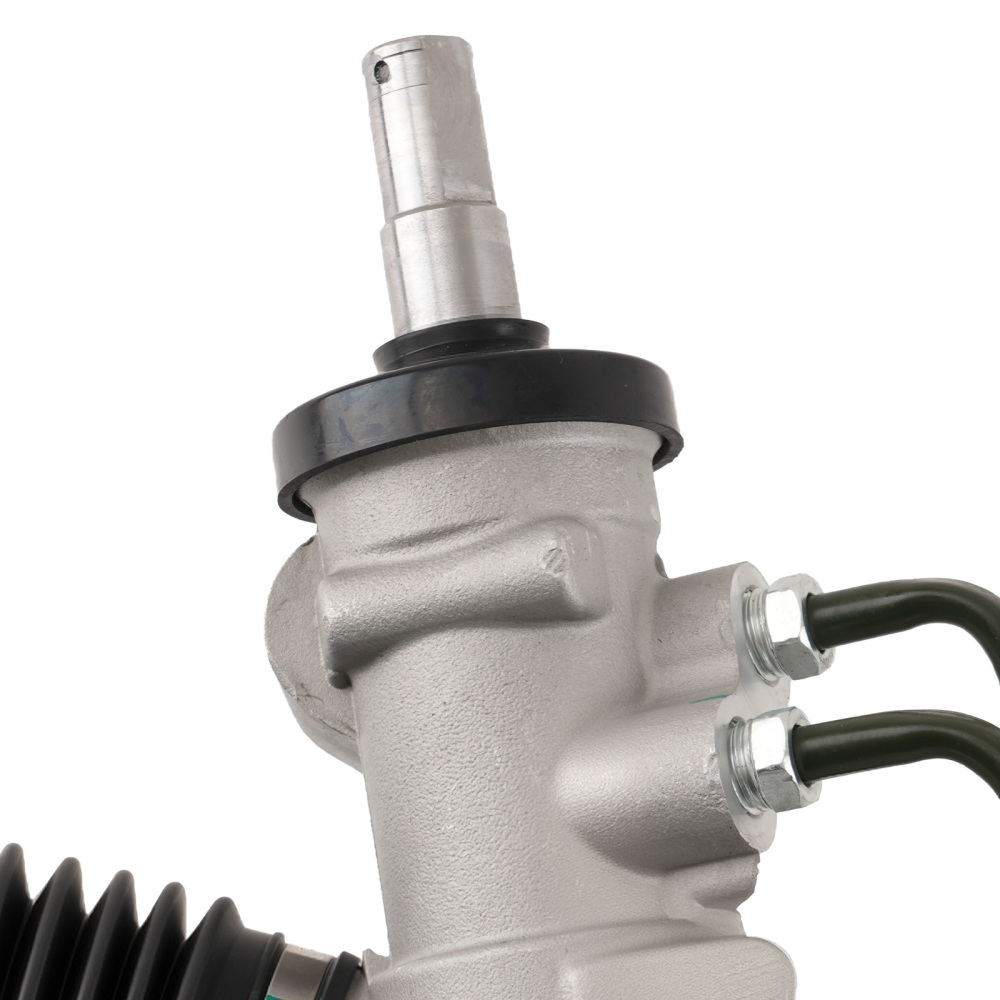

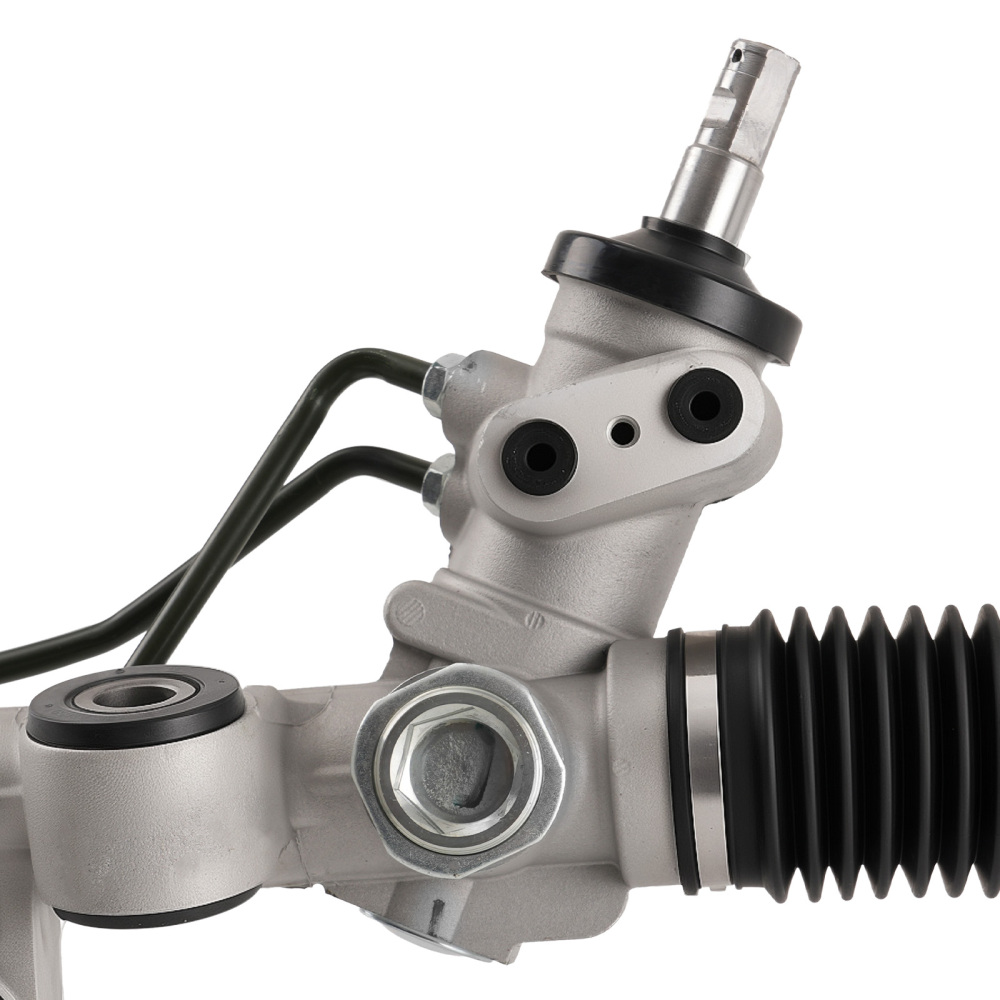

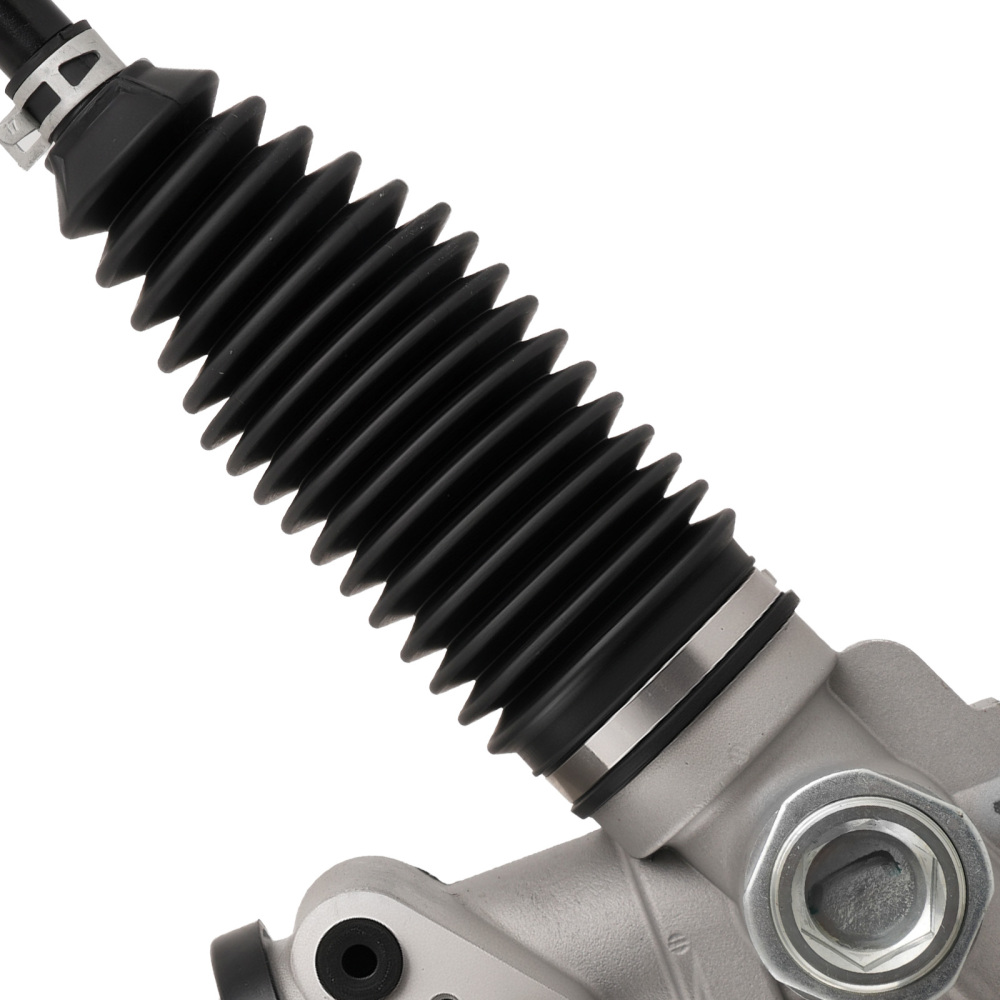

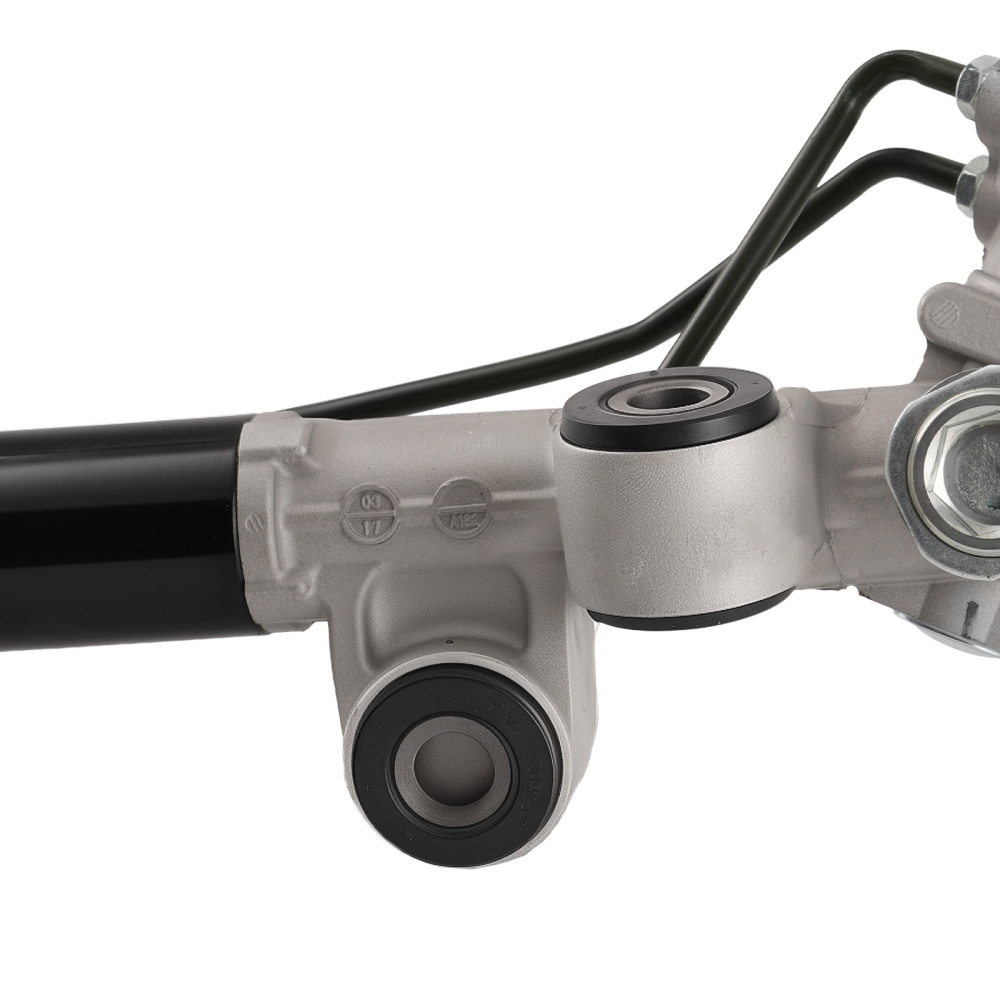

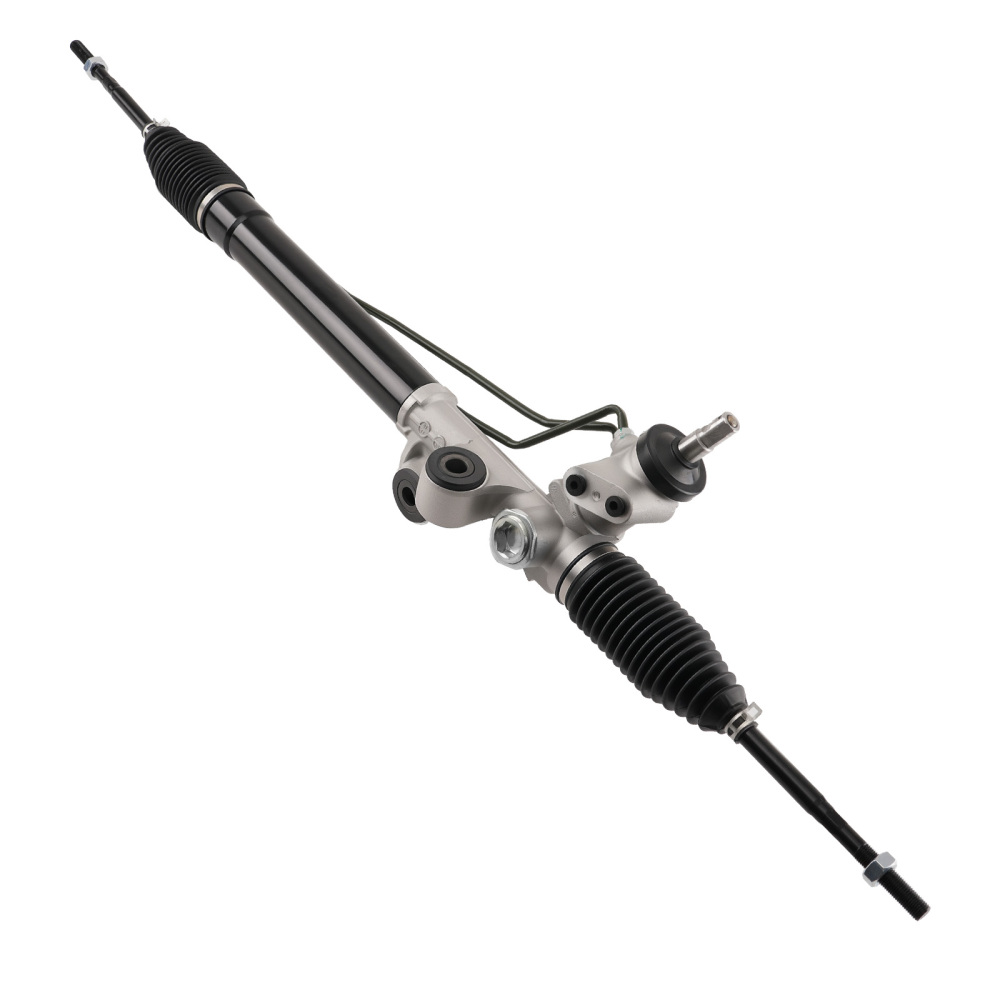

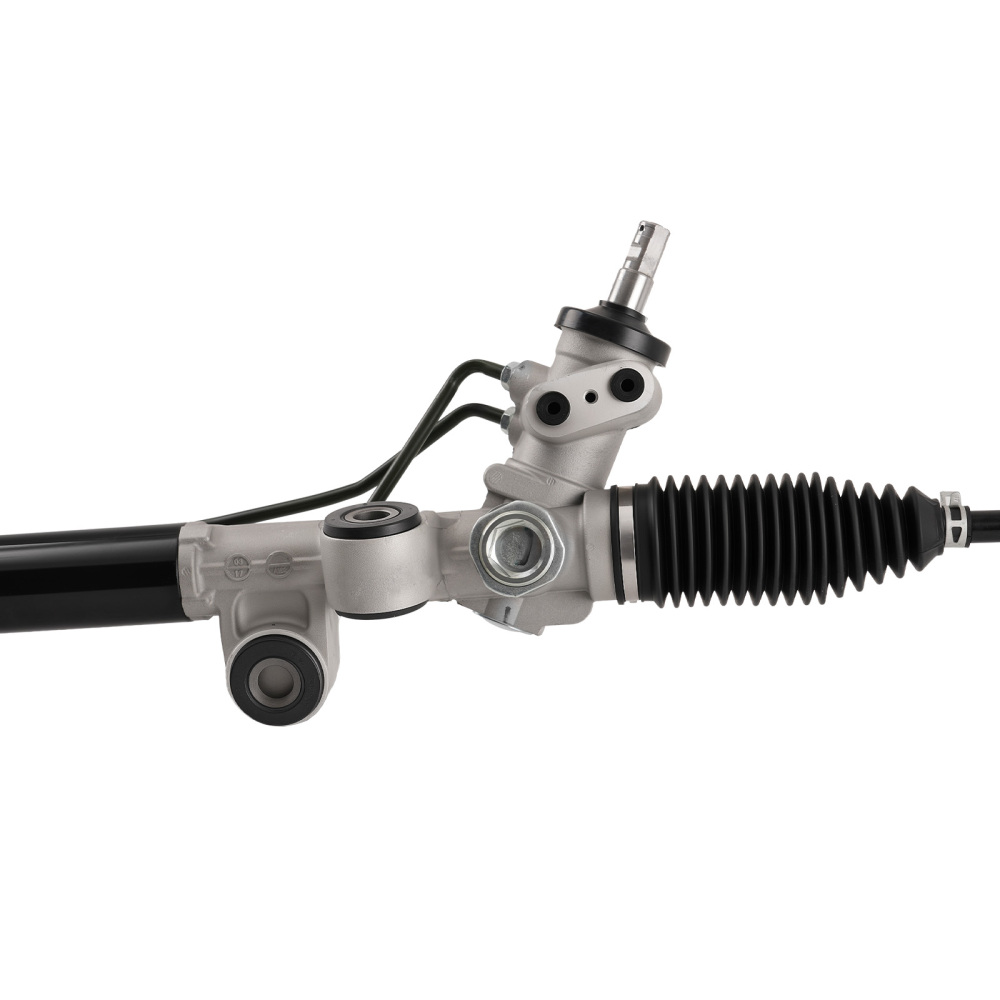

Showing as the picture

Note

Note-1：with Hydraulic Power Steering, with 16mm Diameter Tie Rods.
Note-2: Compatible for Chevrolet Colorado fits RWD(Rear Wheel Drive), NOT 4WD(Four Wheel Drive).
Note-3: Compatible for GMC Canyon fits RWD(Rear Wheel Drive), NOT 4WD(Four Wheel Drive).
Note-4: Compatible for Isuzu i-370 fits RWD(Rear Wheel Drive), NOT 4WD(Four Wheel Drive).
Note-5: Please Check the Compatibility before Purchasing.
Note-6：To avoid operating errors, we recommend professional installation.
Note-7：If you are not sure about the compatibility, or you are looking for other car parts, just contact us. We are happy to offer any help. Below information will help:
VIN(Vehicle Identification Number), detailed car model, part number and photos of the parts.
