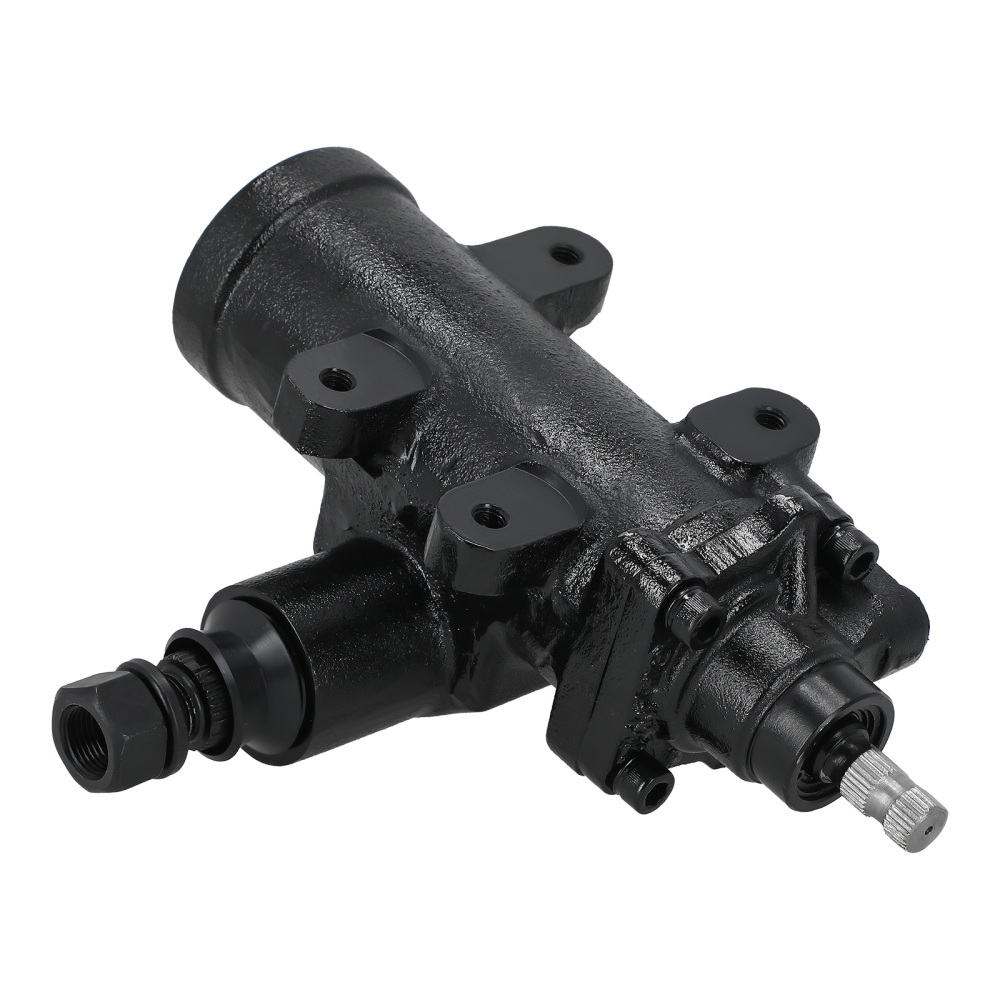

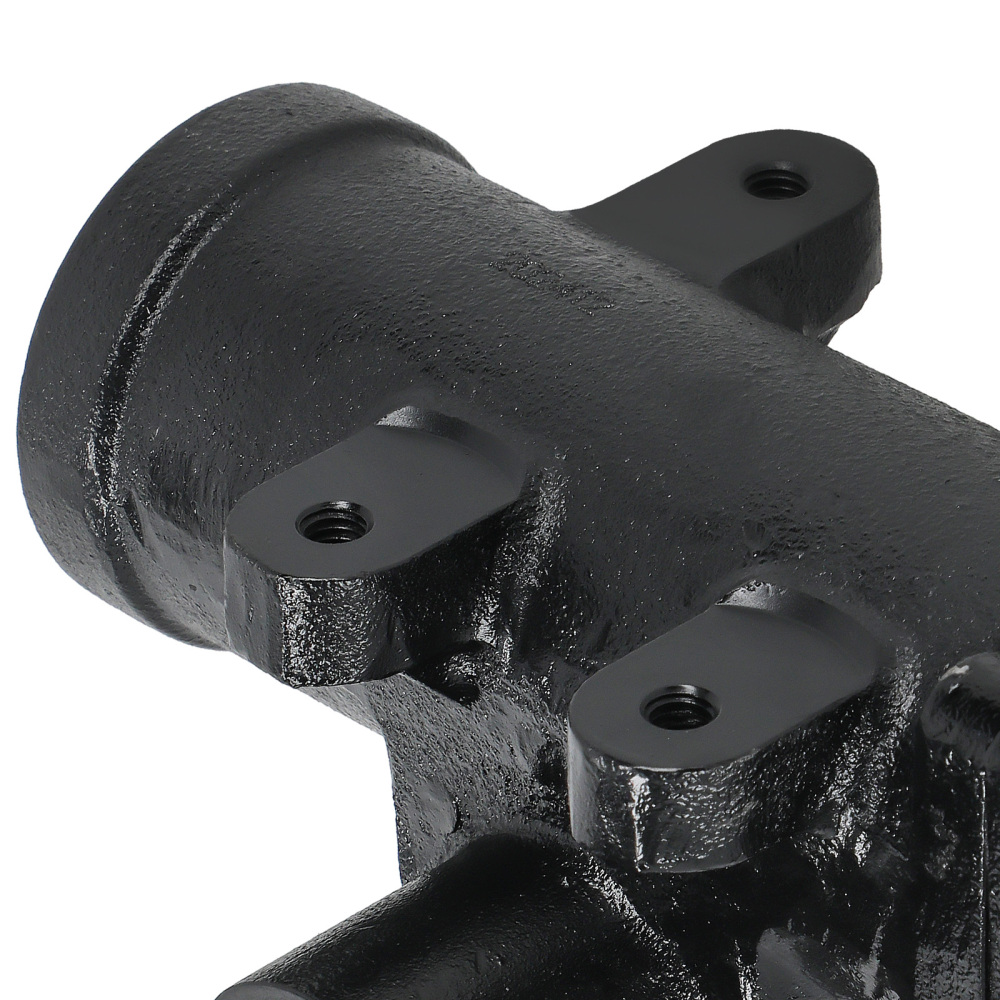

Steering Gear Box 800130 compatible for Chevelle Camaro Muscle Car 800 Series

Application

Compatible For Camaro Chevelle and Most other 60's & 70's Muscle Cars

OE/Part number

800130

Specification

Color:Black
Hose Port Type:Oring
Input Shaft Diameter .lmperial:0.685in
Input Shaft Diameter . Metric. 18.4mm
Input Shaft Spline Quantity：25
Input Shaft Type:Splined,Single Flat
Number Of Mounting Holes：4
Output Shaft Diameter .lmperial:0.864 in
Output Shaft Diameter . Metric:21.95 mm
Pitman Arm Included:No
Pressure Port Internal Diameter Size: 0
Pressure Port Thread Size: m18x1.5
Return Port Internal Diameter Size: 0
Return Port Thread Size.: M16x1.5
Rotation Direction: Standard
Steering Box Type: Power
Total Turns Lock To Lock:4.1

Package included

1x Power Steering Gear Box
(As showing in the picture)

Feature

1.Built to strict quality control standards 100% factory tested
2.Easy Installation，100% Compatible with OEM Parts, meets Original Equipment Manufacturer (OEM) Standards
3.The steering gear box is the heart of the vehicle’s steering system. It guides the wheels’ movement in conjunction with the direction that the steering wheel is rotated, helping achieve ideal steering response for more efficient driving.
4.Steering Gear Boxes are re-engineered, built and tested to match O.E. performance. Each unit features 100% new O-rings and lip seals to ensure leak-free, long-lasting performance.
5.Shafts are surfaced to precise specifications to eliminate premature seal wear and extend gear life.
6.100% hydraulic testing measures for proper flow, leakage and performance to ensure perfect fit and function.

Note

1.Professional Installation Is Highly Recommended.
2.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
