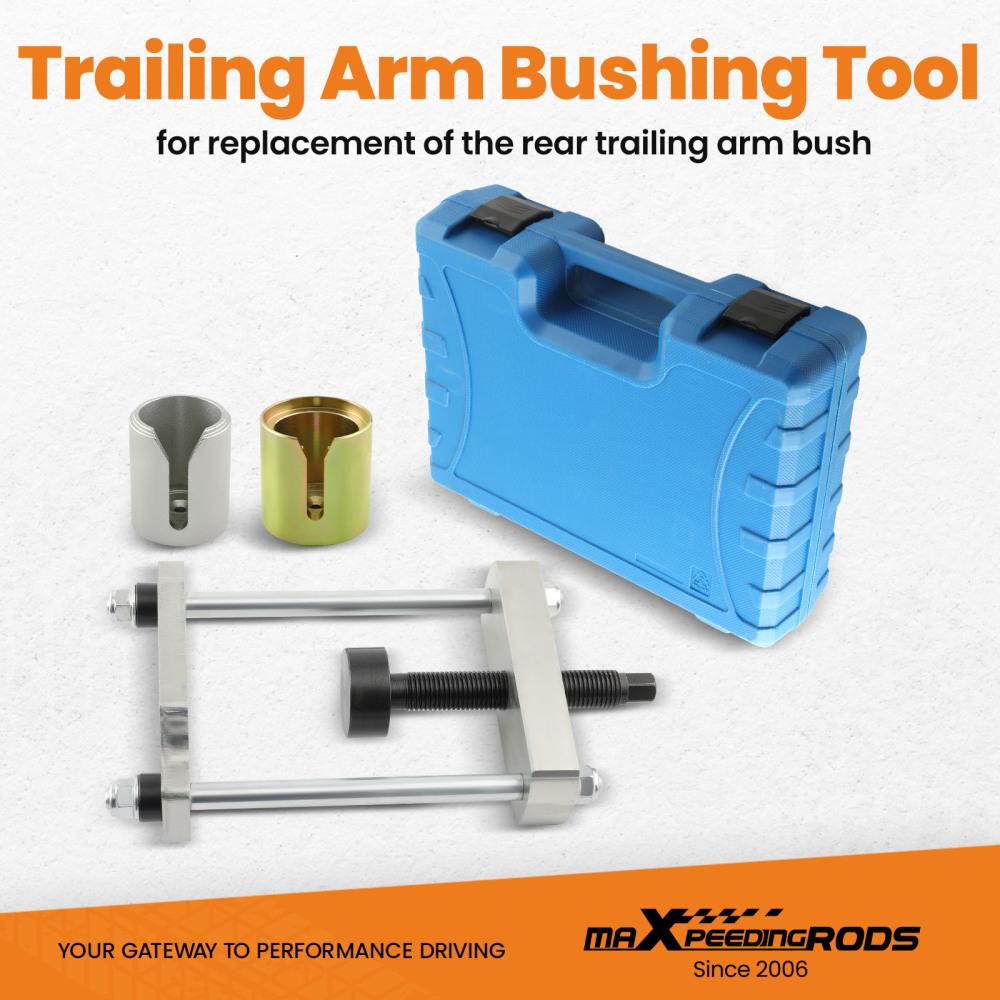

Rear Suspension Trailing Arm New Bushing Removal Tool compatible for Ford Focus Kuga compatible for Mazda

Application

Compatible for Ford Focus MK1 MKII 1998-2007
compatible for Ford Kuga 2008
compatible for Ford C-Max 2007
compatible for Mazda 3 Sedan, Hatchback 2003-2008
compatible for Mazda 5 CR, CW, MPV 2005
For V50 2004-2012
For S40 MK Sedan 2003-2012

Specification

Function: Specifically designed for disassembling and installing rear trailing arm bushings, allowing on-site usage without removing the arm from the vehicle.
Material: The control arm bushing removal tool is made of selected carbon steel. The greater the hardness, the higher the strength, ensuring stable structure, and with surface corrosion-resistant treatment, it becomes more durable, extending its service life.

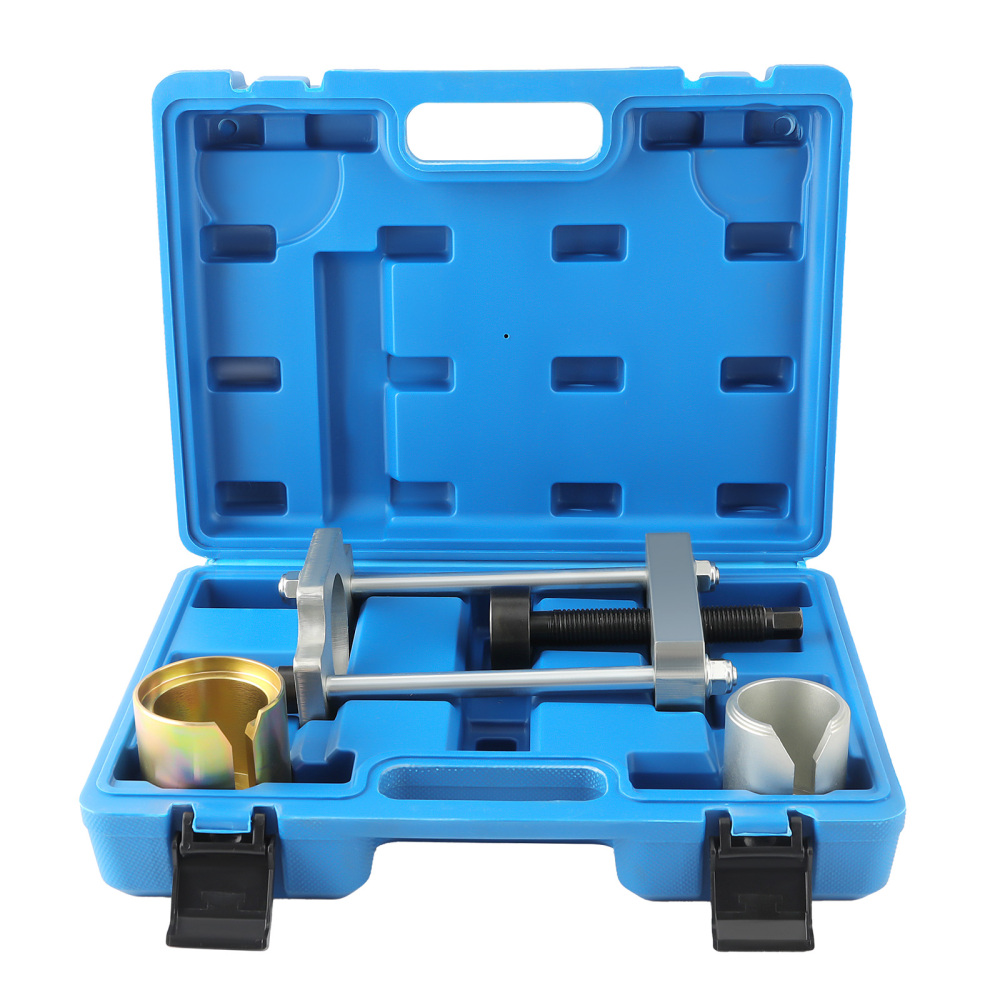

Convenient to use and store: Each tool is neatly organized and securely fastened inside the toolbox, ensuring protection during transportation and effortless access and storage for work.

Dimension

Principal axis:
Thread: 22*2.5mm/0.9*0.1in;
Total length: 170.0mm/6.7in;
Hex external drive SW: 16mm/0.6in.
Squeeze casing:
Total height: 70.7mm/2.8in;
Outer diameter: 58.3mm/2.3in;
Inner diameter: 46.8mm / 2.1in;
Internal height: 61.0mm/2.4in;
Cross slot: width: 10.0mm / 0.4in, height: 60.0 mm / 2.4in
Press-in casing pipe:
Total height: 74.0mm/2.9 in;
Outer diameter: 71.6mm/2.8in;
Inner diameter: 53.8mm/2.1in;
Inner height: 62.0mm/2.4in;
Cross slot: width: 10.0mm/0.4in,
height: 53.0mm/2.1in.

Note

Due to manual measurement, variations in lighting, and differences in displays, slight size and color discrepancies may occur. Thank you for your understanding.
