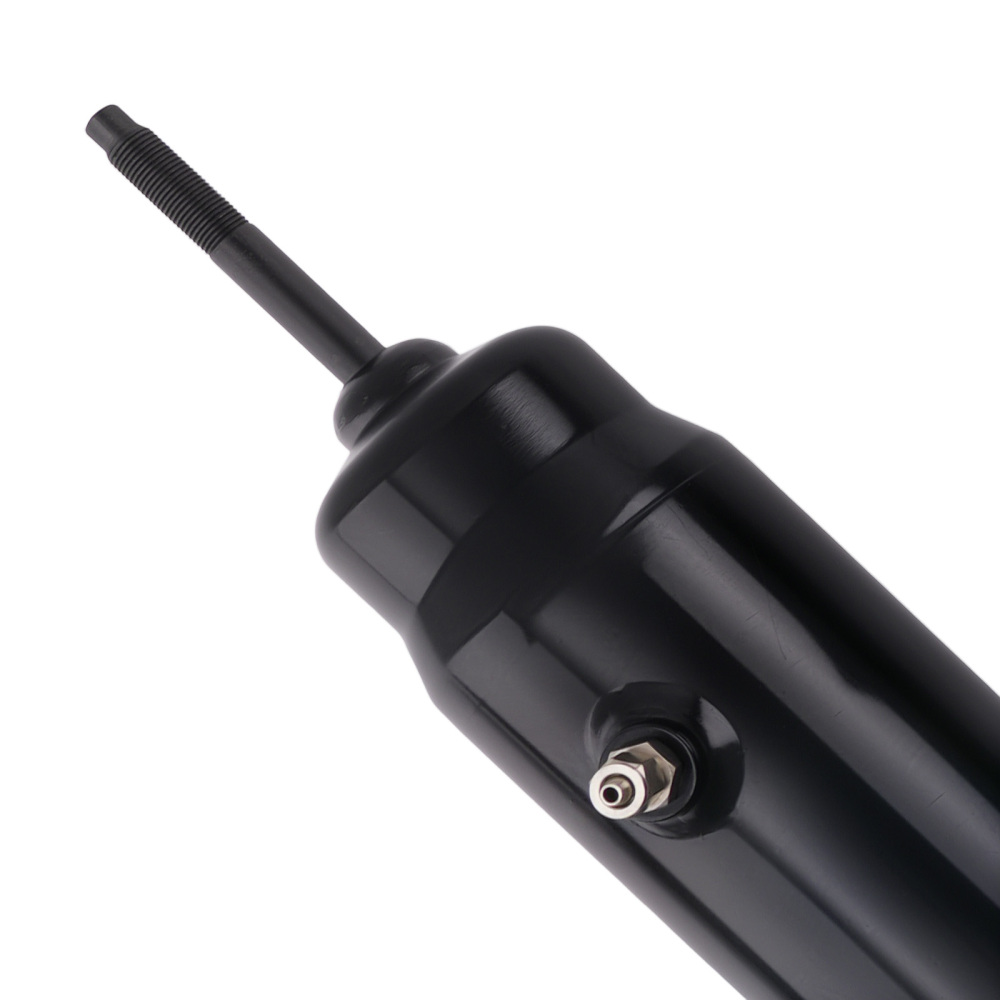

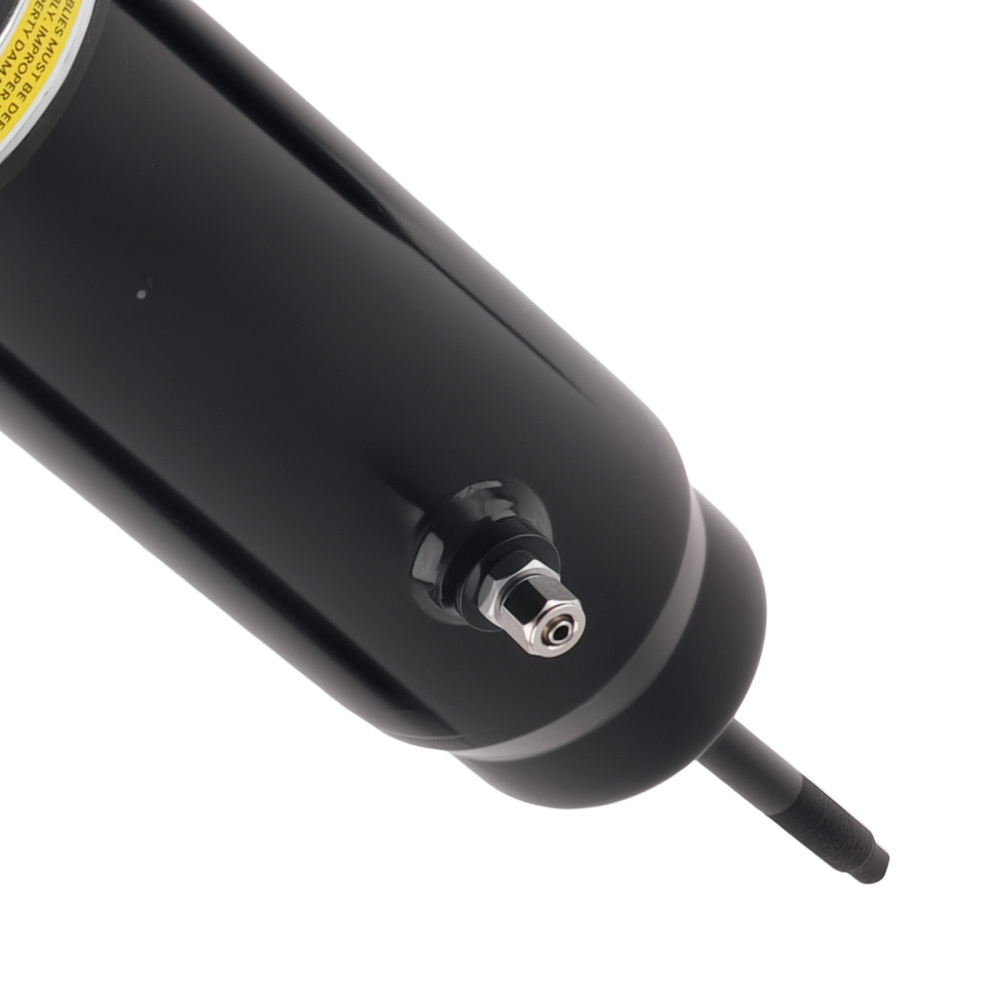

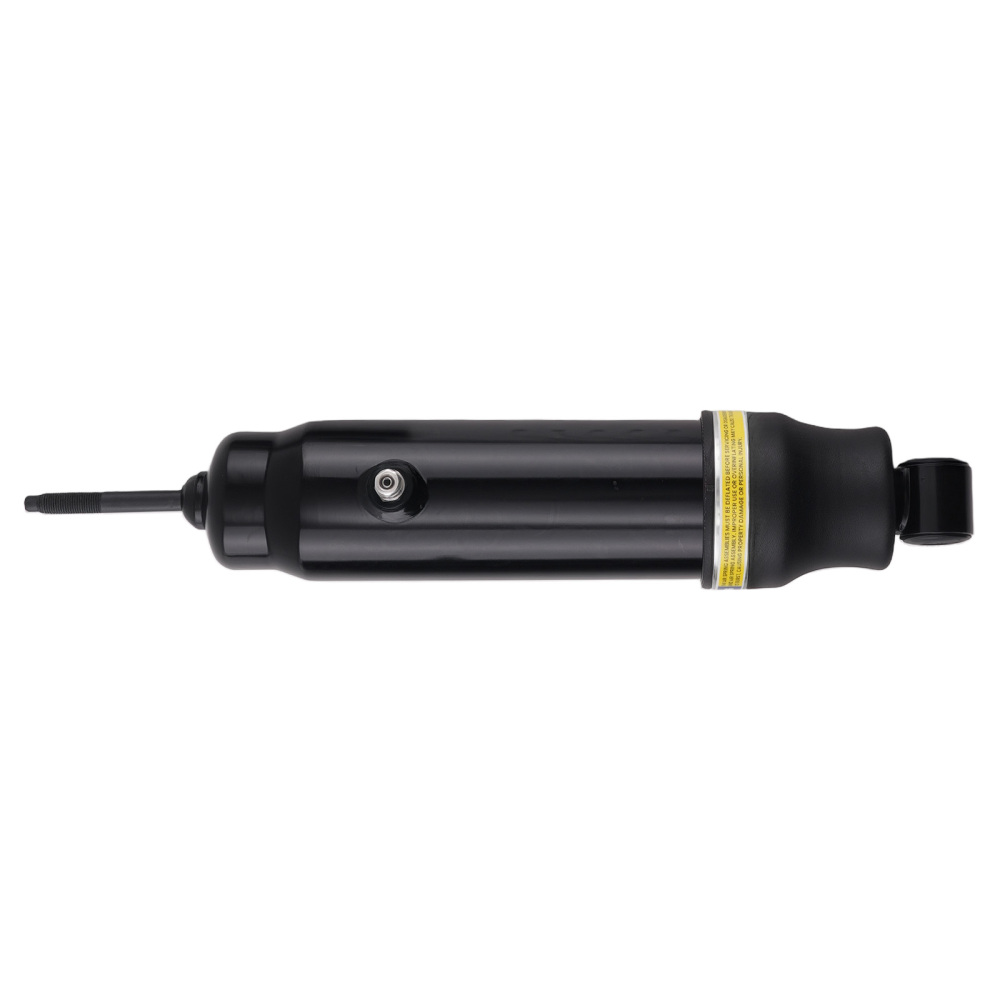

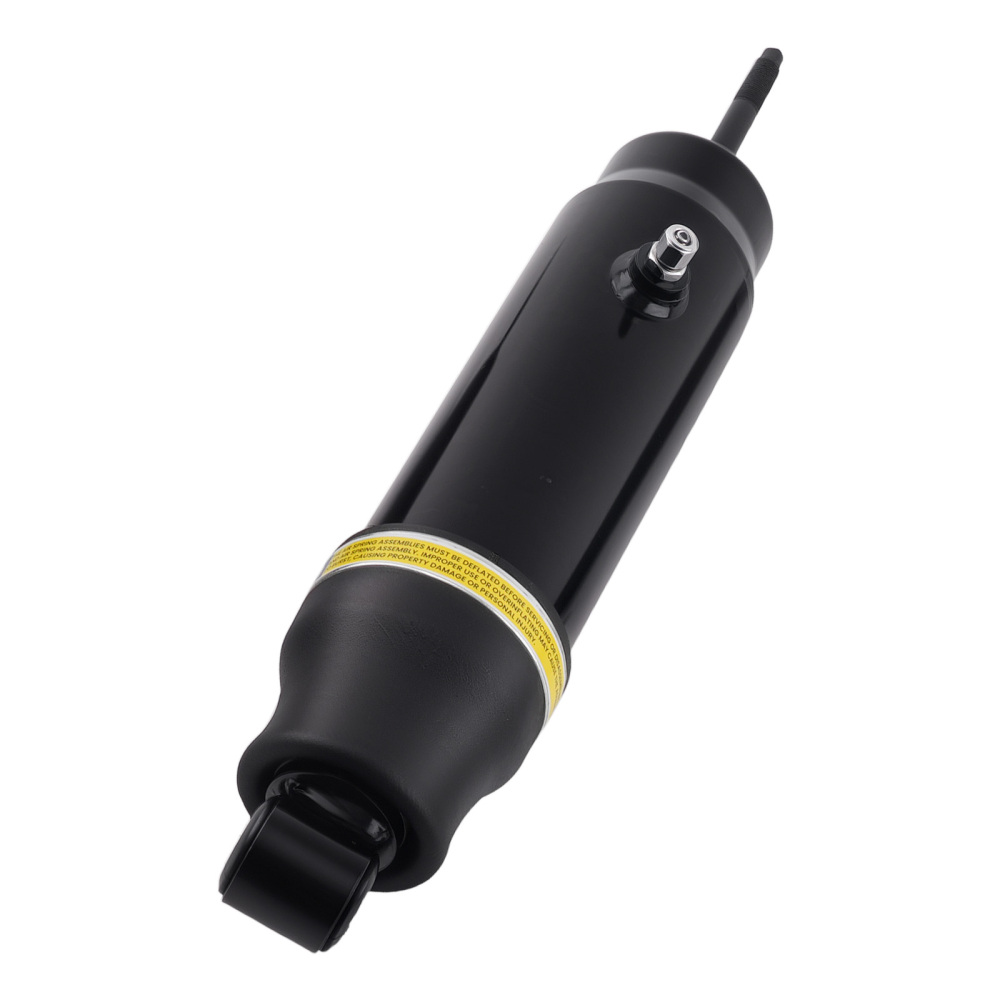

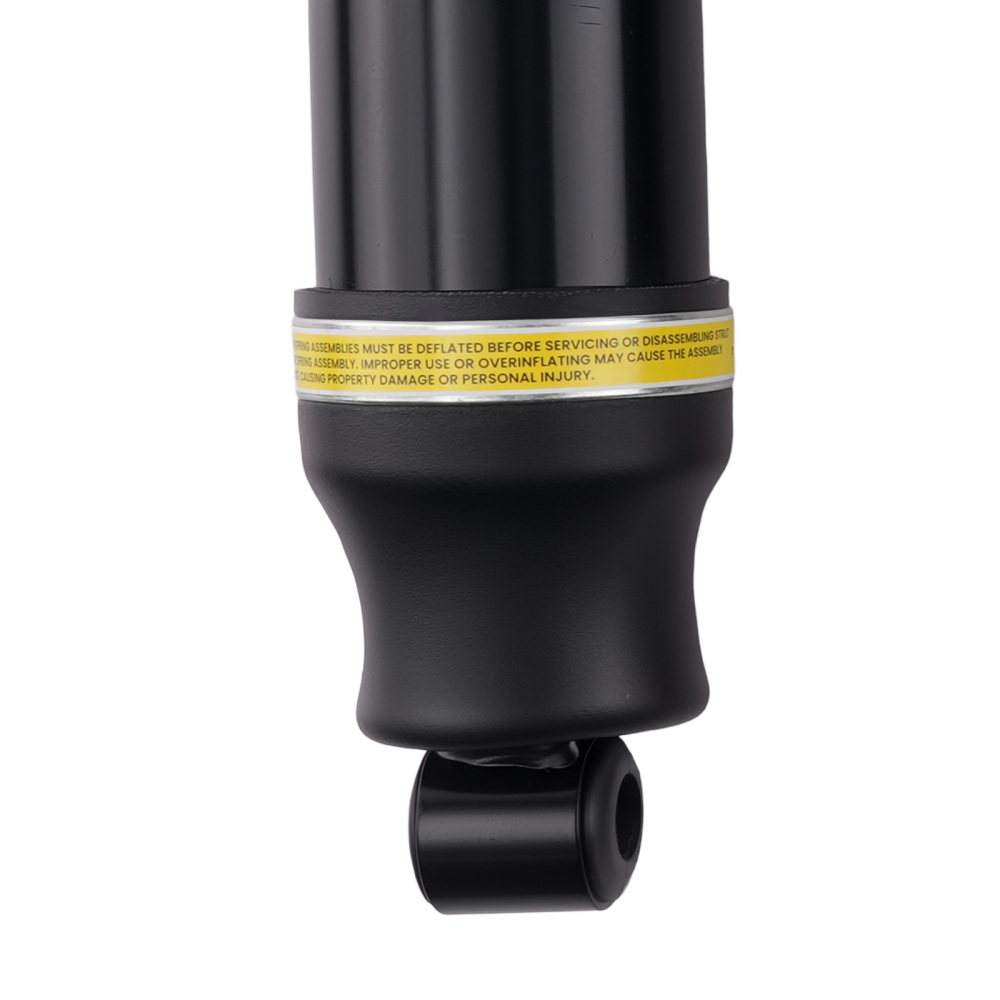

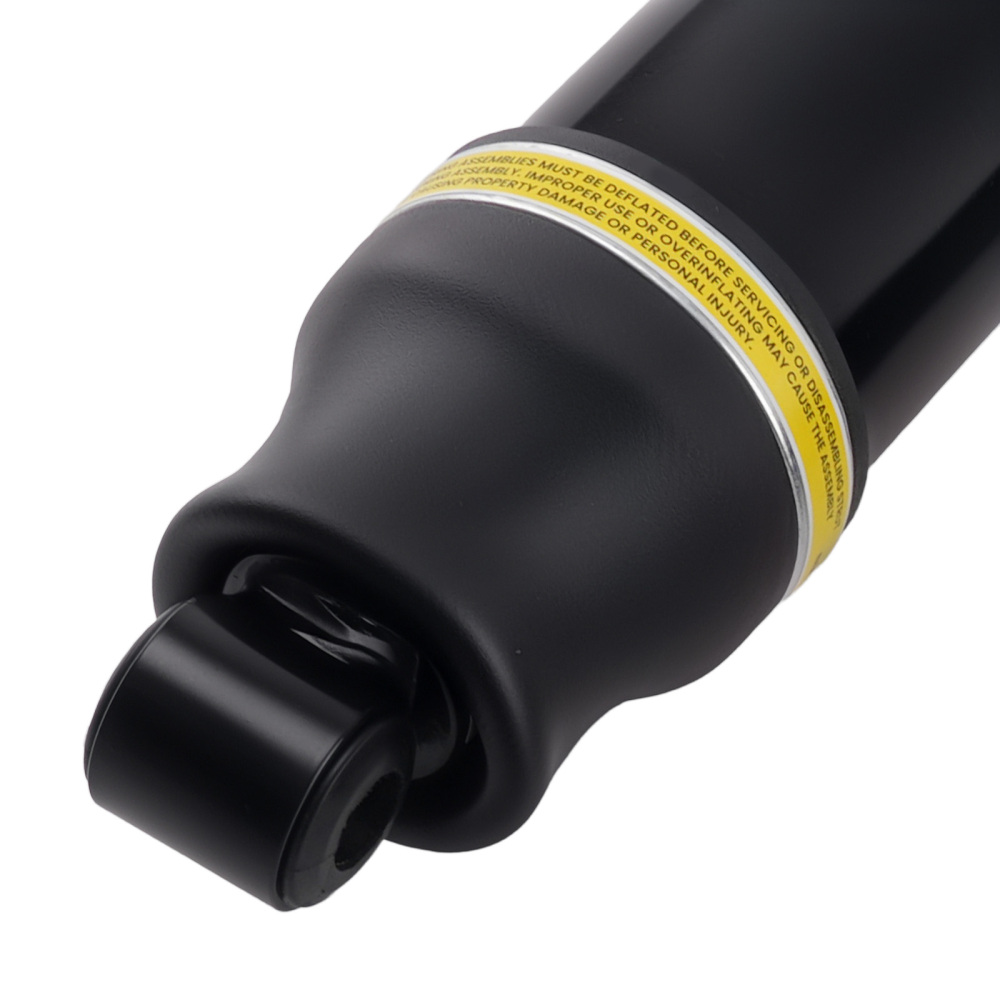

Rear Pair LH RH Gas Shock Absorbers compatible for Chevrolet Camaro 1982-2002

Application

Compatible for Chevrolet Corvette 1953-1962
compatible for Nash Ambassador Custom 1953-1955
compatible for Nash Ambassador Super 1953-1955
compatible for Nash Rambler 1953-1955
compatible for Ford F-100 1956-1960
compatible for Ford F-250 1956-1960
for American Motors American 1958-1968
compatible for Chevrolet Chevy II 1962-1967
compatible for Buick Sportwagon 1964-1969
compatible for Nissan 410 1964-1965
compatible for Nissan 411 1964-1967
compatible for Oldsmobile Vista Cruiser 1964-1972
compatible for Ford Fairlane 1966-1970
compatible for Ford Falcon 1966-1970
compatible for Ford Ranchero 1966-1979
for American Motors Javelin 1968-1974
compatible for Ford Torino 1968-1976
compatible for Mercury Cyclone 1968-1971
compatible for Mercury Montego 1968-1976
compatible for Nissan 510 1968-1973
compatible for Opel Kadett 1968-1972
for American Motors Ambassador 1970-1974
for American Motors Matador 1971-1978
compatible for Ford Gran Torino 1972-1976
compatible for Ford Thunderbird 1972-1979
compatible for Mercury Cougar 1974-1979
compatible for Ford LTD II 1977-1979
compatible for Ford LTD 1979-1982
compatible for Mercury Marquis 1979-1982
compatible for Lincoln Continental 1980
compatible for Lincoln Mark VI 1980-1983
compatible for Chevrolet Camaro 1982-2002
compatible for Pontiac Firebird 1982-2002

Specification

Condition: Brand New
Placement on Vehicle: Rear left and right
Air shock---
Total length
Max. Extended: 564.5±5 mm
Min. Compressed: 391.5±5 mm
Stroke:173 mm
Eye to eye length:
Fully collapsed approx: 323.5±5 mm
Fully extended : 496.5±5 mm
Stroke: 173 mm
Fisheye: Ø12mm
Air line inside dia: 6 mm
Operating Pressure : ≤2.0Mpa
Temperature range：≤+57° , ≥-30°

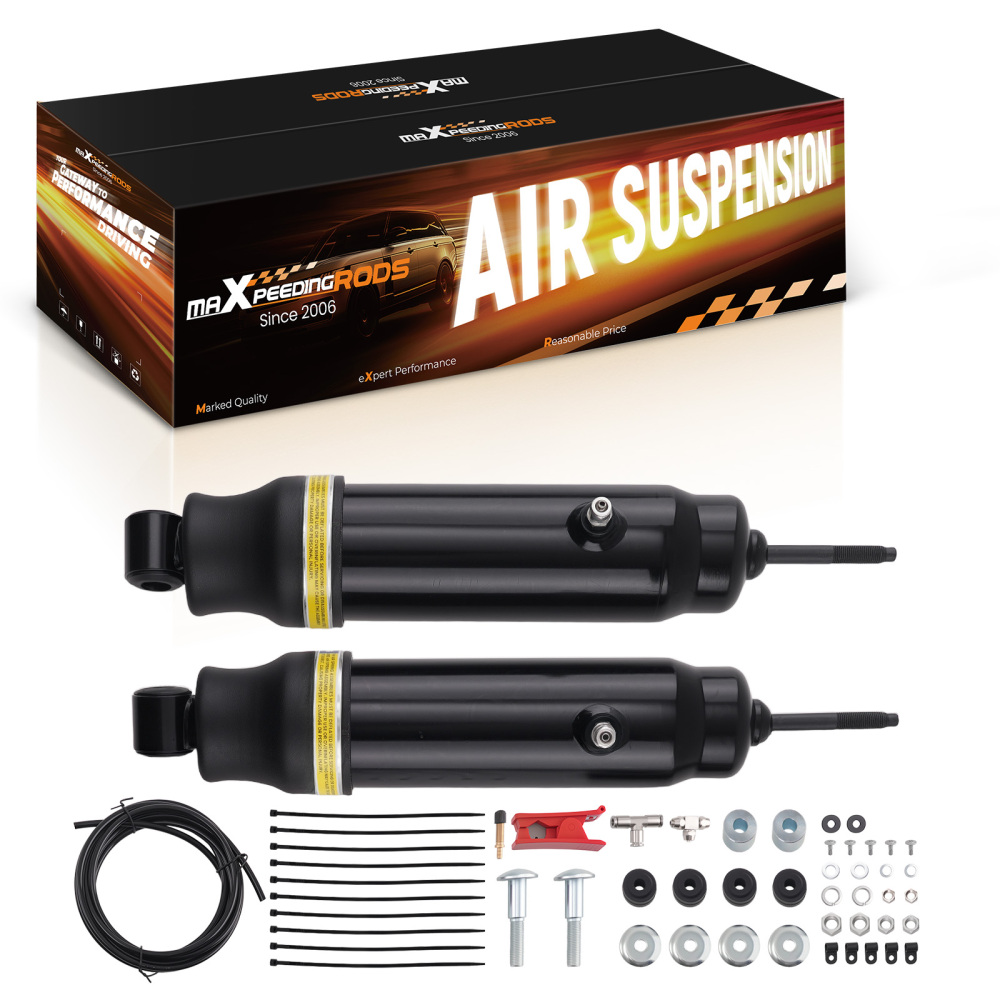

Package includes（as the picture shows）:
Air shock x2
Quick-connect fitting x1
T Fitting x1
Inflation valve(with cap) x1
Air line cutter x1
Air line x1
R-type clamps x5
Hex head bolts x5
Hex nut M10 x2
Hex nut 1/2-20UNF x2
Anti-slip washers Φ8 x2
Spacer plate x4
Hex thin nuts x2
Rubber shock absorber pads x4
Zip ties x10
T-bolt x2
Bushings x2
Spring Washer M12 x2
Rubber washers x2
Flat washers x2
Air Fitting Installation Instructions x1

Feature

PREMIUM MATERIALS & TECHNOLOGY
Multi-ply air spring sleeve minimizes noise.
Heavy-duty crimping rubber and connection seat withstand 2 MPa+ pressure, preventing detachment.
Polyurethane bump stop is abrasion-resistant and long-lasting.
Nitrile rubber seals resist oil and aging for lasting performance.
Connecting end made of integrally stamped ST16 steel.
6063 aluminum pistons with ≥3 MPa compressive strength.
TPV dust cover: better flexibility and lifespan than TPE.
Piston rod coated with 20μm chrome layer for durability.

RIGOROUS TESTING
100% air tightness tested.
≤0.02 MPa pressure loss in 24h.
Endurance tested over 5 million cycles.
Operates in -58°F (-50°C) to 302°F (150°C) extremes.

TRUSTED QUALITY
Manufactured to strict standards and ISO 9001 compliant.
Precise OE fit and performance.
CNC machined components.

PERFORMANCE & COMFORT
Restores ride height and enhances comfort.
High compressive strength and excellent sound insulation ensure driving comfort and safety.
Efficient heat dissipation ensures durability.
Easy to install, with no special tools required.

INSTALLATION TIPS
Replace the old air fitting with a new one, insert the air tube into the air fitting cap to establish a proper connection.
