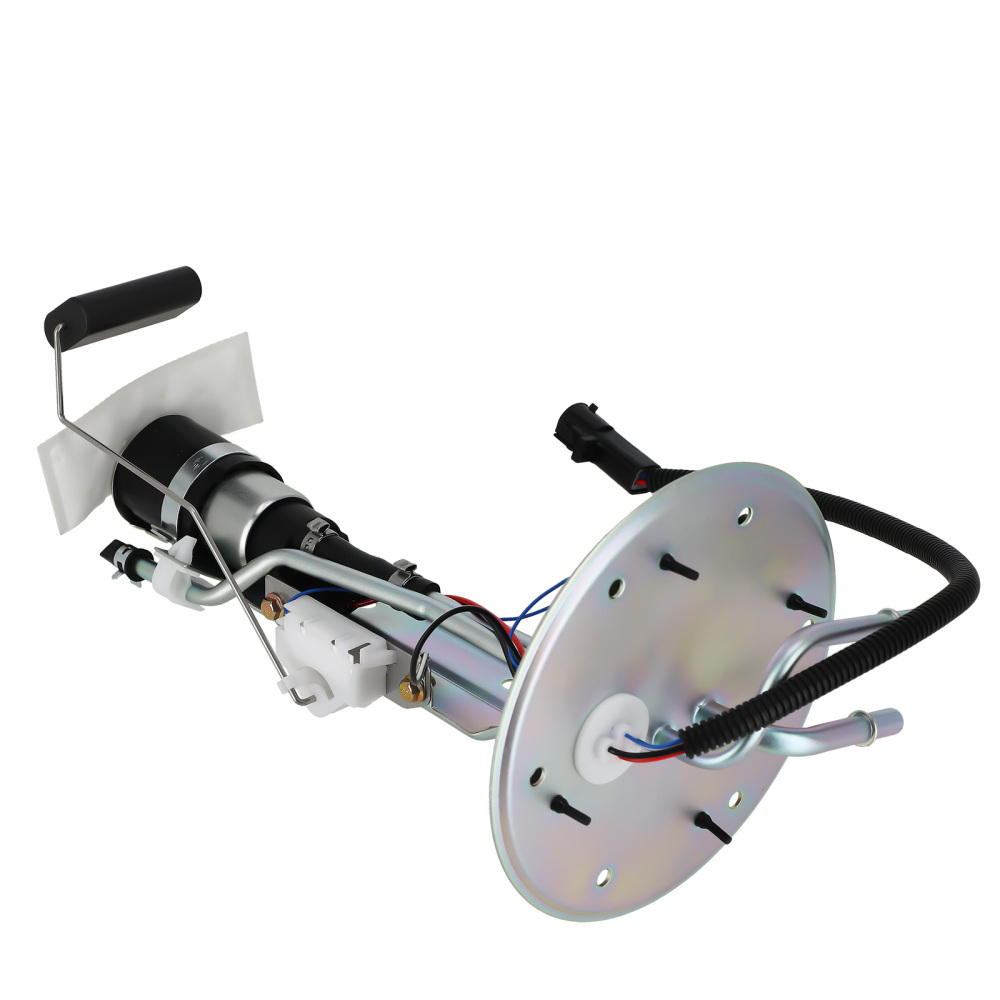

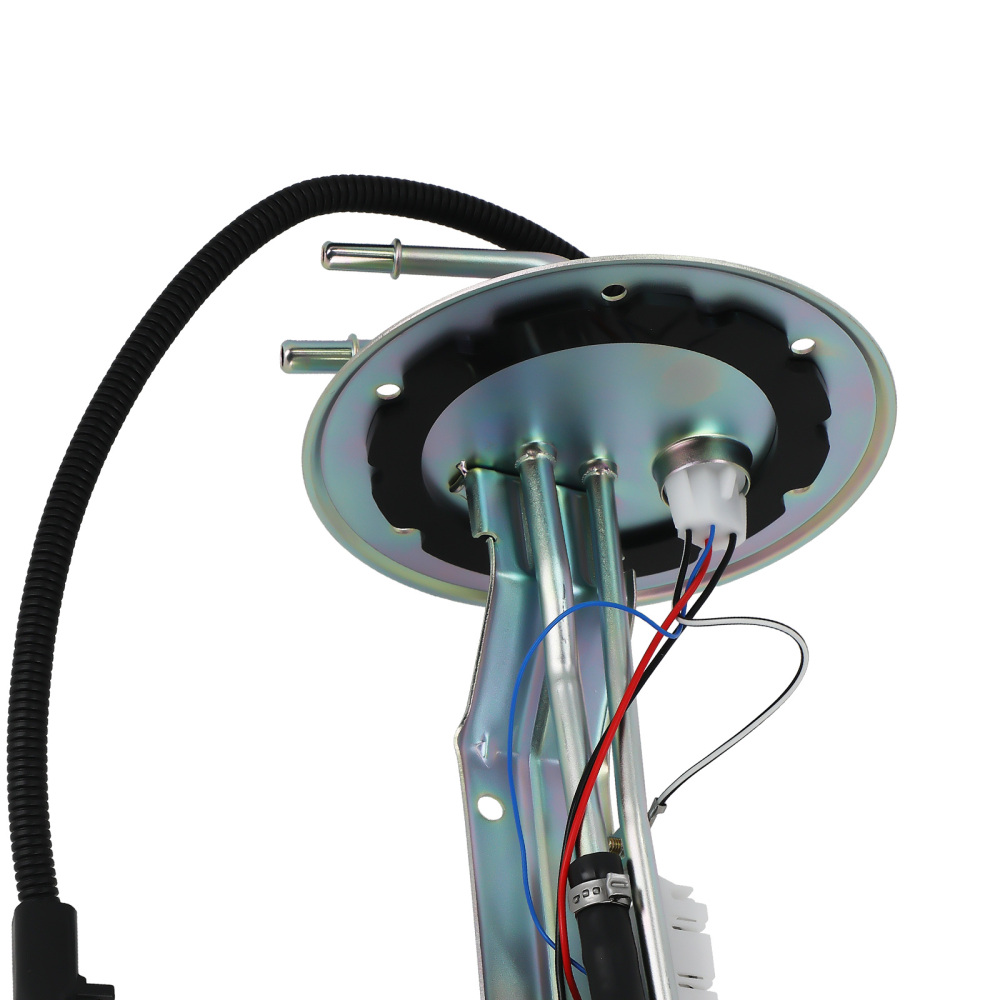

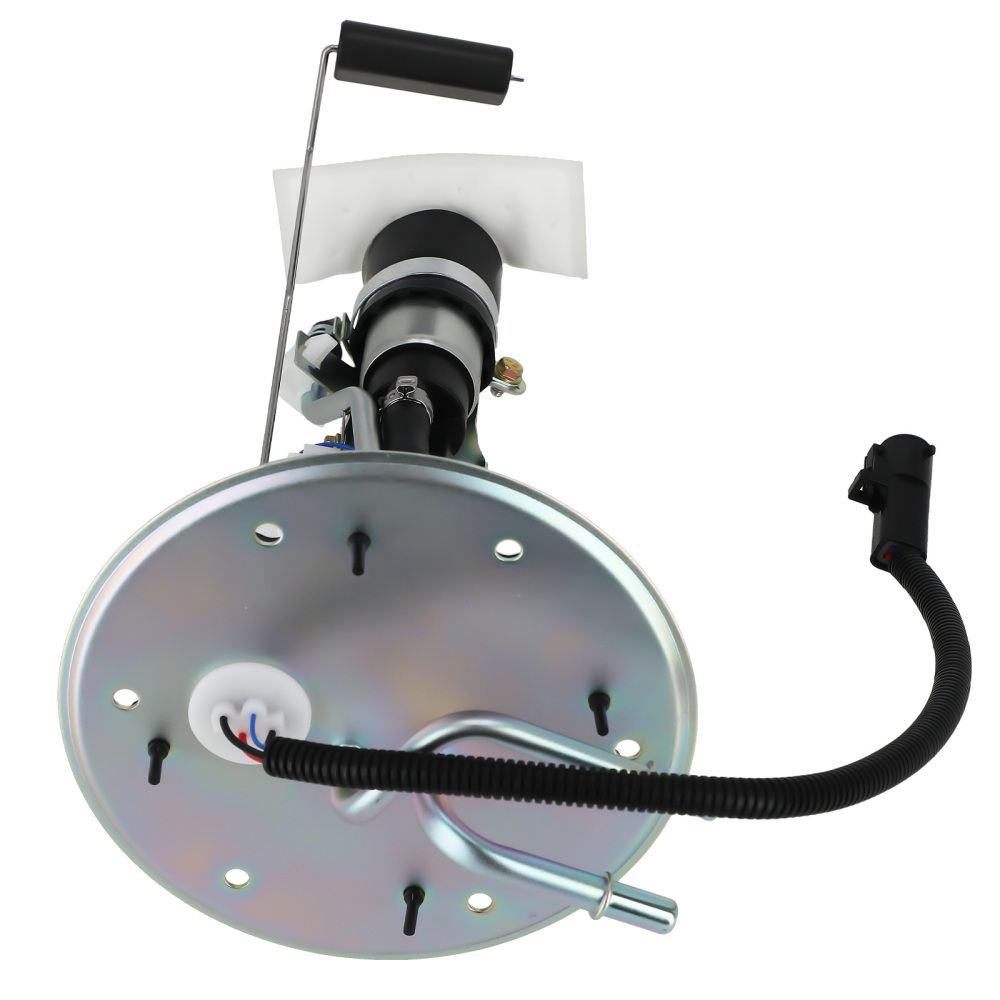

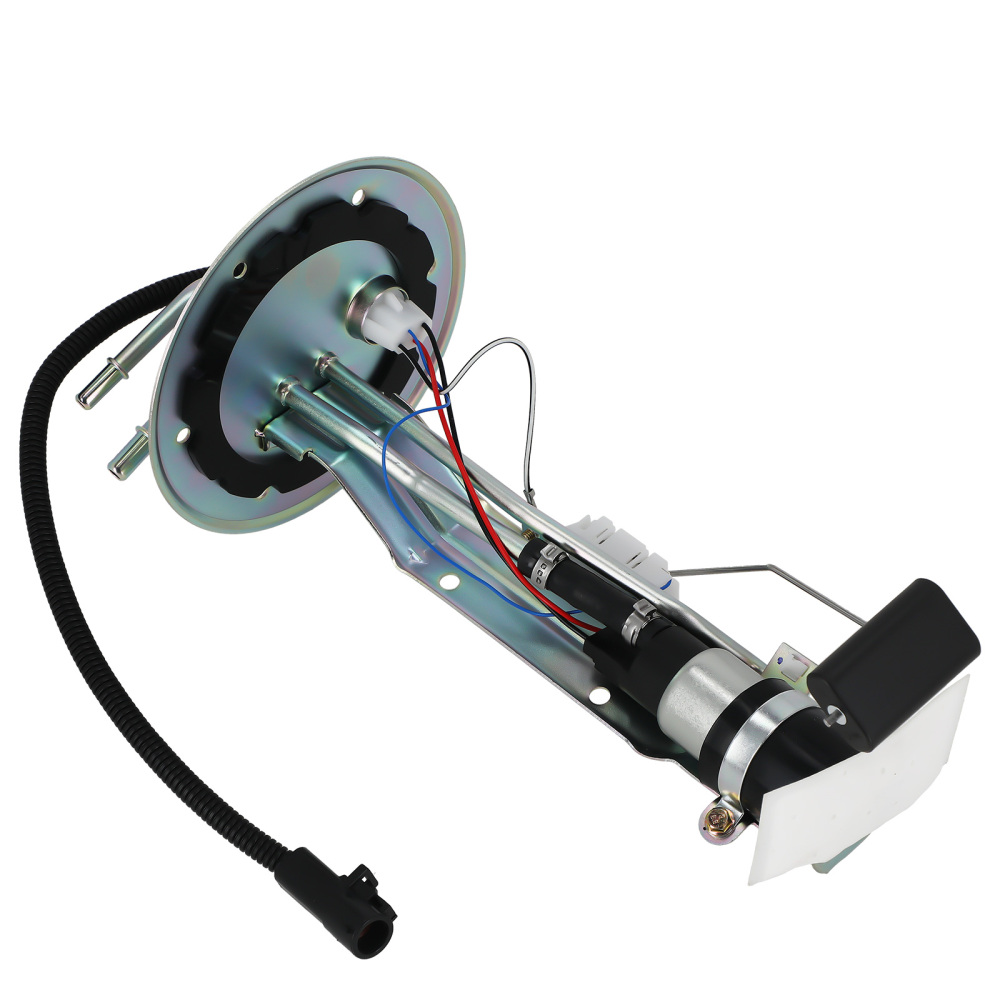

Rear Fuel Pump Module compatible for Ford F-150 F-250 4.2L 4.6L 5.4L 1999-2004 XL3Z9H307AA

Application

Compatible for Ford F-250 V8-5.4L 1999
compatible for Ford F-150 Heritage V6 4.2L 2004
compatible for Ford F-150 Heritage V8 4.6L 2004
compatible for Ford F-150 Heritage V8 5.4L 2004
compatible for Ford F-150 V6 4.2L 1999-2003
compatible for Ford F-150 V8 4.6L 1999-2003
compatible for Ford F-150 V8 5.4L 1999-2003
compatible for Ford F-250 V8 4.6L 1999
compatible for Ford F-250 V8 5.4L 1999

OE/Part number

E2237S,P74853S,HP10089,EB237S,FG130D,XL3Z9H307EA,XL3Z9H307EB,XL3Z9H307AB,XL3Z9H307AA,XL3Z9H307BA,XL3Z9H307BB,XL3Z9H307DA,XL3Z9H307DB,
FG1409,67135, 67232, 67240, 67230-7,PFS105,950-0172,XL3Z 9H307-BB

Specification

Drive Type: Electrical
Fuel Type: Gasoline
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥22.44
Pressure(MPa): 0.3
Weight(kg): 1.03
Inlet Type: Quick Connector
Inlet Quantity: 1
Outlet Type: Quick Connector
Outlet Quantity: 1
Material: Plastic(POM)+Steel(Q235)
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: No
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Placement on Vehicle: Rear

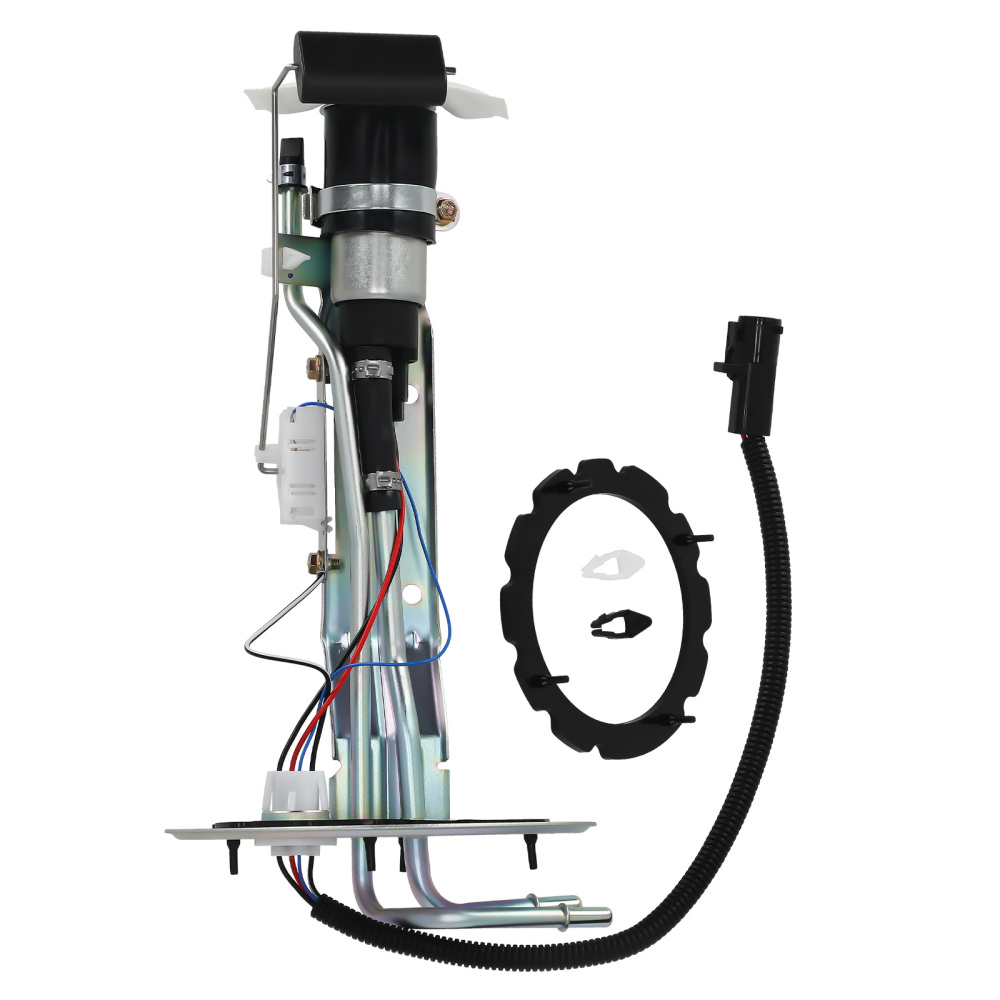

Package included: 1X Fuel Pump Module Assembly (as shown in the pictures)

Feature

1.Raw Material for key parts from same supplier as OE
2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times
3.Pressure Valve Durability Test ≥ 500,000 times
4.High temperature durability testing≥ 600 hours(60℃)
5.100% test

Note

1.Attached installation manual.
2.Professional Installation Is Highly Recommended.
3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
