Rear Brake Conversion Kit compatible for Ford 9 Axle New Style Big Bearing with 11Rotor

Application

Compatible for Ford 9-inch rear axles with "New Style" Big Bearing (Torino Style) flange pattern.
Flange Bolt Pattern: Specifically fits axle flanges with 3.562" Horizontal x 2.000" Vertical bolt spacing.
Axle Offset: Requires housing offset of 2-3/8" to 2-1/2" (measured from housing flange exterior to axle flange exterior).
Wheel Requirement: Fits 15-inch and larger wheels only.

Housing End Requirement:
Must have compatible for Ford 9" New Style Big Bearing (Torino Style) housing ends:
- 3.150" O.D. bearing
- 3/8" bearing retainer bolt holes


IMPORTANT NOTE:
DOES NOT compatible for Ford 9" Old Style Big Bearing axle housings with 3.500" x 2.375" flange pattern.
DOES NOT FIT Pickup truck housings or 1950s 9" housings (insufficient backspace).
Please measure your axle flange bolt pattern before purchasing to ensure compatibility.

Specification

Condition: New
Placement on Vehicle: Rear
Rotor Type: Vented
Parking Brake Provision：No
Rear Caliper Included: Yes
Front Rotor Included: No
Brake Hoses Included: No
Rotor Diameter: 11 Inches (279mm)
Wheel Bolt Pattern (in.): 5x4.5 in. & 5x4.75 in.
Wheel Bolt Pattern (mm) : 5x114.3 mm & 5x120.65 mm

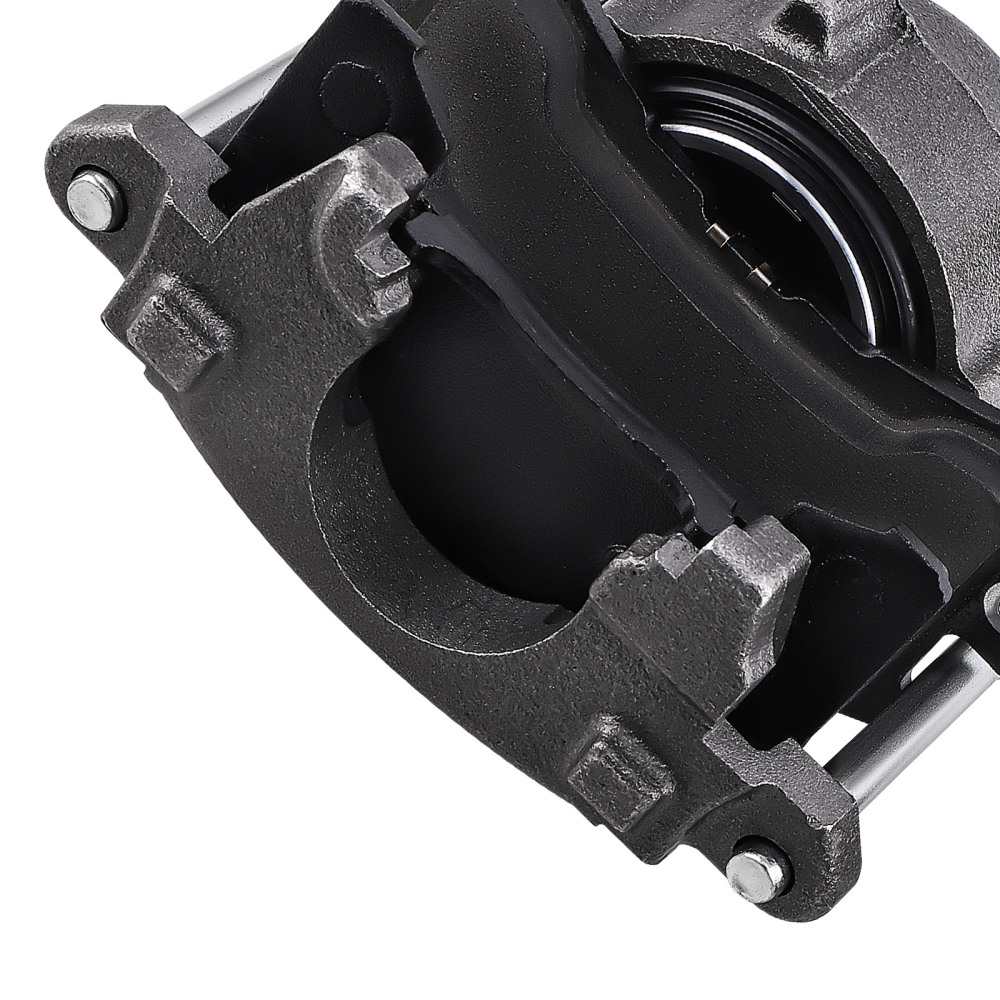

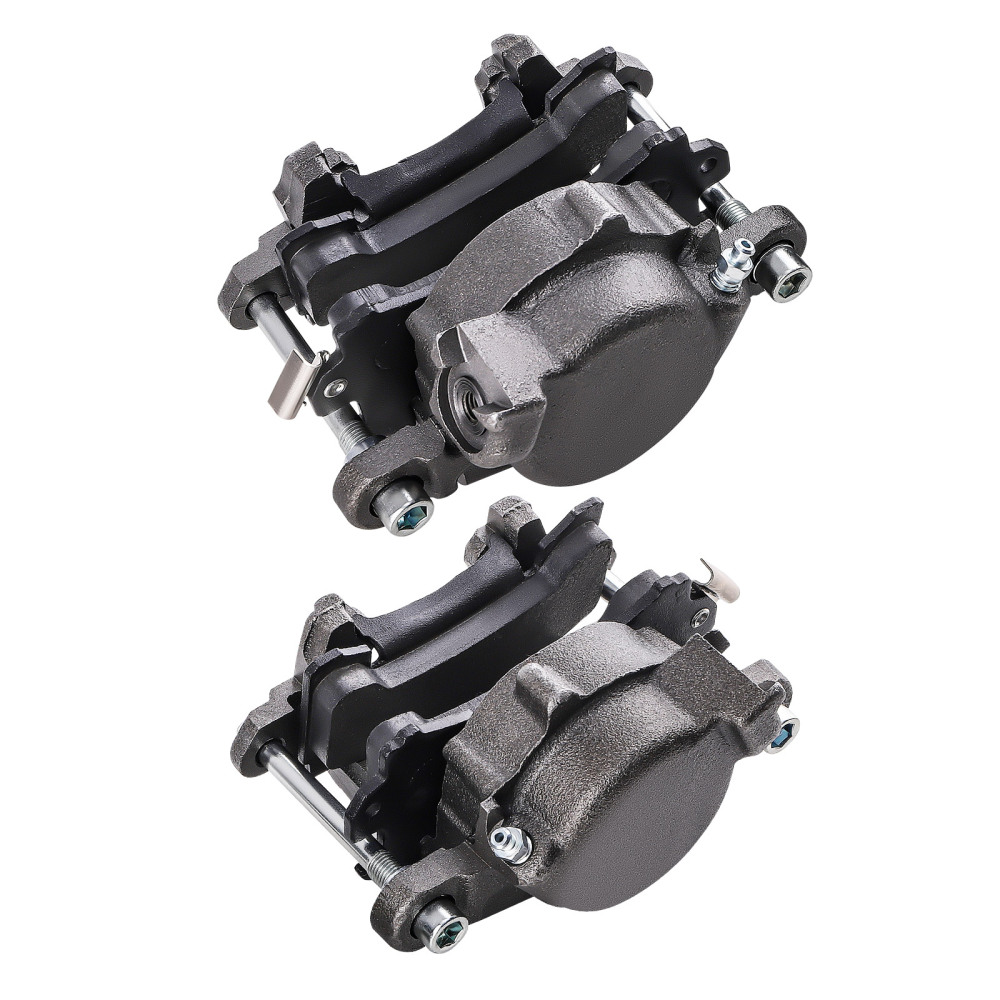

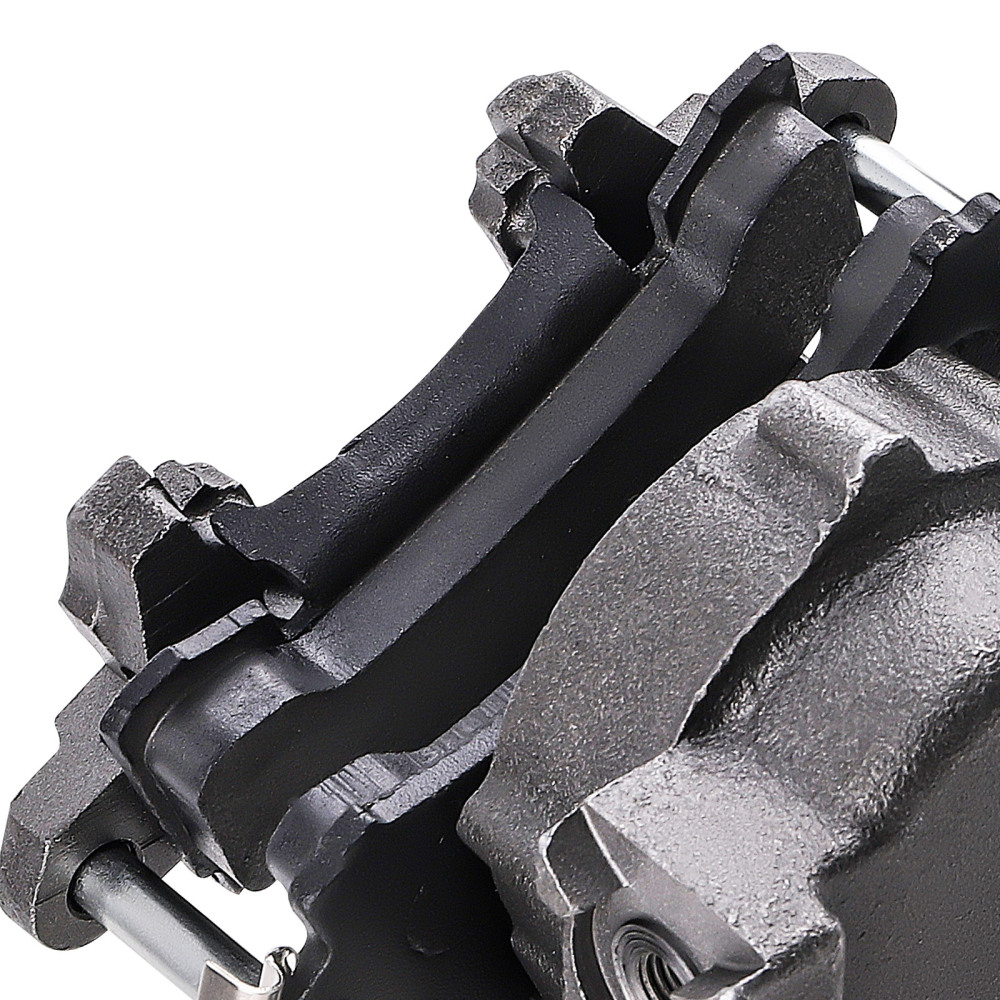

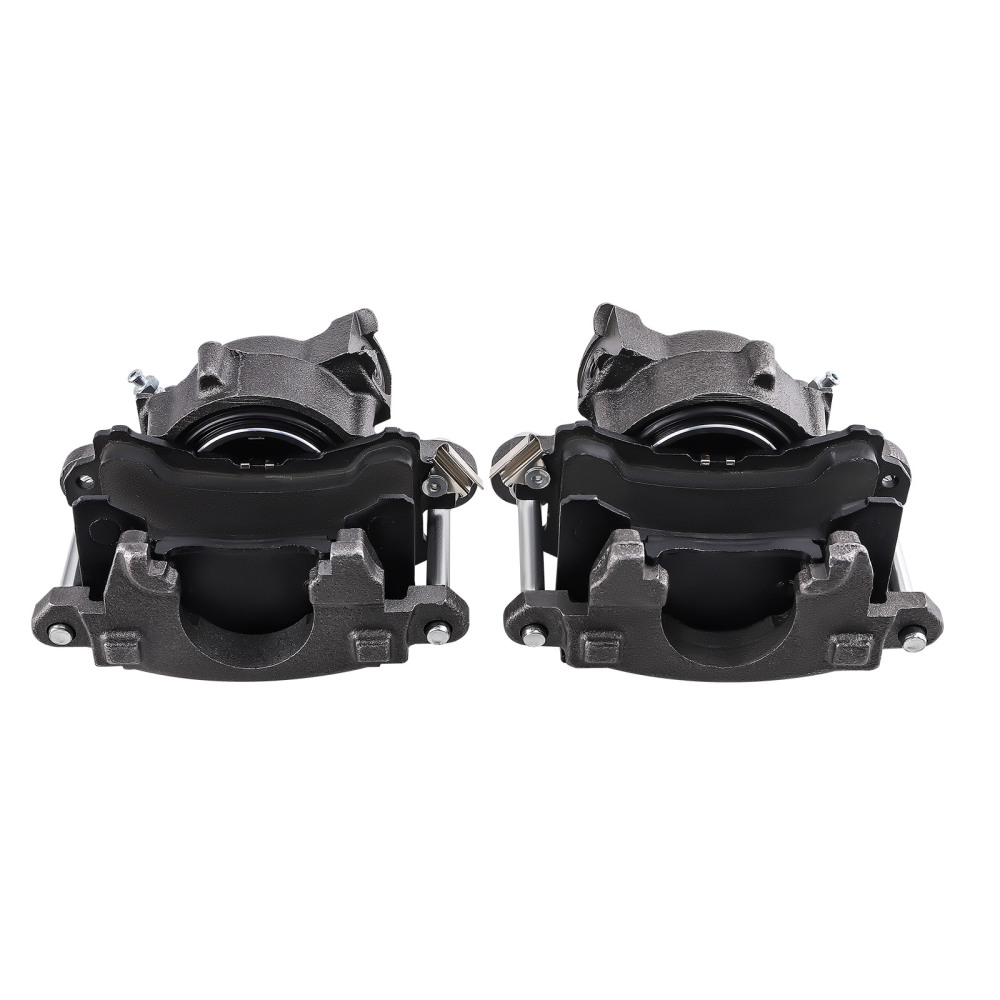

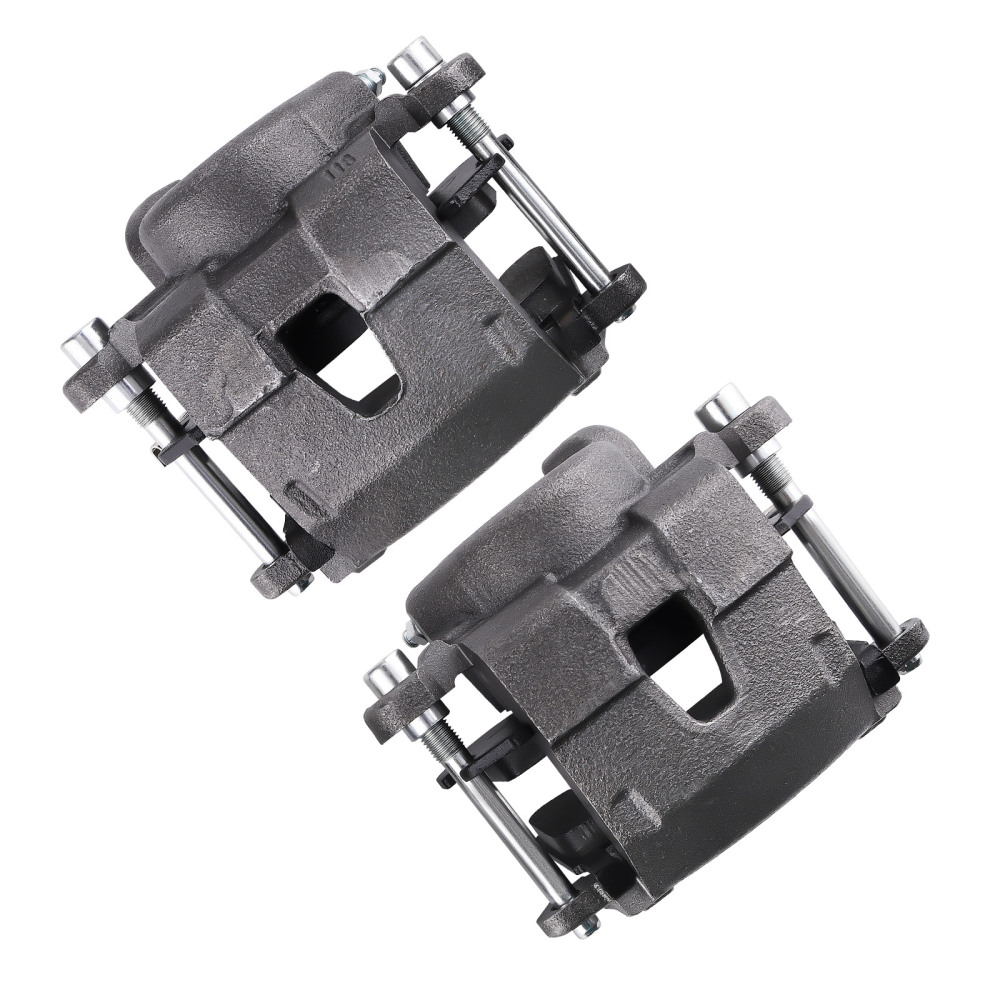

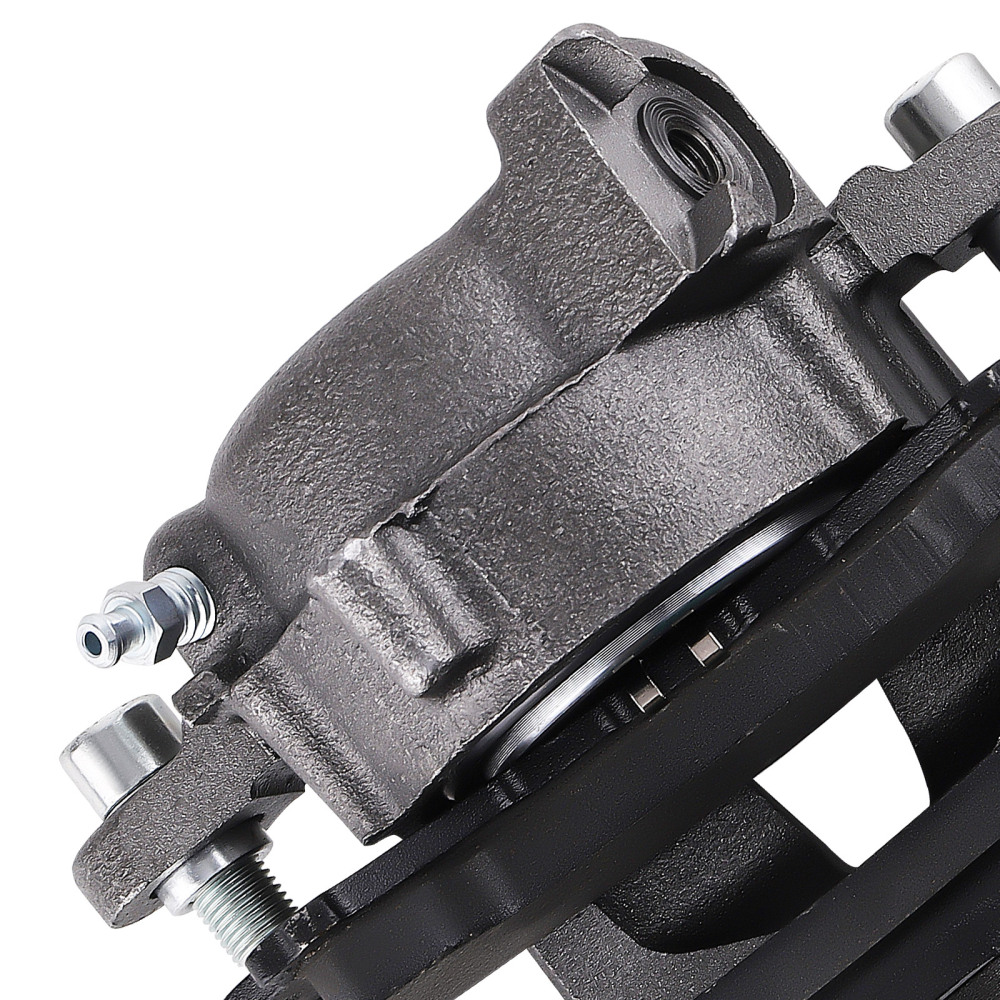

Caliper Type: Single Piston Floating Caliper
Hardware Included: Yes (Grade 8 High-Strength Bolts)
Center Hole Diameter: 2.78"
Max Axle Flange Diameter: 6-1/4"
Bolt Pattern: 5 on 4.5"&4.75"
Works new style big bearing compatible for Ford 9" using 3/8" retaining bolts.

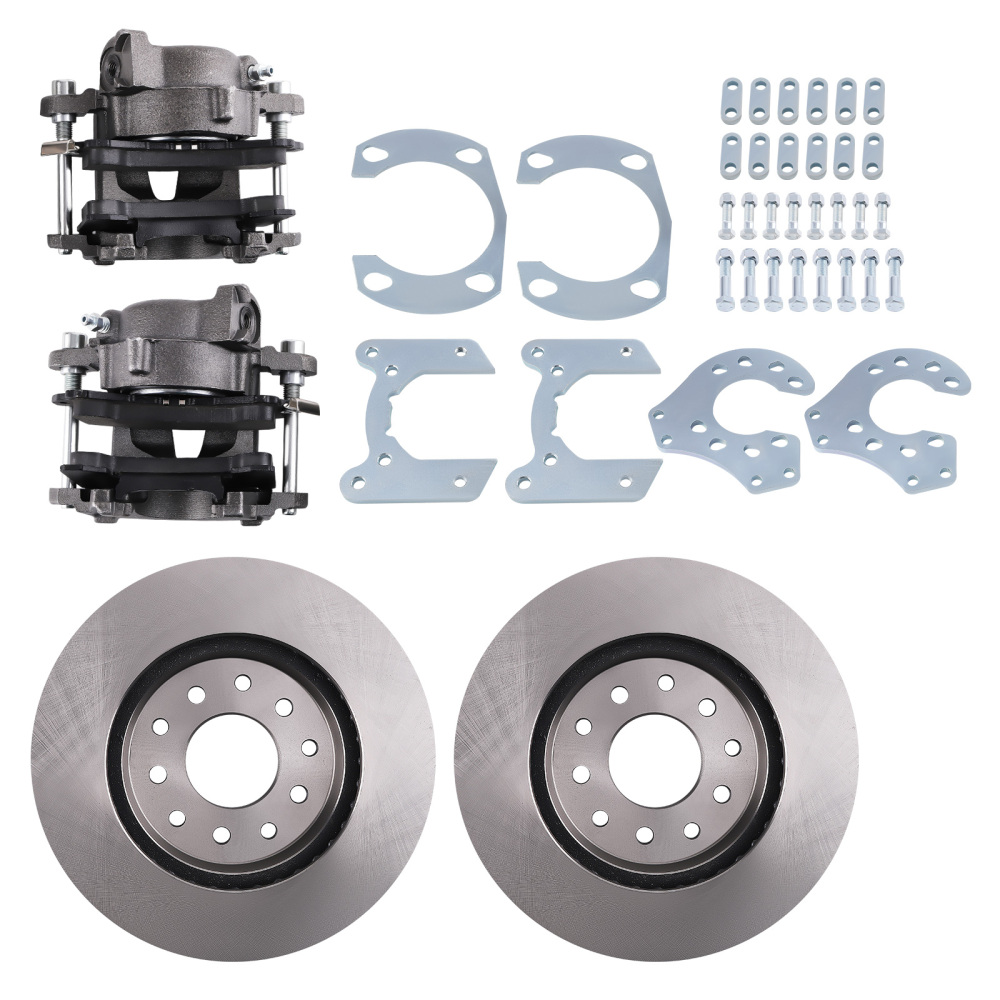

Package included

Rear Rotor
Rear Caliper
Caliper Pistons
Hardware Set
(Showing as the picture)

Feature

1. Built to strict quality control standards
2. High quality Metal and constructed for Antirust and Anticorrosion.
3. High quality and durable for stable performance and long time use. Includes Grade 8 high-strength hardware.

Note

This kit is designed for hydraulic service braking (foot brake) only. It does NOT include a parking/emergency brake mechanism. Installation will likely disable your original mechanical parking brake.

Legal Compliance: For street-driven vehicles, you must install an alternative parking solution (e.g., hydraulic handbrake or line lock) to comply with local vehicle safety regulations.

Aftermarket Modification: This is not an OEM replacement. Due to variations in production years and prior modifications, professional installation is highly recommended. Minor adjustments or machining to the axle flange may be required for proper fitment.

Fitment Verification: Please measure your axle flange bolt pattern (must be 3.562" x 2.000" Torino Style) and housing offset (2-3/8" to 2-1/2") before purchase to ensure compatibility.

Notice

All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
