Rear Air Spring Suspension bag Kit compatible for Dodge Ram 2500 3500 2003-2010 2011

Application

Compatible for Dodge RAM 2500 4WD 2011-2013
compatible for Dodge RAM 2500/3500 Pickup 4WD 2003-2010
compatible for Dodge RAM 3500 4WD 2011-2018
compatible for RAM 2500 4WD 2011-2013,
compatible for RAM 3500 4WD 2011-2018

Note:
1. Fits single rear wheel (SRW) and dual rear wheel (DRW) models.
2. Fits ALL models without a fifth-wheel hitch.
3. Fits most side mount fifth wheel hitch applications.
4. Does not fit cab & chassis applications.

Specification

Condition: Brand New
Placement on Vehicle: Rear left and right
Charge: 5000 LB / 2268 KG
Air spring---
Stroke: 80mm
Max. Extended: 180mm
Min. Compressed: 100mm
Length, width and height: 260*150*160mm
Operating Pressure : ≤2.0Mpa
Temperature range：≤+70° , ≥-40°

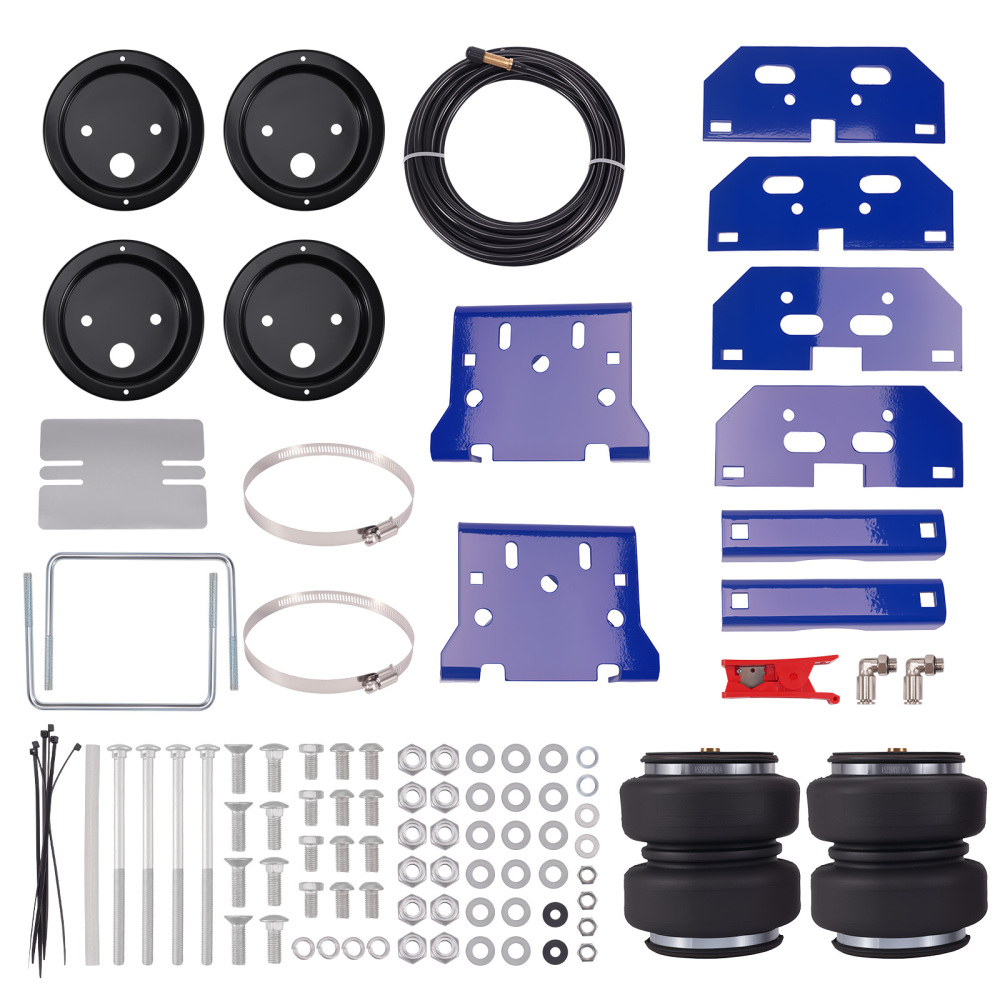

Package includes（as the picture shows）:
2x Heavy Duty Double Bellow Air Ride Suspension bags
6x Upper and lower mounting brackets
4x Rolling plate
1x Air line 5m
1x Heat Shield
Mounting Hardware

Feature

1、Stress Test Over 5,000,000 Times：Durable and Safe
2、Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise
3、Air Tightness Test ≤ 0.02MPa：100% Air Tightness Guarantee
4、Temperature Range ≥ -40℃/ ≤ 70℃ (≥ -40°F/≤ 158°F)：Premium Natural Rubber Material
5、Use high-quality steel with high load-bearing capacity and long life.
6、Excellent and practical bolt-on installation.
7、Safe carrying capacity and stability
8、Restore the original ride height and improve ride quality
9、Ensure our driving comfort and reduce tire wear.
