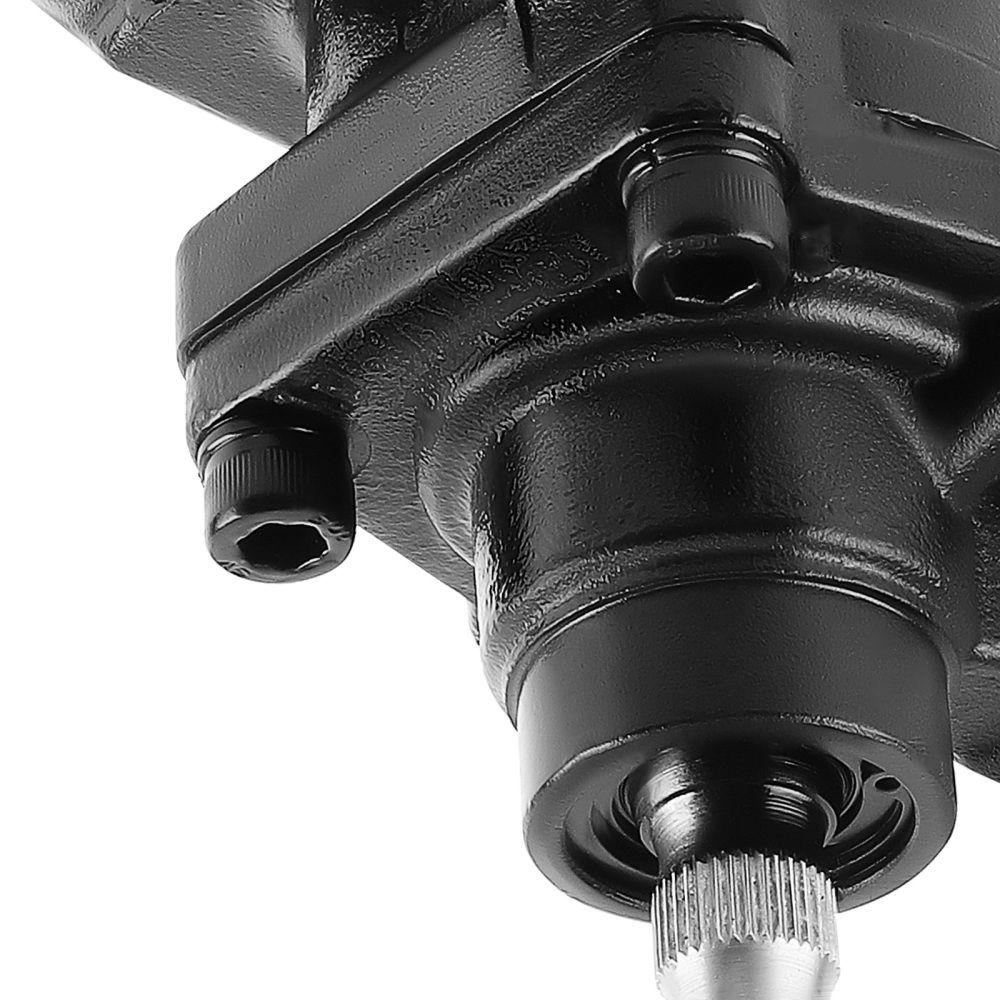

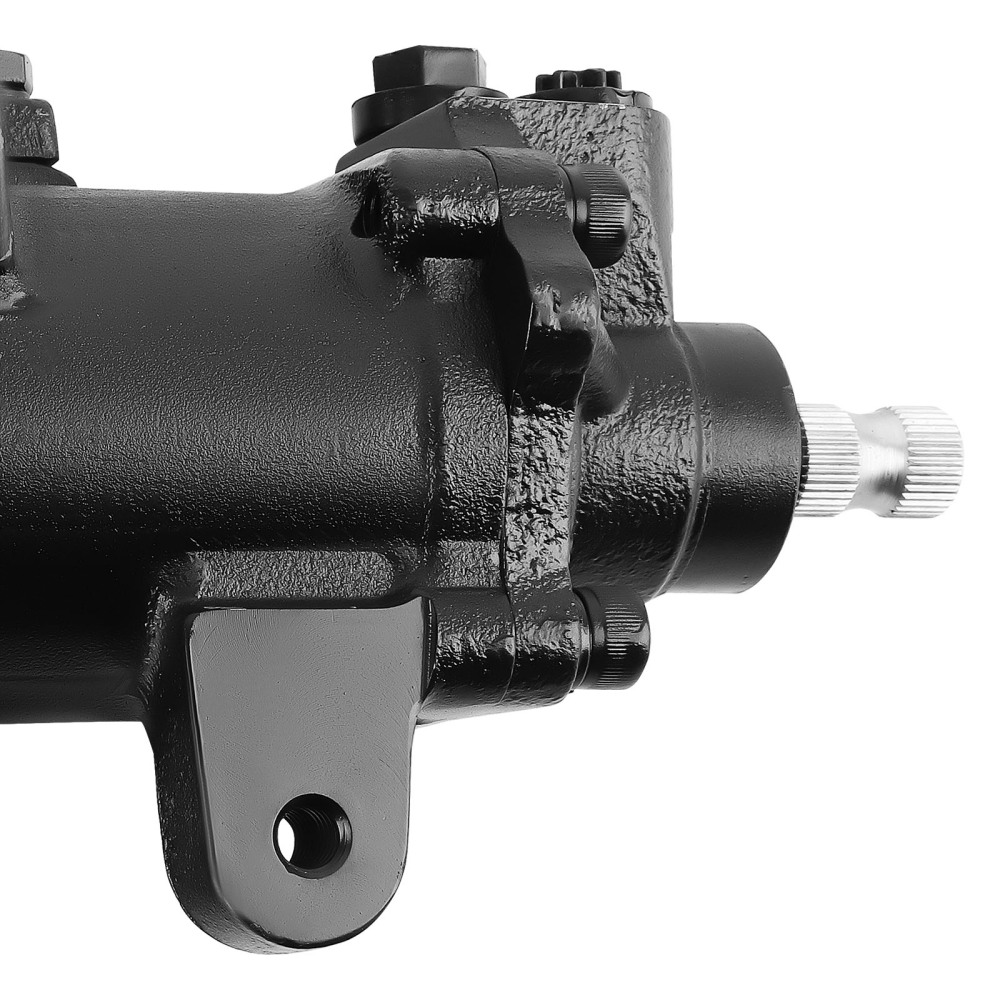

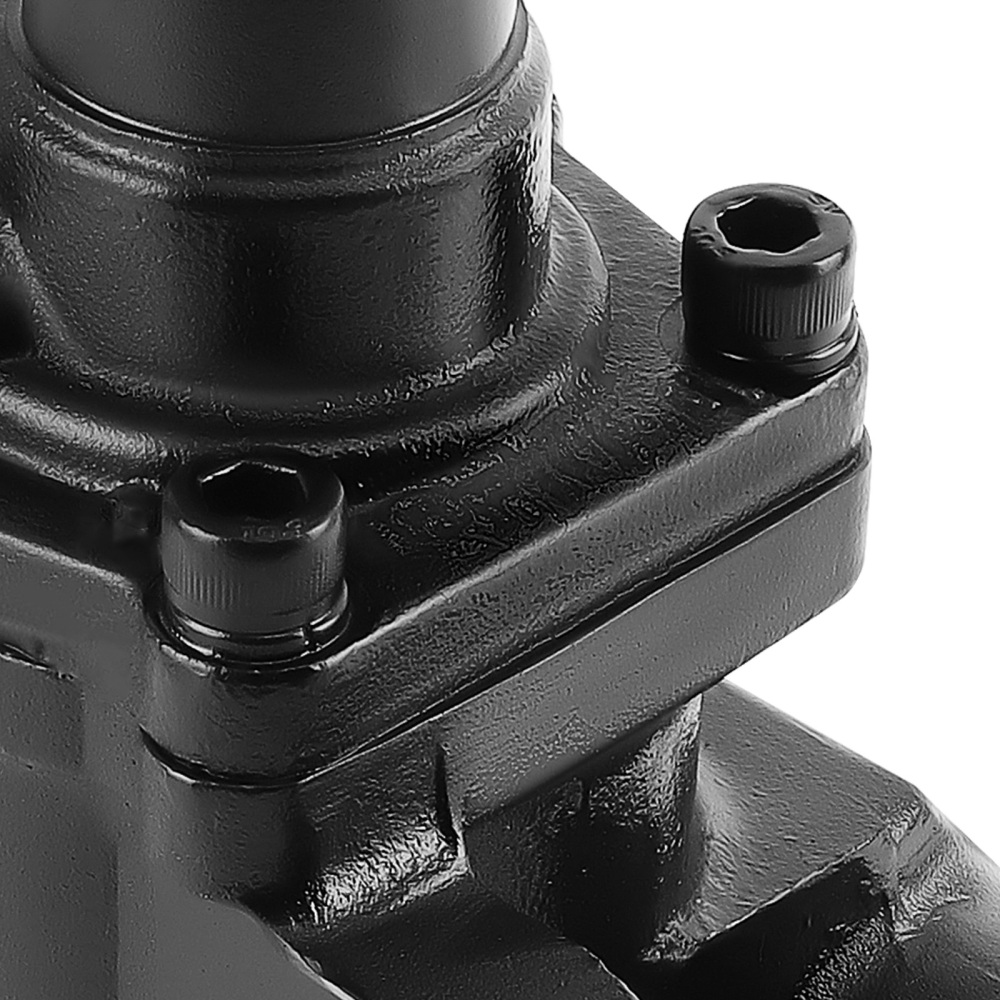

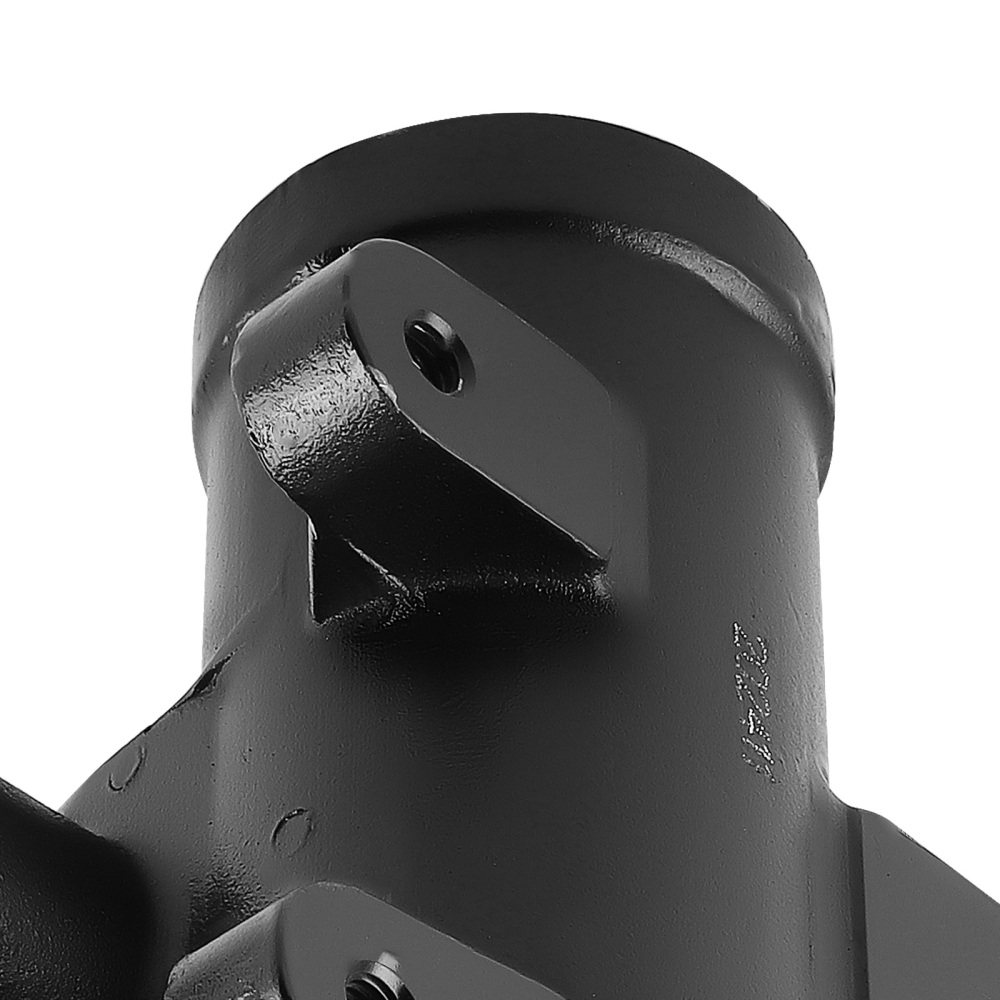

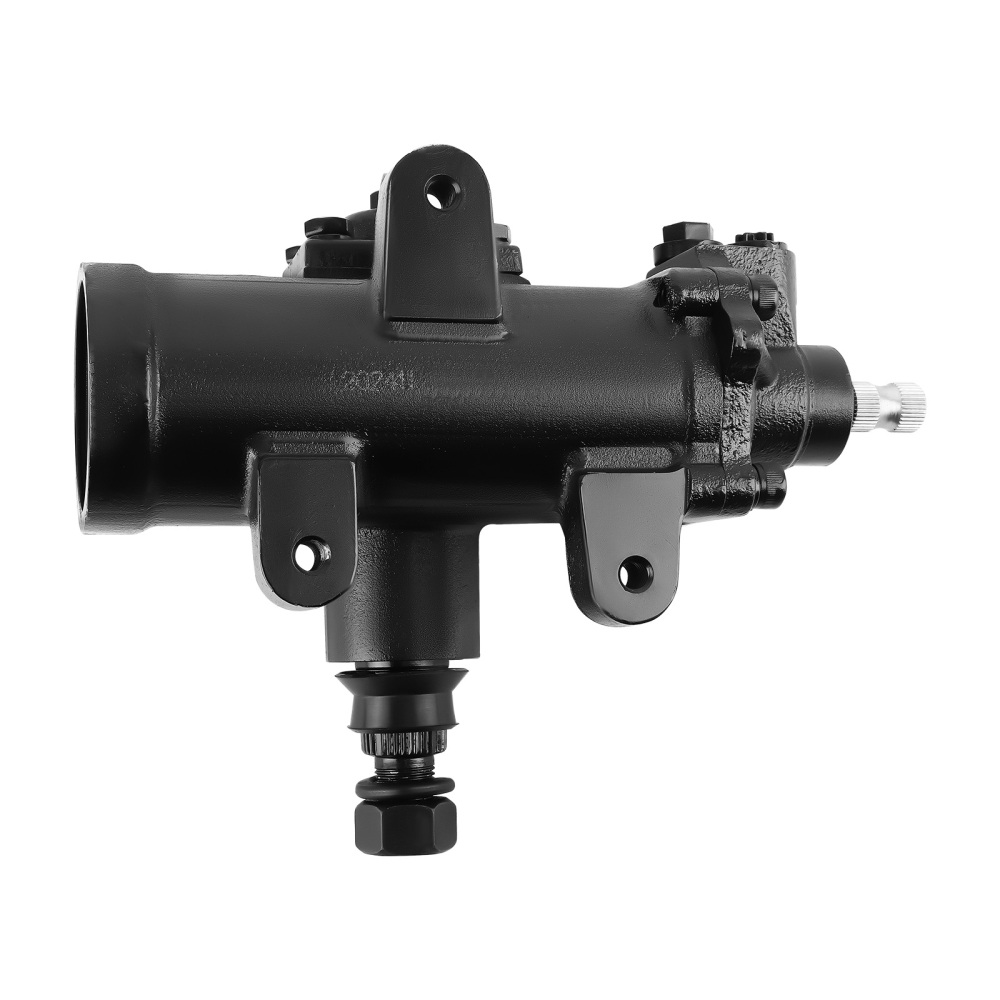

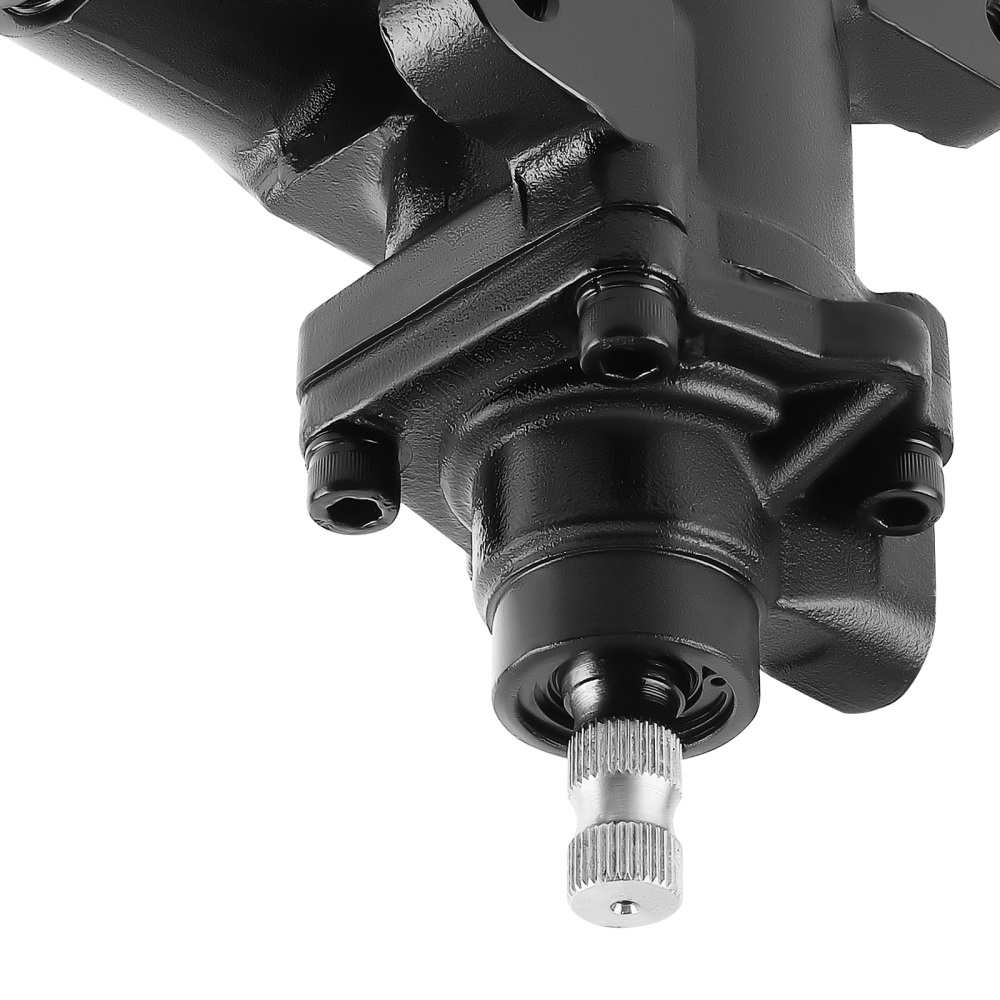

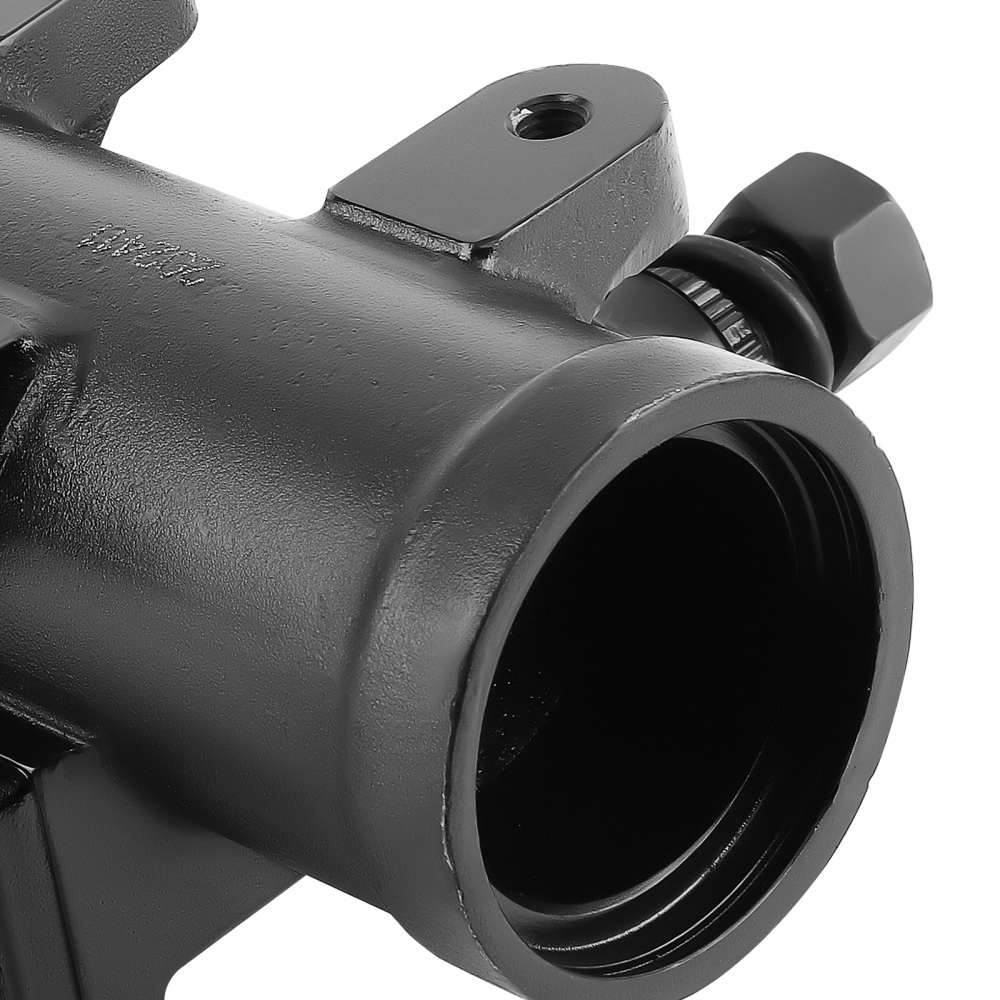

Power Steering Gear Box GearBox compatible for Ford Ranger All Engine 1983-1997 27-7516

Application

Compatible for Ford F Super Duty All Engine 1988-1996
compatible for Ford F Super Duty All Engine with 2 Bolt Housing Cover 1997
compatible for Ford F-100 All Engine 1980-1982
compatible for Ford F-100 All Engine From 03/1983 1983
compatible for Ford F-150 All Engine 1980-1997
compatible for Ford F-200 All Engine 1986-1990
compatible for Ford F-250 All Engine 1980-2007
compatible for Ford F-250 HD All Engine with 2 Bolt Housing Cover 1997
compatible for Ford F-350 All Engine 1980-1996
compatible for Ford F-350 All Engine with 2 Bolt Housing Cover 1997
compatible for Ford Ranger All Engine 1983-1997

OE/Part number

27-7516,277516,E1TZ3504A,E4TZ3504C,E8TZ3504ABRM,E8TZ3504ACRM,E9TZ3504B,F2TZ3504A,F3TZ3504A,F4TZ3504A

Specification

Hose Port Type: cooper nozzle
Steering Wheel Position: LHD
Pitman Arm included: NO
gear ratio :15.87
Input Shaft Diameter: 18.6MM/ 0.732 IN
Output Shaft Diameter:30.8 MM /1.212 IN
Number of Mounting Holes:3
Input Shaft Spline Count:36
Input Shaft Type: Spline+ single flat+ glooved
Pressure Port Thread Size:1/2-20
Return Port Thread Size:5/8-18
Total Turns Lock To Lock:4.2

Package included

1*Power Steering Gear Box

Feature

1. Built to strict quality control standards.
2. Easy Installation，Direct Replacement.
3. Through precise design,Perfect match for the car.
4. Stable characteristics, high reliability.

Note

1. Fitment above is for reference only, please check the part number before you purchase.
2. Professional installation is highly recommended.
3. Please allow 1-3mm error due to manual measurement, thanks for understanding.
4. Please kindly understand that the actual color may slightly vary from presented pictures due to different monitor.
