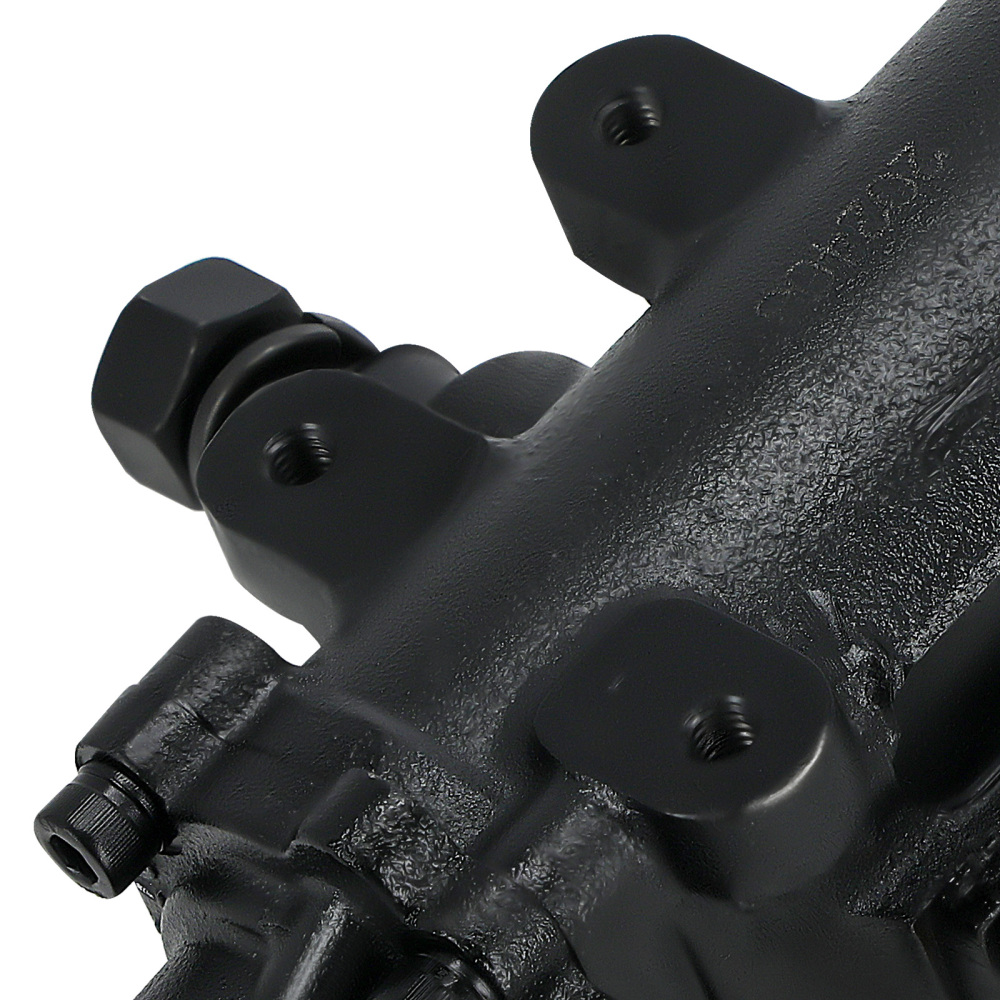

Power Steering Gear box compatible for Jeep CJ7 1980-1986 CJ5 1980-1983 Scrambler 81-85 4WD

Application

Compatible for Jeep CJ5 All Engine with Power Steering Gear, 4WD 1980-1983
compatible for Jeep CJ7 All Engine with Power Steering Gear, 4WD 1980-1986
compatible for Jeep Scrambler All Engine with Power Steering Gear, 4WD 1981-1985

OE/Part number

27-6534,276534,5363231

Specification

Color:Black
Hose Port Type:Oring
Input Shaft Diameter -lmperial:0.875 in
Input Shaft Diameter - Metric:22.23 mm
Input Shaft spline Quantity:31
Input Shaft Type:Splined;Grooved
Number of Mounting Holes:4
Output Shaft Diameter -lmperial:0.864 in
Output Shaft Diameter -Metric:21.95 mm
Pitman Arm Included:No
Pressure Port Internal Diameter Size:0
Pressure Port Thread Size:18x1.5
Return Port Internal Diameter Size:0
Return Port Thread Size:16x1.5
Rotation Direction:Standard
Steering Box Type:Power
Total Turns Lock to Lock:4.13

Package included

1 × Power Steering Gear Box(Showing as the picture)

Feature

This is a High Quality Aftermarket Parts
This product comes with best after-sales service.

Note

1.Professional Installation Is Highly Recommended.
2.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
