Power Steering Gear Box compatible for Ford Bronco 2.8L 3.3L 5.0L 1972-1977 18200297-103

Application

Compatible for Ford Bronco 2.8L/5.0L with Power Steering Model 1972
compatible for Ford Bronco 3.3L/5.0L with Power Steering Model 1973
compatible for Ford Bronco 3.3L/5.0L with Power Steering Model 1974
compatible for Ford Bronco 5.0L with Power Steering Model 1975
compatible for Ford Bronco 5.0L with Power Steering Model 1976
compatible for Ford Bronco 5.0L with Power Steering Model 1977

OE/Part number

18200297-101,18200297-102,18200297-103,18200297-104,18200297101,18200297102,18200297103,18200297104,82-00297AN

Specification

Hose Port Type:copper nozzle
Steering Wheel Position: LHD
Pitman Arm included: NO
gear ratio :15.87
Input Shaft Diameter:20.2MM /0.795 IN
Output Shaft Diameter:30MM /1.181 IN
Number of Mounting Holes:3
Input Shaft Spline Count:36
Input Shaft Type: Spline+Single flat
Pressure Port Thread Size:11/16-18
Return Port Thread Size:5/8-18
Total Turns Lock To Lock:4.2

Package included

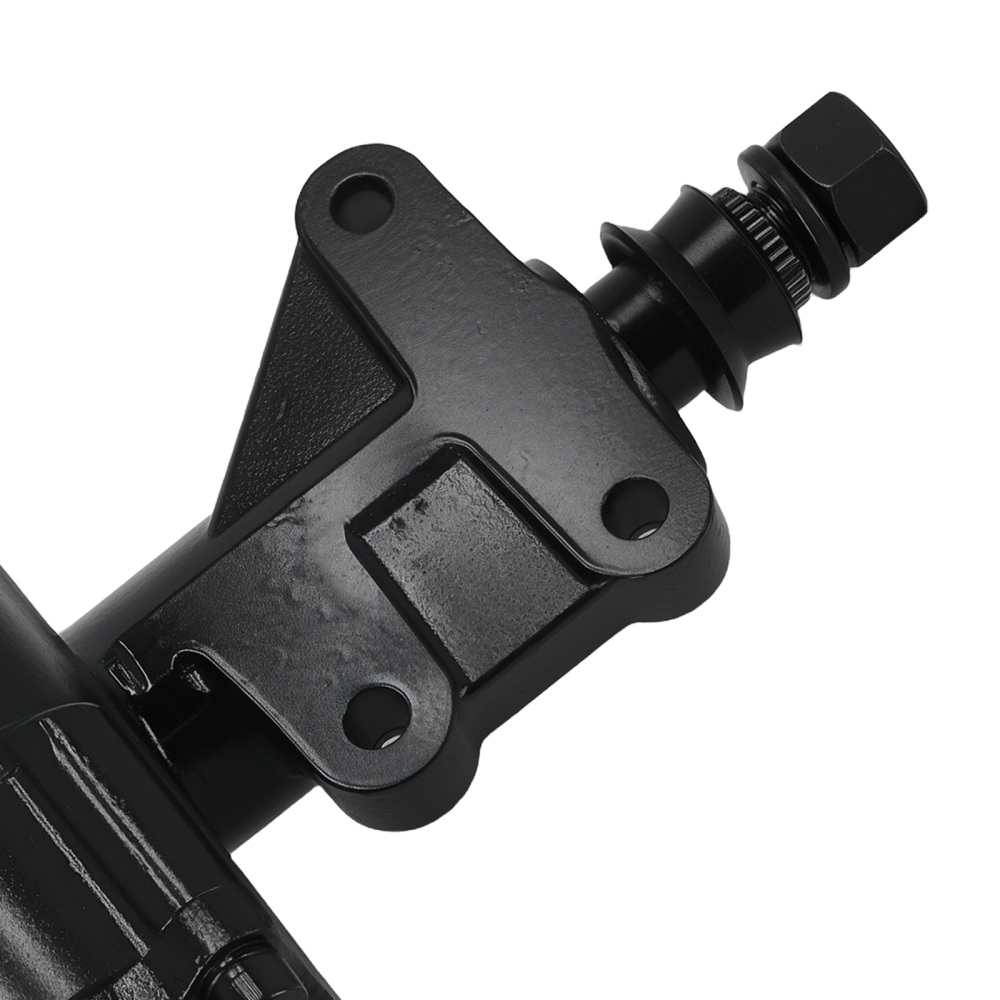

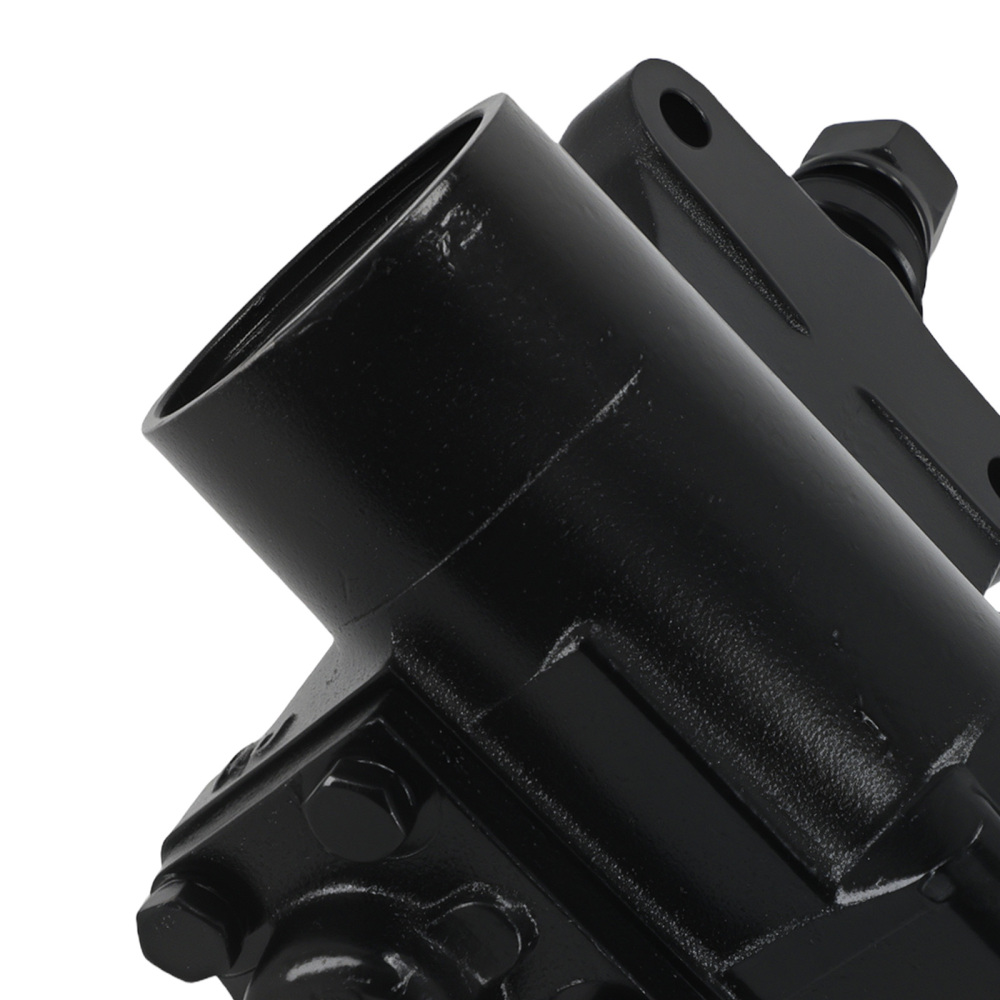

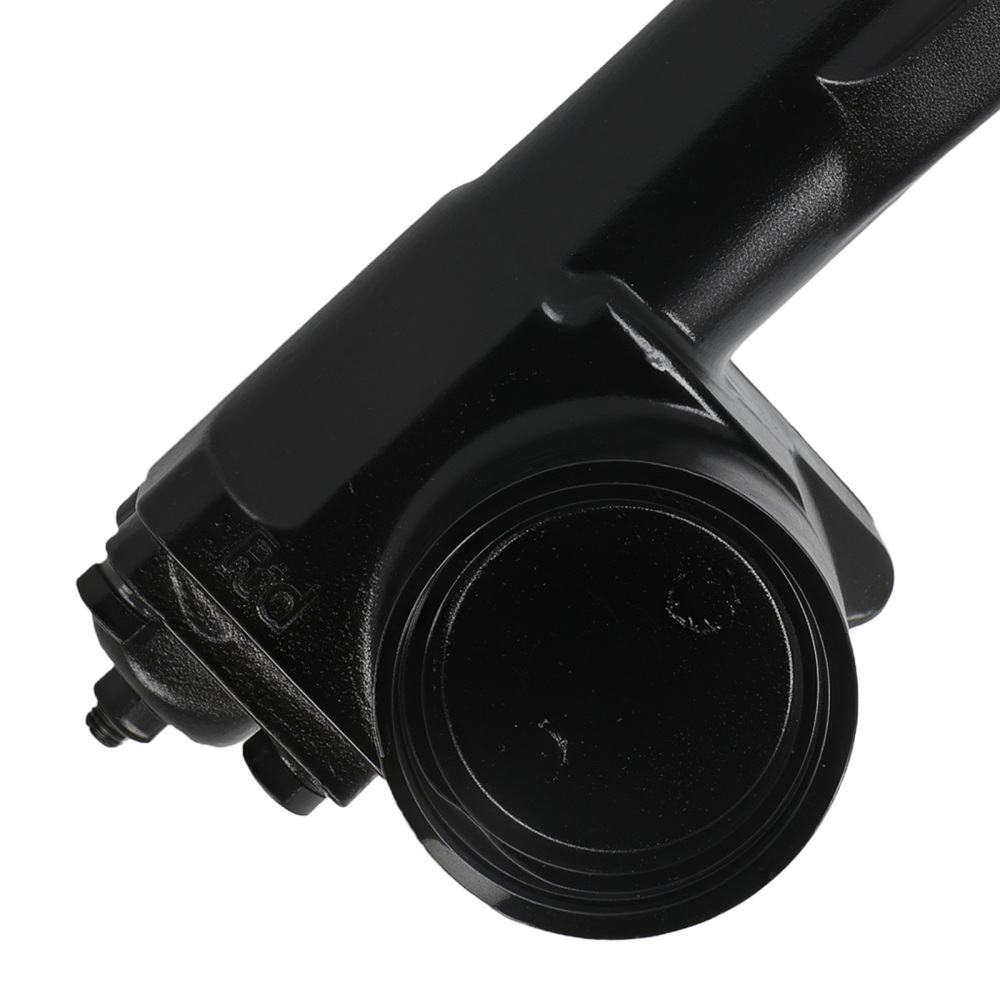

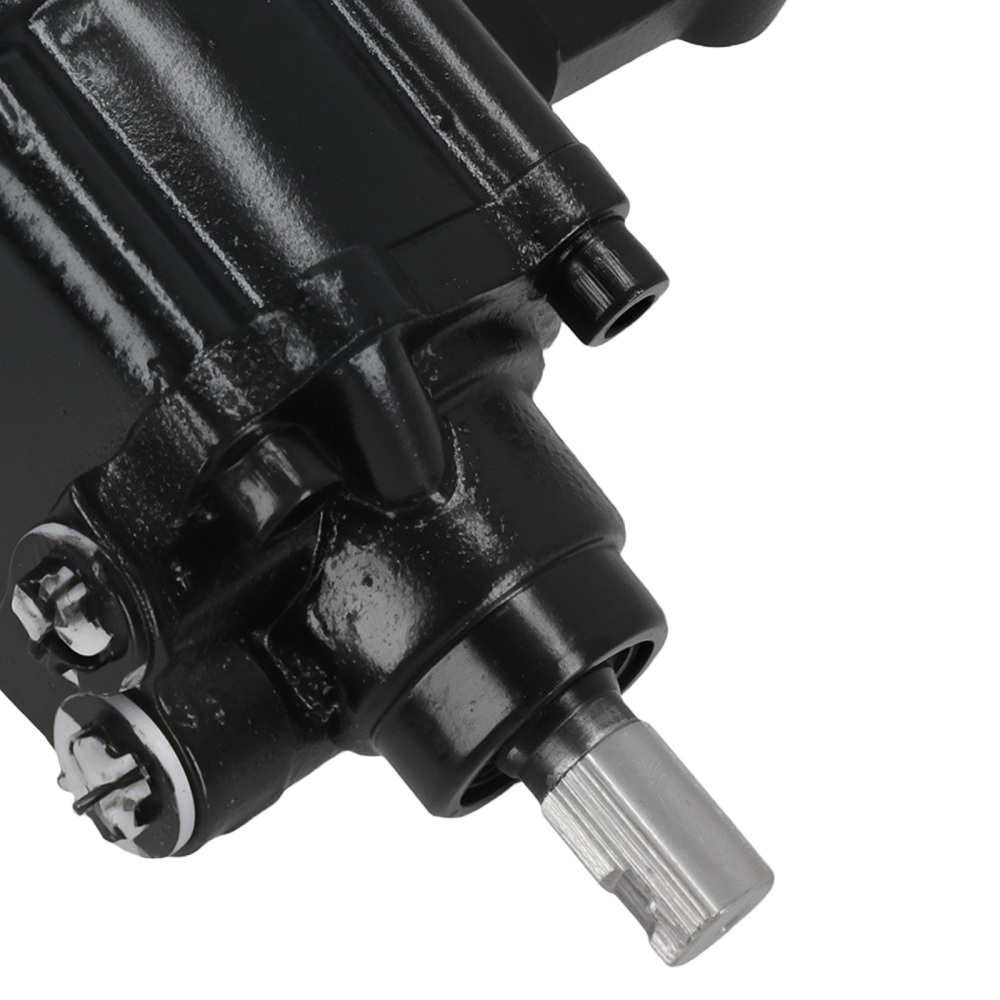

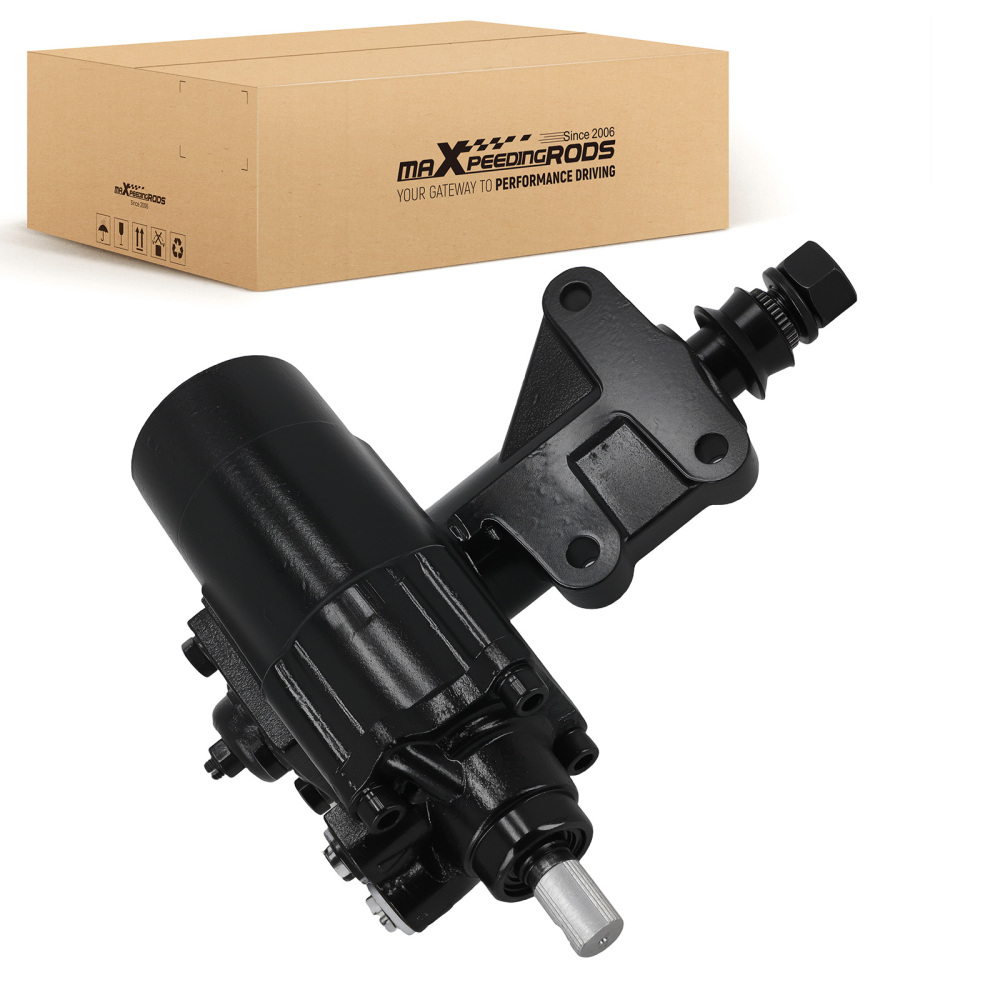

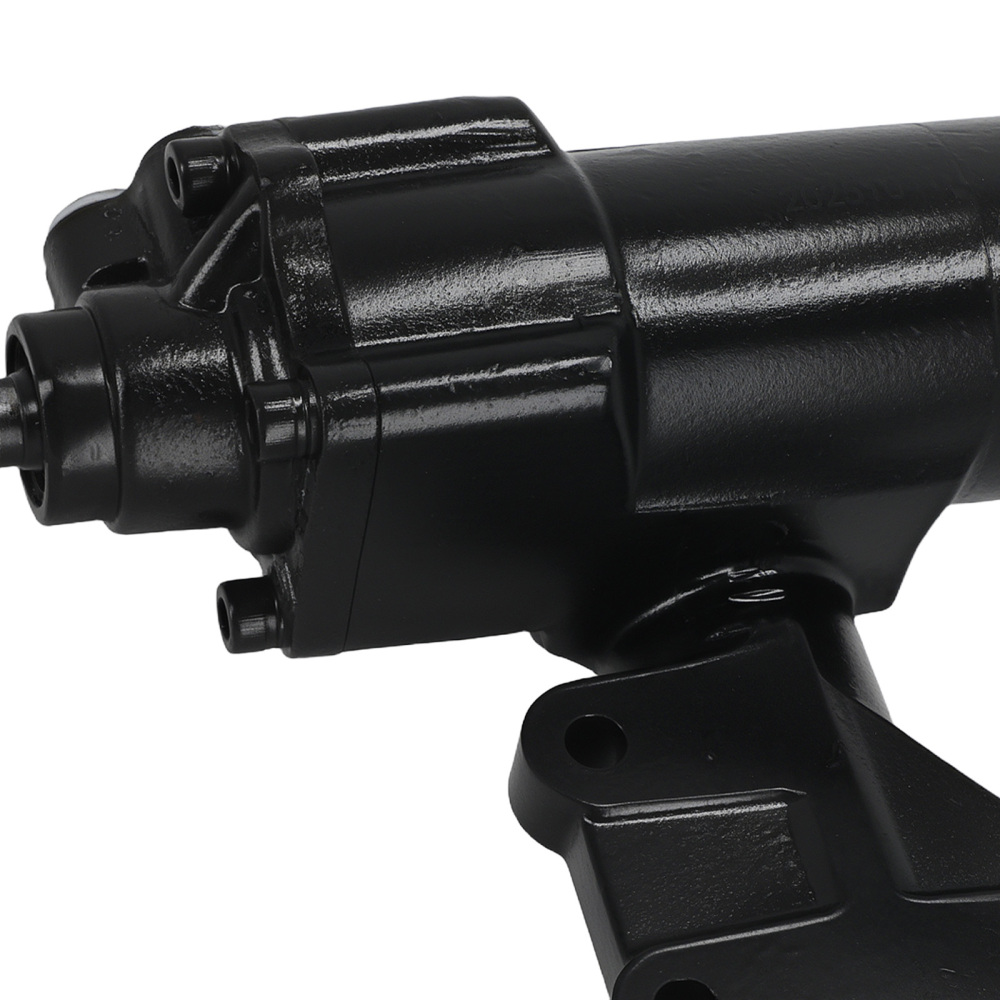

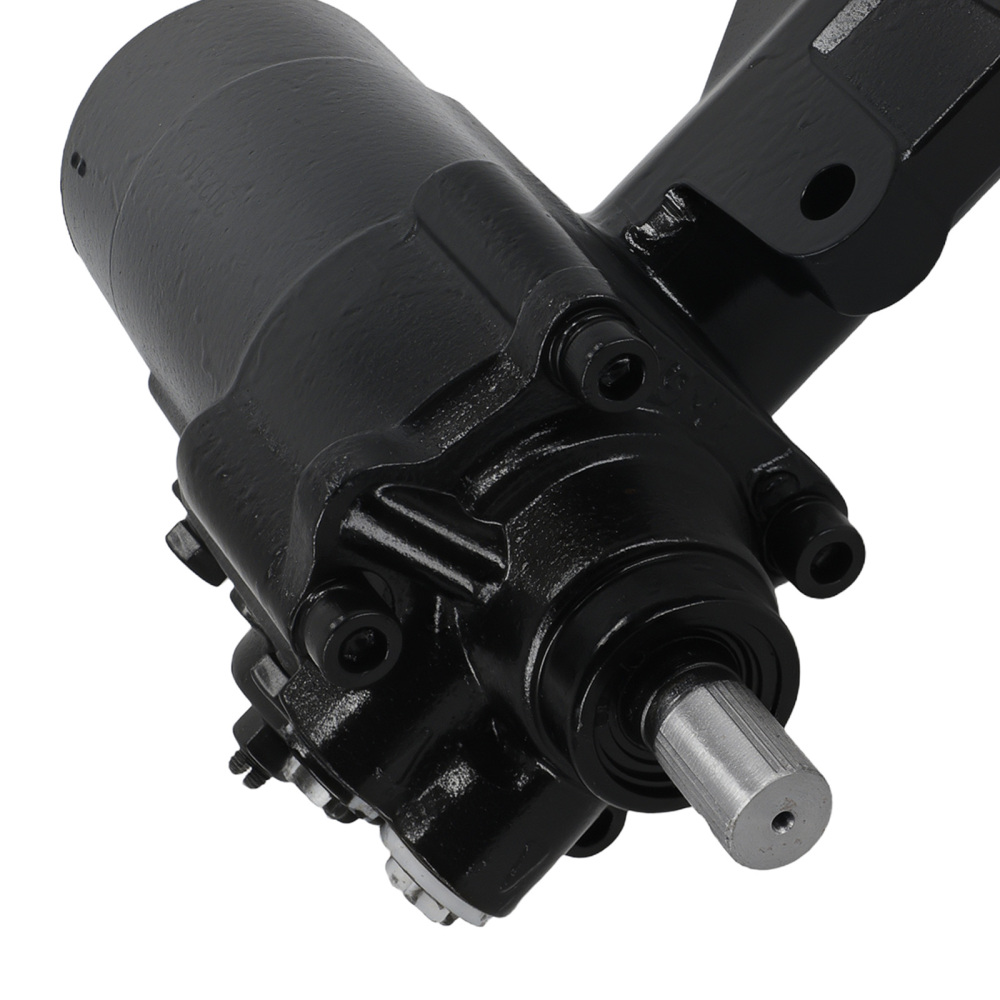

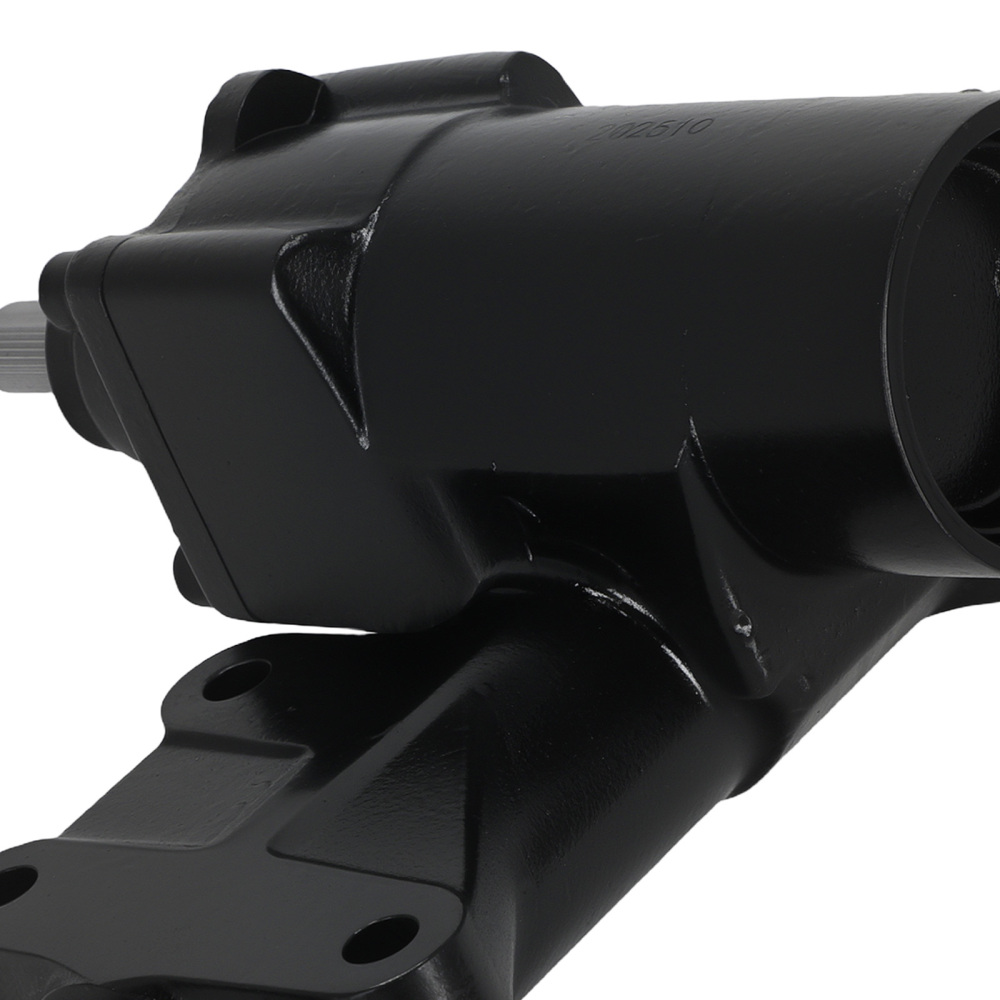

1x Power Steering Gear Box (Showing as the picture)

Note

Check steering intermediate shaft and coupling for proper movement
Side-to-side movement of the steering gear pitman shaft is normal
Free play at the input shaft until pressure is applied from pump is normal
Inspect hoses for kinks, chaffing and internal restrictions
Install an in-line filter to eliminate potential restrictions
Flush system with approved fluid to remove debris or contamination
Use correct fluid type that meets O.E. specifications
Always replace sealing O-Rings
Tighten couplings, gear mounting bolts and pitman arm to manufacturer’s specs
Perform vehicle wheel alignment
If your car has symptoms like no power steering assist, leaks, clunk noise, excessive play, binding or vehicle drifting, replace the Power Steering Gear Box
