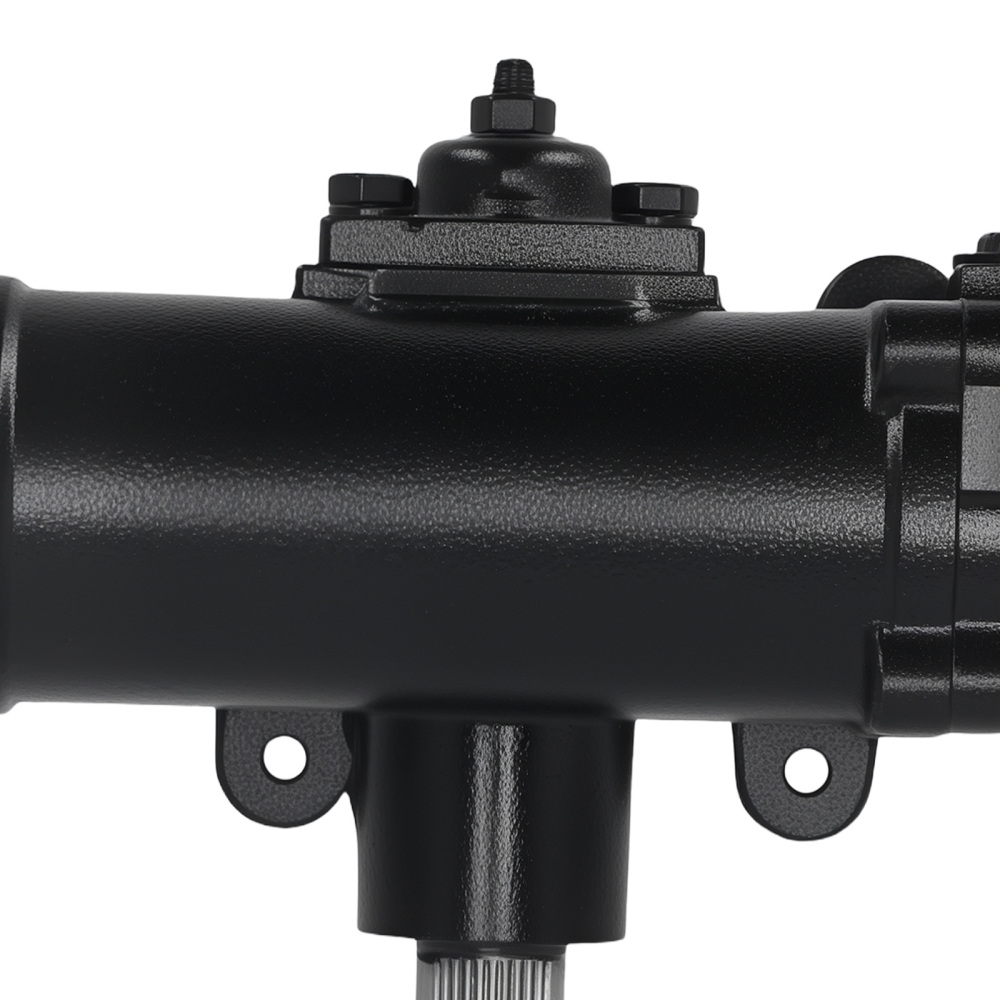

Power Steering Gear Box compatible for Chevrolet Blazer K10 K20 K30 K5 1970-1976 41556

Application

Compatible for Chevrolet Blazer All Engine 4WD (Four Wheel Drive) 1970-1974
compatible for Chevrolet K10 All Engine 1975-1976
compatible for Chevrolet K10 Pickup All Engine 1968-1974
compatible for Chevrolet K10 compatible for Suburban All Engine 4WD (Four Wheel Drive) 1968-1976
compatible for Chevrolet K20 All Engine 1975-1976
compatible for Chevrolet K20 Pickup All Engine 1968-1974
compatible for Chevrolet K20 compatible for Suburban All Engine 4WD (Four Wheel Drive) 1968-1976
compatible for Chevrolet K30 Pickup All Engine 1968-1974
compatible for Chevrolet K5 Blazer All Engine 4WD (Four Wheel Drive) 1975-1976
compatible for GMC Jimmy All Engine 4WD (Four Wheel Drive) 1970-1976
compatible for GMC K15 All Engine 1975-1976
compatible for GMC K15 compatible for Suburban All Engine 4WD (Four Wheel Drive) 1975-1976
compatible for GMC K15/K1500 Pickup All Engine 1968-1974
compatible for GMC K15/K1500 compatible for Suburban All Engine 4WD (Four Wheel Drive) 1968-1974
compatible for GMC K25 All Engine 1975-1976
compatible for GMC K25 compatible for Suburban All Engine 4WD (Four Wheel Drive) 1975-1976
compatible for GMC K25/K2500 Pickup All Engine 1968-1974
compatible for GMC K25/K2500 compatible for Suburban All Engine 4WD (Four Wheel Drive) 1968-1974
compatible for GMC K35/K3500 Pickup All Engine 1968-1974

OE/Part number

27-7502, 277502, 2601-41556, 36-0517502, 36G0107, 41556, 51-7502，07810987, 07825868, 5030114

Specification

Hose Port Type:0-ring
Steering Wheel Position: LHD
Pitman Arm included: NO
gear ratio :15.87
Input Shaft Diameter:20.3MM/0.799 IN
Output Shaft Diameter:31.4MM /1.236 IN
Number of Mounting Holes:4
Input Shaft Spline Count:36
Input Shaft Type: Spline+glooved+ Single flat
Pressure Port Thread Size:11/16-18
Return Port Thread Size:5/8-18
Total Turns Lock To Lock:4.1

Package included

1* Power Steering Gear Box

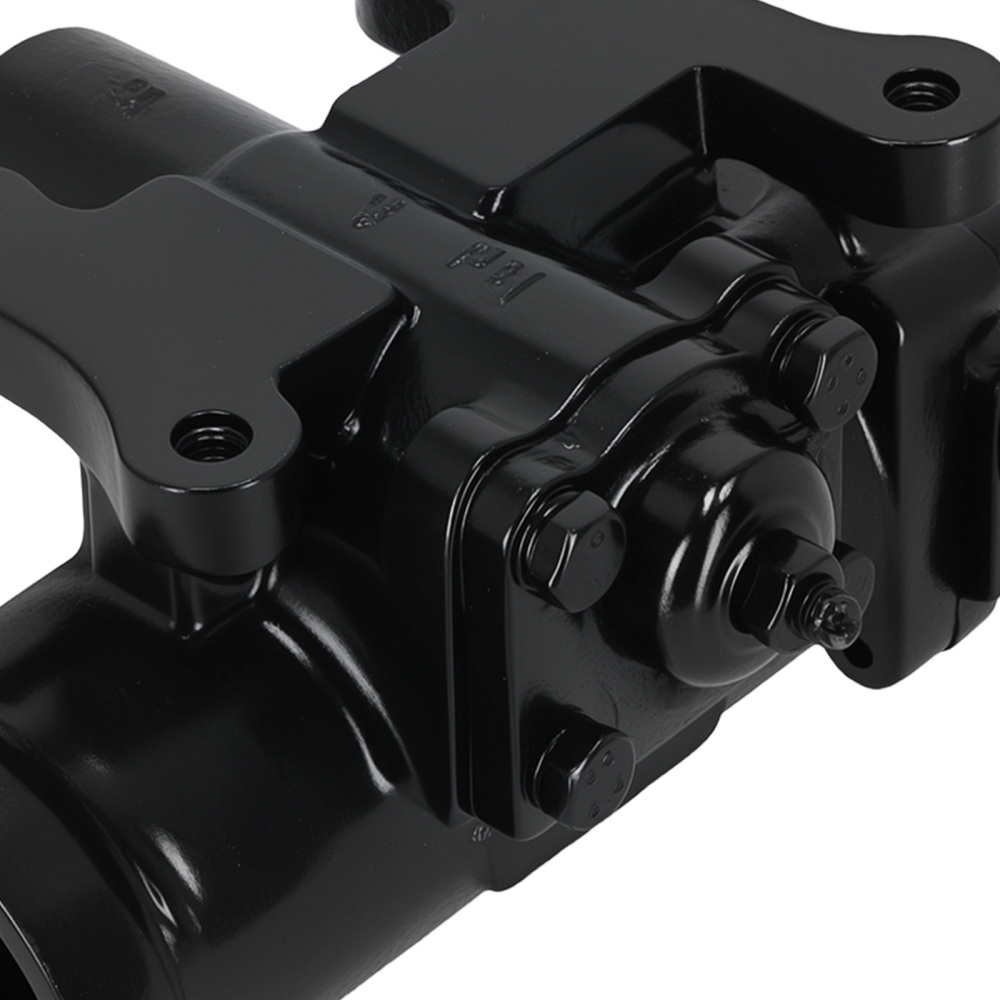

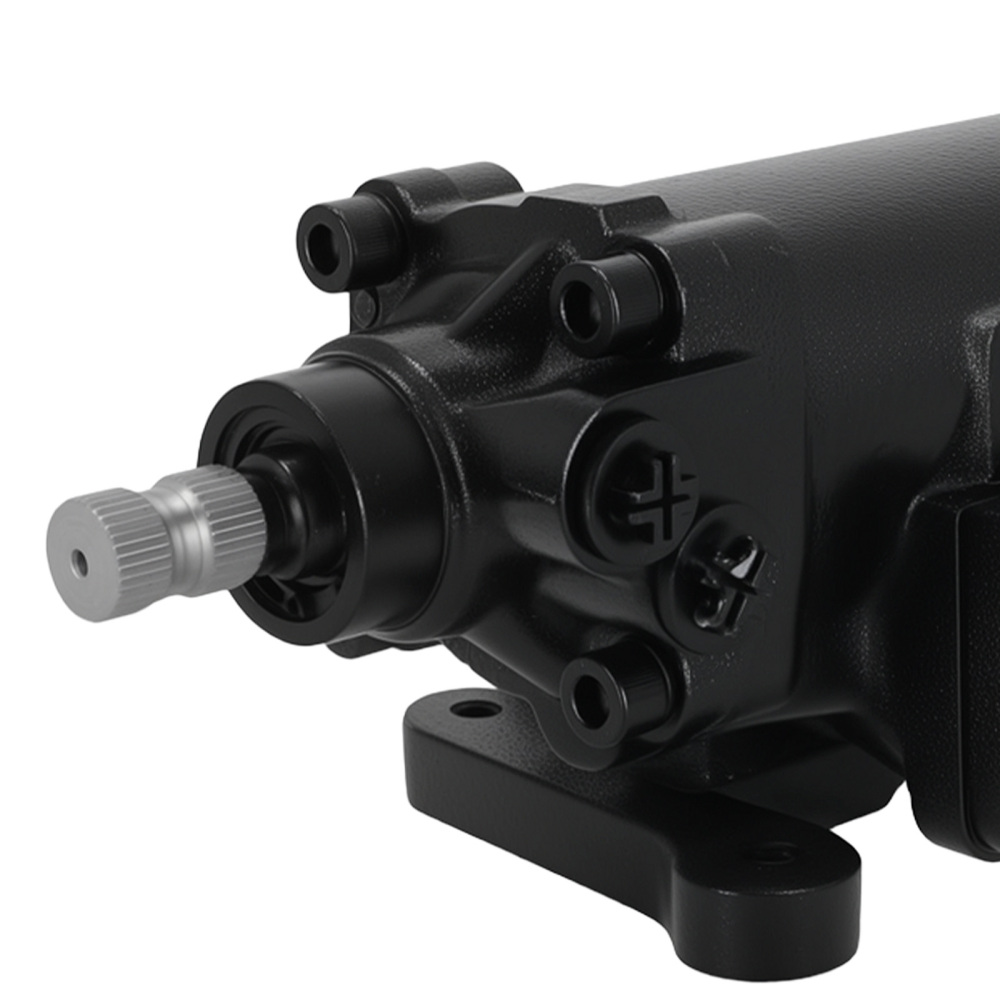

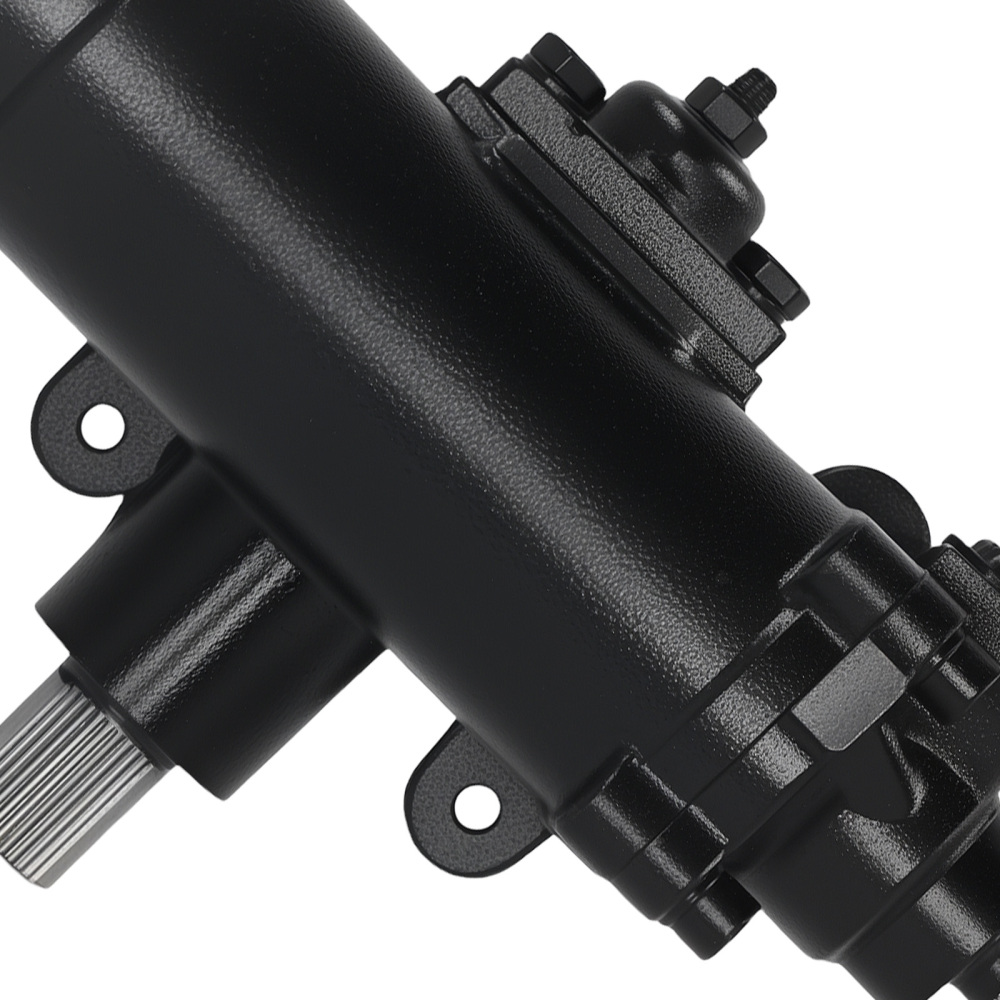

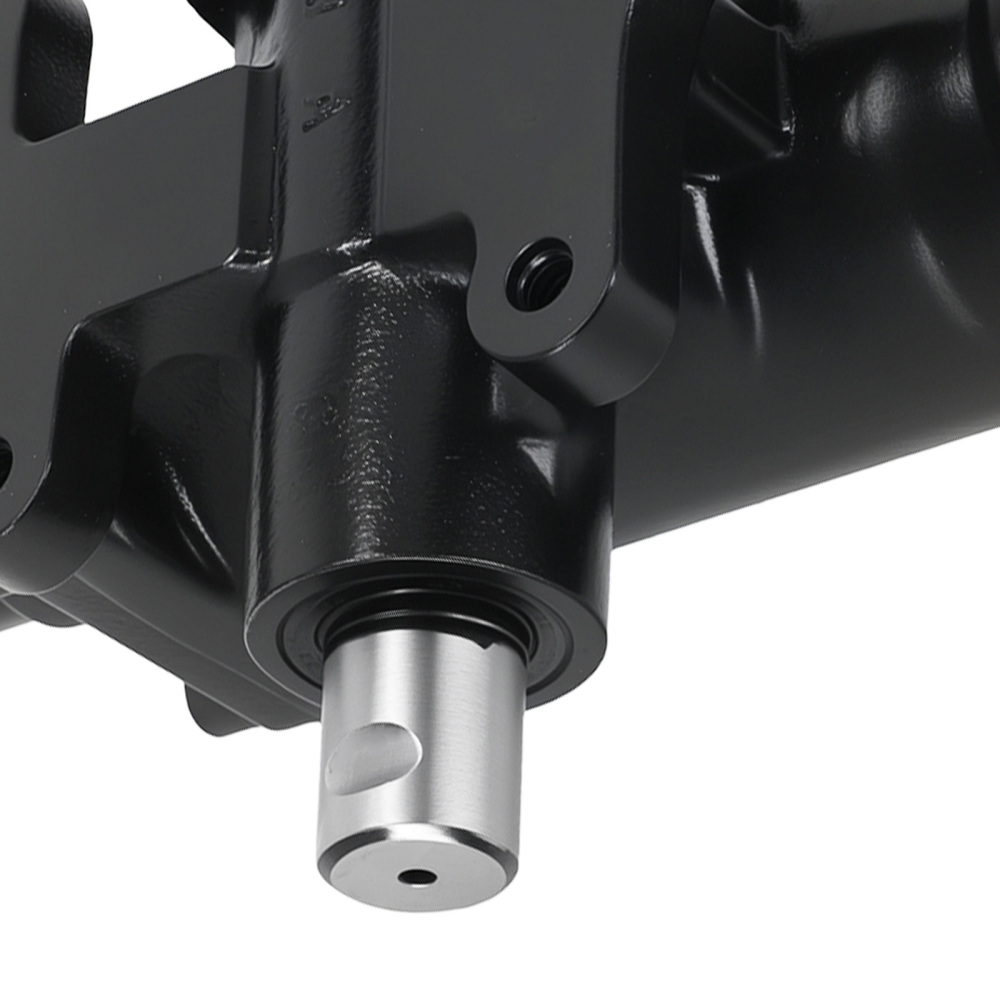

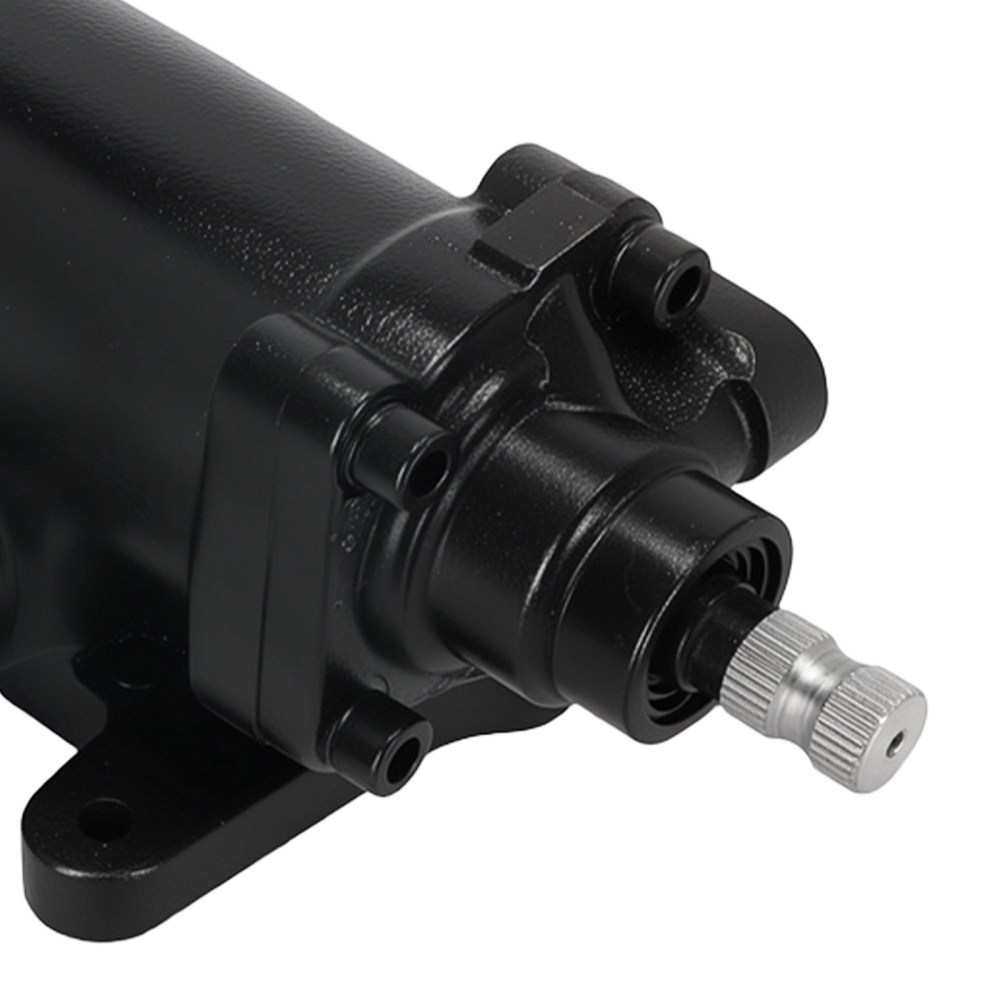

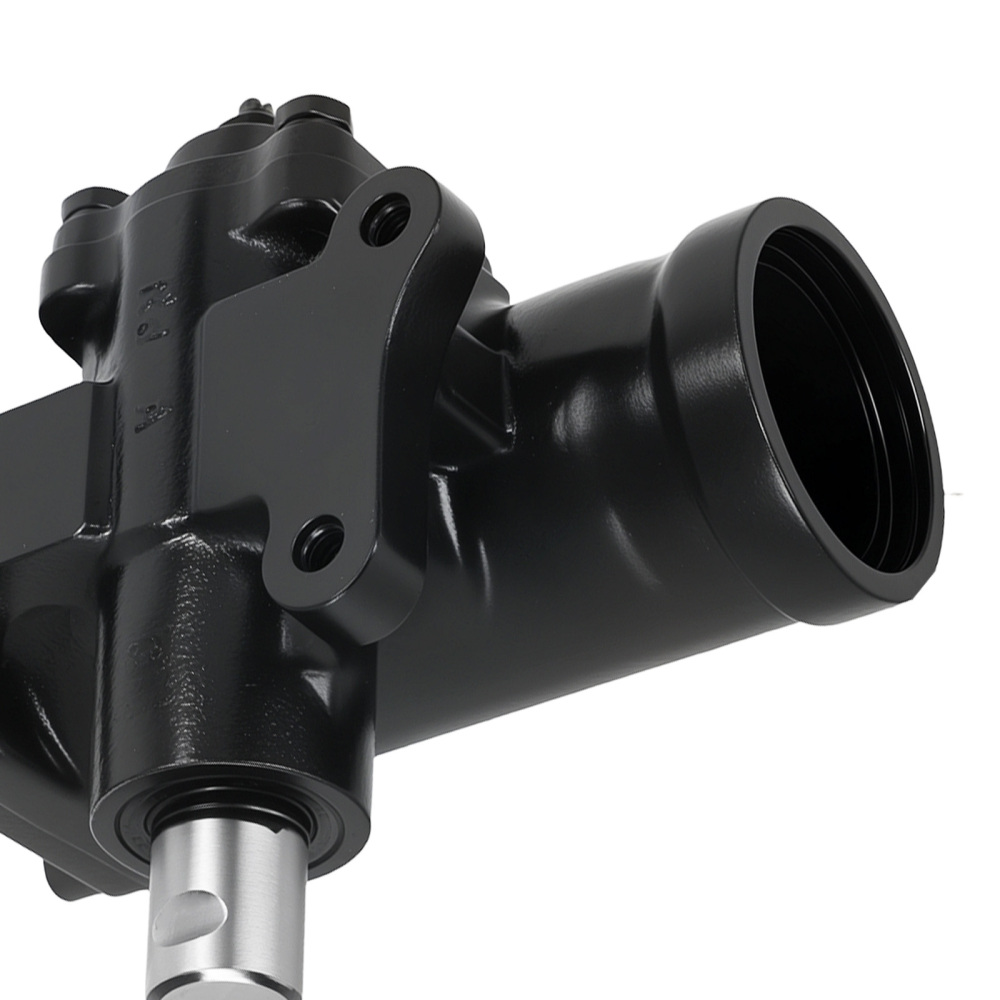

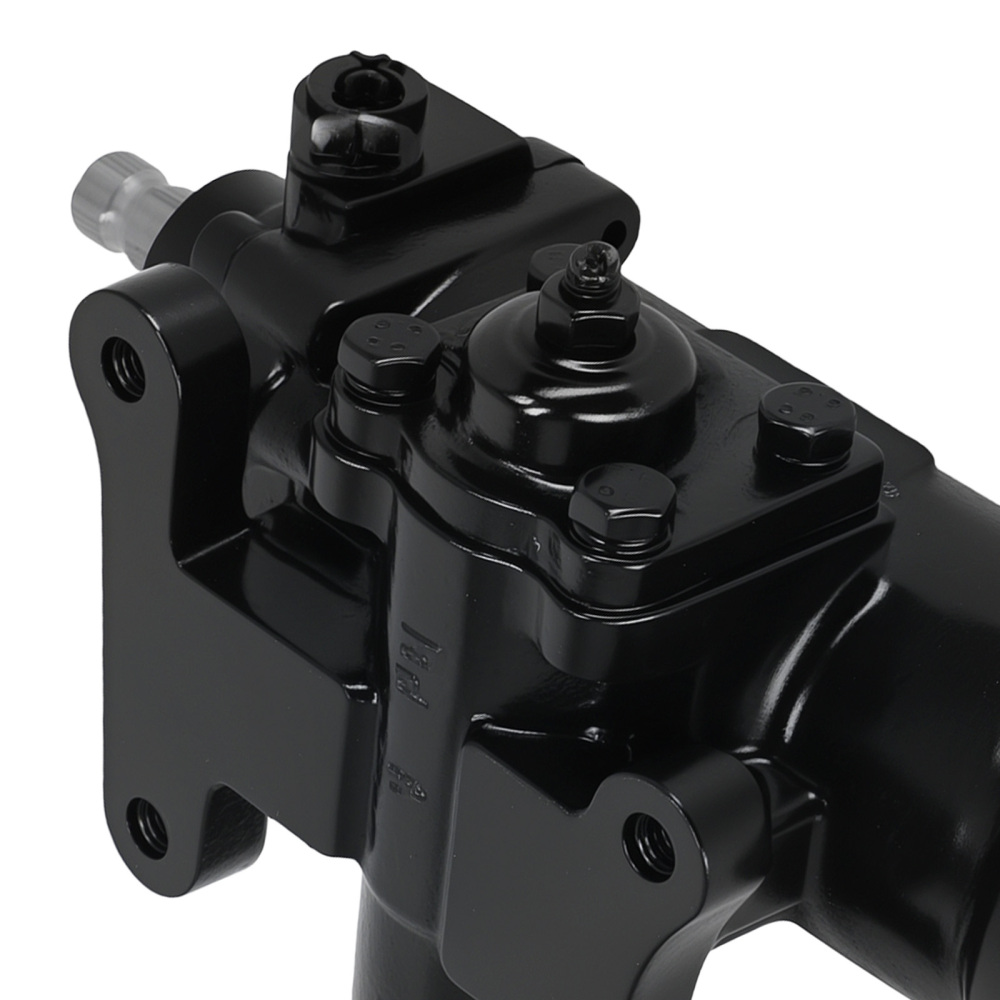

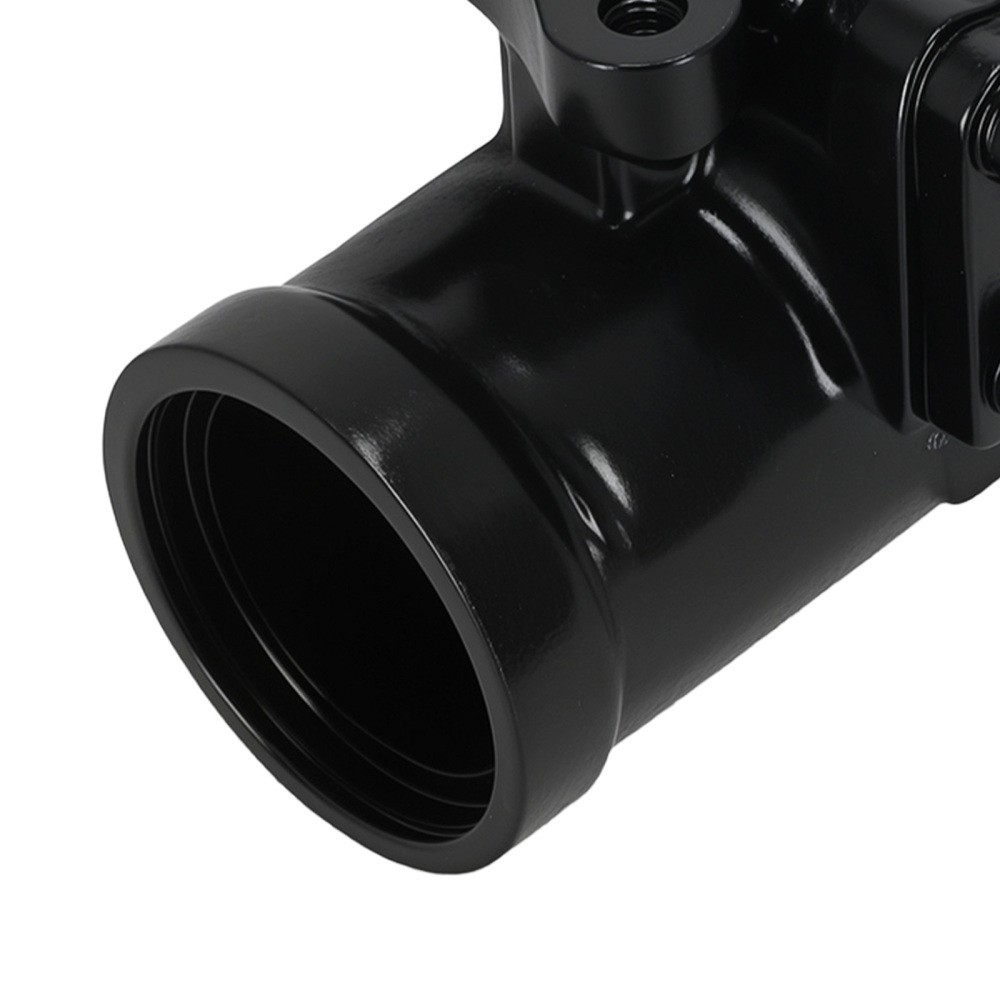

Showing as the picture

Note

1.Please carefully check whether your OE and the product are compatible to avoid purchasing errors.
2.To avoid operating errors, we recommend professional installation.
3.If you are not sure about the compatibility, or you are looking for other car parts, just contact us. We are happy to offer any help. Below information will help:
VIN(Vehicle Identification Number), detailed car model, part number and photos of the parts.
4.Product appearance and finish may vary but fit and function remain the same.
