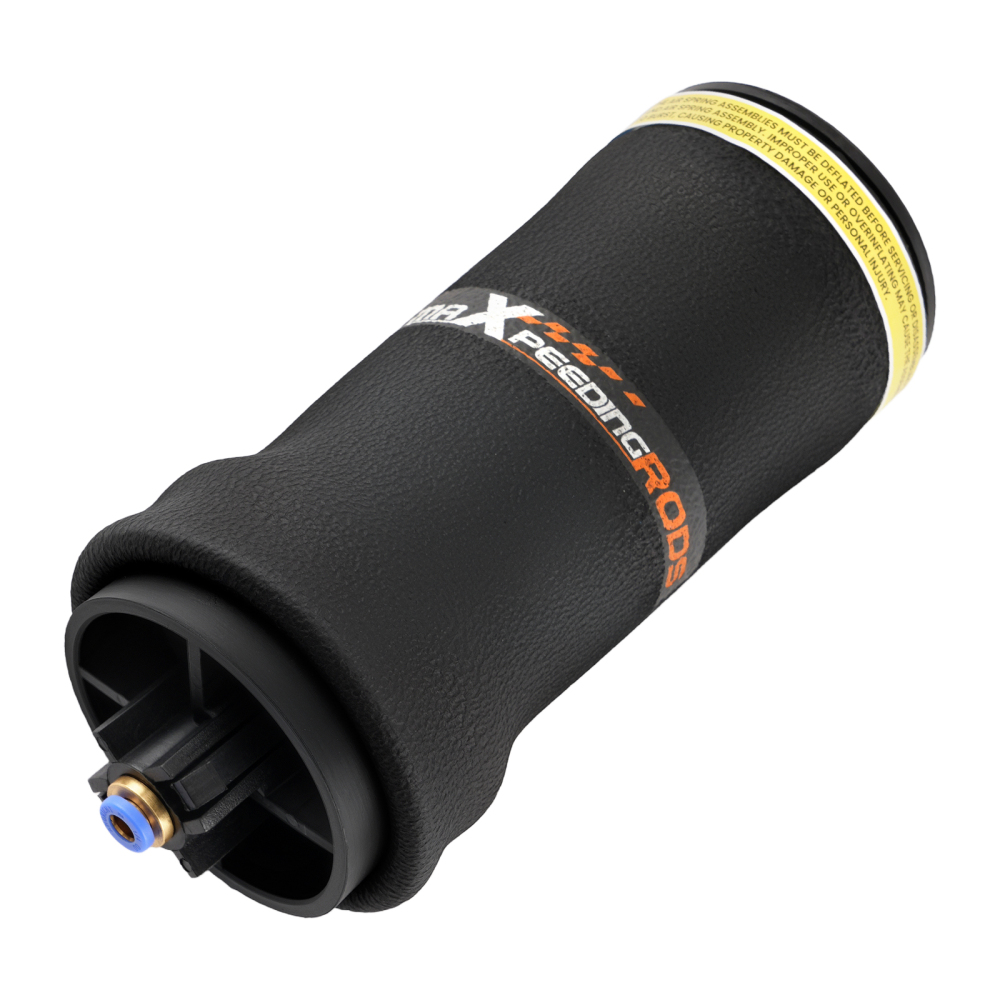

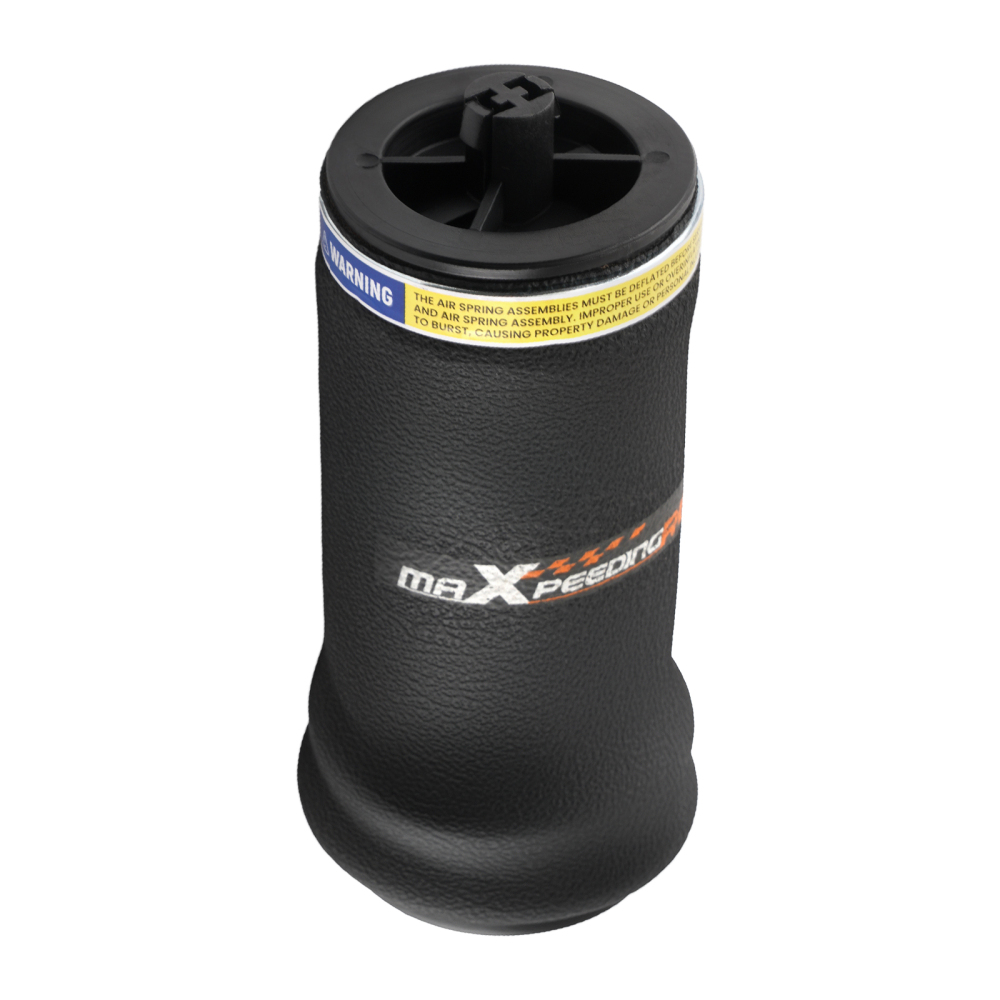

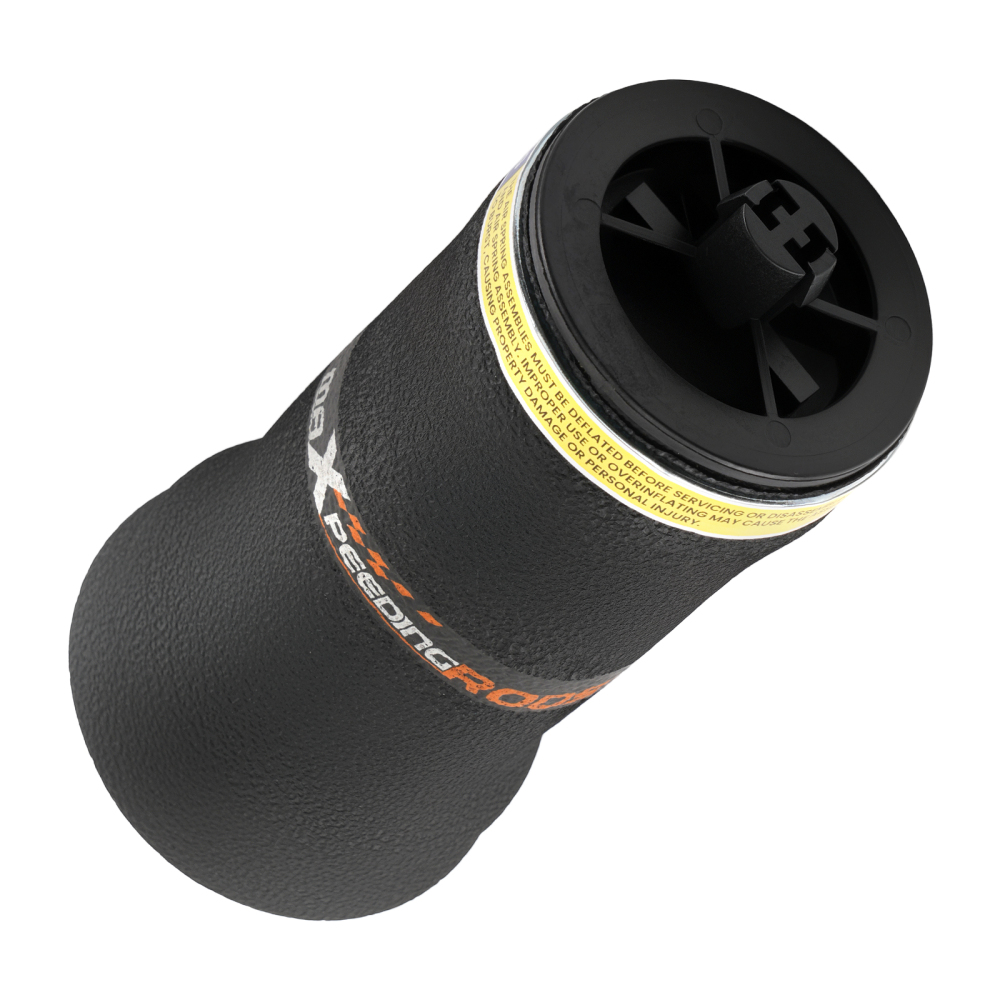

Pair Cab Air Spring Cabin Bag compatible for Kenworth AEROCAB (MID 1999LATER) Trucks

Application

Compatible for Kenworth AEROCAB (MID 1999 & LATER) Trucks

OE/Part number

Compatible for Continental ContiTech SC29-Y109
Replacement for ContiTech 69624, 69624, SC29Y109, SC29‑Y109
Replacement for Automann ABSZ70-7109
Replacement for Sampa 501.102‑01
Replacement for Firestone 7109, W023587109, W02‑358‑7109, W026007109, W02‑600‑7109, W026007121, W02‑600‑7121
compatible for Kenworth AEROCAB (Mid 1999 & later)
Compatible for Kenworth T811000
Replacement for Link 11020077, 1102‑0077, 1102K077, 1102‑K077, 1104K002, 1104‑K002
Replacement for Triangle AS-5109
Replacement for HDV7109
Replacement for HD7109
Replacement for Roadleveler T811000

Specification

Condition: Brand New
Fitment Type: Direct Replacement

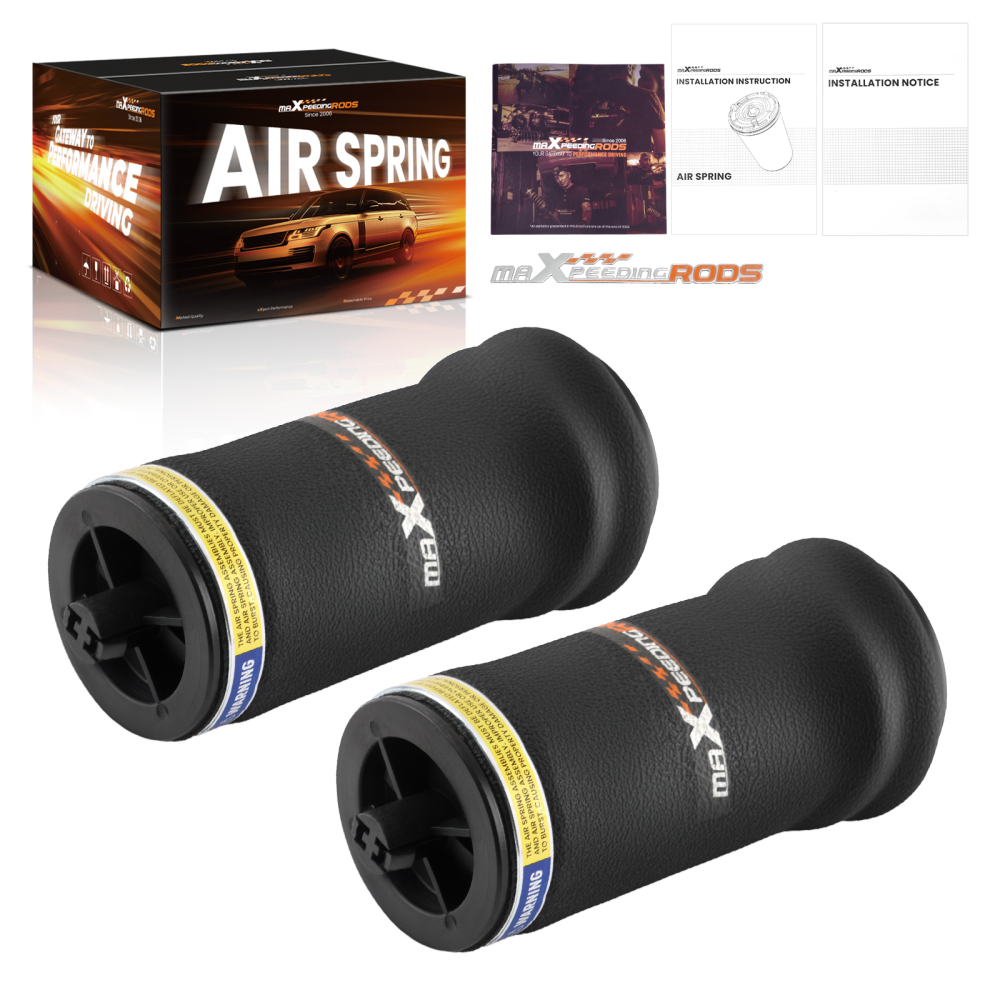

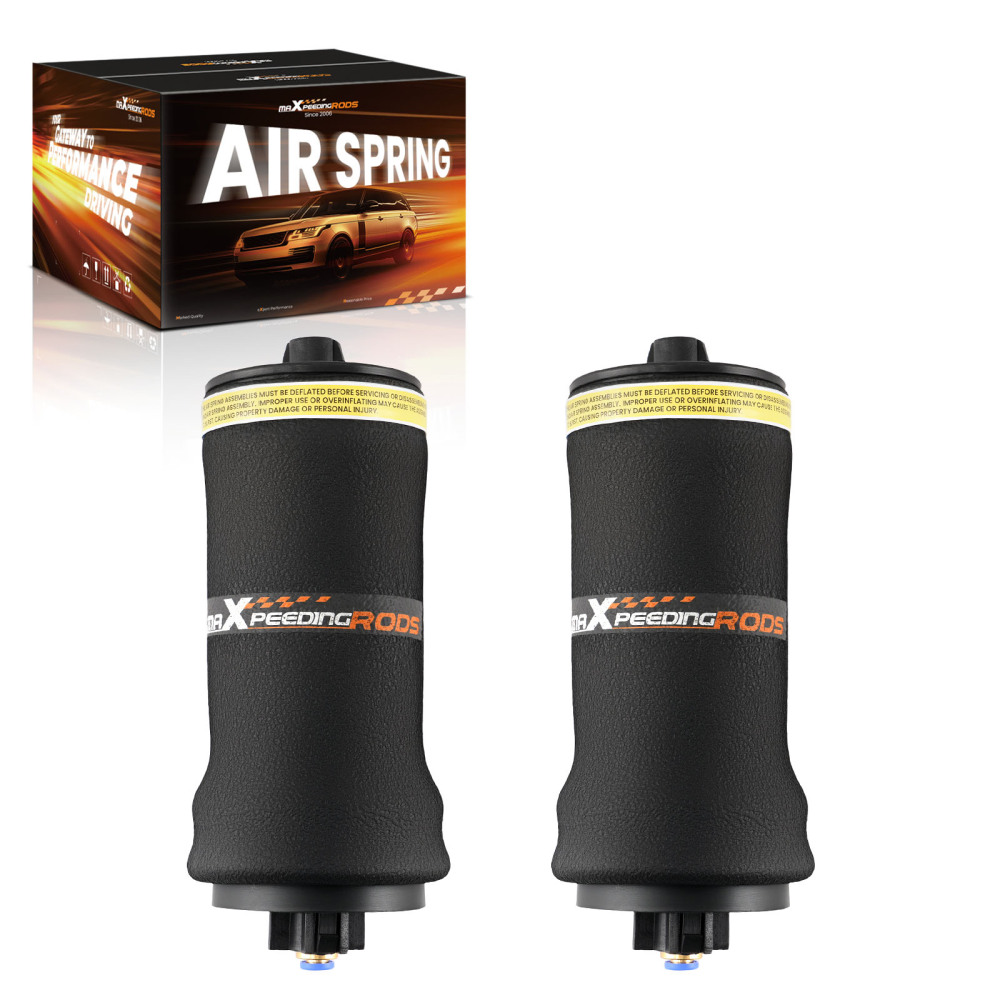

Quantity: 2x Cab Air Springs
Placement on Vehicle: Truck cabin sleeper
Greasable or Sealed: Sealed

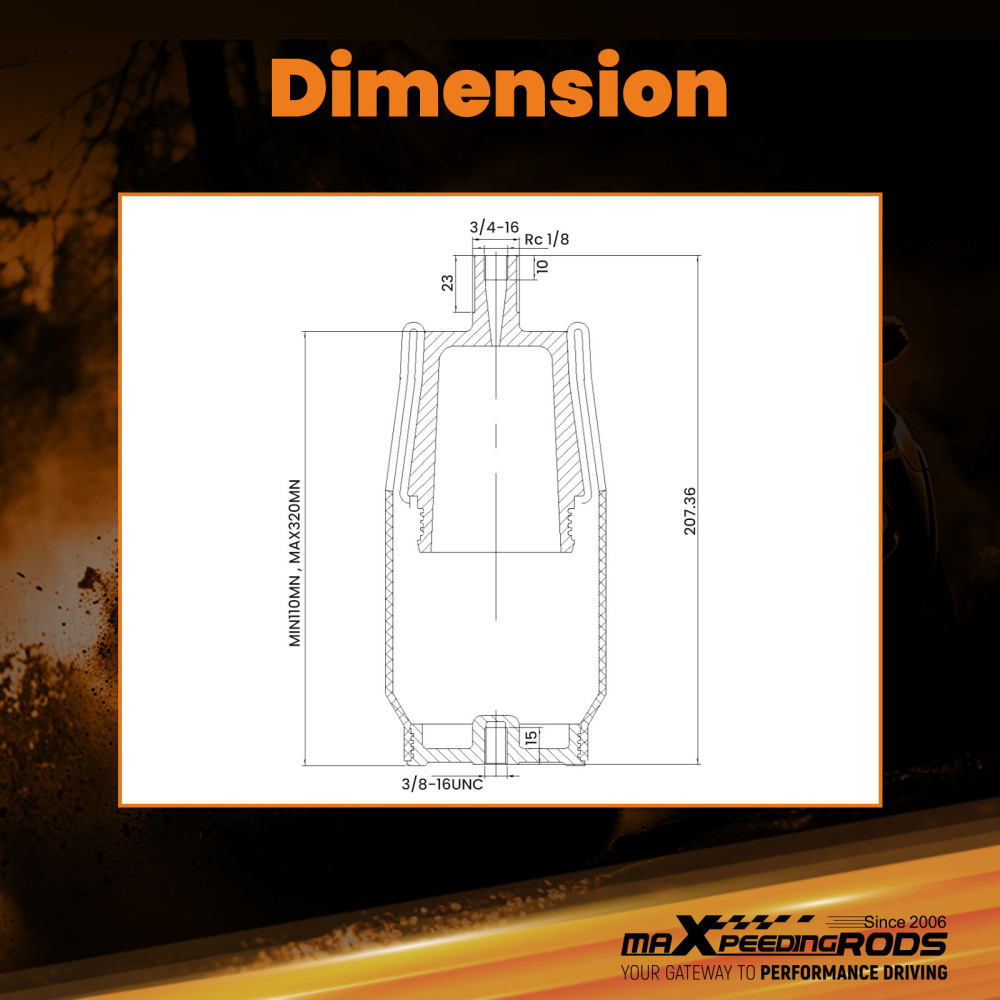

Extended Height: 210±10mm
Compressed Height: 105±10mm
Work Stroke: 105±10mm
Operating Pressure : ≤2.0Mpa
Package Length, width and height: 24*21*13cm/ 9.4*8.27*5.12 inch
Package Wight: 1.35 Kg / 2.98 LBS

Feature

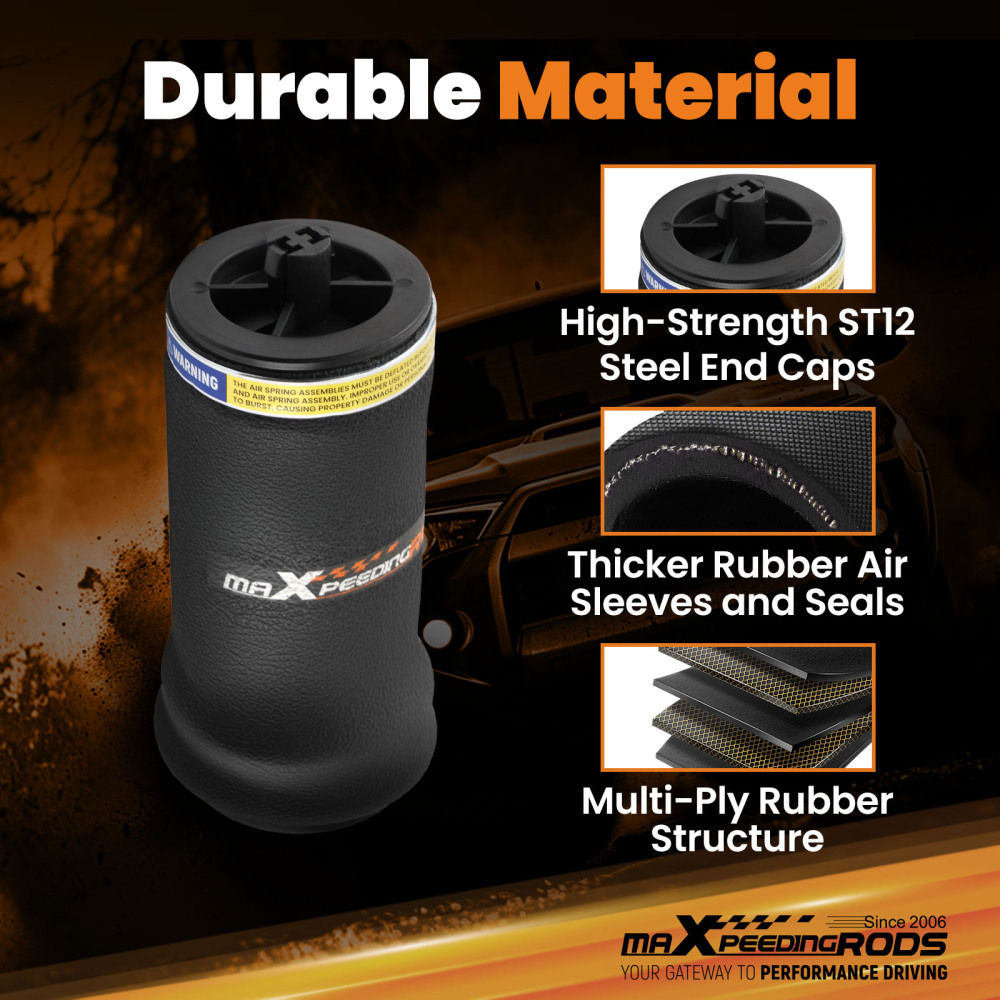

PREMIUM MATERIALS & TECHNOLOGY
Multi-ply air spring sleeve minimizes noise.
Heavy-duty crimping rubber and connection compatible for seat withstand 2 MPa+ pressure, preventing detachment.
UV-Resistant & Anti-Aging Rubber Compound for Long-Lasting Durability.

RIGOROUS TESTING
100% air tightness tested.

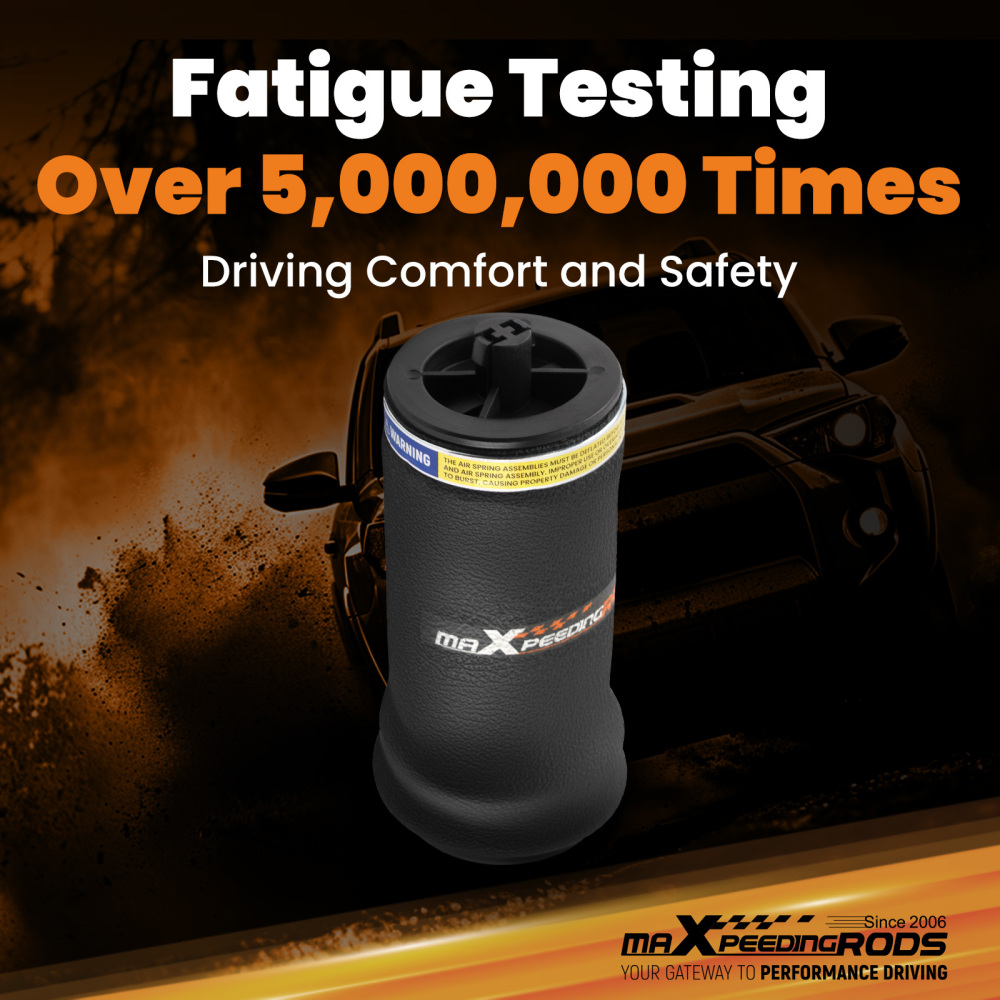

Endurance tested over 5 million cycles.
Operates in -58°F (-50°C) to 302°F (150°C) extremes.

TRUSTED QUALITY
Manufactured to strict standards and ISO 9001 compliant.
Precise OE fit and performance.

PERFORMANCE & COMFORT
Effectively isolates road vibrations for improved cab comfort.
Reduces driver fatigue and enhances driving safety.
Protects cab structure and mounting components from shock damage.
Provides stable and consistent damping performance.

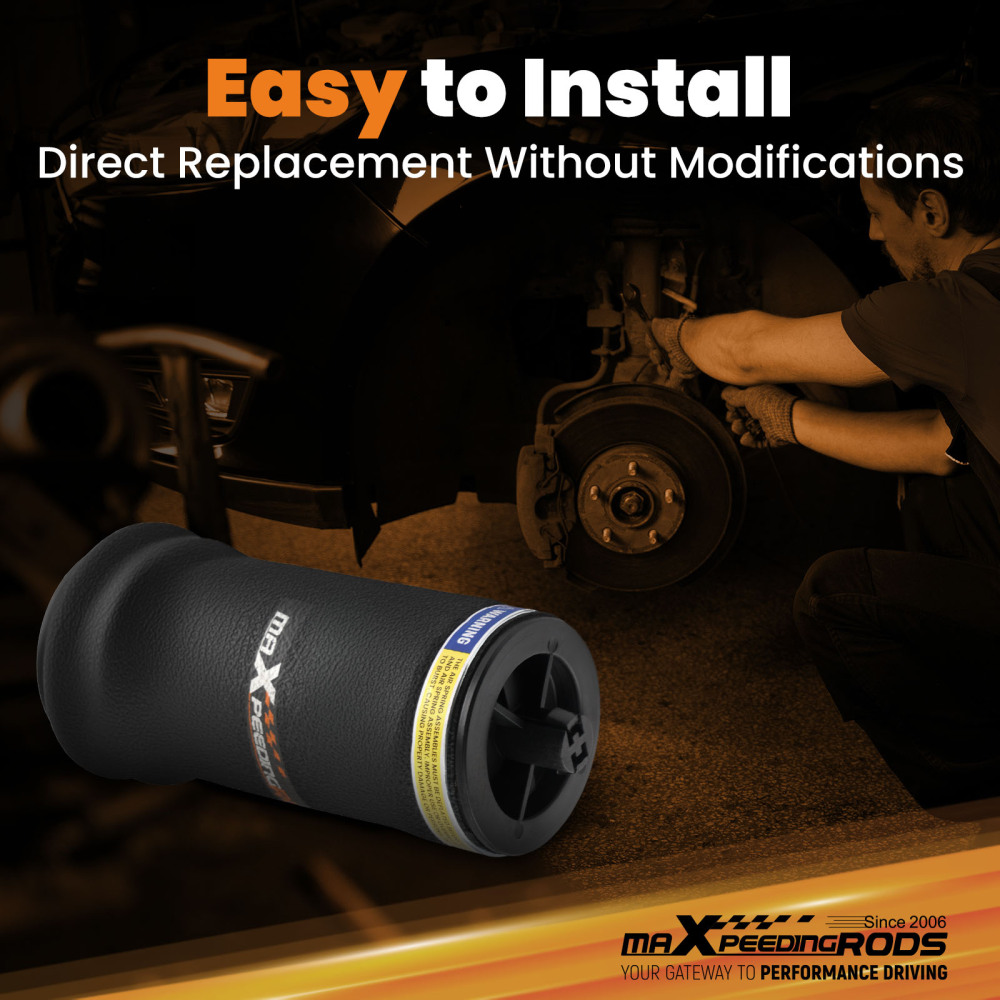

Easy installation with no special tools required.

INSTALLATION TIPS
Replace the old air fitting with a new one, insert the air tube into the air fitting cap to establish a proper connection.

ADDITIONAL BENEFITS
Reduces vibration-related wear on cab and vehicle components.
Improves driver comfort and reduces fatigue during long hauls.
Substantially reduce breakage and maintenance of other vehicle components.
