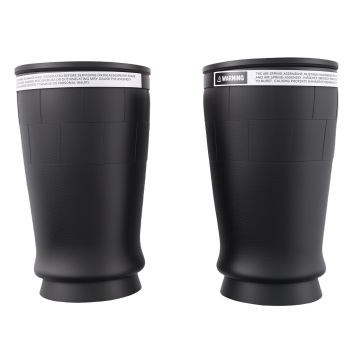

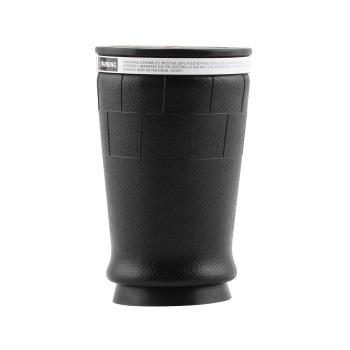

Pair 2500 lb 1/2npt Single Port Air Suspension Bags + Air Line + Air Fitting

Package Includes(based on you choose under the tittle):

• Option 1: Only 2x Air Suspension Bags
• Option 2: 2x Air Suspension Bags + Air Line + Fitting + Inflation Valve

Standard 2500 lb Air Spring Bag Part 1/2"npt Single Port Air Shock Suspension

Fit for:

Universal Air Suspension Bags for For most compatible for mini trucks, compact pickups, classic cars & hot rods, and custom suspension setups

Please confirm whether the air spring bag parameters below (especially height, diameter, bolt specifications) are consistent with ours before purchasing.

Features:

1、OEM Product: Easy to install
2、Test more than 5,000,000 times: Durable and Safe
3、24 hours air tightness test ≤0.02MPa: Air Tightness Guarantee
4、Temperature Range ≥ -40℃/ ≤ 70℃: Premium Natural Rubber Material

Item Specifications:

• Condition: 100% Brand New
• Loading cap. at 3.0bar:2.88KN
• Loading cap. at 7.0bar:7.25KN
• Placement on Vehicle: Left,Right,Front,Rear
• Air spring bag capacity: 2500LBS
• Min height: 72mm±5mm
• Max height: 218MM±5mm
• Working stroke: 146mm±5mm
• Single air port size: 1/2NPT
• Air fitting elbow connector: NPT1/2-14-Φ6
• Install hole size: 3/8-16UNC
• Top plate diameter:113mm
• Air spring bag body diameter:148mm±2mm

Packages(based on you choose under the tittle):

• 2 x Heavy Duty Double Bellow Air Ride Suspension bag
• 1 x Air Line 10 m (1/4" OD)
• 1 x Quick-connect fitting 1/4"
• 2 x Air fitting 1/2” NPT - 1/4"
• 2 x  Inflation valve 1/4"
• 1 x Air Line Cutter

Notice

- These air suspension bags are aftermarket ones. They will replace the original air spring bags.

- Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts.

-Instruction is not included. Professional installation is recommended

-Contact us please for whatever we can help
