Engine Oil Pan for Paccar MX13 MX-13 EPA17 2233369PE 1883597PE Steel Direct Fit

Application

For Paccar MX13 MX-13, EPA17 engine

note：It does NOT have pre-drilled bolt holes on the metal edge.

OE/Part number

2233369PE, 1883597PE

Specification

Condition: 100% New
Material: Steel
Fitment Type: Direct Replacement
Type: Engine Oil Pan
Gasket or Seal Included：No
Drain Plug Included：Yes
Drain Thread Size：M26x1.5mm
Installation Hardware Included：No
Package Contents：1x Engine Oil Sump Pan
Sump Type：Wet
Sump Location：Front
Maximum Depth (IN)：13.6220 IN
Maximum Width（IN）：14.9606 IN
Minimum Depth (IN)：13.5039 IN
Color：Black
Crank Shaft Wiper Included：No
Oil Level Sensor Port：No
Pickup Included：No
Windage Tray Included：No
Dipstick Port：No
Engine Oil Cooler Return Fitting：No
Kick Out Type Pan：No

Package included

1x Oil Pan

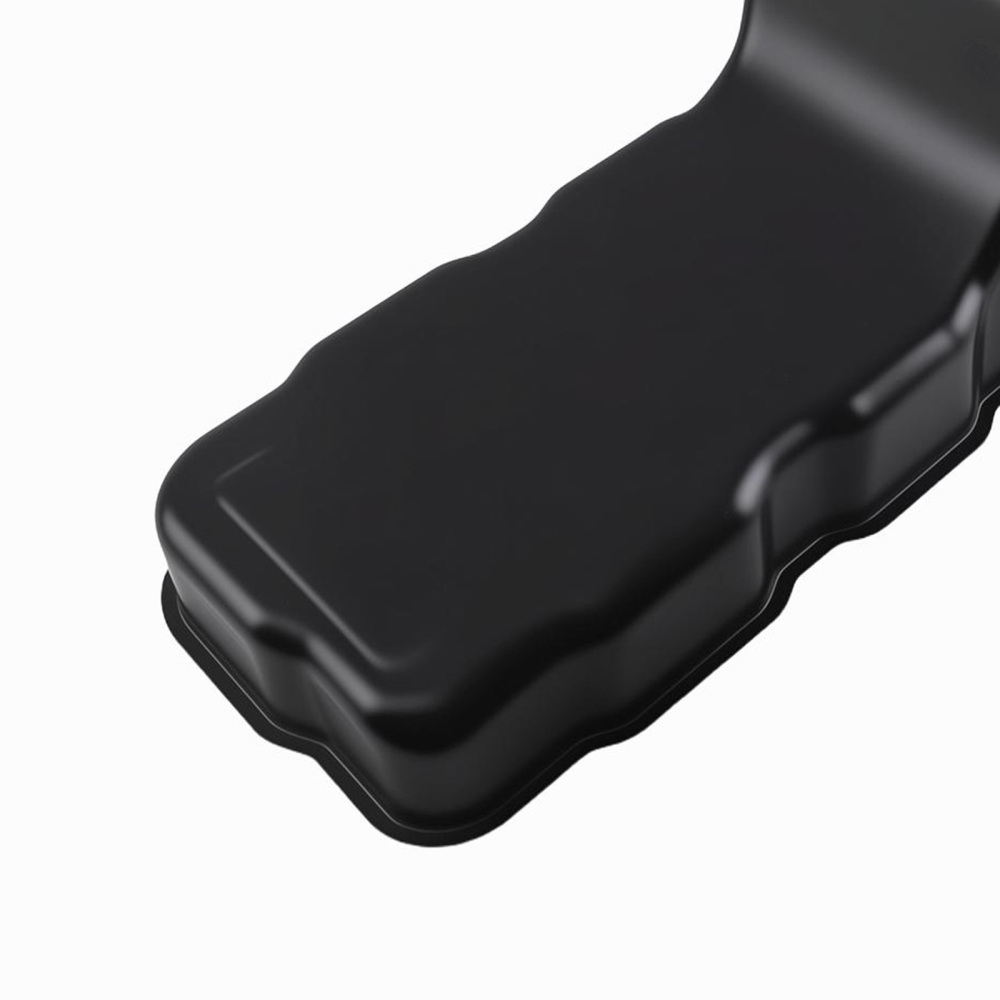

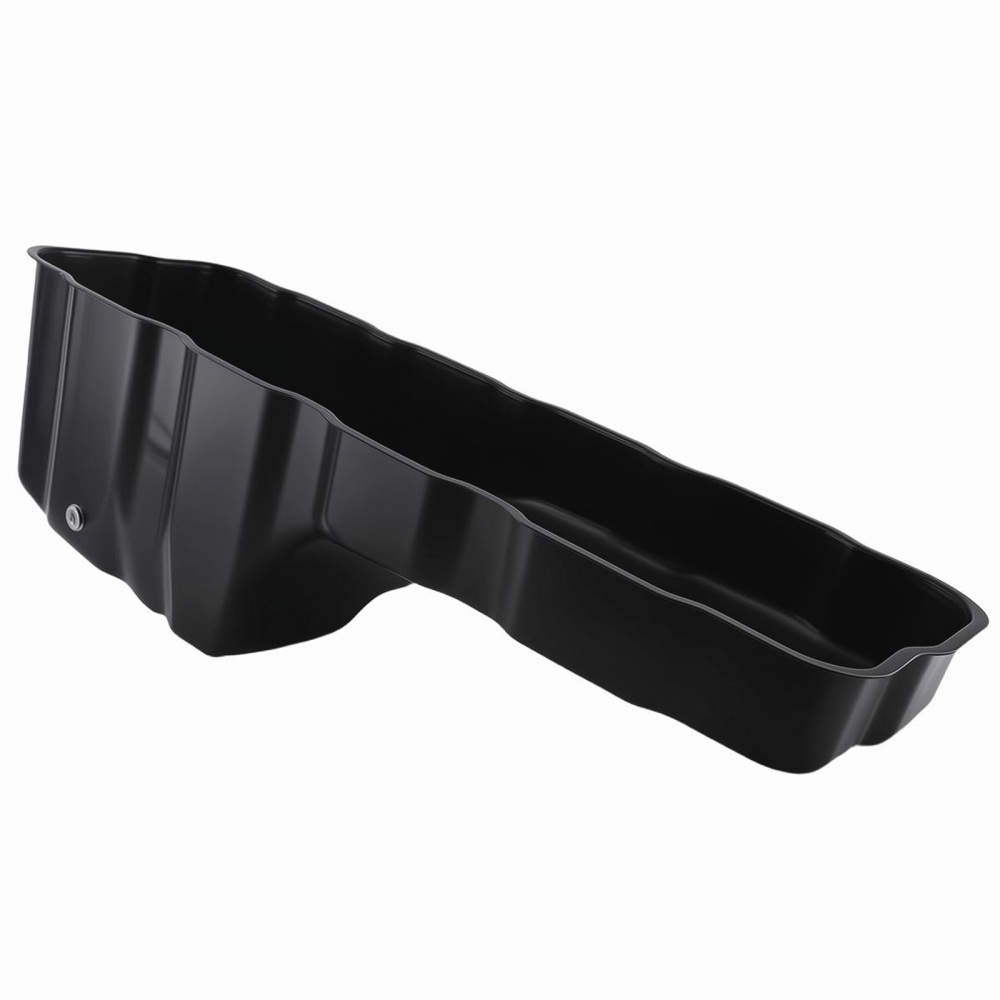

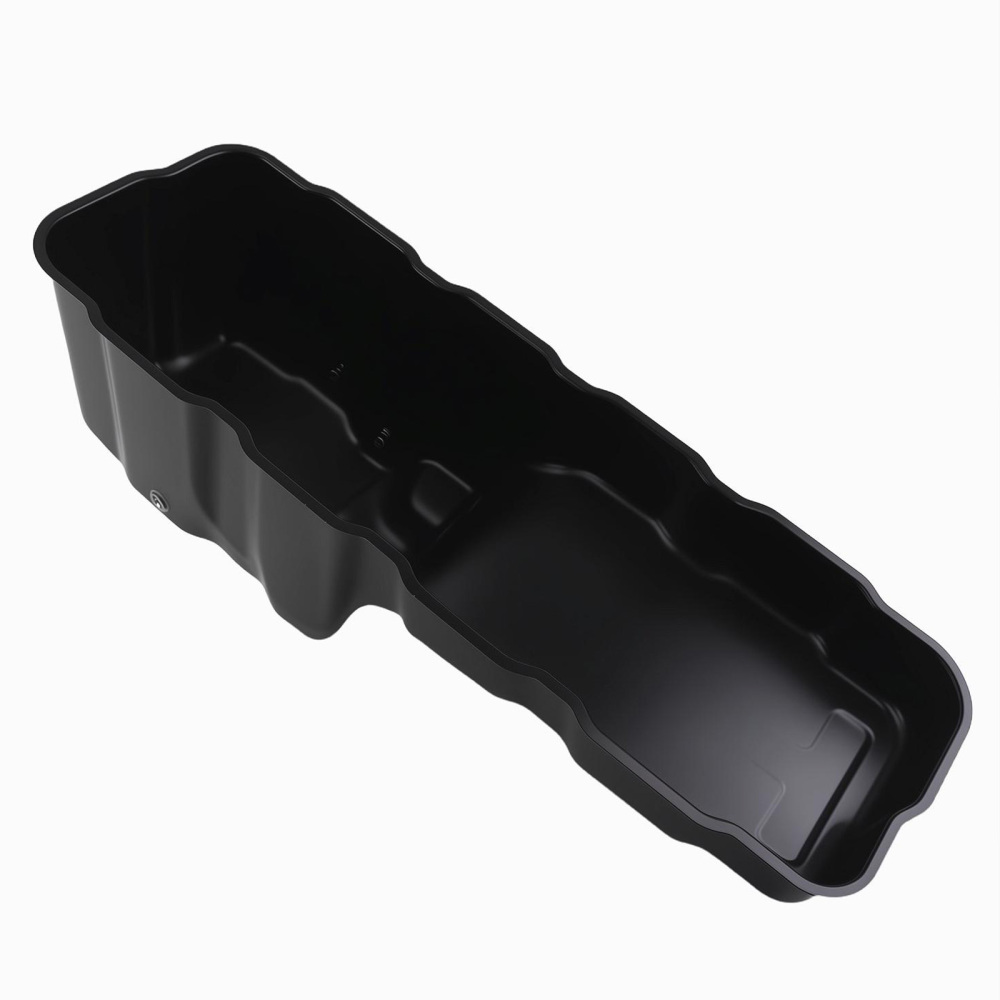

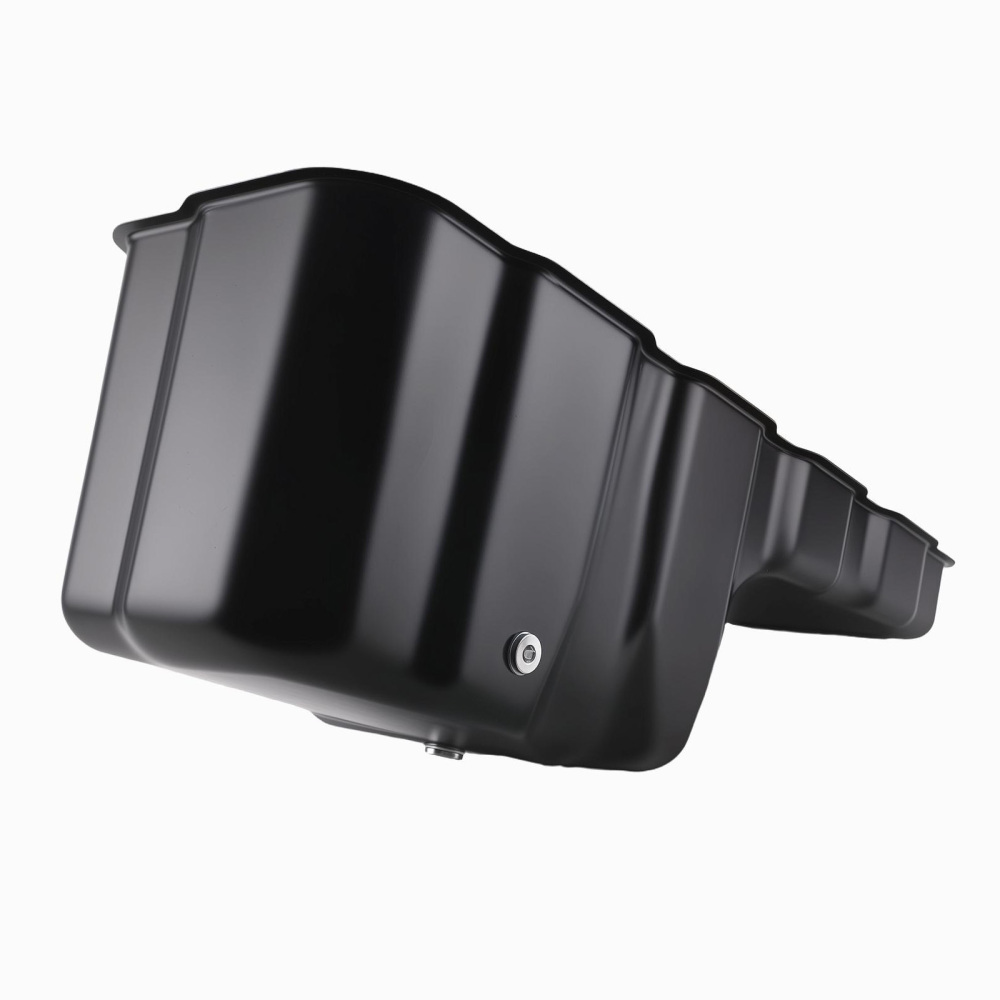

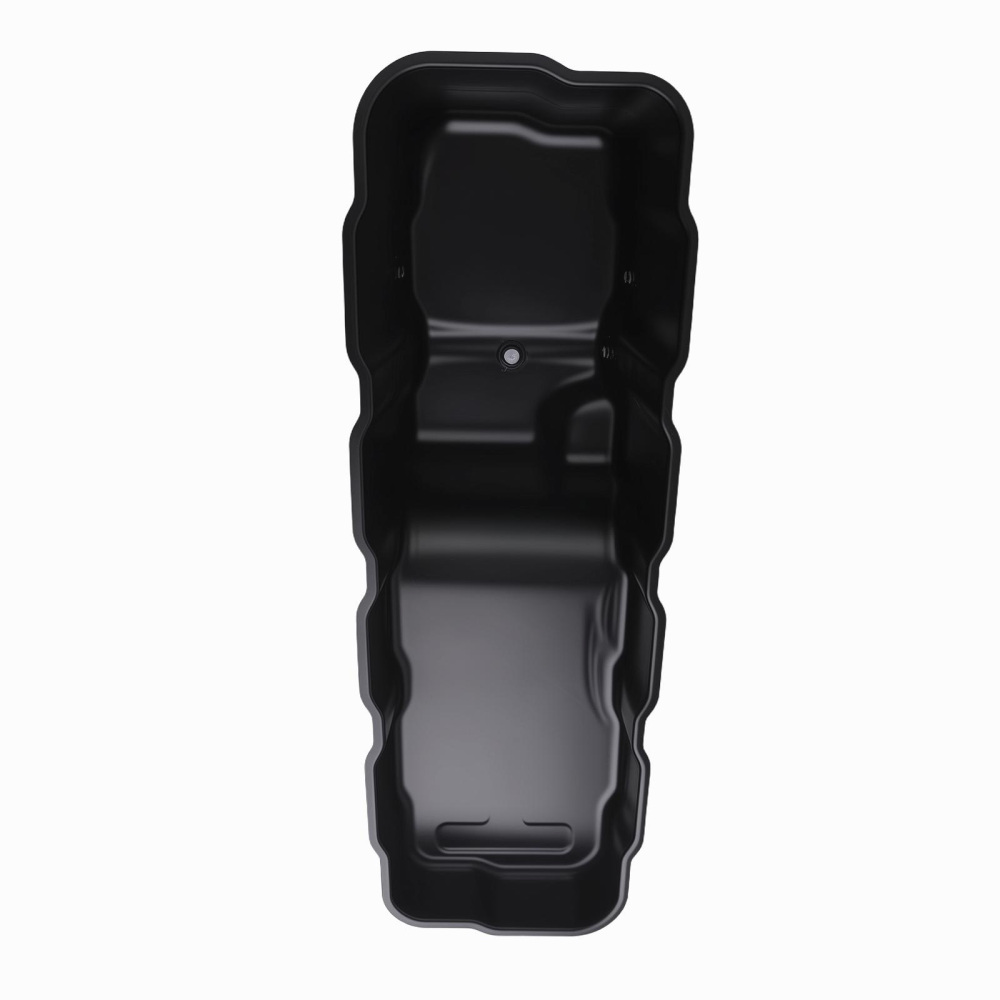

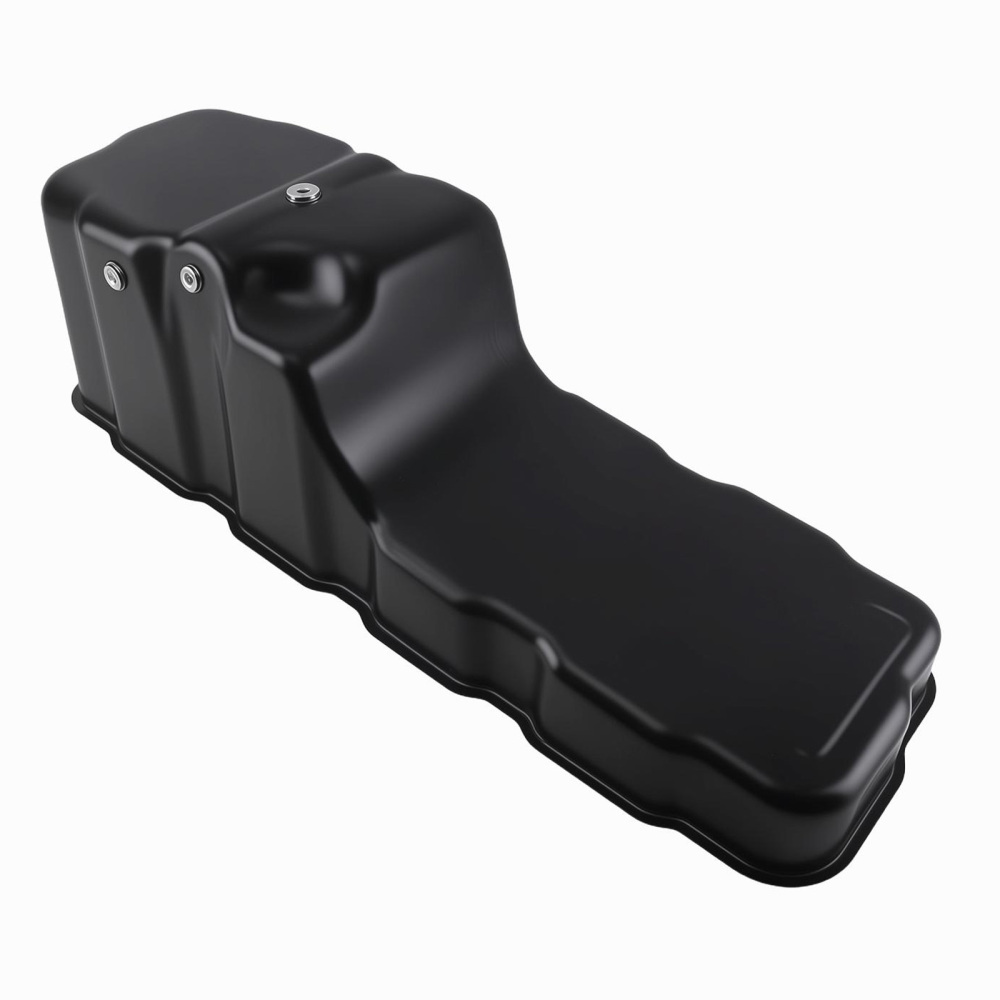

(Showing as the picture)

Feature

1.This is a high quality aftermarket parts.
2.This product comes with best after-sales service.

Note

Installation Notes

• Gasket Requirement: Installing this steel oil pan requires the specific oil pan gasket seal 1925946PE.

• Composite-to-Steel Conversion: If your truck is currently equipped with a composite (plastic) oil pan and you are upgrading to this steel version, you may need an additional structural Fixing Frame (part number 0963981PE) to secure it properly.
