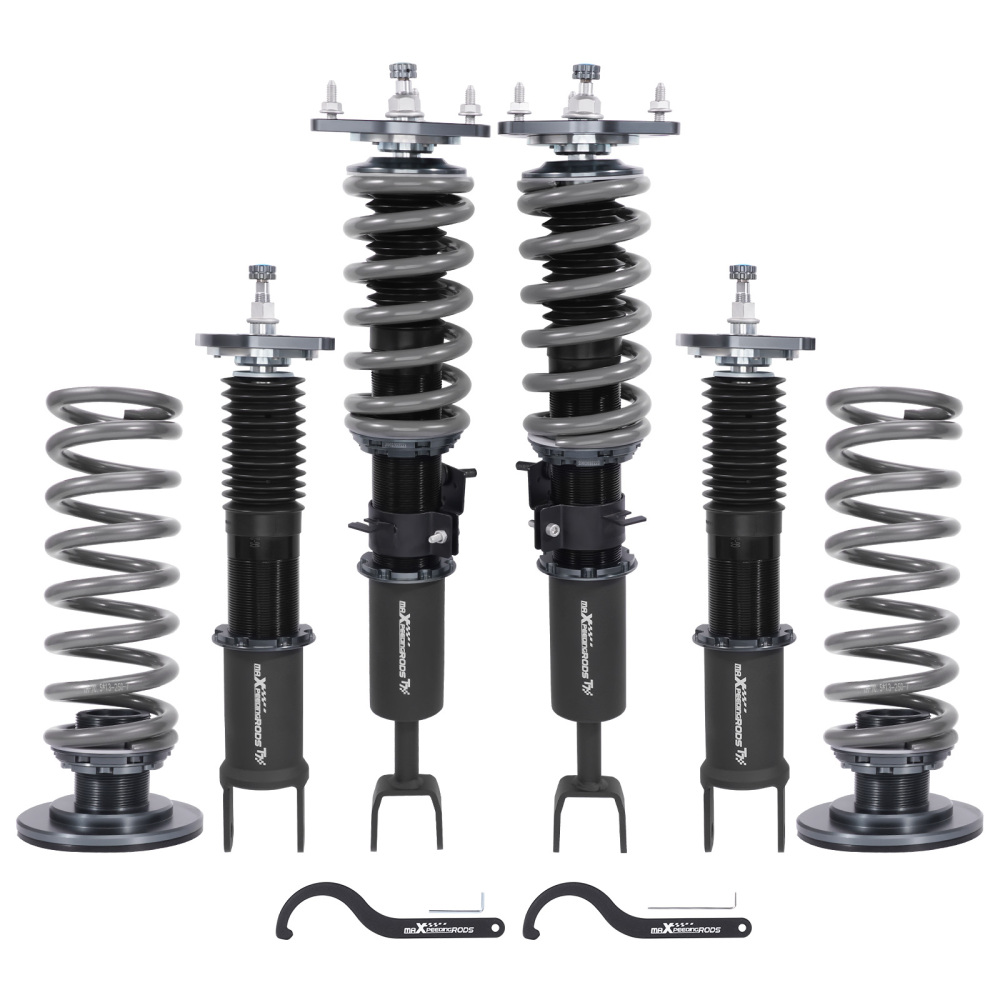

MaXpeedingrods T7 Racing Coilovers Suspension Kit compatible for Infiniti G35 RWD 2003-2006

Introduction

maXpeedingrods T7 coil-overs are designed for daily street use and Junior track use. It features racing damping oil, an upgraded racing spring, height adjustable, and an adjustable camber plate( applicable for some vehicles), which offers you a lowered stance and enhanced handling.

Application

Compatible for Nissan 350Z Coupe RWD 2003-2008 (Z33)
Compatible for Nissan 350Z Roadster Convertible RWD 2003-2008 (Z33)
Compatible for Nissan Skyline Coupe RWD 2003-2007（V35)
Compatible for Infiniti G35 Coupe RWD 2003-2007 (V35)
Compatible for Infiniti G35 Sedan RWD 2003-2006 (V35)
Note: Not for AWD models.

Specification

Damping adjustable: Available, 24 levels of rebound damping force
Camber adjustable: Not available
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

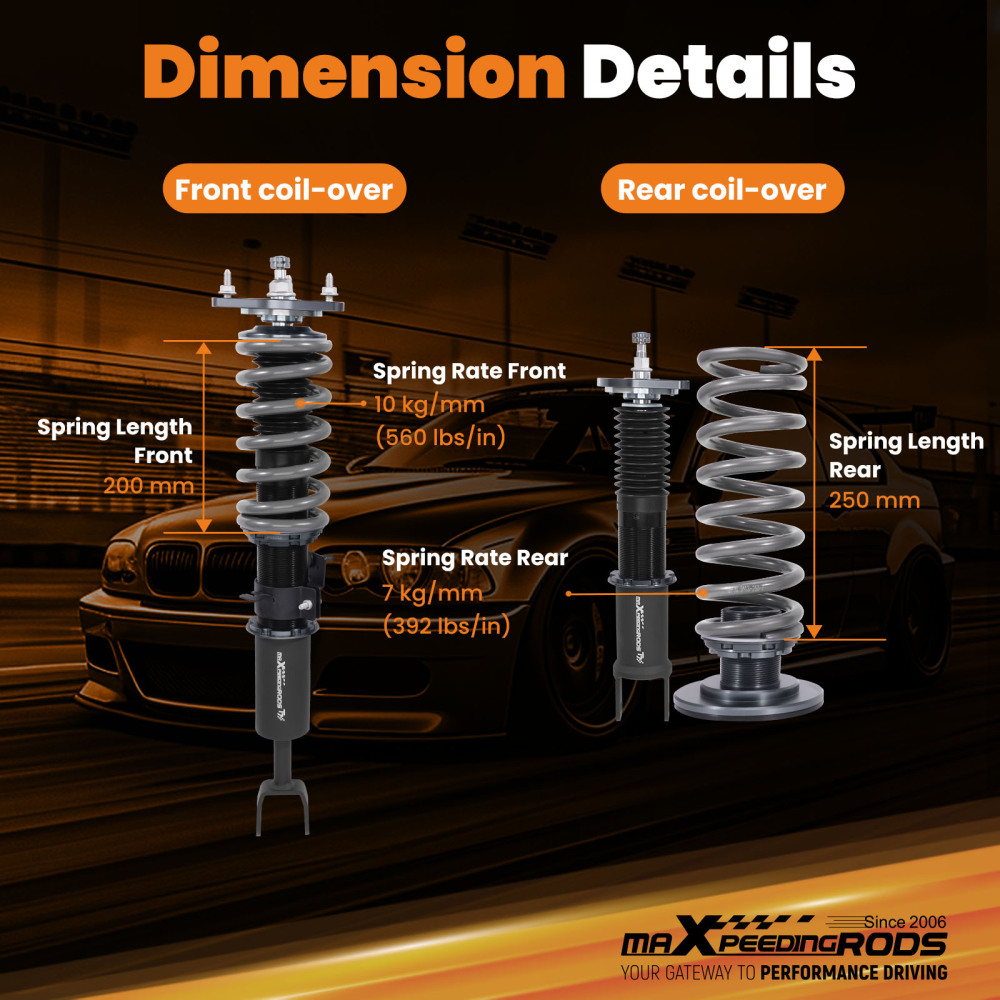

Spring Rate Front: 10 kg/mm(560 lbs/in)
Spring Rate Rear: 7kg/mm(392 lbs/in)
Front spring inner diameter: 70.5mm
Rear spring inner diameter: 70.5mm
Spring length Front: 200mm
Spring length Rear: 250mm
Spring Preload advised: 7-10 mm
Color: Blue body with black spring

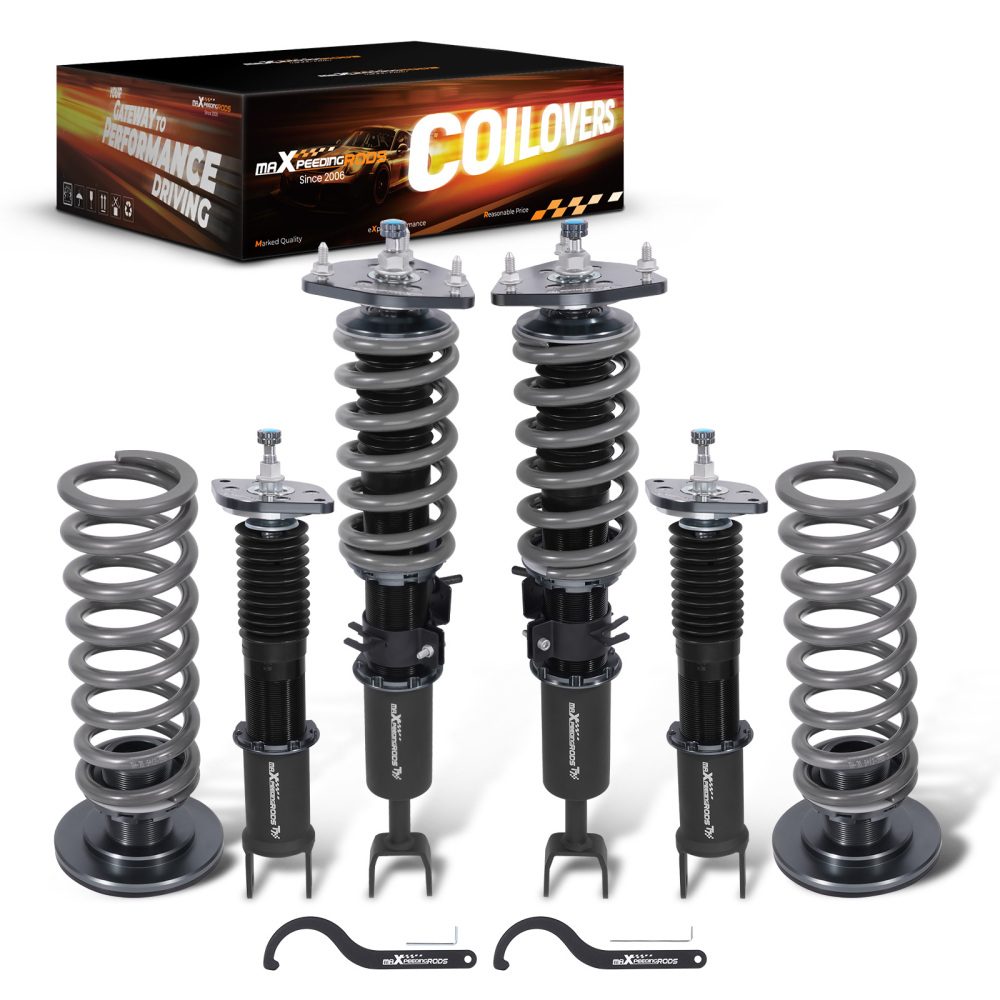

Package included

Package included：
2x front coil-overs
2x rear coil-overs
2x C spanners
2x Allen wrench
1x sticker

Dimension

Package size : 70.3*50.8*20.1 cm
Weight: 28700 g

Feature

1)Professional racing technology for junior track use and daily street use, providing better performance and enhanced handling.
2)Lowered height adjustment from 25-75mm(depending on vehicle models) which adds a more aggressive stance and a lower center of gravity.
3)Adjustable pre-load spring tension reduces shaking motion.
4)A 24-level adjustable damper allows you to dial in your coil-overs system perfectly.
5)CNC machined aluminum top mounts and lockers have excellent strength and save weight.
6)Highly durable and reliable heavy-duty steel lower mounts.
7)All inserts come with fitted long rubber boots to protect the damper and be durable.
8) Twin-tube structure provides excellent handling & control characteristics for most driving conditions.
9)Corrosion finish anodized aluminum and powder-coated carbon steel parts with a matt-finished surface.
10)Every part was tested on our professional machine before being assembled and tested by our professional racers on the road.
11)Clean room assembled maintains a higher level of accuracy and reliability.

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
